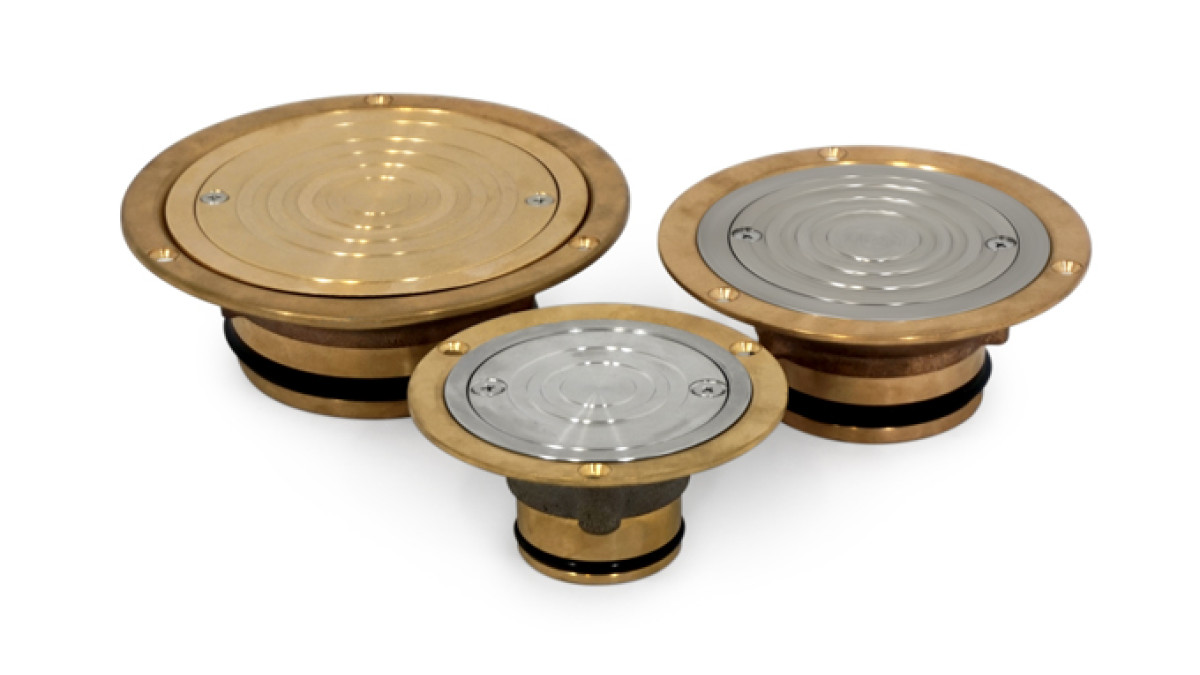

Cast Bronze Vinyl Cleanout
Description

Allproof's vinyl Cleanout drain is ideal for commercial projects requiring access to buried pipe work under vinyl floors. The flange is rebated into the floor and vinyl dressed down into it, our clamping ring then secures the vinyl in place and the Cleanout lid completes the system.

Key Features
  • Bronze body spigot fits inside pipe riser with o-ring seal.
  • Finish options: Stainless steel, brass, chrome on brass.
  • Suit pipe size 50mm to 100mm.
  • O-ring seal to prevent escape of odours from the drainage system.
  • Anti-slip grooves on lid.
  • Lockdown screws.
  • Security screw option available.
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Ideal for commercial projects requiring access to buried pipe work under vinyl floors
  • Suit pipe size 50mm to 150mm
Limitations on Use
  • If cleanout is located inside a building a lid with seal must be selected as per G13/AS2 Figure 10.
  • The following product apply to this install scenario — BT100, BT PVC, Cast Bronze Vinyl Cleanout, Vinylrite Cleanouts.
  • All products are applicable to external applications.
Statement of Building Code Compliance
  • NZBC G13/AS2: Allproof cleanouts provide the ability to install an inspection point / rodding point to drainage systems in accordance with clause 5.7 and Figure 10.
  • NZBC G13/AS3: Allproof BT100, BT PVC, Cast Bronze Vinyl Cleanout, Vinylrite Cleanouts provide the ability to install an inspection point / rodding point to drainage systems in accordance with clause 4.4 of ASNZS3500.2-2018 as referenced in G13/AS3.
  • B2/AS1 Durability: B2.3.1 — Allproof cleanout systems meet the requirements of B2.3.1 (a) not less than 50 years, (b) not less than 15 years and (c) not less than 5 years
In-Service History
  • Used country wide in commercial buildings
Documents
CAD/PDF Link
Product Warranty

0820

Brochure
Additional Information

A New Zealand owned company specialising in the manufacture of plumbing and drainage products and systems.
