Trespa's Weathered Cladding Facades Provide Unlimited Options

Trespa Meteon provides architects and specifiers with an attractive, durable and sustainable solution to create stunning facades.

Décortech have developed the Profix Cavity Rail Systems to be used with Trespa Meteon panels, utilising pressure equalised cavities that drain and ventilate, creating breathable cladding facades. Profix Systems have been developed in New Zealand for New Zealand conditions and have been tested to AS/NZS 4284, NZBC E2/VM1 and comply with the requirements of NZBC E2 and B2. Profix Fixing Systems have been developed for both residential and commercial applications and designed to meet all the requirements of the NZBC.

There are seven Profix systems available from the easy to install, cost-effective PXF to the seismically tested TSEQ. All systems come with documentation and durability appraisals.

The low maintenance of the Trespa panel means that the through life cost of the cladding is very low once installed as there is no requirement to repaint the panels. Trespa Meteon is robust and nonreactive, so no coating or protective cover is required. The closed, pore-free surfaces of dense HPL limit dirt accumulation, keeping Trespa Meteon smooth and easy to clean with just an annual wash-down.

Trespa Meteon panels are perfect for use as an innovative and functional ventilated facade system.

Used on its own or as a highlight in combination with other cladding materials, Trespa Meteon's wide choice of colours and finishes allows architects almost limitless design possibilities for striking, creative facades.

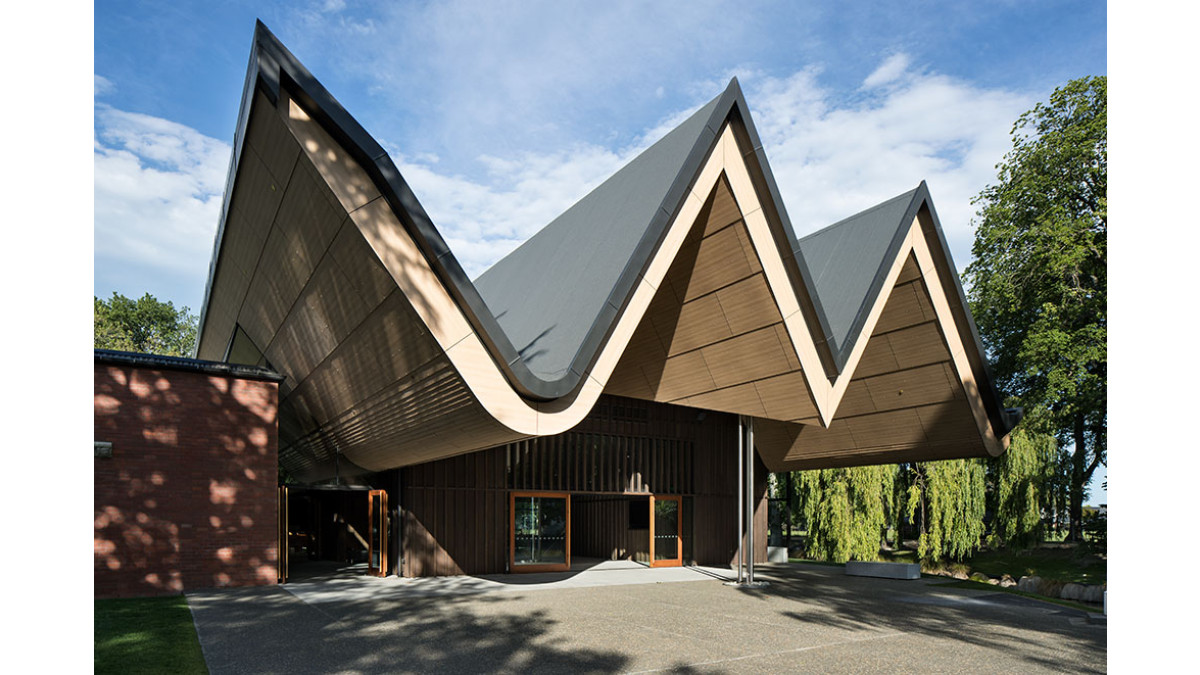

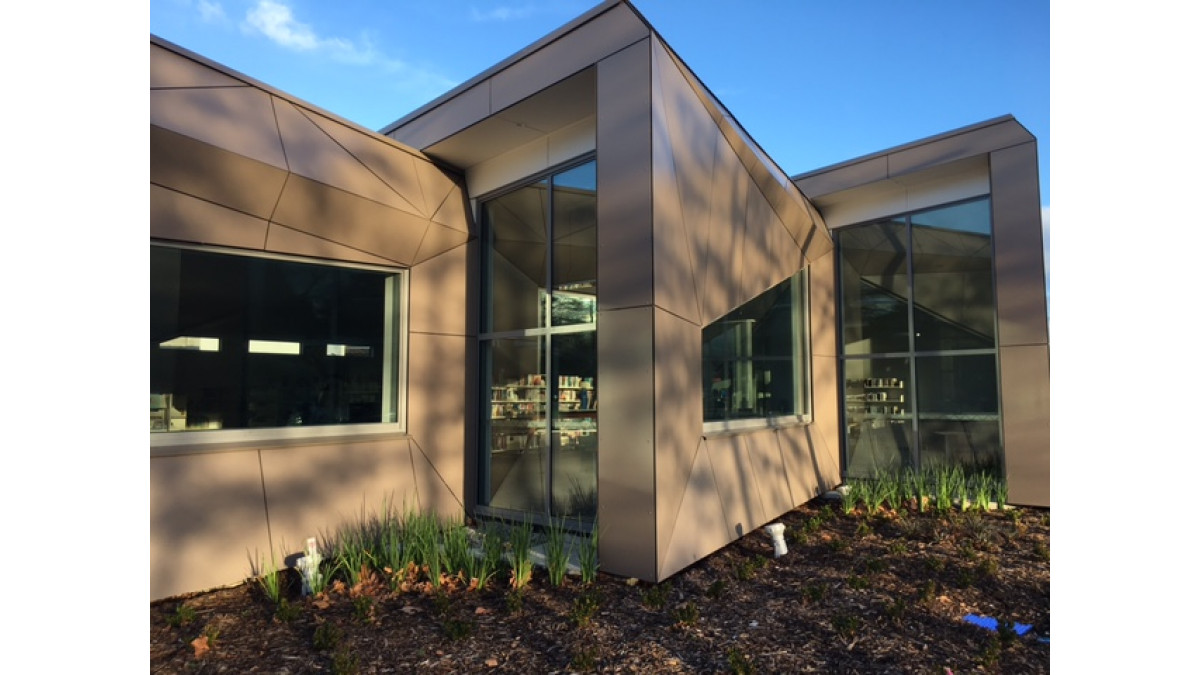

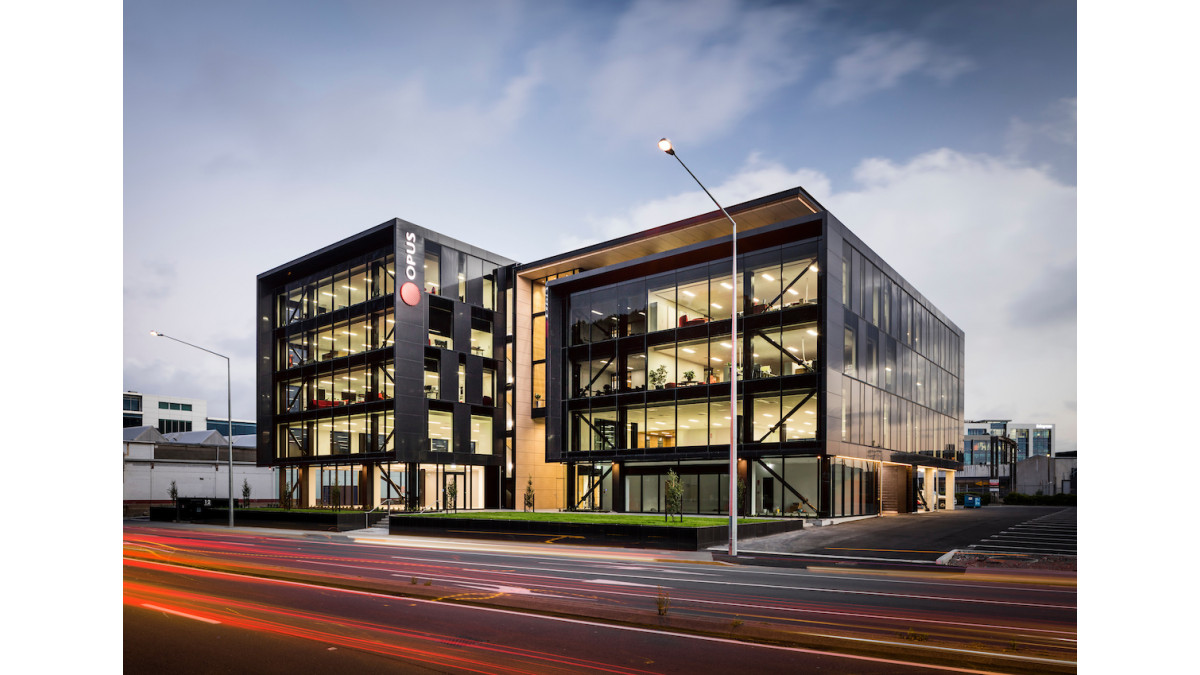

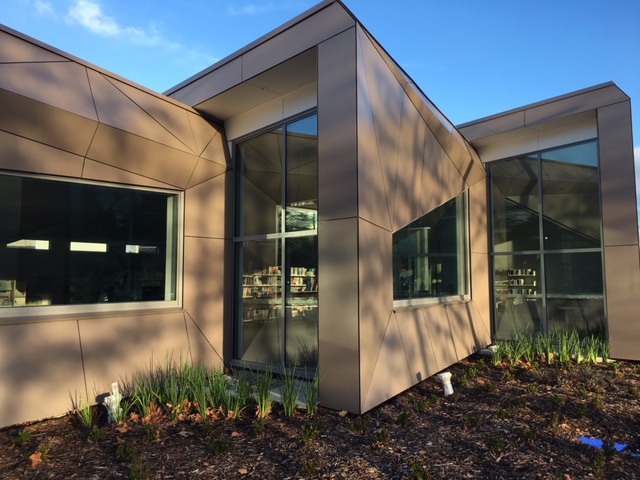

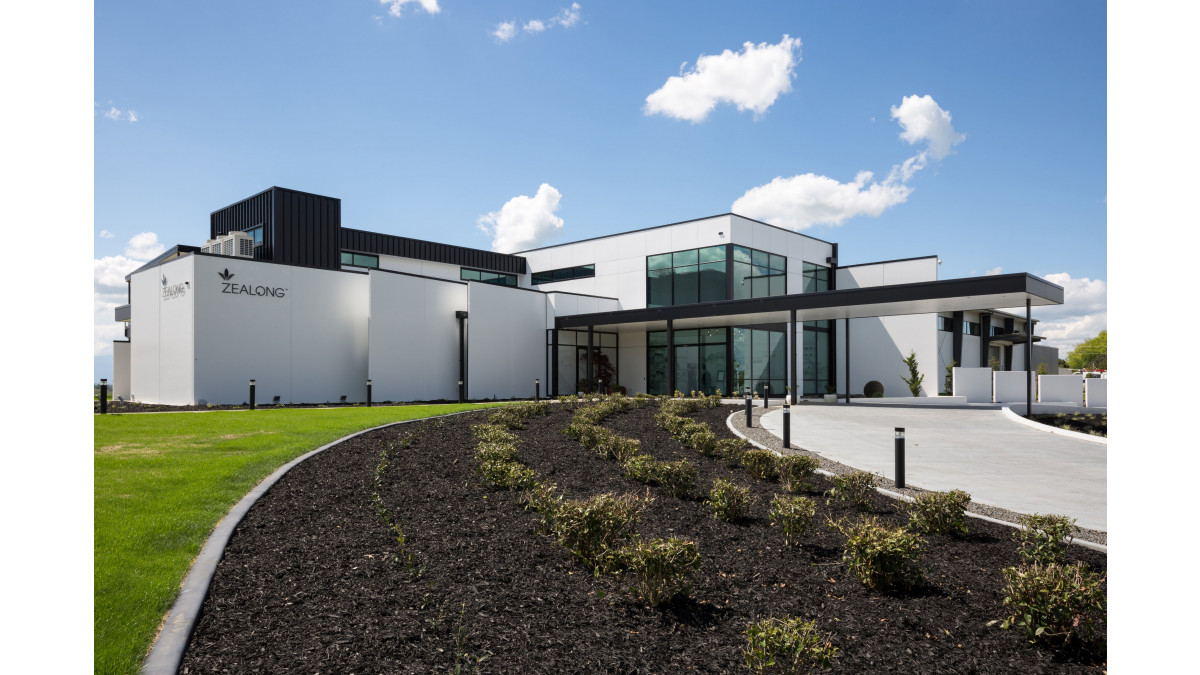

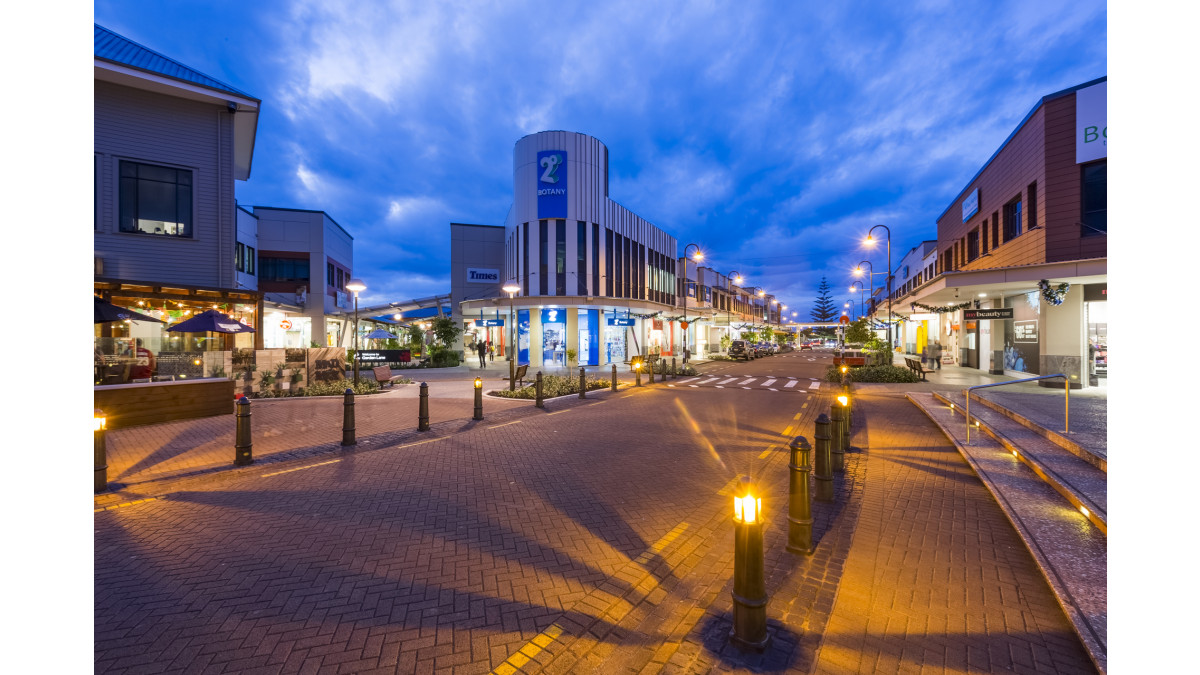

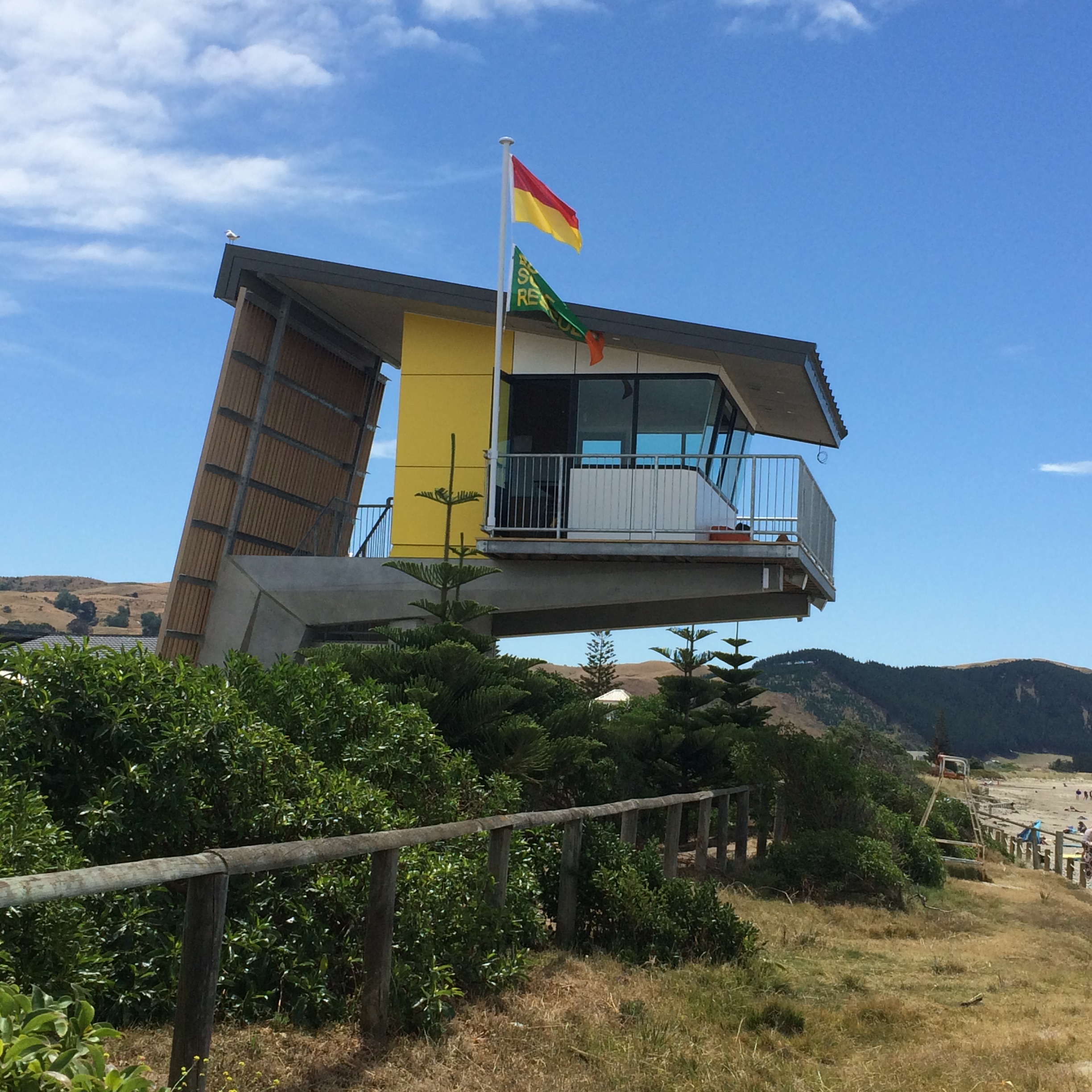

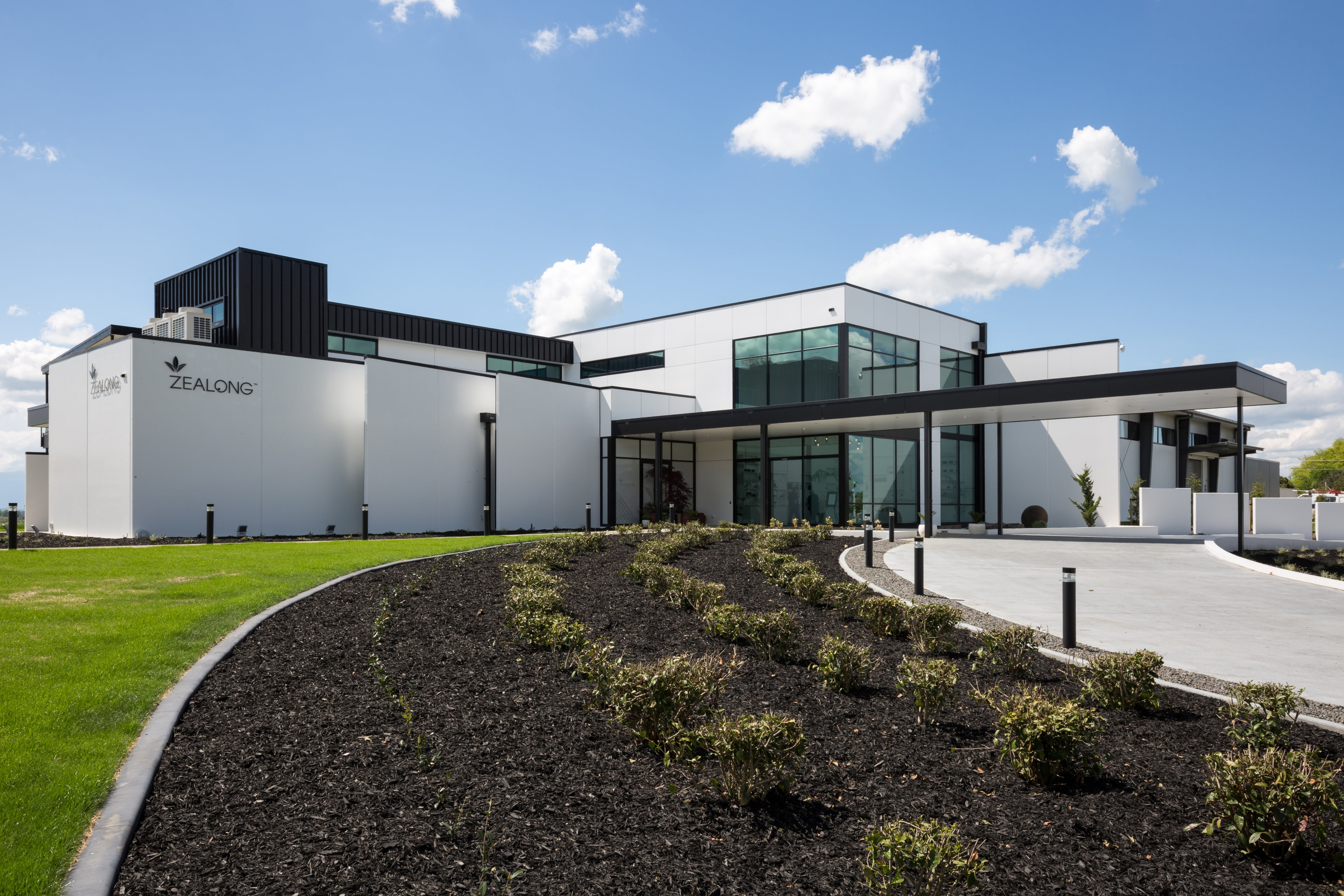

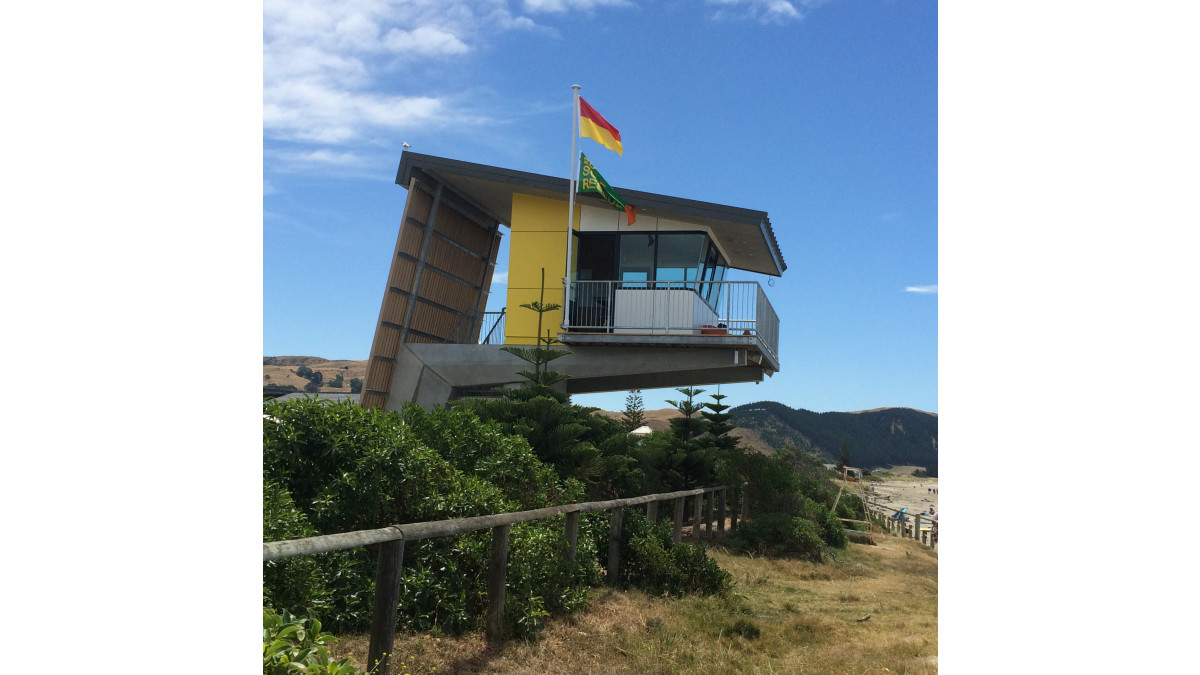

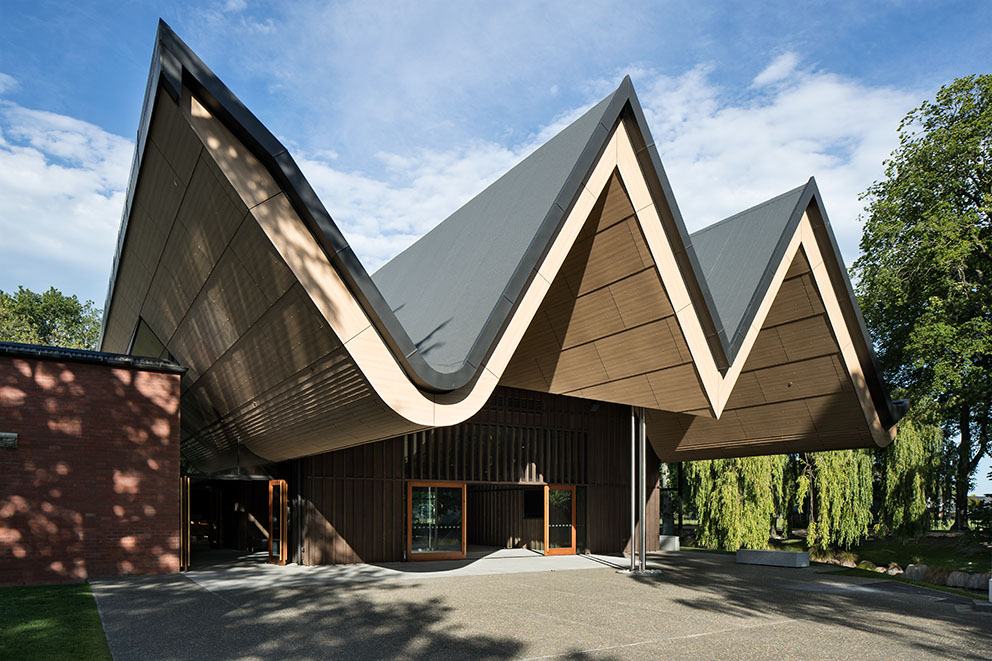

Already installed on a number of building throughout New Zealand including Botany Town Centre, Palmerston North Boys High School, St Andrews College Chapel, St Kentigern School, Paeroa Library, Zeelong Tea House, Wintec Trades and Engineering School, Kapiti Coast District Council, Opus House, and Waimarama Surf Club, Trespa Meteon and the Profix Systems offer tested, compliant solutions for weathered facades.

Profix PXF

Décortech Exteriors

View Product

Profix PXF screw fixed flat panel facade system is a 35mm timber cavity batten system specifically designed for use with Trespa Meteon panels.

Suitable for use as a residential or commercial cladding facade up to 3 levels of 10m or less and within the scope of NZBC E2/AS1: 2011 and NZS 3604: 2011 or later current versions
Fixed over a Rigid Air Barrier compliant with E2/AS1: 1 August 2011
Approved for use in wind zones up to 2.5kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
For wind zones exceeding 2.5kPa wind pressure the system fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use as a single level cavity system up to a maximum of 4.6m high with a horizontal cavity break at each mid floor level
Suitable for use with 8.0mm or 10mm Trespa Meteon panels screw fixed vertically with maximum panel sizes of 3.0m x 1.5m or 2.5m x 1.8m
The use of 0.6mm Trespa and or panel sizes exceeding those above must be specified as site specific and approved by the system suppliers

Trespa Meteon panels in conjunction with Profix PXF Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

Profix TS20

Décortech Exteriors

View Product

Profix TS20 Concealed fixed flat panel façade system is a unique aluminium vertical rail system specifically designed for use with Trespa Meteon panels.

Suitable for use as a residential or commercial cladding façade up to 4.6 metres
Fixed over a Rigid Air Barrier or Building wrap compliant with NZBC E2/AS1/Table 23: 1 August 2011 and NZS 3604: 2011 as follows:
- With Building Wrap: Up to 'Very High' wind zone at 50 m/s or 1.5 Kpa ULS wind pressure
- With Rigid Air Barrier: Up to 'Extra High' wind zone at 55 m/s or 1.8 Kpa ULS wind pressure
For use in wind zones exceeding 1.8 Kpa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use with either 8.0mm or 10mm Trespa Meteon in vertical panel sizes up to 2.5m x 1.2m. The use of panel sizes exceeding 2.5m must be specified as site specific by the system suppliers

With Building Wrap: Up to 'Very High' wind zone at 50 m/s or 1.5 Kpa ULS wind pressure
With Rigid Air Barrier: Up to 'Extra High' wind zone at 55 m/s or 1.8 Kpa ULS wind pressure

Trespa Meteon panels in conjunction with Profix TS20 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

Profix TS35

Décortech Exteriors

View Product

The TS35 multi rail system has been designed to allow for trans directional movement between the panel and the built substrate.

Suitable for use as a residential or commercial cladding façade up to 4 levels
Fixed over a Rigid Air Barrier compliant with NZBC E2/AS1/ Table 23: 1 August 2011 and NZS 3604: 2011
Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
For use in wind zones exceeding 2.5kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use with 10mm Trespa Meteon in panel sizes up to 3.0m x 1.2m horizontally and 2.5m x 1.2m vertically Note: The use of 8.0mm Trespa Meteon panel and panel sizes exceeding those noted above must be specified as site specific by the system suppliers

Trespa Meteon panels in conjunction with Profix TS35 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

Profix TS45

Décortech Exteriors

View Product

Profix TS45 Concealed fixed flat panel façade system is a unique aluminium vertical rail system specifically designed for use with Trespa Meteon vertical panels.

Suitable for use as a multi-level residential or commercial cladding façade
Fixed over a Rigid Air Barrier compliant with Table 23 of E2/AS1: August 201 and 3604: 2011
Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s Note: For use in wind zones exceeding 2.5kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray zones when powder coated
Suitable for use with 8.0mm or 10mm Trespa Meteon installed vertically in panel sizes up to 2.5m x 1.2m Note: Panel sizes exceeding those above must be specified as site specific by the system supplier
Profix TS45 vertical rails have a spanning capability subject to in use conditions where framing set out does not allow direct fixing

Trespa Meteon panels in conjunction with Profix TS45 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

Profix TSEQ

Décortech Exteriors

View Product

Decortech has developed the Profix System for Trespa panels to meet seismic demands.

Suitable for use as a multi-level commercial façade
Fixed over a Rigid Air Barrier compliant with NZBC E2/AS1/Table 23: 1 August 2011 and NZS 3604: 2011
Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284. For use in wind zones exceeding 2.5 kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use with 10mm Trespa Meteon in panel sizes up to 3.0m x 1.2m horizontally and 2.5m x 1.2m vertically Note: The use of panel sizes exceeding those noted above must be specified as site specific by the system suppliers
Suitable for applications where a serviceability seismic displacement of up to +/- 20mm on an inter-story height of 4m or +/- 0.5% of floor height is required. (The ultimate racking test of the TS-EQ system was 56mm on a 4m floor. The same system achieved 87mm under further testing with no discernible damage to the panels or system)

Trespa Meteon panels in conjunction with Profix TSEQ Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.
