Description

The TS35 multi rail system has been designed to allow for trans directional movement between the panel and the built substrate.

TS35 rails are fixed independently to a 35mm cavity system that enables the façade to be fixed without penetrating the air seal or farming. TS35 drains and ventilates at every horizontal joint whilst the TS35-11 Rails provide mechanical support to the Sika Tac adhesive system. Panels are ship-lapped at vertical joints to effectively weatherproof the joint whilst allowing for movement between panels. Panels can be oriented in different directions for distinctive visual effects across a facade face.

TS35 is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively.

Available in 4 master sheet sizes
Available in 8 and 10mm thickness

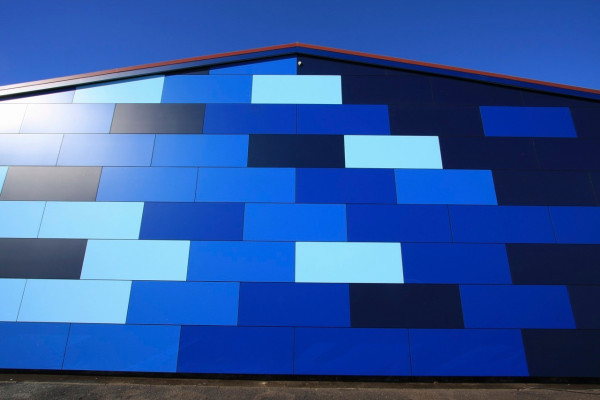

Available in a large range of colours and finishes

Key Features

The Profix TS35 rail system is durable, lightweight and can span between fixings allowing the rail to be packed straight and true
The 35mm timber cavity batten thickness can be increased to 45mm allowing for straightening of existing substructures outside the air seal
TS35 offers minimal maintenance and exceptional through life performance
All fixings are concealed
The Sika Tack adhesive system, with additional concealed mechanical fixing gives a clean, flat and straighter finish to façade
Exposed mechanical fixings (wafer head coloured 304 stainless steel screws or coloured structural rivets) can be used
Suitable for use as a cladding solution on new buildings and façade upgrades
Supply and installation is carried out by approved installers only

Ranges

Profix Systems

Scope of Use

Suitable for use as a residential or commercial cladding façade up to 4 levels
Fixed over a Rigid Air Barrier compliant with NZBC E2/AS1/ Table 23: 1 August 2011 and NZS 3604: 2011
Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
For use in wind zones exceeding 2.5kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray and geothermal zones
Suitable for use with 10mm Trespa Meteon in panel sizes up to 3.0m x 1.2m horizontally and 2.5m x 1.2m vertically Note: The use of 8.0mm Trespa Meteon panel and panel sizes exceeding those noted above must be specified as site specific by the system suppliers

Limitations on Use

Supply and installation is carried out by approved installers only
The use of 8.0mm Trespa Meteon panel and panel sizes exceeding those noted above must be specified as site specific by the system suppliers

Statement of Building Code Compliance

Trespa Meteon panels in conjunction with Profix TS35 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.
