Profix PXF
Description

Profix PXF screw fixed flat panel facade system is a 35mm timber cavity batten system specifically designed for use with Trespa Meteon panels. Profix PXF is a tested, compliant cladding solution that offers a fast and cost-effective installation method for Trespa Meteon panels.

Fixed with colour matched screws with a vertical set out, Profix PXF provides a traditional value for money solution that allows for the creation of visual and aesthetic effects when combined with Trespa Meteon. The use of structural timber battens fixed to horizontal framing also provides an economical solution for straightening existing structures.

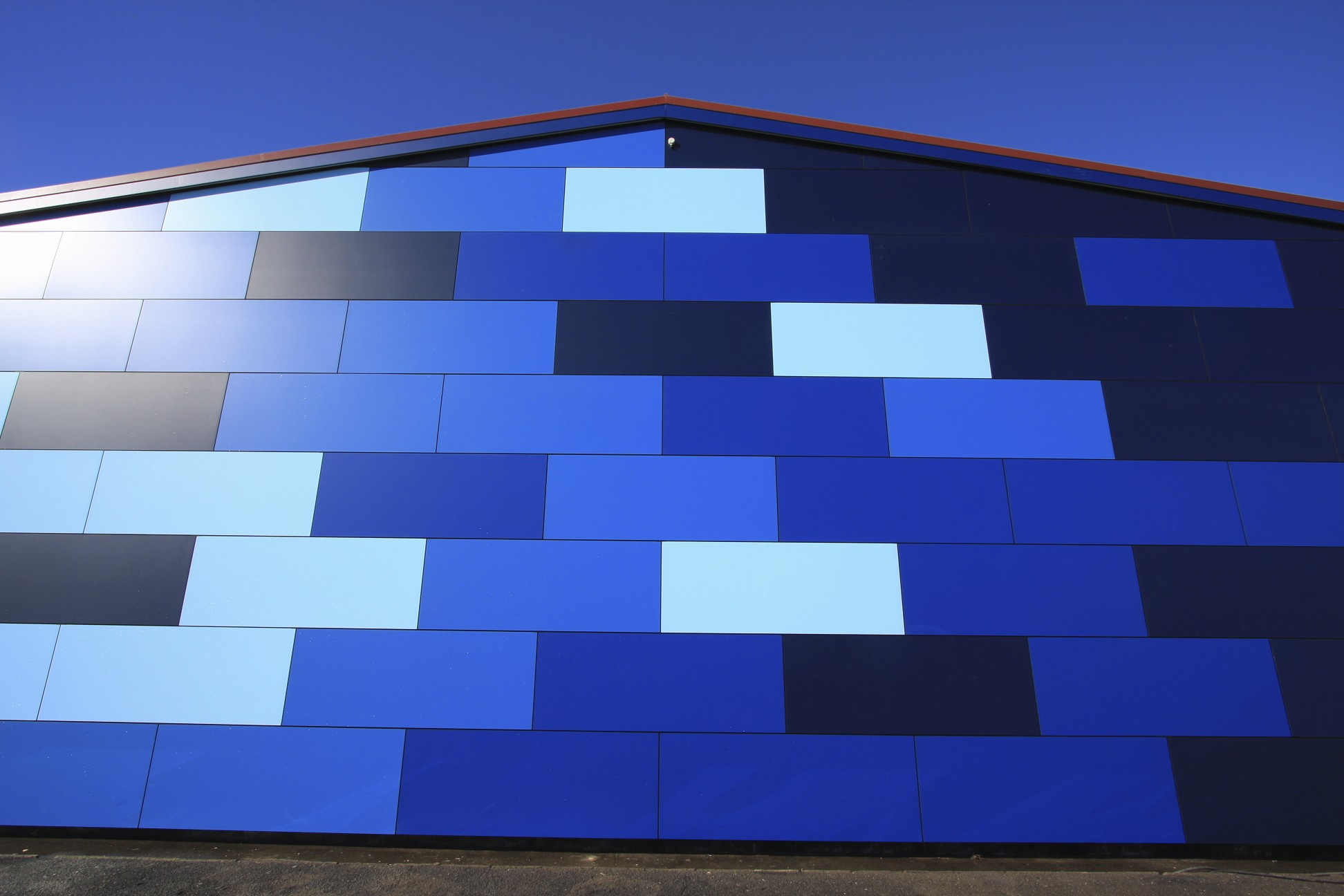

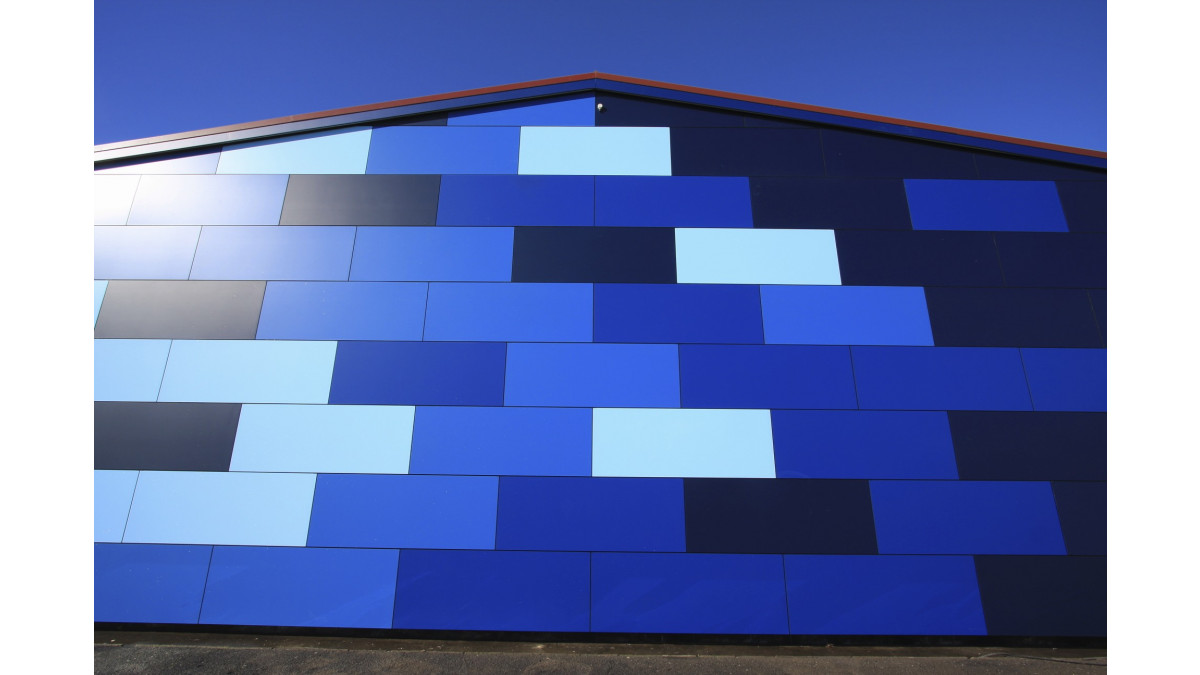

Profix PXF is ideally suited for multi-level applications up to 10m high. The Trespa panels are configured vertically with a 10mm expressed vertical joint. The full Trespa colour and finish range are available allowing for creative use of panel width and colours to enhance even the simplest design. Profix PXF and Trespa Meteon panel make it easy to create stunning, low maintenance facades while ensuring simple installations in a timely manner.

  • Available in 4 Master Sheet Sizes
  • Available in 8 & 10mm thickness
  • Available in a large range of colours and finishes
Key Features
  • The Profix PXF Cladding system is durable, lightweight and can span between fixings allowing the batten to be packed straight and true
  • Profix PXF uses durable materials requiring minimal maintenance that offer reduced through life costs
  • Exposed SS Wafer Head screw fixings are colour matched to the Trespa panel
  • Exposed and visual flashings are powder coated for added durability and aesthetic value
  • Suitable for use as a cladding solution on new builds or cladding updates
  • Profix PXF is an easily installed system requiring only a clean down on completion of install
  • Visible (exposed) fixing with screws offer different execution possibilities with larger panel options and variable panel widths
Scope of Use
  • Suitable for use as a residential or commercial cladding facade up to 3 levels of 10m or less and within the scope of NZBC E2/AS1: 2011 and NZS 3604: 2011 or later current versions
  • Fixed over a Rigid Air Barrier compliant with E2/AS1: 1 August 2011
  • Approved for use in wind zones up to 2.5kPa ULS wind pressure or 64.5 m/s with reference to AS/NZS 4284
  • For wind zones exceeding 2.5kPa wind pressure the system fixings must be specified as site specific by the system suppliers
  • Suitable for use in all environments including sea spray and geothermal zones
  • Suitable for use as a single level cavity system up to a maximum of 4.6m high with a horizontal cavity break at each mid floor level
  • Suitable for use with 8.0mm or 10mm Trespa Meteon panels screw fixed vertically with maximum panel sizes of 3.0m x 1.5m or 2.5m x 1.8m
  • The use of 0.6mm Trespa and or panel sizes exceeding those above must be specified as site specific and approved by the system suppliers
Statement of Building Code Compliance

Trespa Meteon panels in conjunction with Profix PXF Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

In-Service History

Trespa Meteon panels have been used extensively in Europe for over 50 years and in New Zealand for over 10

Other Performance Attributes

Trespa Meteon panels are:

  • Colourfast
  • Extremely durable
  • High impact resistance
  • Low Maintenence
  • Graffiti Resistant
