Profix TS20
Description

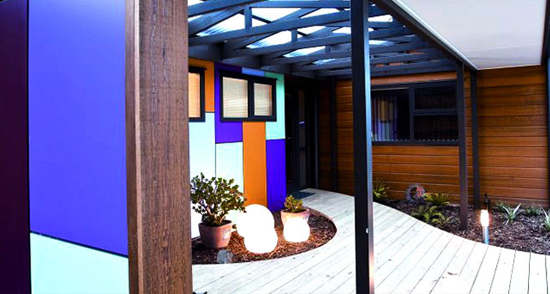

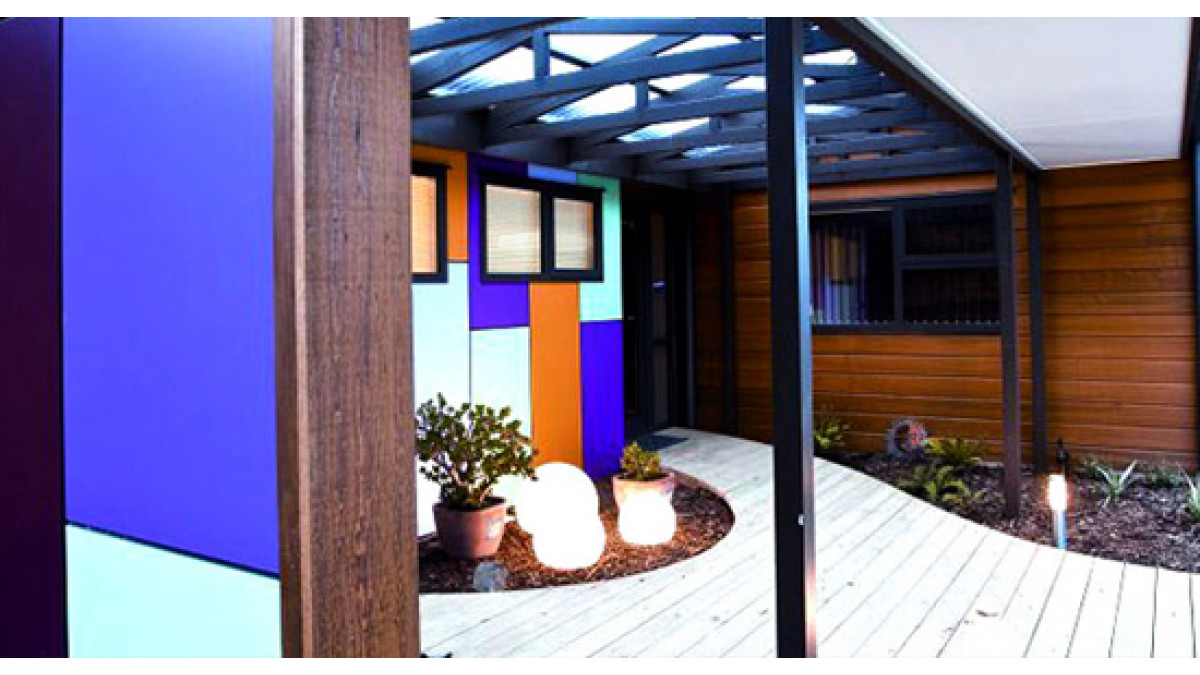

Profix TS20 Concealed fixed flat panel façade system is a unique aluminium vertical rail system specifically designed for use with Trespa Meteon panels. TS20 offers a cost effective method for fixing Trespa Meteon panels with a vertical set out and up to a maximum height of 4.6 meters.

Profix TS20 is perfect for single storey buildings, parapets and all simple low level construction. Panels are configured vertically with either a ship-lapped vertical joint or an open jointed 10mm negative. Horizontal joints are formed with a simple horizontal shiplap that enables panels to extend to 4.6 meters high.

Profix TS20 is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively.

  • Available in 4 master sheet sizes
  • Available in 8 and 10mm thickness
  • Available in a large range of colours and finishes
Key Features
  • Profix TS20 rail system is durable, lightweight, fixed vertically over continuous framing and can span between the fixings allowing the rail to be packed straight and true
  • Profix TS20 offers minimal maintenance and exceptional through life performance
  • The Sika Tack adhesive system offers concealed fixing giving a clean, flat and straighter finish to the façade
  • Exposed mechanical fixings (wafer head coloured 304 stainless steel screws or coloured structural rivets) can be used
  • Suitable for use as a cladding solution on new buildings and facade upgrades
  • Supply and installation is carried out by approved installers only
Scope of Use
  • Suitable for use as a residential or commercial cladding façade up to 4.6 metres
  • Fixed over a Rigid Air Barrier or Building wrap compliant with NZBC E2/AS1/Table 23: 1 August 2011 and NZS 3604: 2011 as follows:
    • With Building Wrap: Up to 'Very High' wind zone at 50 m/s or 1.5 Kpa ULS wind pressure
    • With Rigid Air Barrier: Up to 'Extra High' wind zone at 55 m/s or 1.8 Kpa ULS wind pressure
  • For use in wind zones exceeding 1.8 Kpa wind pressure the system and fixings must be specified as site specific by the system suppliers
  •  Suitable for use in all environments including sea spray and geothermal zones
  •  Suitable for use with either 8.0mm or 10mm Trespa Meteon in vertical panel sizes up to 2.5m x 1.2m. The use of panel sizes exceeding 2.5m must be specified as  site specific by the system suppliers
Limitations on Use
  • Supply and installation is carried out by approved installers only
  • The use of panel sizes exceeding 2.5m must be specified as  site specific by the system suppliers
Statement of Building Code Compliance

Trespa Meteon panels in conjunction with Profix TS20 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.

In-Service History

Trespa Meteon panels have been used extensively in Europe for over 50 years and in New Zealand for over 10

Other Performance Attributes

Trespa Meteon panels are:

  • Colourfast
  • Extremely durable
  • High impact resistance
  • Low maintenance
  • Graffiti resistant
