Description

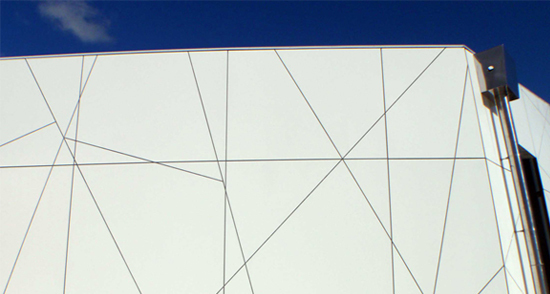

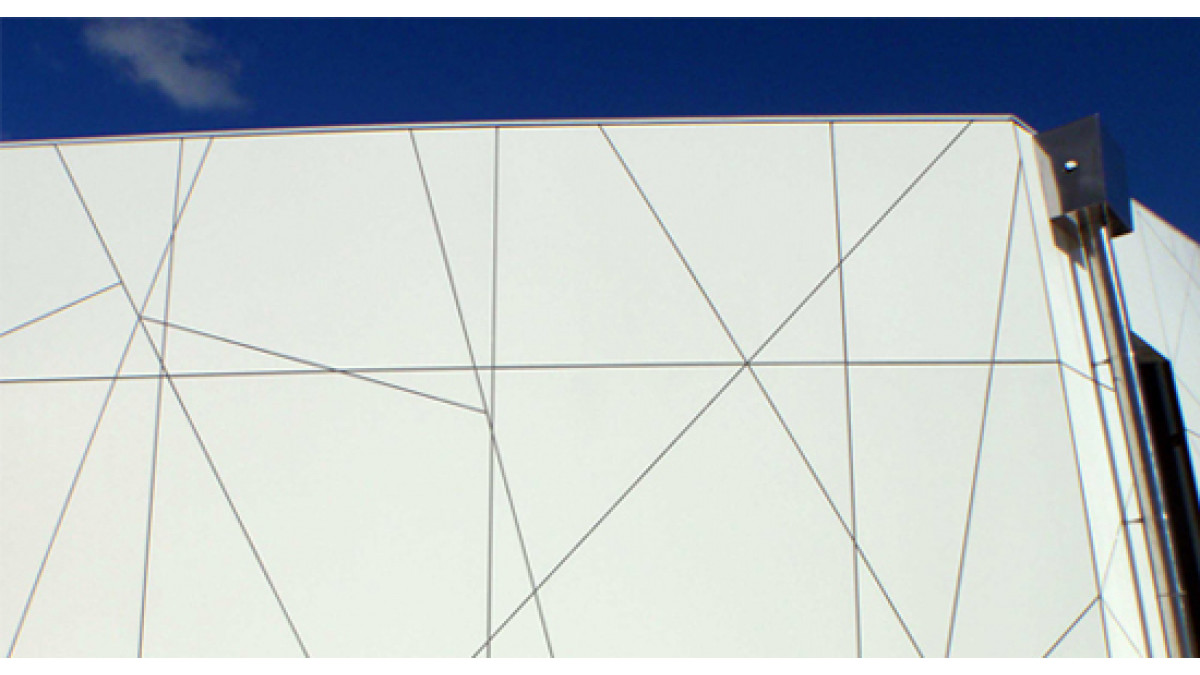

Profix TS45 Concealed fixed flat panel façade system is a unique aluminium vertical rail system specifically designed for use with Trespa Meteon vertical panels. TS45 offers a greater design scope due to its 45mm cavity that can be increased up to 450mm when fixed in conjunction with special stand-off brackets. This allows flexibility when designing for either new buildings or over cladding existing façades and means TS45 can offer an economical solution for straightening existing structures.

Profix TS45 is ideally suited to multi-level applications with complex design requirements, such as parapets, and can be specifically designed to achieve a rail spanning capability of up to 1.2m.

Profix TS45 is tested to and or compliant with the requirements of AS/NZS 4284 and sections B1, B2 & E2 of the NZBC.

Available in 4 master sheet sizes
Available in 8 and 10mm thickness
Available in a large range of colours and finishes

Key Features

Profix TS45 provides greater ventilation over multiple levels increasing the stability of the façade For use with 8mm or 10mm Trespa Meteon panels
Profix TS45 rail system is durable, lightweight and fixed vertically over continuous framing
Trespa panels and Profix fixing systems offer minimal maintenance and exceptional through life performance can be expected
Profix TS45 rails have a spanning capacity between horizontal support structure of up to 1.2m with specific design reducing the need for vertical framing
Profix TS45 system can be used in conjunction with special standoff brackets fixed to either timber or metal framing to increase the cavity width up to 450mm This can create an economical solution to straightening existing structures or add design flexibility and features to the cladding facade
The Sika Tack adhesive system offers concealed fixing giving a clean, flat and straighter finish to the façade
Exposed mechanical fixings such as rivets or wafer head stainless steel screws, colour matched to the panel, can be used as an alternative to adhesive fixing
Suitable for use as a cladding solution on new buildings and facade upgrades
Supply and installation carried out by approved installers only

Ranges

Profix Systems

Scope of Use

Suitable for use as a multi-level residential or commercial cladding façade
Fixed over a Rigid Air Barrier compliant with Table 23 of E2/AS1: August 201 and 3604: 2011
Approved for use in wind zones up to 2.5 kPa ULS wind pressure or 64.5 m/s Note: For use in wind zones exceeding 2.5kPa wind pressure the system and fixings must be specified as site specific by the system suppliers
Suitable for use in all environments including sea spray zones when powder coated
Suitable for use with 8.0mm or 10mm Trespa Meteon installed vertically in panel sizes up to 2.5m x 1.2m Note: Panel sizes exceeding those above must be specified as site specific by the system supplier
Profix TS45 vertical rails have a spanning capability subject to in use conditions where framing set out does not allow direct fixing

Limitations on Use

Supply and installation carried out by approved installers only
Panel sizes exceeding those above must be specified as site specific by the system supplier

Statement of Building Code Compliance

Trespa Meteon panels in conjunction with Profix TS45 Cladding system meet the requirements of NZBC sections B1 Structure, B2 Durability and E2 External Moisture.
