Eurothane PIR Insulation Boards Make Meeting H1 Standards Easy

For an energy-efficient building, effective insulation is step one. Eurothane PIR insulation boards enable the H1 standards to be met easily without having to dramatically increase the thickness of the roof/wall/floor buildup. This is because of their superior R-value for the thickness. For example, Eurothane PIR 150mm thick is R 6.80, and 140mm thick is R 6.35. Supplied by the Alternative Energy Company (TAEC), the boards come in a range of thicknesses so there is a solution to meet most design requirements and, most importantly, the H1 standards for insulation.

Eurothane general purpose PIR boards are designed to be incorporated in the fabric of the building. They are suitable for floor, walls or roof. The dimensions of all the boards are 1200mm x 2400mm but they are available in 10 different thicknesses, from 25mm to 150mm thick. The boards have bonded aluminium foil on both sides which acts as a vapour barrier. Eurothane PIR has numerous other advantages: it is water resistant, does not sag, and maintains its insulating performance over time. It is safe with electrical cabling and is vermin resistant.

Eurothane PIR is versatile in that it can be installed either over or between the framework, depending on the design. In a new build the boards are easy to install over the framework and can be sealed where they abut each other with Recticel tape to create a complete unbroken thermal envelope. The boards are also safe and simple to cut to fit between framework.

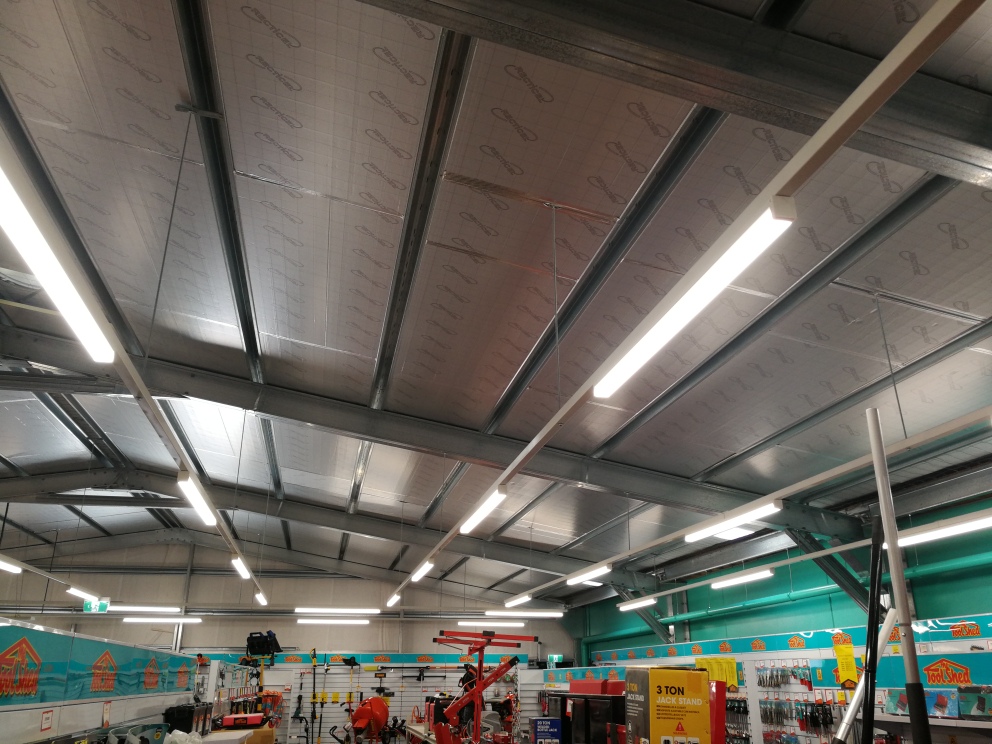

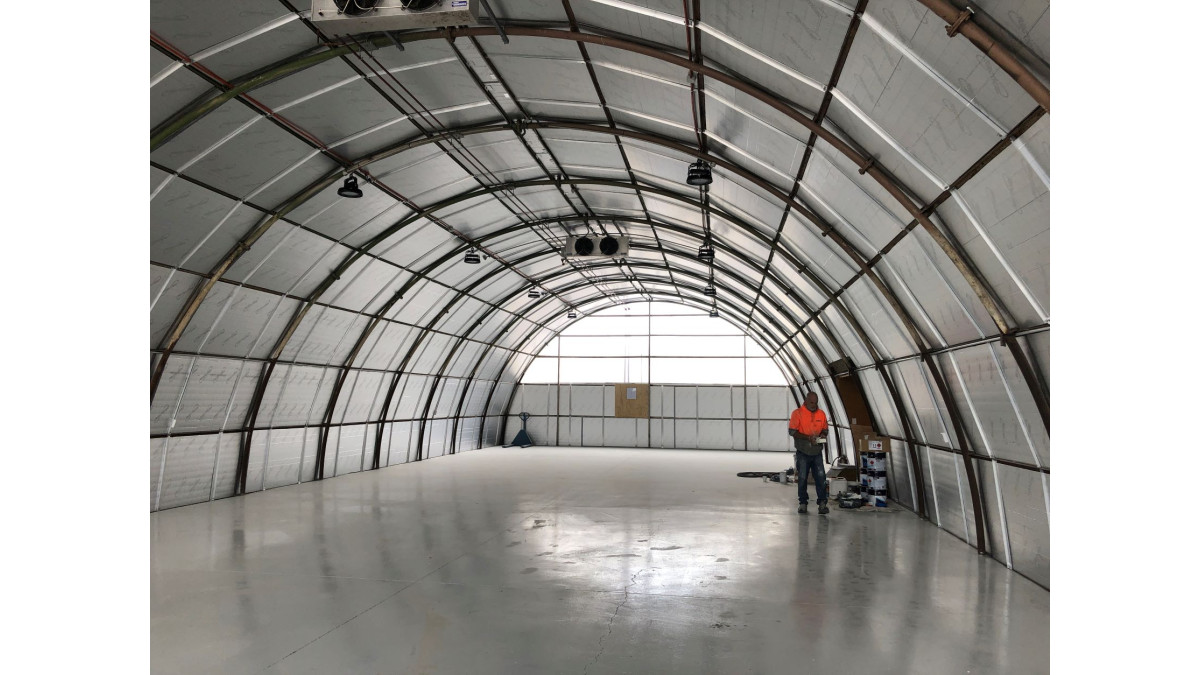

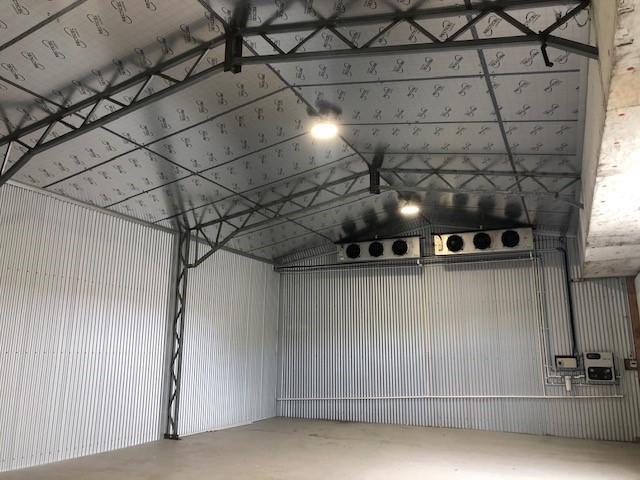

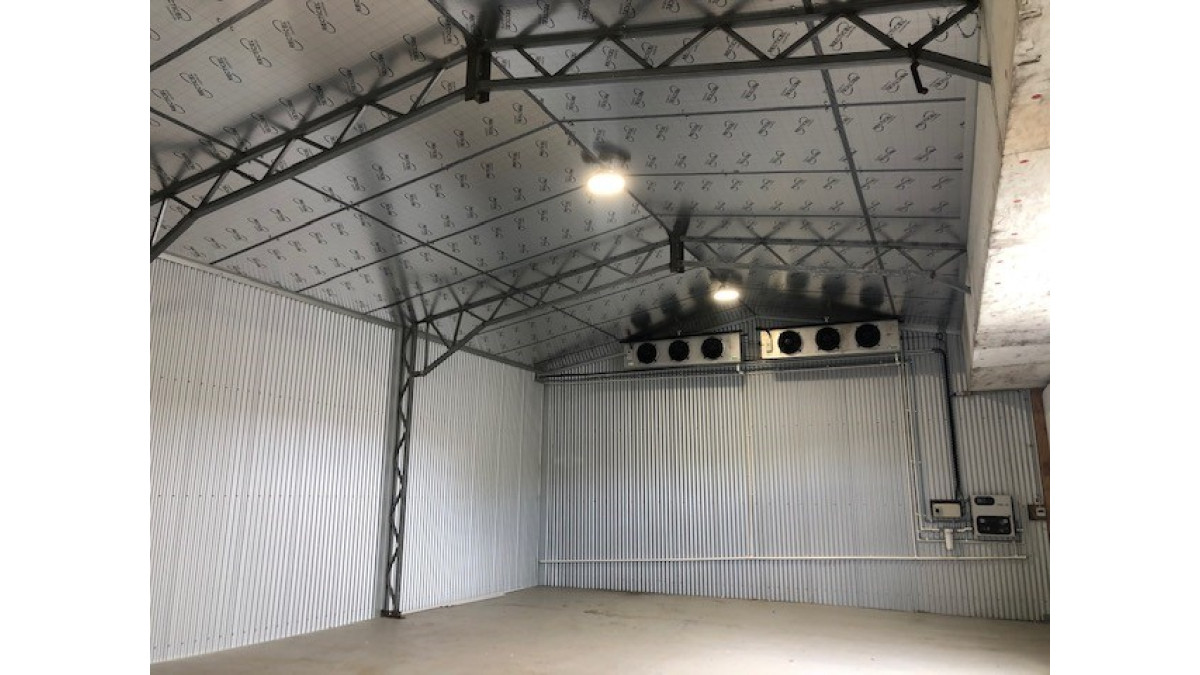

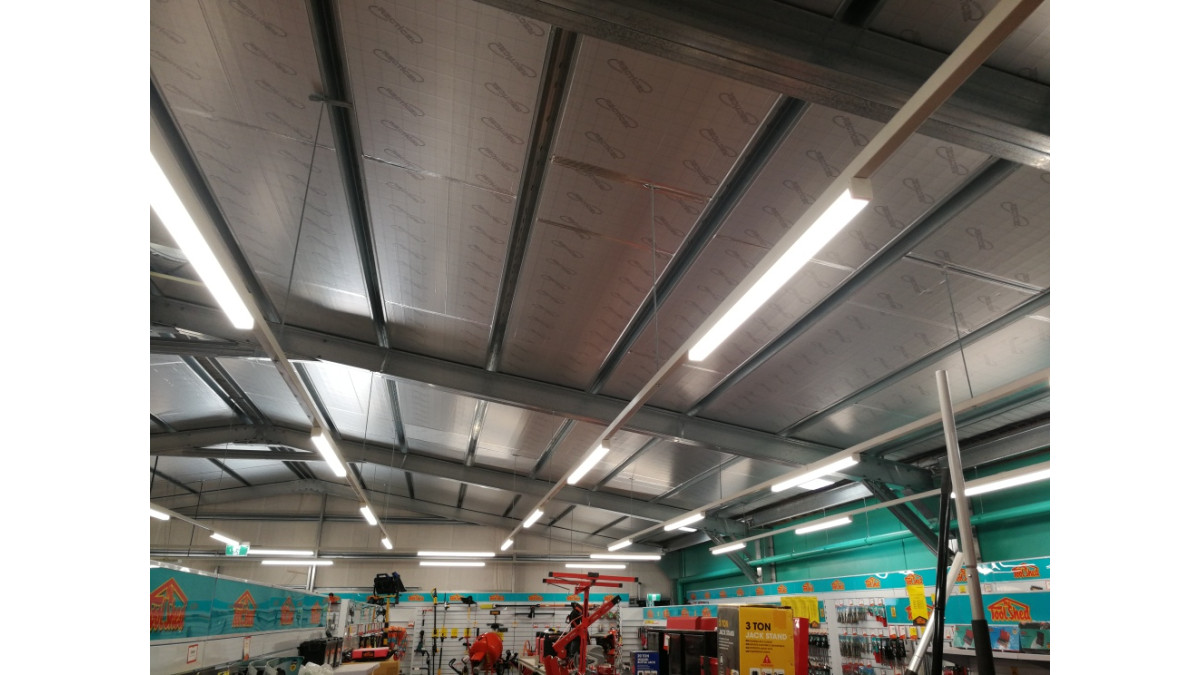

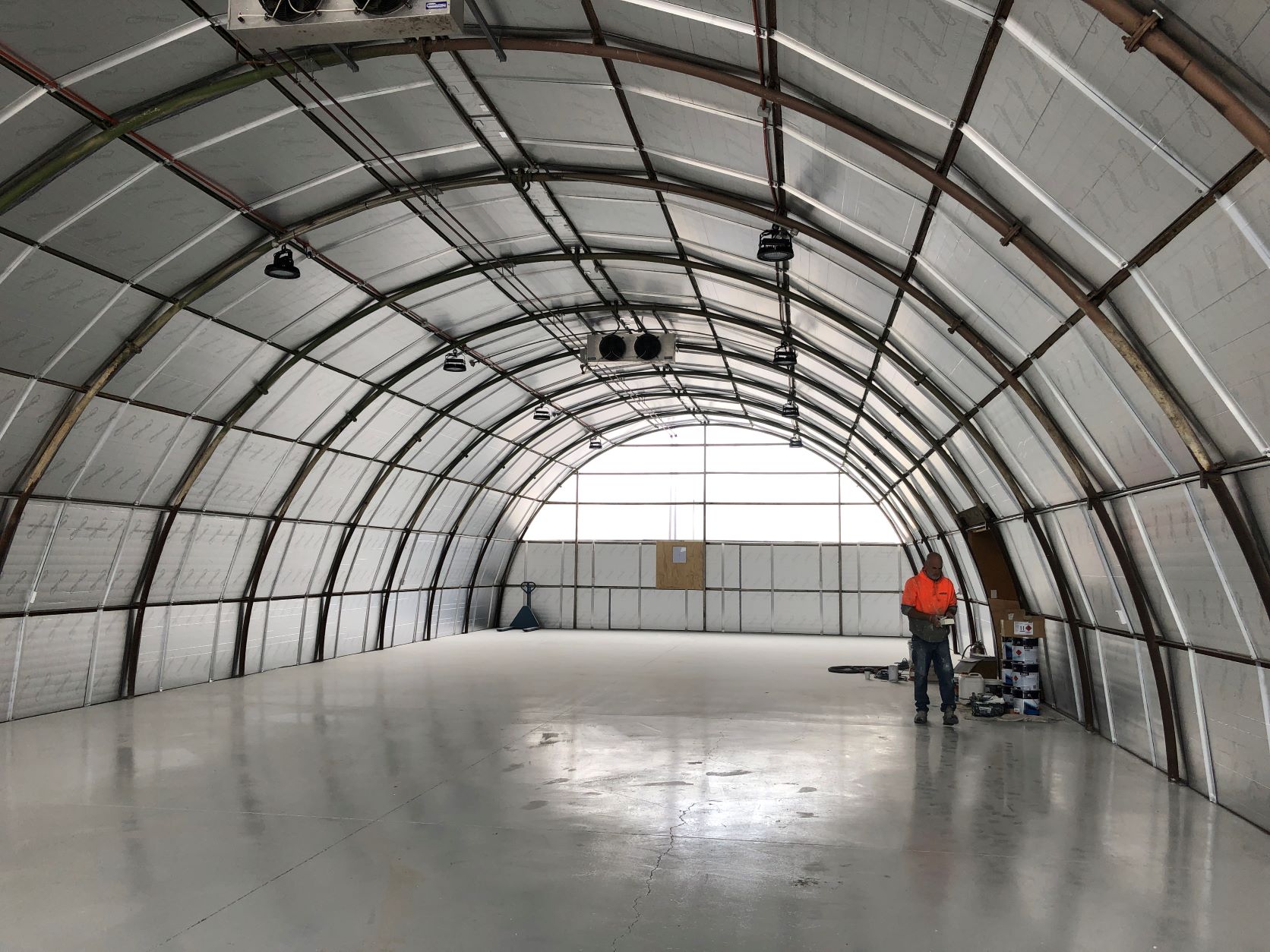

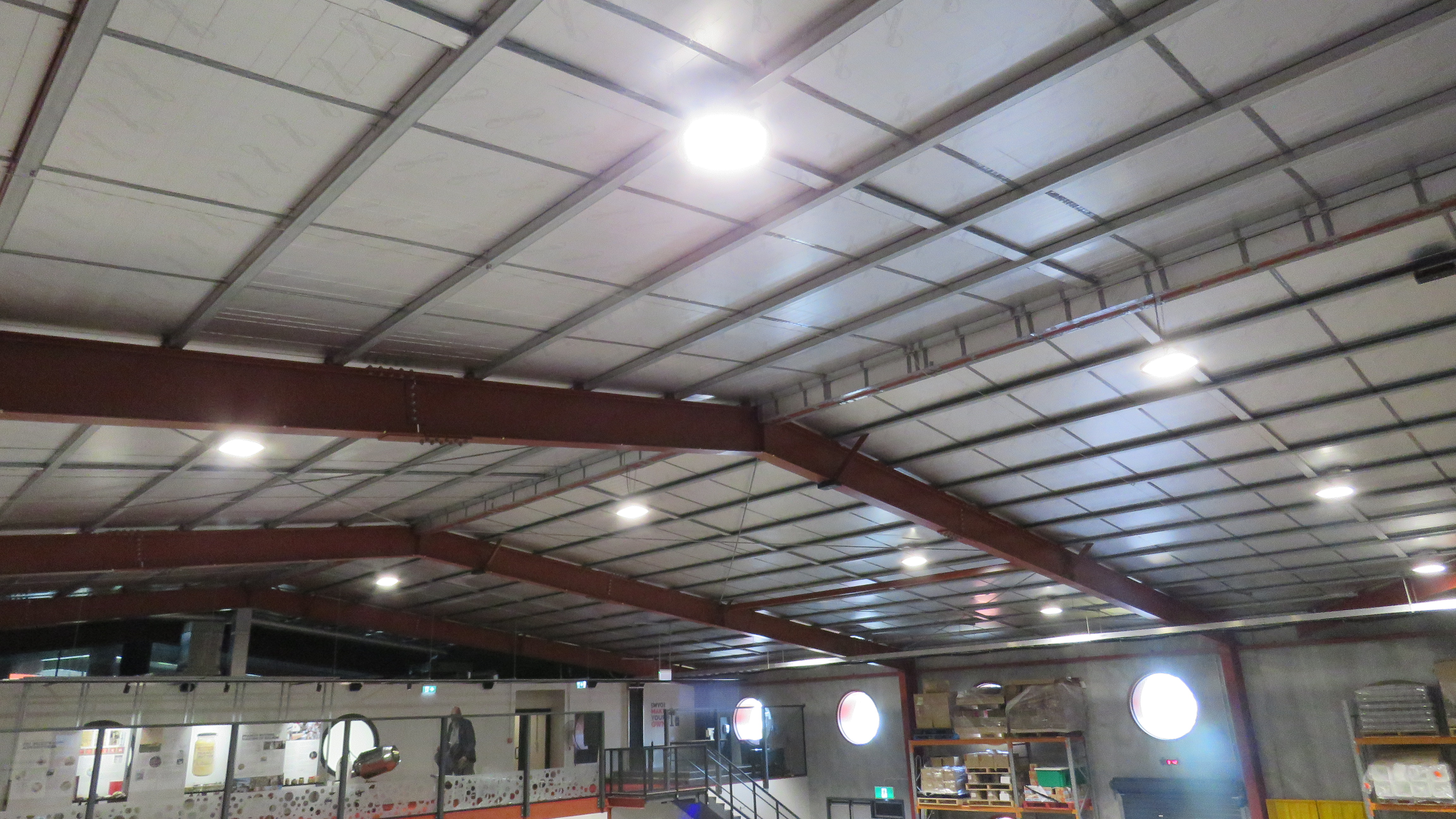

TAEC have supplied Eurothane PIR to Scott Base in Antarctica, factories, warehouses, wine cellars and business premises around New Zealand. Visit the website, www.insulation.kiwi.nz for more information including helpful example drawings of different installation scenarios.

Recticel Eurothane GP PIR Insulation Board — General Purpose — Wall, Floor, Roof

The Alternative Energy Company

View Product

Eurothane GP is a general purpose rigid polyisocyanurate (PIR) closed cell foam board, faced on both sides with a multi-layer coated aluminium foil.

Eurothane GP PIR is suitable for use in any type of residential, commercial or industrial building and can be used for both new builds and retrofit projects.

As wall insulation it is well suited for use:

Between the studs in timber or metal framed walls
Over the studs externally, creating an air-tight envelope with no thermal bridging
Over the studs internally as a wall lining
Before attaching GIB plasterboard
To insulate concrete walls
To insulate brick veneer wall construction

Eurothane GP PIR will, if employed in accordance with the supplier’s installation requirements, satisfy the following clauses of the Building Code:

B2 Durability: Performance B2.3.1(a)
C2 Prevention of Fire Occurring: C.VM2, A1.7
E3 Internal Moisture: Performance E3.3.1
F2 Hazardous Building Materials: Performance F2.3.1
H1 Energy Efficiency: Performance H1.3.1(a), H1.3.2E

Recticel Eurothane GP PIR Insulation Board — Roof, Wall, Floor

The Alternative Energy Company

View Product

Eurothane GP is a general purpose rigid polyisocyanurate (PIR) closed cell foam board, faced on both sides with a multi-layer coated aluminium foil.

Eurothane GP PIR is suitable for use in any type of residential, commercial or industrial building and can be used for both new builds and retrofit projects.

Eurothane GP PIR will, if employed in accordance with the supplier’s installation requirements, satisfy the following clauses of the Building Code:

B2 Durability: Performance B2.3.1(a)
C2 Prevention of Fire Occurring: C.VM2, A1.7
E3 Internal Moisture: Performance E3.3.1
F2 Hazardous Building Materials: Performance F2.3.1
H1 Energy Efficiency: Performance H1.3.1(a), H1.3.2E

Recticel Eurothane GP PIR Insulation Board — Underfloor

The Alternative Energy Company

View Product

Eurothane GP is a general purpose rigid polyisocyanurate (PIR) closed cell foam board, faced on both sides with a multi-layer coated aluminium foil.

Eurothane GP PIR is suitable for use in any type of residential, commercial or industrial building and can be used for both new builds and retrofit projects.

As underfloor insulation it is well suited for use:

As in-ground under slab insulation
Insulating on top of the slab
Insulating timber floors
Insulating intermediate floors
With underfloor heating systems
As slab edges insulation or room perimeters
Under floating timber floors

Eurothane GP PIR will, if employed in accordance with the supplier’s installation requirements, satisfy the following clauses of the Building Code:

B2 Durability: Performance B2.3.1(a)
C2 Prevention of Fire Occurring: C.VM2, A1.7
E3 Internal Moisture: Performance E3.3.1
F2 Hazardous Building Materials: Performance F2.3.1
H1 Energy Efficiency: Performance H1.3.1(a), H1.3.2E
