Smart, Reliable Hot Water Systems for Energy-Efficient Buildings

In NZ, heating water can take up to 50% of a household power bill, so investing in energy-efficient technology in new homes makes sense. Solar thermodynamics is also an effective and economical heat source for large scale commercial and industrial hot water requirements.

The system consists of a lightweight aluminium solar panel (which works using a refrigerant, collecting heat from the sun, as well as from the surrounding atmosphere by natural convection) along with a hot water cylinder. Because the system is based on the temperature differential and does not rely on sunshine alone, it is effective day and night, whatever the weather.

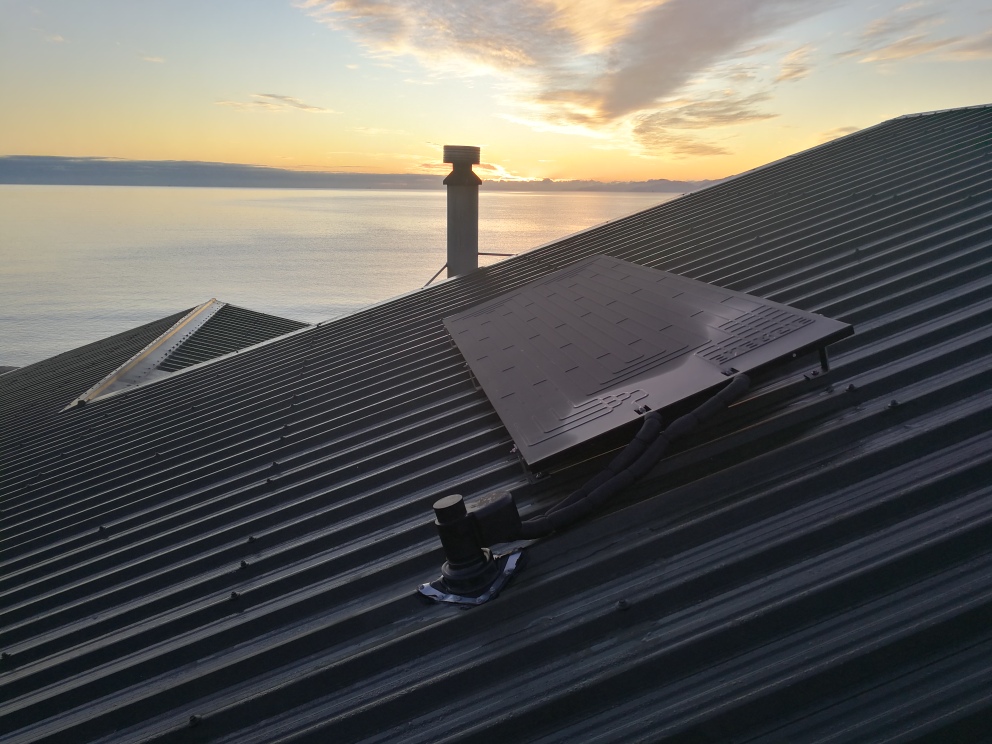

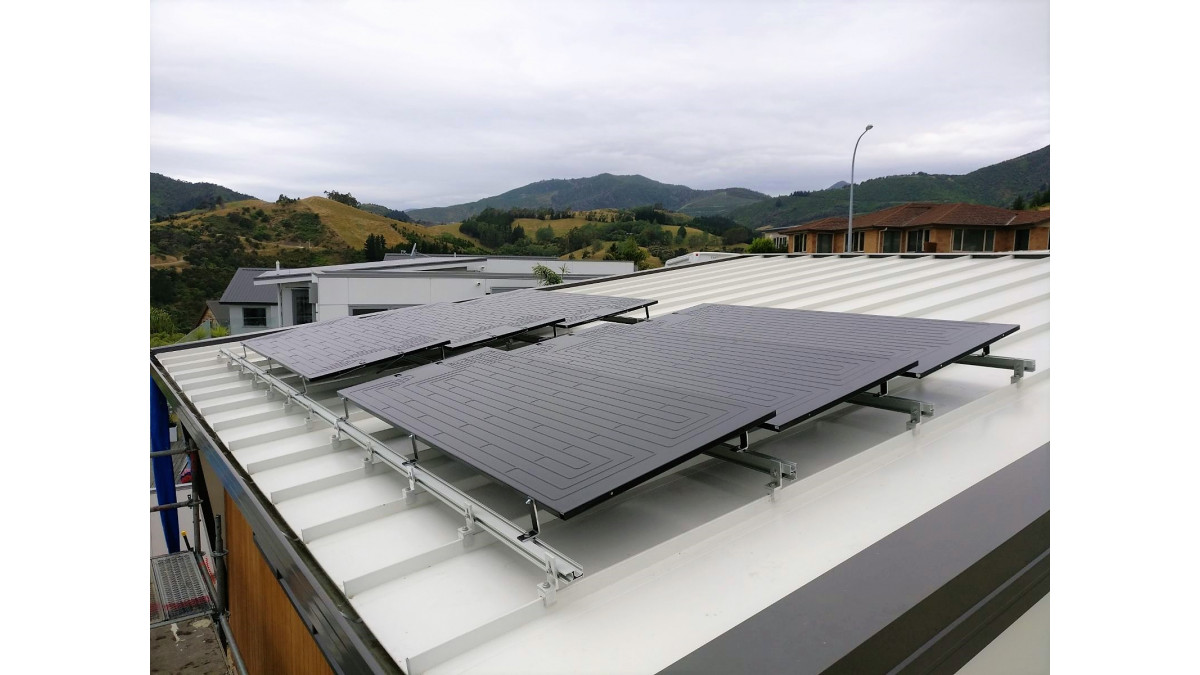

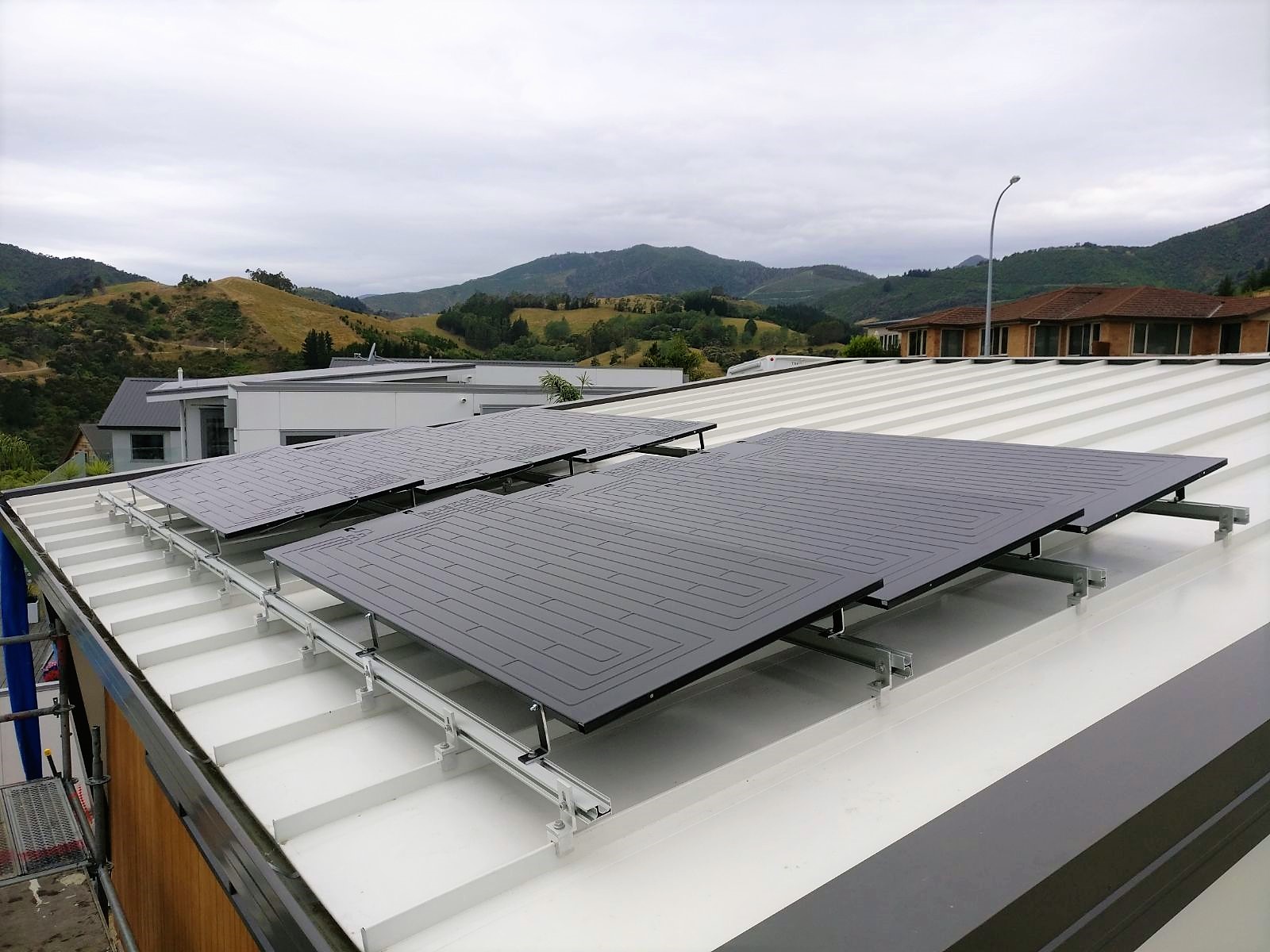

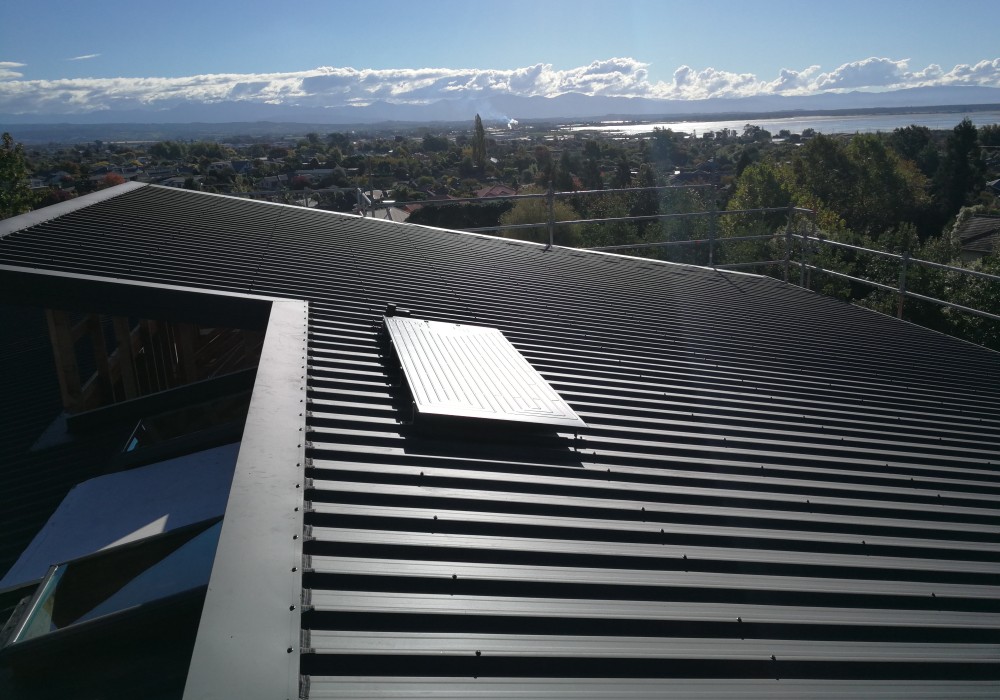

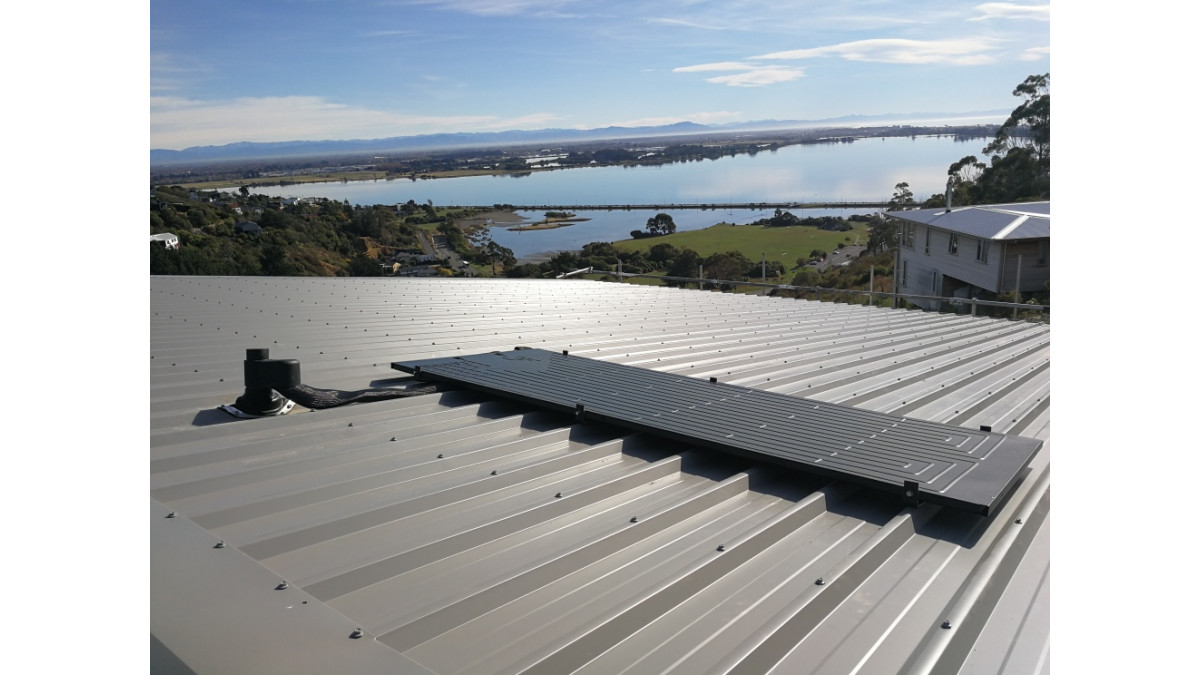

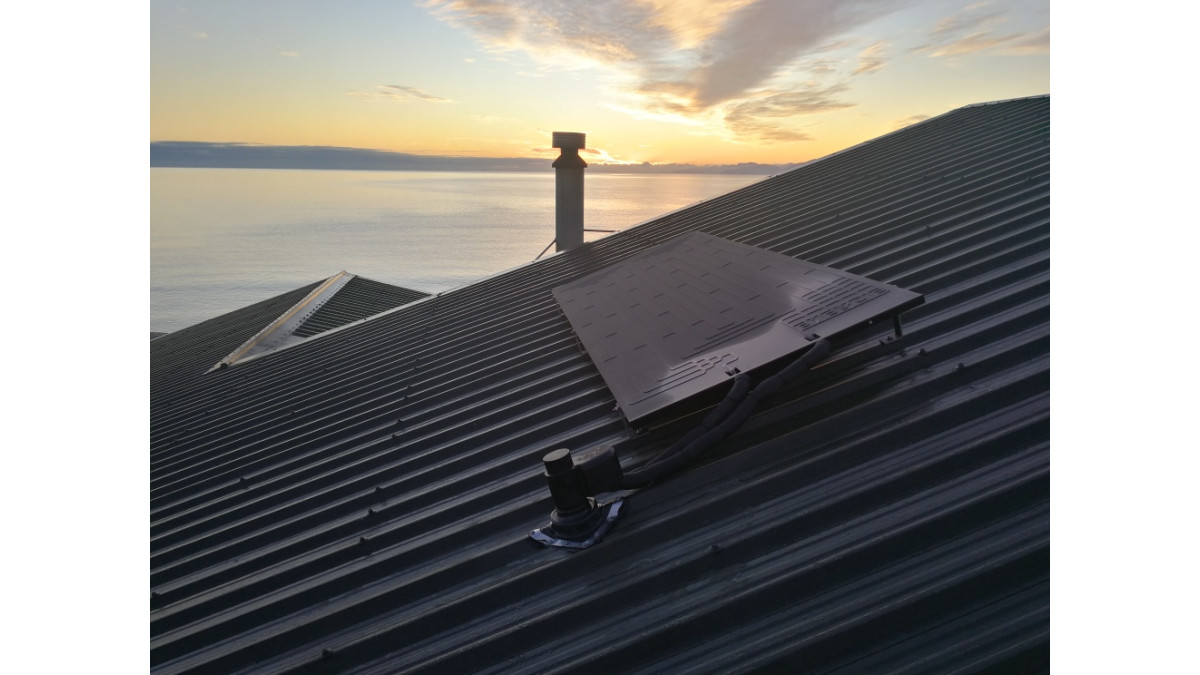

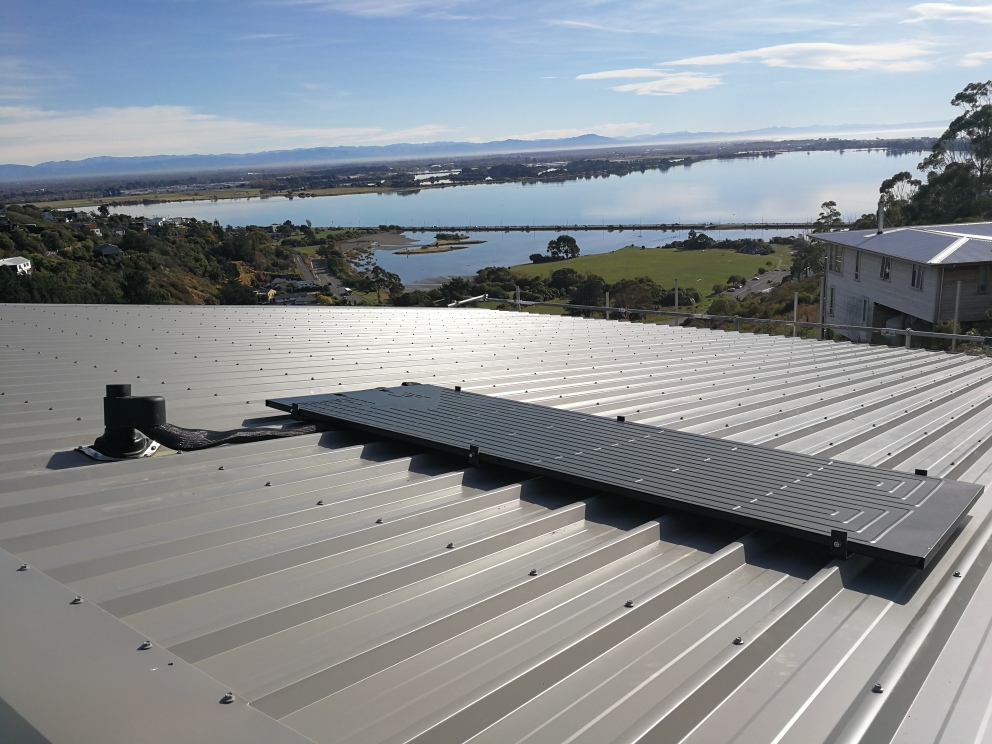

The black solar panel is made from anodised aluminium and weighs only 8kg, so it does not require a consent. Its dimensions are 2m x 800cm and it looks very smart and unobtrusive installed. One panel is sufficient for up to 300L capacity cylinder.

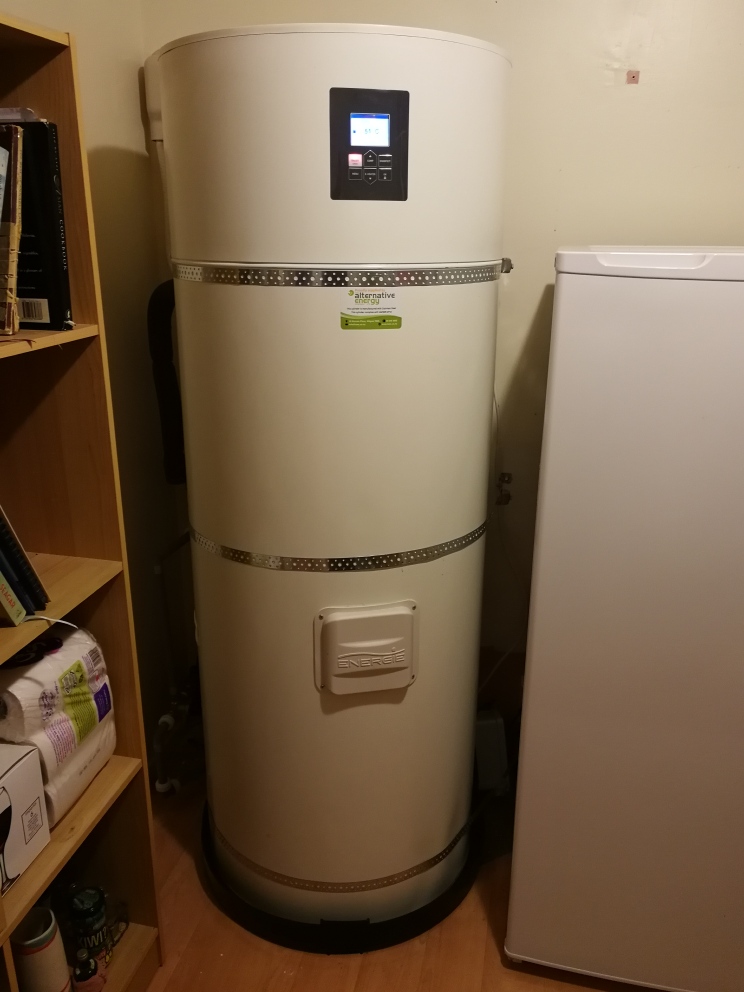

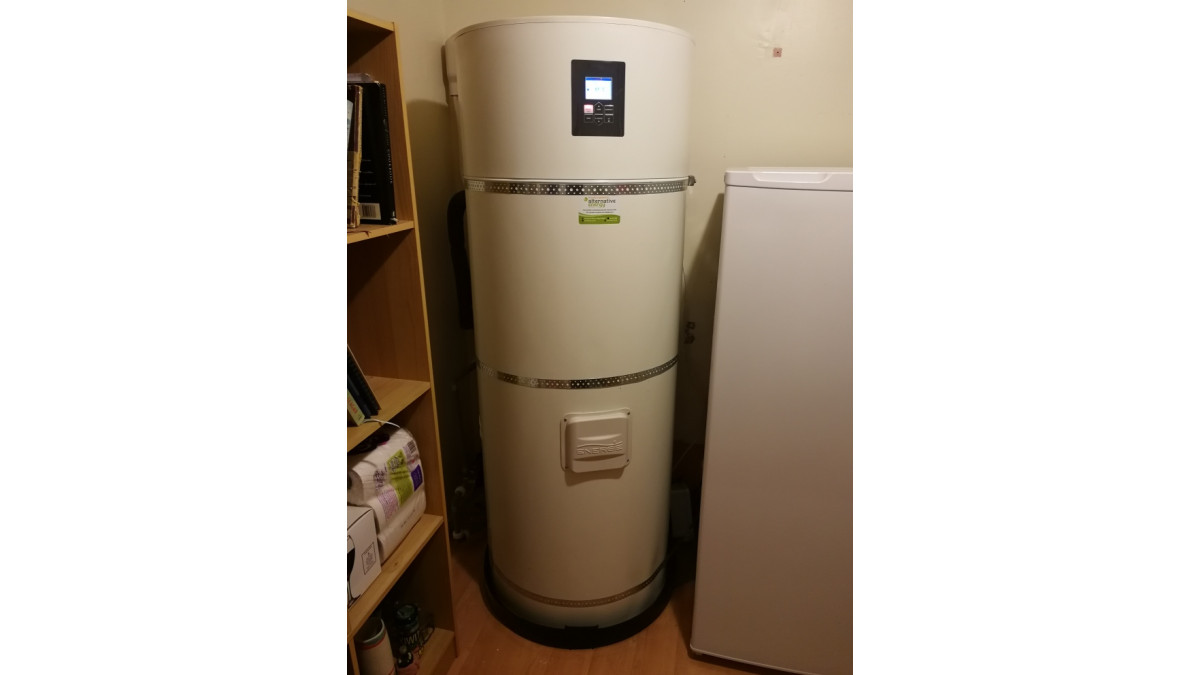

There are two models of domestic cylinder, the Eco and the Ecotop. They are available in enamel or stainless steel, and all have a clean white exterior finish. All the cylinders have an electronic controller enabling different modes of operation. The controller is also PV (photo voltaic) panel compatible.

The Alternative Energy Company handle the refrigeration side of installation (fixing the solar panels, paircoil pipework to the cylinder and commissioning the system). Once installed correctly it is a totally maintenance-free system.

This solar thermodynamic technology fits well with designs where energy efficiency and sustainability are important. It futureproofs homes and commercial builds from rising electricity prices and is a responsible environmental choice because it produces zero carbon emissions, all while ensuring reliable, cost-effective hot water day and night, all year.

Energie Ecotop Solar Thermodynamic Domestic Water Heating

The Alternative Energy Company

View Product

An Energie Ecotop domestic water heating system consists of a cylinder, with its attached compressor and heat exchanger, and an 8kg aluminium thermodynamic panel, which is externally mounted on the roof, wall, balcony or ground.

Energie Eco hot water systems are suitable for use in any type of residential building where hot water is required
It can be used for both new builds and in existing houses as a replacement cylinder
There are 5 models suitable for small to medium houses, or for between 1-5 people

Energie Eco systems, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause G12: Water supplies

The products meet the requirements set out in the following documents, or relevant parts of cited standards within the documents (available on request):

Energie's Supplier Declaration of Conformity, dated 24 January 2014
Approved and certified to AS/NZS 2712:2007

Energie Eco Solar Thermodynamic Domestic Water Heating

The Alternative Energy Company

View Product

An Energie Eco domestic water heating system consists of an Eco cylinder, with its attached compressor and heat exchanger, and one or two 8kg aluminium thermodynamic panels, which are externally mounted on the roof, wall, balcony or ground.

Energie Eco hot water systems are suitable for use in any type of residential building where hot water is required
It can be used for both new builds and in existing houses as a replacement cylinder
There are 2 models suitable for small to medium houses, or for between 5-9 people

Clause G12: Water supplies

The products meet the requirements set out in the following documents, or relevant parts of cited standards within the documents (available on request):

Energie's Supplier Declaration of Conformity, dated 24 January 2014
Approved and certified to AS/NZS 2712:2007

Energie Eco XL Solar Thermodynamic Large Volume Water Heating

The Alternative Energy Company

View Product

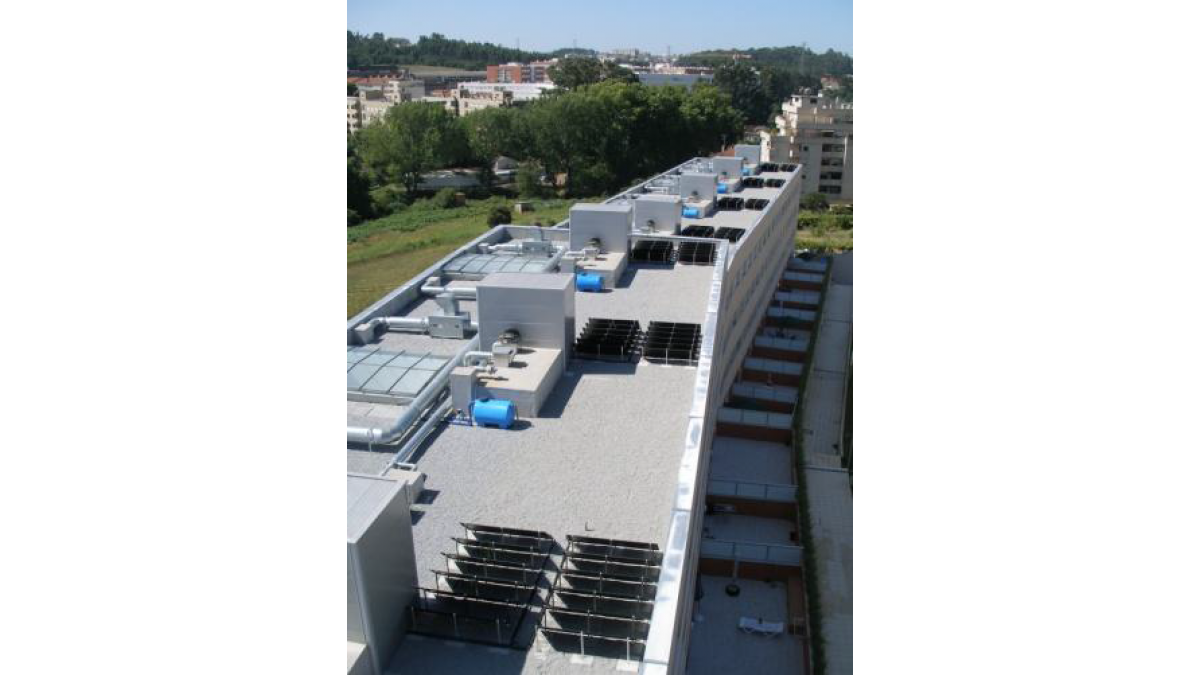

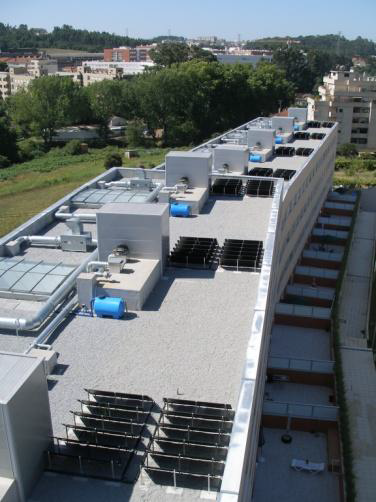

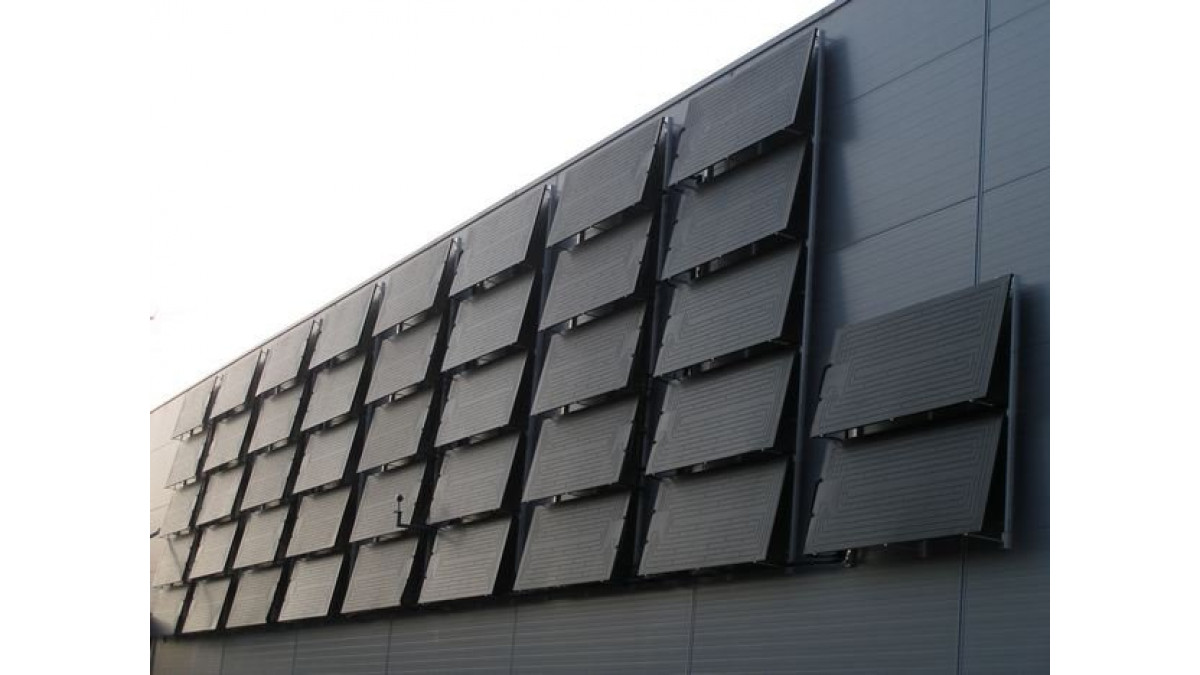

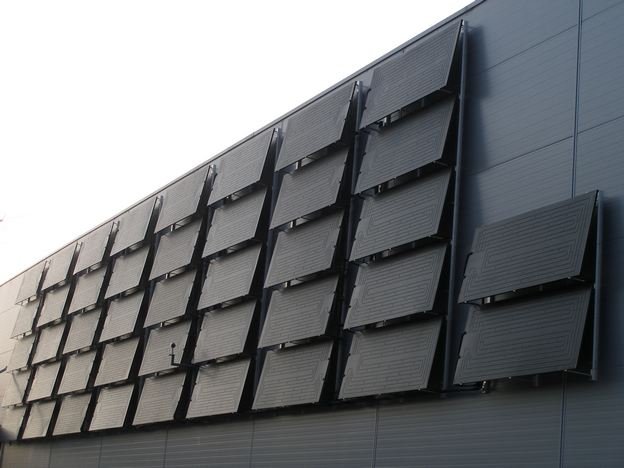

An Energie Eco XL large volume water heating system is designed to heat water for commercial or industrial use.

The Energie Eco XL system is suitable for use in any type of commercial business that requires large volumes of hot water
Ideal for motels, hotels, restaurants, hospitals, gyms, schools, sports halls, campsites, breweries, processing plants and industries
Systems available suitable for heating 1,000-6,000 litres of water
Suitable for 22-135 people

*Based on consumption of 50 litres per person, per day

Energie Eco XL systems, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

Clause G12: Water supplies

The products meet the requirements set out in the following documents, or relevant parts of cited standards within the documents:

Energie's Supplier Declaration of Conformance, dated 24 January 2014
Approved and certified to AS/NZS 2712:2007
