Luxury Victoria Lane Residences Enhanced by Symonite’s Full Façade Cladding System

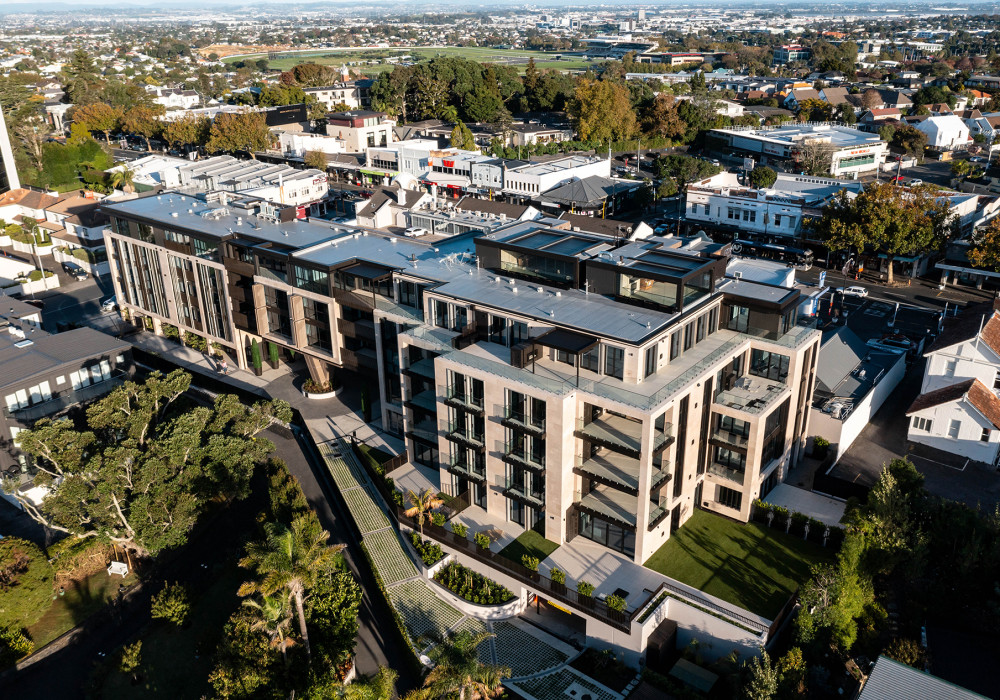

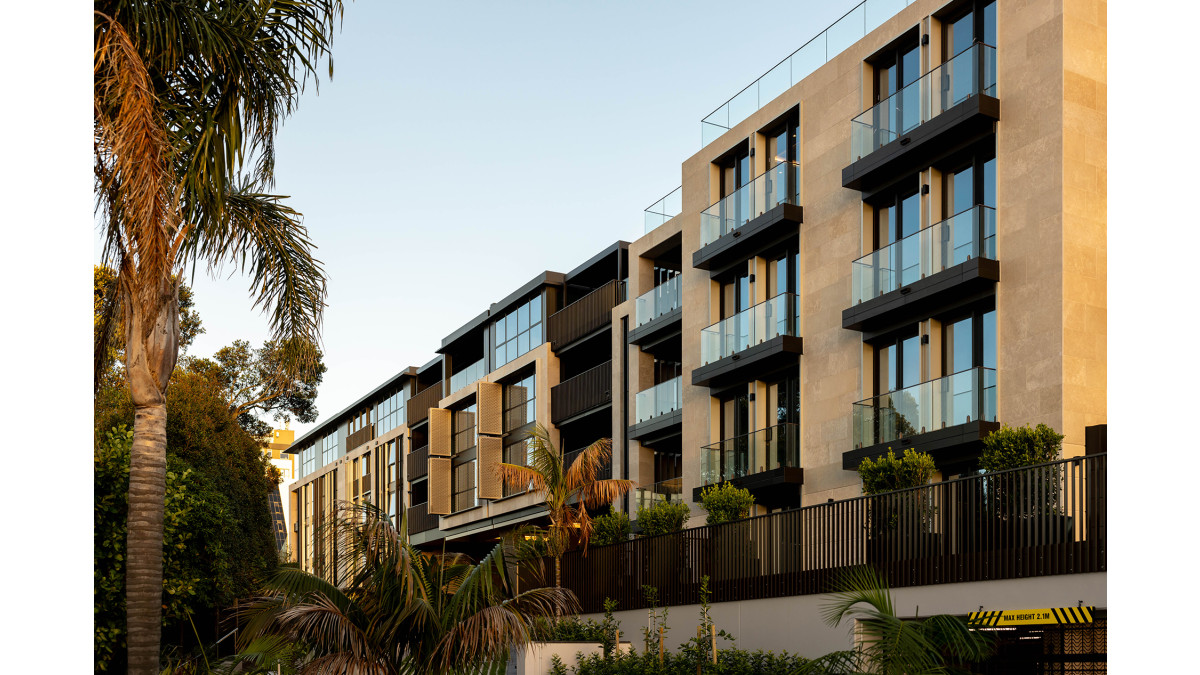

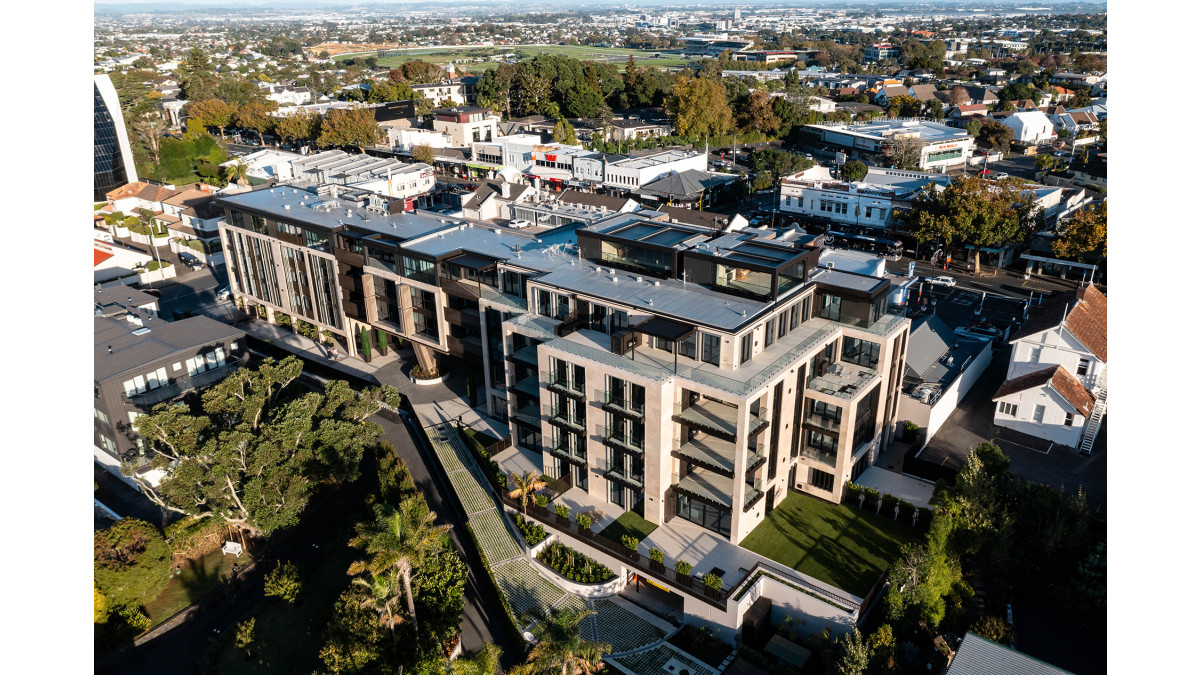

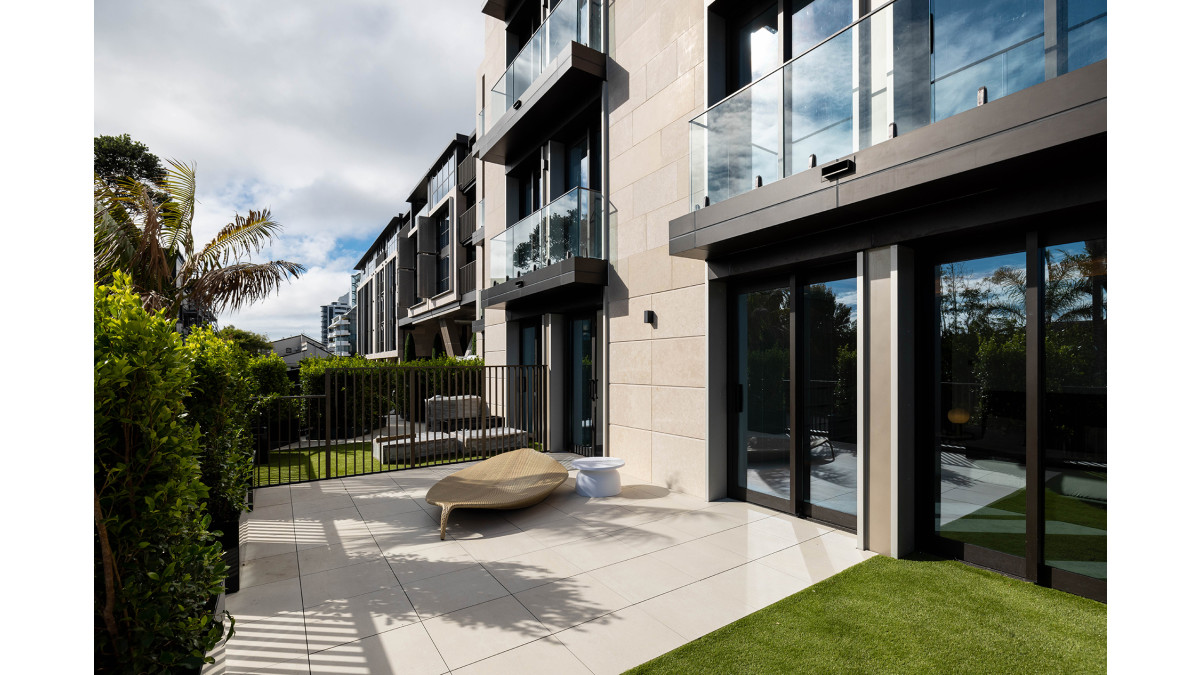

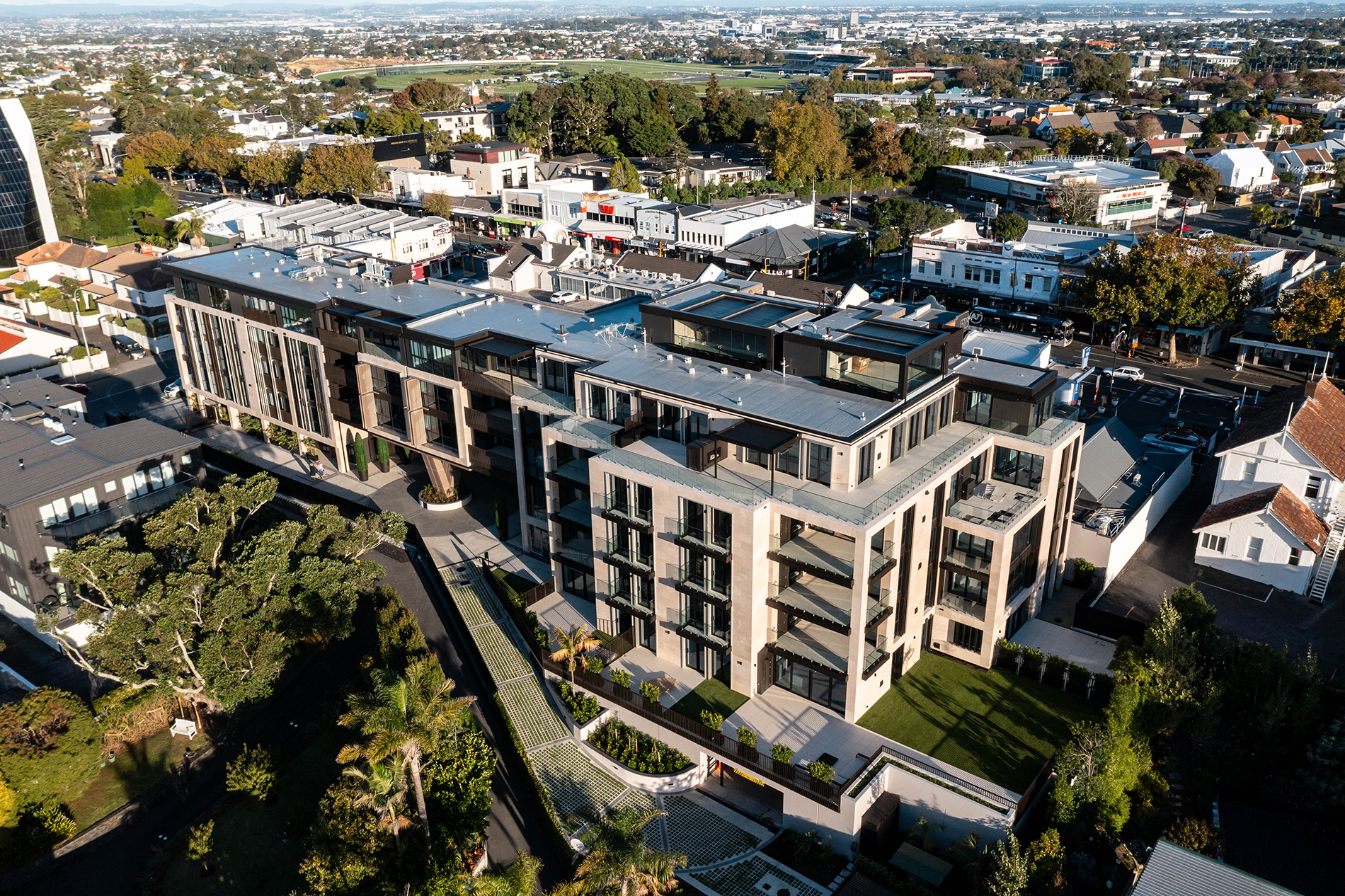

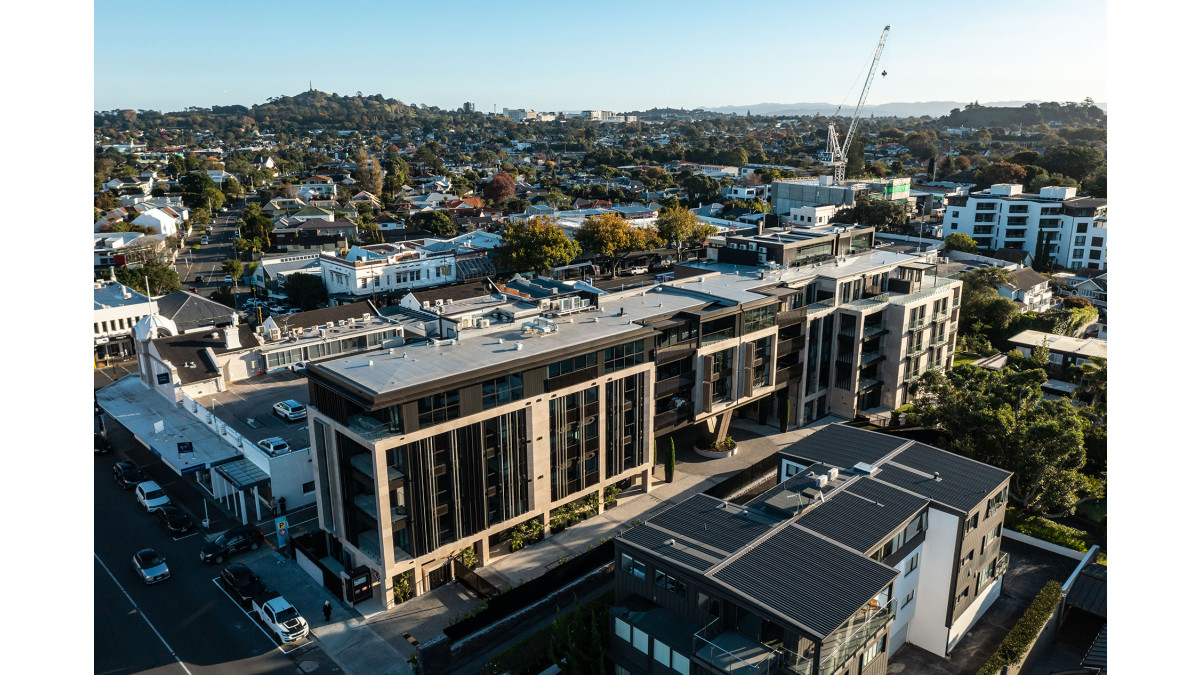

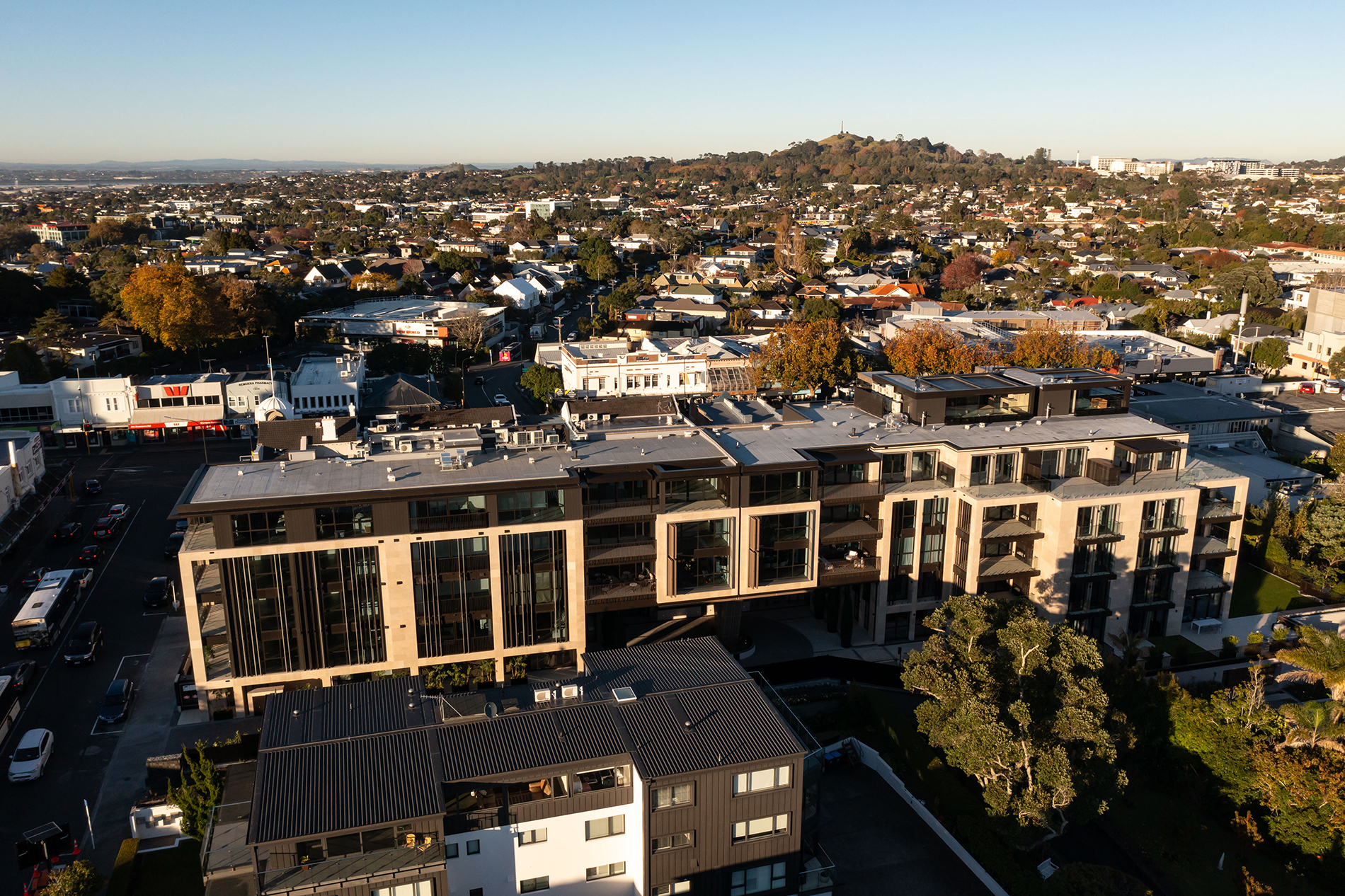

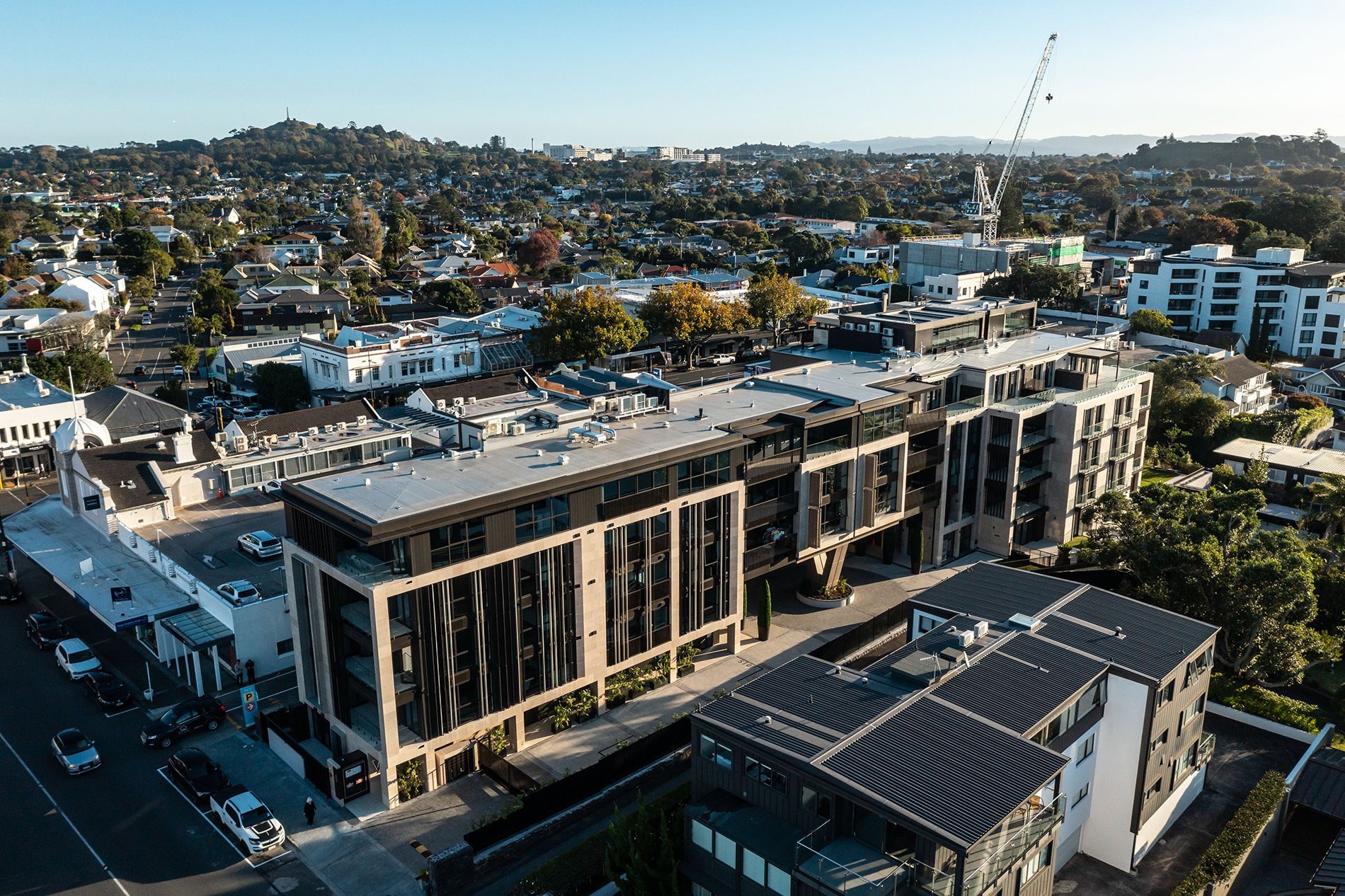

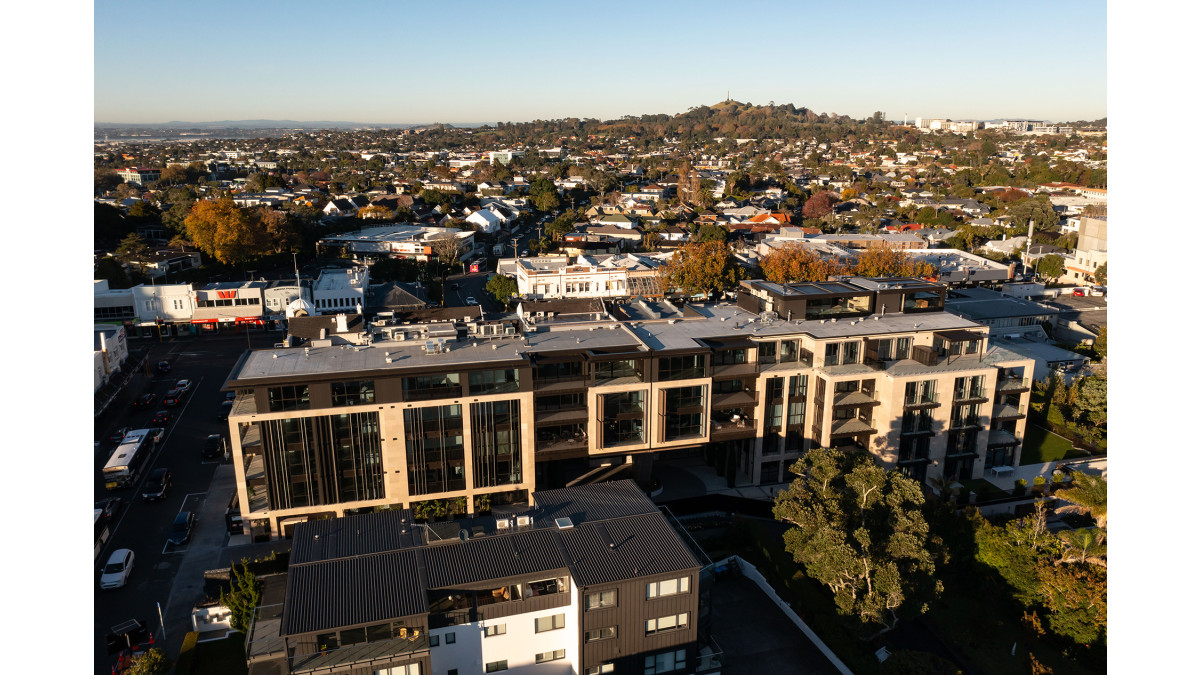

A collection of 23 luxury residences set over four levels, Victoria Lane in Auckland’s Remuera presents upmarket living designed by Leuschke Group Architects. Working for main contractor CMP Construction, Symonite is a façade specialist uniquely positioned to deliver projects that are challenging either in size or complexity, or both.

"Offering our Full Façade service, we provided and installed both the T50 and proprietary AlphaRail pre-cladding systems, Siderise passive fire protecton system, window and door joinery, solar shading, fire rated windows, louvres and more," says Matthew Harris, Senior Technical Advisor at Symonite. "This complete service allowed the architects to collaborate on the façade design at the earliest stages of the project, and for head contractor CMP Construction to have a single point of contact taking responsibility for the successful completion of all façade elements outside the limestone cladding."

Combining premium products in a complete solution

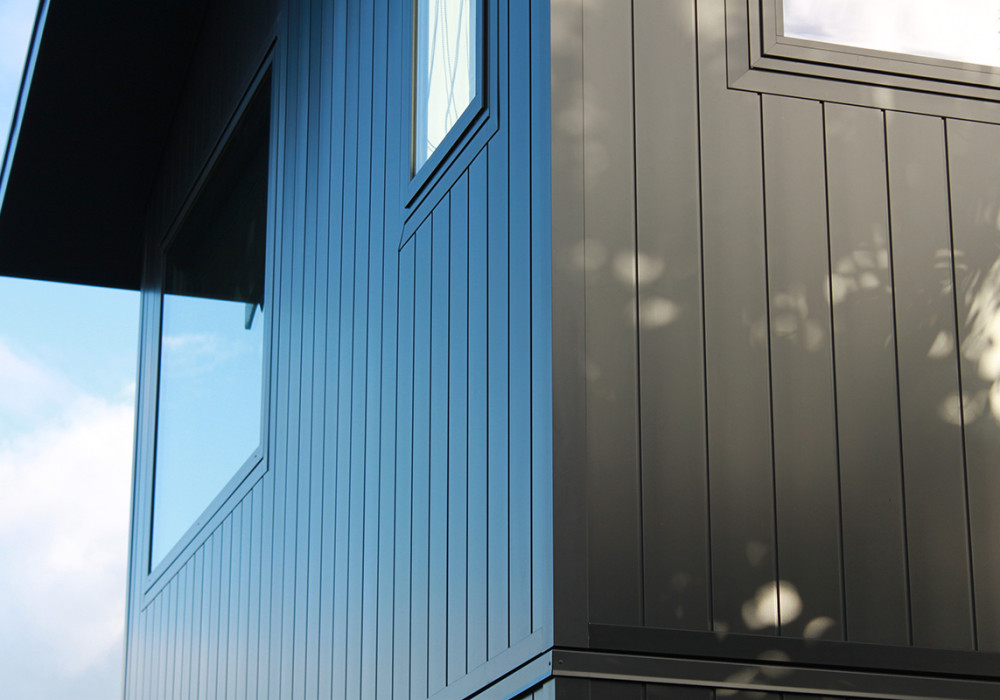

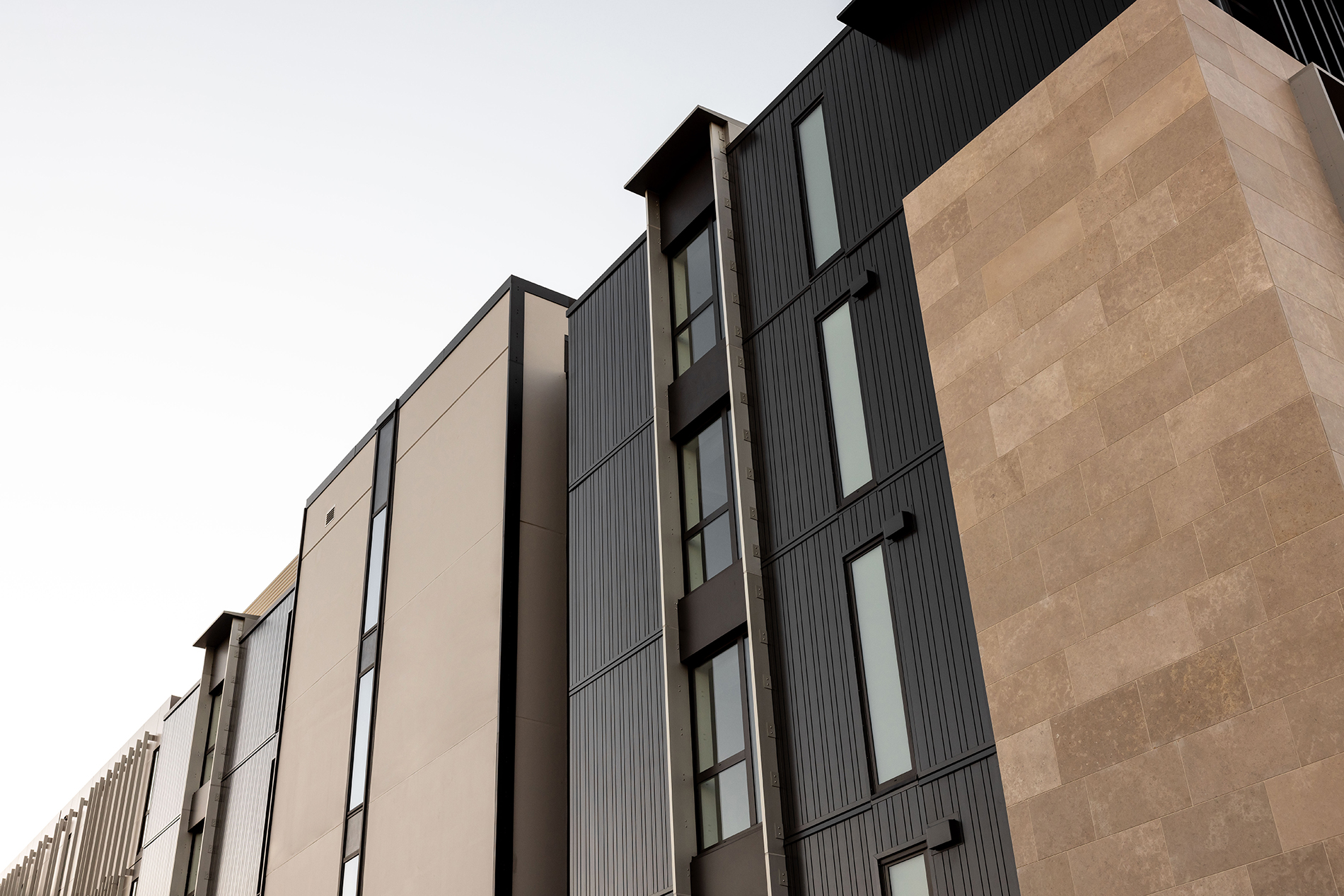

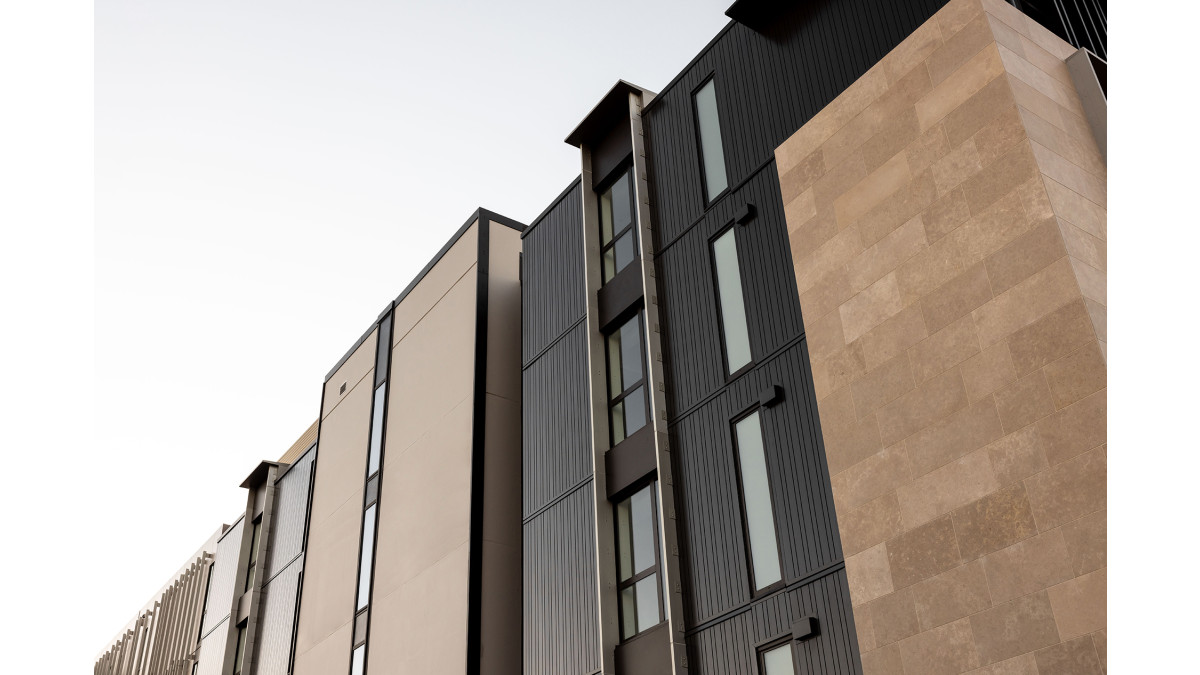

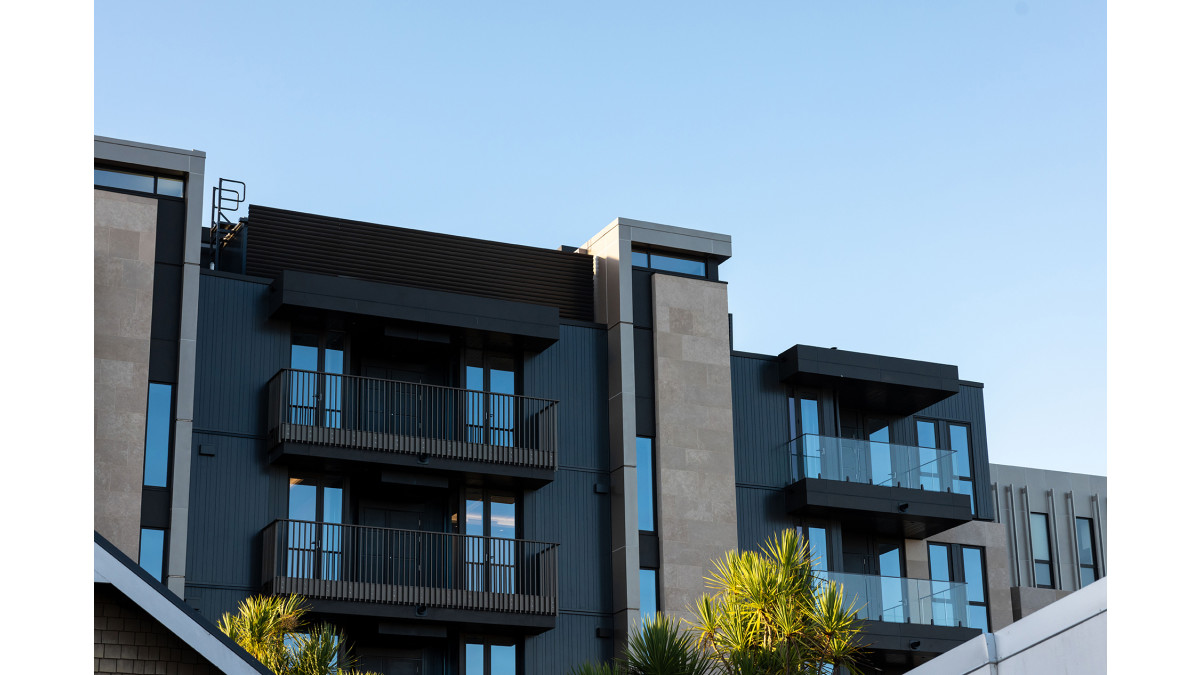

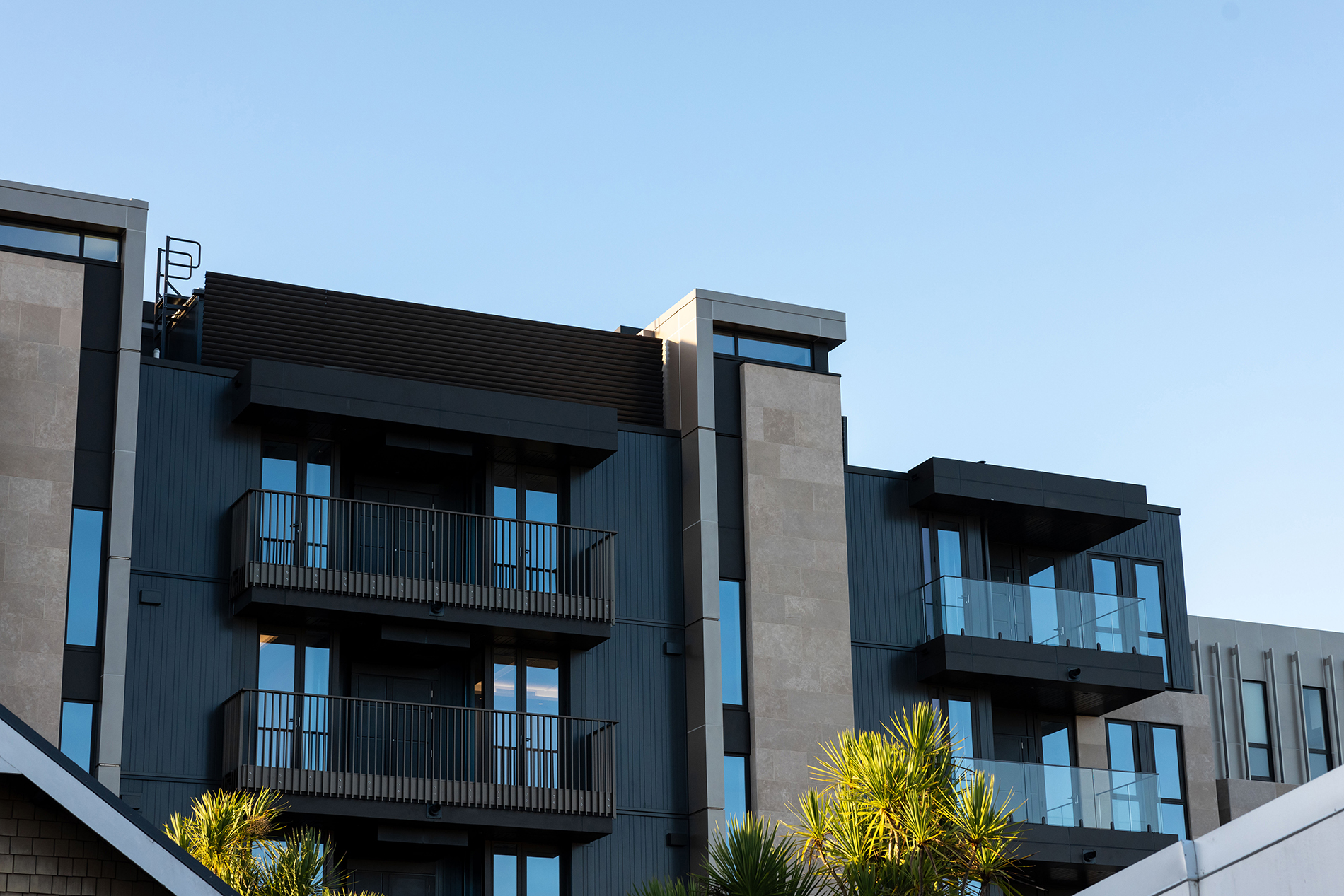

AliClad is an extruded aluminium weatherboard system that is installed vertically on proprietary Alpha rails run horizontally. It comes in a series of proprietary profiles – square grove, V groove, board & batten – and all profiles clip together within the system. Duratec powder coated for durability, board and batten AliClad provided Victoria Lane with a robust and beautifully detailed finish when complemented by the Alucolux panels.

A 3mm solid, coil-coated aluminium sheet material for exterior cladding and interior linings, Alucolux is the perfect combination of temper and hardness to perform when exposed to wind loads and pressure. Alucolux provides solutions for architects, developers, and construction companies looking for a premium solid aluminium façade panel they can safely specify without compromising design.

Combining these solid panels with windows, doors, and louvres from trusted suppliers, such as ACMF and APL, allows Symonite to offer a Full Façade service and a complete solution to demanding, high-end projects like Victoria Lane.

"We take care of the whole envelope and cladding system, providing architects with CAD detailing and PS1 engineering for high-performance facades." says Matthew, "We cover it all, from the initial consultation and design and engineering services to the final weathertightness check."

Project credits:
Service: Full Façade service, Design & Engineering Services
Architect: Leuschke Group Architects & James Doole Design
Builder: CMP Construction
Writer: Folio
Photography: Jono Parker

Siderise

Symonite

View Product

SIDERISE has now been successfully tested in conjunction with Alucolux, AliClad, and Equitone in New Zealand using the BS8414: BR135 to contribute to controlling fire spread in New Zealand timber framed construction.

RH | Cavity Barriers for Ventilated Cladding / Rainscreen – Horizontal
RV | Cavity Barriers for Cladding / Rainscreen – Vertical
OSCI | Open State Cassette Insert
CW-FS | Perimeter Barriers and Firestops for Curtain Walling
CW-FB | Curtain Wall Fire Board

The Siderise Rainscreen Cladding Cavity Fire Barriers offer application options to ensure full compliance with NZBC C/AS2:5.8.5.

Siderise cavity barriers have been fire tested to both EN1366-4 and AS1530 Part 4, as well as multiple full-system fire tests.

AliClad Max — Aluminium Weatherboards

Symonite

View Product

Performance and aesthetics combine in a contemporary aluminium cladding system, designed in New Zealand for local conditions.

The AliClad Max system is designed for very high wind loadings and is designed to be fixed at maximum span distances for reduced project costs. It has been verified with a full wall assembly test (BS8414) for buildings over 10m tall.

At 2.2mm 6063T5 Aluminium Alloy with a high tensile and rigidity properties, AliClad Max has excellent impact resistance, making it ideal for high-traffic areas such as schools. Improved rigidity over other systems comes from its depth and structure.

The AliClad Max System comes with a full assembly kit. It can interface easily with other façade systems, giving designers flexibility. The design of the system also gives builders the option to install the windows either before or after the cladding goes on.

Product Assurance Supply Statement: PASS Certificate:

WEATHER-TIGHTNESS: The system has been designed in line with NZBC Acceptable Solutions. It has been tested to be compliant with E2:VM1 and NZS4284
STRUCTURE: The AliClad Max system is designed for very high wind loadings and engineered to be fixed at maximum span distances for reduced project costs
FIRE PROTECTION: Aluminium is non-combustible under the NZBC and the support system has a limited / non-combustible wall assembly. AliClad Max has been tested for full-scale system fire performance to BS8414

PASS

Alucolux Solid

Symonite

View Product

Alucolux is a 3mm solid, coil coated aluminium sheet material for exterior cladding and interior linings.

Alucolux provides a non-combustible cladding solution:

Exterior cladding
Interior linings

Alucolux can offer embossed surfaces, 3-D shapes, perforations, and textured finishes

Typical applications:

High rise buildings
Industrial buildings
Public buildings
Tunnels, stations, subway stations
Airports
Hotels, hospitals, shopping malls
Stadiums, event centres and halls

When paired with a tested and compliant system this cladding material will perform in accordance with all applicable NZBC Clauses
Clause C — Protection from Fire: Alucolux is deemed non-combustible and certified to EN 13501-1
