Siderise
Description

SIDERISE has now been successfully tested in conjunction with Alucolux, AliClad, and Equitone in New Zealand using the BS8414: BR135 to contribute to controlling fire spread in New Zealand timber framed construction.

SIDERISE offers some of the world's most technically advanced fire protection and noise control solutions. They have provided acoustic, fire, and thermal insulation solutions for building facades for over 45 years. SIDERISE is one of the few products in NZ to have undergone full system testing.

The passive fire protection systems are industry-leading and third-party certified. The SIDERISE curtain walling firestop was the first to market internationally, and their reactive solution for ventilated facades was the first within Europe.

Siderise Façade Solutions available in NZ

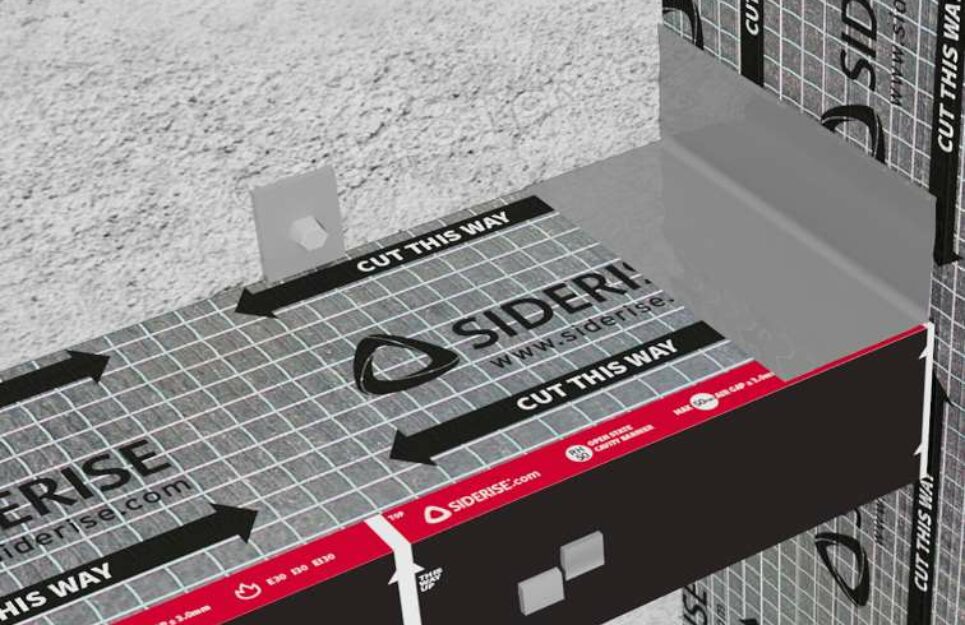

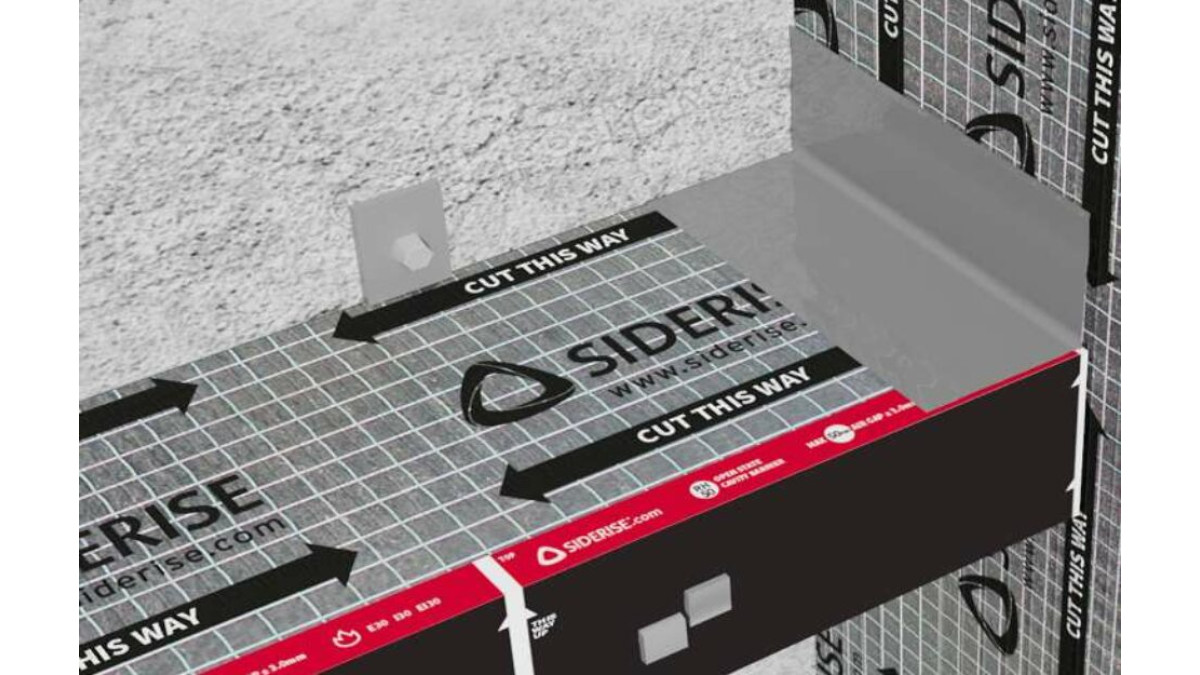

  • RH | Cavity Barriers for Ventilated Cladding / Rainscreen – Horizontal
  • RV | Cavity Barriers for Cladding / Rainscreen – Vertical
  • OSCI | Open State Cassette Insert
  • CW-FS | Perimeter Barriers and Firestops for Curtain Walling
  • CW-FB | Curtain Wall Fire Board
Key Features
  • Site modifiable
  • Allows continuous ventilation and drainage behind the external envelope
  • Products tested extensively in small-scale/individual material tests as well as in full-scale system tests for several façade systems
  • Reactive intumescent band has rapid seal closure properties
  • Horizontal barriers can accommodate up to 50mm of continuous ventilated air space
  • Vertical barriers accommodate cladding serviceability movement
Scope of Use
  • RH | Cavity Barriers for Ventilated Cladding / Rainscreen – Horizontal
  • RV | Cavity Barriers for Cladding / Rainscreen – Vertical
  • OSCI | Open State Cassette Insert
  • CW-FS | Perimeter Barriers and Firestops for Curtain Walling
  • CW-FB | Curtain Wall Fire Board
Statement of Building Code Compliance

The Siderise Rainscreen Cladding Cavity Fire Barriers offer application options to ensure full compliance with NZBC C/AS2:5.8.5.

Siderise cavity barriers have been fire tested to both EN1366-4 and AS1530 Part 4, as well as multiple full-system fire tests.

In-Service History

Symonite supply Siderise as part of a full facade service.

Symonite Panels Ltd are highly experienced specialist suppliers, fabricators, and installers of Facade Systems for the construction industry.

Product Enquiries

News from Symonite

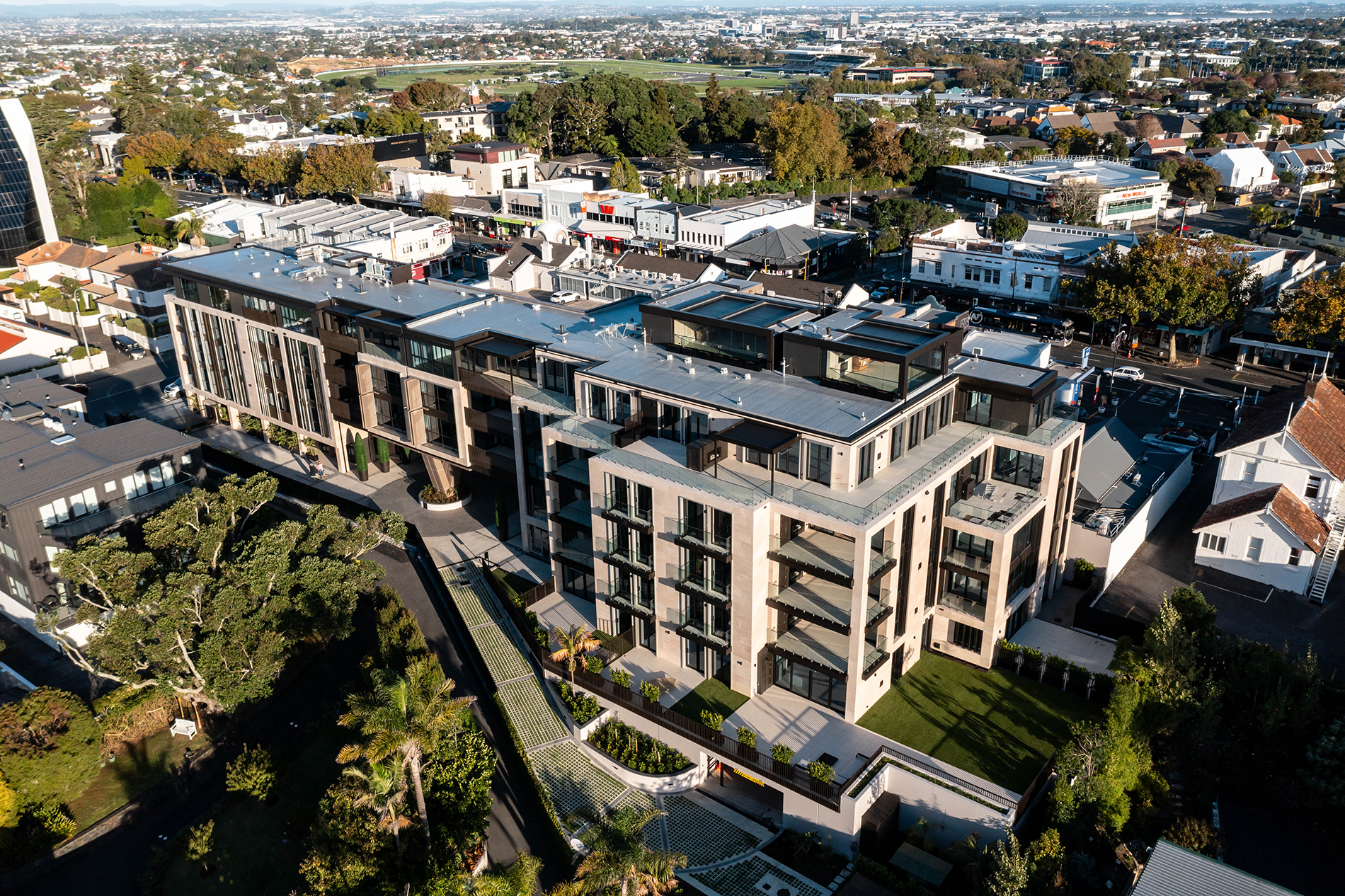

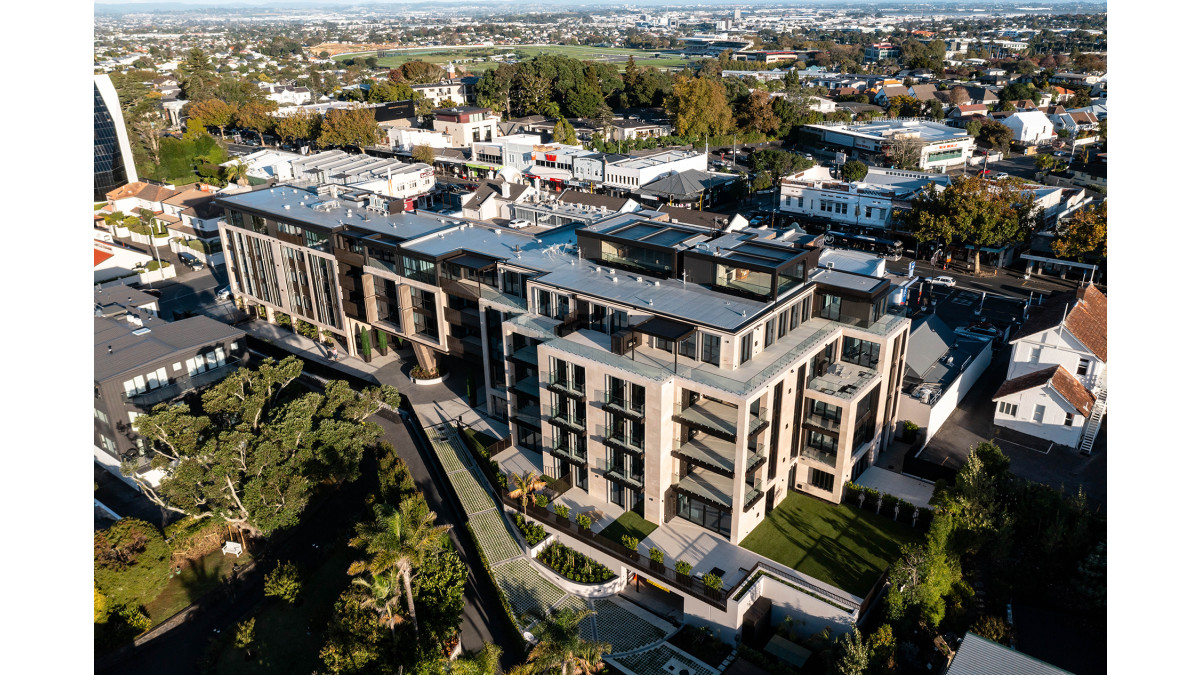

Luxury Victoria Lane Residences Enhanced by Symonite’s Full Façade Cladding System
