SRP: NZ Made Eco-Friendly Steel Products

Steel Rollformed Products Ltd (SRP) is a manufacturer of quality steel stud and ceiling systems. A family-owned and run business established in 2007 by the Bedford Family, SRP prioritises sourcing materials that are not only locally produced to support kiwi business, but also uphold a high environmental standard. They manufacture in Auckland with distribution centres in Tauranga and Christchurch which helps further reduce the carbon footprint with no need to rely on overseas supply.

SRP sources their steel coils from NZ Steel, mitigating the environmental cost of transporting raw materials as well as keeping lead times very low. SRP is proud to be partnered with NZ Steel who have achieved many environmental standards such as the Environmental Choice Tick, Telarc Environmental Tick, as well as being a part of the New Zealand Green Building Council and the World Steel Association who uphold high standards for environmental steel production.

The raw material NZ Steel uses is all sourced from within New Zealand. Iron sand is mined from the west coast of the North Island. Once the iron is extracted and refined, 75% of the mined sand is returned to the excavation site with extensive planting of grass, pine trees and native plants to restore the land back to its natural state.

Along with extracted iron, recycled steel is also used in the steel making process. This is due to steel's ability to be 100% reusable thus exceeding the life cycle of other products such as treated timber. SRP collects all offcut materials to ensure recycling and repurposing. SRP products have achieved the maximum 3 Green Star Rating points under the Steel Mat-8 category.

By taking these necessary steps, SRP creates products that are of high quality and environmentally sustainable. They are justifiably proud of these achievements.

SRP Steel Stud Wall Systems

Steel Rollformed Products

View Product

Steel Rollformed Products offer a wide range of easy to install steel wall system components.

Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

Office partitioning
Apartments
Housing complexes

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

AS/NZS 4600 Cold-formed steel structures
Galvanised coating Z275 to AS/NZS 1397
NZS 3404 Steel structures standard
NZS 3404.1 Steel structures standard — materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2

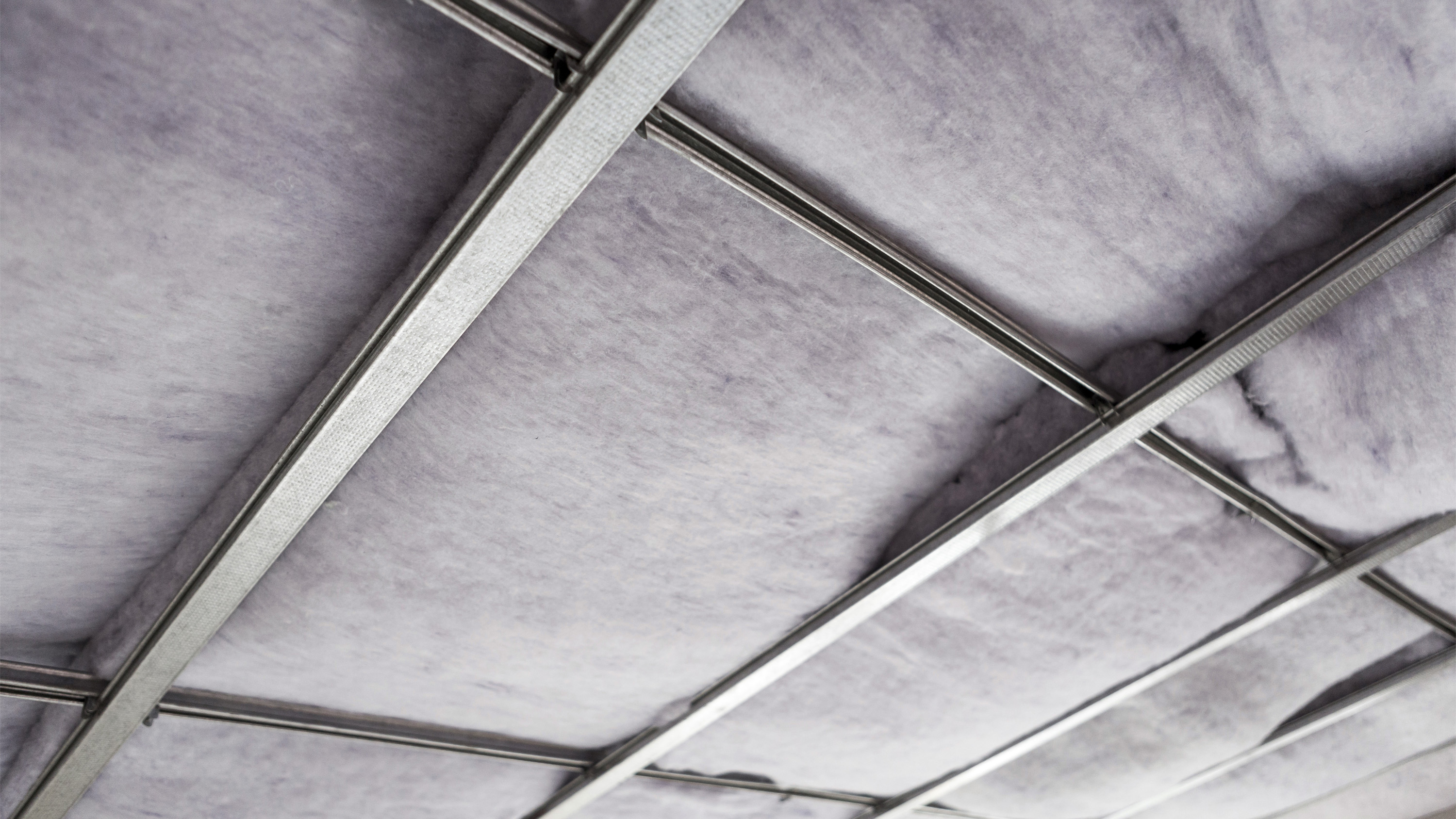

SRP Ceiling Systems

Steel Rollformed Products

View Product

Steel Rollformed Products' Ceiling Systems are available as Direct Fix, Top Cross Rail or Strongback options.

SRP Ceiling systems are suitable for use for internal ceilings and also external soffits. All SRP Ceiling Systems can be used to provide a base grid to fix GIB plasterboard, and to be the batten system in GIB Plasterboard Systems.

The selection of an SRP systems is determined by space requirements of the plenum vs internal room height.

Direct Fix: provides less room between ceiling structure and plasterboard and is suitable for houses, apartments, and offices where plenum space is not required, combines with 16mm or 28mm Batten
Strongback allows for suspended ceilings are are suitable for commercial spaces where rigidity and plenum space for services is required, combines with 22mm Batten and furring strap. Another option is to use the SRP 35mm Ceiling Batten with SRP Clipfix Clip.
TCR also allows for suspended ceilings and can be used with the 16mm or 28mm batten for use in for larger spaces.
SRP battens can also be used for Wall Strapping — with SRP Adjustable Wall Fix Clips (Please refer SRP Clips Spacing Tables for options).

NZBC Clause B2 — Durability: When installed in accordance with the installation instructions and in dry interior environments, SRP Ceiling Systems will satisfy the requirements of NZBC Clause B2 – Durability. SRP Ceiling Systems are manufactured from galvanised coated steel Z275 conforming to AS/NZS 1397.

NZBC Clause B1
NZBC Clauses C3 — Fire and G6 — Noise Control: SRP Ceiling Systems meet the requirements of specific fire and acoustic systems. Where installed ceilings form part of a specific fire or sound rated system the plasterboard manufacturer’s specification must be followed. Refer to GIB Fire Rated Systems and GIB Noise Control Systems.

SRP galvanised steel products are manufactured to meet the requirements of NZS 3404 Steel Structures Standard, NZs 404.1 Steel Structures Standard – Materials, Fabrication and Construction and AS/NZS 1397 Steel Sheet and Strip.

Other relevant standards:

NZS 4600 cold-formed Steel Structures
NZS 2785 Suspended Ceilings
NZS 1170 Structural Design Actions

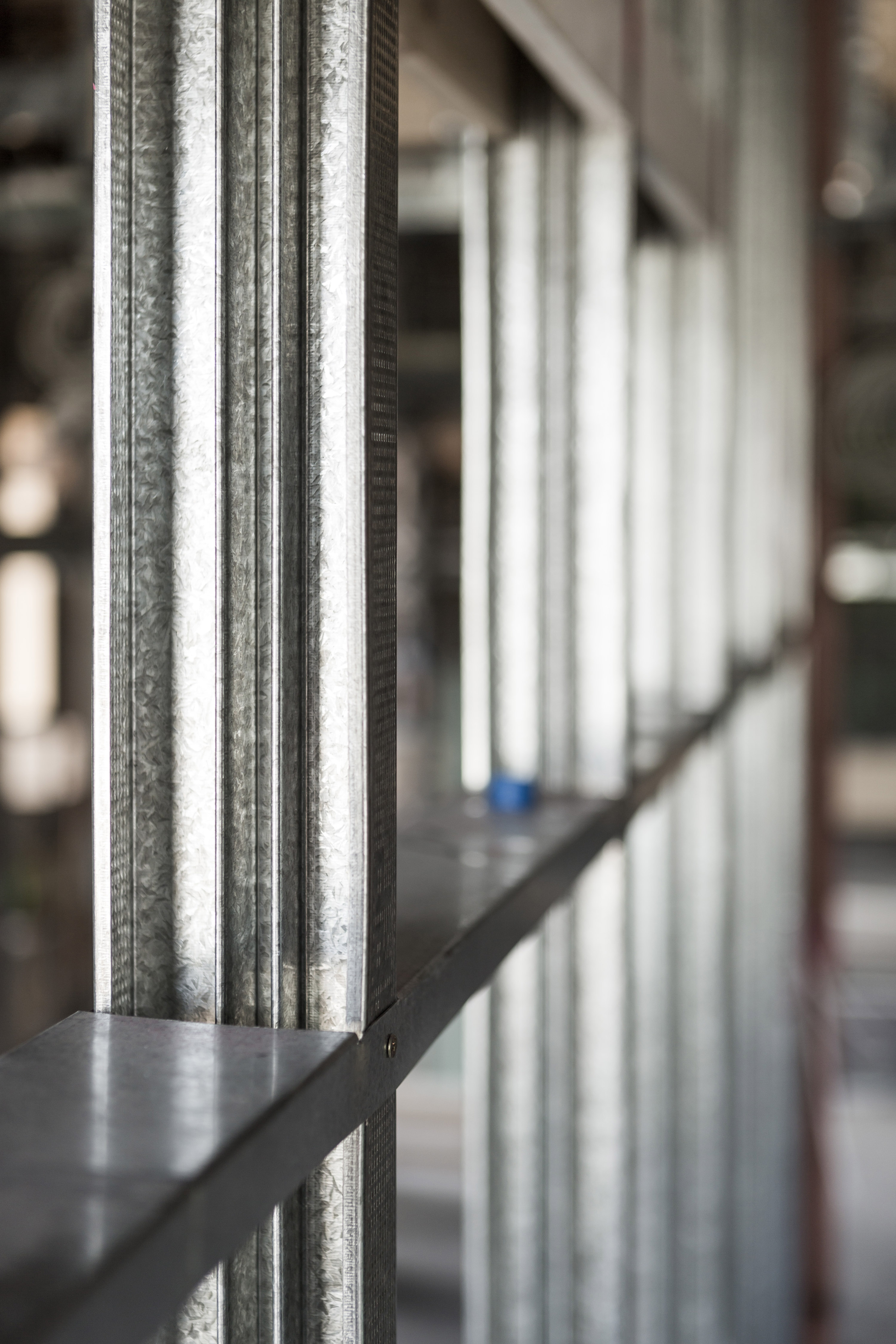

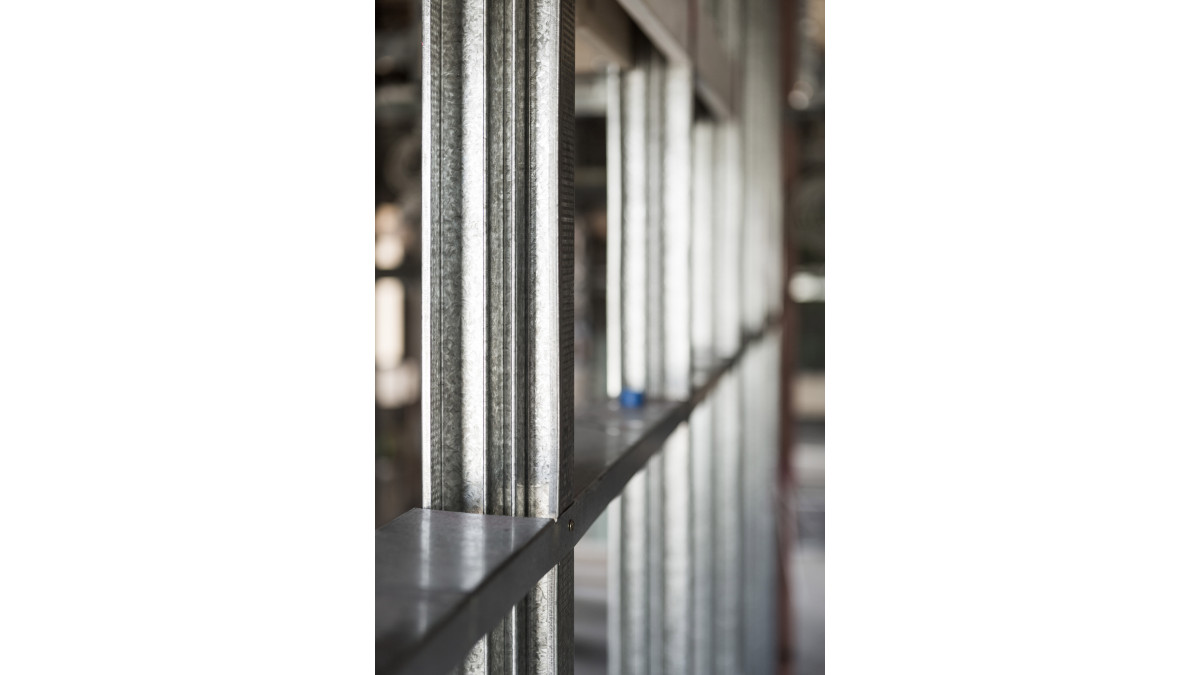

SRP Whisperwall Acoustic Stud Wall Systems

Steel Rollformed Products

View Product

Steel Rollformed Products offer three Acoustic Wall Systems: Double Steel SRP Stud Walls, SRP Whisperwall, and, Staggered Steel SRP Stud Walls to provide acoustic and fire rating performance for interior and intertenancy walls.

Whisperwall:

Developed to provide superior acoustic properties with additional fire rated properties
Interior wall construction

Double Steel:

Generally used where two way FRR (Fire Resistance Rating), or superior acoustic performance is required
Mainly intertenancy walls and corridors

Staggered Stud:

Commonly used to provide effective resistance to sound transmission and acoustic impact
Two way FRR

AS/NZS 4600 Cold-formed steel structures
Galvanised Coating Z275 to AS/NZS 1397
NZS 3404 Steel Structures Standard
NZS 3404.1 Steel Structures Standard — Materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2

SRP Custom Manufacturing: Top-hats, Deflection Tracks, Angles, Channels, Stud Lengths

Steel Rollformed Products

View Product

In addition to standard stock lines, Steel Rollformed Products also has the capability of making/supplying custom galvanised steel for non-standard ceiling and wall framing systems where adjustments or modifications are required to accommodate challenging construction requirements.

Custom designed and produced solutions for non-standard framing requirements

B2 Durability: SRP uses GALVSTEEL® manufactured by New Zealand Steel. The continuous hot-dip galvanised zinc coating conforms to the industry standard required for this application; Z275 (275 g/m² total). New Zealand Steel made GALVSTEEL® for framing is backed by a 50-year Durability Statement to demonstrate compliance with NZBC Clause B2-Durability, when used and maintained as referred to in the current New Zealand Steel's Durability Statement.
