SRP Ceiling Systems
Description

Steel Rollformed Products' Ceiling Systems are available as Direct Fix, Top Cross Rail or Strongback options.

Direct Fix Systems have been designed to allow for a high level of flexibility, including the possibility of using any of the SRP Batten range. Top Cross Rail Systems allow for either the SRP 16mm or 28mm Batten, when suspended on wire or droppers, and the Strongback System is designed to combine with the SRP 22mm or 35mm Batten. In the 22mm SRP Batten size — SRP also have a special 50mm WIDE face option (in both 0.55 & 0.75BMT).

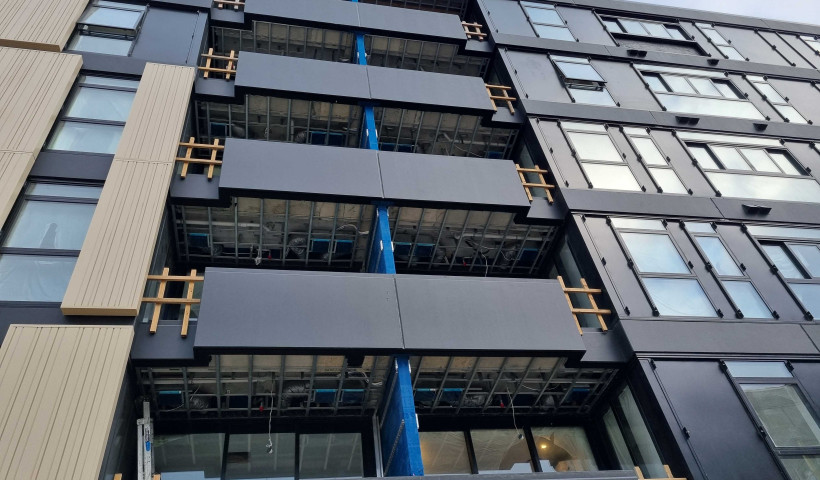

SRP Ceiling systems are suitable for use for internal ceilings and also external soffits.

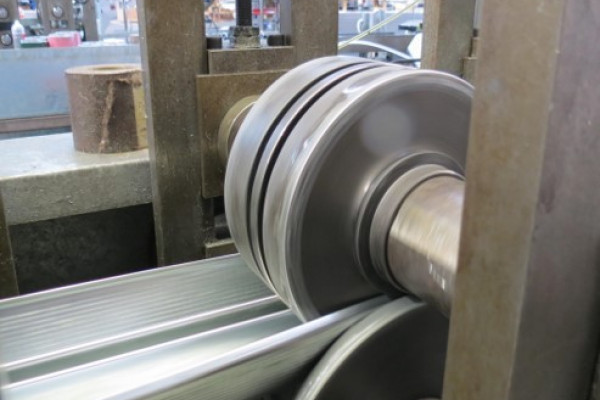

Steel Rollformed Products have selected the best industry standard profiles to produce a range of ceiling battens that are most popular in the industry for strength, reliability and ease of installation. Combining precision manufacturing with top quality materials, such as GALVSTEEL, by New Zealand Steel, SRP produce battens of quality, durability, and strength, along with channels, and fixing clips and angles.

Key Features

Components include:

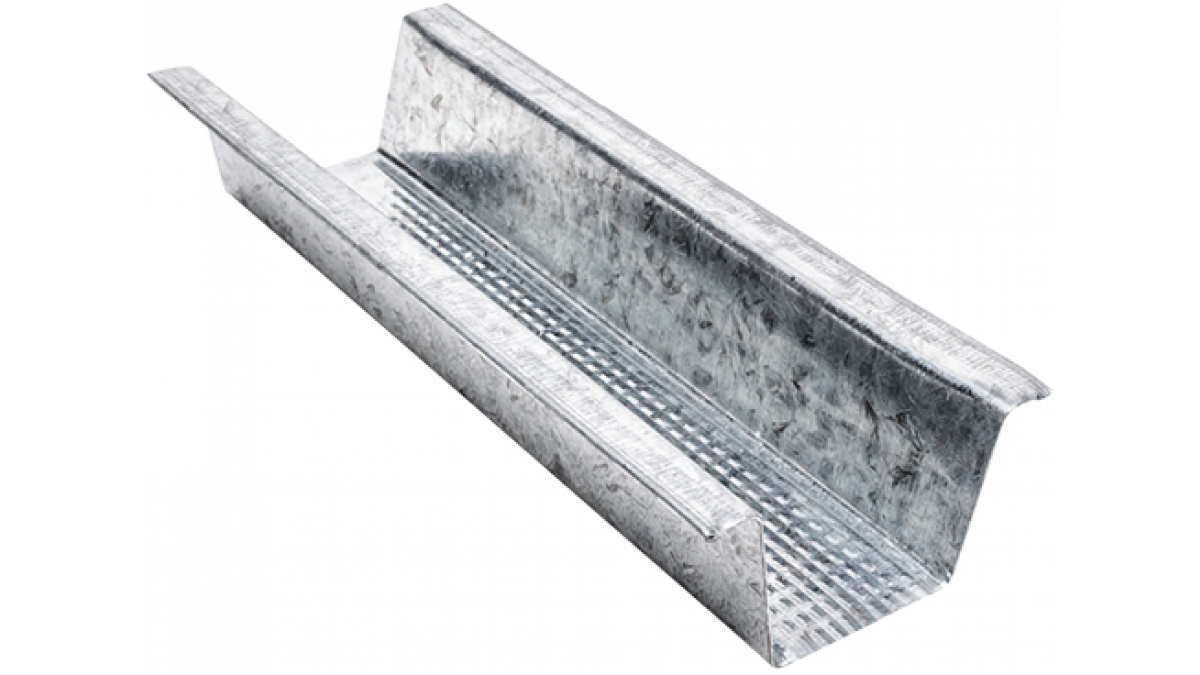

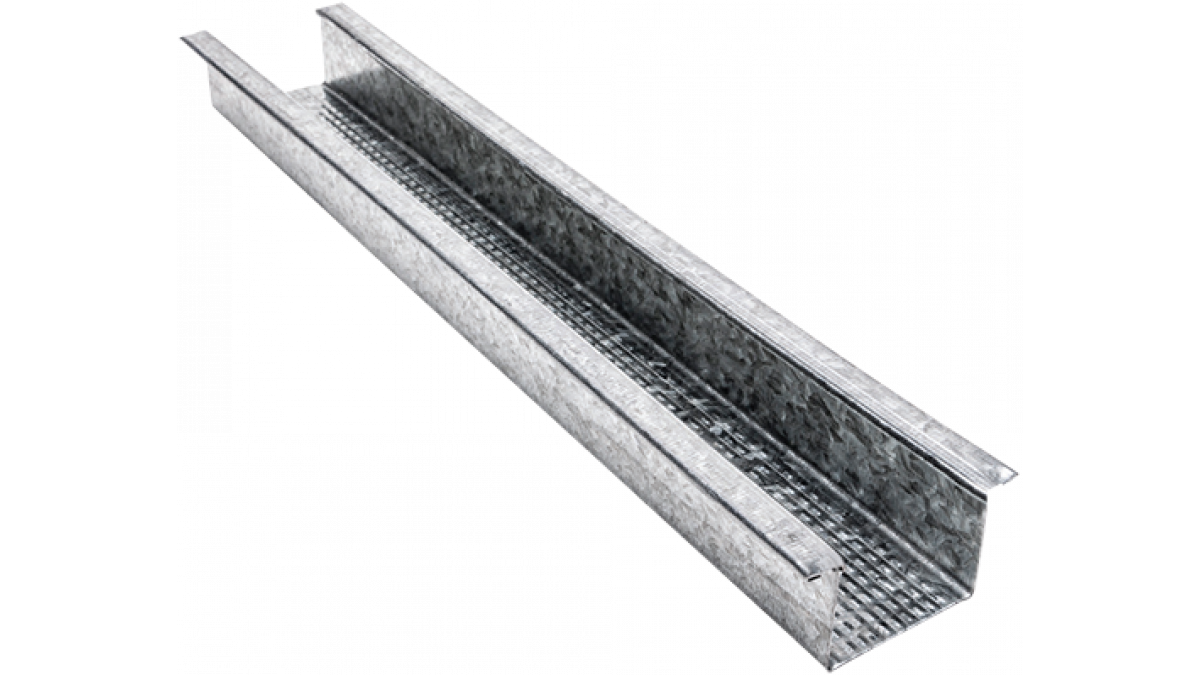

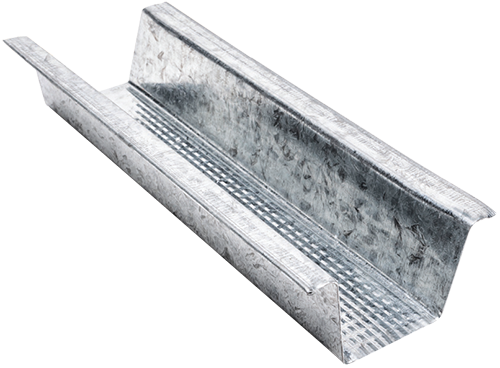

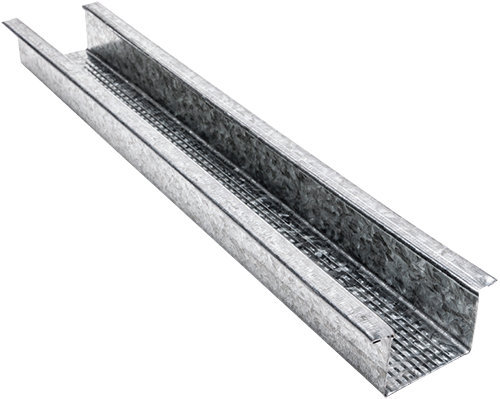

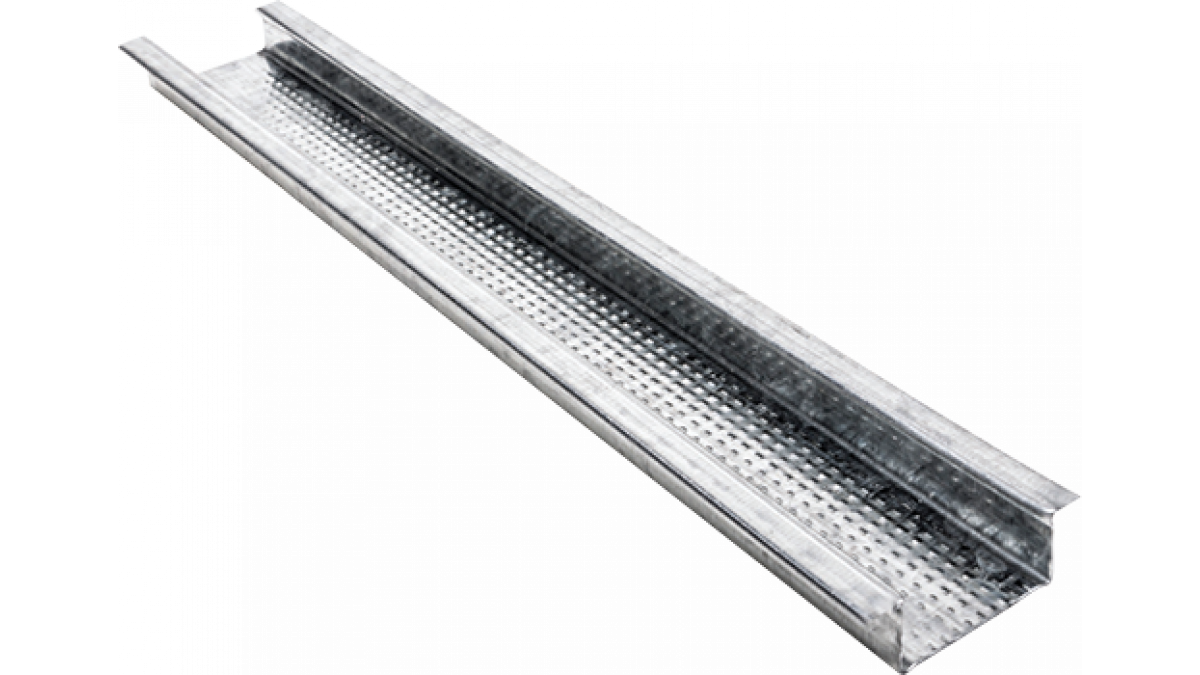

  • Battens (28mm, 35mm)

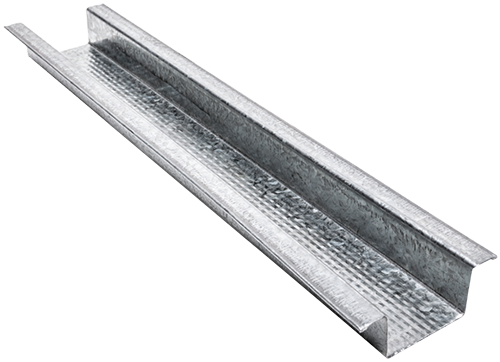

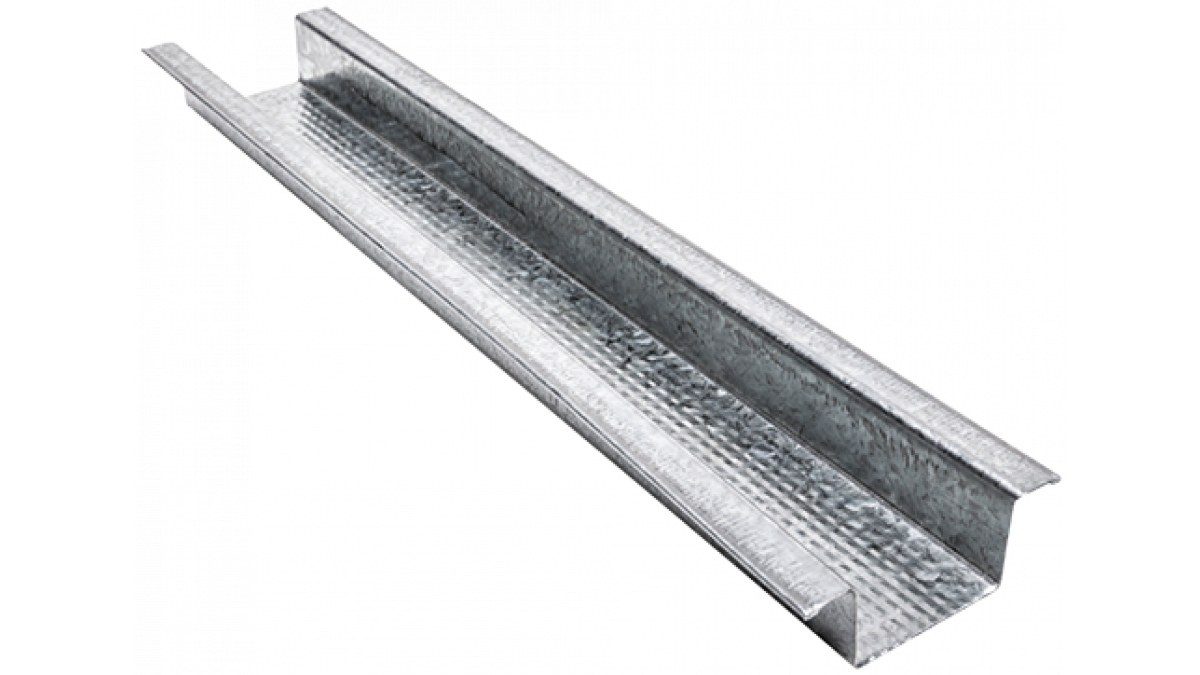

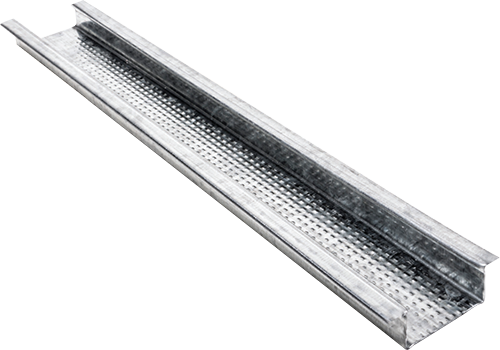

  • Low profile battens (16mm, 22mm 0.75 and 0.55)

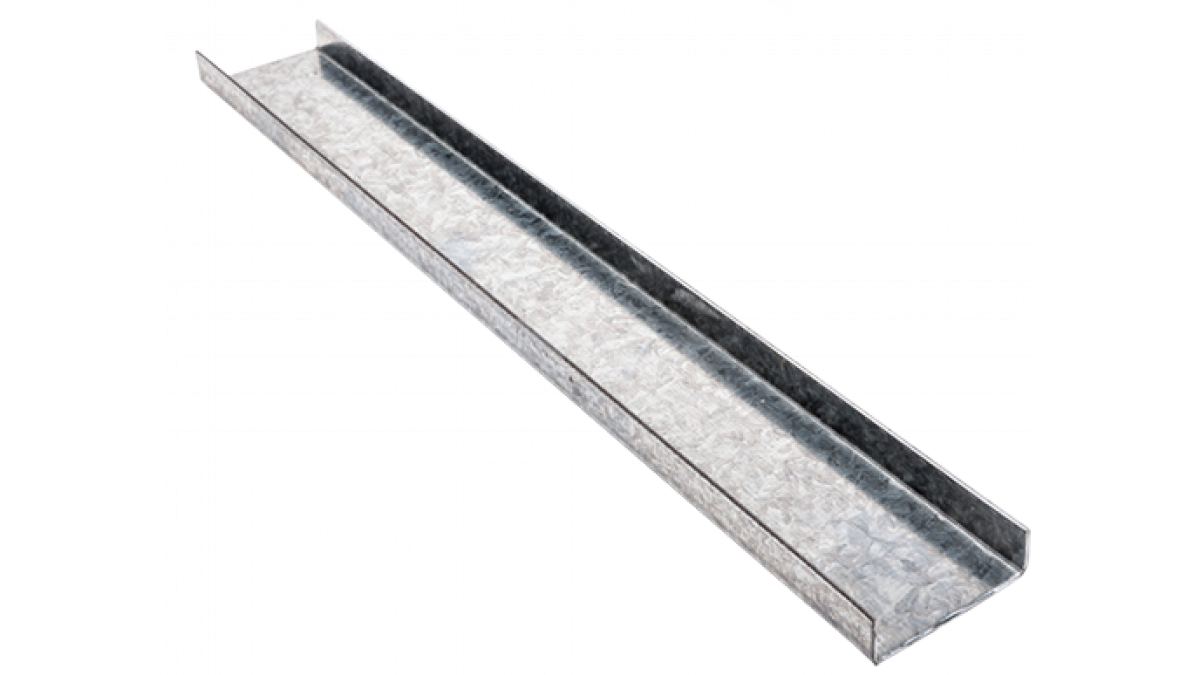

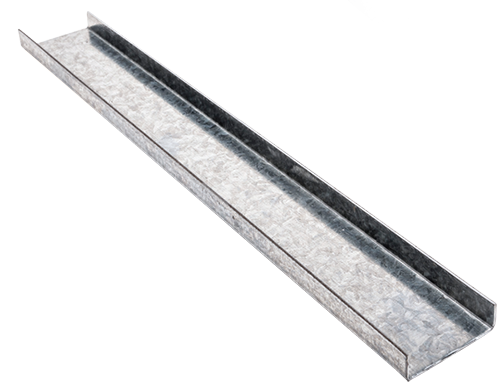

  • Strongback channel (38mm depth)

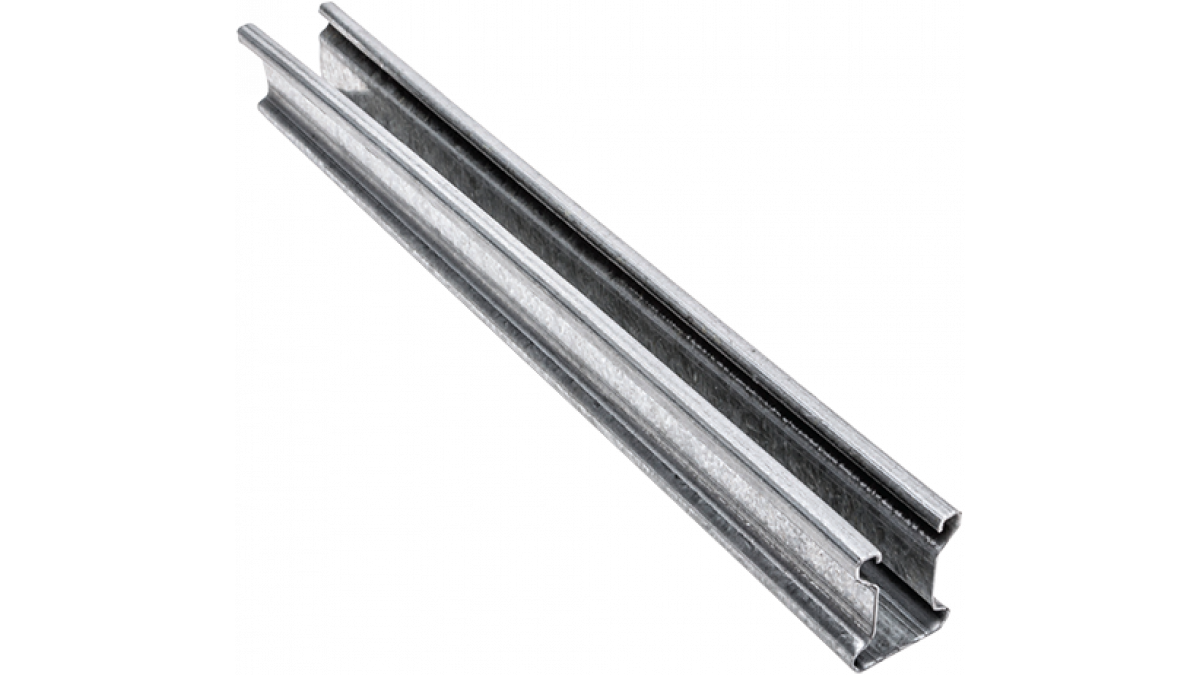

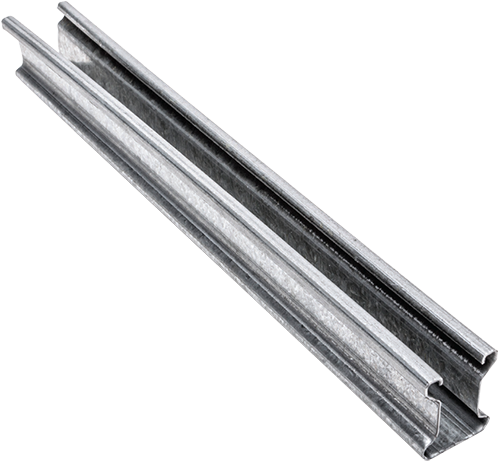

  • Top cross rail (TCR 25mm depth) and TCR clip
  • Wall Angles (35mm, 40mm)
  • Perimeter track (to suit all batten sizes: 16, 22, 28, 35mm)
  • Direct-Fix + acoustic Clips

See Product Range for full details.

Scope of Use

SRP Ceiling systems are suitable for use for internal ceilings and also external soffits. All SRP Ceiling Systems can be used to provide a base grid to fix GIB plasterboard, and to be the batten system in GIB Plasterboard Systems.

The selection of an SRP systems is determined by space requirements of the plenum vs internal room height.

  • Direct Fix: provides less room between ceiling structure and plasterboard and is suitable for houses, apartments, and offices where plenum space is not required, combines with 16mm or 28mm Batten
  • Strongback allows for suspended ceilings are are suitable for commercial spaces where rigidity and plenum space for services is required, combines with 22mm Batten and furring strap.  Another option is to use the SRP 35mm Ceiling Batten with SRP Clipfix Clip.
  • TCR also allows for suspended ceilings and can be used with the 16mm or 28mm batten for use in for larger spaces.

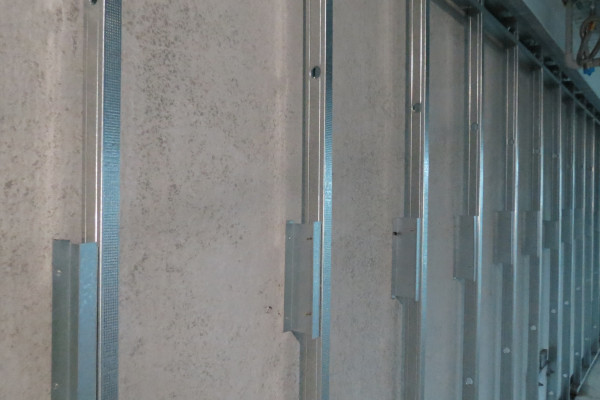

  • SRP battens can also be used for Wall Strapping — with SRP Adjustable Wall Fix Clips (Please refer SRP Clips Spacing Tables for options).
Limitations on Use

Please refer to SRP Ceiling Systems handbook for installation guidance.

Statement of Building Code Compliance
  • NZBC Clause B2 — Durability:  When installed in accordance with the installation instructions and in dry interior environments, SRP Ceiling Systems will satisfy the requirements of NZBC Clause B2 – Durability. SRP Ceiling Systems are manufactured from galvanised coated steel Z275 conforming to AS/NZS 1397.
  • NZBC Clause B1
  • NZBC Clauses C3 — Fire and G6 — Noise Control: SRP Ceiling Systems meet the requirements of specific fire and acoustic systems. Where installed ceilings form part of a specific fire or sound rated system the plasterboard manufacturer’s specification must be followed. Refer to GIB Fire Rated Systems and GIB Noise Control Systems.

SRP galvanised steel products are manufactured to meet the requirements of NZS 3404 Steel Structures Standard, NZs 404.1 Steel Structures Standard – Materials, Fabrication and Construction and AS/NZS 1397 Steel Sheet and Strip.

Other relevant standards:

  • NZS 4600 cold-formed Steel Structures
  • NZS 2785 Suspended Ceilings
  • NZS 1170 Structural Design Actions
In-Service History

Steel Rollformed Products Ltd was etsablished in 2007, actively manufacturing and supplying products to the New Zealand (+ Australian) building industry since then.

Documents
Full Ceiling Systems Handbook
Span Tables
Installation: Direct Fix
Installation: Strongback
Installation: Top Cross Rail
Warranty
Ceiling Product Range
SRP Ceilings

Steel Rollformed Products Ltd is a New Zealand based manufacturer of rollformed steel, Wall and Ceiling systems — for use in construction of most types of buildings.

Product Enquiries

News from Steel Rollformed Products

SRP Acoustic Solutions for Walls and Ceilings
SRP Steel Wall Strapping Solutions

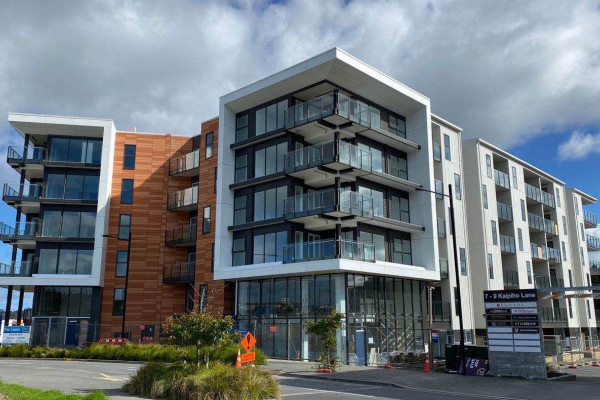

Curved Walls Add to Building Elegance at Sonata Apartments
