SRP Supplies Summerset St Johns Retirement Village

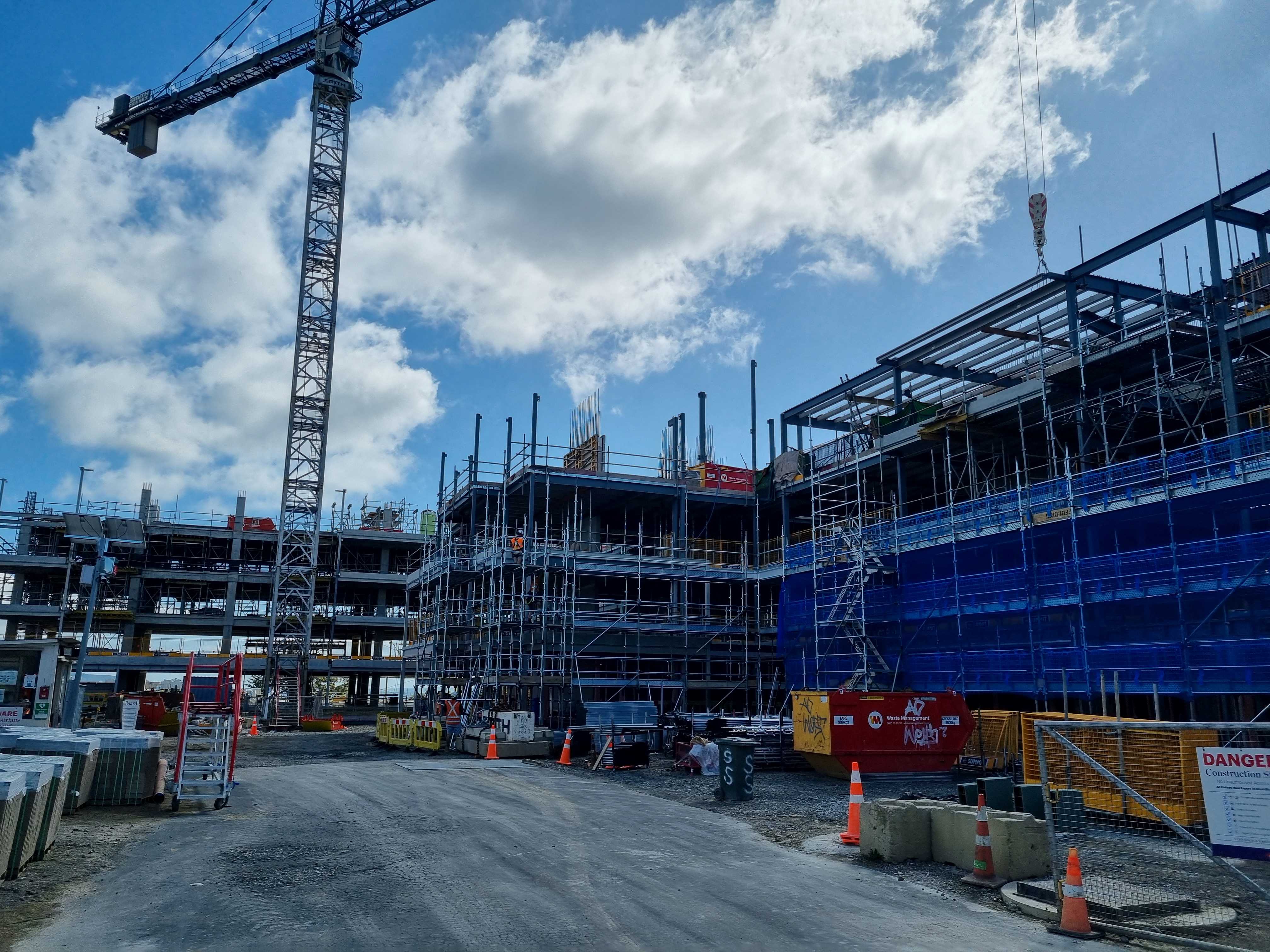

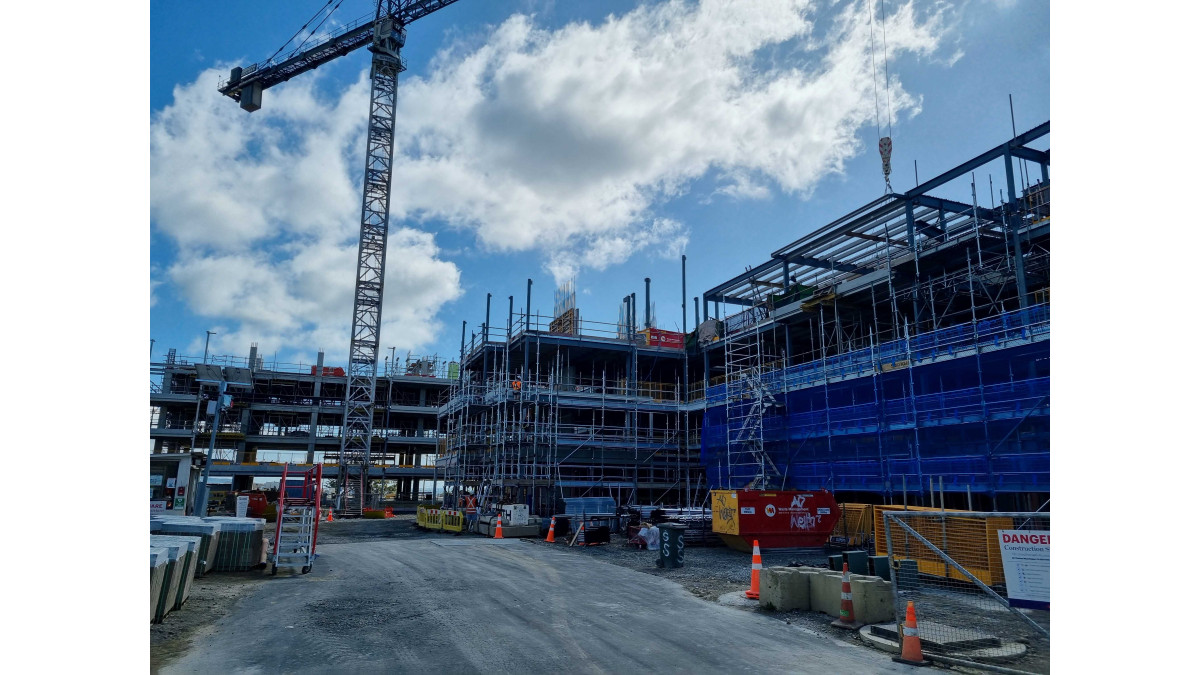

Summerset St Johns is a newly-constructed luxury Retirement Village — located high on the ridge of Auckland’s Eastern Suburbs — with an amazing view out towards Auckland city and harbour.

This new build is a large-scale project, which is being constructed in five stages, with over 225 independent living apartments and 64 serviced memory care units, in multiple buildings ranging from three to seven storeys high.

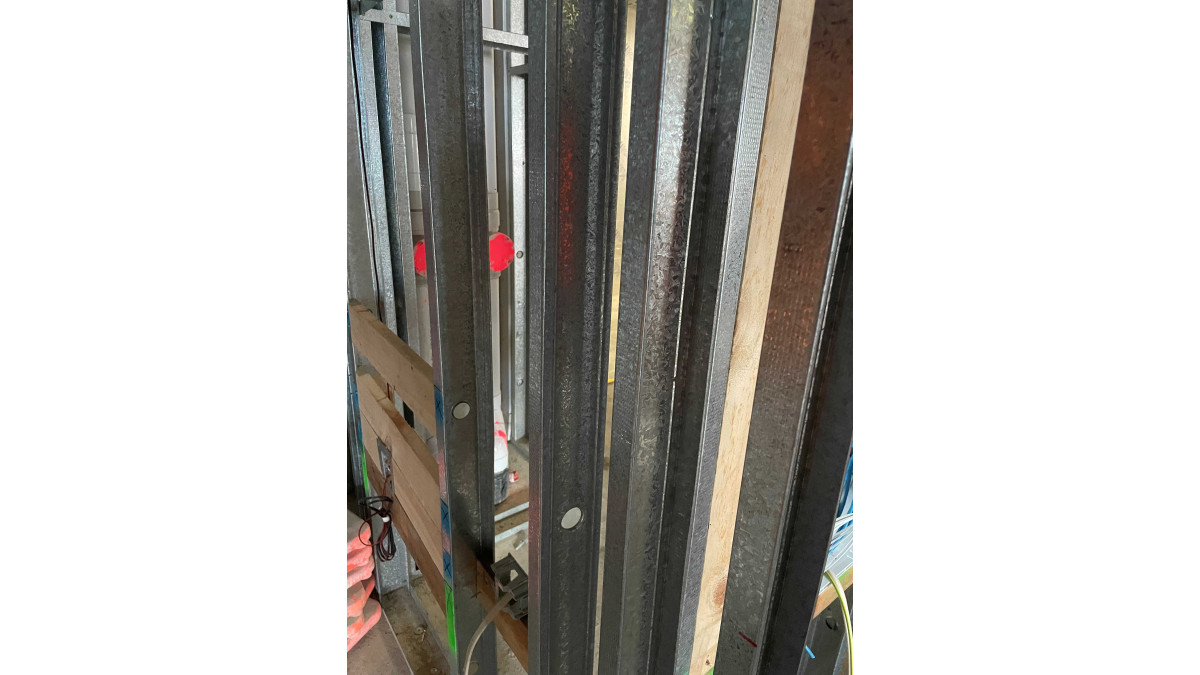

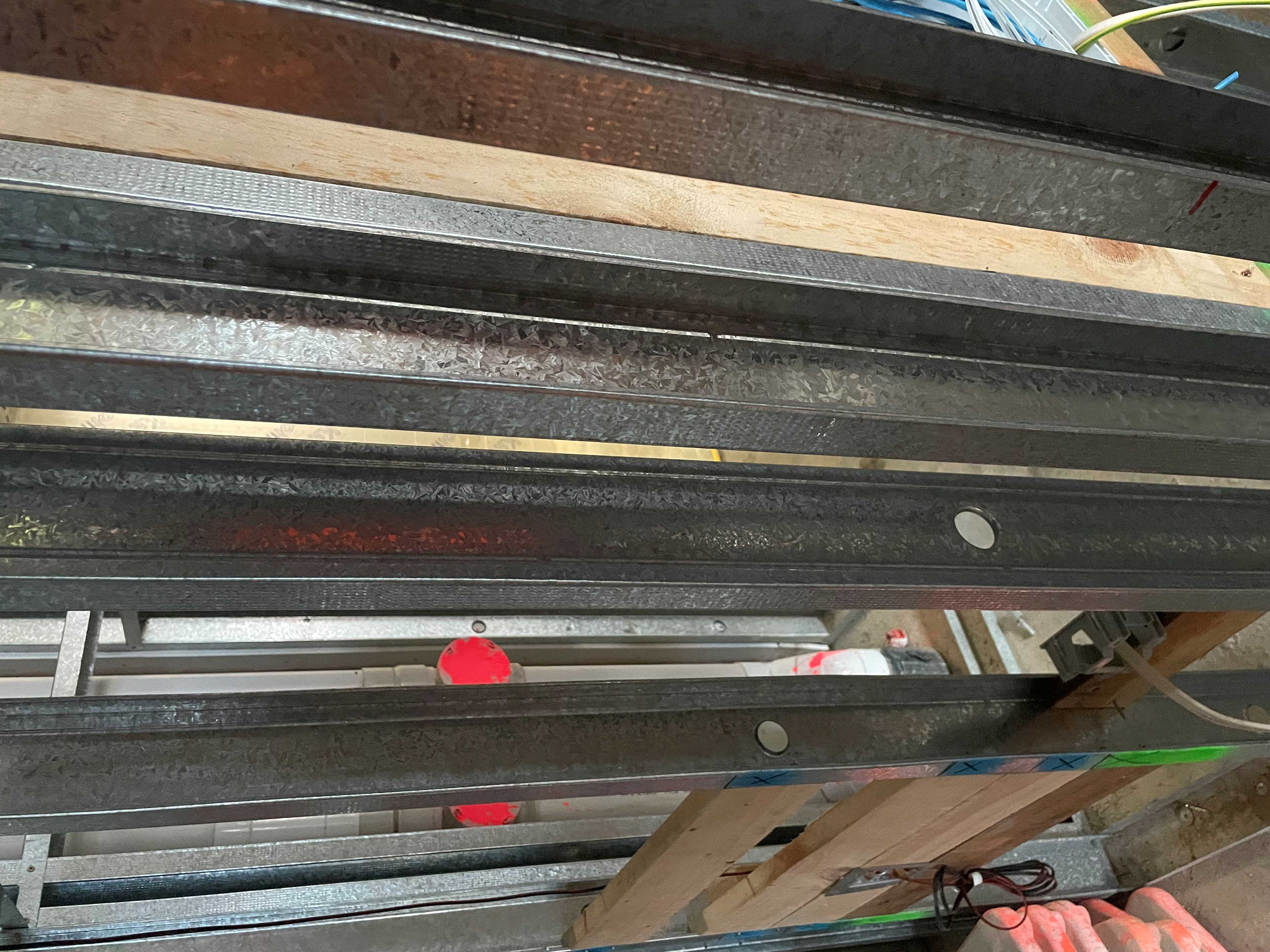

SRP Steel Stud Internal Partition Wall Systems provided the perfect solution, where the speed of construction and lightweight, easy-handling ability of rollformed steel components helped make all the difference on-site, especially with keeping the various stages of construction within the allowable program/time limits.

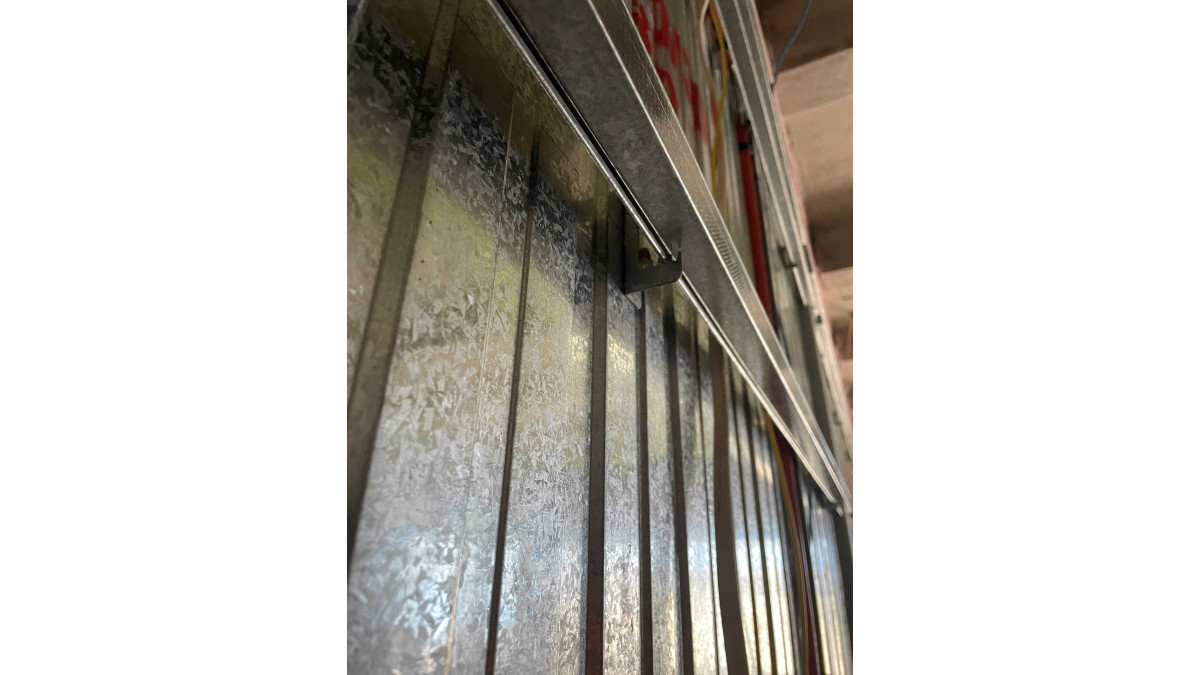

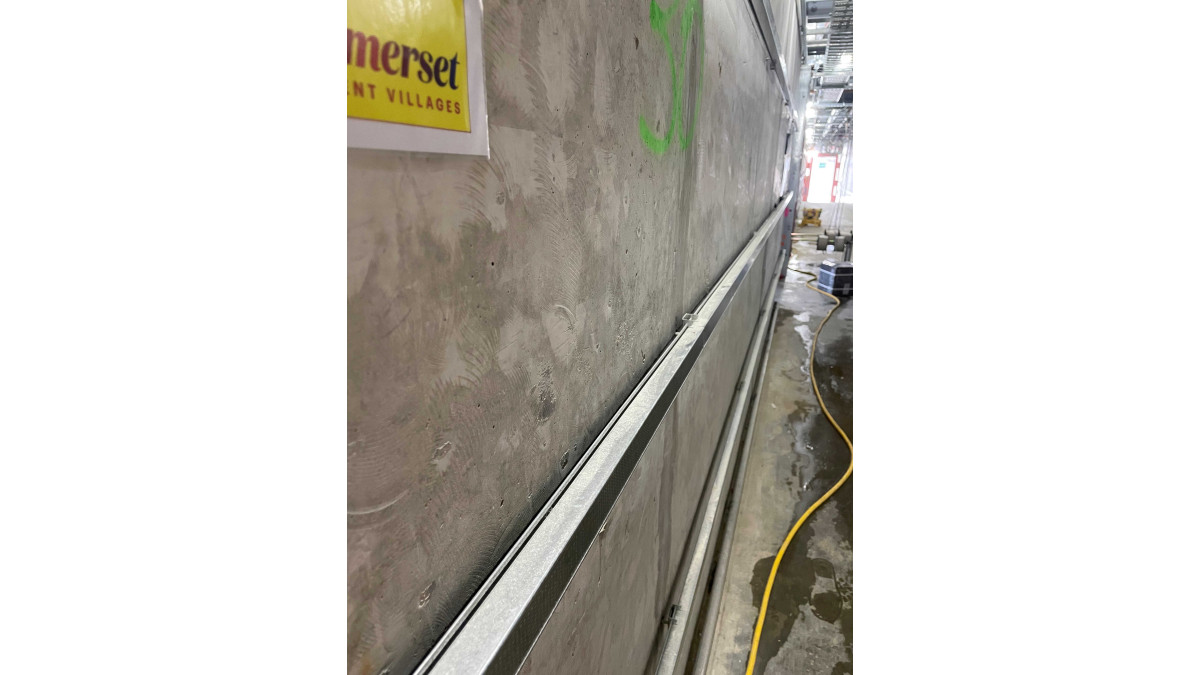

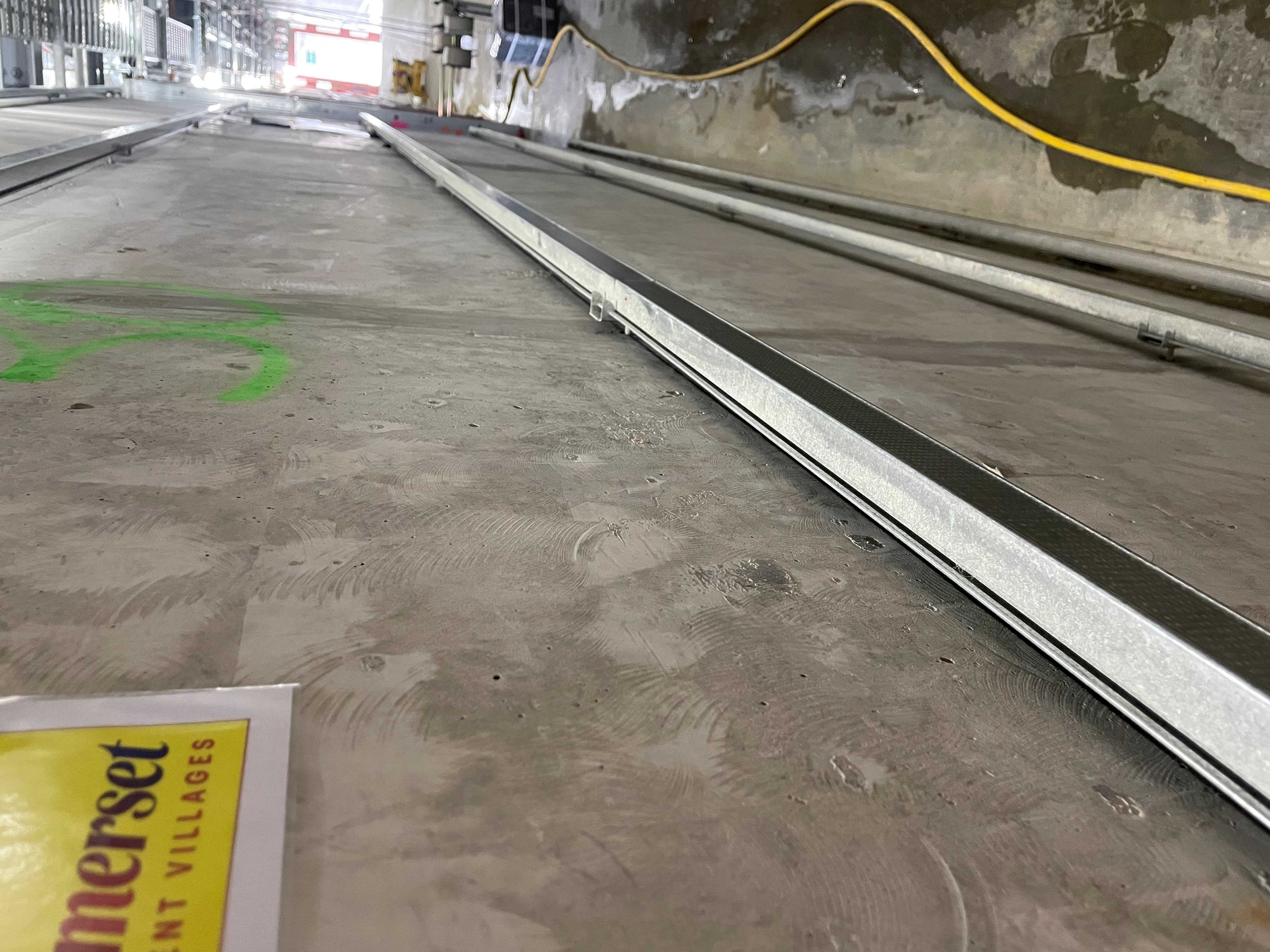

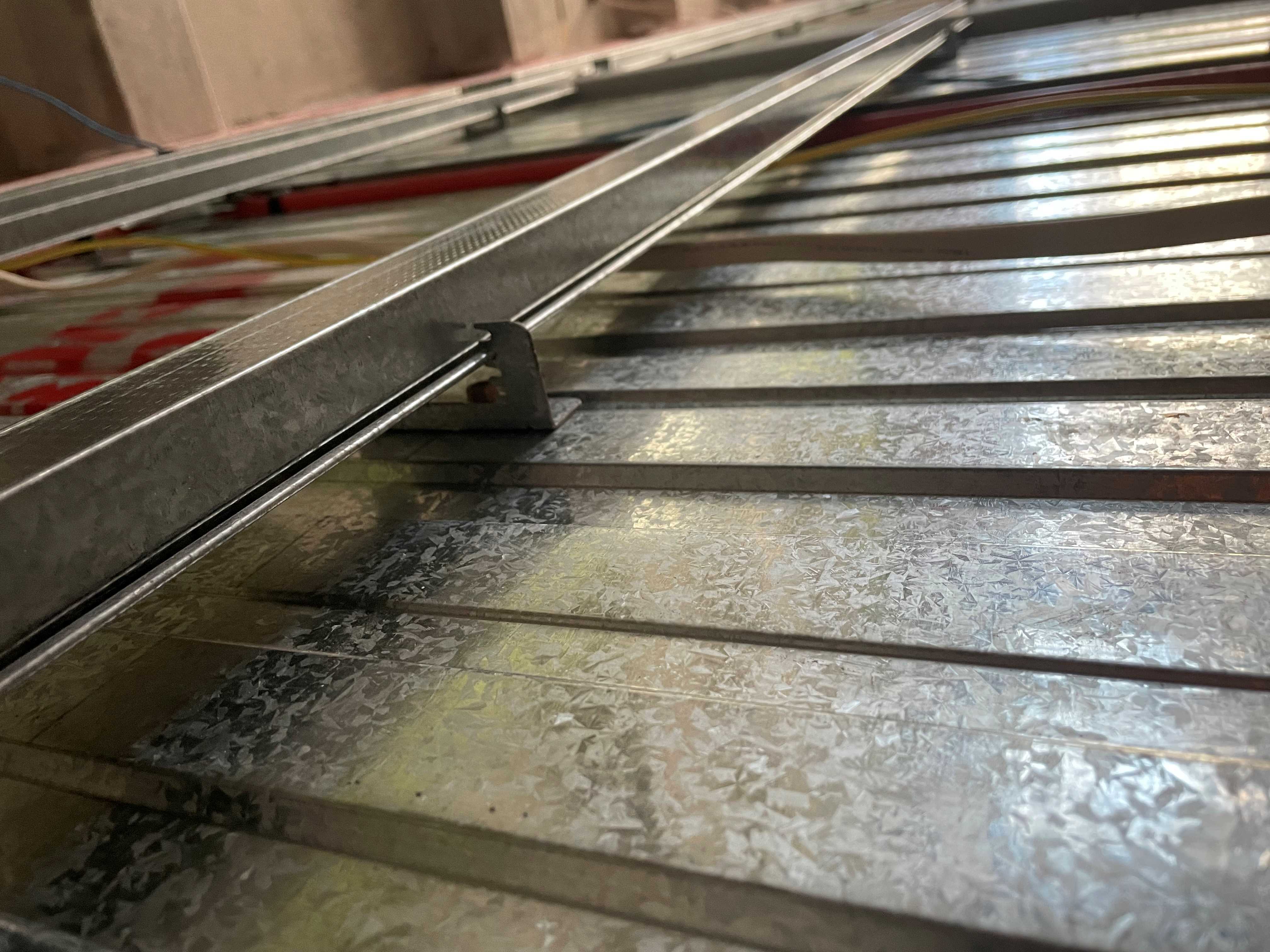

SRP Metal Clip + Batten Wall Strapping systems have been installed, for strapping of concrete-substrate walls — where fine levelling/adjustment is required, prior to lining with plasterboard. The SRP Adjustable Wall Fix Clips are easily fixed in-place, and the selected batten can achieve varying depth dimensions (in 5mm increments), depending how far out the batten is set off the wall/ substrate behind.

SRP Concealed Metal Ceiling Systems are designed typically for plasterboard lining (internal ceilings), but can also be used in external soffits. There are 4 x SRP batten size options, including: 16mm, 22mm, 28 & 35mm, with wide 50mm face options in both 22mm & 35mm.

Steel Rollformed Products Ltd also manufacture/supply an extensive range of custom profiles (available upon request), including Angles, Brackets, Channels, Top-Hats and Cleats, of varying dimensions and thicknesses.

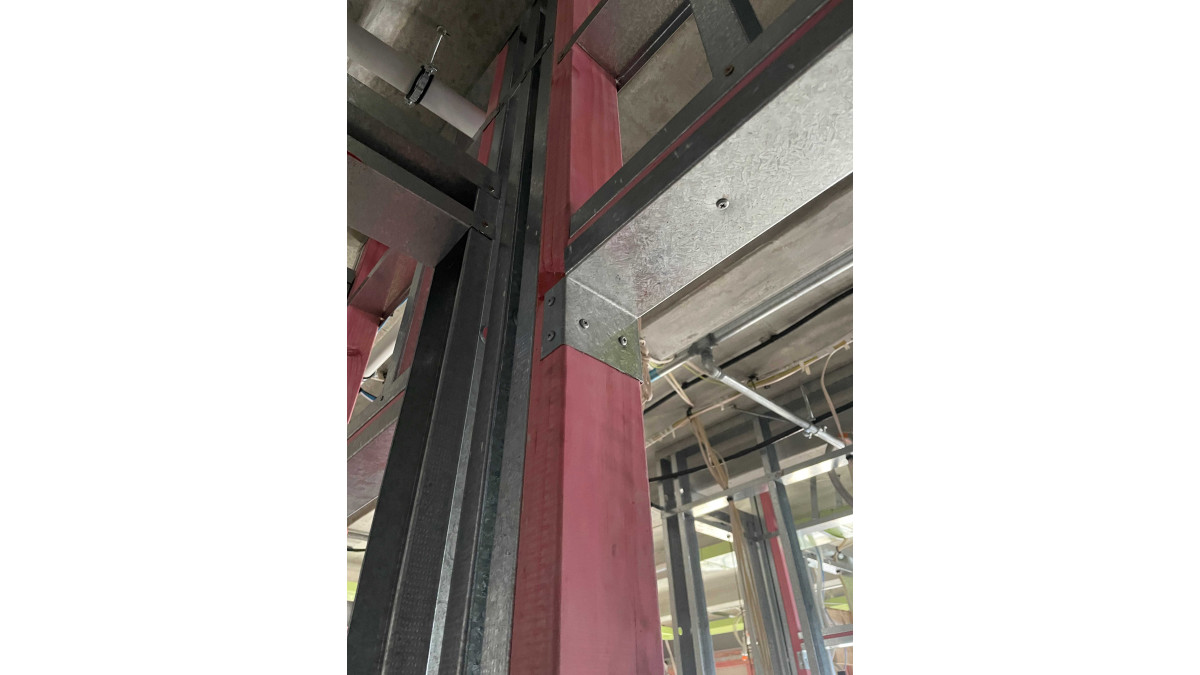

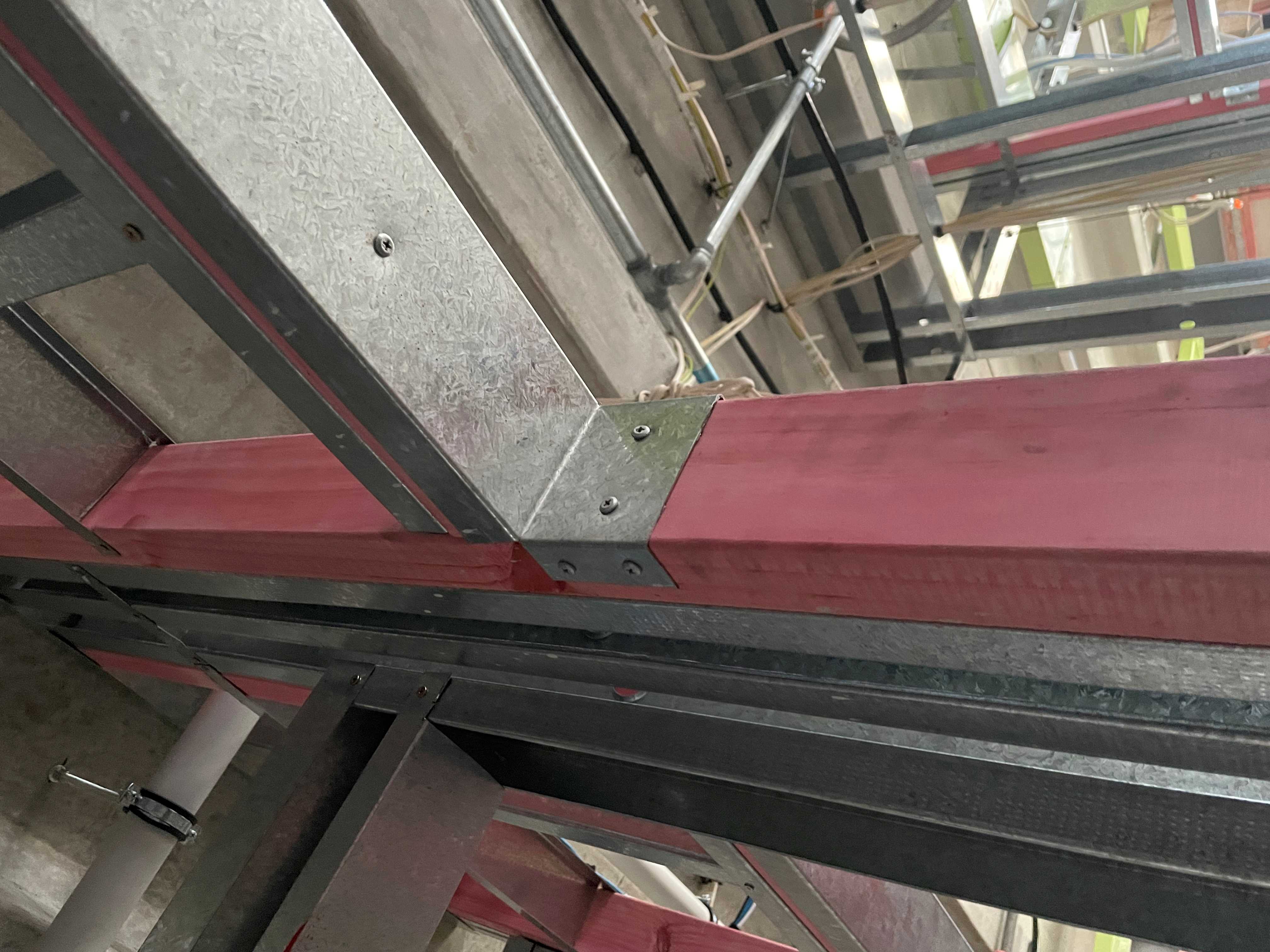

The SRP Top-Hat/Cleat system is designed for fixing heavier-weight sheet/ linings to e.g., Masonry walls, and thus allows for stronger/ more substantial bolt/ fixings — this complete system was also supplied for Summerset Village, St Johns.

SRP Wall Strapping Systems

Steel Rollformed Products

View Product

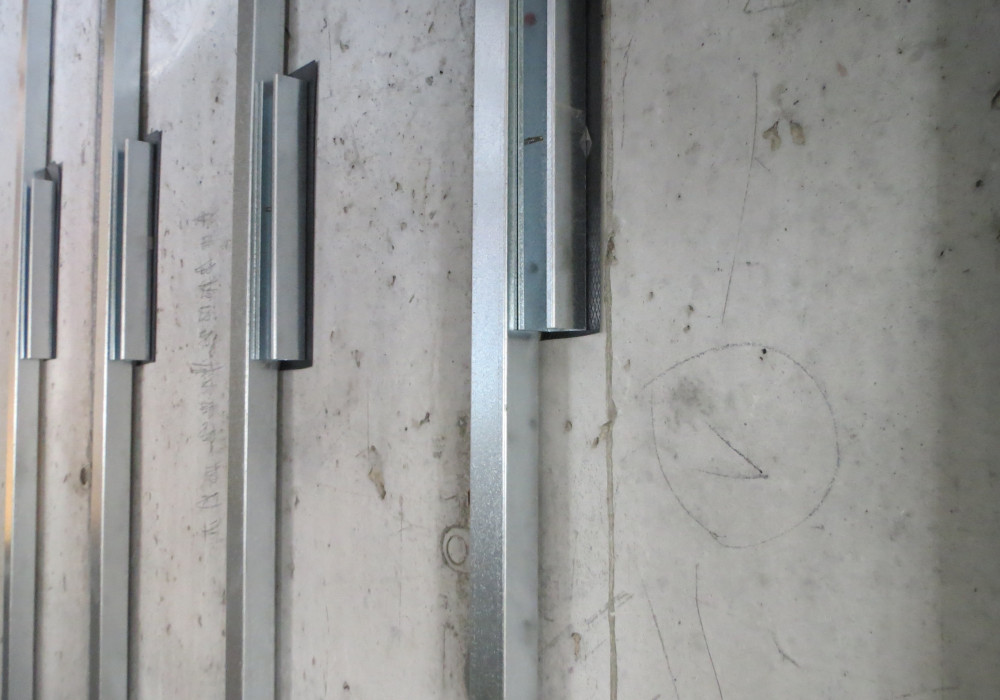

The SRP Wall Strapping Systems are an adjustable clip + batten system, specifically designed for strapping and lining (+ levelling, for higher level surface finishes) of uneven surfaces such as: concrete, pre-cast, masonry, block or brick walls.

SRP Batten & Adjustable Clip System: (DPC is used for separation between galvanised steel clip and concrete)

Electrical conduits, SML diameter Service pipelines, insulation

SRP Batten & SRP Zero Bracket with Rivnut + Threaded Rod System:

Insulated Panel Systems/ External Concrete (fine thread adjustment)

SRP Steel Stud & Track Wall Strapping System:

LGE diameter Service pipelines: Plumbing/ Electrical Ducting

B2 Durability: SRP uses GALVSTEEL® manufactured by New Zealand Steel. The continuous hot-dip galvanised zinc coating conforms to the industry standard required for this application; Z275 (275 g/m2 total). New Zealand Steel made GALVSTEEL® for framing is backed by a 50 year Durability Statement to demonstrate compliance with NZBC Clause B2-Durability, when used and maintained as referred to in the current New Zealand Steel's Durability Statement.

SRP Custom Manufacturing: Top-hats, Deflection Tracks, Angles, Channels, Stud Lengths

Steel Rollformed Products

View Product

In addition to standard stock lines, Steel Rollformed Products also has the capability of making/supplying custom galvanised steel for non-standard ceiling and wall framing systems where adjustments or modifications are required to accommodate challenging construction requirements.

Custom designed and produced solutions for non-standard framing requirements

B2 Durability: SRP uses GALVSTEEL® manufactured by New Zealand Steel. The continuous hot-dip galvanised zinc coating conforms to the industry standard required for this application; Z275 (275 g/m² total). New Zealand Steel made GALVSTEEL® for framing is backed by a 50-year Durability Statement to demonstrate compliance with NZBC Clause B2-Durability, when used and maintained as referred to in the current New Zealand Steel's Durability Statement.

SRP Steel Stud Wall Systems

Steel Rollformed Products

View Product

Steel Rollformed Products offer a wide range of easy to install steel wall system components.

Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

Office partitioning
Apartments
Housing complexes

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

AS/NZS 4600 Cold-formed steel structures
Galvanised coating Z275 to AS/NZS 1397
NZS 3404 Steel structures standard
NZS 3404.1 Steel structures standard — materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2
