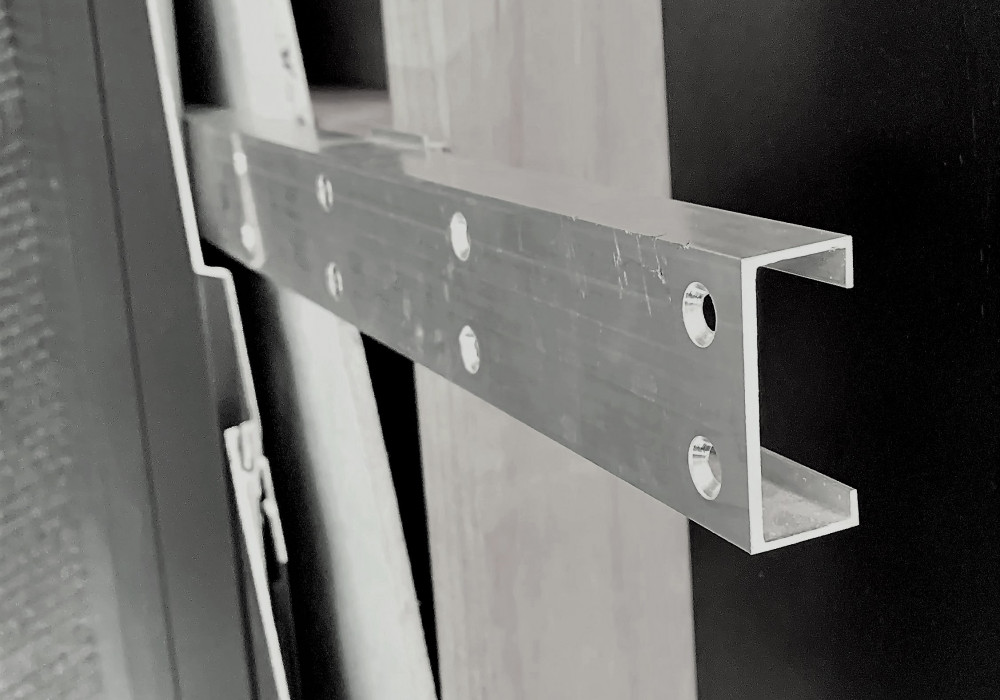

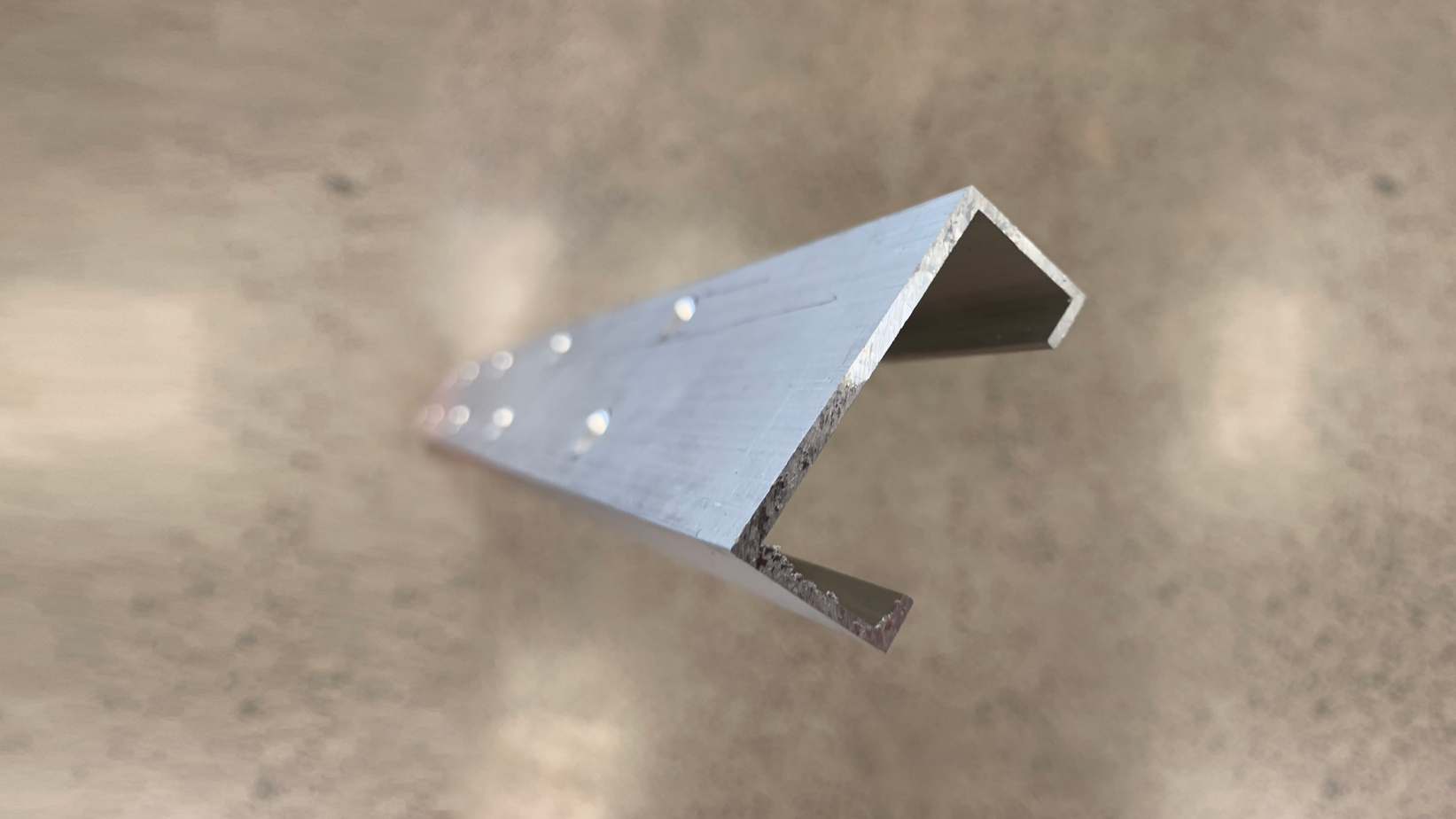

• AliBat can be used in conjunction with non-combustible exterior cladding products to form a non-combustible cladding system compliant with the provisions of NZBC Clause C3 — External Spread of Fire
• As such, AliBat may be used as part of a non-combustible exterior cladding system on buildings greater than 10M in height
• AliBat has been subjected to testing by BRANZ Structural Engineers with performance verified up to design differential pressures of 6.09 kPa. While testing was carried out on panels having Nu-Wall cladding affixed, similar performance may be expected with other cladding materials appropriately fixed to the AliBat battens in accordance with their manufacturers’ specifications
• Can be installed vertically or horizontally
• When fixed appropriately, can form a structural element
• Suitable for use with timber or steel framing and structural concrete — Alibat can be used over a variety of substrates using fasteners and specs appropriate to achieve a structural fixing

Show more

Alibat, if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4
• Clause B2 Durability: Performance B2.3.1 and B2.3.2
• Clause E2 External Moisture: Performance E2.3.2
• F2 Hazardous Building Materials: Performance F2.3.1. Alibat meets this requirement and will not present a health hazard to people

Show more

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has been appraised as an external wall cladding for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• constructed with timber framing complying with the NZBC; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has also been appraised for weathertightness and structural wind loading when used as an external horizontally fixed wall cladding system for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• constructed with timber and steel framing complying with the NZBC; and,
• situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 550 for full information.

Show more

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Horizontal on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 550, will meet the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
• Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 550 for full information.

Show more

BRANZ Appraised

See BRANZ Appraisals 556 and 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has been appraised as an external wall cladding for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
• constructed with timber and steel framing subject to specific engineering design; and,
• situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has been appraised as an external wall cladding for buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and, ¬ constructed with timber framing complying with the NZBC; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has also been appraised as an external wall cladding for steel-framed buildings within the following scope:

• the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
• constructed with steel framing complying with the NZBC; and,
• with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
• situated in NZS 3604 Wind Zones up to, and including, Extra High.

See BRANZ Appraisal 556 for full information.

Show more

See BRANZ Appraisals 556 and 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, and B2.3.2
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical Direct Fixed, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

• Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
• Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years
• Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 556 for full information.

Show more

BRANZ Appraised
