Mix and Match Profiles with Nu-Wall’s Trusted Aluminium Cladding System

Nu-Wall is a non-combustible aluminium cladding system that has been designed and tested to meet New Zealand Building Code requirements. The system features 21 low maintenance cladding profiles with integrated flashings which have undergone independent facade testing and are BRANZ appraised for horizontal and vertical installation.

Manufactured and supplied in New Zealand for over 32 years, Nu-Wall is a trusted cladding option that offers excellent advantages for residential and commercial buildings.

Low maintenance

Made of thick extruded aluminium, Nu-Wall cladding is extremely low maintenance and does not exhibit oil canning. The boards carry an impressive 100-year warranty against corrosion and cracking, with coating warranties of up to 20 years available. This makes Nu-Wall ideal for medium-density and commercial projects where building owners want to minimise ongoing maintenance costs.

Made in NZ from 80% recycled aluminium

All Nu-Wall cladding is manufactured in New Zealand from NZ-sourced aluminium — with 80% - 100% of each board made with recycled aluminium. In fact, Nu-Wall are so dedicated to using recycled aluminium that their manufacturing partner’s plant has its very own recycling smelter. With the remelt process using just 5% of the energy and 2% of the emissions of virgin aluminium, Nu-Wall is an environmentally-conscious cladding choice.

Endless creative design options

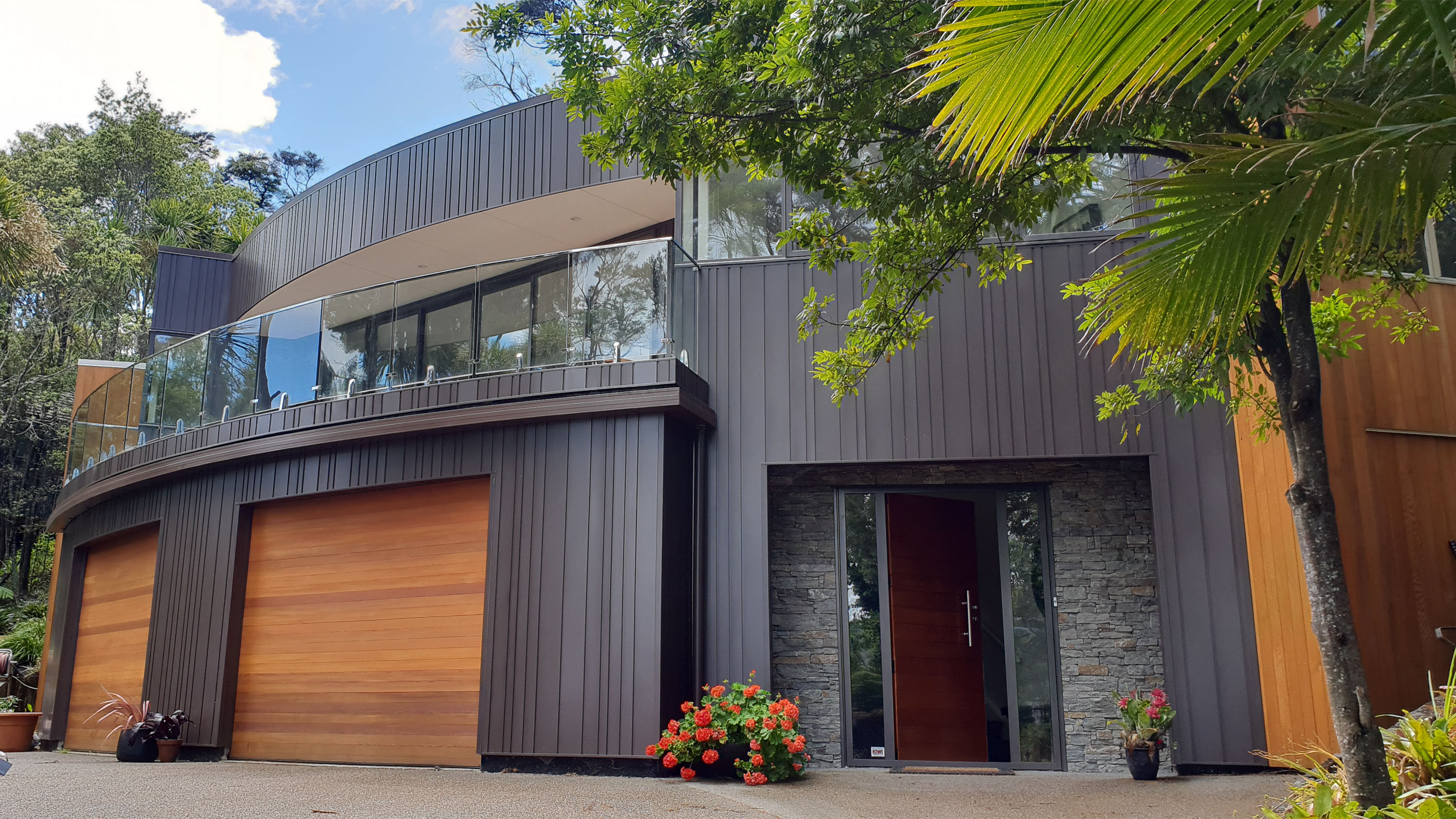

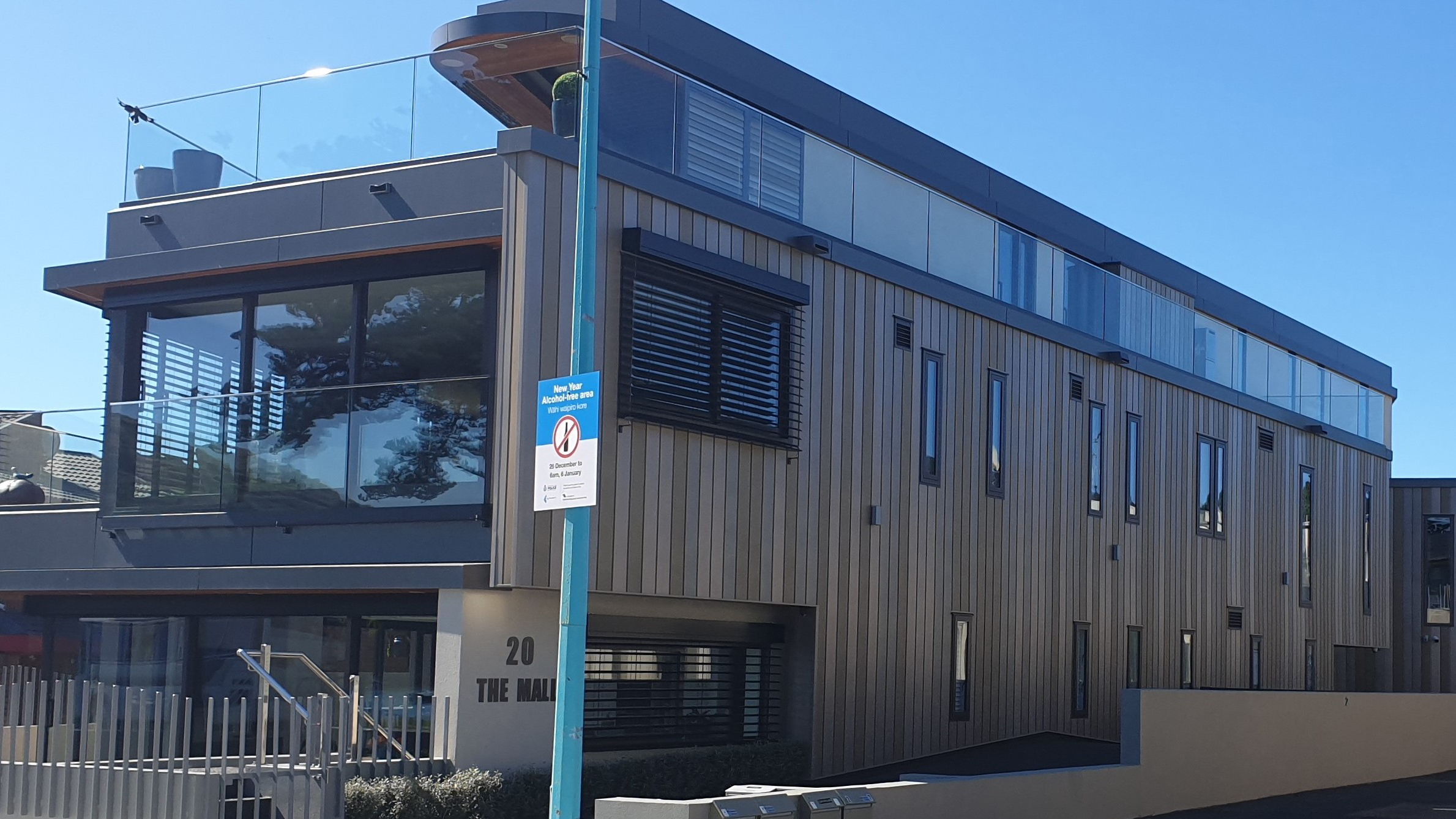

Nu-Wall cladding is available in lengths up to 8.3m. All Nu-Wall profiles have the same common connection detail and thickness meaning architects can mix and match from a choice of 21 compatible cladding profiles to create unique facades. Combining boards of different profiles can add dimension, with a range of looks possible — from subtle randomisation to curved walls.

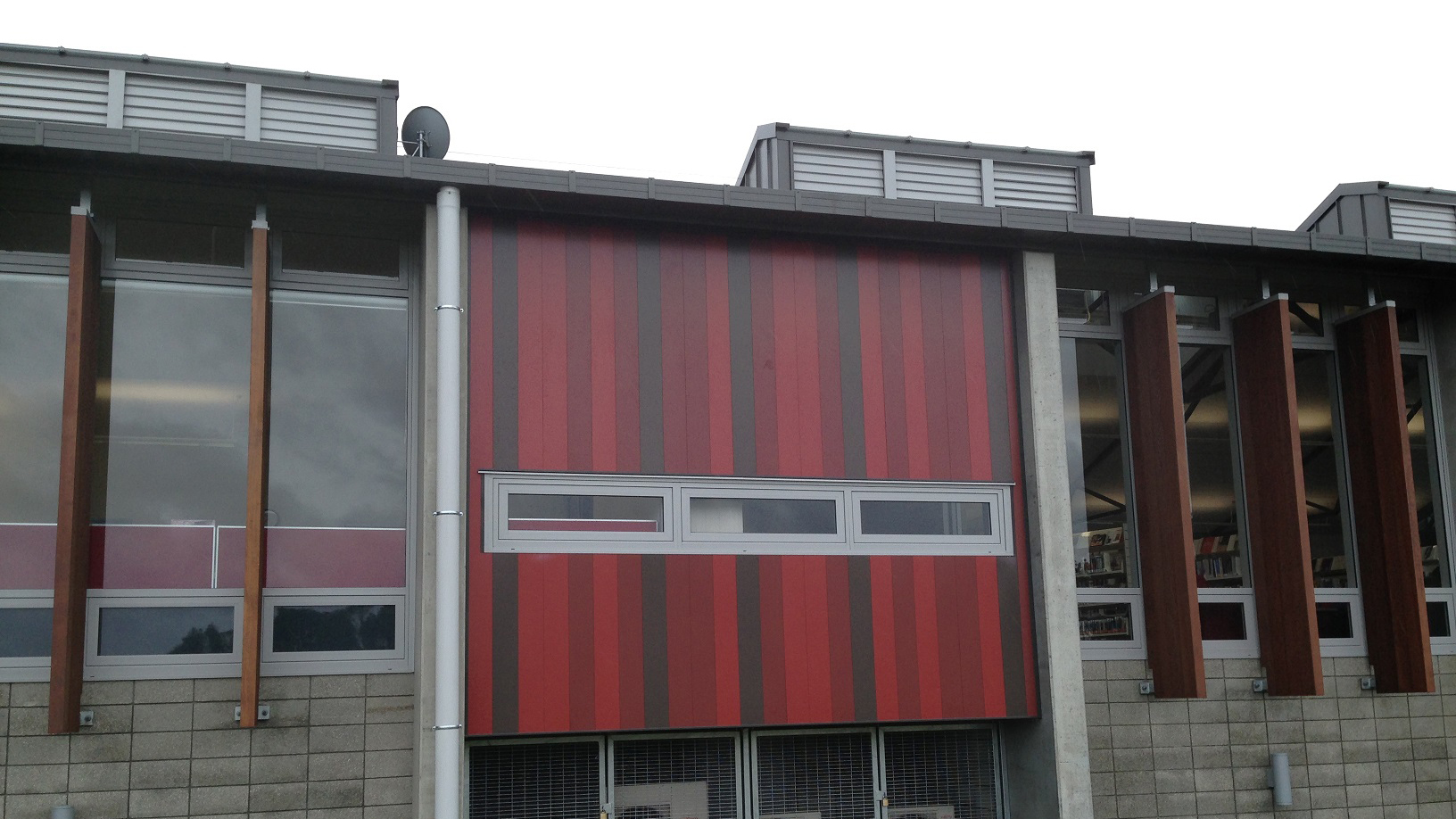

In addition, Nu-Wall cladding is available in an infinite choice of colours and coatings, including the option of running a colour renderisation to create a planking patina — ideal for adding texture and breaking up large areas.

Backed by technical design support

The Nu-Wall team loves a challenge and can work with architects to bring their vision to life. “When architects want to try something unique, we can do a one on one consultation to discuss options for mixing colours and profiles,” says Glen Tasker, Nu-Wall. “We’ll work around the client brief and examples and share ideas of how we might achieve it.”

And when it comes to compliance of more complex mix-and-match designs, the Nu-Wall team is there to review details, offer alternative suggestions and provide a supporting letter for council to assist in the consenting process.

To find out more about Nu-Wall’s low maintenance cladding systems, view the Nu-Wall catalogue or contact Nu-Wall.

Horizontal Cladding Profiles

Nu-Wall Cladding

View Product

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity is a cavity-based, inter-locking powder-coated aluminium weatherboard system.

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has also been appraised for weathertightness and structural wind loading when used as an external horizontally fixed wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber and steel framing complying with the NZBC; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 550 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Horizontal on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 550, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 550 for full information.

BRANZ Appraised

Vertical Cladding Profiles

Nu-Wall Cladding

View Product

The Nu-Wall Aluminium Cladding System — Vertical is a cavity-based or direct-fixed, inter-locking powder-coated aluminium weatherboard system.

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

See BRANZ Appraisals 556 and 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with timber and steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and, ¬ constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has also been appraised as an external wall cladding for steel-framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with steel framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

See BRANZ Appraisal 556 for full information.

See BRANZ Appraisals 556 and 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, and B2.3.2
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical Direct Fixed, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 556 for full information.

BRANZ Appraised
