• All APL hardware comes as a complete package, including locking mechanisms.

Options

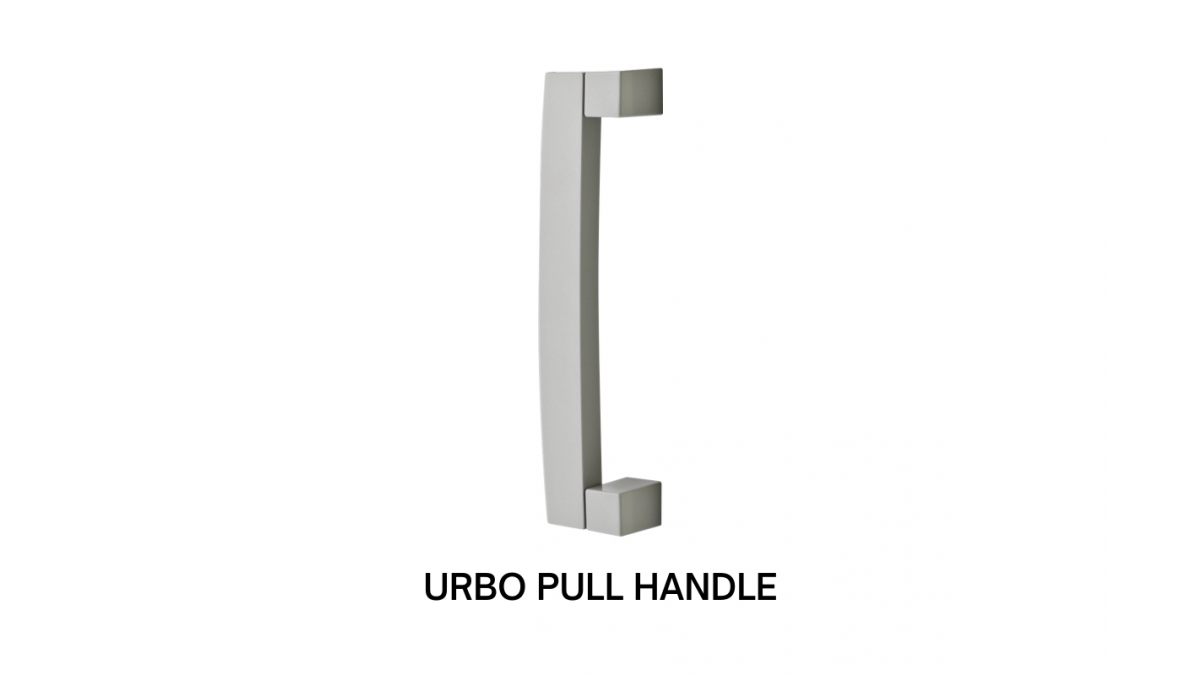

Pull Handle: A comfortable grip with inner edges that are smoothly radiused. Lock is fixed separately to the door and is activated by a key or interior turn knob. A four-point locking system is available. Apex or Windsor turn sets are compatible with this pull handle.

• Small — 255mm high
• Large — 323mm high

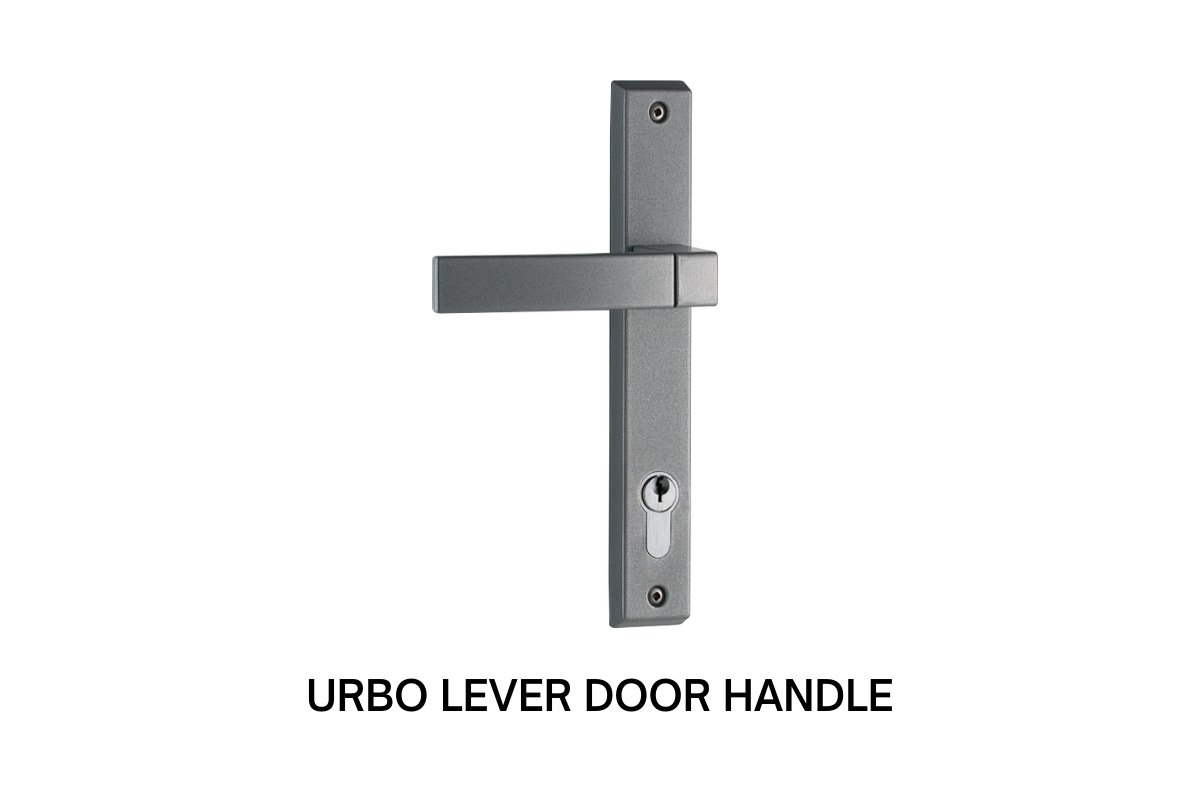

Lever Door: The lever door handle offers multi-point locking, and when the handle is lifted upwards it activates locking rods at the top and bottom of the door for added security.

• Small — Handle length 120mm, Baseplate 212mm
• Large — Handle length 150mm, Baseplate 292mm

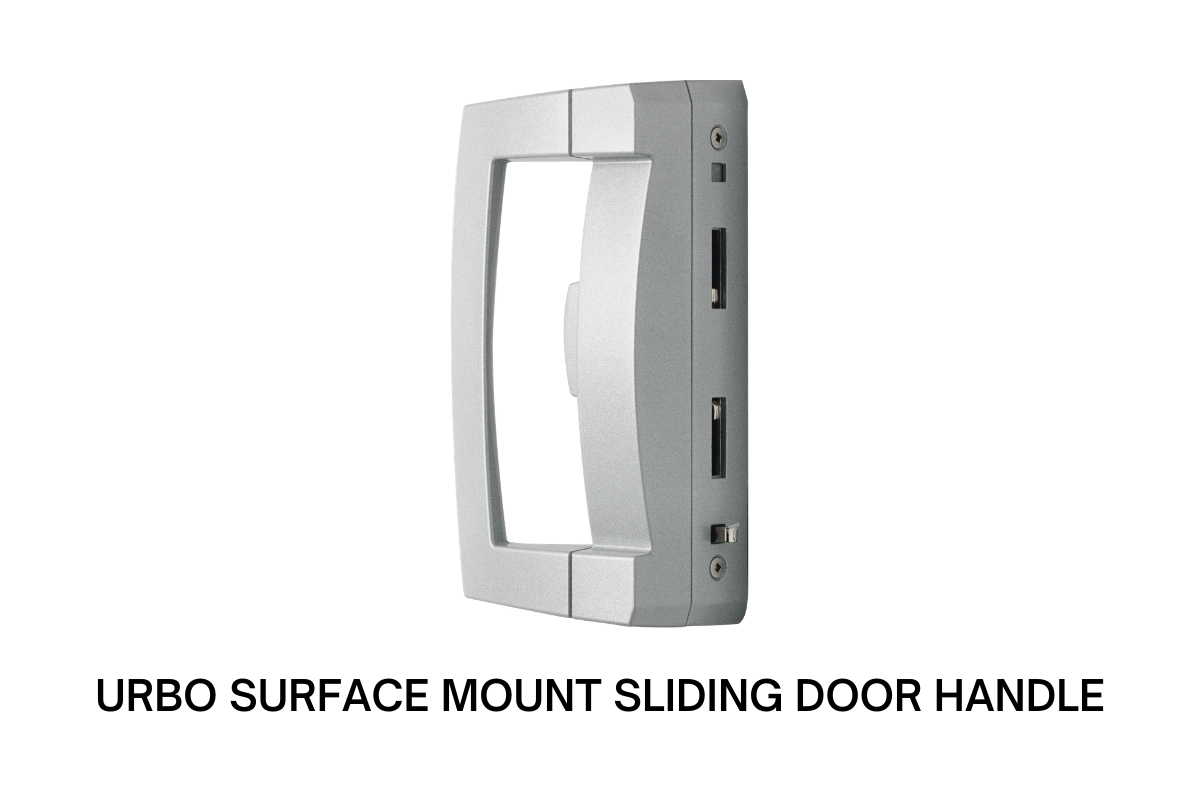

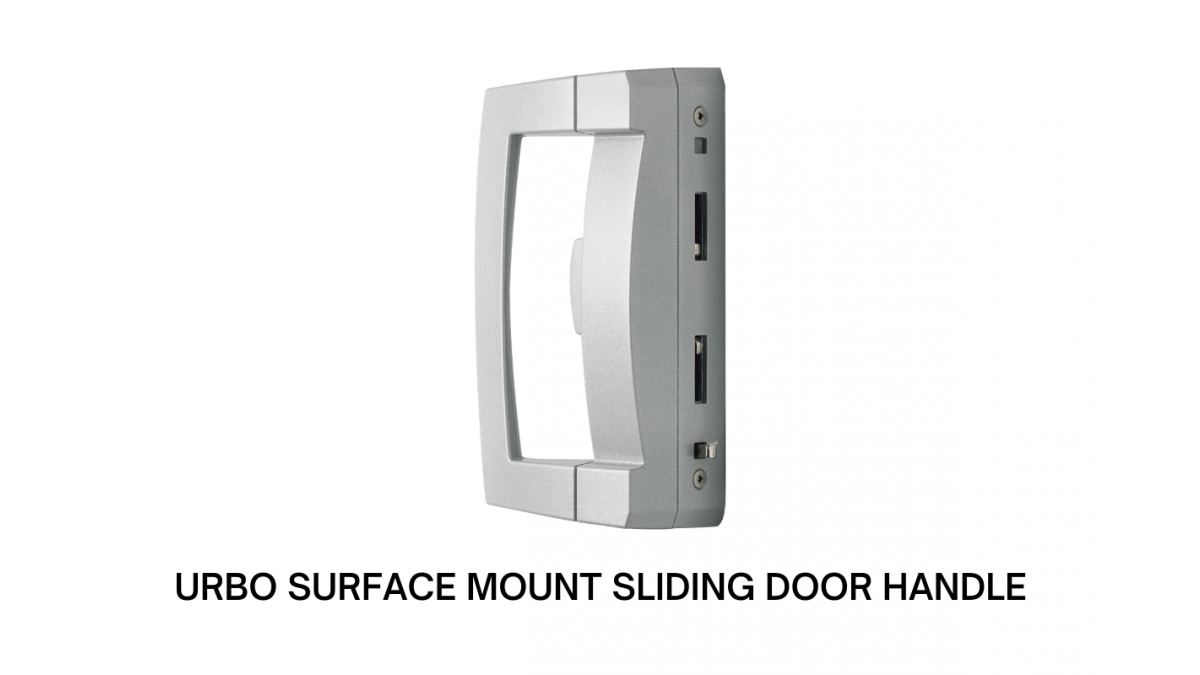

Surface Mount Sliding Door Handle: This all-in-one handle and lock for sliding windows or doors. Snib or keyway installed in the body of the handle.

• 180mm high x 54mm deep

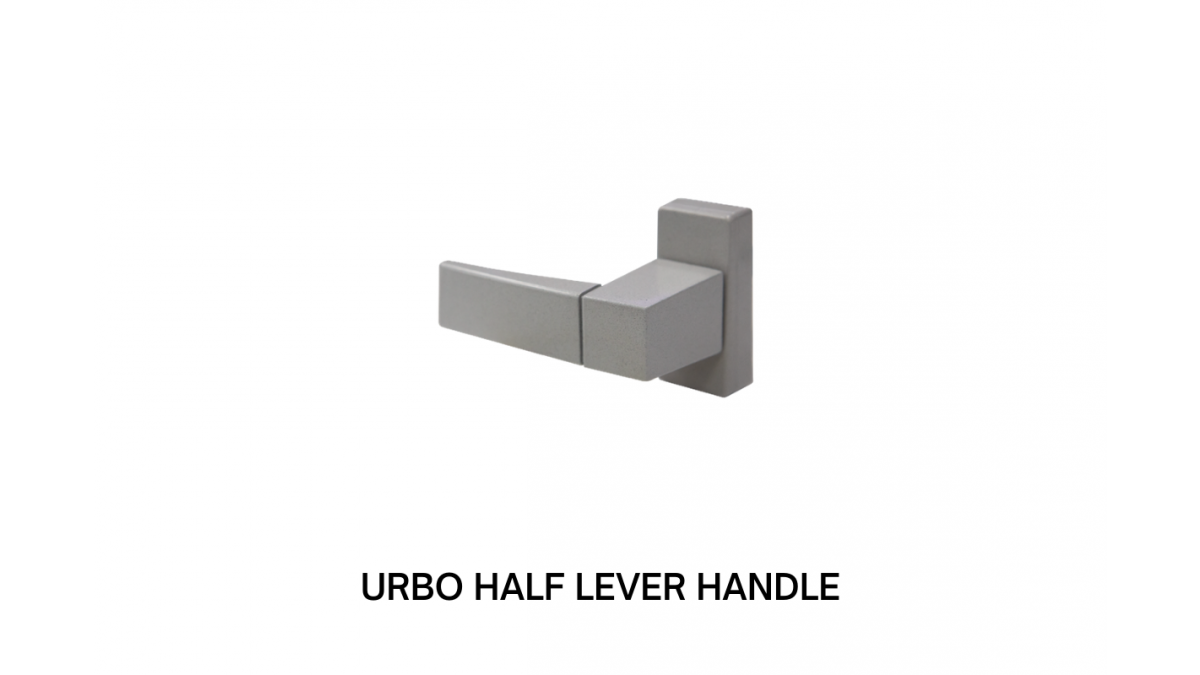

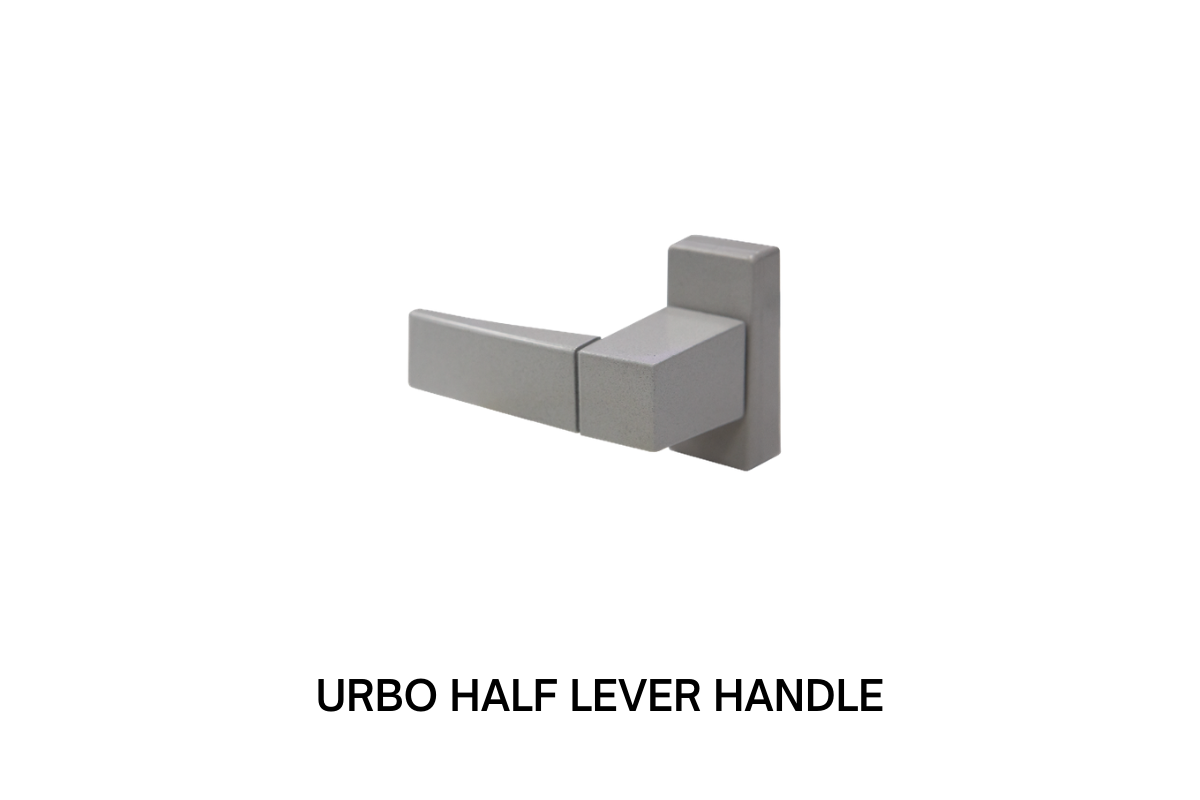

Half Lever Sliding Door Handle: This small lever handle locks sliding door panels together, usually in 4-panel configurations. May be used in conjunction with a pull handle on heavier doors. Self-latching option available.

• 72mm long x 50mm deep

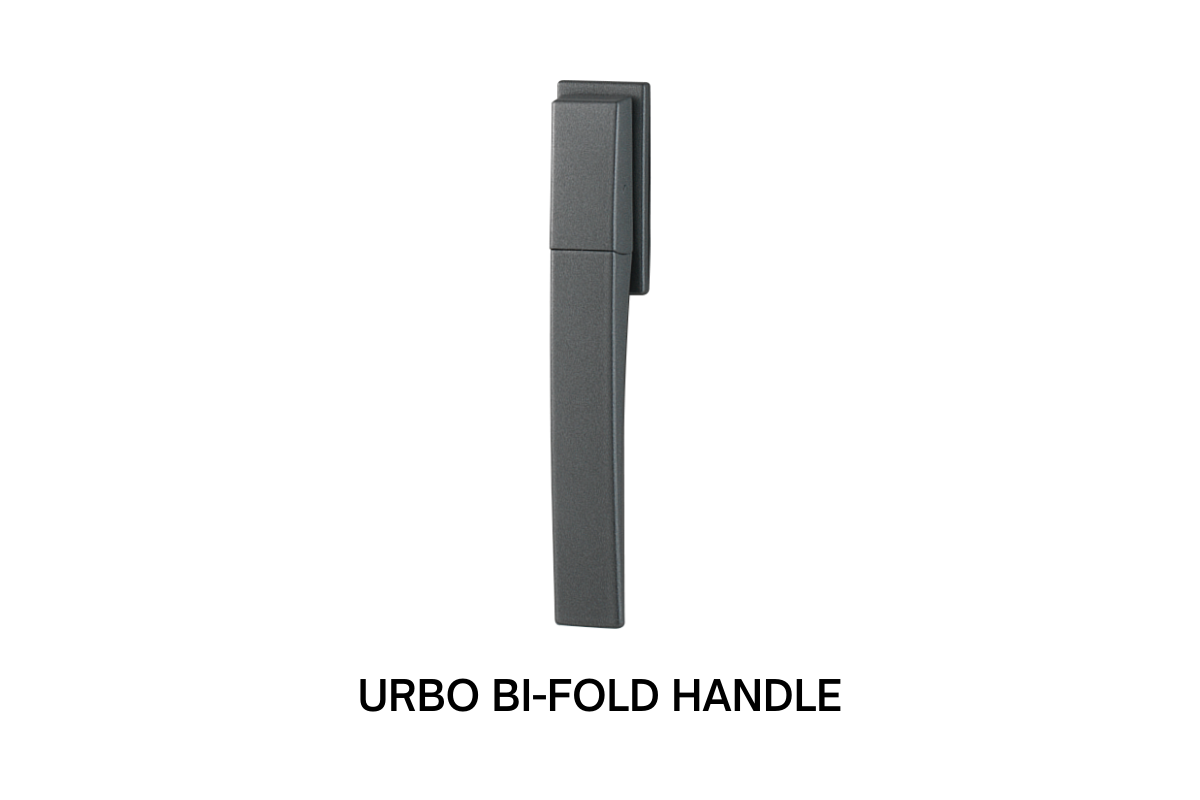

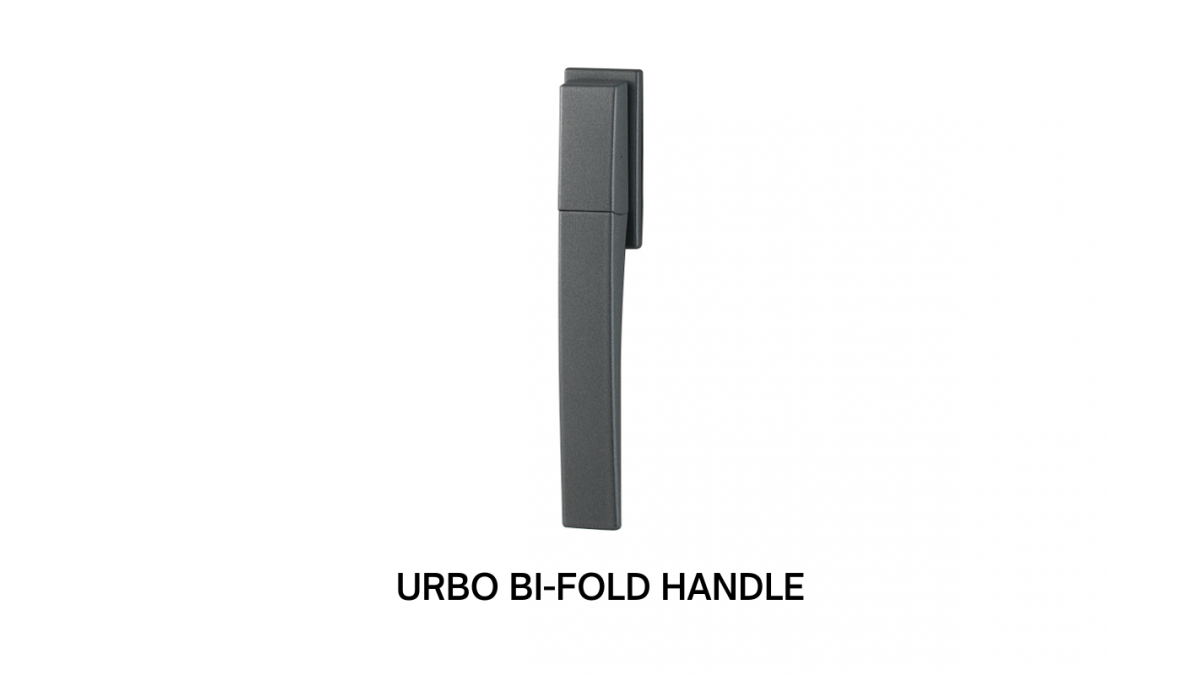

Bi-Fold Handle: This swivel lock activates locking rods in the top and bottom of the door or window panel.

• 153mm high x 24mm wide

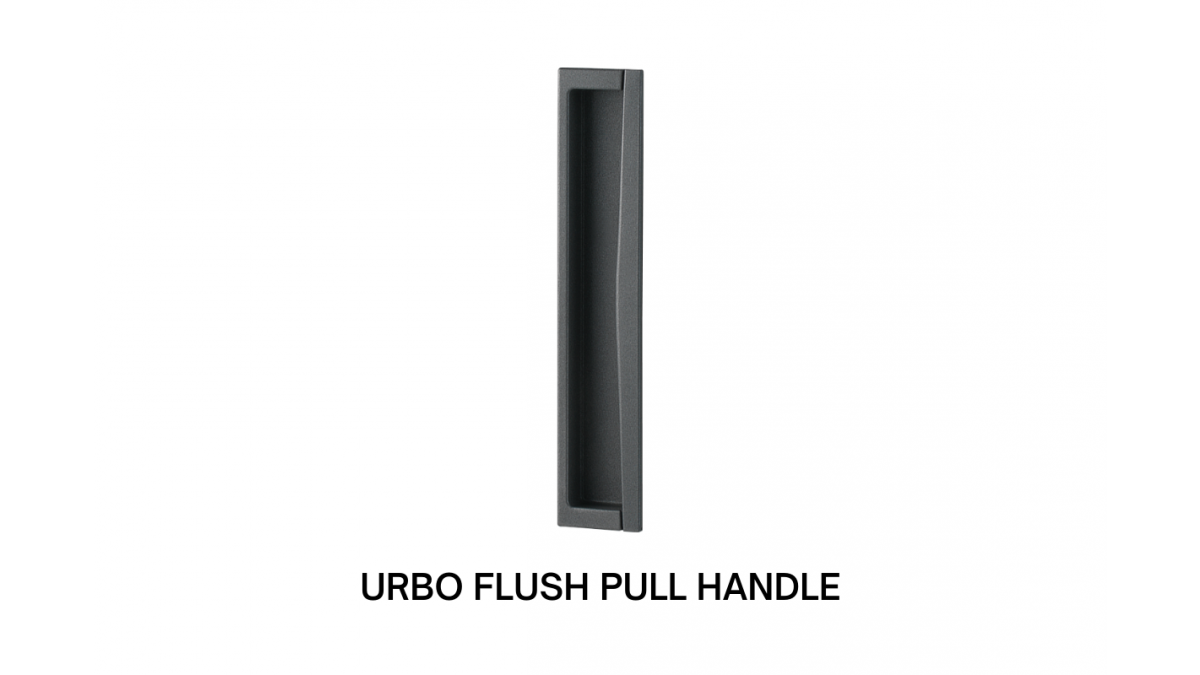

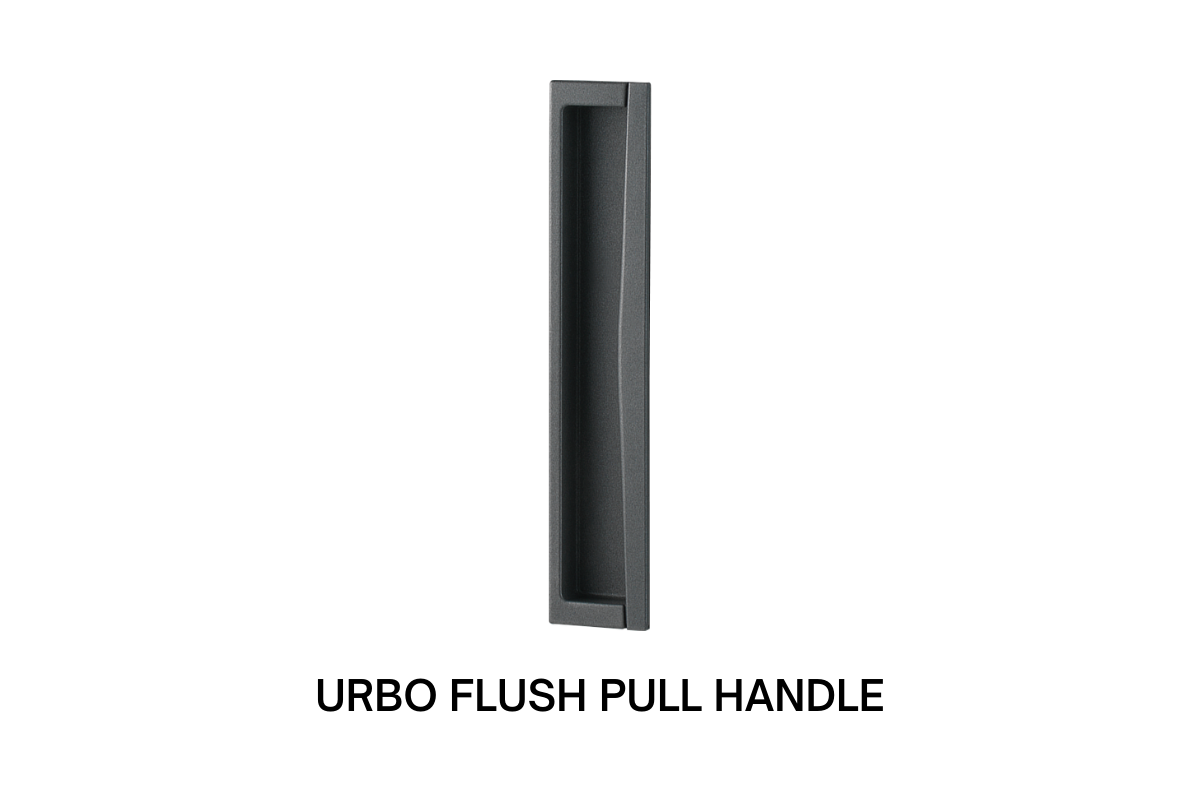

Flush Pull:The flush pull is ideal for lighter sliding panels where a robust hand grip is not required.

• 220mm high x 44mm wide

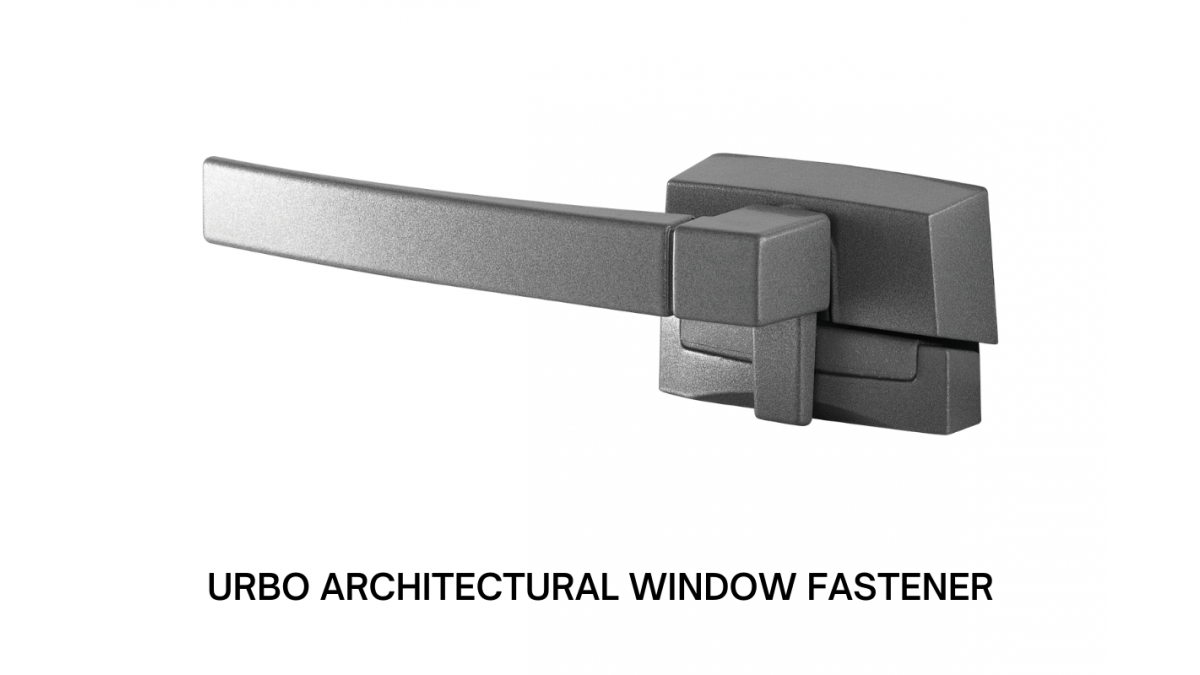

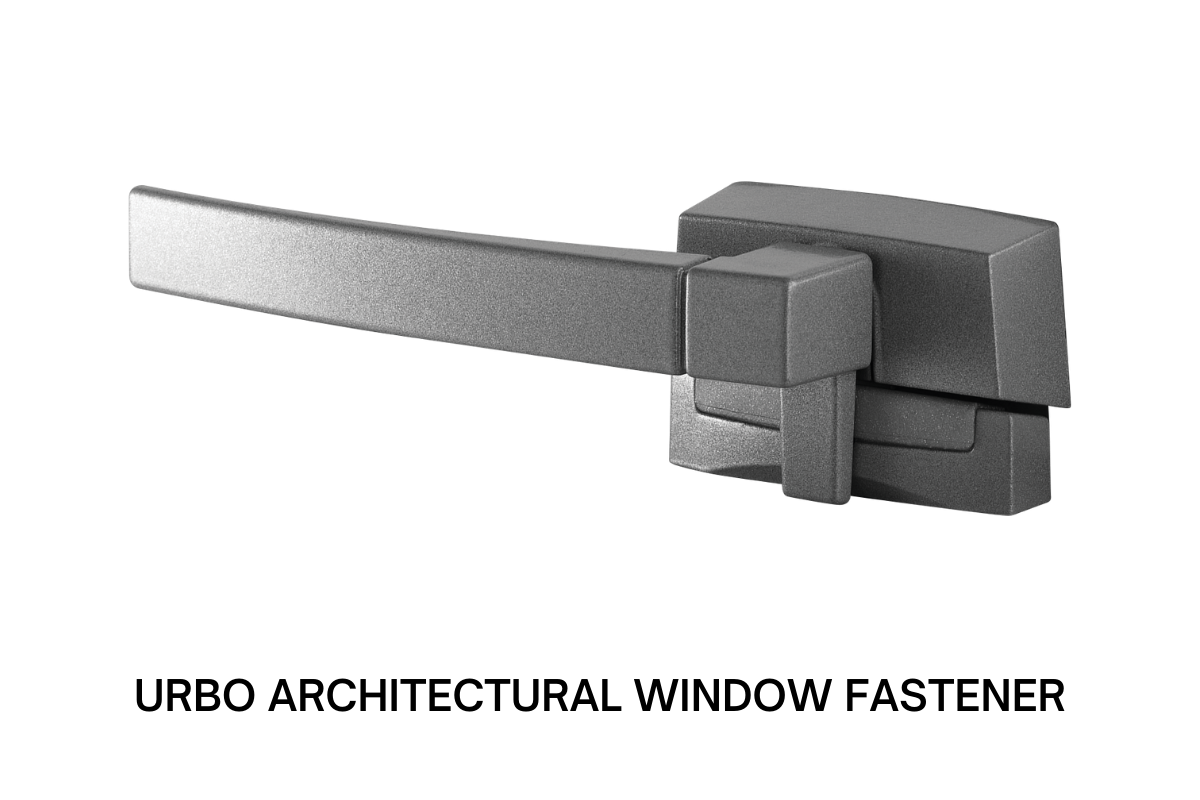

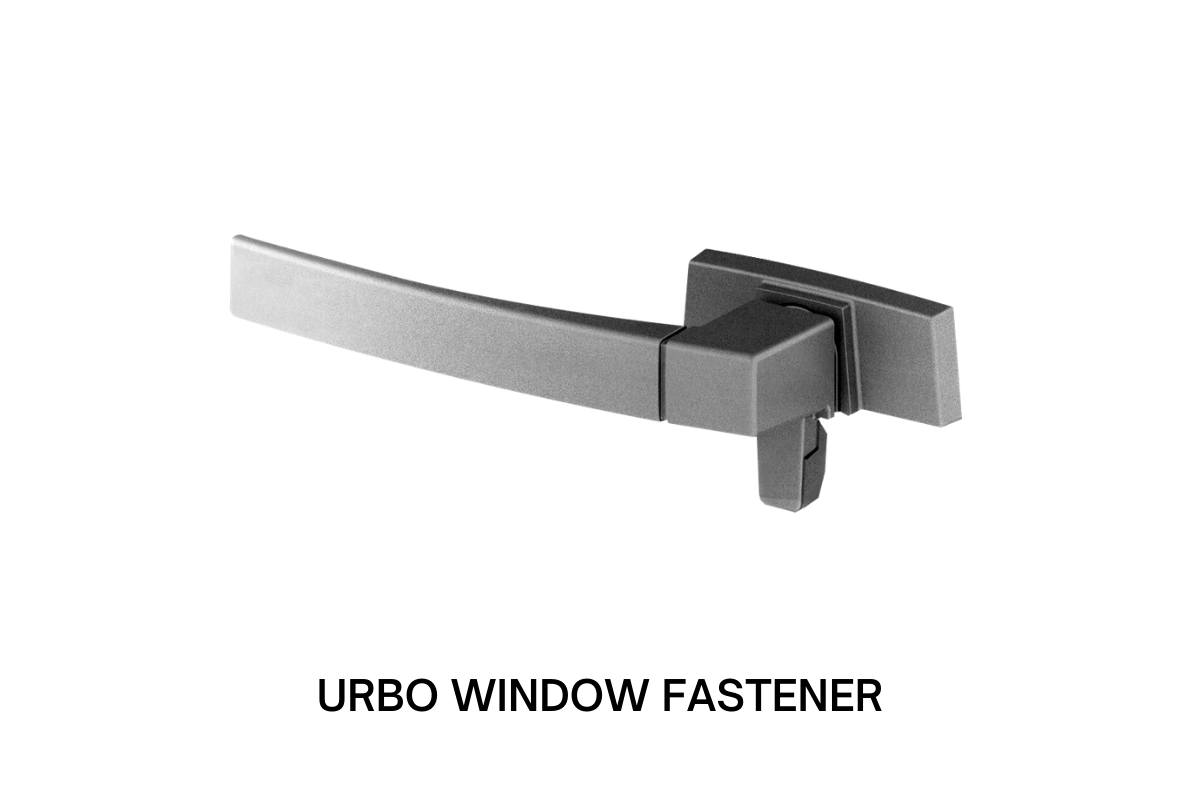

Architectural Window Fastener:The window fastener with separately fixed wedge is suitable for the APL Architectural Series.

• 110mm wide x 40mm deep

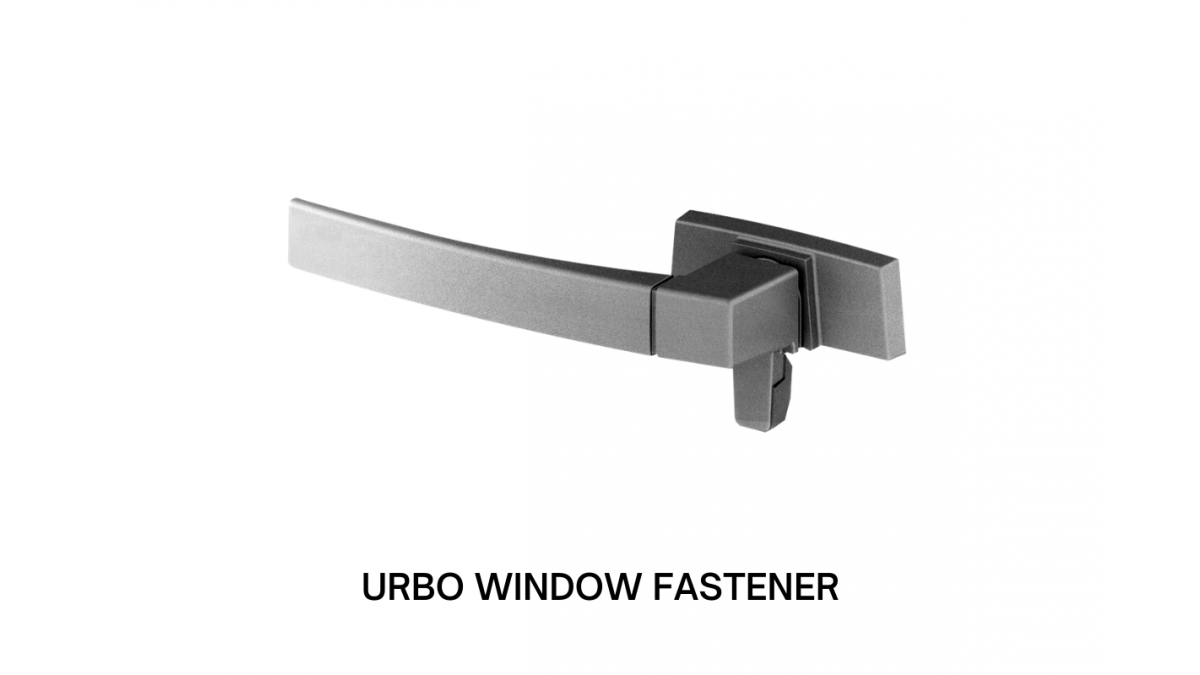

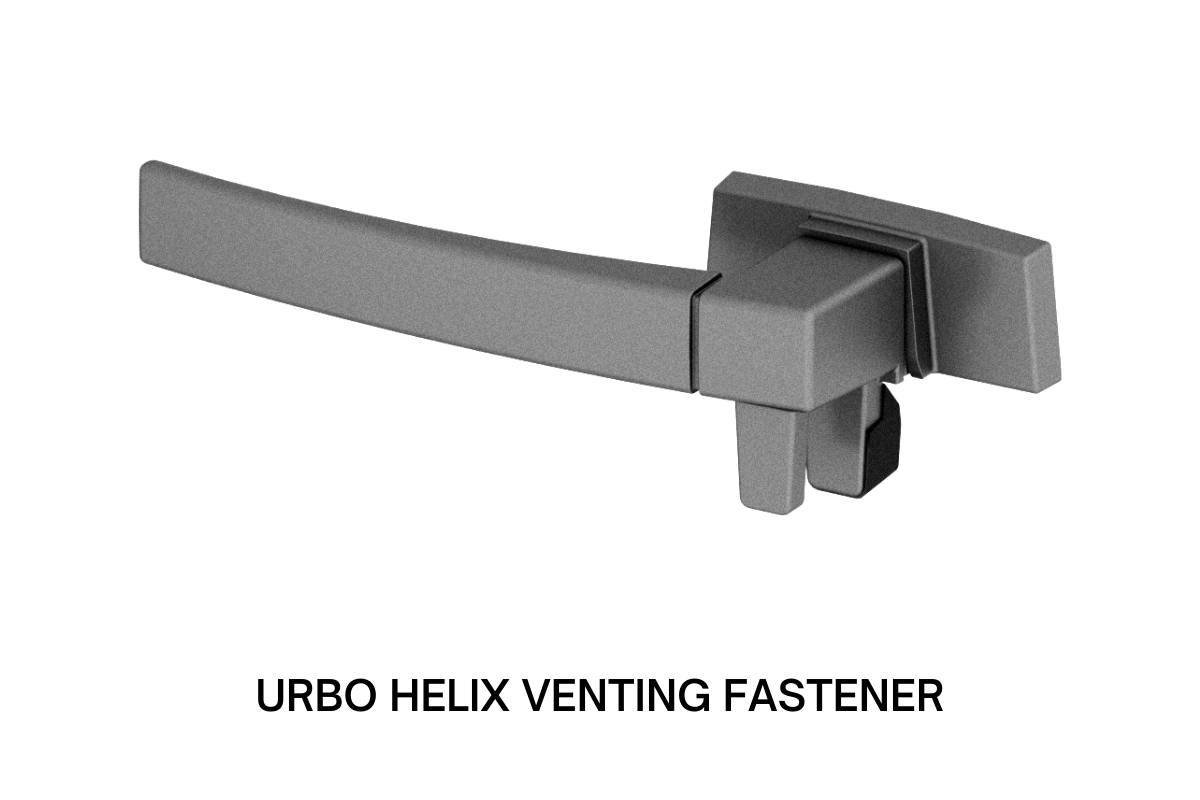

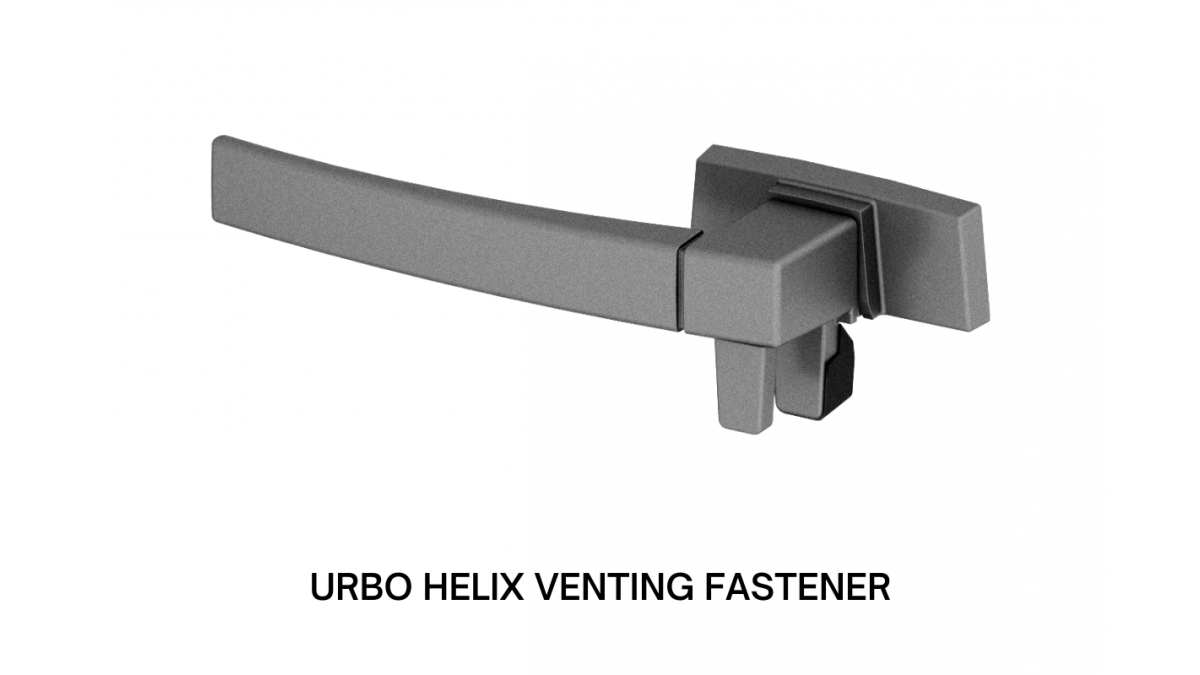

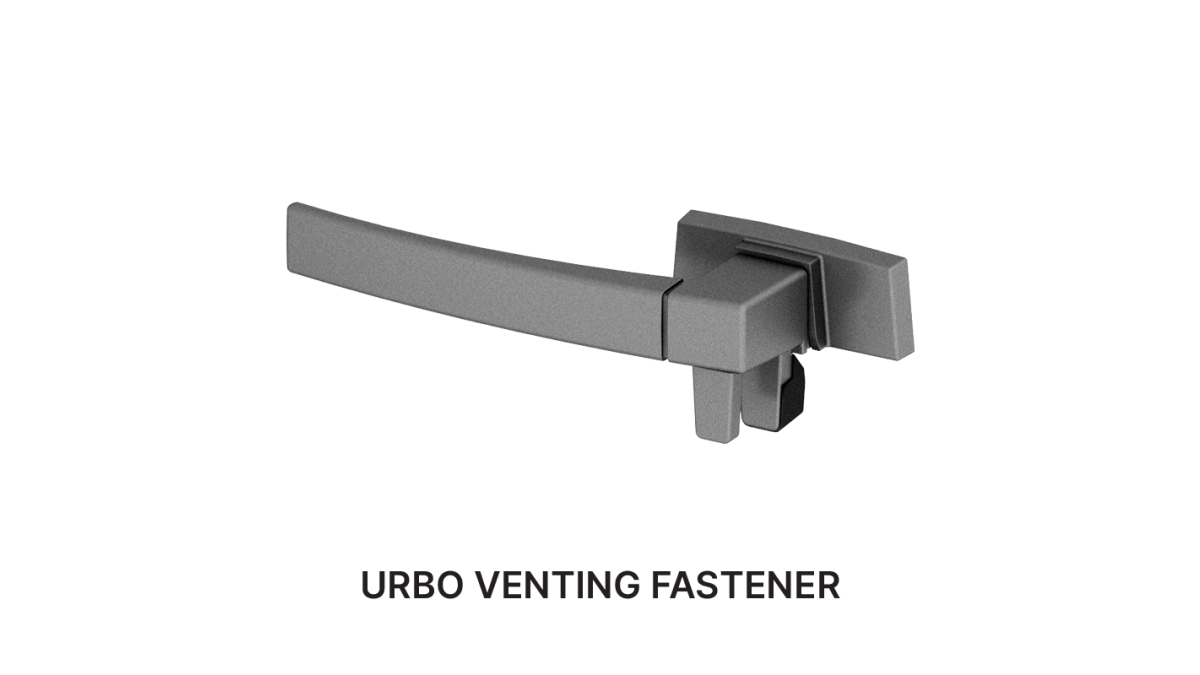

Venting Window Fastener: A venting option is available which allows the window to be fastened in a partially open position for passive ventilation.

• 110mm wide x 33mm deep

Wedgeless Fastener: The nylon wedge is matched to the handle colour. For Residential windows, including ThermalHEART. Available in a low profile option.

• 110mm wide x 33mm deep
