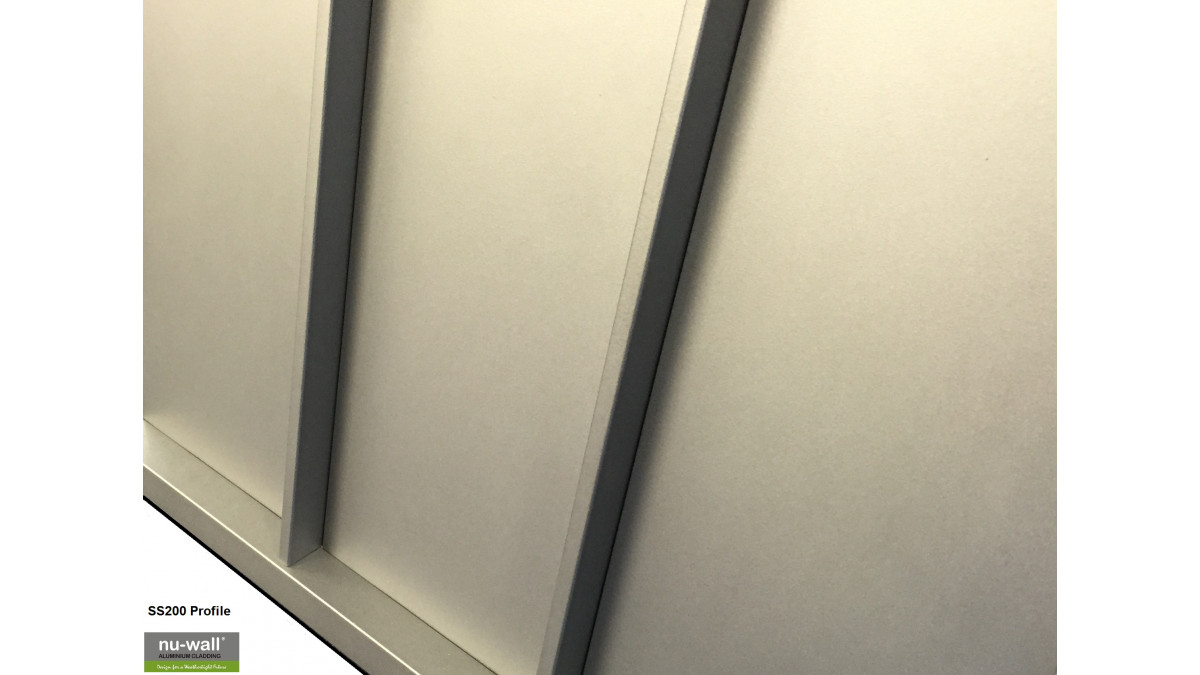

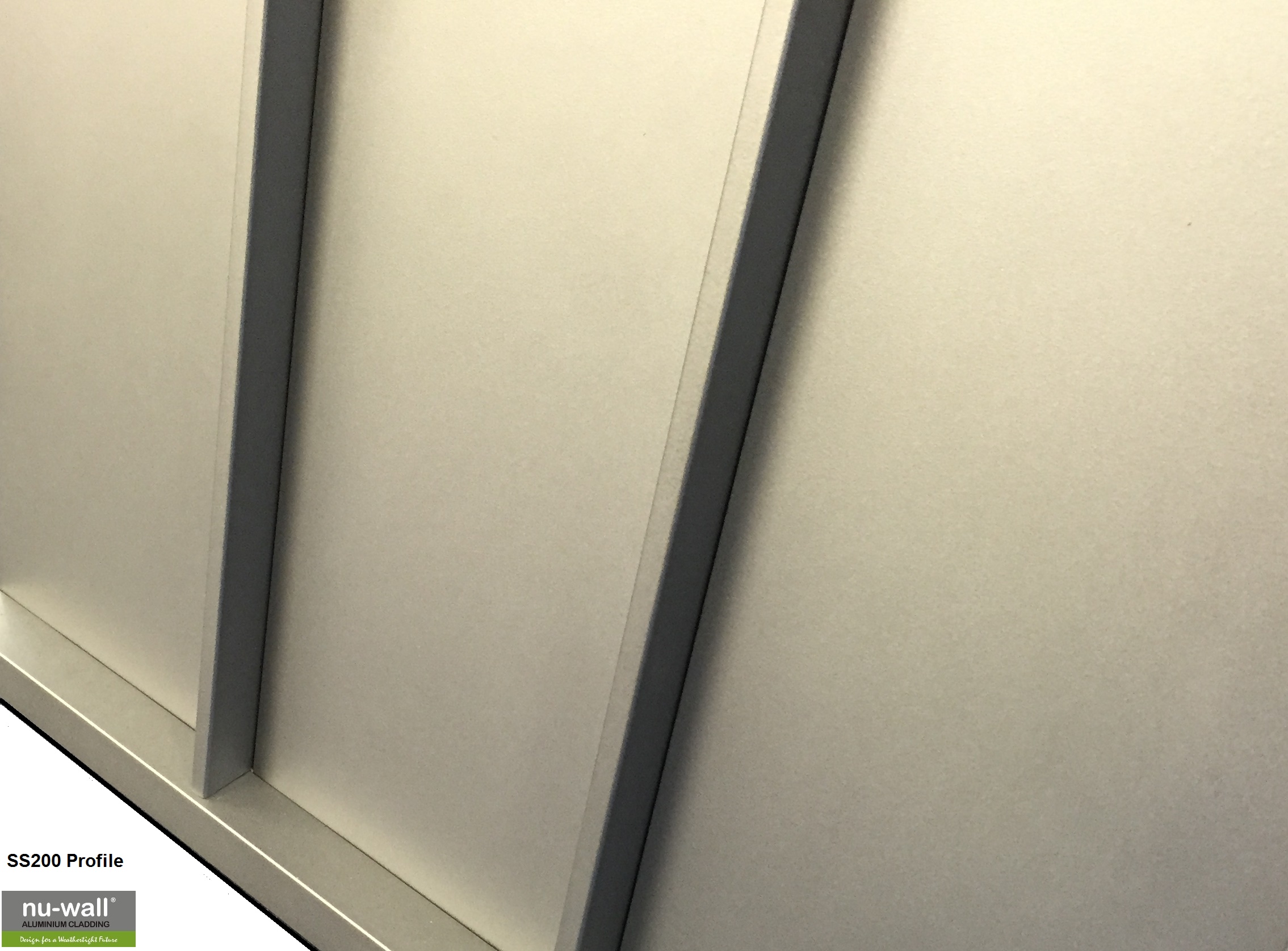

Nu-Wall Introduces New SS200 Flat Cladding Profile

This latest addition to the Nu-Wall range of vertical cladding profiles has been developed to emulate the appearance of a 'standing-seam' type metal cladding.

Extruded at a thickness of 2.0mm, SS200 offers this sought-after aesthetic without the 'oil-canning' effect which is often associated with thinner-gauge metal claddings. The SS200 profile is 200mm wide and can optionally be installed in conjunction with the familiar Nu-Wall Mono200 flat profile to increase the pitch between the 'seams'.

As with all of the Nu-Wall range of cladding profiles, SS200 is supplied pre-finished in a wide range of factory-applied powdercoat or anodised colours, offering a highly-durable, low-maintenance solution for exterior cladding of all types of buildings in all kinds of environments.

Nu-Wall is a system of interlocking weatherboard-type profiles, available in a wide range of styles to suit both horizontal and vertical cladding installations. The product has been appraised by BRANZ for both types of application.

Vertical Cladding Profiles

Nu-Wall Cladding

View Product

The Nu-Wall Aluminium Cladding System — Vertical is a cavity-based or direct-fixed, inter-locking powder-coated aluminium weatherboard system.

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

See BRANZ Appraisals 556 and 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with timber and steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and, ¬ constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has also been appraised as an external wall cladding for steel-framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with steel framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

See BRANZ Appraisal 556 for full information.

See BRANZ Appraisals 556 and 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, and B2.3.2
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical Direct Fixed, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 556 for full information.

BRANZ Appraised
