Western Red Cedar Panelling Adds Warmth and Texture to Stables House

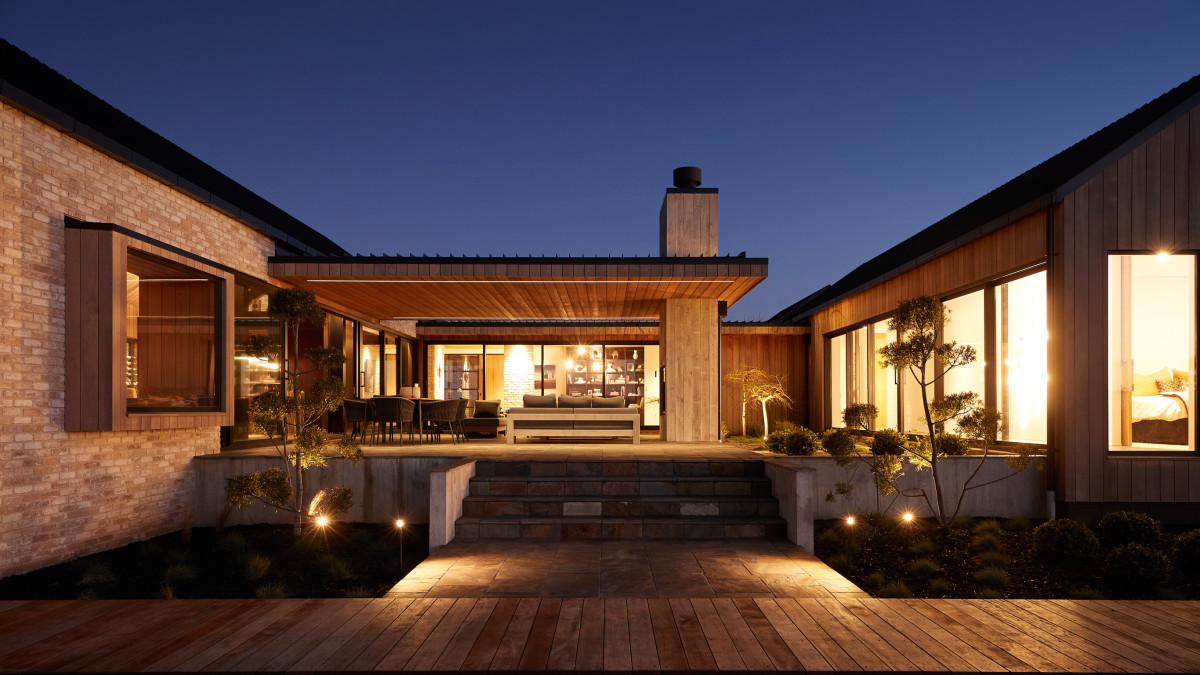

Situated in the heart of Gordonton, Stables House, designed by Tane Cox of Red Architecture in partnership with interior designer Bronywn Turton, unfolds as a series of barn-like structures — a nod to the area's rural heritage. This design features strategic use of JSC's Western Red Cedar panelling, chosen for its natural warmth, durability, and sustainability.

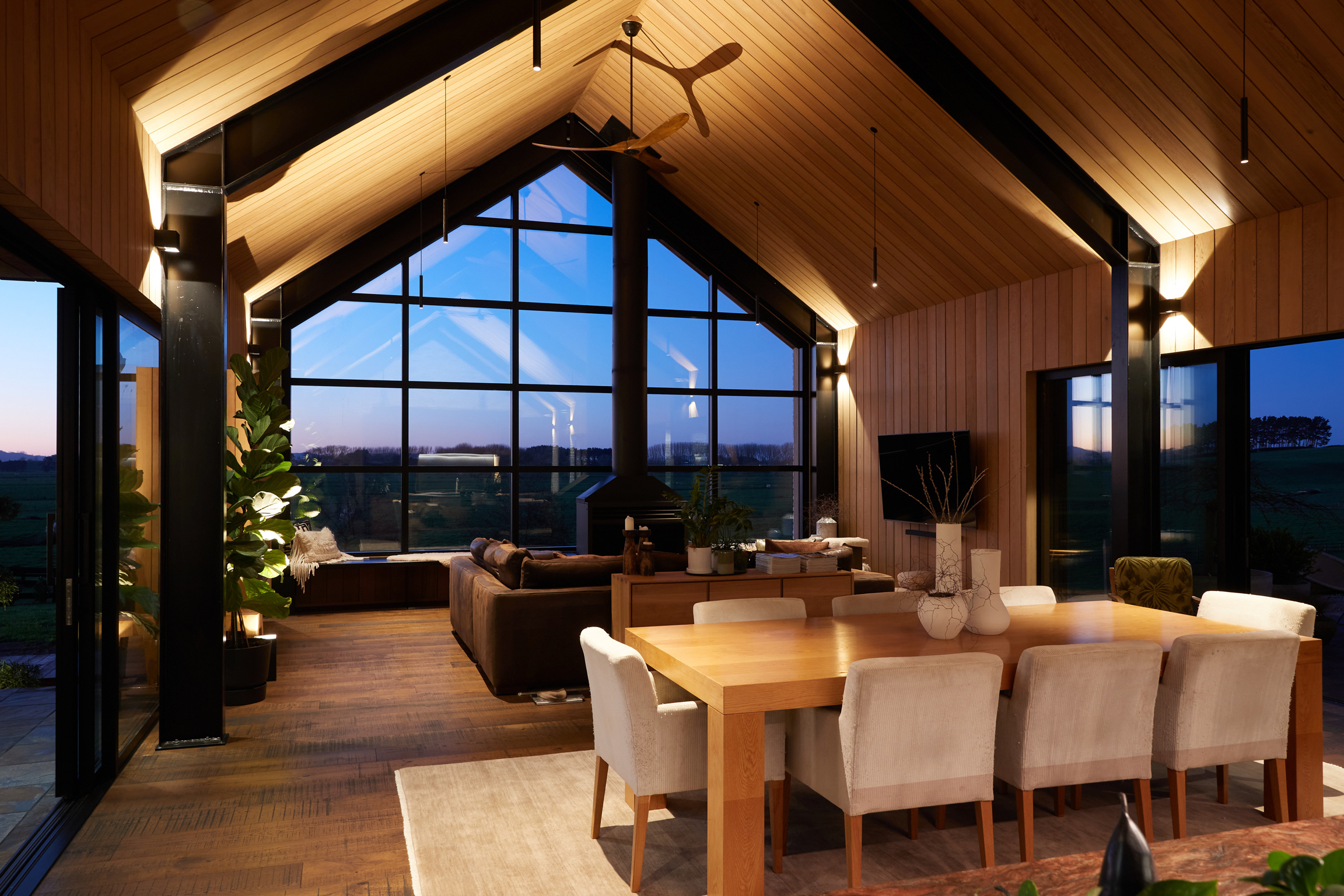

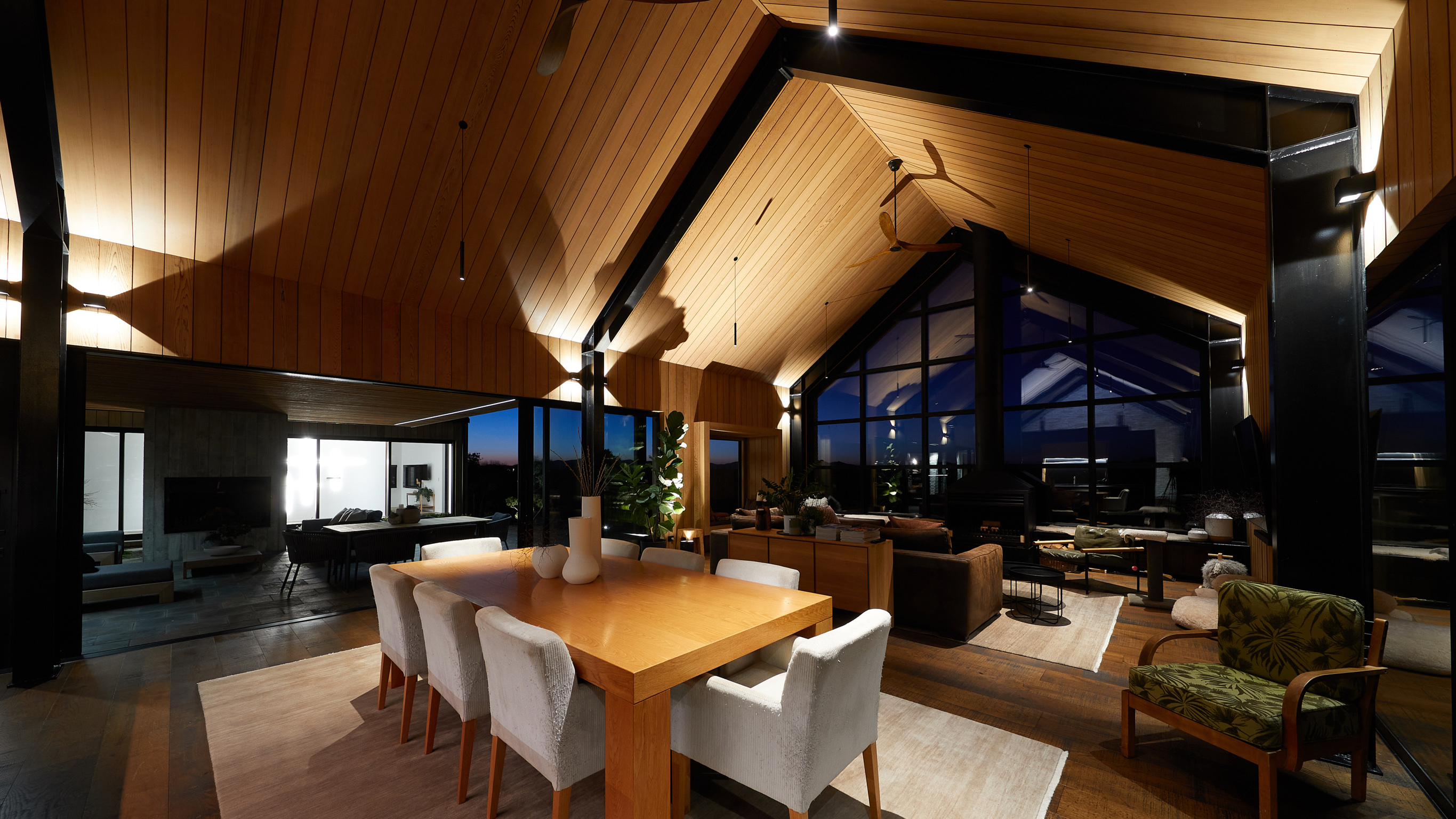

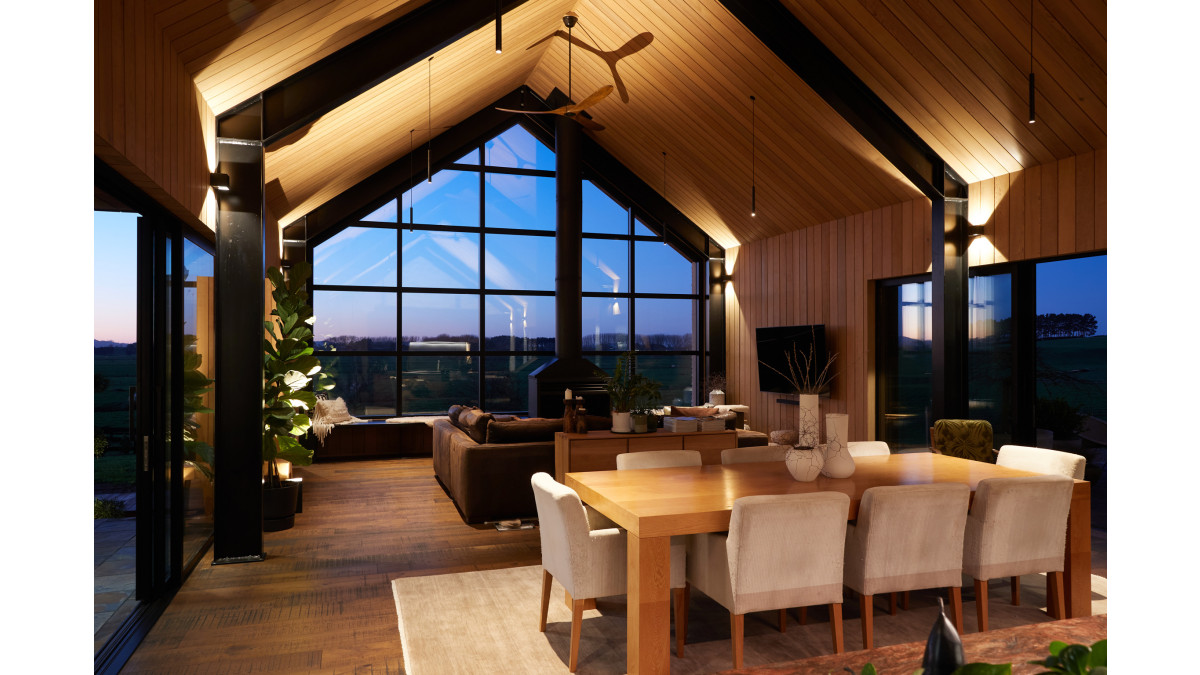

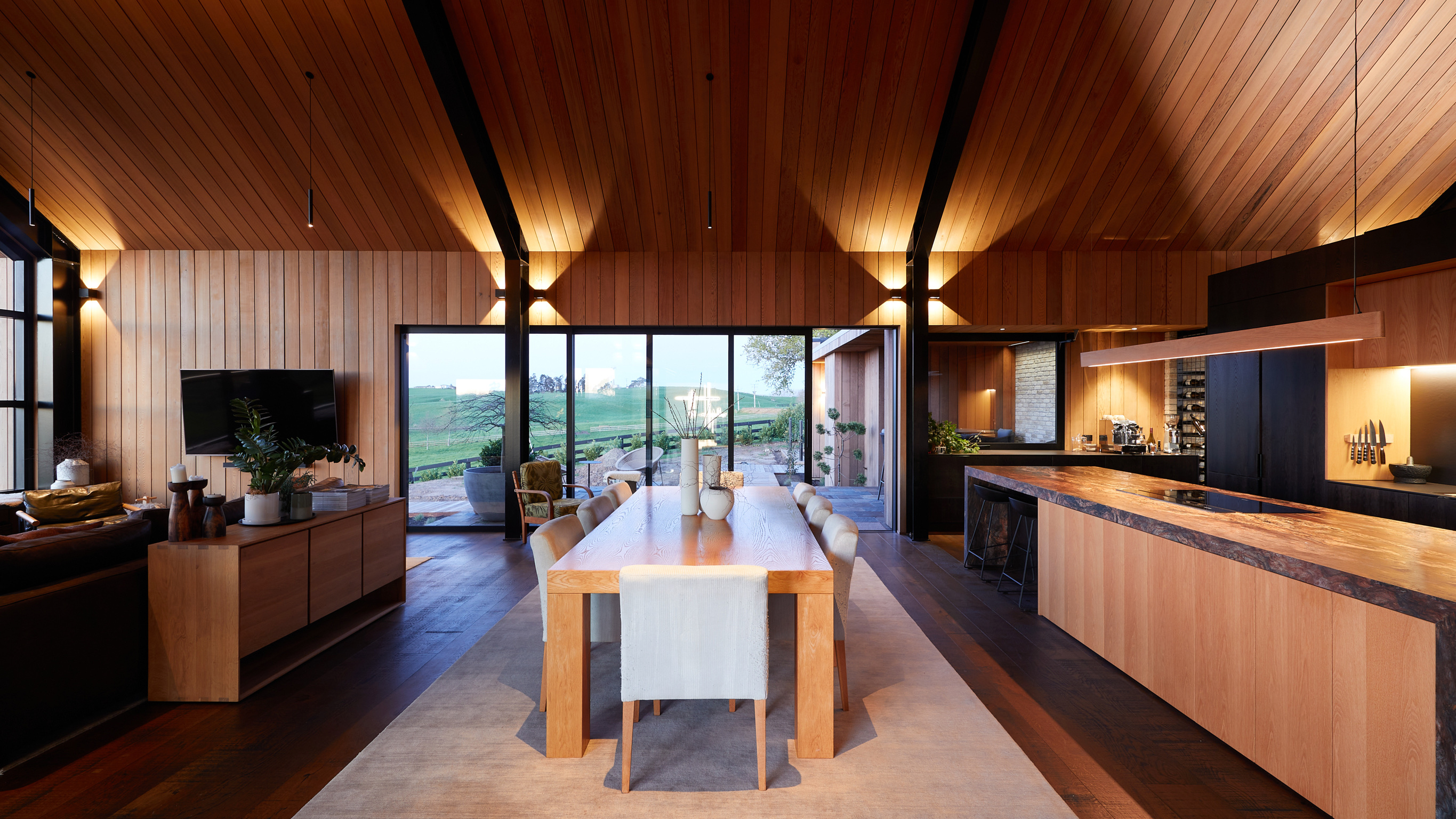

The use of Western Red Cedar helps to bring the interior to life, providing the natural texture and visual warmth of timber, which contrasts beautifully with the modern elements of the home. The panelling in the main living spaces not only enhances the architectural gables but also complements the wide plank American Oak flooring. Well considered lighting further enhances the texture and warmth of the timber used throughout, creating a dialogue between light and shadow.

Beyond its immediate visual impact, the choice of timber panelling offers a range of practical benefits, including durability, natural insulation, and enhanced acoustic performance.

Stables House represents an insightful approach to material selection, and showcases how timber panelling can be used to create stunning interiors that blend both traditional and modern design.

Architect: Red Architecture
Builders: Turton Builders
Photography: Mark Hamilton Photography
Species/Timber used: Western Red Cedar
View the full project on the JSC website

Interior Timber Panelling & Sarking/Ceilings

JSC

View Product

JSC has a range of species, available in a variety of timber panelling and sarking products suitable for new homes, renovations, and commercial projects.

NZ-Owned Business

The JSC Interior Panelling & Sarking Guide outlines the installation of JSC Timber panelling to internal applications in buildings covered by New Zealand building code that govern the fire performance requirements of materials used in the construction of all building forms.

Suitable for internal wall linings, and ceiling linings
JSC interior timber lining can be installed vertically, horizontally, or diagonally

Please refer to JSC Interior Panelling & Sarking guide available for download under documents for the latest guidelines.

Performance varies based on the product/species chosen. See species/product data sheets on the JSC website for more information

JSC Vertical Shiplap Timber Weatherboard Cladding

JSC

View Product

JSC are recognised as leaders in timber cladding and cavity system development in New Zealand, offering an extensive range of carefully selected quality products, profiles, and colour coatings to suit every design need.

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC VertiClad — Vertical Shiplap Weatherboard Cladding System – CodeMark Certificate: CM-GM30084

Location:

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS)of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011.

Building:

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1 Third Edition including amendment 9 (27/06/2019),
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Table 2
The System must only be installed vertically on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary.

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC VertiClad installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.4 (a), (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (e), (f), (h), (j), and (q)
Clause B2 Durability: Performance B2.3.1(b) and B2.3.2(b)
Clause E2 External Moisture: Performance E2.3.2, E2.3.3, E2.3.5, E2.3.7(b) and (c)
Clause F2 Hazardous Building Materials: Performance F2.3.1

JSC Western Red Cedar Weatherboard System, if installed and maintained as per manufacturer’s documentation, will meet the minimum 15-year durability requirement in respect of clauses B1 and B2 of the first schedule of the New Zealand Building Code for external cladding. In a typical installation, it is likely to have a serviceable life exceeding 30 years.
