Lunawood Thermo-D: Feature Grade Thermally Modified Timber Cladding

Increasing environmental awareness and demand for sustainable, natural, and chemical-free building products initiated JSC’s research into thermal timber treatment methods, recognising that Thermally Modified Timber (TMT) opens up a truly sustainable resource.

JSC TMT offers a selection of Thermally Modified Timbers that have been specifically sourced for the New Zealand market based on their versatility, durability, aesthetic properties and environmental credentials to suit New Zealand weather conditions. JSC has a selection of Thermally Modified Timbers available ranging from interesting feature grades to clearer grades that have minimal natural rustic characteristics.

The JSC TMT range is sourced from reliable and world-renowned suppliers that are leaders in the thermal modification process of timbers.

Lunawood Thermo-D

Lunawood Thermo-D is a beautiful feature grade thermally modified timber option that is sustainably sourced from Europe and profiled locally by JSC Timber into NZ-approved profiles.

The unique visual characteristics of the knots in Lunawood give the cladding a unique personality. Lunawood features are varied, ranging from larger, more oval-shaped butterfly knots to smaller and more scattered knots. Lunawood Thermo-D has a beautiful caramel brown tone which can be retained by protecting the surface with a tinted coating.

Key benefits:

Enhanced durability and exceptional dimensional stability
Able to accept darker coatings with significant reduction in dimensional movement
Premium quality that is responsibly and carefully sourced
Low susceptibility to fungal decay
Consistent, aesthetically pleasing colour
Easily workable and easy to maintain
Suitable for both interior and exterior applications such as exterior claddings, interior linings, battens and more depending on the species you choose

Suitable for a range of interior and exterior applications:

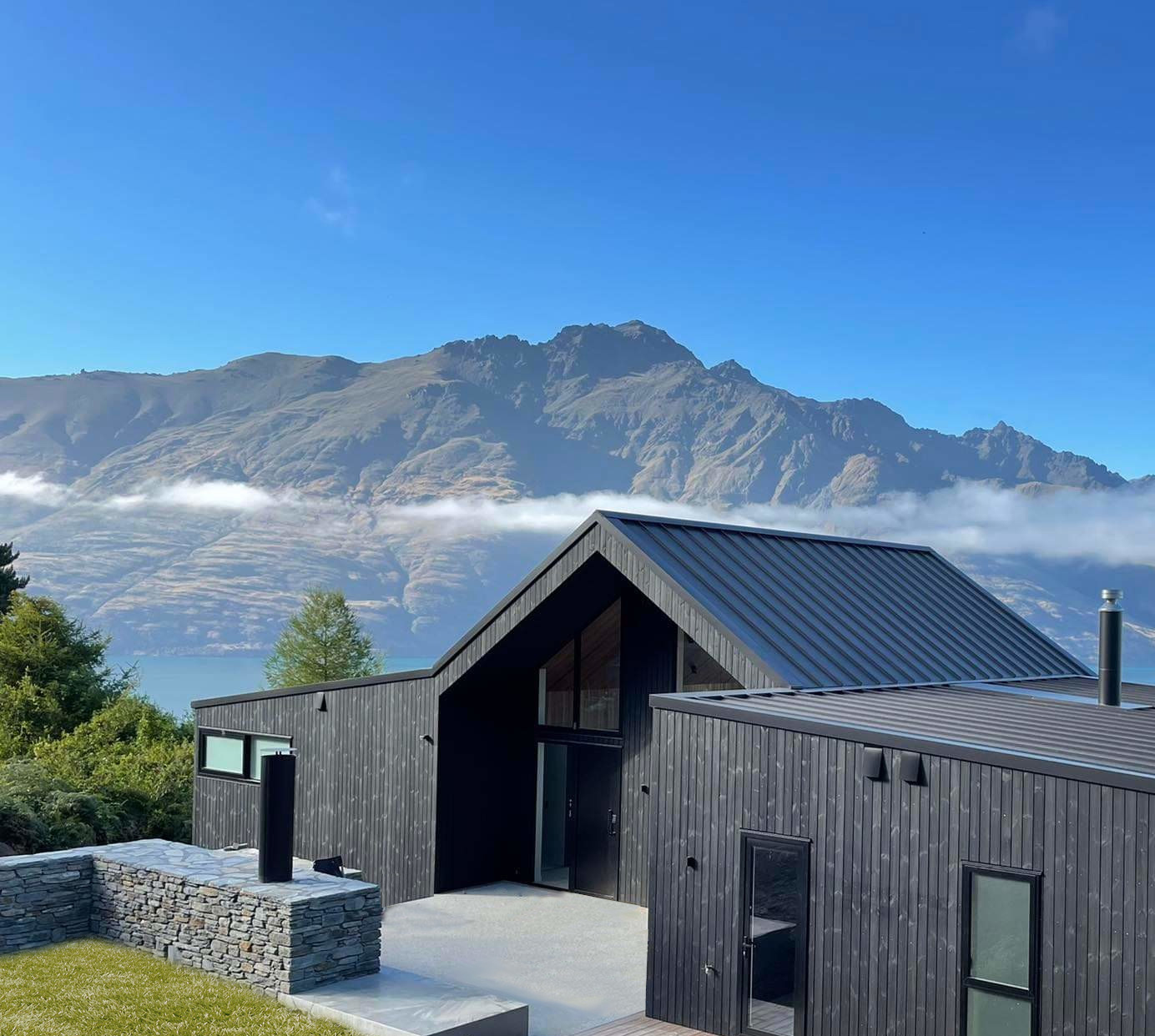

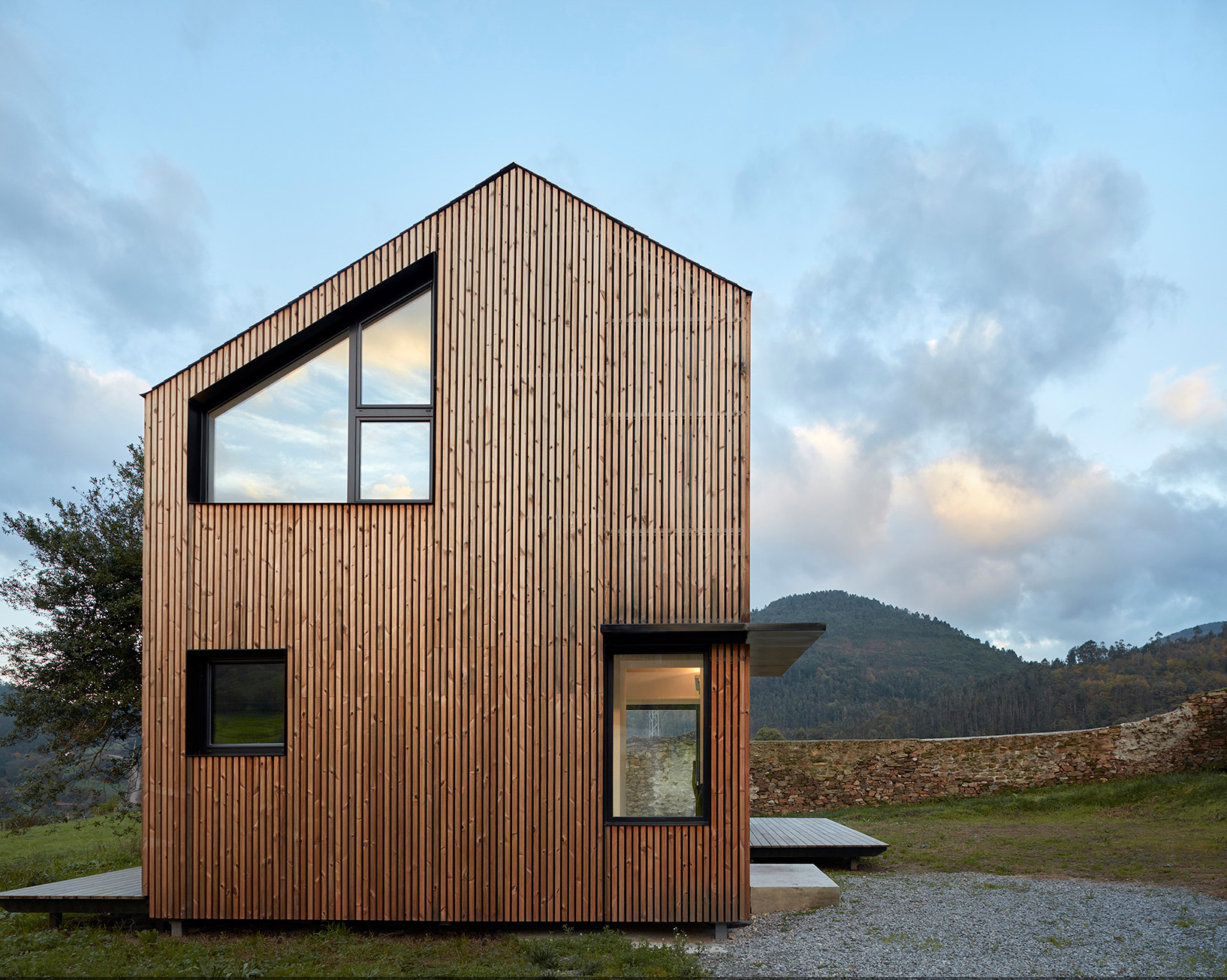

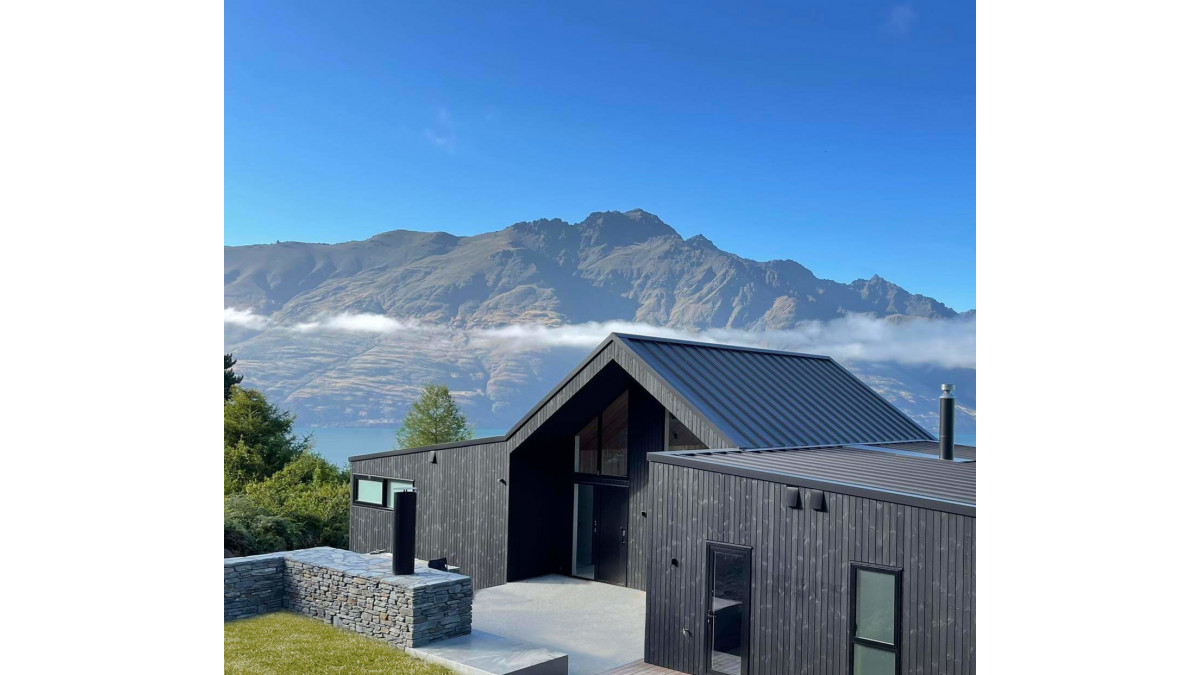

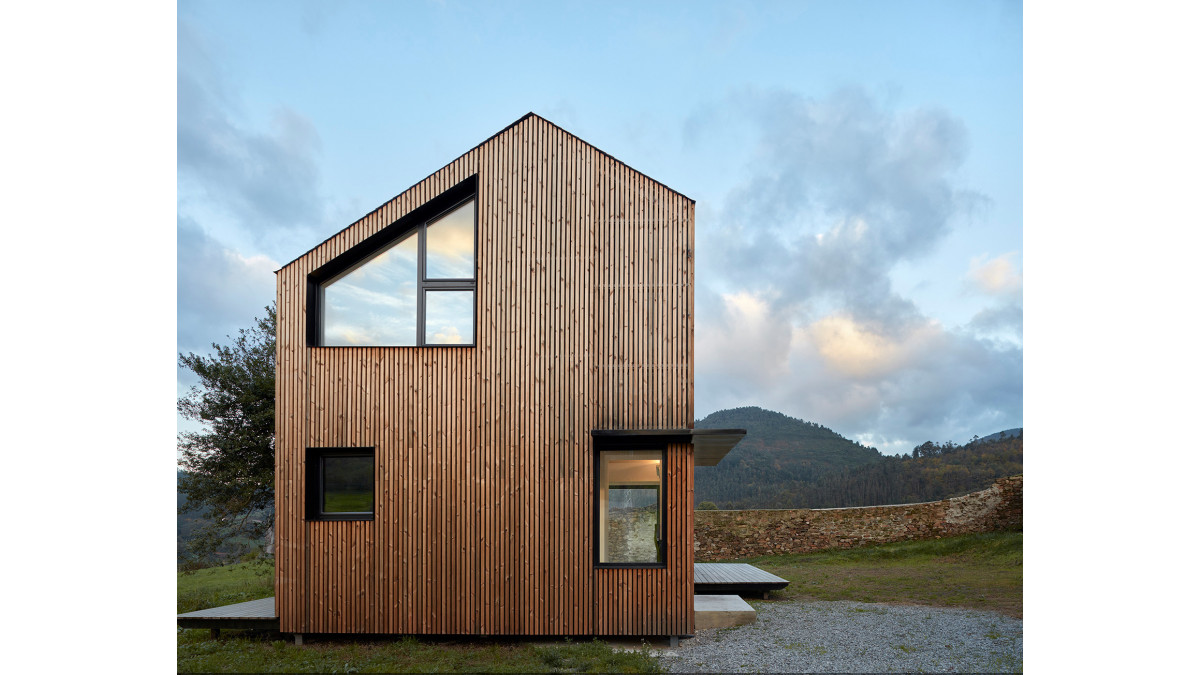

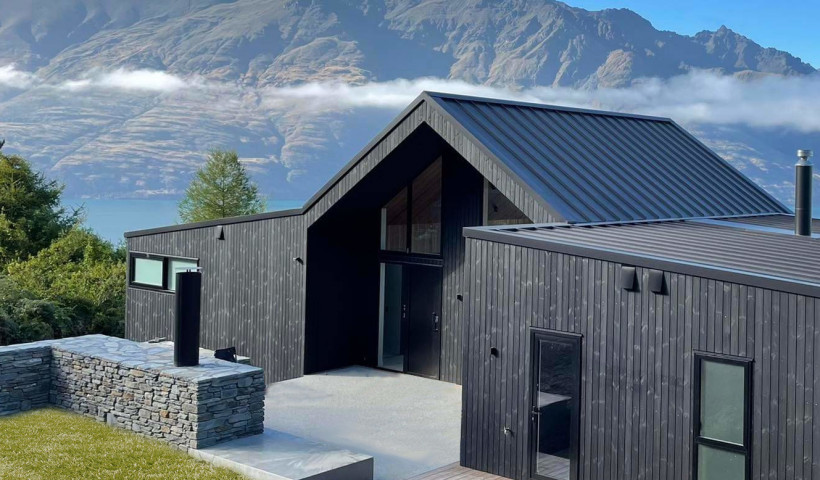

Exterior Cladding: Lunawood is a reliable choice for exterior cladding due to its improved dimensional stability, durability, and aesthetics. It provides a modern finish for a variety of applications. Lunawood weatherboards are available in a range of JSC TMT profiles. Lunawood is part of the JSC Cladding species offerings and covered under the JSC CodeMark certificates.

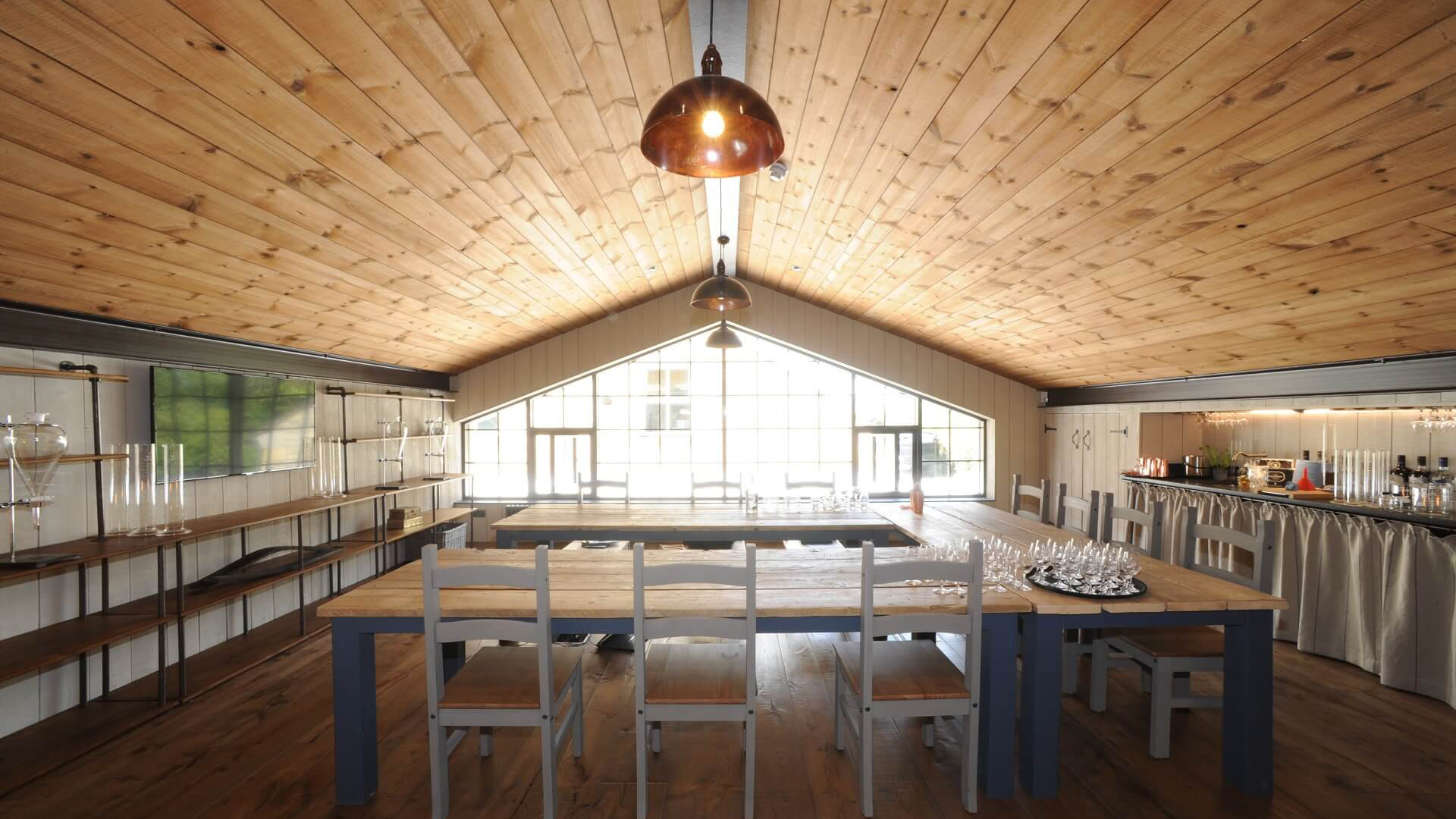

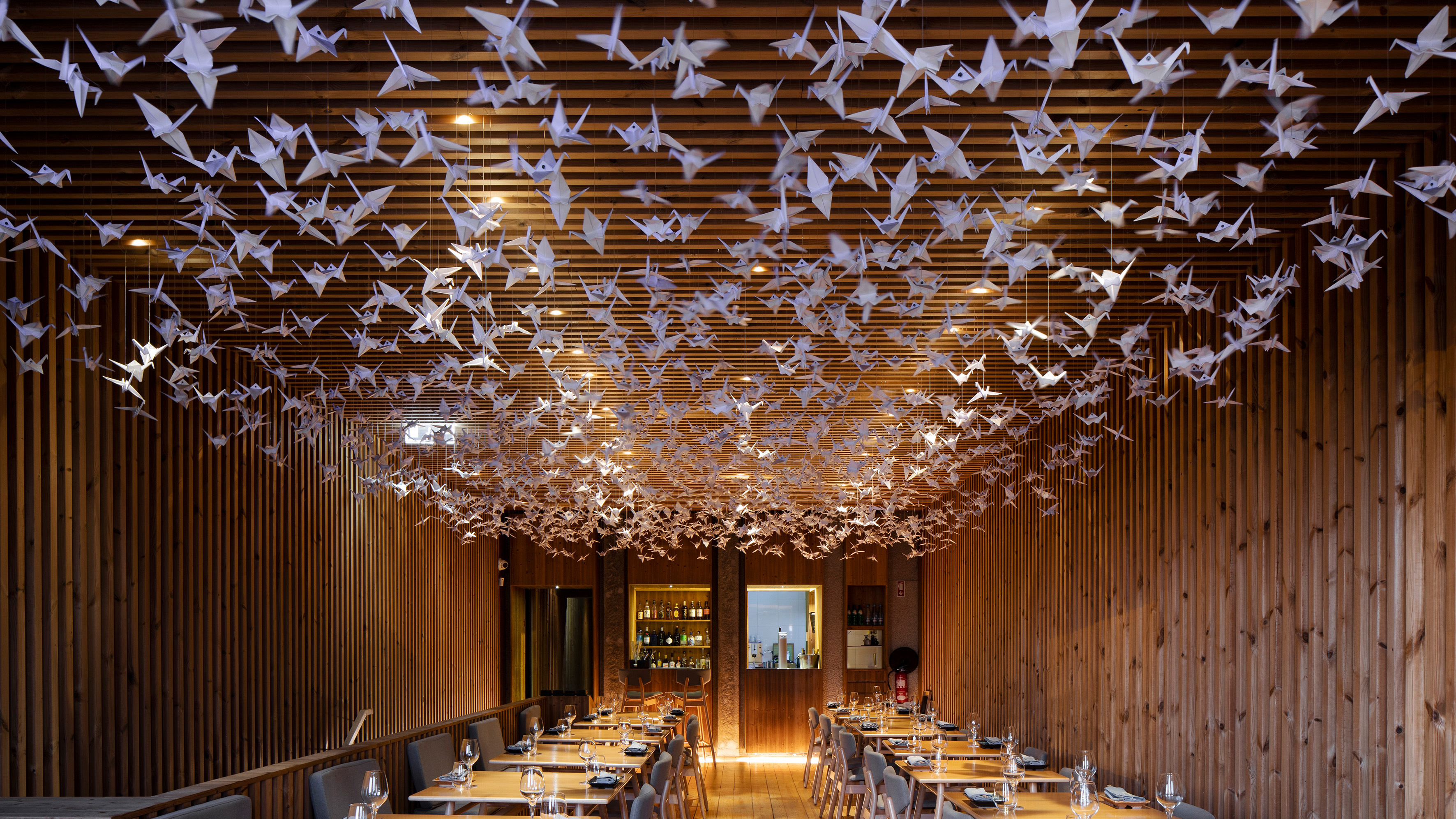

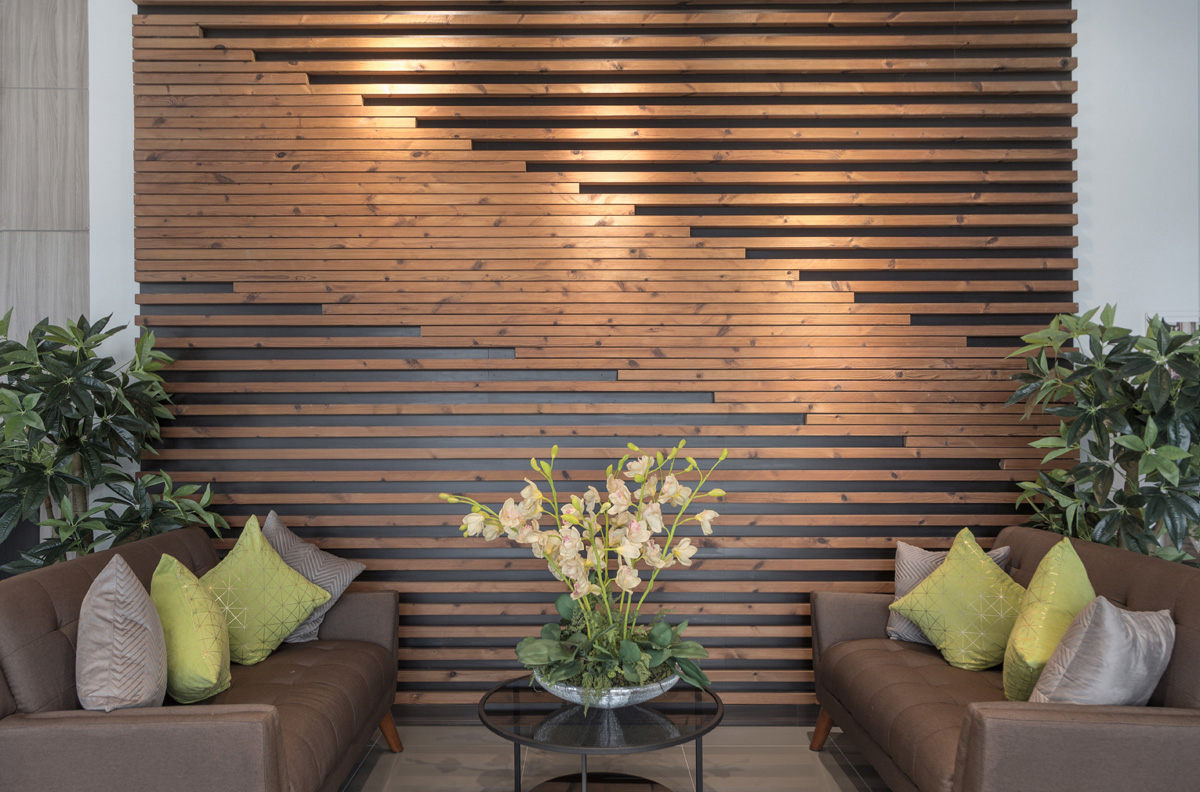

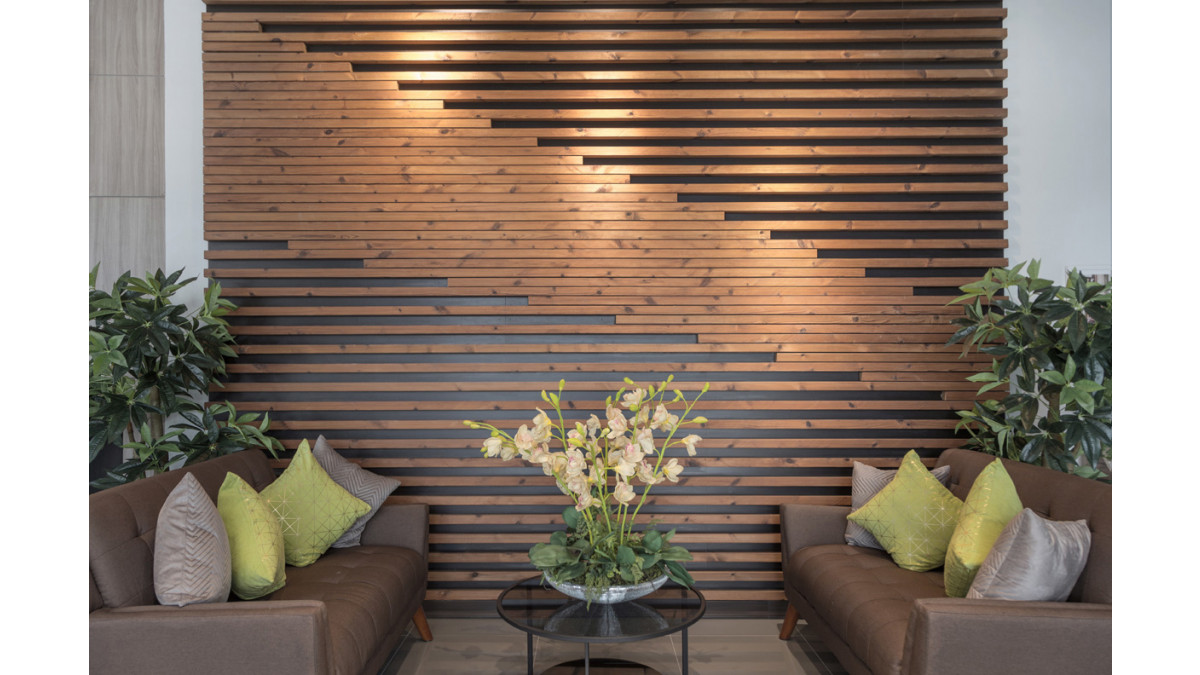

Interiors: Lunawood is highly suitable for interior wall linings and battens. In addition to Lunawood’s attractive appearance, the thermal modification of wood omits the risk of harmful emissions making Lunawood an ideal material for interiors.

Speak to the JSC Sales or Architectural team today to find out more about using Lunawood on your project.

JSC Vertical Shiplap Timber Weatherboard Cladding

JSC

View Product

JSC are recognised as leaders in timber cladding and cavity system development in New Zealand, offering an extensive range of carefully selected quality products, profiles, and colour coatings to suit every design need.

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC VertiClad — Vertical Shiplap Weatherboard Cladding System – CodeMark Certificate: CM-GM30084

Location:

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS)of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011.

Building:

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1 Third Edition including amendment 9 (27/06/2019),
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Table 2
The System must only be installed vertically on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary.

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC VertiClad installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.4 (a), (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (e), (f), (h), (j), and (q)
Clause B2 Durability: Performance B2.3.1(b) and B2.3.2(b)
Clause E2 External Moisture: Performance E2.3.2, E2.3.3, E2.3.5, E2.3.7(b) and (c)
Clause F2 Hazardous Building Materials: Performance F2.3.1

JSC Western Red Cedar Weatherboard System, if installed and maintained as per manufacturer’s documentation, will meet the minimum 15-year durability requirement in respect of clauses B1 and B2 of the first schedule of the New Zealand Building Code for external cladding. In a typical installation, it is likely to have a serviceable life exceeding 30 years.

CodeMark

JSC Rusticated Timber Weatherboard Cladding

JSC

View Product

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC RustiClad — Rusticated Horizontal Weatherboard Cladding System – CodeMark Certificate: CMNZ30081

Location

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011

Building

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1 Third Edition including amendment 10 (5 November 2020),
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Table 2
The System must only be installed horizontally on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary.

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC RustiClad installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) and B2.3.2(b).
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.7.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

CodeMark

JSC Bevel Back Timber Weatherboard Cladding

JSC

View Product

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC BevelClad — Bevel Back Weatherboard Cladding System – CodeMark Certificate: CMNZ30082

Location:

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011.

Building:

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020)
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Table 2
The System must only be installed horizontally on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary.

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC BevelClad installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 (for the relevant physical conditions of B1.3.3 (a), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) and B2.3.2(b).
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.7.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

CodeMark

JSC Board & Batten Timber Weatherboard Cladding

JSC

View Product

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC Board and Batten — Board & Batten Weatherboard Cladding System – CodeMark Certificate: CMNZ30083

Location:

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011.

Building:

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020)
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 10 (5 November 2020), Table 2
The System must only be installed vertically on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC Board and Batten installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) and B2.3.2(b).
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.7.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

CodeMark

Interior Timber Panelling & Sarking/Ceilings

JSC

View Product

JSC has a range of species, available in a variety of timber panelling and sarking products suitable for new homes, renovations, and commercial projects.

NZ-Owned Business

The JSC Interior Panelling & Sarking Guide outlines the installation of JSC Timber panelling to internal applications in buildings covered by New Zealand building code that govern the fire performance requirements of materials used in the construction of all building forms.

Suitable for internal wall linings, and ceiling linings
JSC interior timber lining can be installed vertically, horizontally, or diagonally

Please refer to JSC Interior Panelling & Sarking guide available for download under documents for the latest guidelines.

Performance varies based on the product/species chosen. See species/product data sheets on the JSC website for more information
