Kohe Way Project Transformed with Brushed Thermally Modified Timber

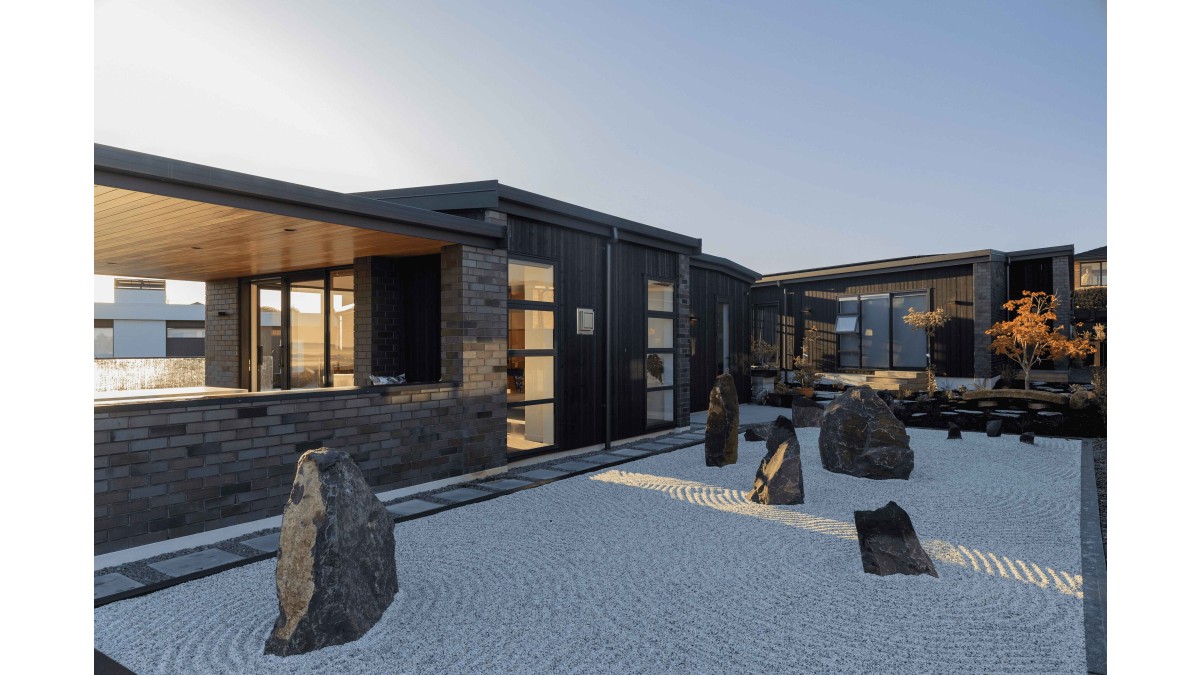

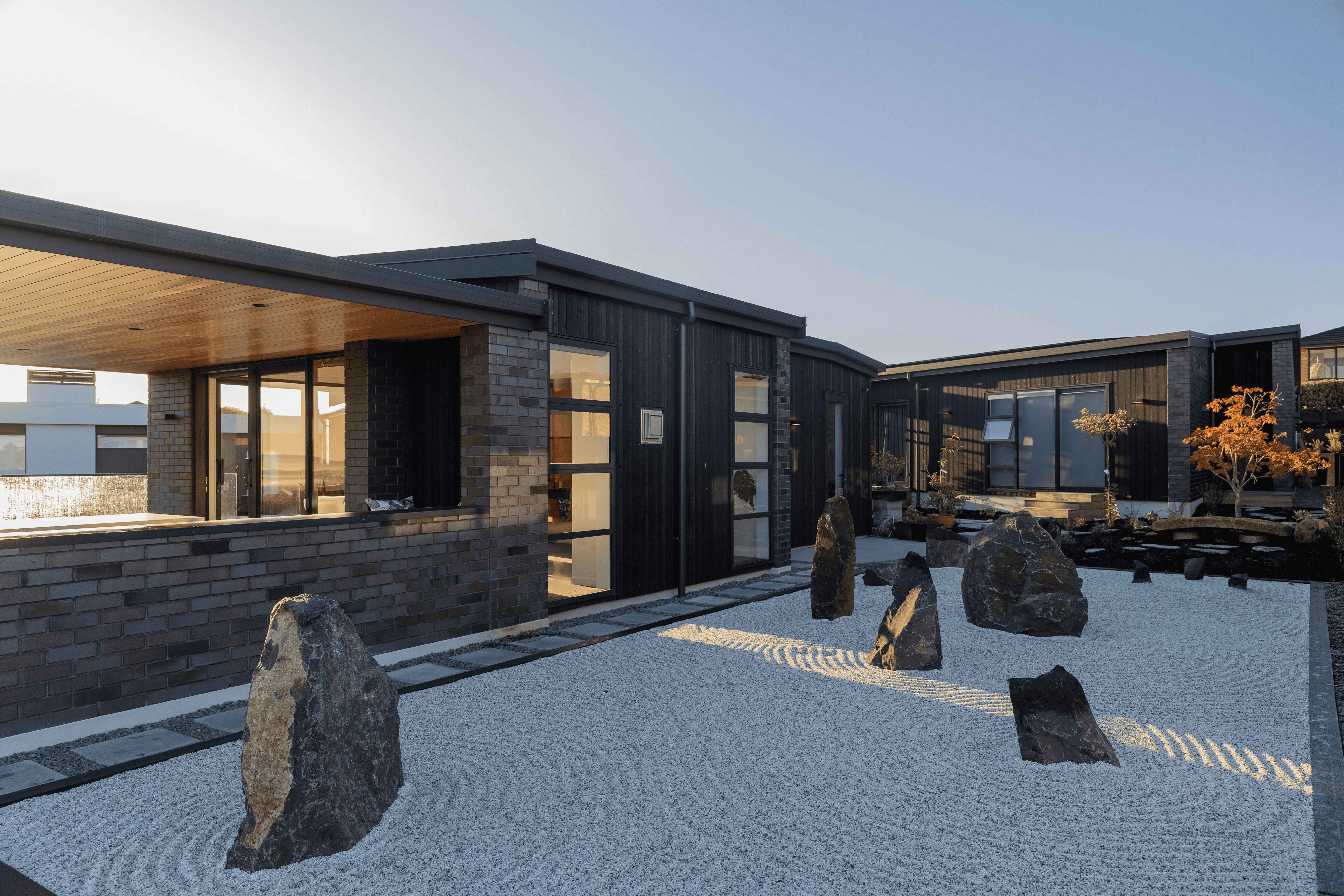

In the heart of Pukekohe, the Kohe Way Residence emerges as an architectural masterpiece, seamlessly blending tranquility with modern design. This exceptional home, draped in a rich, dark palette complemented by natural browns from other timber elements, invites residents into a world of seamless indoor-outdoor living. Drawing inspiration from Japanese aesthetics, it stands as a testament to visionary design and meticulous craftsmanship.

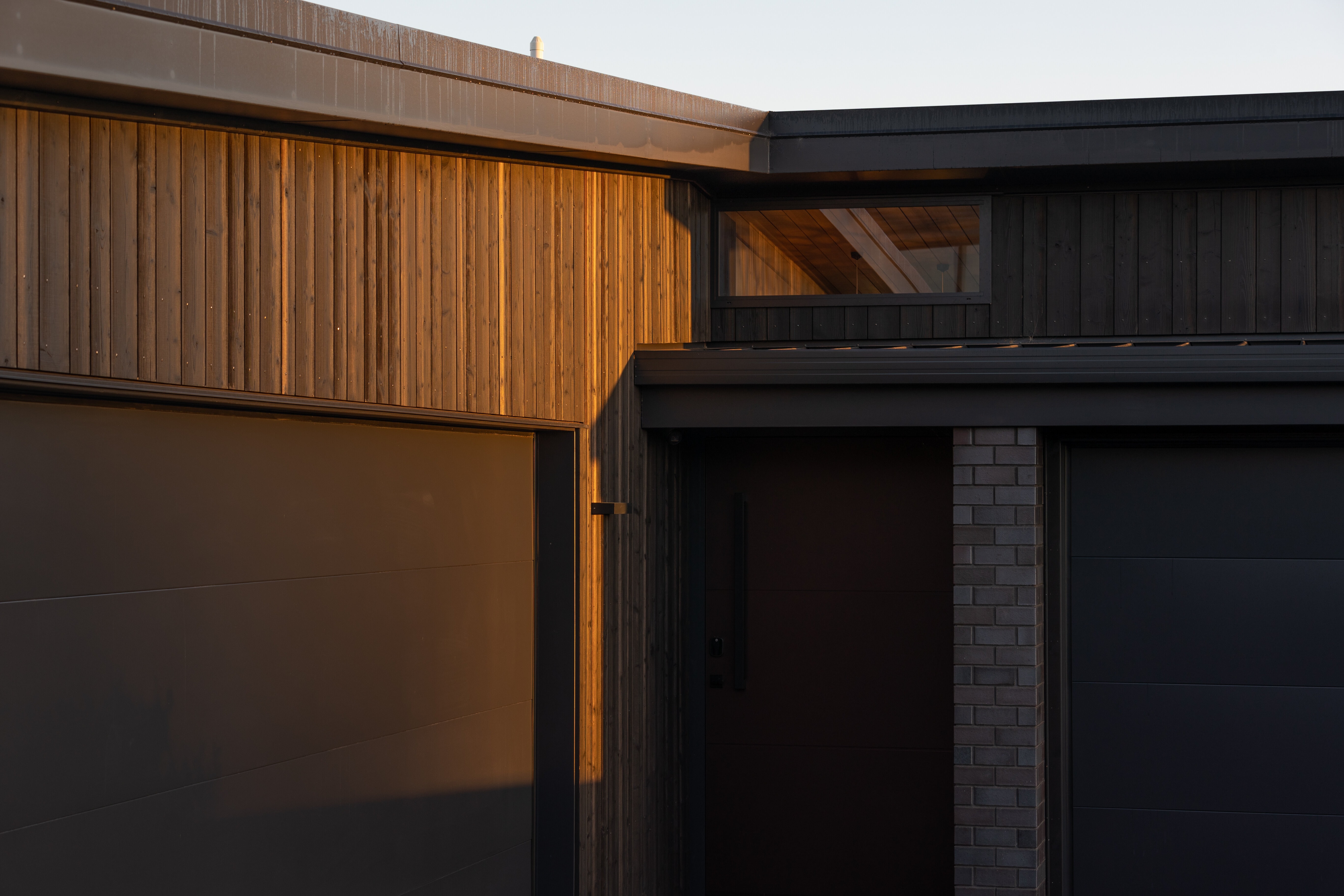

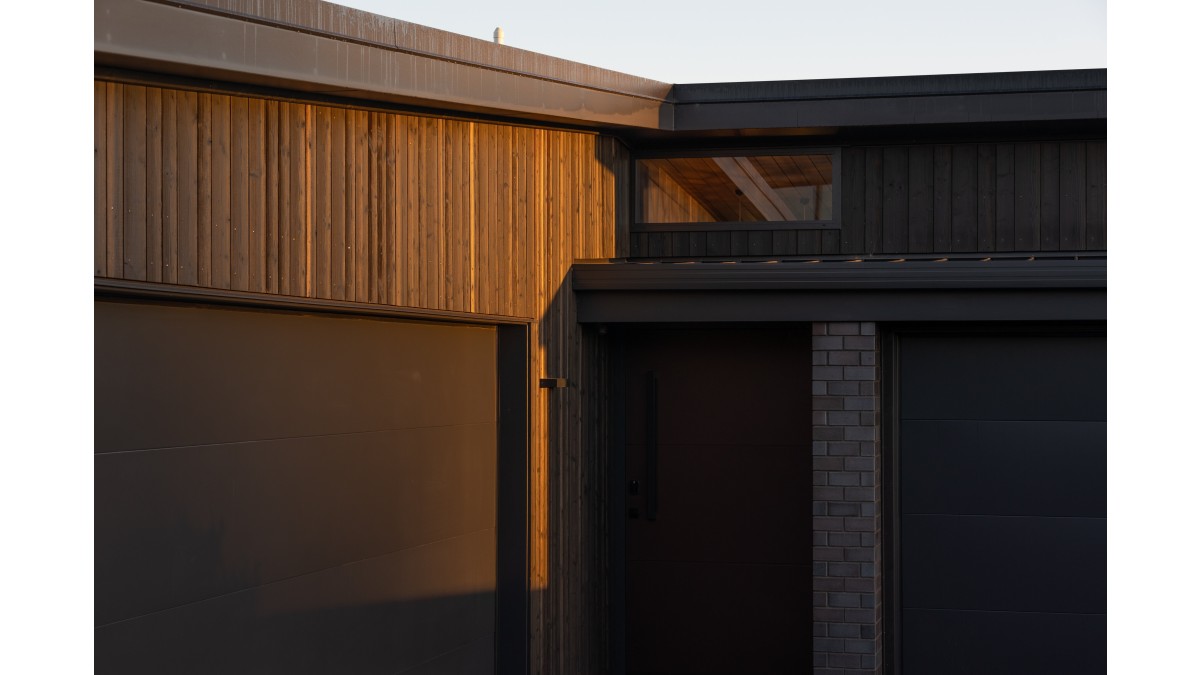

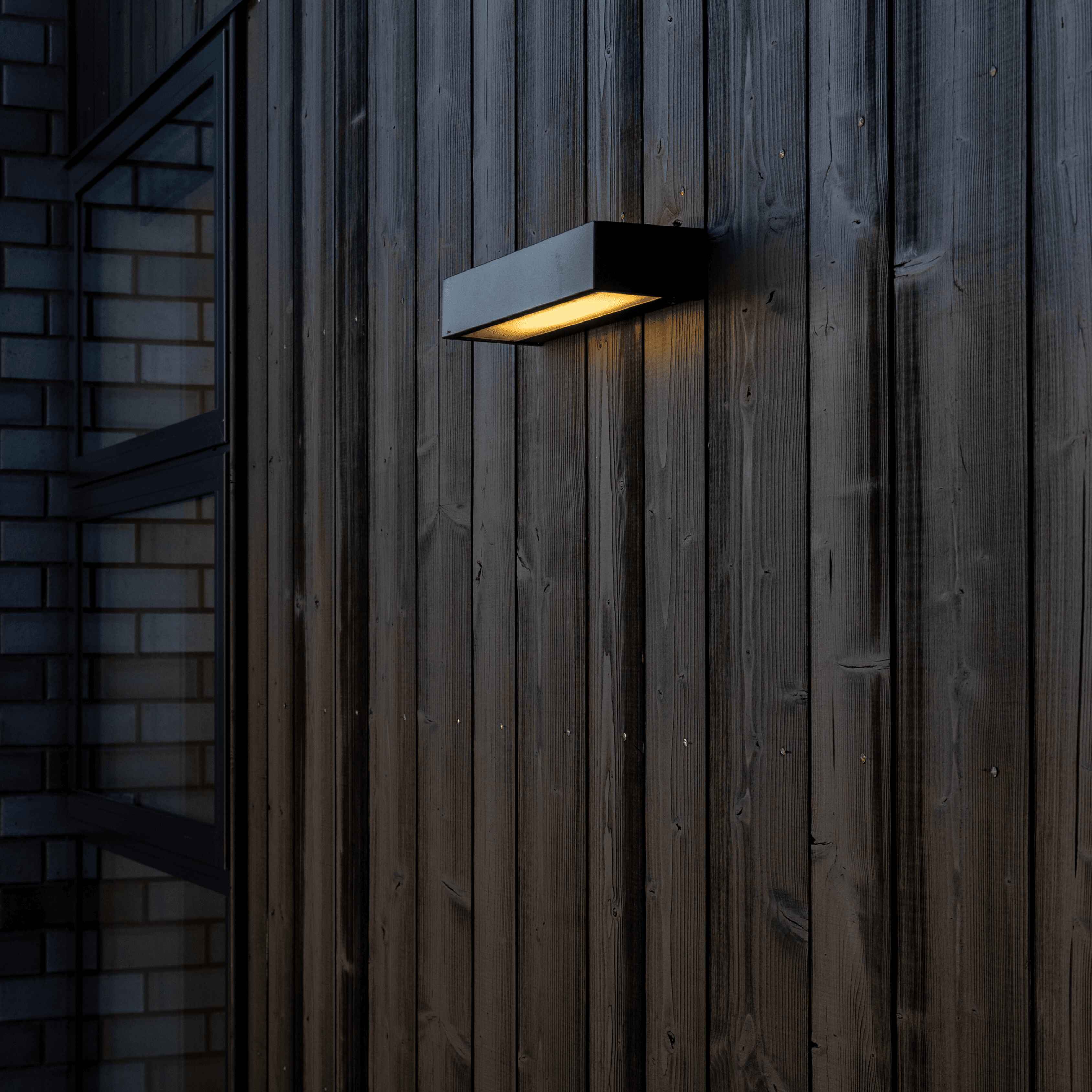

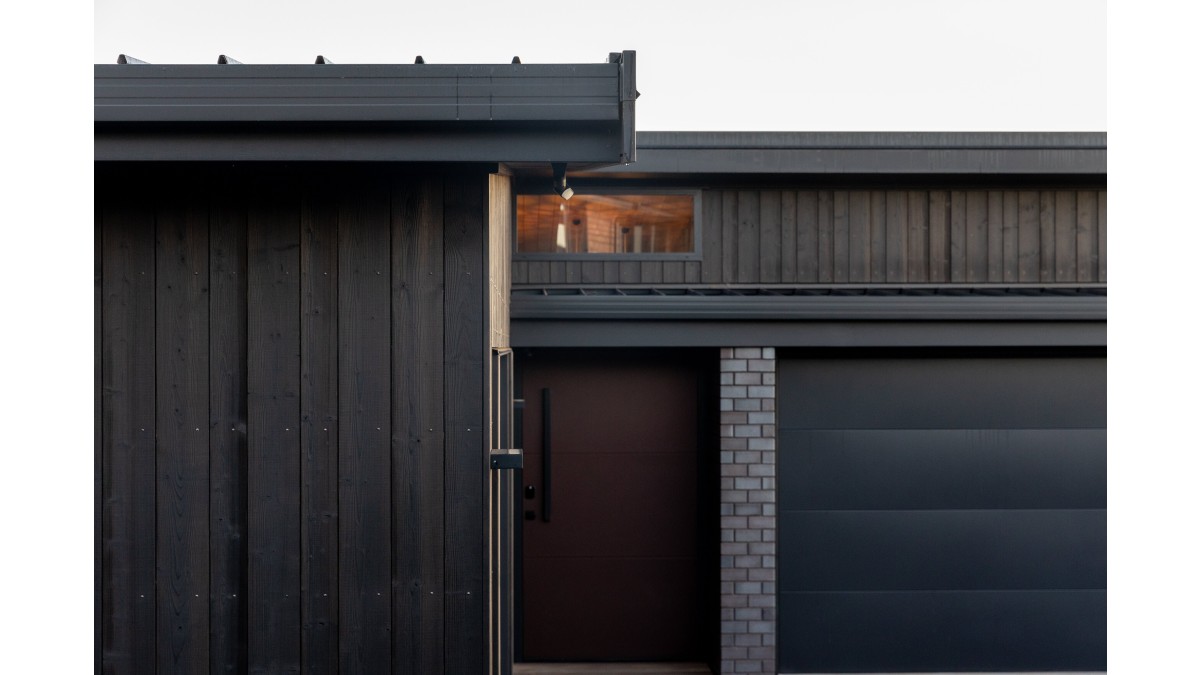

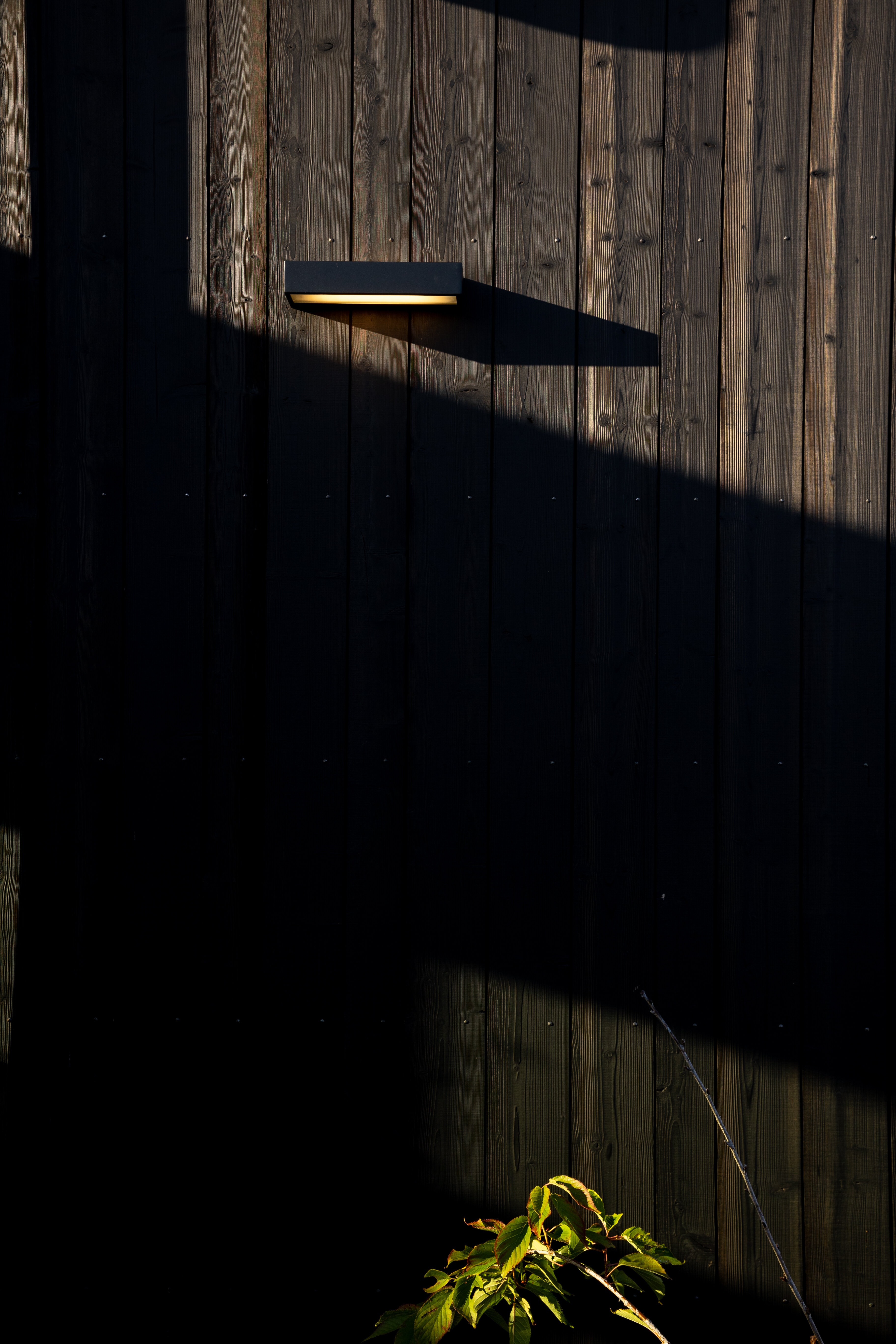

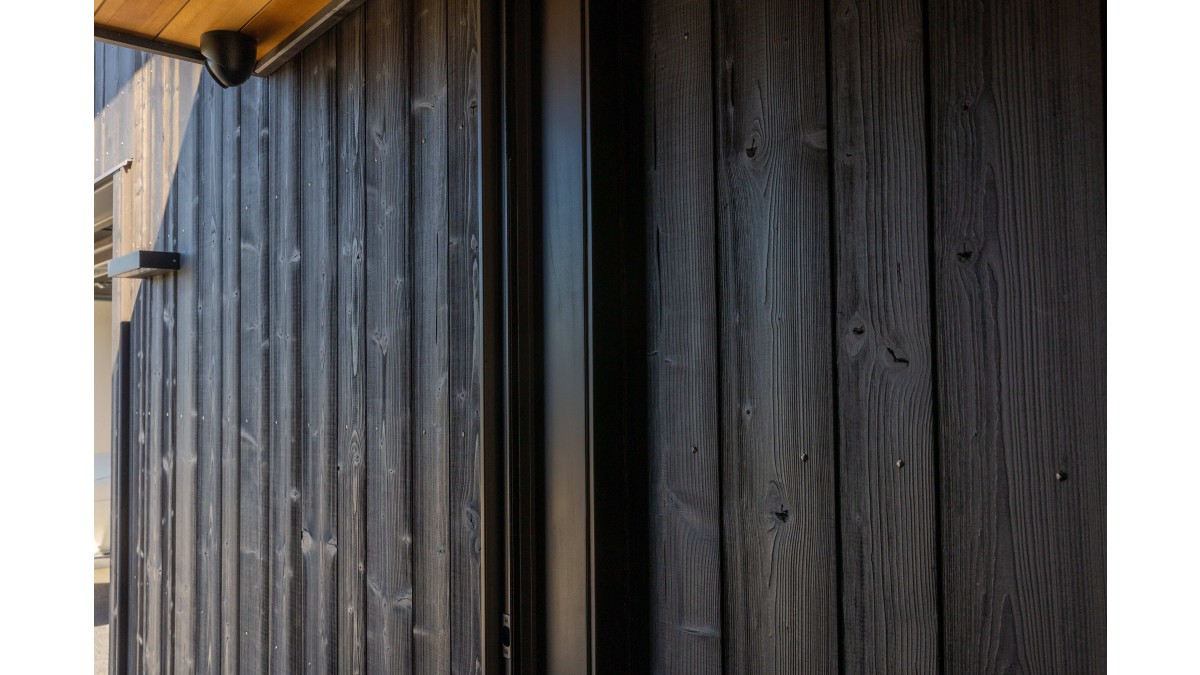

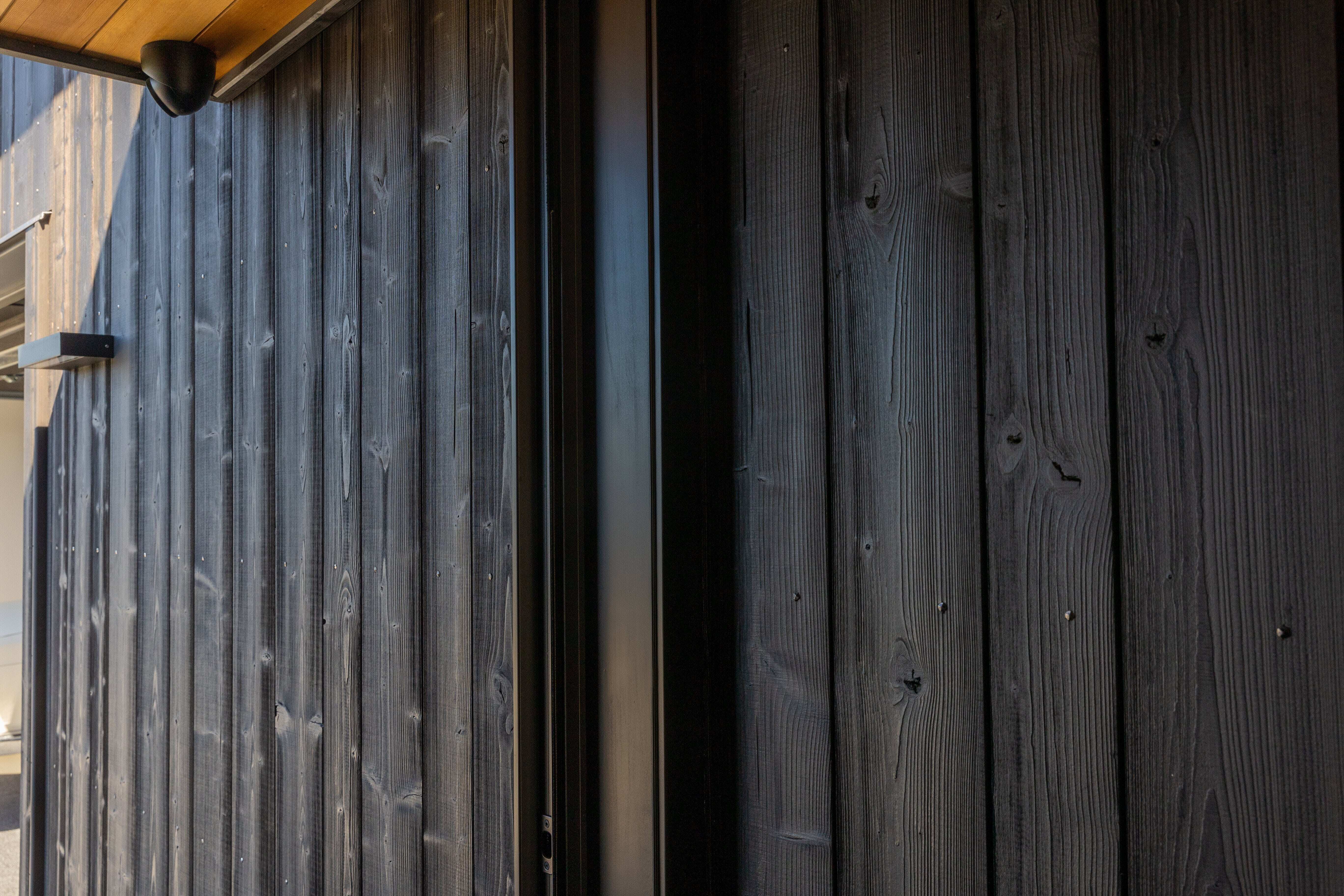

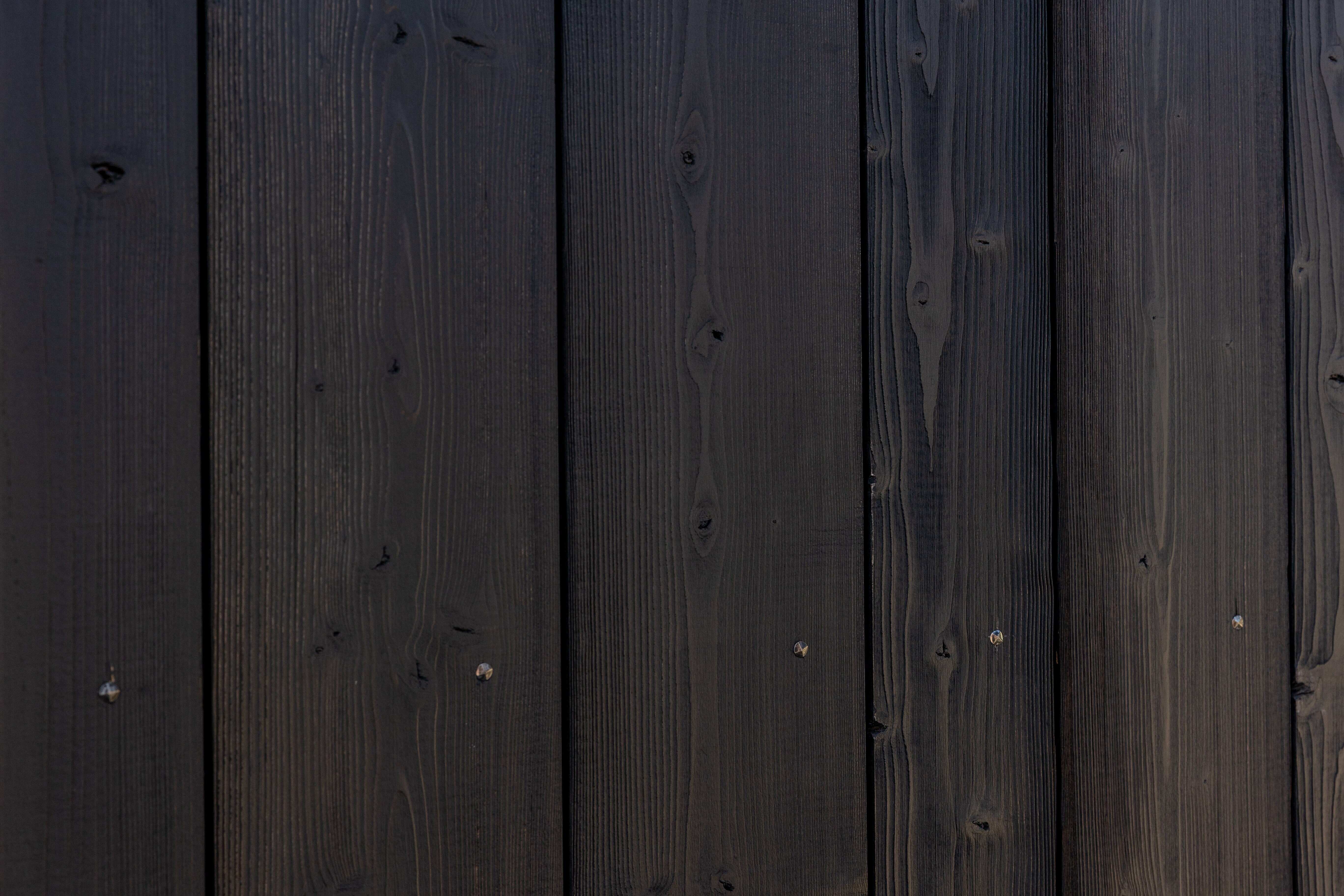

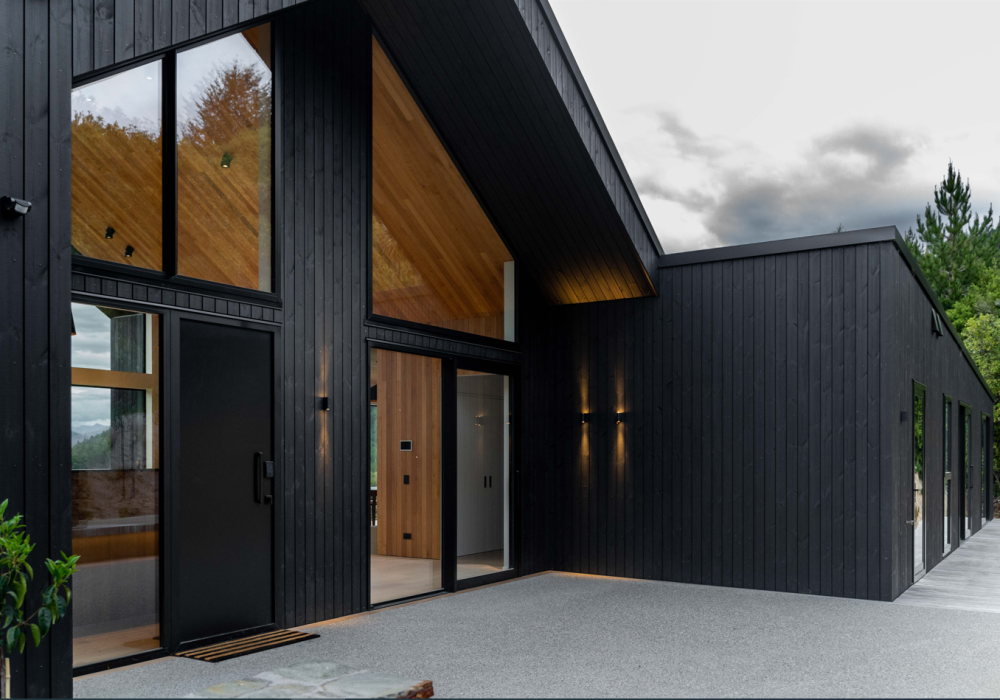

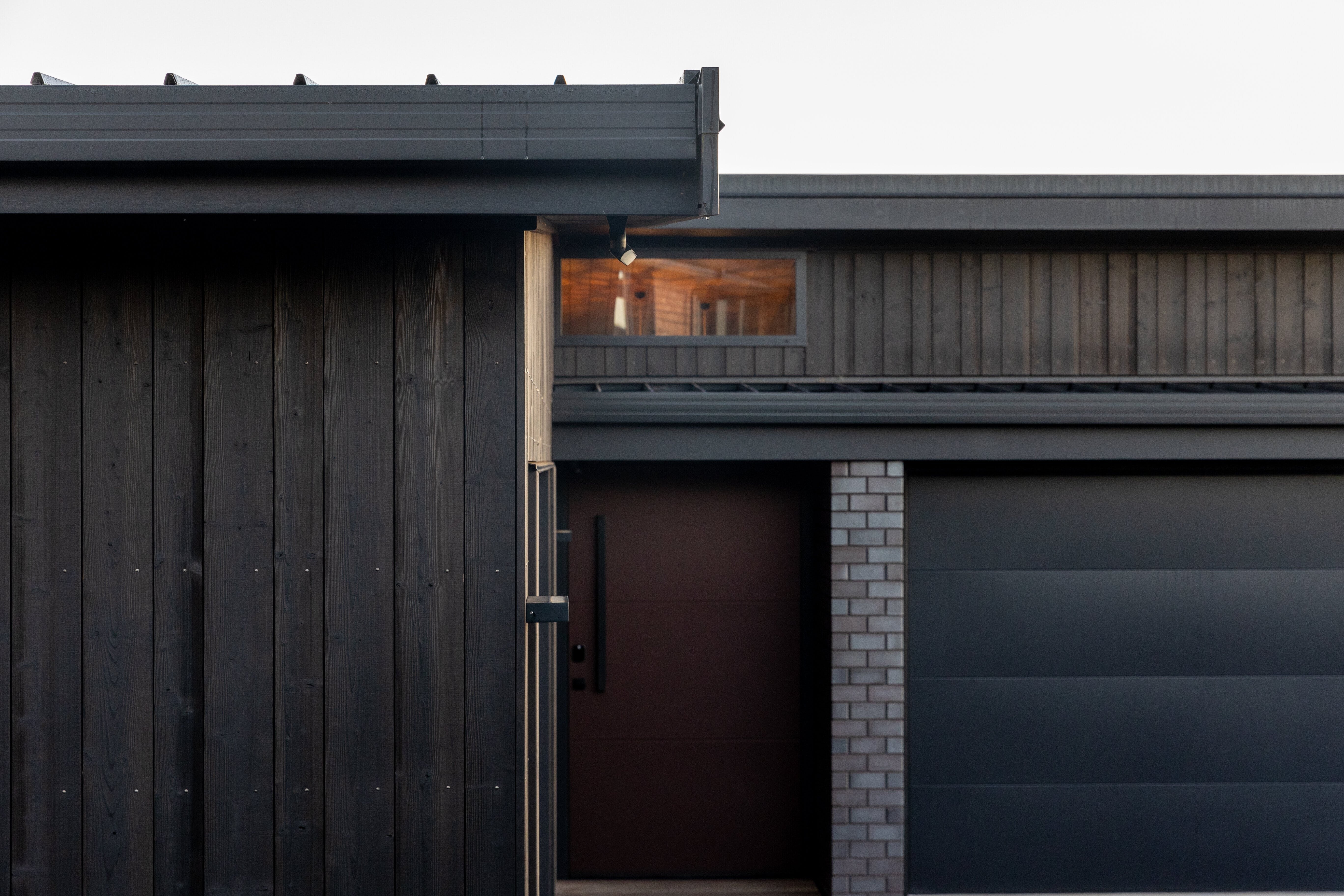

The exterior cladding of this remarkable home showcases JSC's brushed thermally modified timber, TMT Taiga, in a vertical shiplap design, elevating both aesthetic appeal and durability. The choice of brushing, coupled with the application of JSC Scumble Nightfall, a dark timber stain renowned for its protective qualities, brings a layer of sophistication and visual interest to the design.

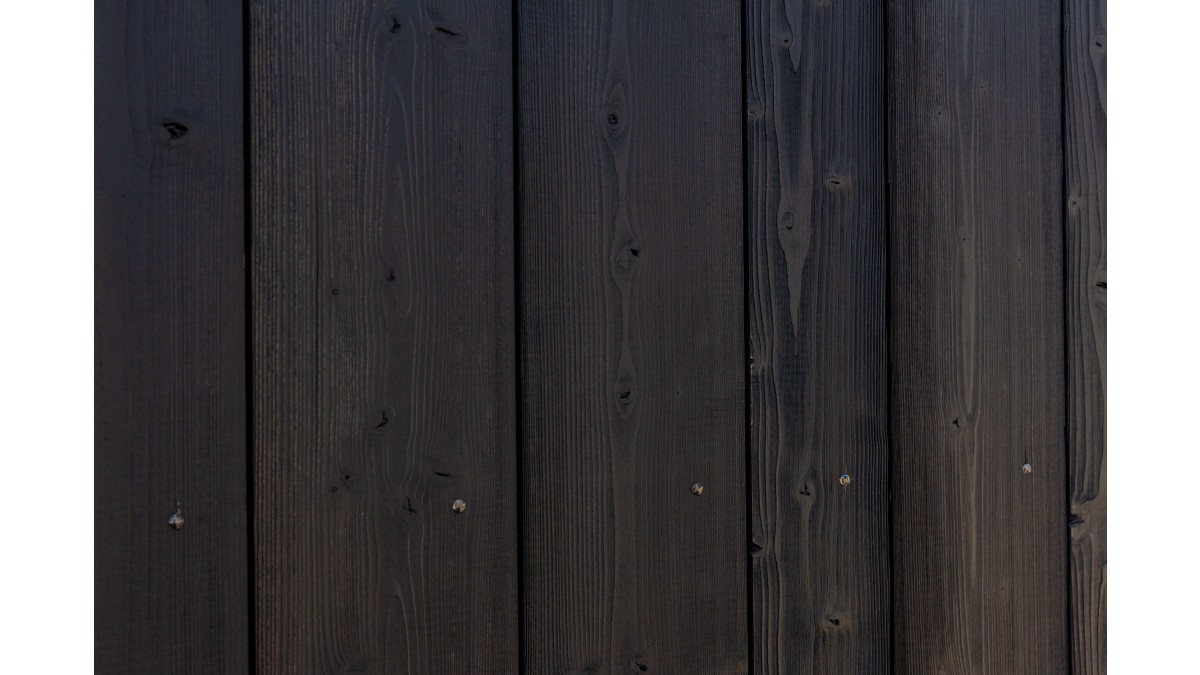

Customisability lies at the heart of this technique, offering architects and designers the ability to create unique visual effects with subtle variations of light and shade. The brushing process, carefully executed, provides options ranging from a light brushing that maintains surface uniformity to a heavier brushing that intensifies grain definition for added texture.

Beyond its aesthetic enhancements, brushing timber cladding significantly contributes to its maintenance and longevity. This method preserves the wood's structural integrity, removing softer summer growth rings without compromising the denser winter growth rings. The result is a cladding surface that retains its strength and stability over the long term. When combined with quality coatings like JSC Scumble and JSC Coda, this process further fortifies the cladding, offering extended intervals between maintenance coats. The inclusion of UV inhibitors and high-quality pigments in these coatings ensures durability against environmental elements.

Moreover, the brushing process is an environmentally conscious choice, devoid of harmful emissions. Paired with the natural, non-toxic attributes of thermally modified timber and the low VOC content of JSC Scumble, this project stands as a testament to sustainable building practices.

In every facet, the Kohe Way Residence reflects a commitment to excellence in design and environmental stewardship.

Architect: Hurley Architects
Builder: Precision Builders Ltd
Imagery: Craig Butland Photography

Contact JSC for a sample

JSC Vertical Shiplap Timber Weatherboard Cladding

JSC

View Product

JSC are recognised as leaders in timber cladding and cavity system development in New Zealand, offering an extensive range of carefully selected quality products, profiles, and colour coatings to suit every design need.

NZ-Owned Business

JSC installation and specification guide and CodeMark certificate guidelines must be followed.

JSC VertiClad — Vertical Shiplap Weatherboard Cladding System – CodeMark Certificate: CM-GM30084

Location:

In wind zones up to and including extra high, as defined in NZS3604:2011 or situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS)of 2.5 kPa, where the building has been specifically engineered
In all exposure zones, excluding microclimates as defined in NZS3604:2011.

Building:

Has the scope limitations of NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Paragraph 1.1; and,
New timber framed buildings with building wrap or rigid air barrier that comply with the NZBC Acceptable Solution E2/AS1 Third Edition including amendment 9 (27/06/2019),
Existing timber framed buildings where the designer and installer have satisfied themselves that the existing building is suitable for the intended building work
With a risk score of 0-20 when calculated in accordance with NZBC Acceptable Solution E2/AS1, Third Edition including amendment 9 (27/06/2019), Table 2
The System must only be installed vertically on vertical, flat, surfaces
The System is certified for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
The wall cladding system is located more than 1m from a relevant boundary.

Note: See CodeMark Certificate for full and up to date information. Please refer to installation instructions and maintenance guide available for download under Documents.

The JSC Weatherboard Systems if designed and installed as per the JSC VertiClad installation and specifications guide, will meet the following provisions of the New Zealand Building Code (NZBC):

Clause B1 Structure: Performance B1.3.1, B1.3.2, B1.3.4 (a), (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (e), (f), (h), (j), and (q)
Clause B2 Durability: Performance B2.3.1(b) and B2.3.2(b)
Clause E2 External Moisture: Performance E2.3.2, E2.3.3, E2.3.5, E2.3.7(b) and (c)
Clause F2 Hazardous Building Materials: Performance F2.3.1

JSC Western Red Cedar Weatherboard System, if installed and maintained as per manufacturer’s documentation, will meet the minimum 15-year durability requirement in respect of clauses B1 and B2 of the first schedule of the New Zealand Building Code for external cladding. In a typical installation, it is likely to have a serviceable life exceeding 30 years.

CodeMark

JSC Scumble Wood Oil

JSC

View Product

JSC Scumble® is an advanced water-based product for protecting timber, containing natural plant-based oil ingredients.

NZ-Owned Business

JSC has worked on specifically developing a product to cater to the New Zealand market that is suitable for the unique and varied climatic conditions. JSC Scumble® is perfect for all a variety of timber applications such as exterior timber cladding, soffits, timber joinery, interior panelling, sarking, ceilings and decorative screens.
JSC timber boards will be factory coated using the JSC factory coating system. This involves coating boards/weatherboards under controlled conditions using our vacuum coating technology. Vacuum coating ensures 100% coverage over the entire surface area of any profile in one pass. Factory coated product is delivered on-site dry, well stacked, and ready for installation.
10 colours to choose from with high-quality pigments & UV inhibitors. A clear coating option is available that is free of colour pigments for applications where the raw beauty of the timber is the key requirement.

Longer lasting
Fast drying
Weather resistant
Ease of maintenance
