Wairoa School Modernised with Durable Stria Cladding

The Project

Te Kura Kaupapa Maori O Ngati Kahungunu O Te Wairoa (kura) is a Maori language immersion school located in the remote township of Wairoa on the East Coast of the North Island. The kura provides a learning environment that reflects Maori cultural values and aims to revitalise Maori language, knowledge, and culture.

In line with the philosophy and practice of the kura, the existing 1960s school buildings on the site have been replaced with a fresh new centre of modern learning that looks to the future, while maintaining strong links with the past.

The new kura reflects Wairoa's unique culture, history and landscape through a design that inspires learning and promotes the fulfilment of potential in Wairoa's rangatahi (younger generation / youth), and the use of new building materials and technologies.

The Solution

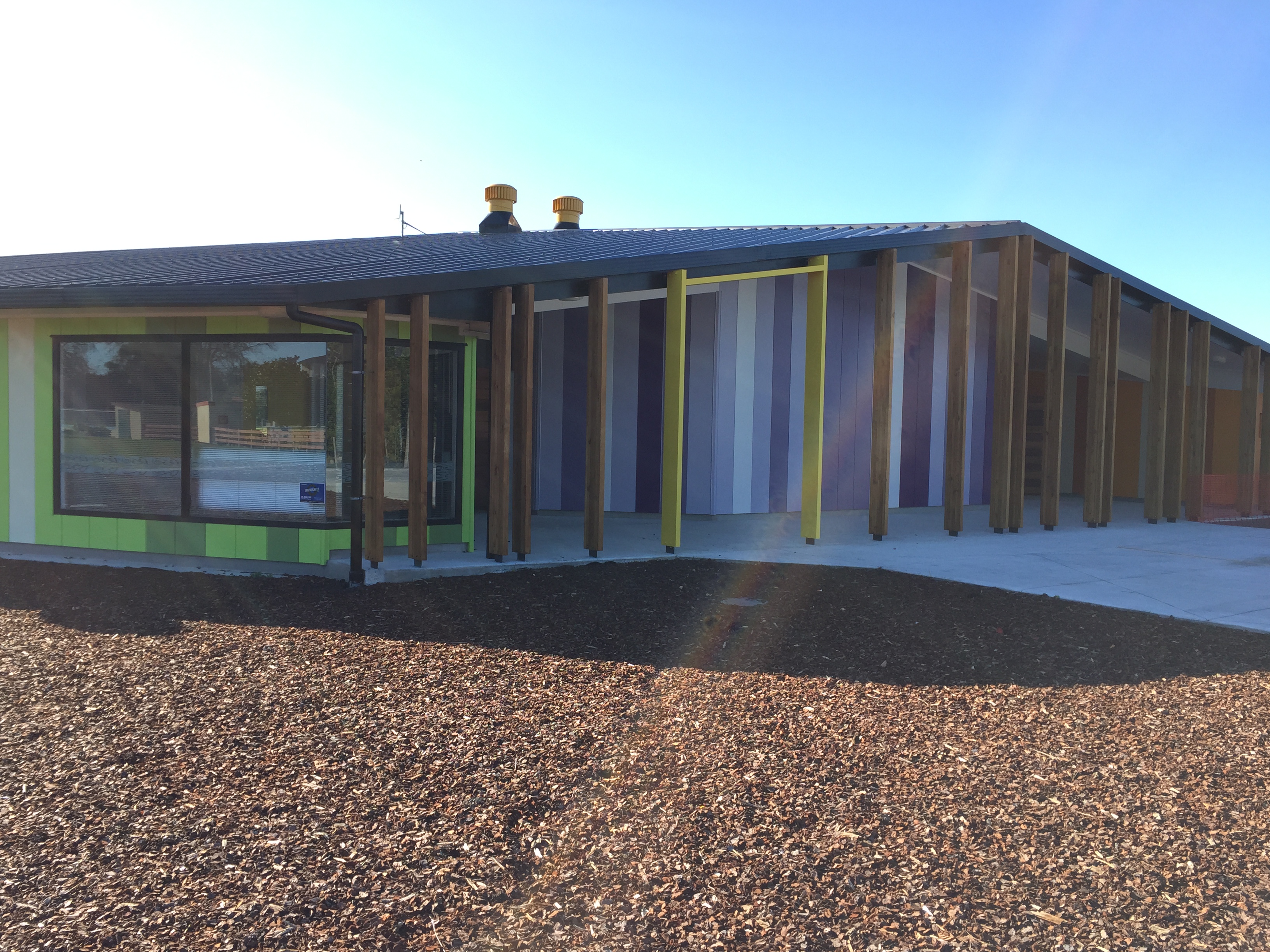

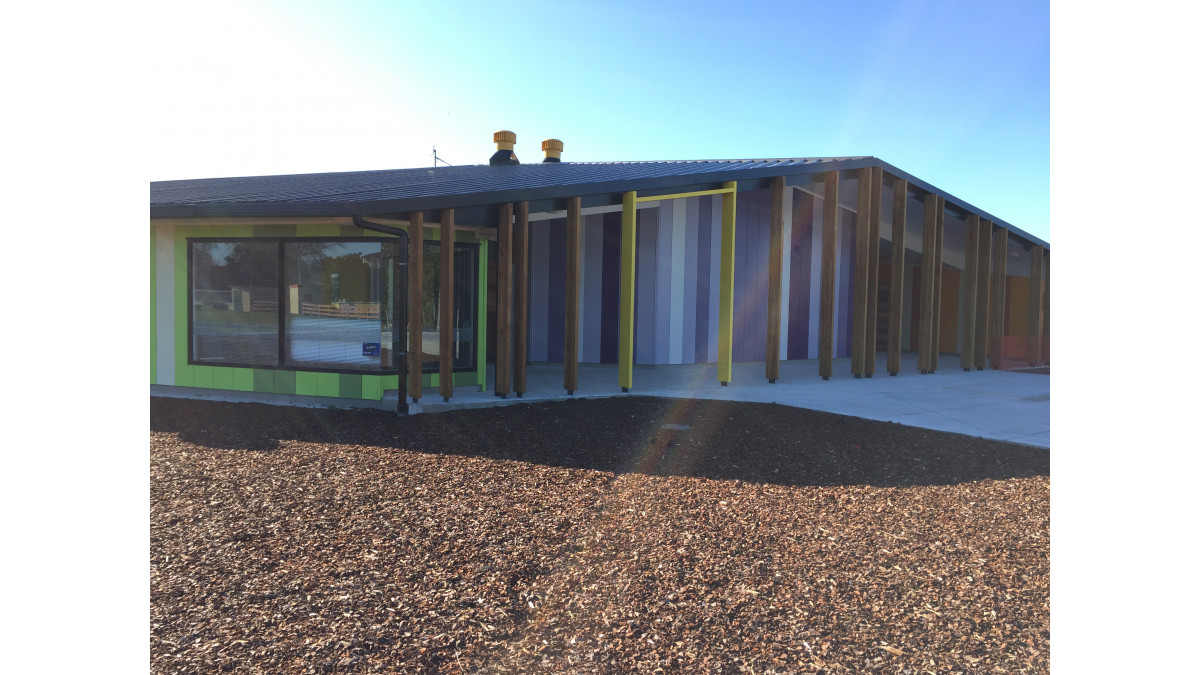

The exterior is clad with James Hardie Stria Cladding, a 14mm thick fibre cement panel fixed vertically, which achieves the modern look envisioned by architects, RTA Studio, and the durability required by the Ministry of Education's building standards.

RTA Studio considered other building materials, but Stria provided the most cost-effective, practical solution. Durability, buildability and aesthetics were key drivers to selection.

The wide panel format enabled building efficiencies through fast coverage of the wall, and provided a durable solution down to slab level in line with the Ministry's standards. Manufactured from fibre cement composite, the panels are lightweight and easy to handle, as well as delivering heavy-duty performance in terms of durability.

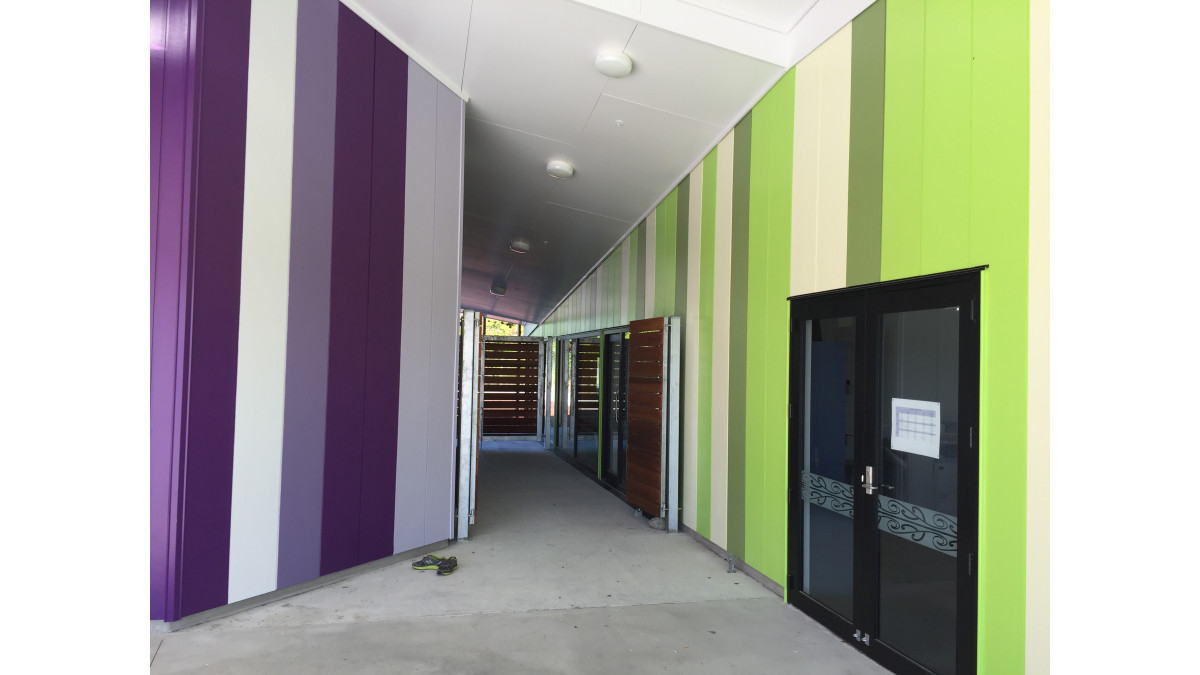

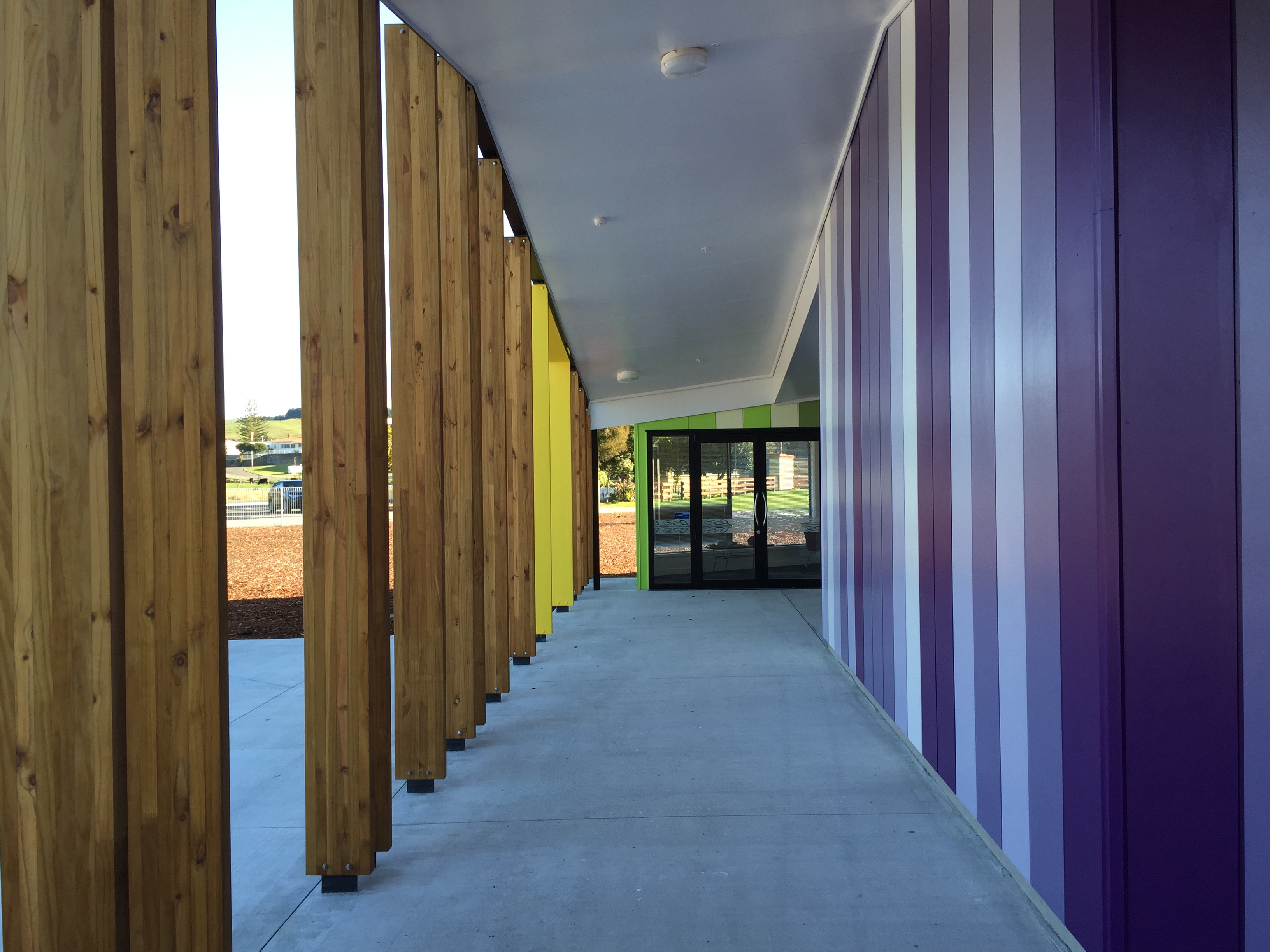

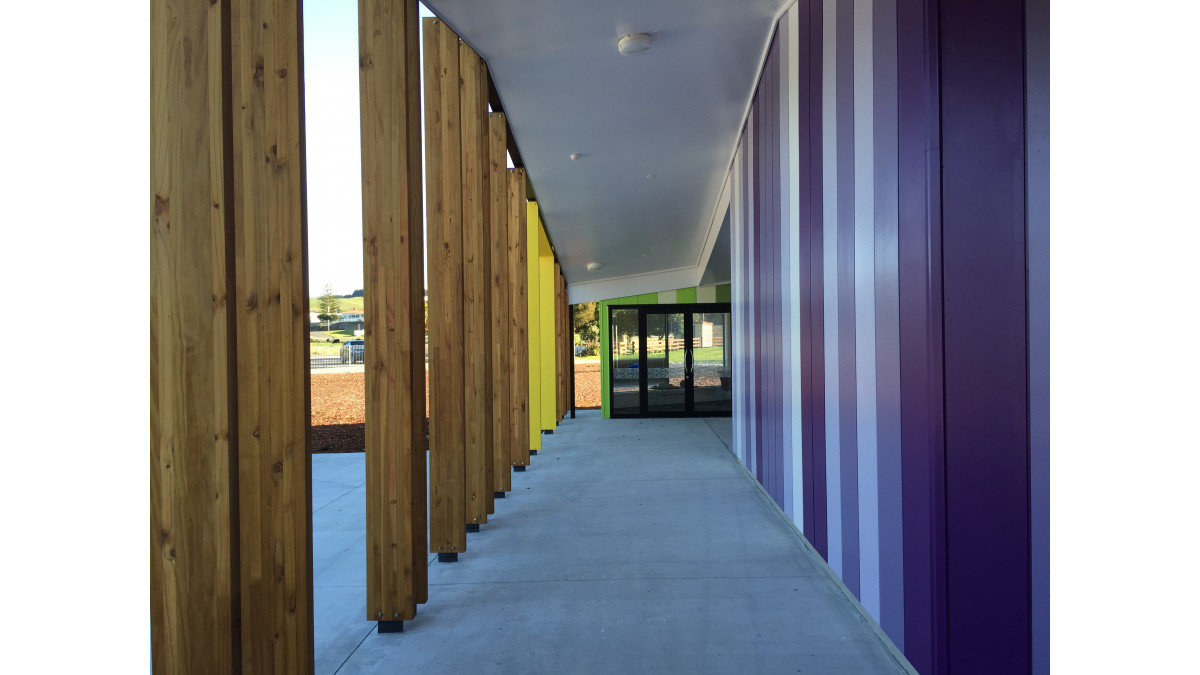

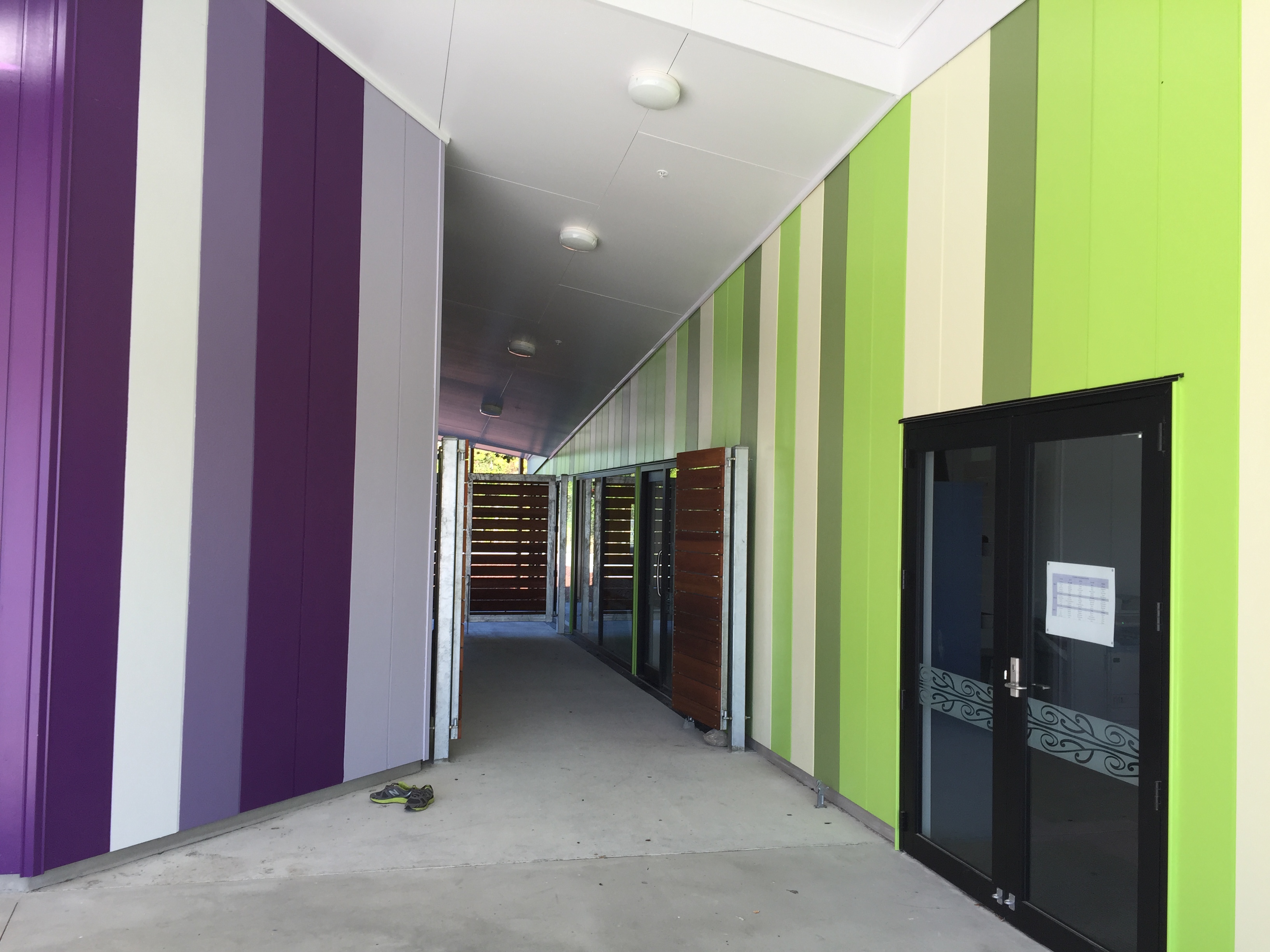

Another advantage of using Stria was the ability to paint the panels any colour. The vertically installed panels are painted in purple, which is the school colour. Green and orange are also used to reference the forest and sunrise, which are significant to the local community. Maori respected the ancient forest for shelter, food and building materials, and the use of timber fins in the overhangs of the building, which provide shaded outdoor teaching spaces, reflect this tradition.

In terms of buildability, Stria is simple and fast to install with its wide panel format and lightweight fibre cement composite which makes it easy to handle. The fibre cement technology also allows it to deliver heavy-duty performance in terms of its durability.

Project Details:
Location: Wairoa, East Coast, New Zealand
Project Type: Educational Buildings — Year 1 to 13 School
Architect: RTA Studio (Richard Naish, Ben Dallimore, Moshin Mussa, and Tim Sargisson)
Project Manager: RDT Pacific
Main Contractor: Stead Construction
Client: Ministry of Education

For information, contact James Hardie on 0800 808 868, email [email protected] or visit the James Hardie website.

Stria Cladding

James Hardie

View Product

Stria™ Cladding is a wide format board that has the classic appeal of decorative render and solid masonry.

NZ Made

For use as an external wall cladding installed either horizontally or vertically in residential and light commercial:
- Feature walls
- Full cladding for new builds
- Cladding for additions and renovations
- Internal feature walls
- Ideal for overhangs, protective cantilevers and other architectural features
Designed to withstand harsh weather and coastal conditions
Can be painted any colour, even the darker shades

Feature walls
Full cladding for new builds
Cladding for additions and renovations
Internal feature walls
Ideal for overhangs, protective cantilevers and other architectural features

In the opinion of BRANZ, Stria™Cladding Horizontal, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™Cladding Horizontal meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Horizontal meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Horizontal meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Horizontal meets this requirement.

See BRANZ Appraisal No. 1224 for full information

In the opinion of BRANZ, Stria™ Cladding Vertical, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Stria™ Cladding Vertical meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)]. See Paragraphs 9.1-9.3.
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2. Stria™ Cladding Vertical meets these requirements. See Paragraphs 10.1-10.4.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. Stria™ Cladding Vertical meets this requirement. See Paragraphs 14.1-14.5.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Stria™ Cladding Vertical meets this requirement.

See BRANZ Appraisal No. 1225 for full information

The system if designed, used, installed and maintained in accordance with CodeMark number GM-CM30109 will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, B1.3.4 for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q).
Clause B2 DURABILITY: Performance B2.3.1(b) 15 years and B2.3.2.
Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5, C3.7
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2, E2.3.5, E2.3.6 and E2.3.7
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See CodeMark number GM-CM30109 for full information

BRANZ Appraised

CodeMark
