Axon Panel
Description

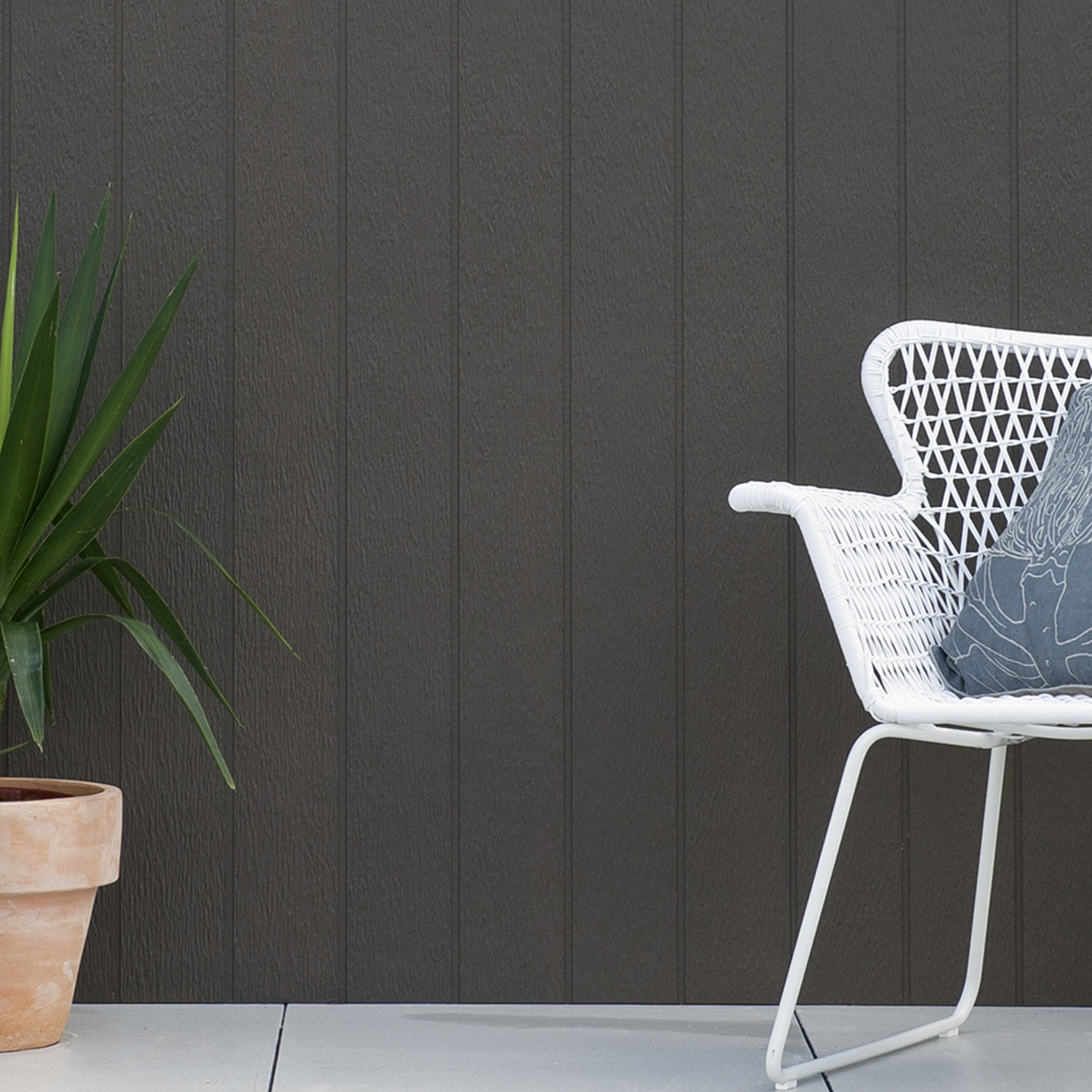

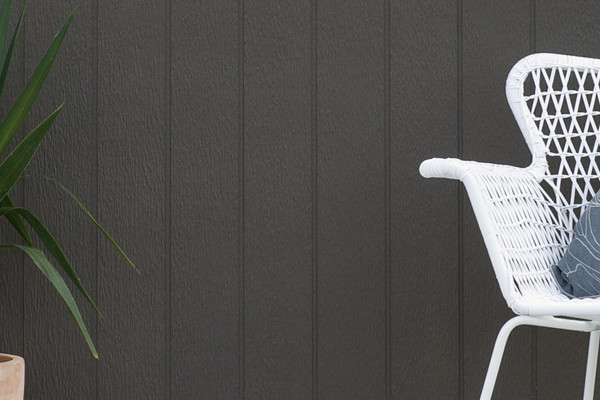

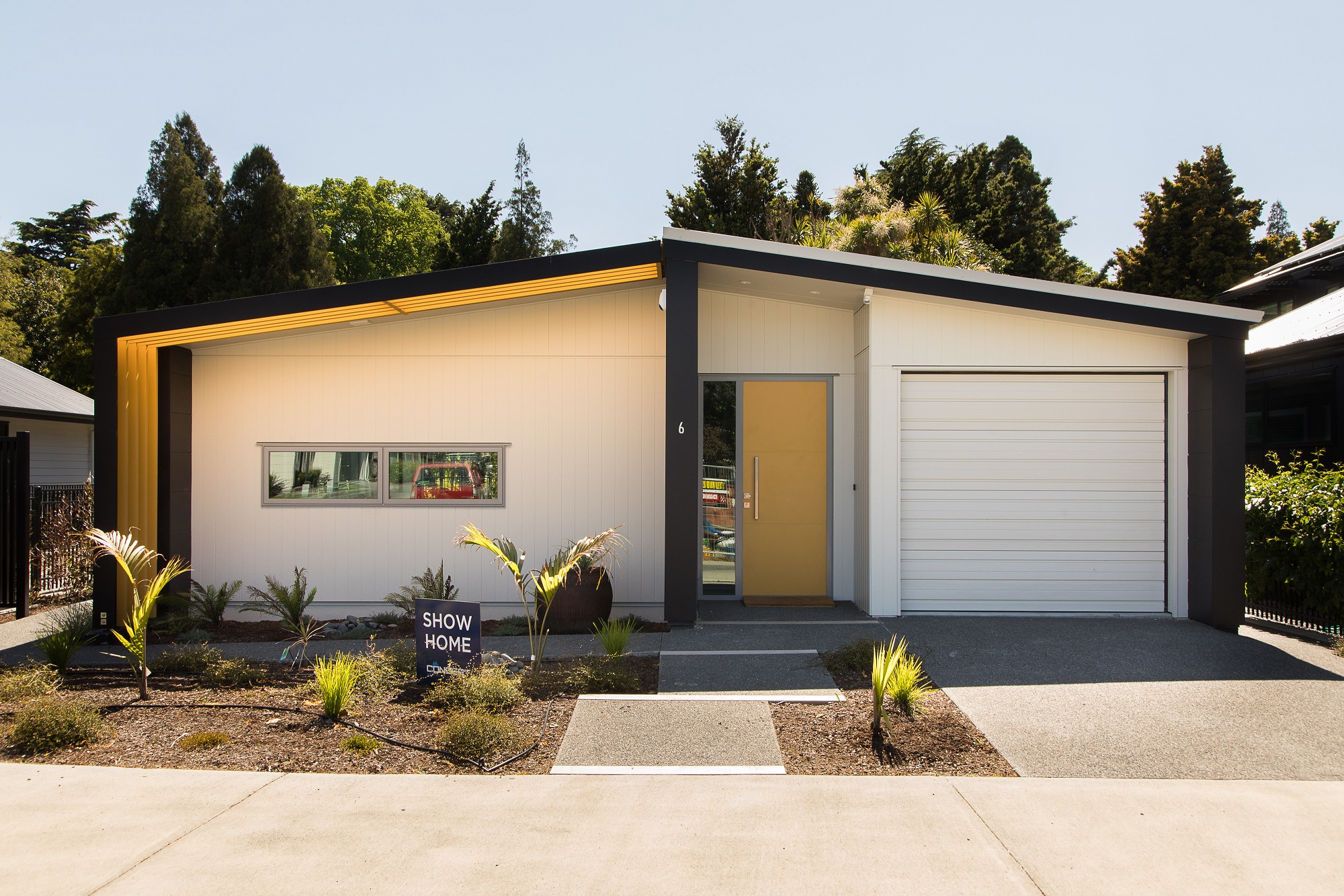

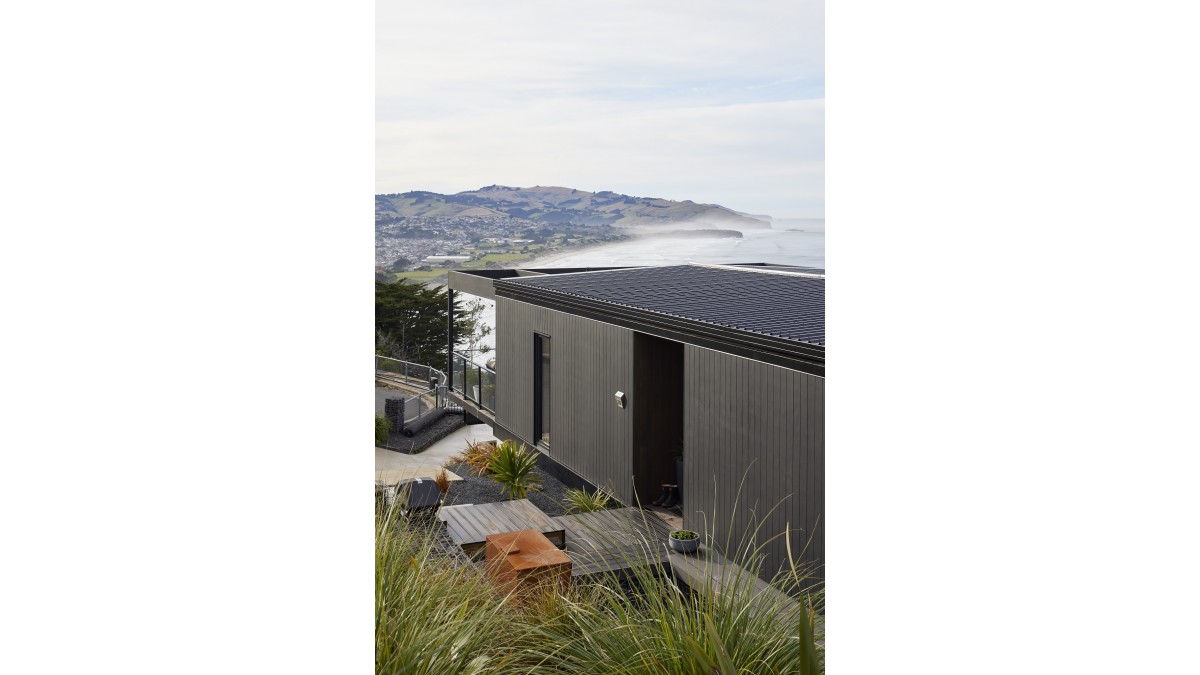

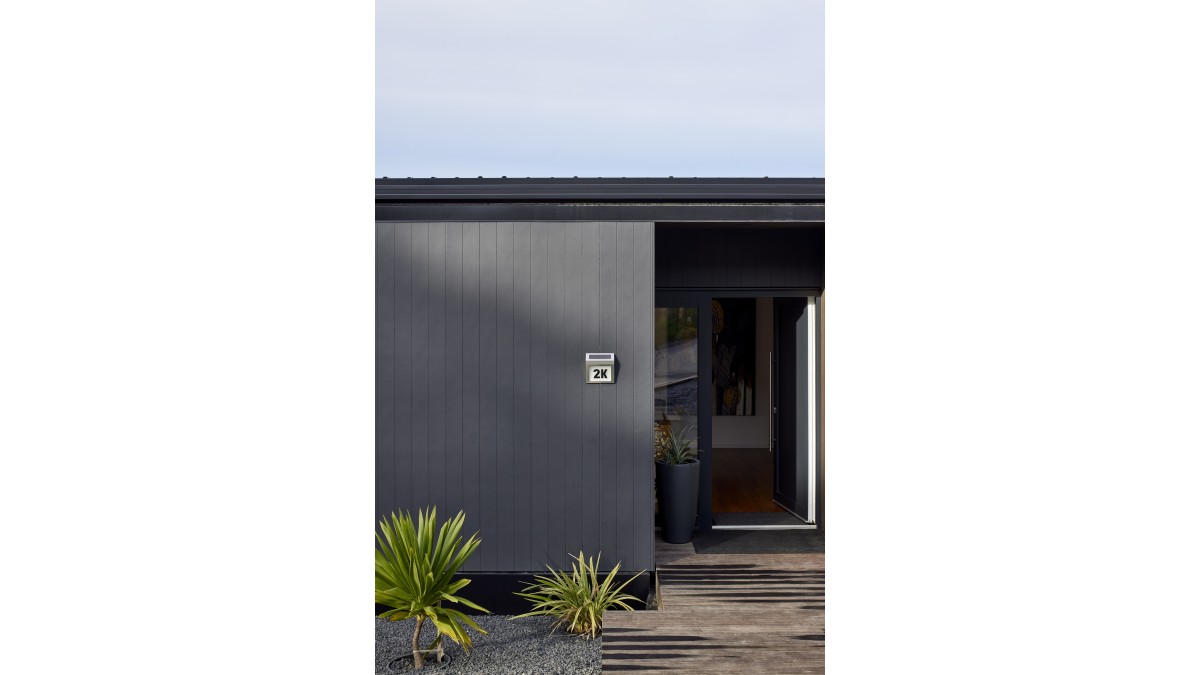

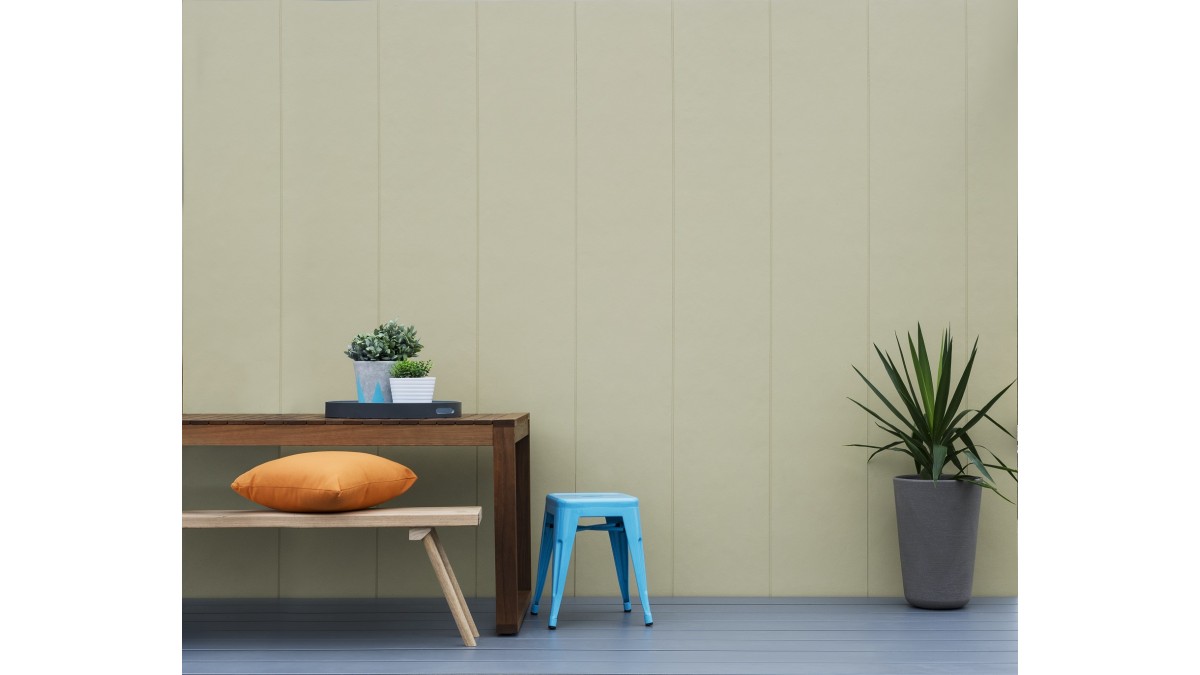

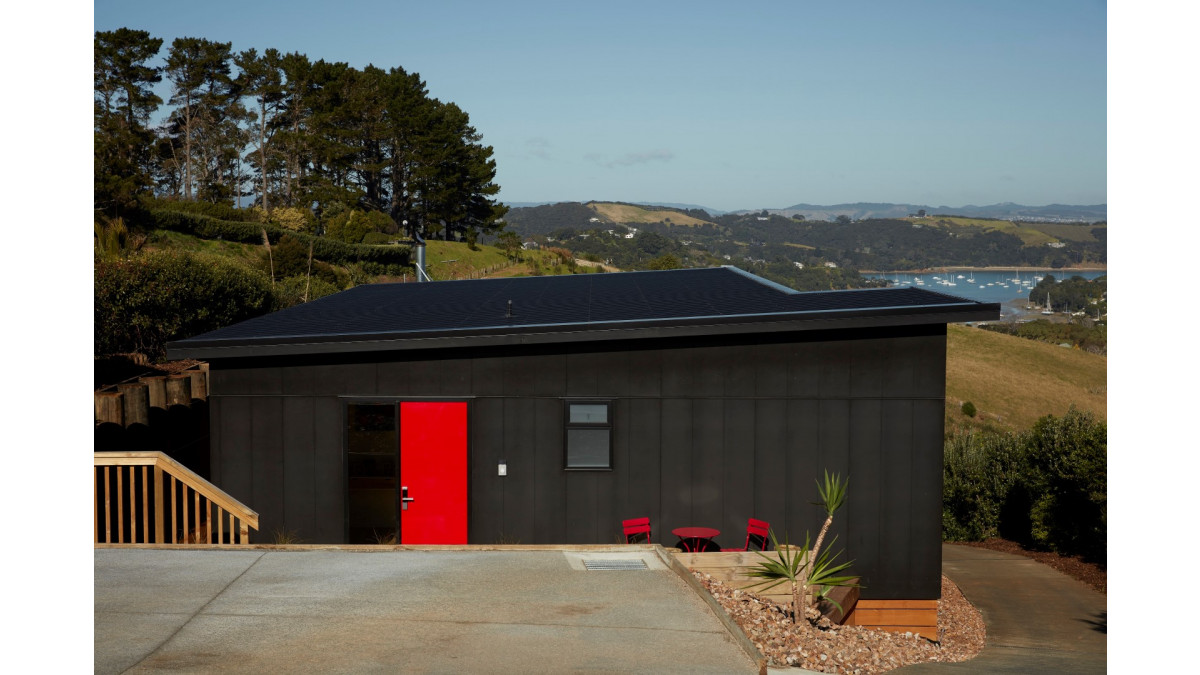

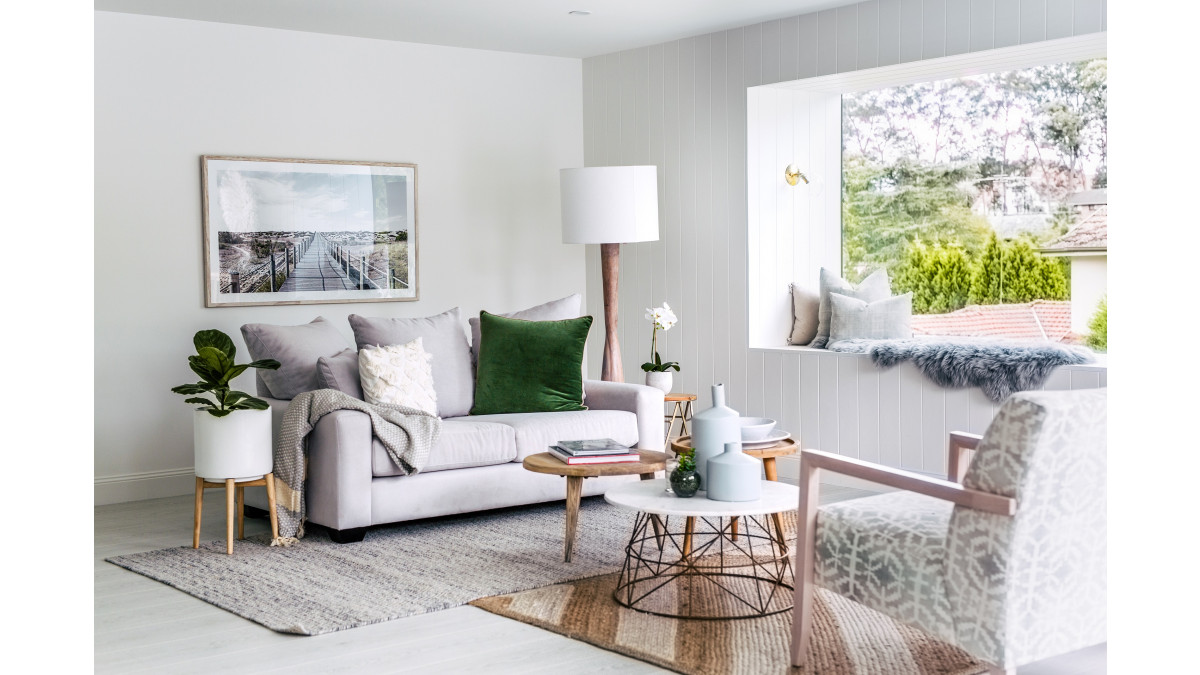

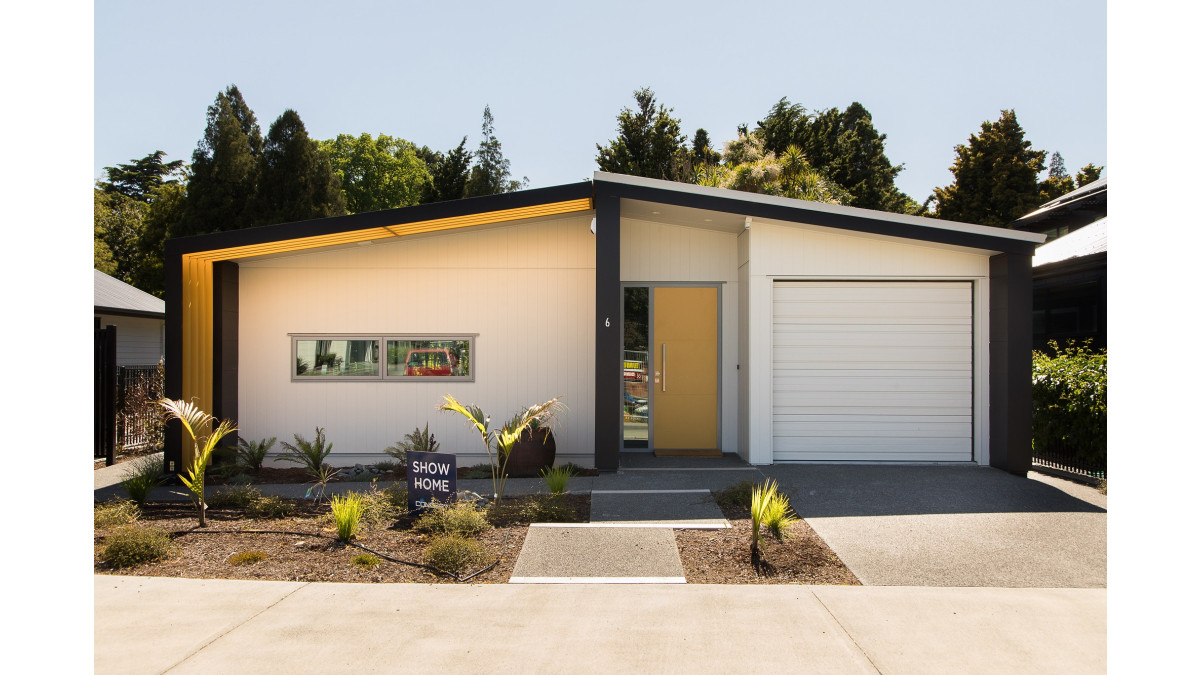

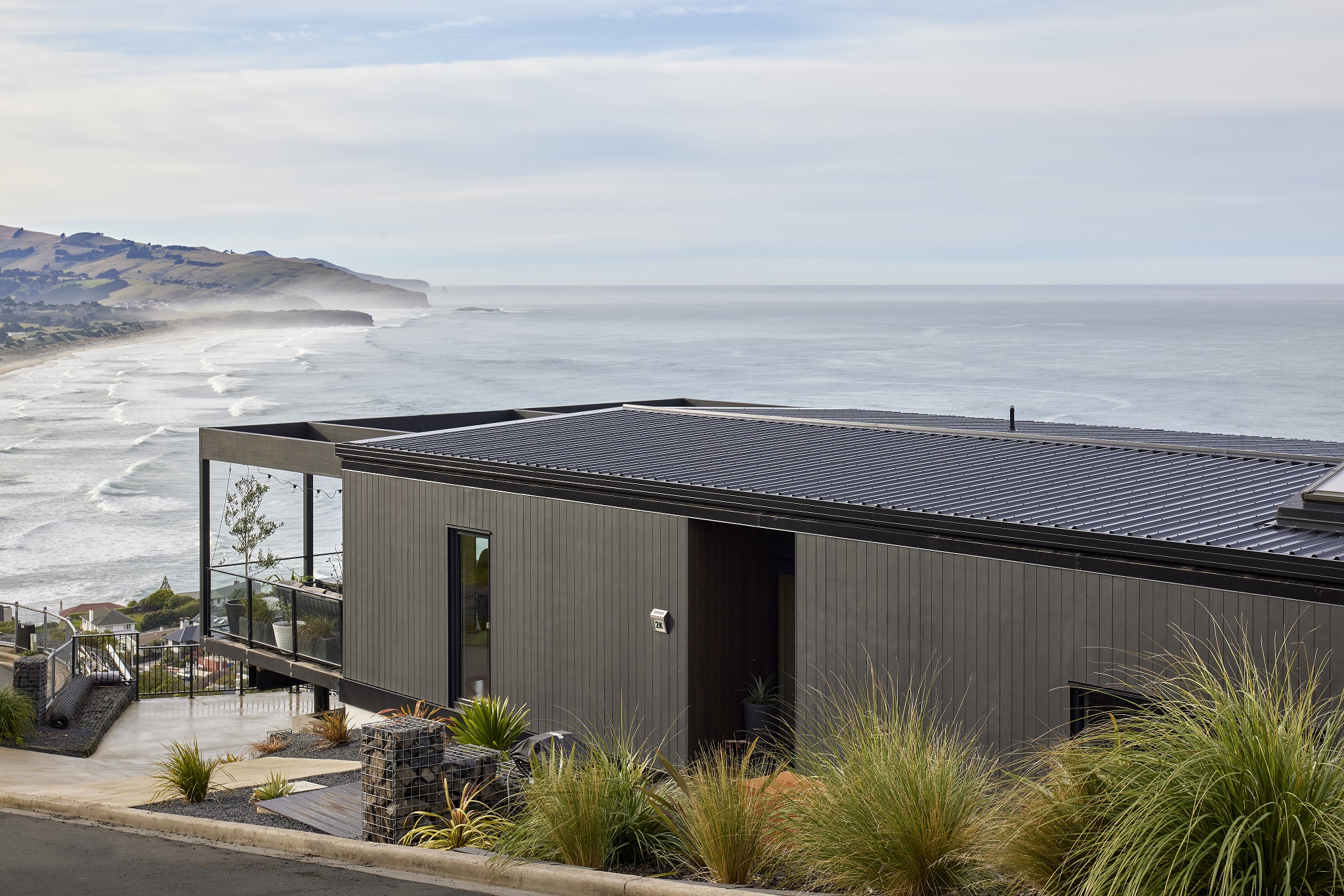

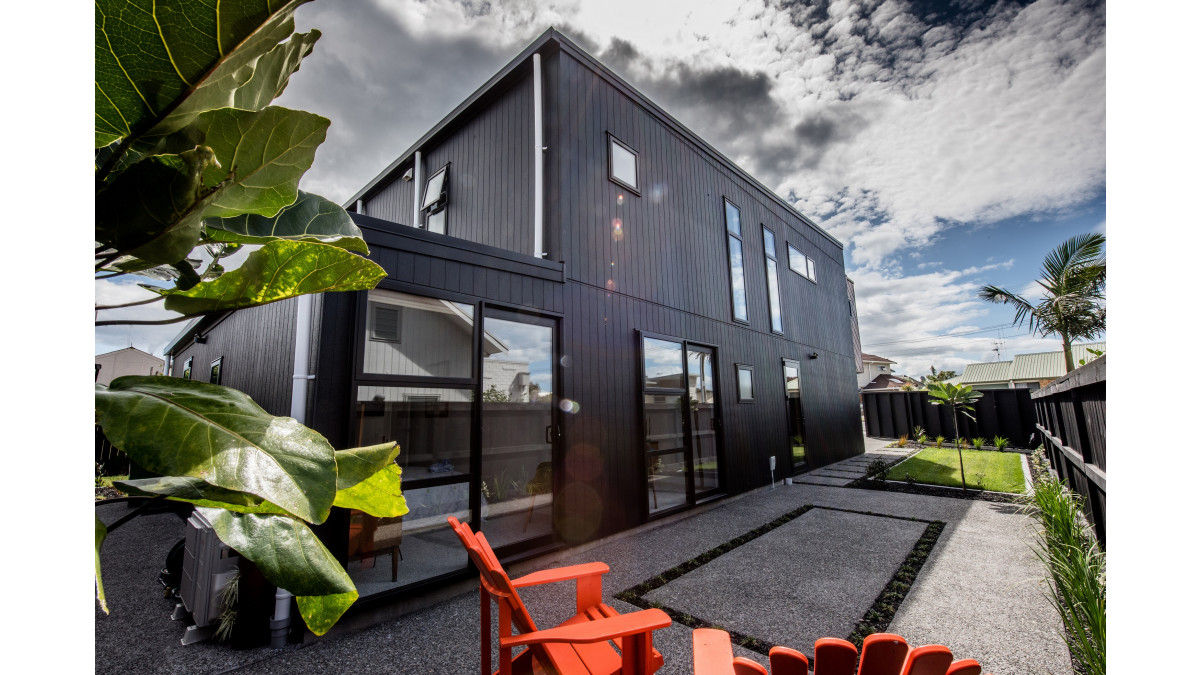

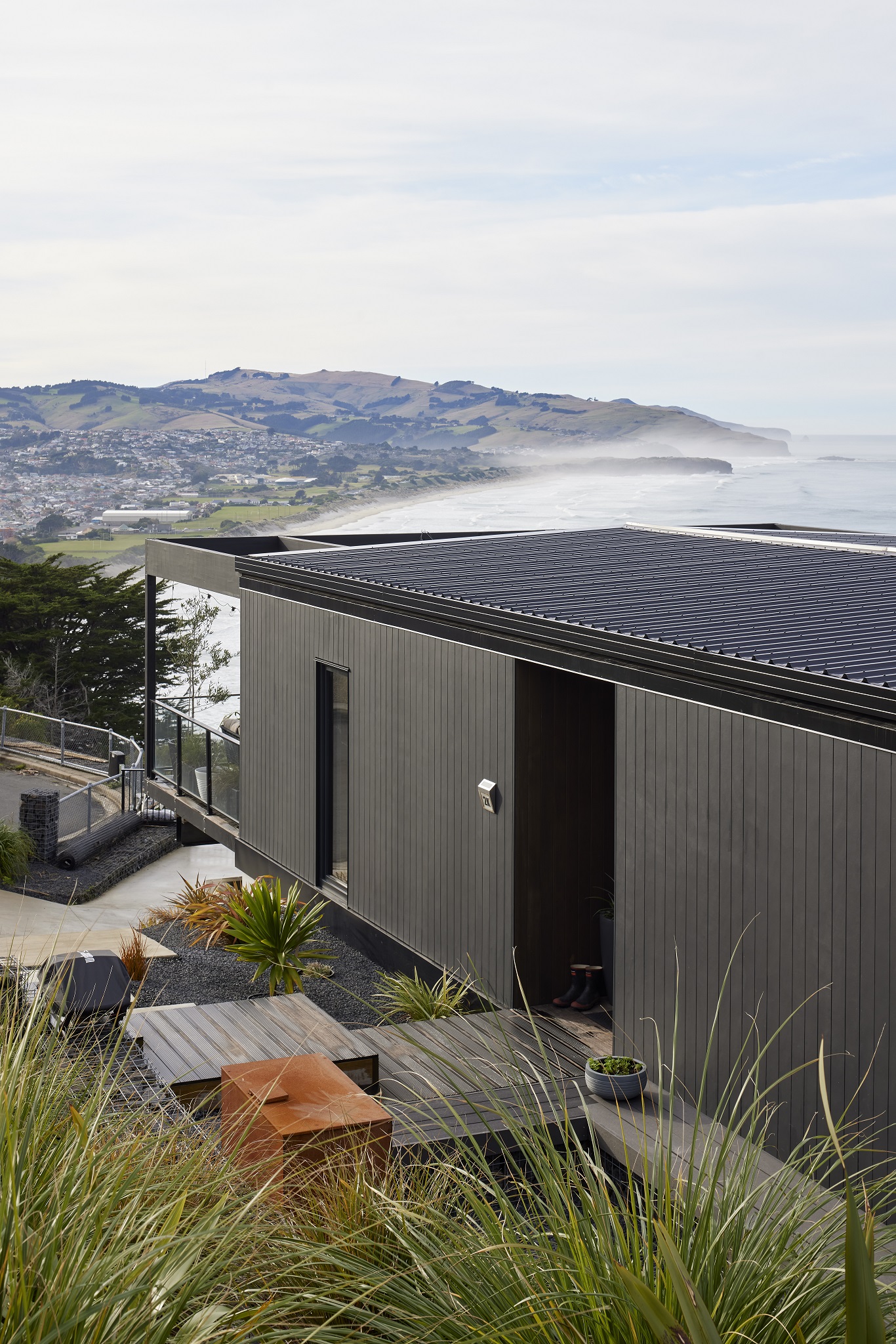

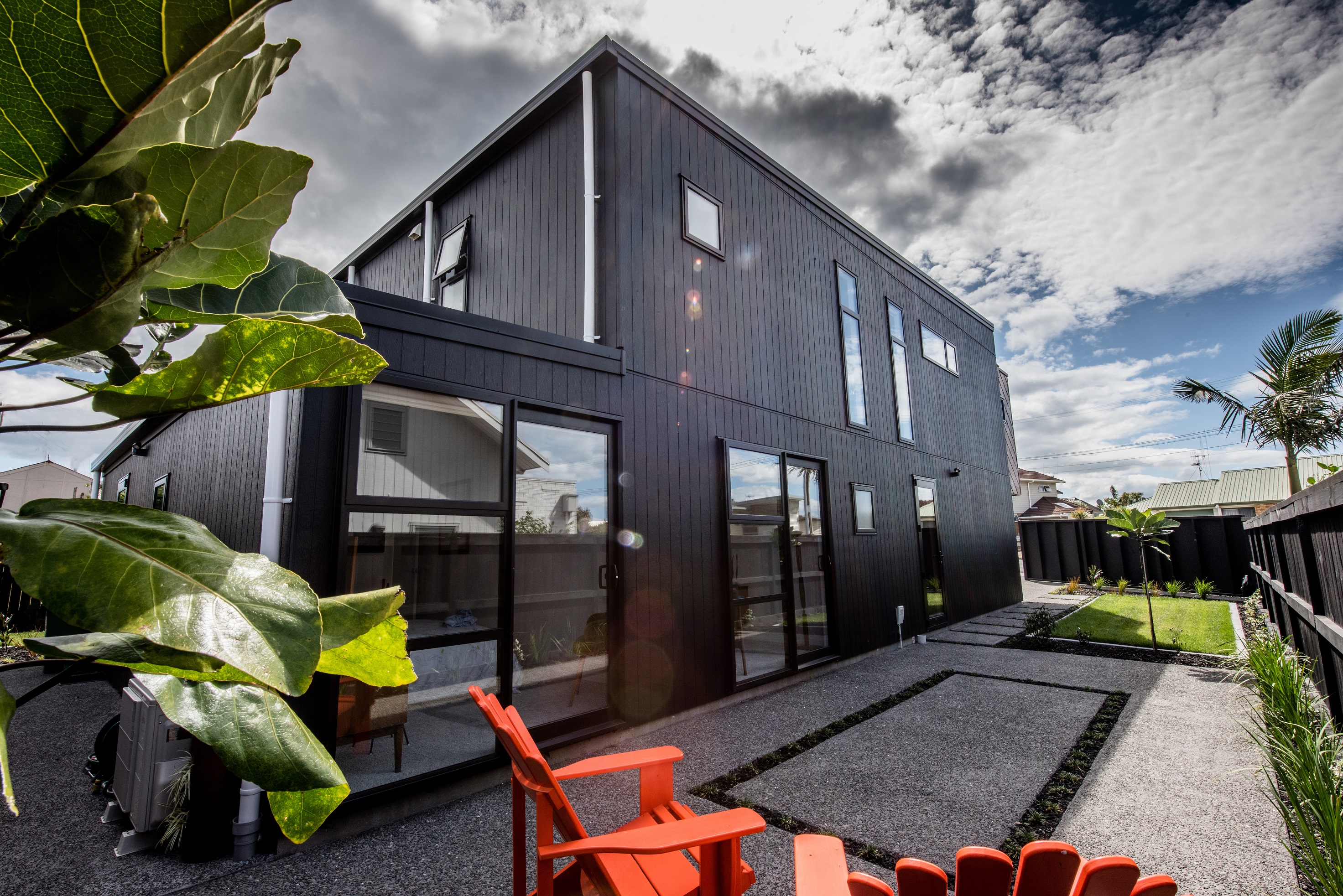

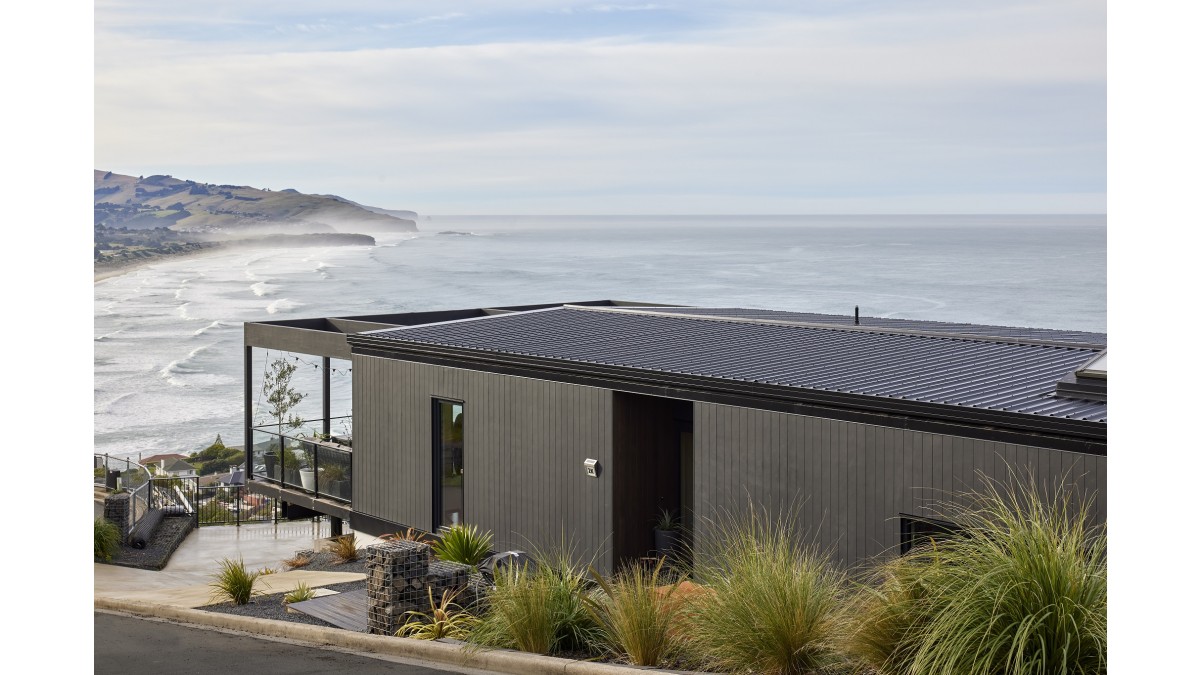

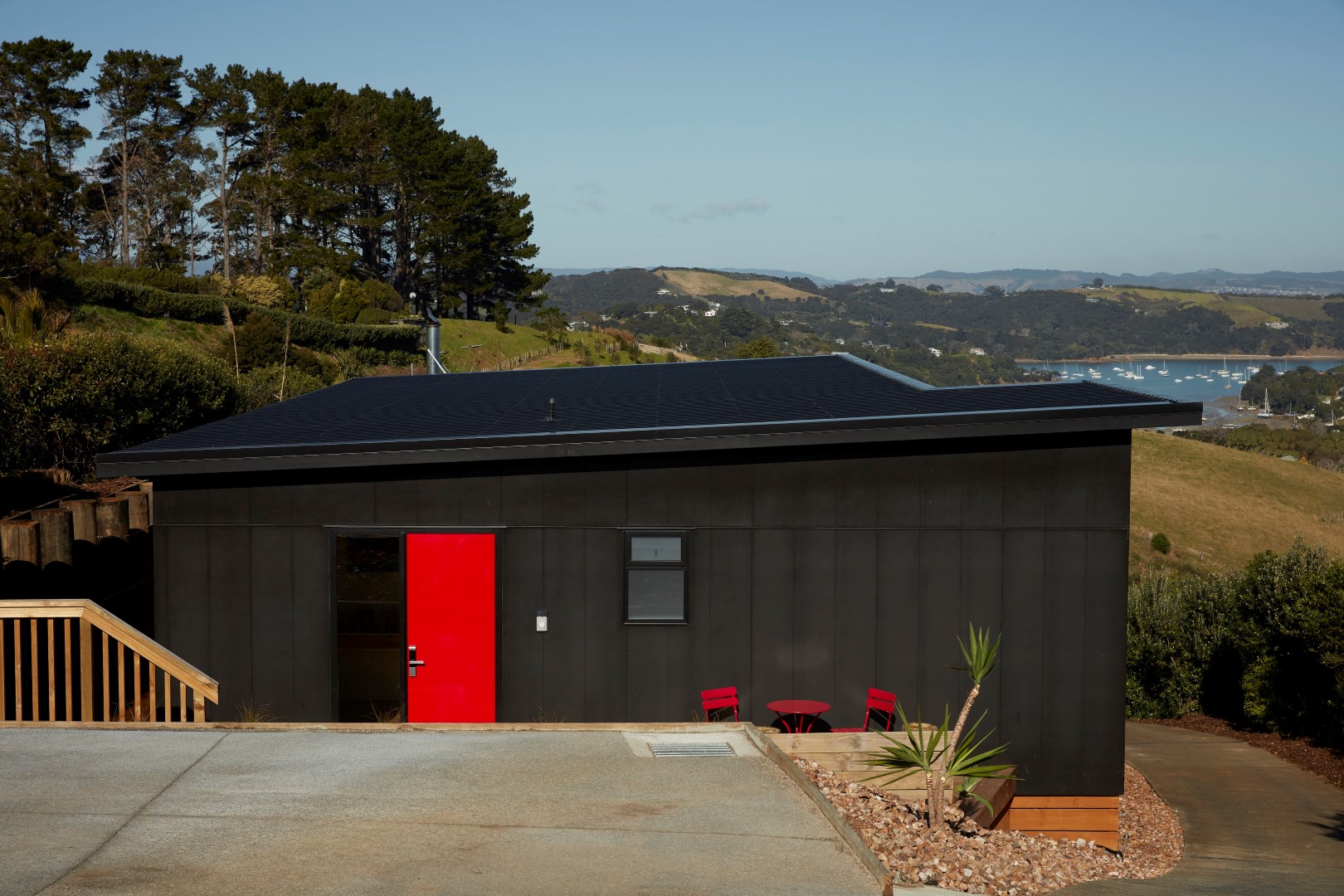

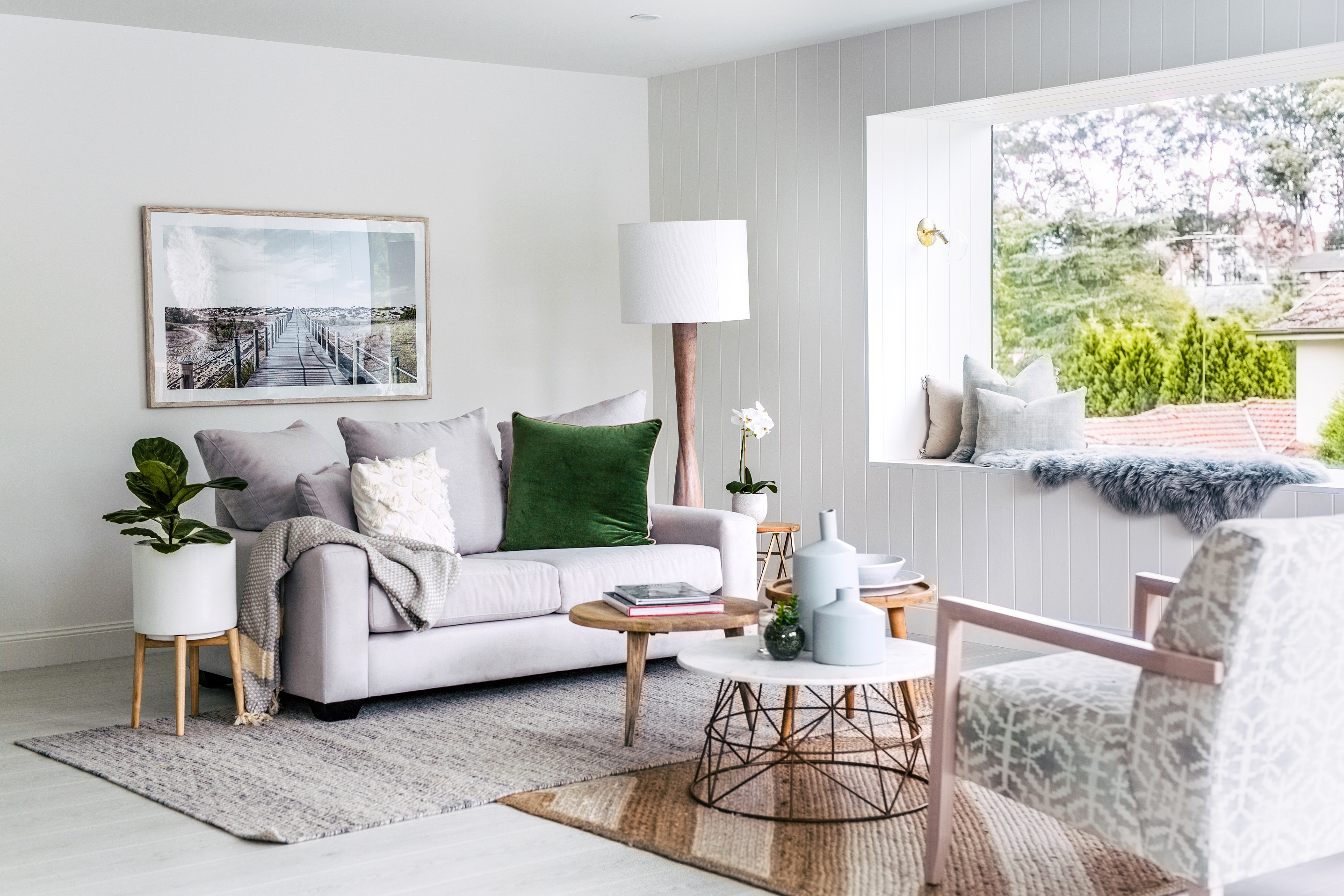

Creating a strong visual impact for your design is easier than ever with Axon™ Panel.  Easy to install, robust and versatile, Axon™ Panel is a vertical shiplap panel available in five finishes.  The textures and grooves complement classic and modern building designs to create stand out facades and bring interest to outdoor rooms.

Grooved Collection

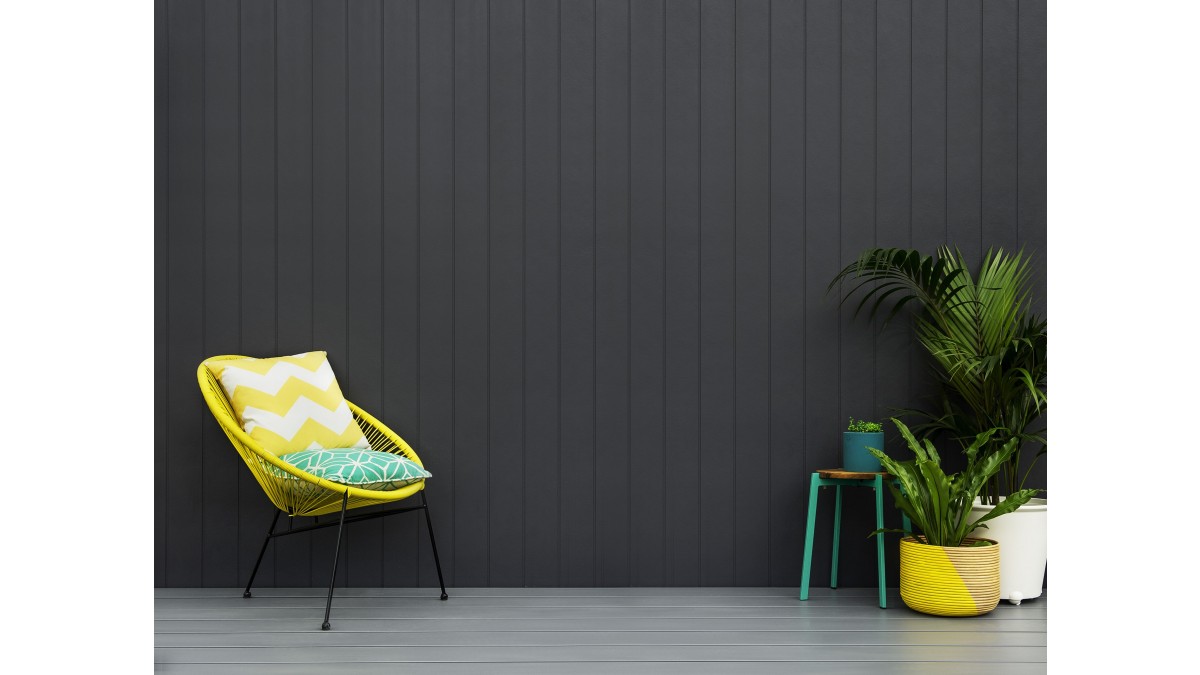

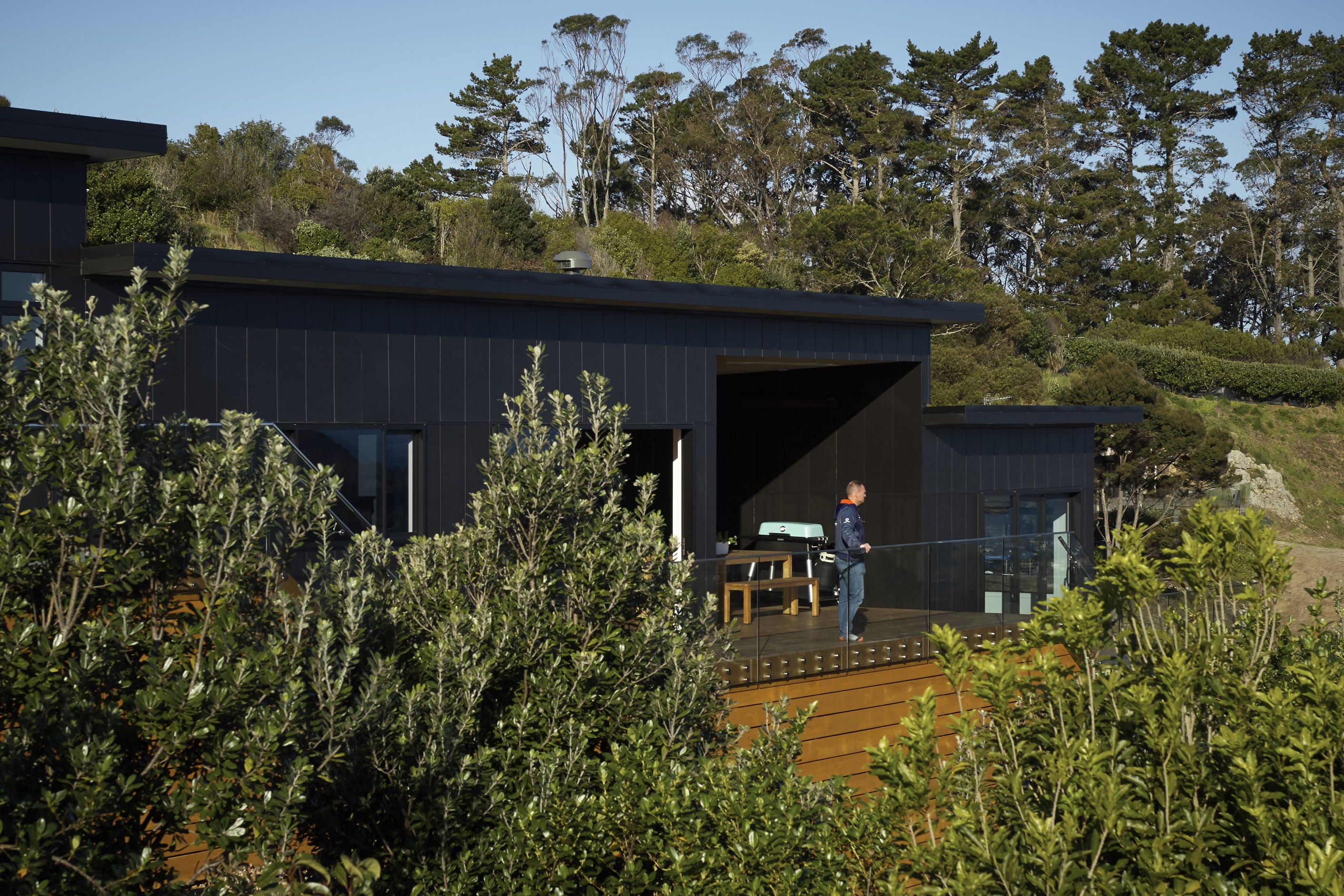

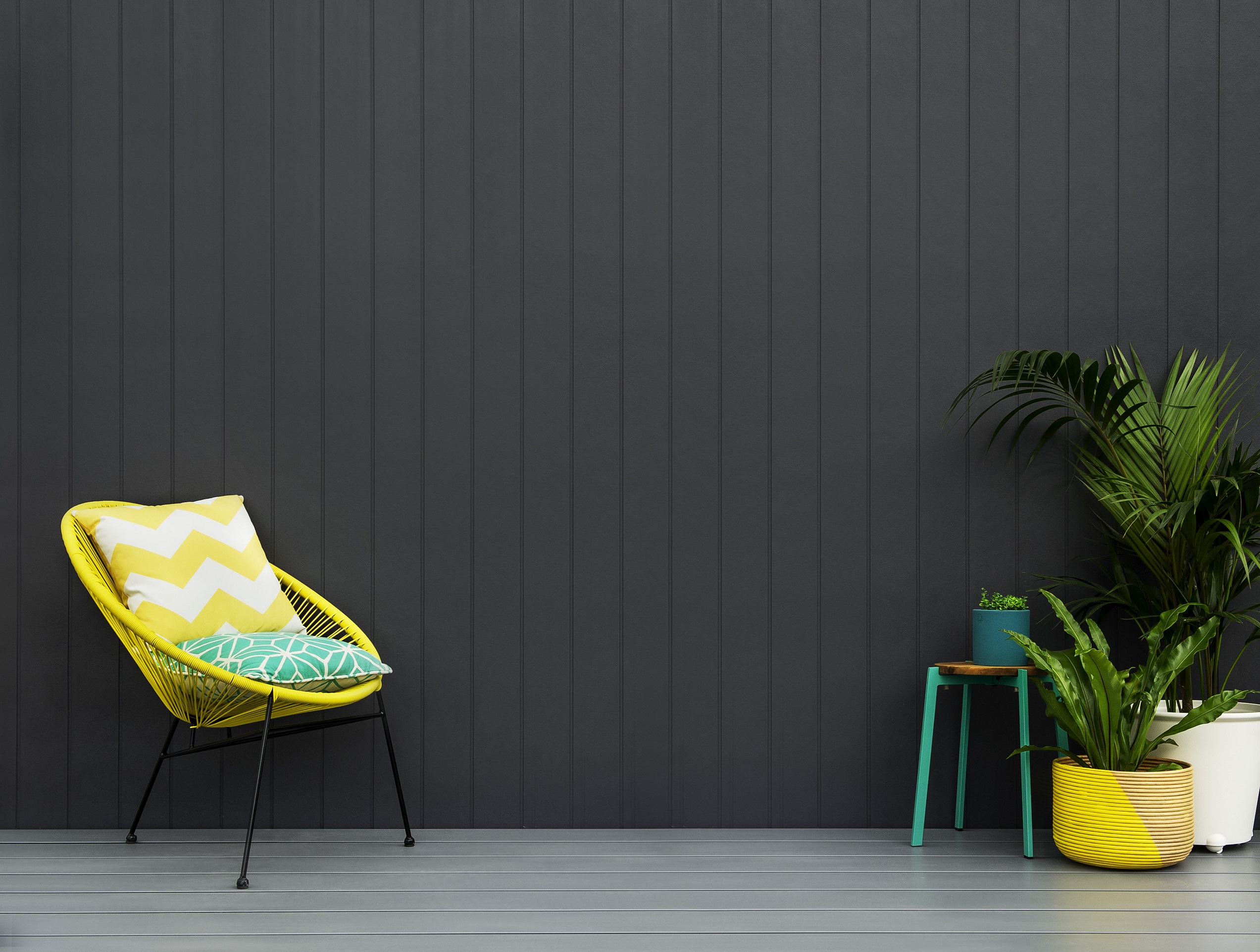

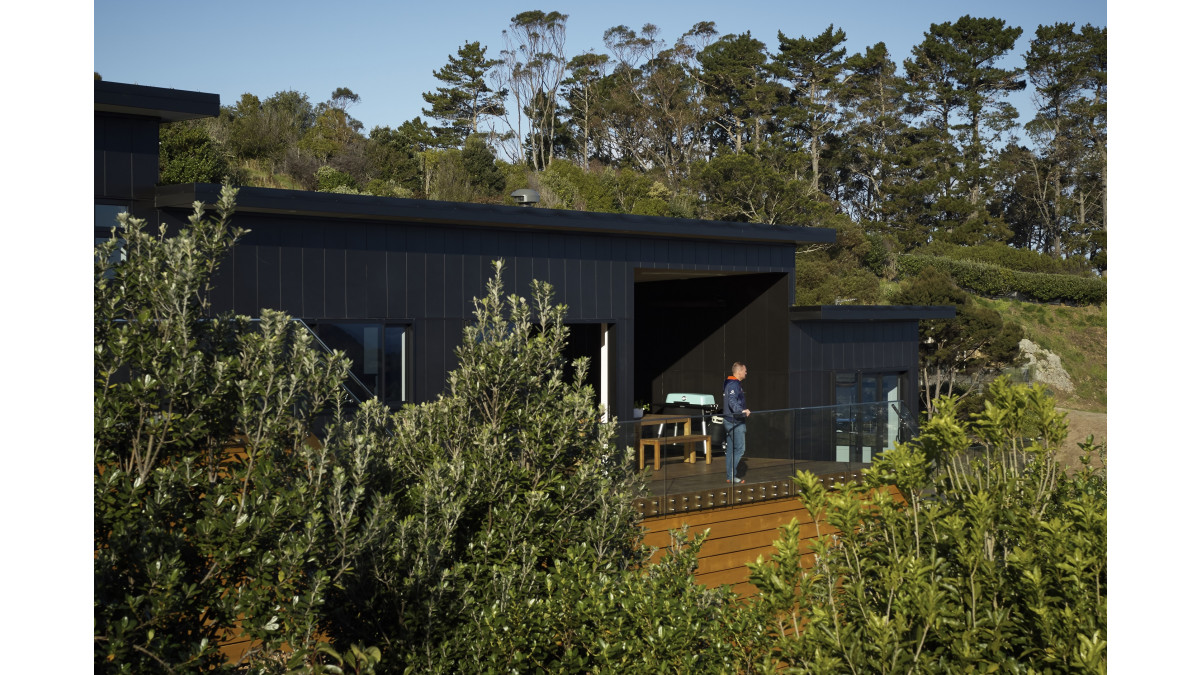

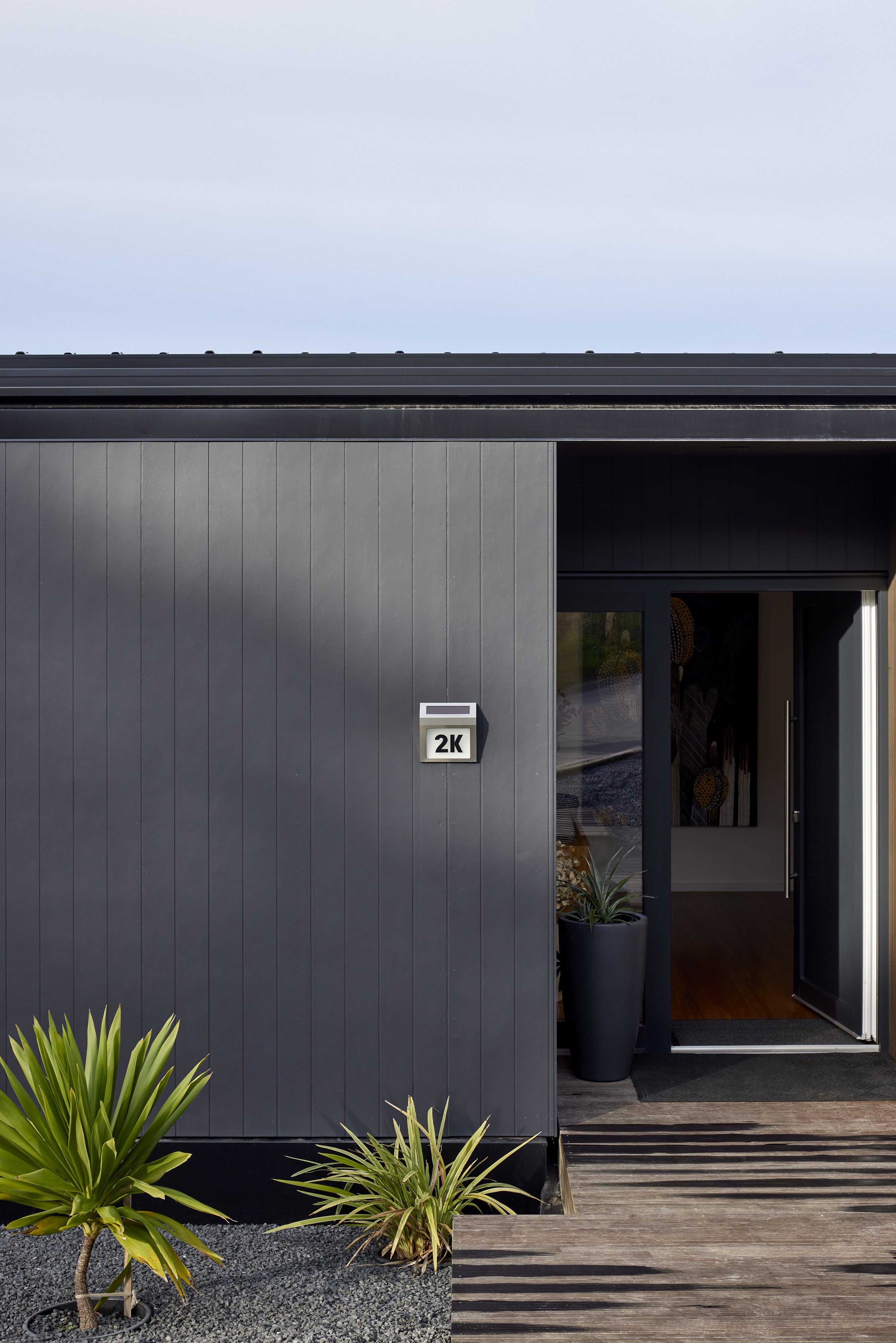

The vertically grooved panels are available with a 133mm or 400mm wide groove pattern that looks sharp and uniform. The grooves on the face of the panel are nominal 10mm wide.

Grooved 133mm and 400mm:

  • Thickness: 9mm
  • Length: 2450mm, 2750mm or 3000mm.  Grooved 133mm is also available in a 3600mm length.
  • Width: 1200mm

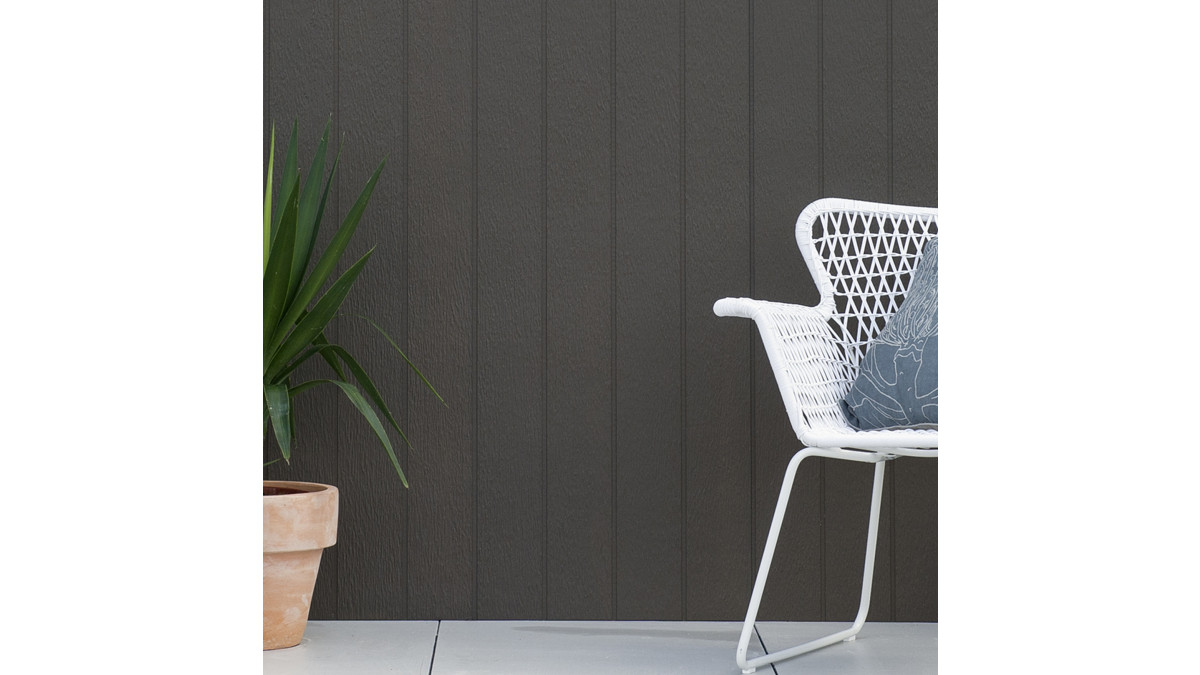

Grooved Grained 133mm:

  • Thickness: 9mm
  • Length: 3000mm
  • Width: 1200mm

Textured Collection

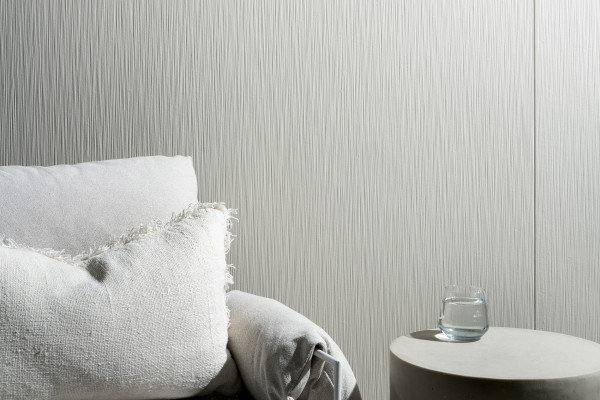

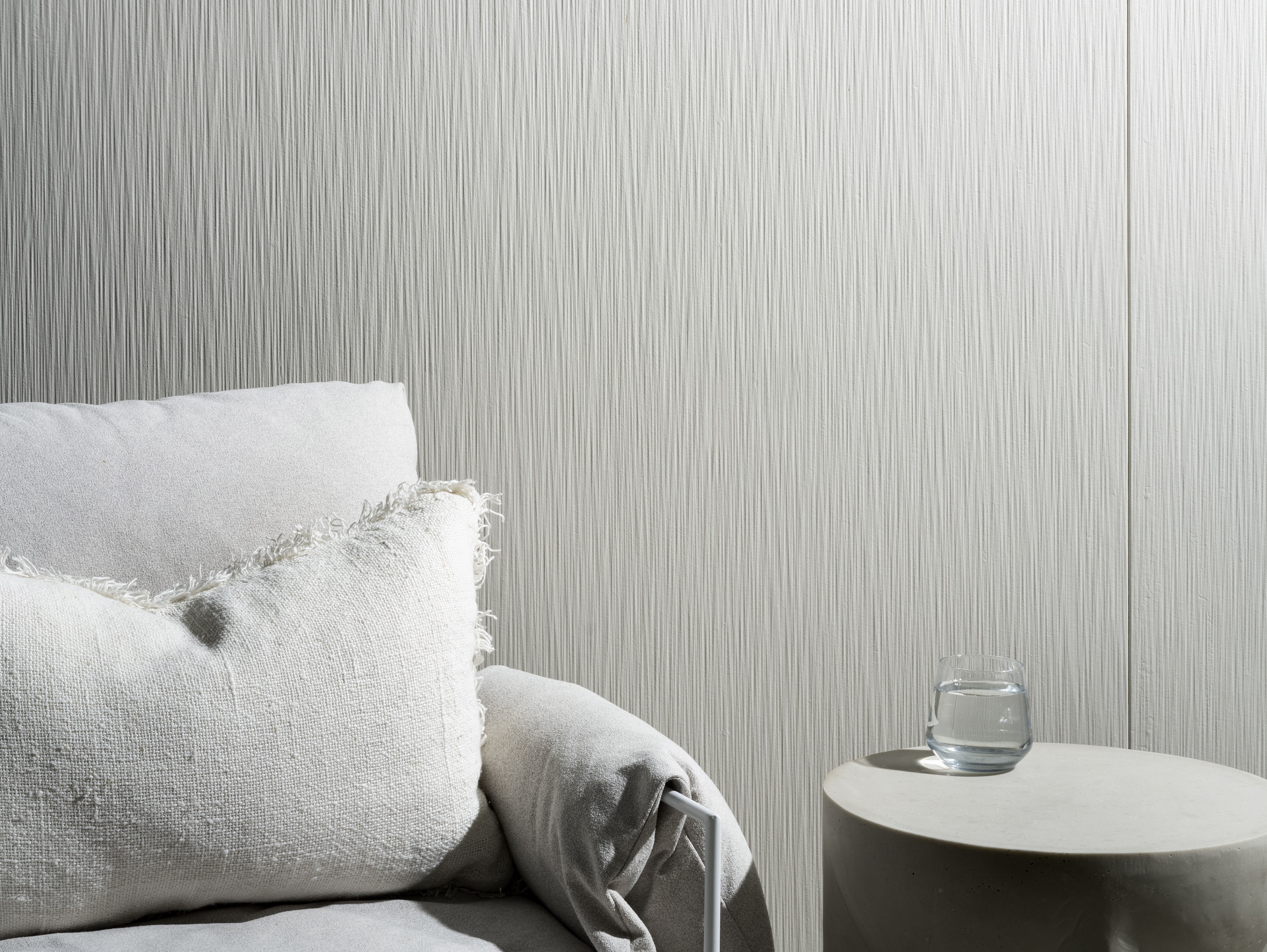

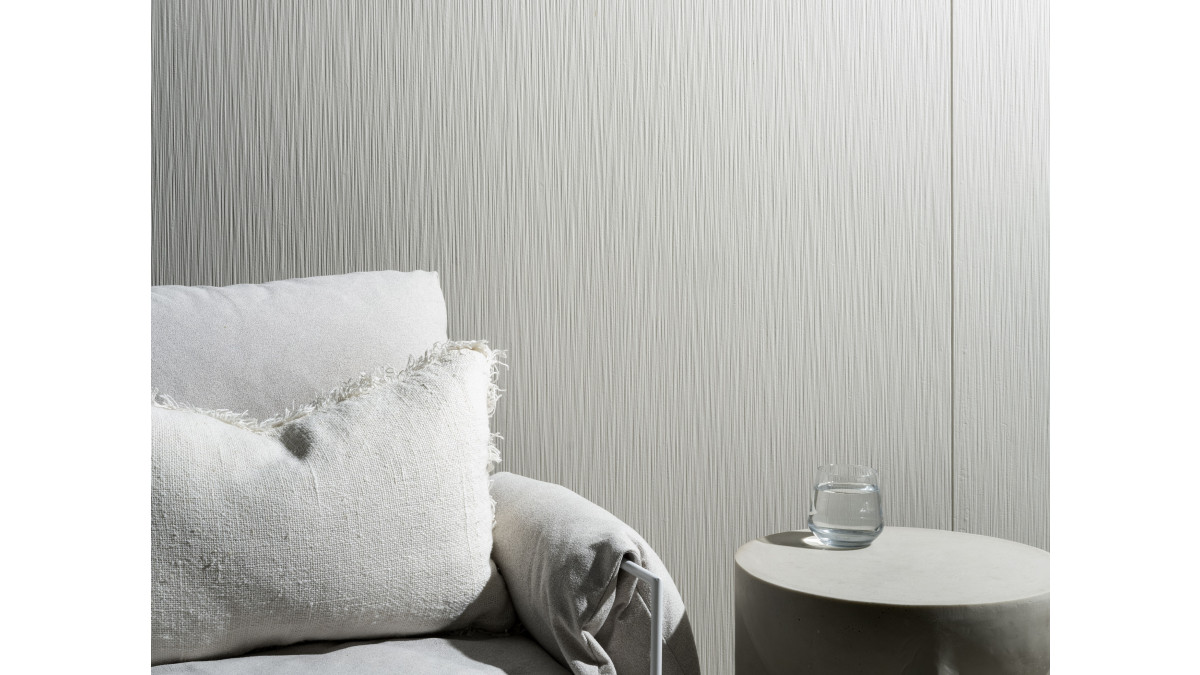

NEW Brushed Concrete:

  • Thickness: 8.5mm
  • Length: 2440mm, 2750mm, 3000mm or 3600mm
  • Width: 1200mm

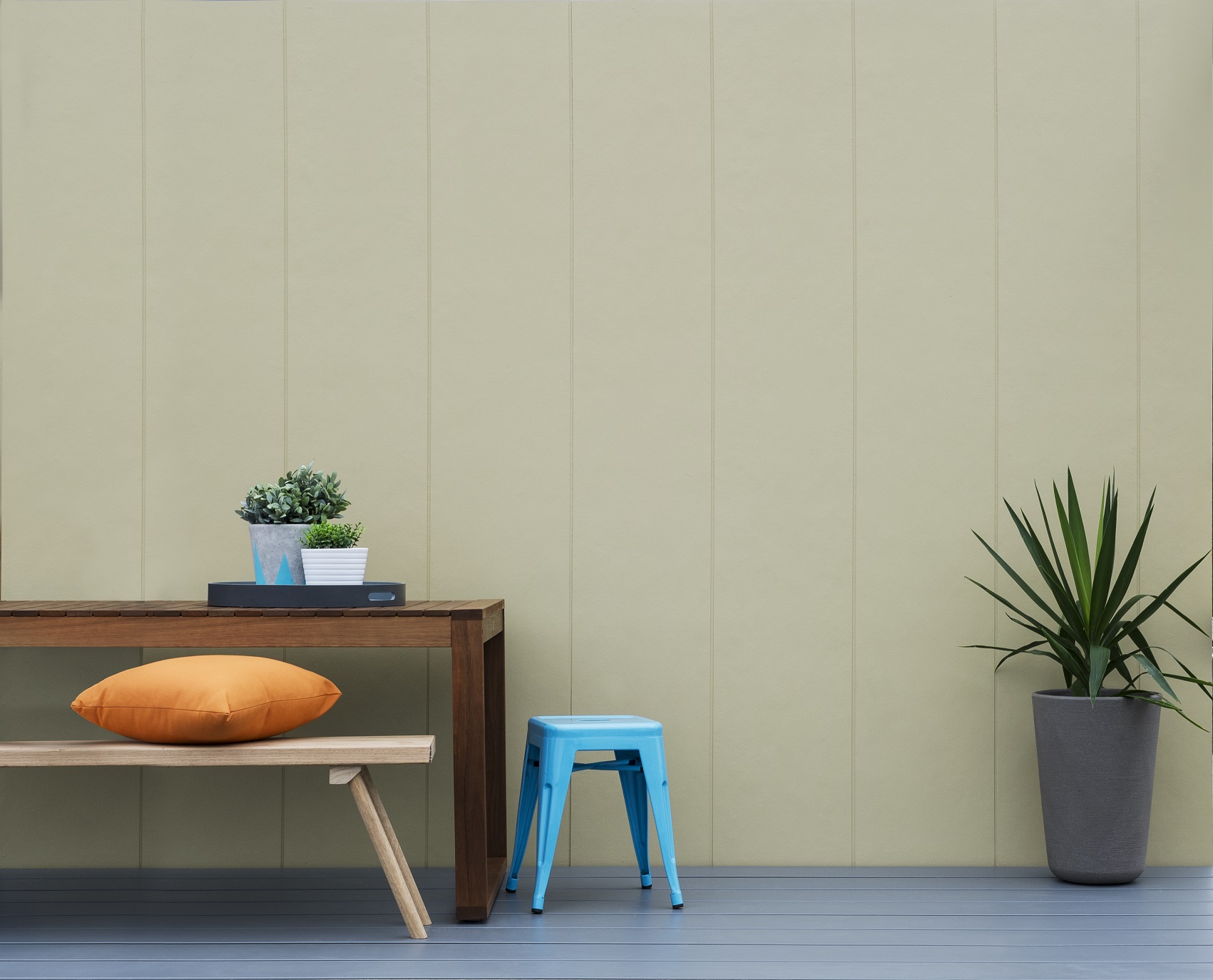

Smooth (previously known as EasyLap Panel):

  • Thickness: 9mm
  • Length: 2450mm or 3000mm
  • Width: 1200mm
Key Features
  • Engineered to stand up to harsh conditions, including coastal conditions
  • Can be painted any colour, even the darker shades
  • Cost effective and long-lasting
  • Resistant to fire, rot resistant and resistant to moisture damage
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Classified as a lightweight cladding
  • Classified as non-combustible material
  • Low maintenance
  • Easy installation makes Axon Panel a fast and effective way to cover your home’s exterior
  • BRANZ Appraised
  • CodeMark Certififed
  • 15 year product warranty
NZ Made
NZ Made
Scope of Use
  • Exterior cladding suitable for coastal conditions
  • Up to 60 minute fire resistance rating (FRR) can be achieved when installed as per the James Hardie Fire and Acoustic Design Manual
  • Has been tested and complies to the new E2/VM2 Verification method for building facades up to 25m high
  • Can be painted any colour, even the darker shades

See BRANZ Appraisal 1211 for full information.

NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
NZS 3604 Earthquake Zone Very High suitable
Very High Earthquake Zone
NZS 3604 Wind Zone Specific Design suitable
Specific Design Wind Zone
Statement of Building Code Compliance

In the opinion of BRANZ, the Axon™ Panel and EasyLap™ Panel Cladding, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 1211, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The Axon™ Panel and EasyLap™ Panel Cladding meets the requirements for loads arising from self-weight, wind, impact and creep [i.e. B1.3.3 (a), (h), (j) and (q)].
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years and B2.3.2. The Axon™ Panel and EasyLap™ Panel Cladding meets these requirements.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The Axon™ Panel and EasyLap™ Panel Cladding meets this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Axon™ Panel and EasyLap™ Panel Cladding meets this requirement.

See BRANZ Appraisal 1211 for full information.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
G6 Airborne and Impact Sound compliant
Airborne and Impact Sound
H1 Energy Efficiency compliant
Energy Efficiency
Documents
CAD/PDF
Fire and Acoustic Design Manual

2022

Technical Specification: Axon Panel Direct Fix

2024

Technical Specification: Axon Panel Hardie CLD Structural Cavity Batten

2024

Technical Specification: Axon Panel Timber Cavity Batten

2024

Product Technical Statement
BRANZ Appraisal: Axon Panel & EasyLap Panel

1211 [2022]

CodeMark: Axon Panel Cladding System

CMNZ30165 [2024]

Warranty
Brochure
Technical Literature on Supplier Website

James Hardie are an international building materials company and a global producer of fibre cement.

Product Enquiries

News from James Hardie

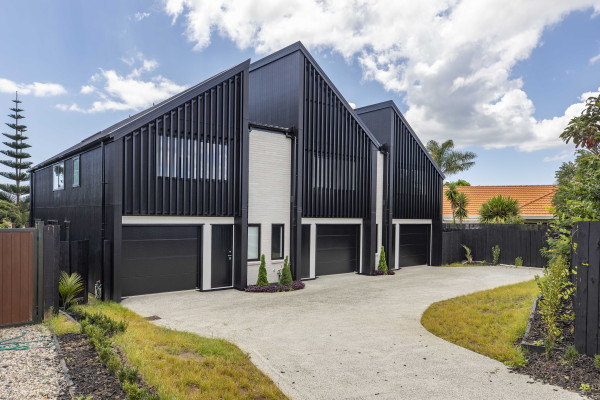

New Texture Added to the Axon Panel Range

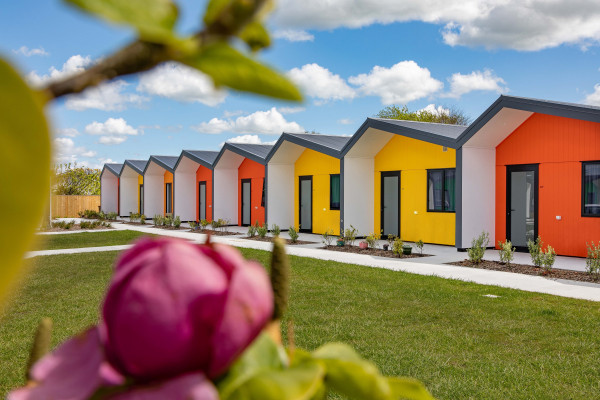

Multi-Unit Development Featuring Products by James Hardie
