Fire-Safe Decking Option for Auckland International Airport

When designing the smoking area at the Auckland International Airport, Jasmax Architect, Michael Parkin prioritised materials that were easy to clean and maintain, provided a timber look finish, allowed easy access to all areas of the waterproof membrane below, and most importantly, were fire safe.

Being a public smoking area with heavy foot traffic, maintenance and durability were key factors in the decision-making process. A wood plastic material was already on the radar due to the low maintenance nature of the composition, so it came down to which offered the highest fire safety. It was decided that all composite decking products available in New Zealand would be fire tested which included setting each board alight. It was found that BiForm Solid Composite Decking burned the slowest of all options and was deemed the most suitable for the job.

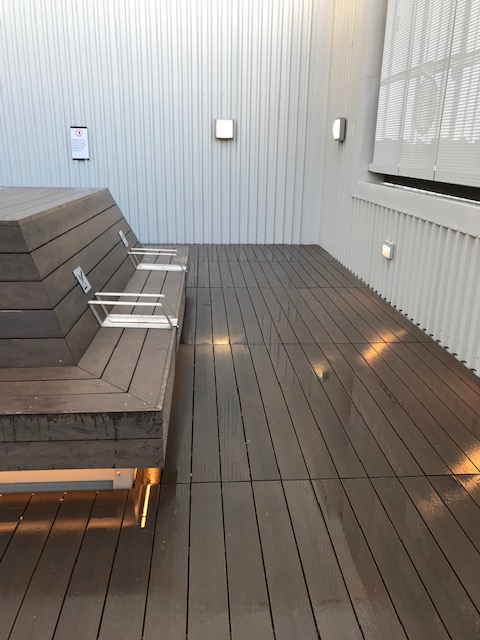

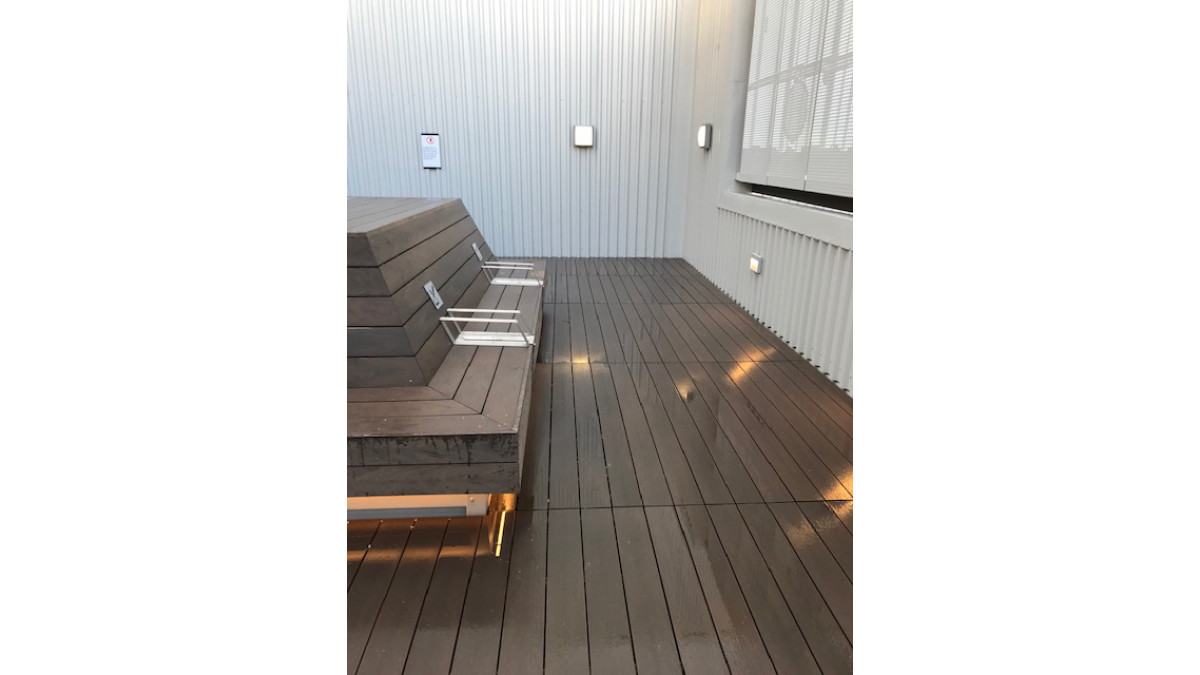

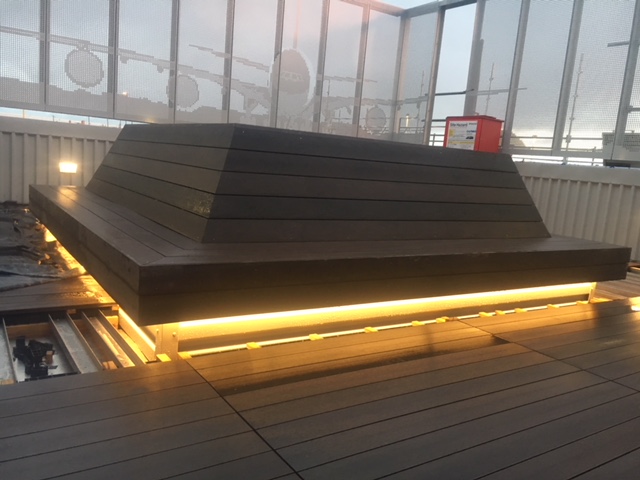

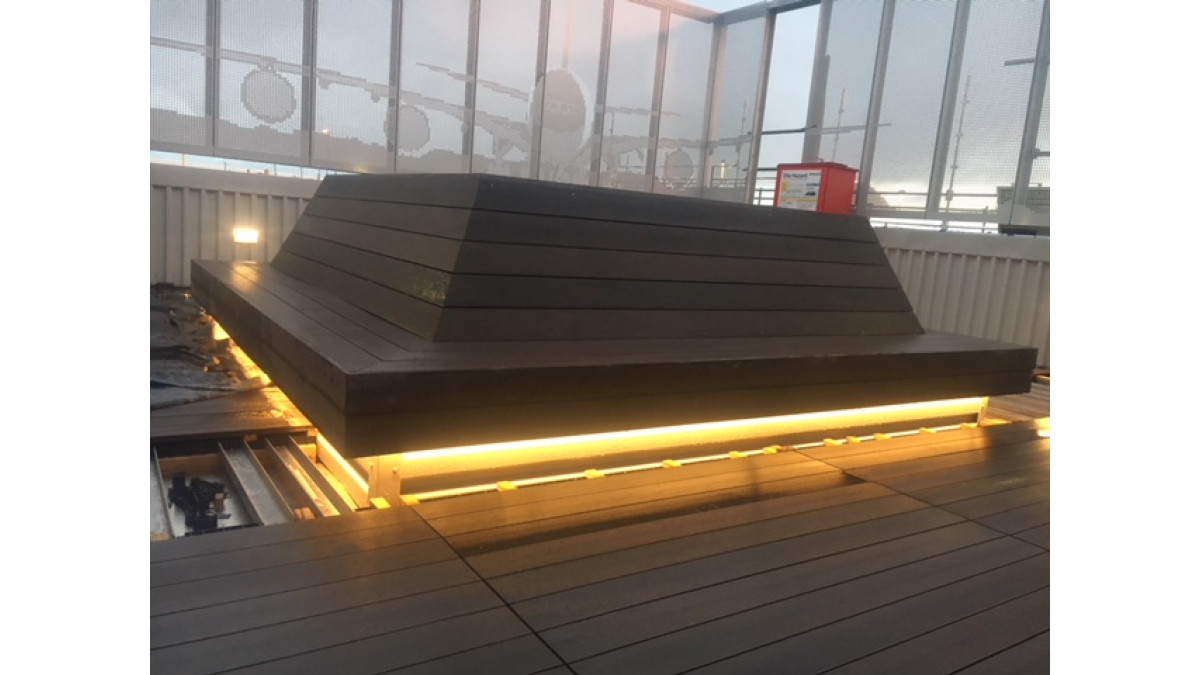

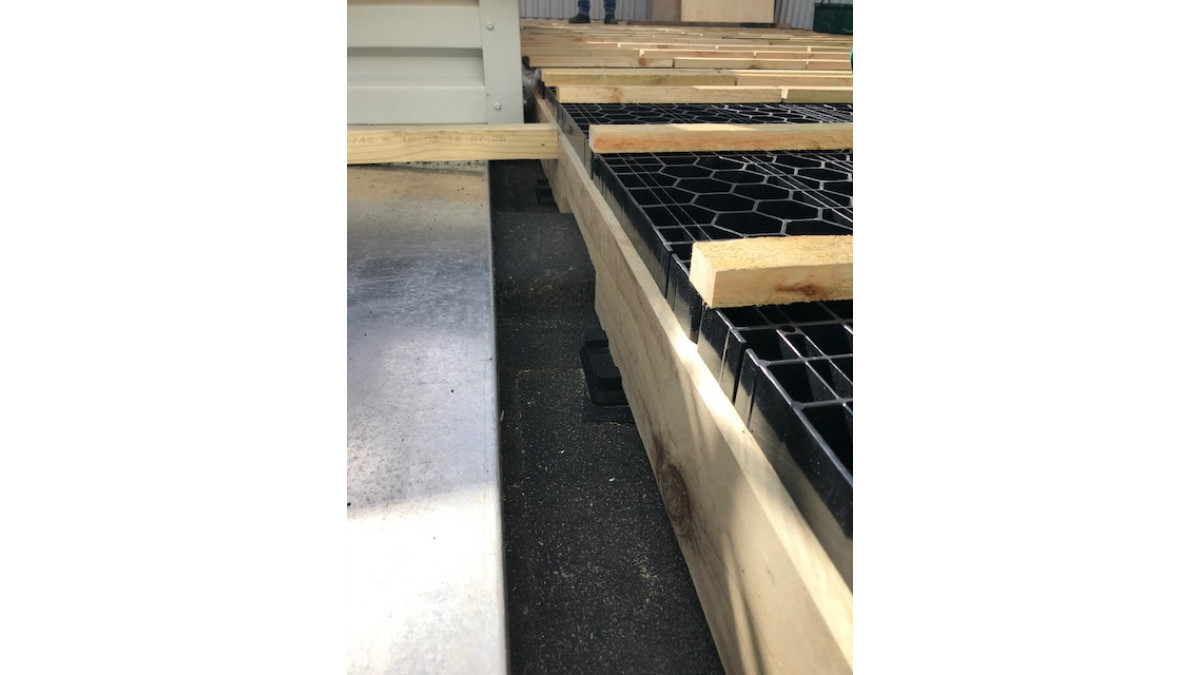

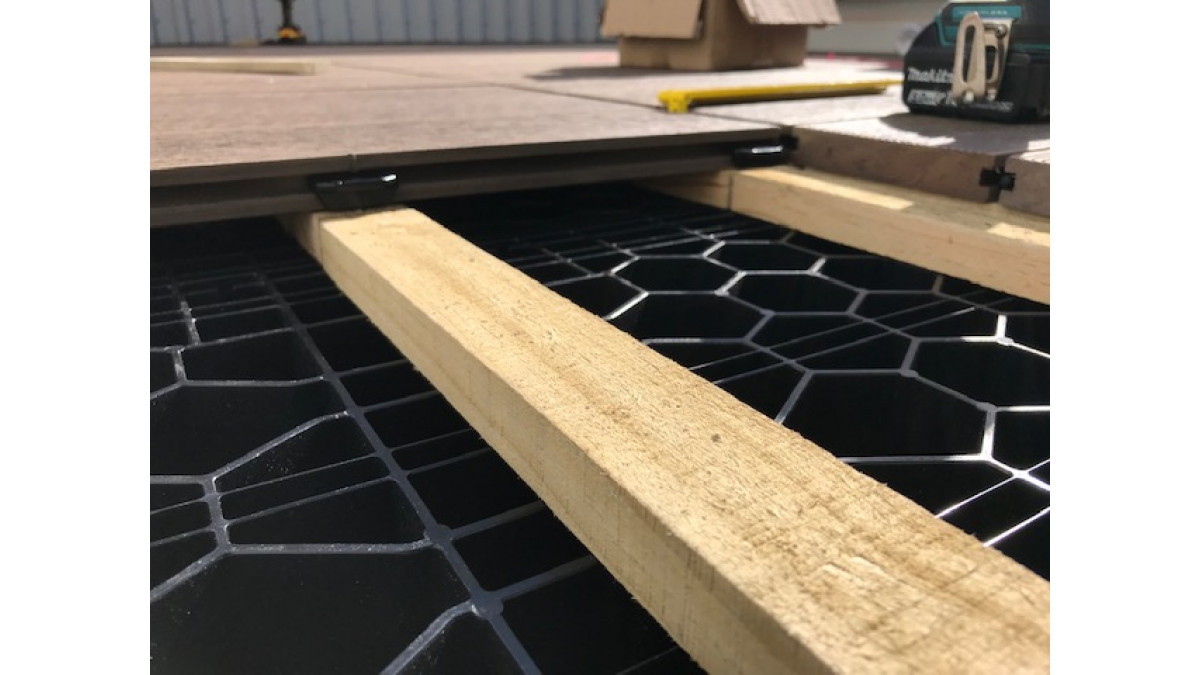

Once BiForm was chosen, the last piece of the puzzle was to figure out how best to ensure that there would be easy access to the waterproof membrane below, all while working around a large seismic beam running through the middle of the area. BiForm’s design team designed a custom-made modular panel system that was developed with the specific purpose of being able to lift each individual panel, while also remaining easy to install and great to look at. BiForm was also used to form the large central seat element, complete with integrated stainless steel ashtrays and armrests.

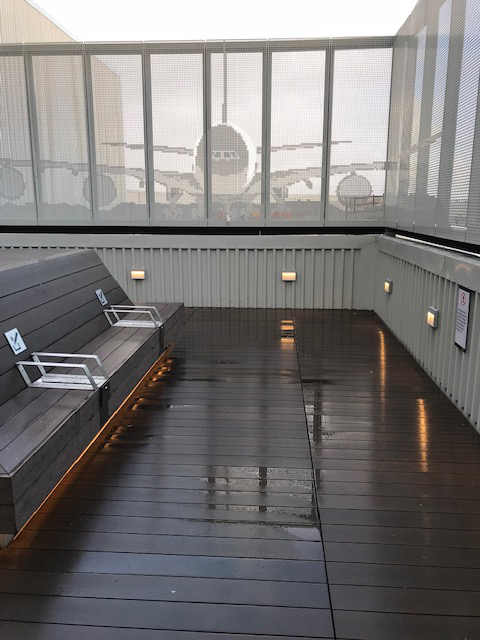

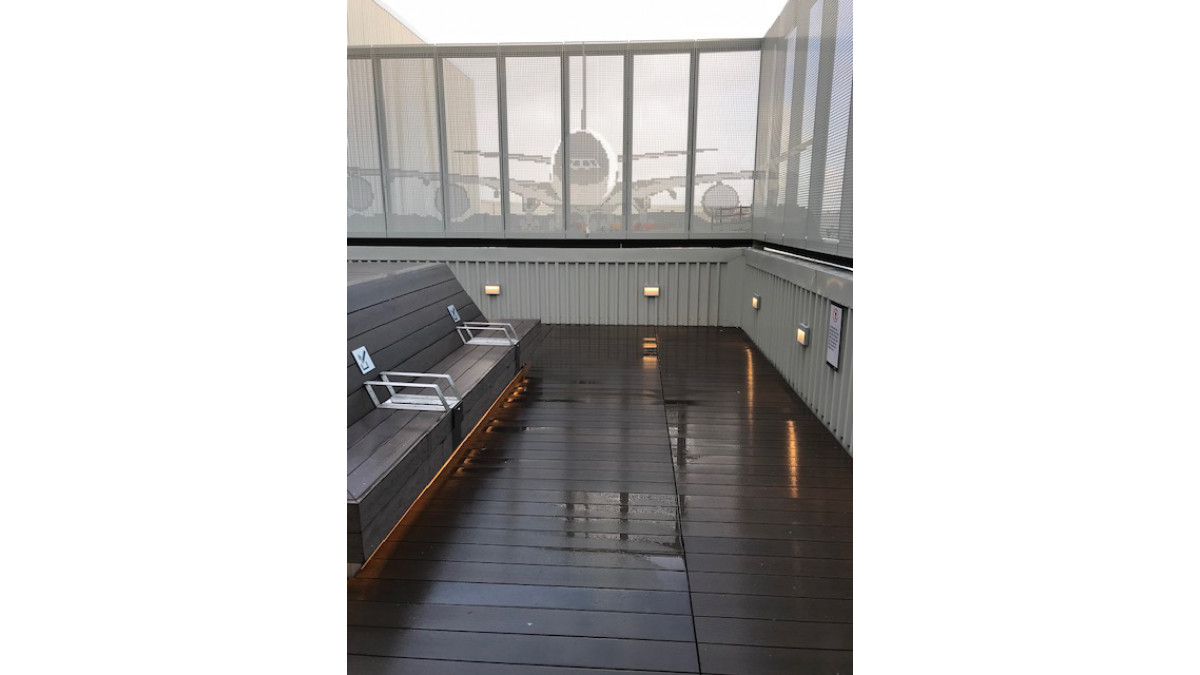

The results speak for themselves. Through creative design and innovation, BiForm were able to supply and install a custom-made solution to a tricky situation. The Auckland International Airport now has a beautiful outdoor smokers’ deck that is custom built for purpose, low maintenance and fire safe. Michael Parkin has stated that BiForm met their expectations with a consistent and uniform look.

BiForm FORM 130 Solid Composite Decking

BiForm

View Product

BiForm solid composite decking is an environmentally friendly decking option.

NZ-Owned Business

Post-Consumer Recyclable Content

This 130mm x 19mm board will be more appropriate for, but not limited to residential outdoor decking options, as well as commercial applications where suited.

BRANZ have appraised BiForm Wood Plastic Composite Decking to be used as an alternative exterior decking material for decks designed and constructed in accordance with NZS 3604.

FORM 130 Solid Composite Decking Board has been used most often in the construction of public viewing platforms. It is also used with either the concealed fixing system or predrilled and top fixed for traditional decking.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

In the opinion of BRANZ, if it is designed, used, installed, and maintained in accordance with the statements and conditions of Appraisal No. 680 (2015), BiForm's WPC Decking will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, & B1.3.4. BiForm's WPC Decking meets the requirements of loads arising from self-weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. BiForm's WPC Decking meets this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Biform's WPC Decking meets this requirement and will not present a health hazard to people.

Biform's WPC Decking has been appraised as an alternative solution in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

Stack N Pack Joist Mount

BiForm

View Product

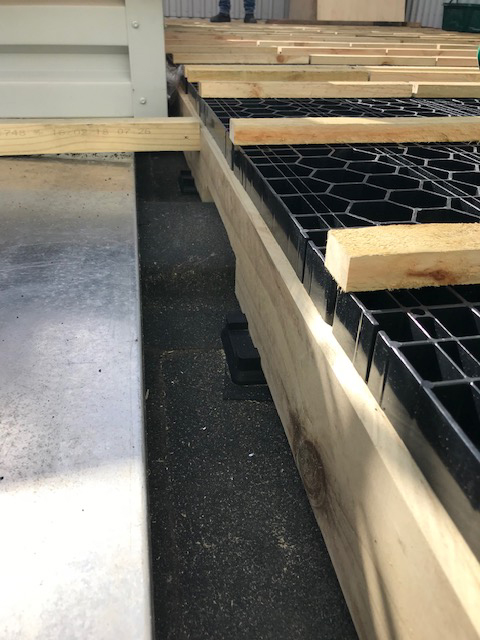

Made of recycled plastic (HDPE), Stack N Pack Joist Mounts are specifically designed to provide drainage and support for floor joists while also ensuring the integrity of the membrane remains intact.

A cost-effective solution for floating decks over waterproof membranes or concrete. Ideal for low decking situations
The Stack N Pack Joist Mount has been designed and developed as a complete solution, integrating with the Stack N Pack Packers and BiForm Solid Composite Decking
Can be used with both 45mm or 50mm wide timber or aluminium joists
Can also be fitted to other timber or steel joists at a spacing of 600mm (max) centres
Stackers available in 5, 3, and 2mm

BiForm FORM 140 Solid Composite Decking

BiForm

View Product

BiForm solid composite decking is an environmentally friendly decking option.

NZ-Owned Business

Post-Consumer Recyclable Content

BRANZ have appraised BiForm Wood Plastic Composite Decking to be used as an alternative exterior decking material for decks designed and constructed in accordance with NZS 3604.

FORM 140 Solid Composite Decking Board has been used most often in the construction of public viewing platforms. It is also used with either the concealed fixing system or predrilled and top fixed for traditional decking.

Corrosion Exposure Zone B

Corrosion Exposure Zone C

Corrosion Exposure Zone D

In the opinion of BRANZ, if it is designed, used, installed, and maintained in accordance with the statements and conditions of Appraisal No. 680 (2010), BiForm's WPC Decking will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, & B1.3.4. BiForm's WPC Decking meets the requirements of loads arising from self weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. BiForm's WPC Decking meets this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Biform's WPC Decking meets this requirement and will not present a health hazard to people.

Biform's WPC Decking has been appraised as an alternative solution in terms of New Zealand Building Code compliance.

Structure

Durability

External Moisture

Hazardous Building Materials

Winged Composite Deck Screw

BiForm

View Product

A winged decking screw made from 316 Stainless Steel, with a No 2 square drive head.

BiForm's Composite Screws are designed to surface fix edge boards and breaker boards without mushrooming.

Decking Fixing Clips

BiForm

View Product

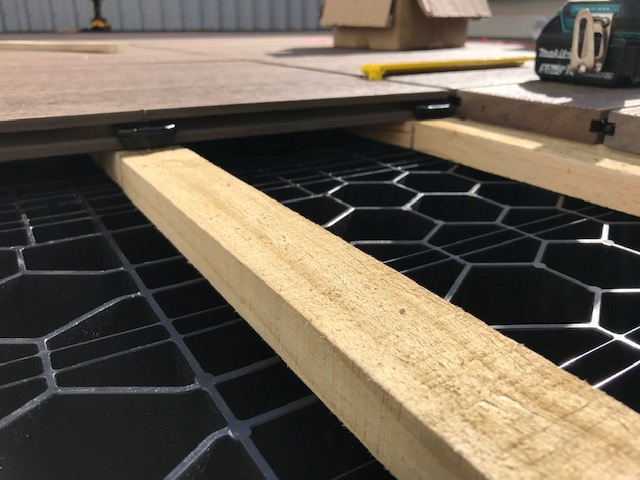

This concealed clip is used to attach the BiForm FORM 130 and 140 boards to the joist below — one on every joist (400mm centres for FORM 130 and 450mm centres for FORM 140), by sliding the clip into the side groove of the board and screwing into the joist with a black stainless steel fixing screw.
