BiForm FORM 140 Solid Composite Decking
Description

BiForm solid composite decking is an environmentally friendly decking option.

BiForm solid composite decking has been formulated especially for Australian and New Zealand high UV conditions and has been extensively tested by the Building Research Association of New Zealand (BRANZ) in conjunction with CSIRO in Australia. The decking testing includes accelerated weathering and UV xenon arc exposure (equivalent of 15 years) to testing of quality control systems throughout the whole supply chain.

Made from 60% waste timber fibre and 30% recycled HDPE plastic, BiForm solid composite decking also has additives of colour, UV protectants and mould inhibitors. The materials are heated, pressurised and extruded into the shape of the decking and uses no formaldehyde or harmful timber treatments. At only 30% plastic content BiForm solid composite decking is specifically suited to NZ's high UV conditions and is less likely to expand and contract as do those composites with 50% plastic content.

This thicker, 140mm x 25mm board will be more appropriate for, but not limited to, commercial applications such as restaurants, marinas, walkways and other areas where there will be high public foot traffic.

Key Features
  • Dimensions: 140 x 25 x 4850mm.
  • Cover: 145mm
  • Lineal m per m²: 6.9m
  • Max joist spacings: 450mm
  • Fixers required per m² with max joist spacing: 15.5
  • Comprehensive 25 year limited warranty available on all BiForm decking products

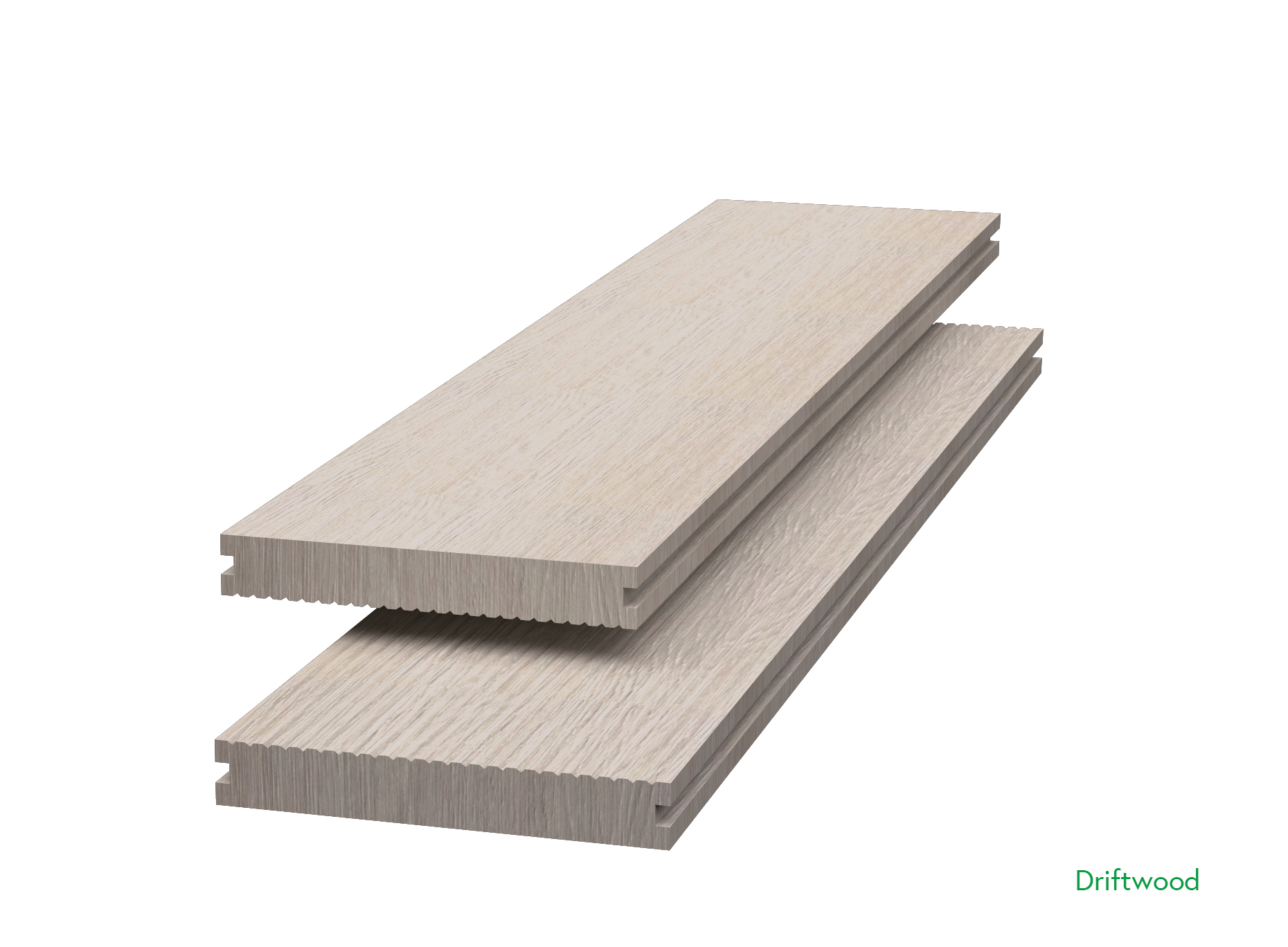

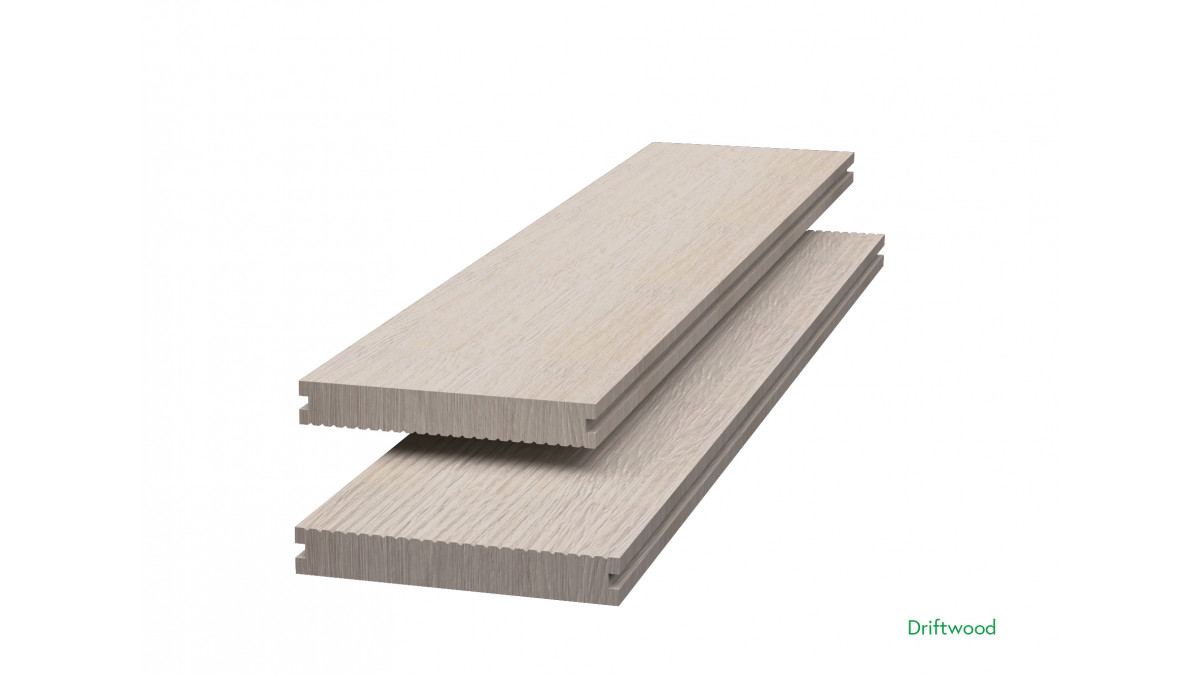

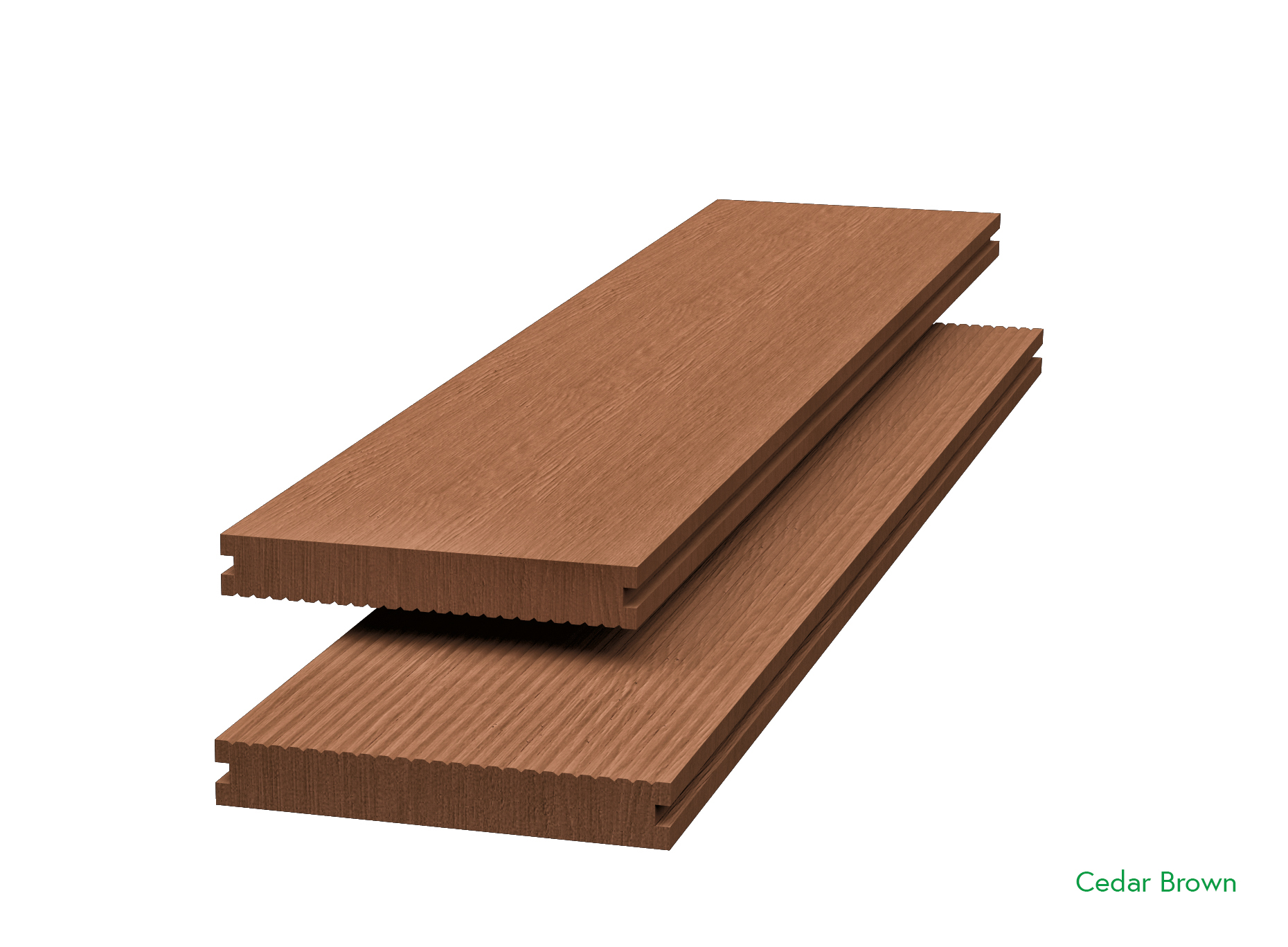

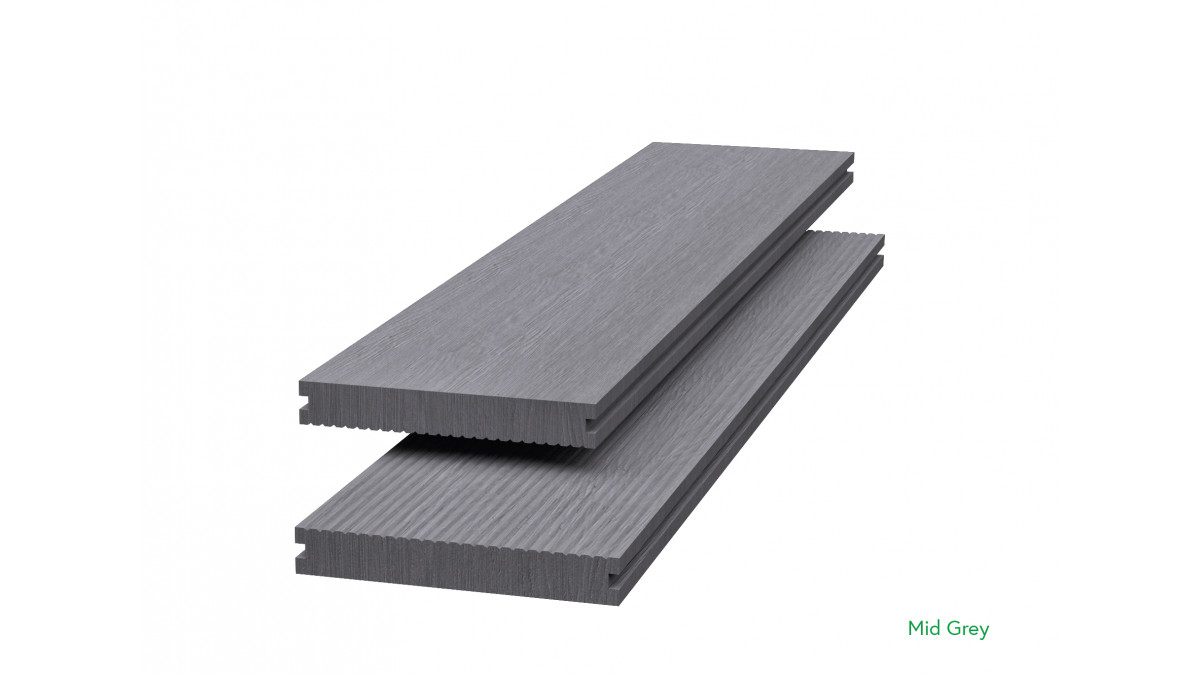

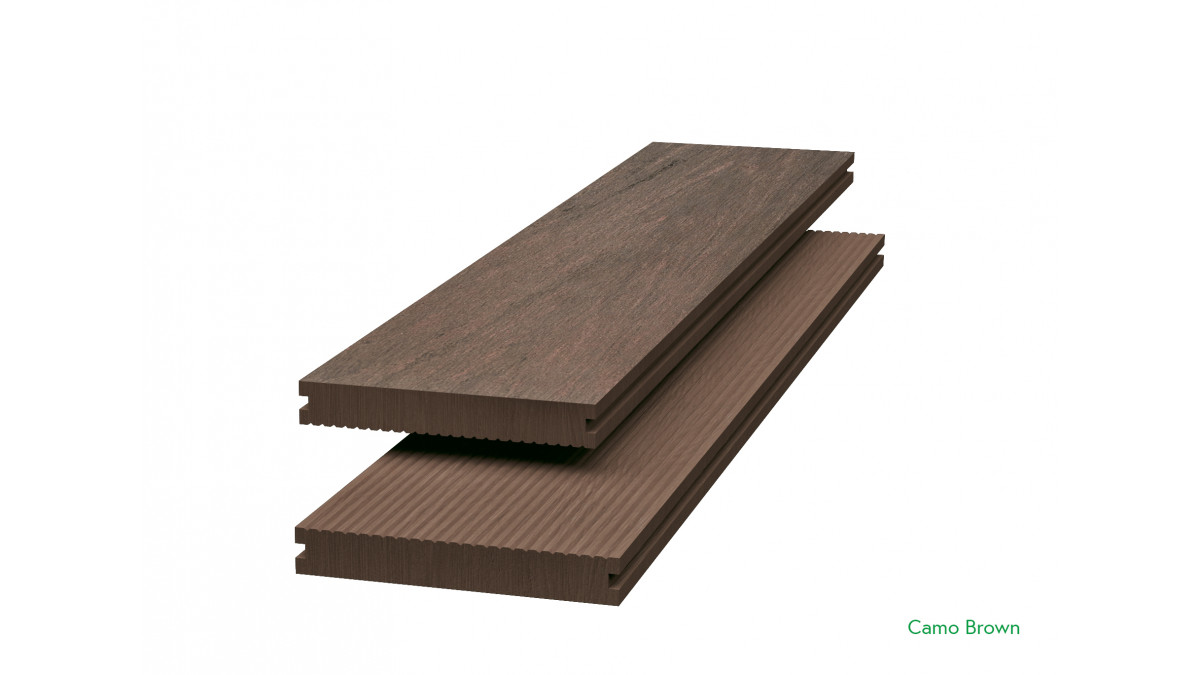

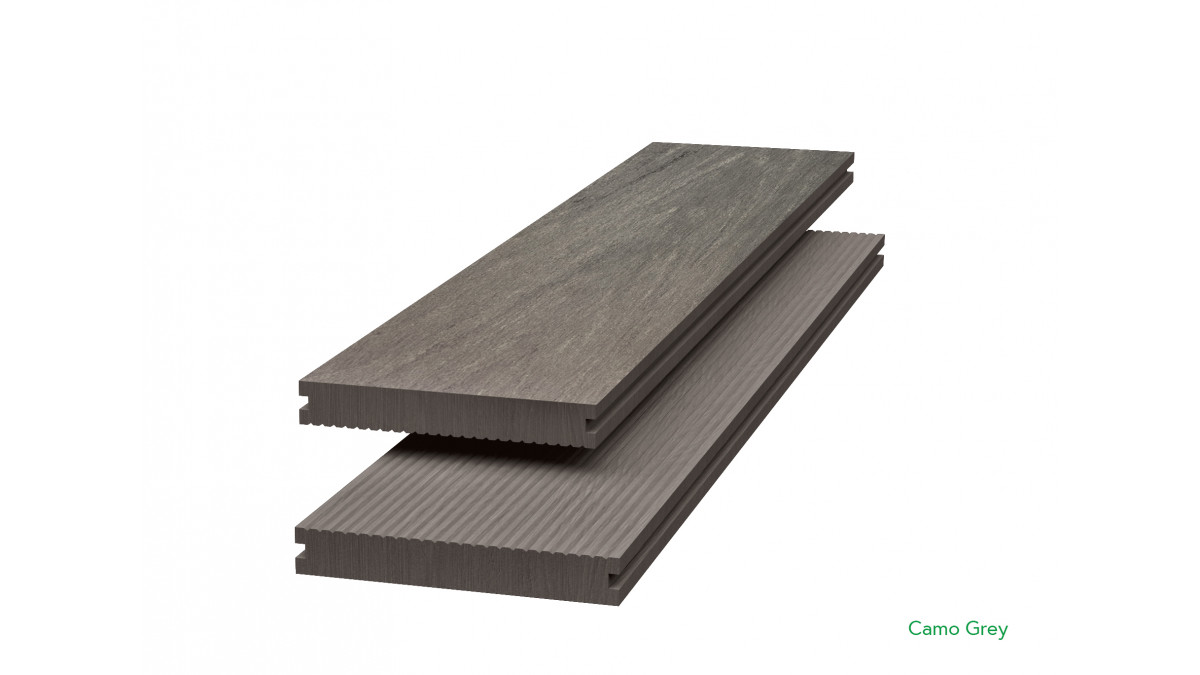

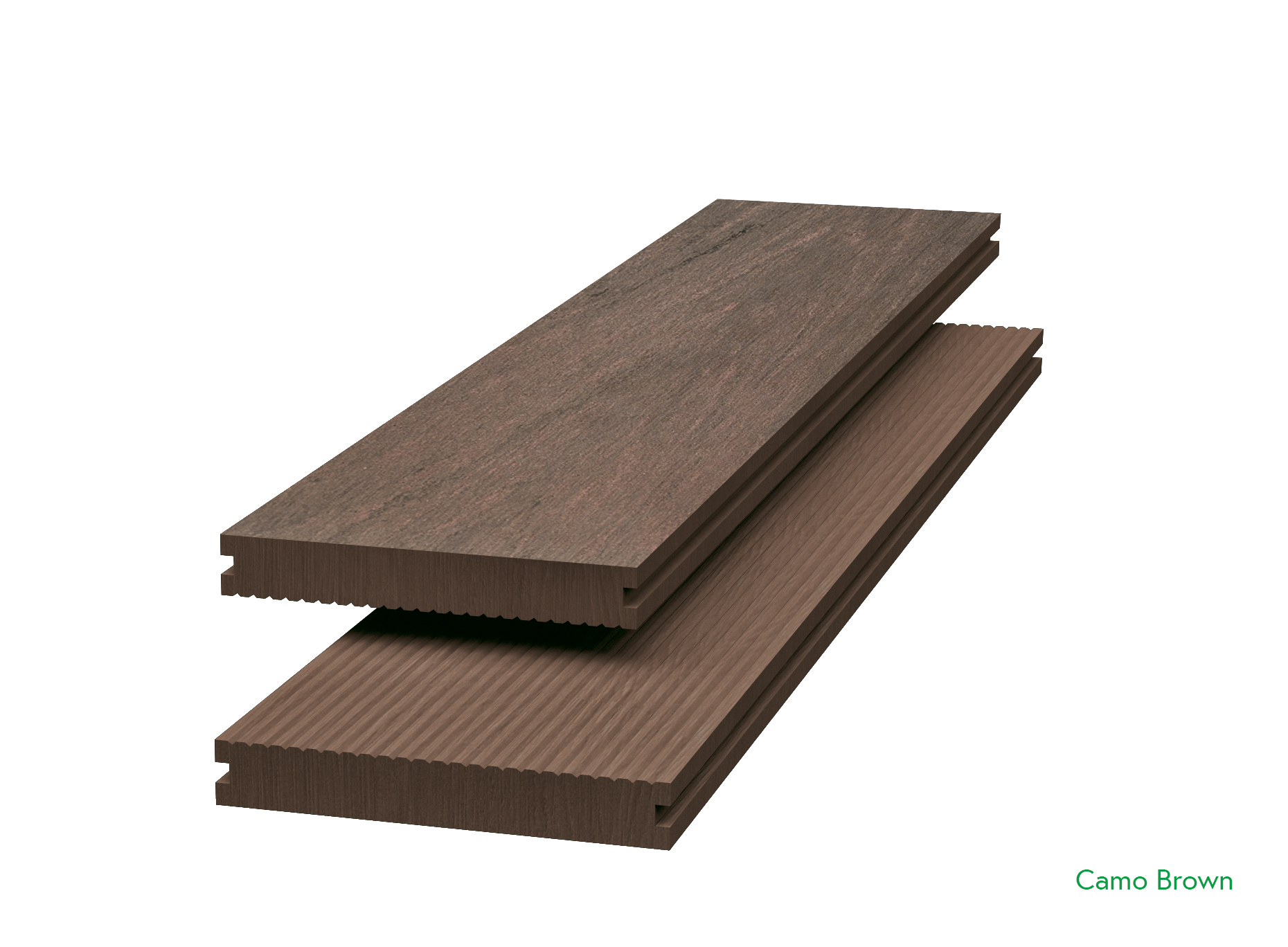

  • Available in five colours: Mid Grey, Driftwood, Cedar Brown, Camo Grey, Camo Brown (Camo colours may require forward ordering)
  • Supported by well designed accessories and available for the FORM 140
Categories
Decking
NZ-Owned Business
NZ-Owned Business
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Scope of Use

BRANZ have appraised BiForm Wood Plastic Composite Decking to be used as an alternative exterior decking material for decks designed and constructed in accordance with NZS 3604.

FORM 140 Solid Composite Decking Board has been used most often in the construction of public viewing platforms. It is also used with either the concealed fixing system or predrilled and top fixed for traditional decking.

Limitations on Use

When being used to form any part of an access route to the main entrance of a building, the BiForms composite decking surface must be coated with an appropriate non-slip coating.
BiForm Ltd have had testing completed with a coating, meeting the requirements of AS/NZS 3661, and achieved a slip resistance in excess of 0.4.
BiForm Ltd have also had testing completed without a coating to the Oil-Wet Ramp test method contained in AS 4856, which is an alternative solution. The decking achieved a slip resistance classification of R11 for both the smooth and grooved sides.

BiForm WPC Decking must be installed following the Technical Literature and Installation Instructions supplied by BiForm Ltd.

NZS 3604 Corrosion Zone B suitable
Corrosion Exposure Zone B
NZS 3604 Corrosion Zone C suitable
Corrosion Exposure Zone C
NZS 3604 Corrosion Zone D suitable
Corrosion Exposure Zone D
Statement of Building Code Compliance

In the opinion of BRANZ, if it is designed, used, installed, and maintained in accordance with the statements and conditions of Appraisal No. 680 (2010), BiForm's WPC Decking will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, & B1.3.4. BiForm's WPC Decking meets the requirements of loads arising from self weight, imposed loads, and impact [i.e. B1 3.3 (a), (b), (j)]
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. BiForm's WPC Decking meets this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Biform's WPC Decking meets this requirement and will not present a health hazard to people.

Biform's WPC Decking has been appraised as an alternative solution in terms of New Zealand Building Code compliance.

In-Service History

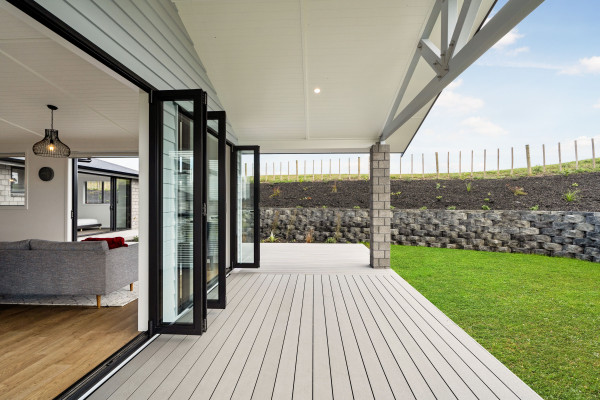

BiForm's solid composite decking has been on the NZ market since 2008. Since its introduction, it has been installed in various different settings including residential houses and apartments, schools, marinas, restaurants and retirement villages.

B1 Structure compliant
Structure
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
Documents
Data Sheet
Material Safety Data Sheet
Product Technical Statement
Accreditation — Fire Testing
BRANZ Appraisal 680

No. 680 [2015] (amended May 2019)

Test Results
Test Results
Installation and Operation
Maintenance Instructions
Warranty
BiForm Composite Decking Brochure
Additional Information
CAD/PDF Details
(A) Typical Fixing
(B) Picture Frame and Breaker Board Layout
(C) L-Shaped Deck Options
(D) Stair Substructure

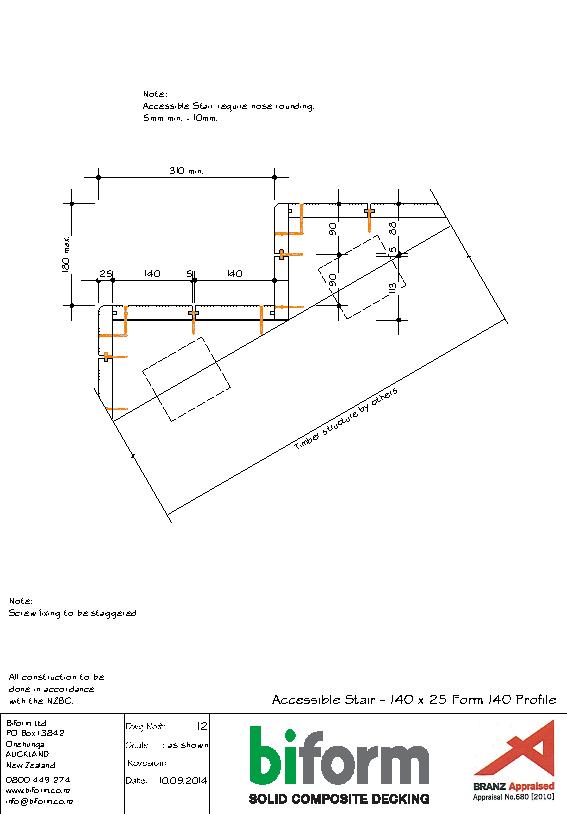

(E) Accessible Stairs

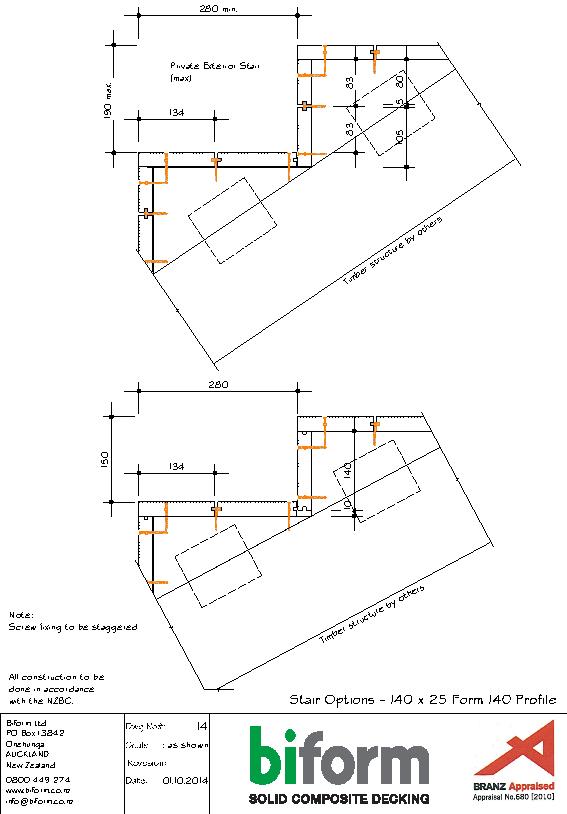

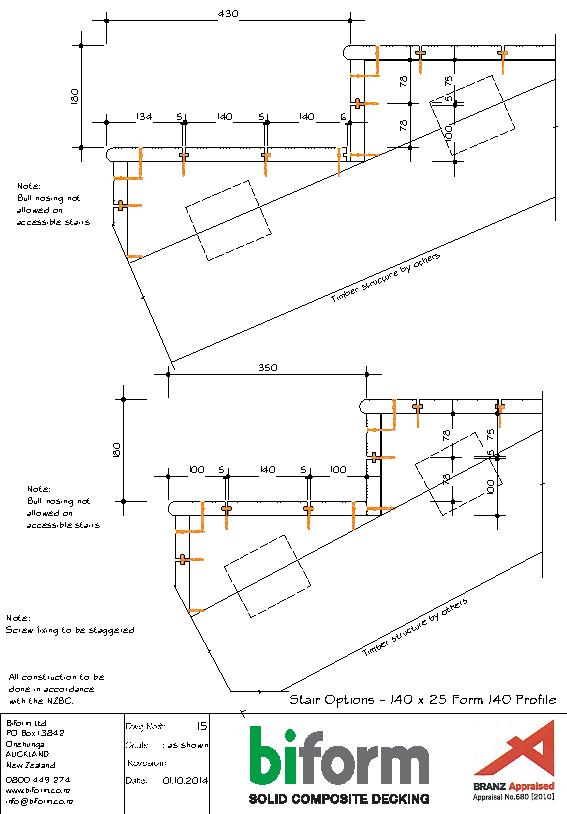

(F) Stair Options 1- Using Form140
(G) Stair Options 2- Using Form140

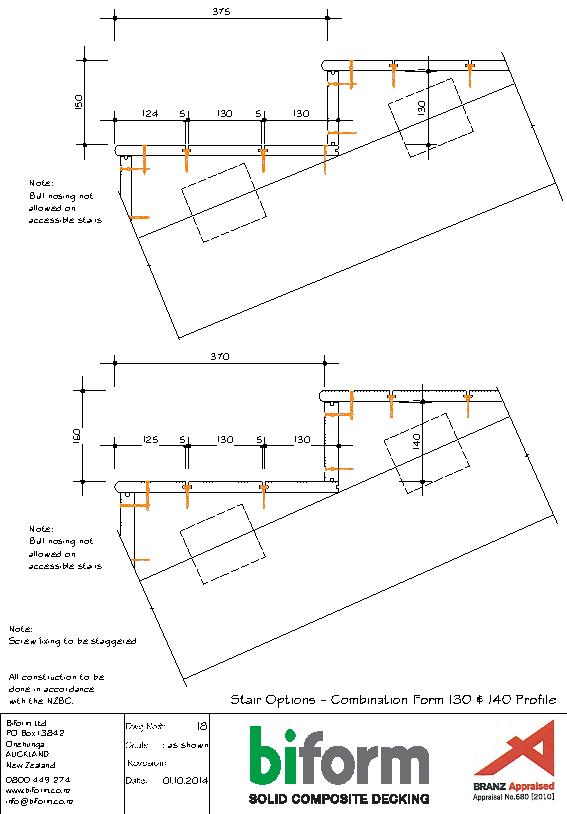

(H) Stair Options- Combination Form130 & Form140
(I) Cladding and Membrane Deck
(L) Door Sill and Membrane Options

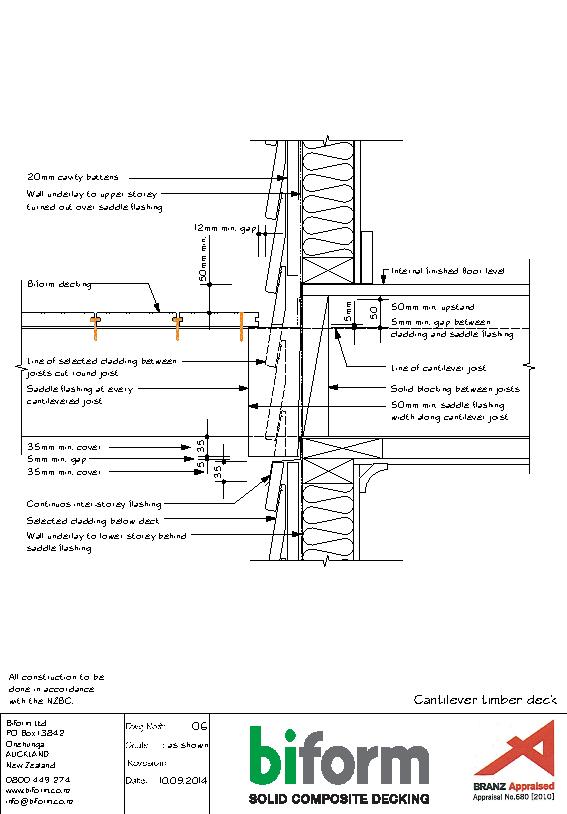

(M) Cantilever Deck

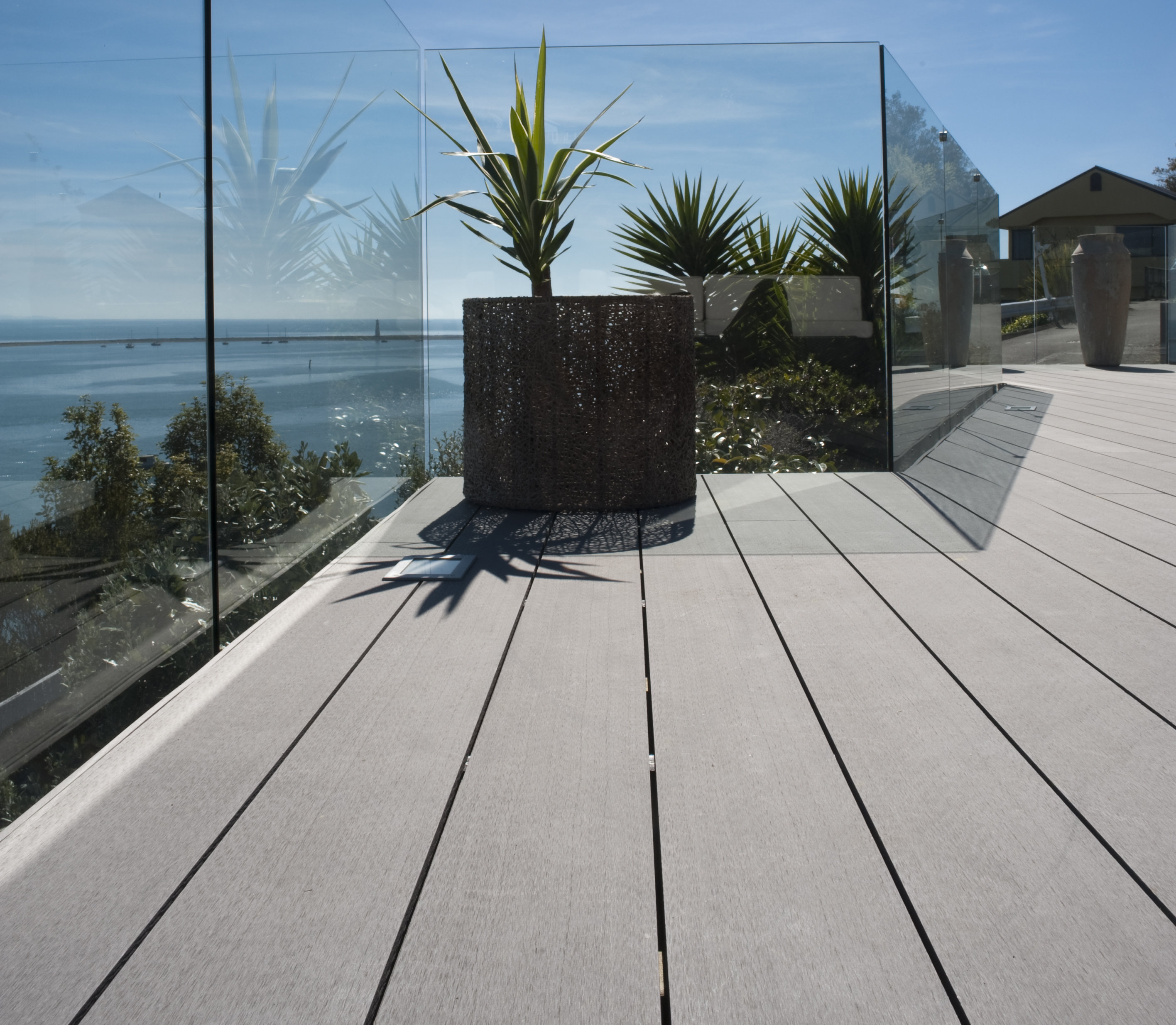

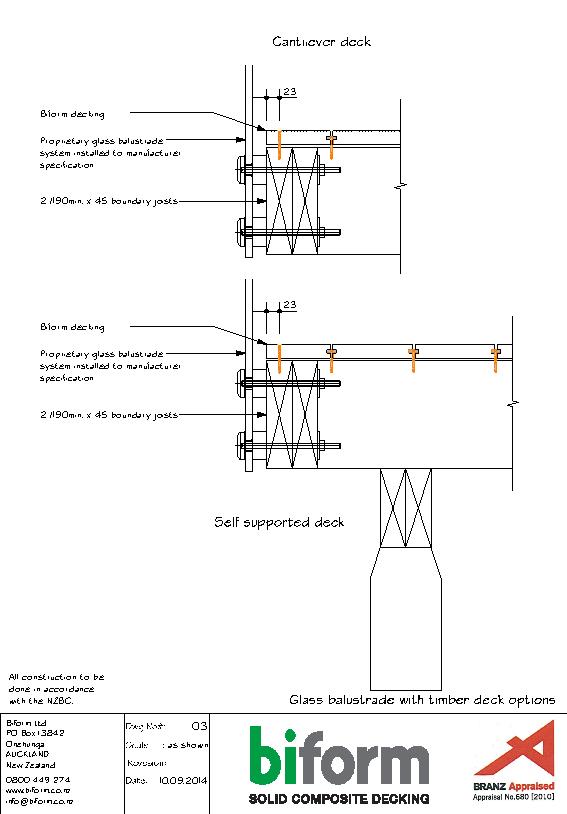

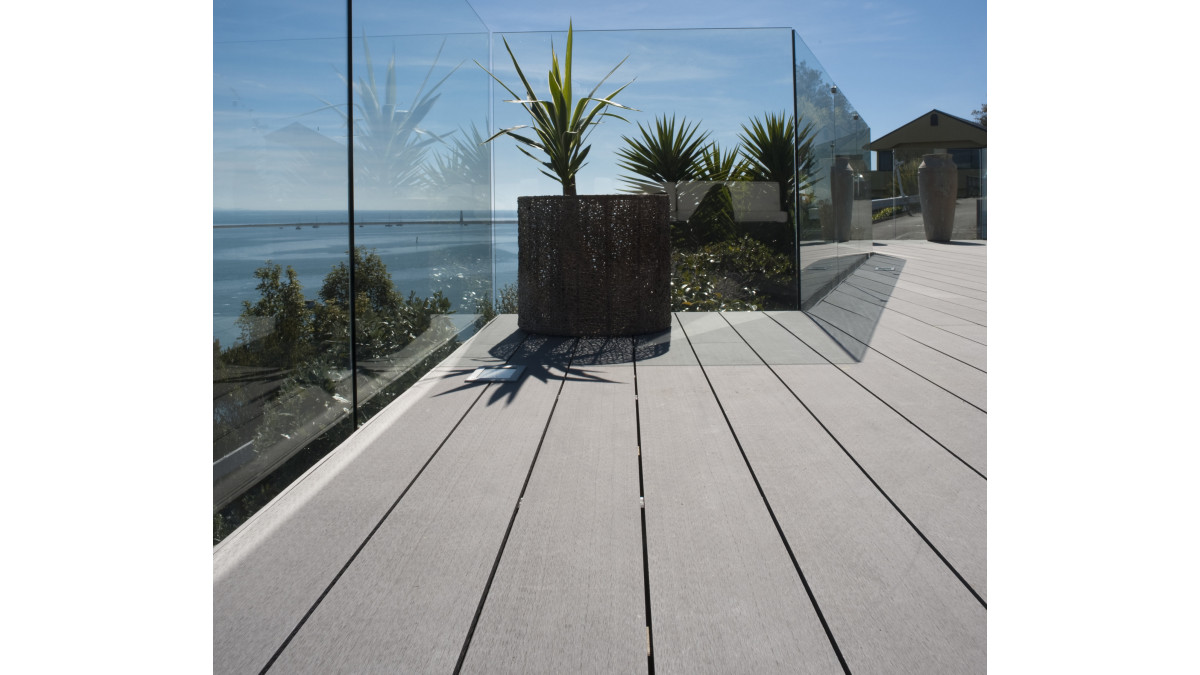

(N) Glass Balustrade with BiForm decking Option

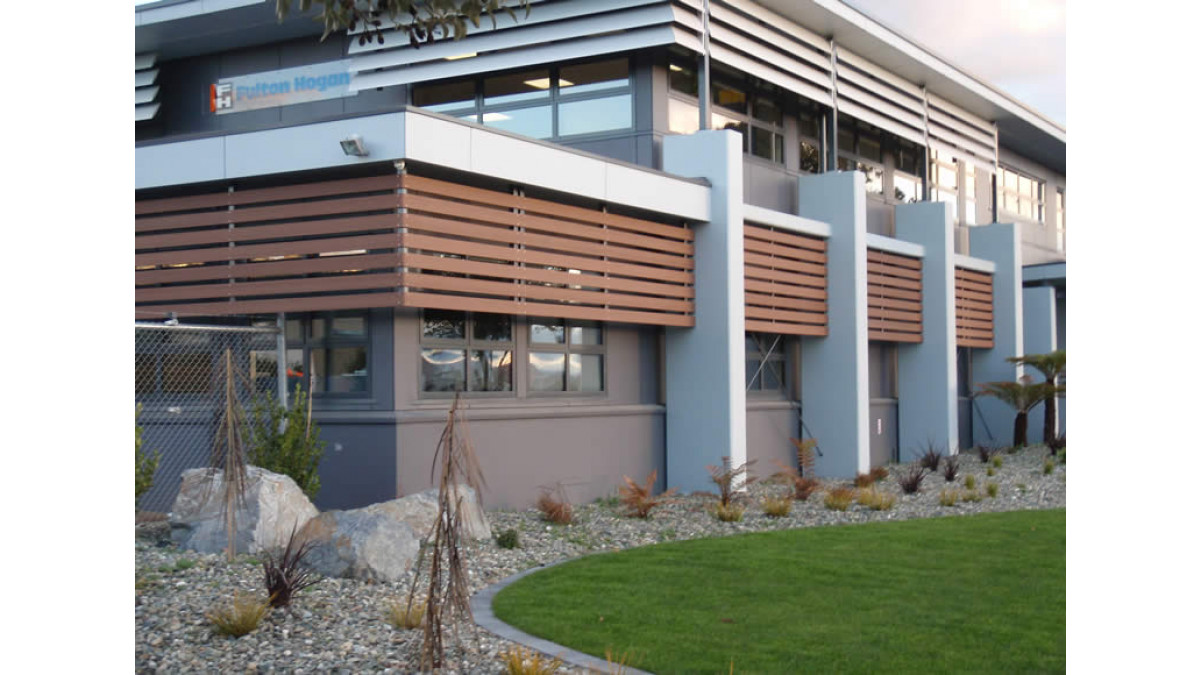

BiForm offer a sustainable, low maintenance decking material, which is suitable for all kinds of decks. We also offer a Stack N Pack Joist mount system and outdoor composite screening.

Product Enquiries

News from BiForm

BiForm Solid Composite Decking the Right Fit for Large-Scale Housing Developments

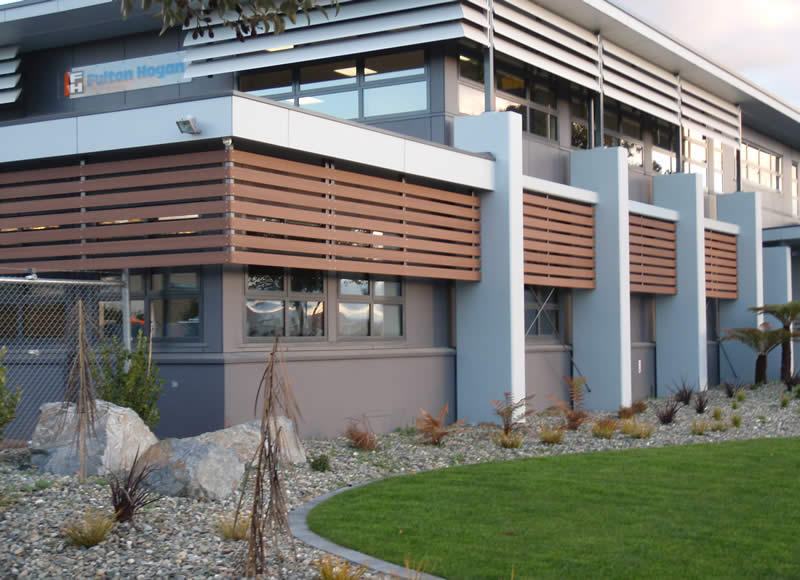

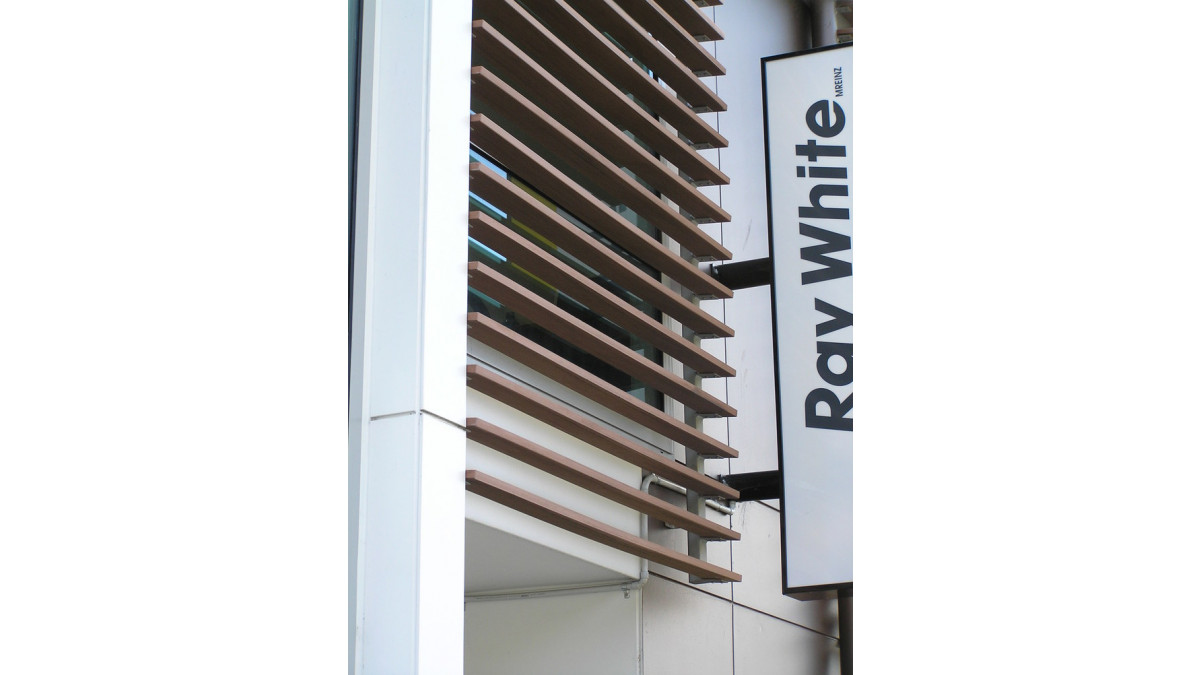

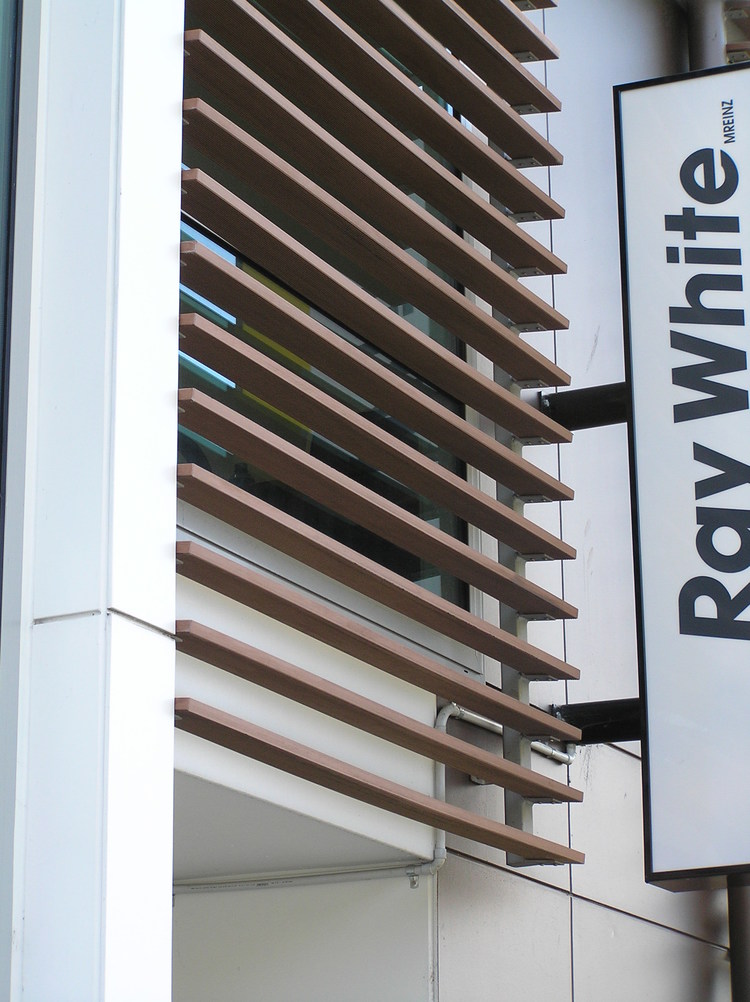

BiForm Composite a Versatile Option for More than just Decks
