Triton Acoustic Panels GreenTag Certified

Manufactured in NZ, the Asona Triton, Global GreenTag certified acoustic ceiling and wall panels have been used in a number of 5 star green buildings from new PPP schools to office projects throughout NZ.

"We made the commitment to undergo the independent, certified Global GreenTag program to better support design professionals and NZ building standards," says Neil Ridgway, Managing Director of Asona. "As a local manufacturer, we are able to tick a lot of boxes from made close to market, high acoustic performance, low VOCs, high recycled content, low embodied energy to an innovative renew and recycle program to extend the product life cycle," he adds.

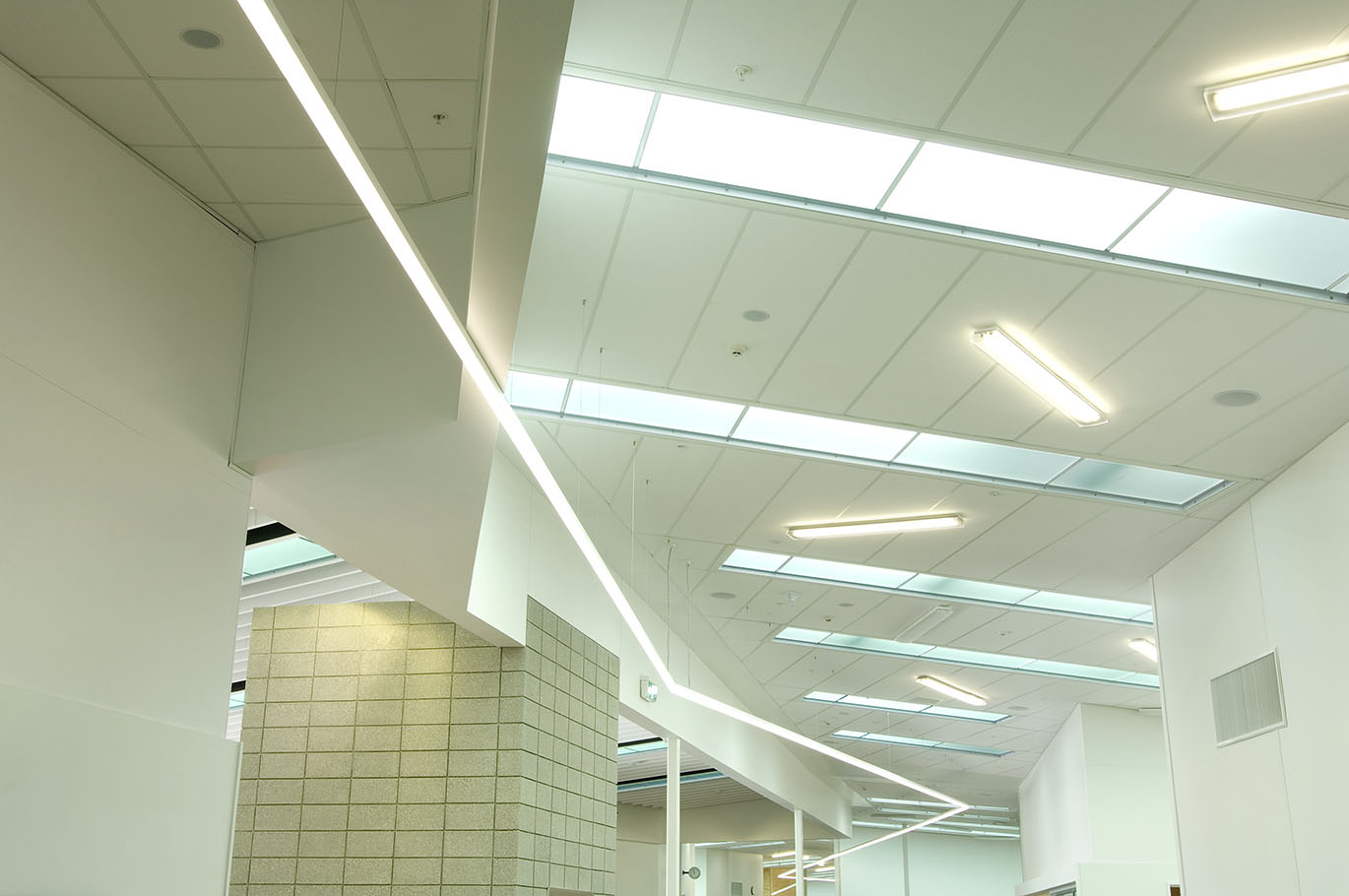

The Triton range is available in a wide variety of standard and custom decorative finishes, shapes, sizes, colours, edge wrapped and framed options that meet almost every application, from suspended grid and tile ceilings, to free hanging cloud and baffle panels, to linear beams to direct fix ceiling and wall panels. They are suitable for general offices, classrooms, gyms, swimming pools, auditoriums, libraries and retail applications. Triton panels are lightweight, so low risk in seismic prone areas, non-combustible (Group 1-S Fire Rating), easy to handle and install, and due to their unique composite construction are designed to be easily disassembled and recycled.

Triton 25

Asona

View Product

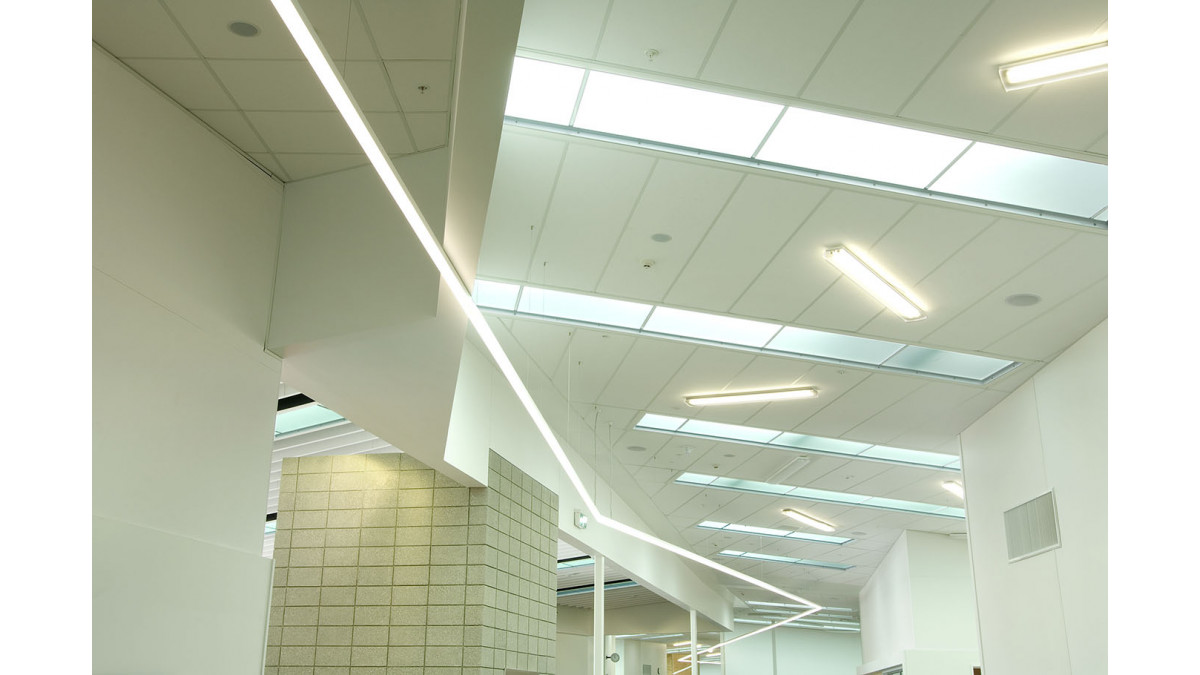

Triton 25 is an NZ-made, high sound absorbing ceiling panel designed to control unwanted noise reverberation.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Ideal for use in open plan offices, schools, call centres, libraries and other applications that require control of background noise levels and reverberation times.
Light weight permits larger areas for high seismic prone areas

Very High Earthquake Zone

NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability, 5 years

Durability

Hazardous Building Materials

Independent Assessment

Test Results

Triton Sports 40

Asona

View Product

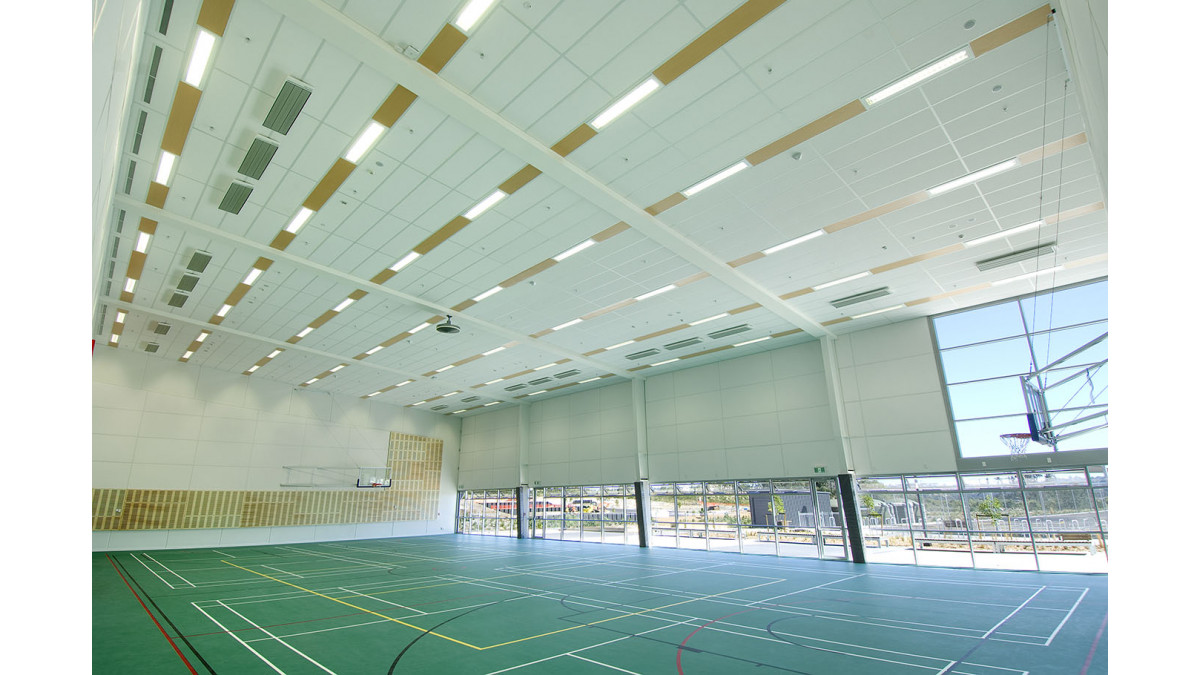

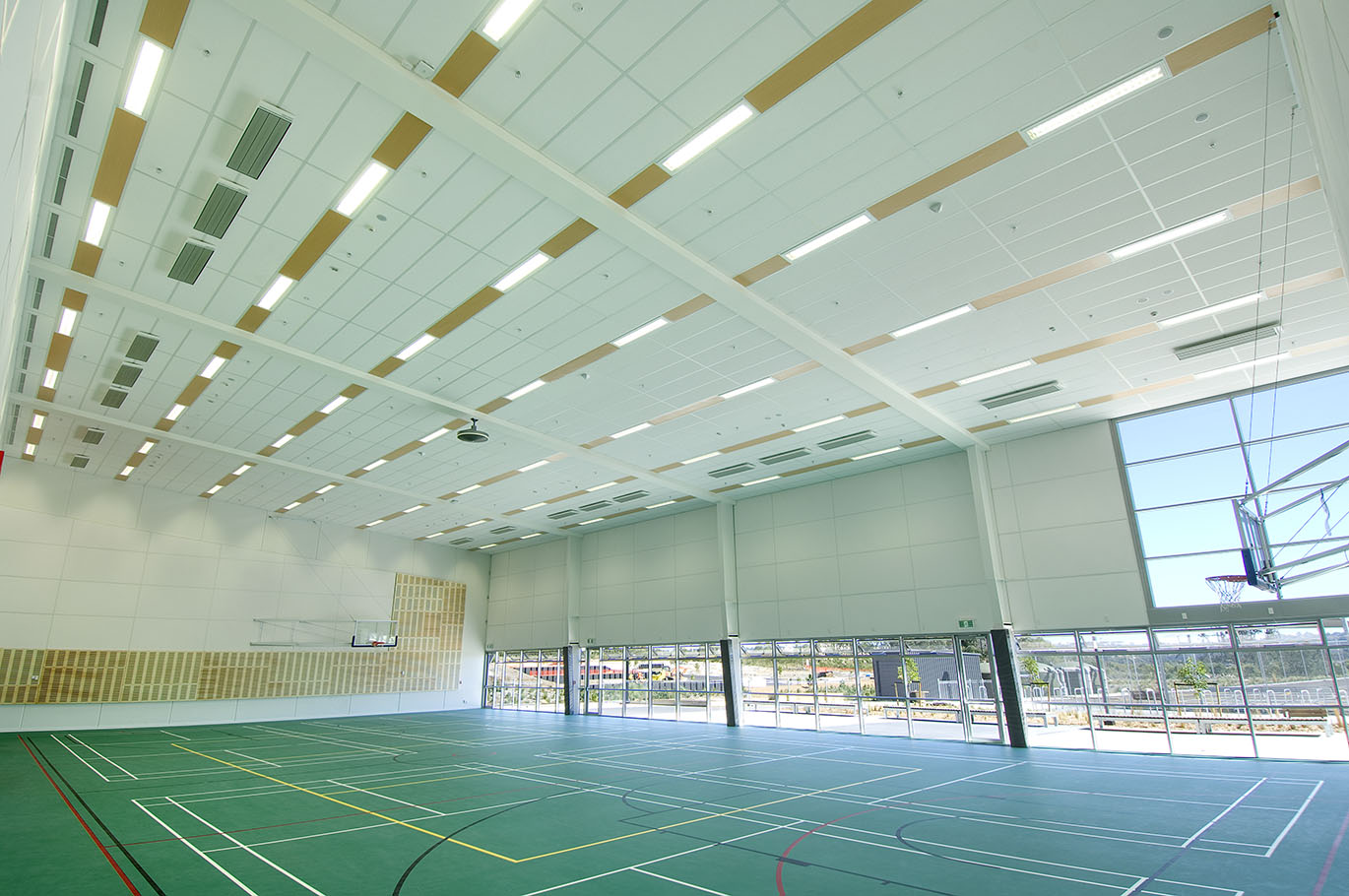

Triton Sports 40™ is a ball impact resistant high sound absorbing and thermal insulating acoustic ceiling system.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Ideal for use in classrooms, gymnasiums, halls, corridors, etc to control reverberation and background noise levels.
The system is designed to provide high sound absorption in areas subject to impact, knocks and bumps.
Wide faced heavy duty Rondo Donn® DXW suspension grid system with proprietary CLW95 hold down clips at 300mm centres to secure panels during impact.
High sound absorption, ideal for large volume spaces. NRC 0.95 for control of reverberation
R1.35 thermal insulation, foil back to reflect radiant energy
Light weight system at 4.3 kg/m² reduces load on the structure and is ideal for seismic prone areas

Very High Earthquake Zone

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability, 5 years

Hazardous Building Materials

Independent Assessment

Test Results

Triton 50

Asona

View Product

Triton 50™ is a made in NZ high sound absorbing ceiling panel that is designed to control unwanted noise reverberation.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Triton 50/50HD™ is an ideal retrofit acoustic panel for classrooms, offices, community halls when applied directly over plasterboard in large sheets or as a suspended grid and panel ceiling.

Ideal for call centres, open plan offices, halls, classrooms, libraries, etc where a combination of high acoustic absorption is required combined with good attenuation to block noise.

NRC 1.00, 50mm thick panel provides superior sound ab-sorption at low to high frequencies in either direct fix over plasterboard or as a suspended ceiling
Large panels up to 1200 x 2400mm provide for a cleaner look with fewer panel joins compared to standard 600 x 1200mm size
Can be suspended or directly fixed over plasterboard linings to reduce reflections from hard surfaces
Ideal for service panels
Light weight for seismic areas

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability 5 years

Durability

Hazardous Building Materials

Independent Assessment

Test Results

Triton Baffle Beam

Asona

View Product

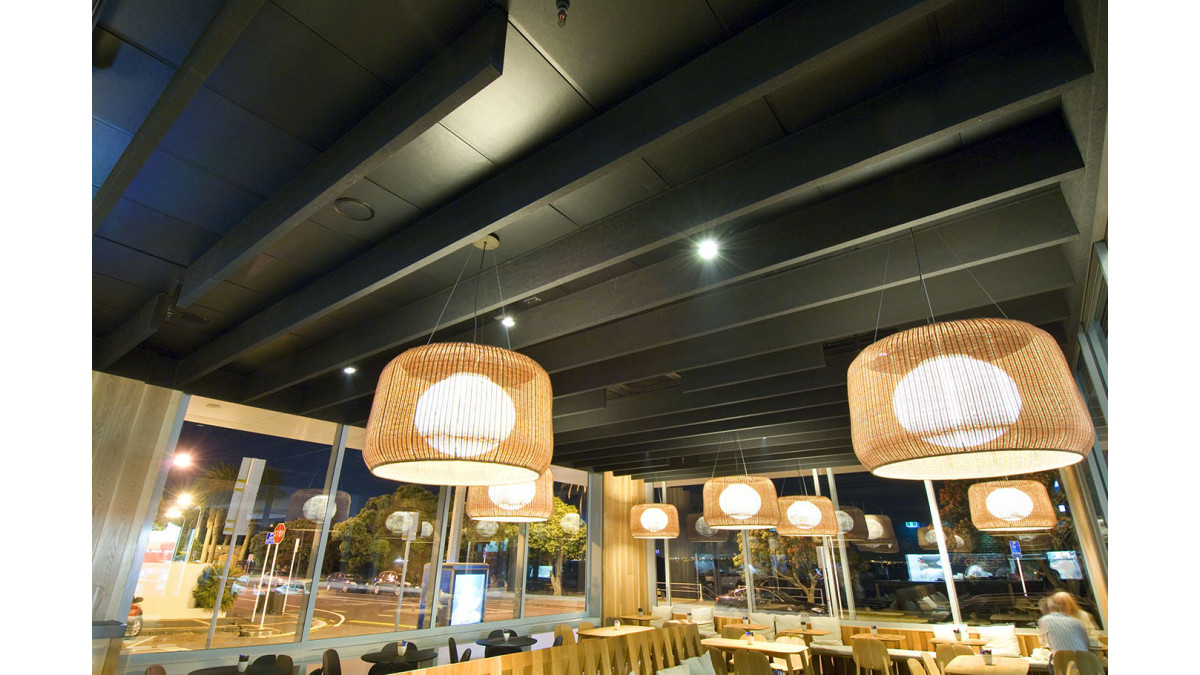

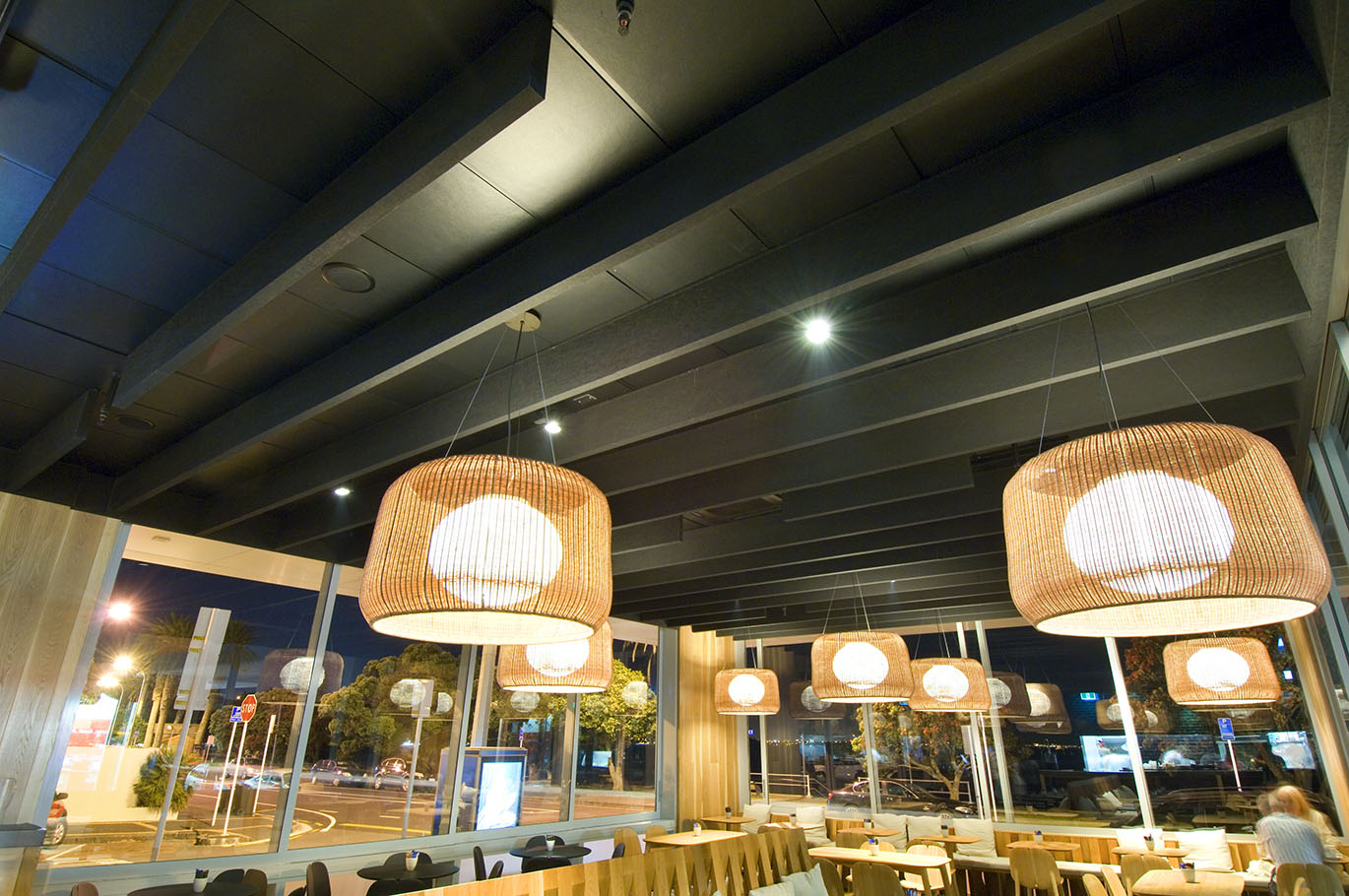

Triton Baffle Beam™ is a New Zealand made high sound absorbing ceiling system designed to provide an attractive linear aesthetic and to control unwanted noise.

Green Tag Certified

NZ Made

NZ-Owned Business

Baffle Beams are ideal for reception areas, corporate offices, corridors, open-plan offices, showrooms, galleries, hospitality, retail and large public spaces.

Lightweight, acoustic alternative to solid wood slat systems suitable for seismic sensitive areas.

Very High Earthquake Zone

Asona Triton Baffle Beams complies to the following NZ Building Codes: B2.3.1 . C3.4, F2.3.1
Fire Reaction - NZBC verification method C/VM2 material group number: 1-S
Clause B2—durability, 5 years

Hazardous Building Materials

Independent Assessment

Test Results

Triton Cloud Panel

Asona

View Product

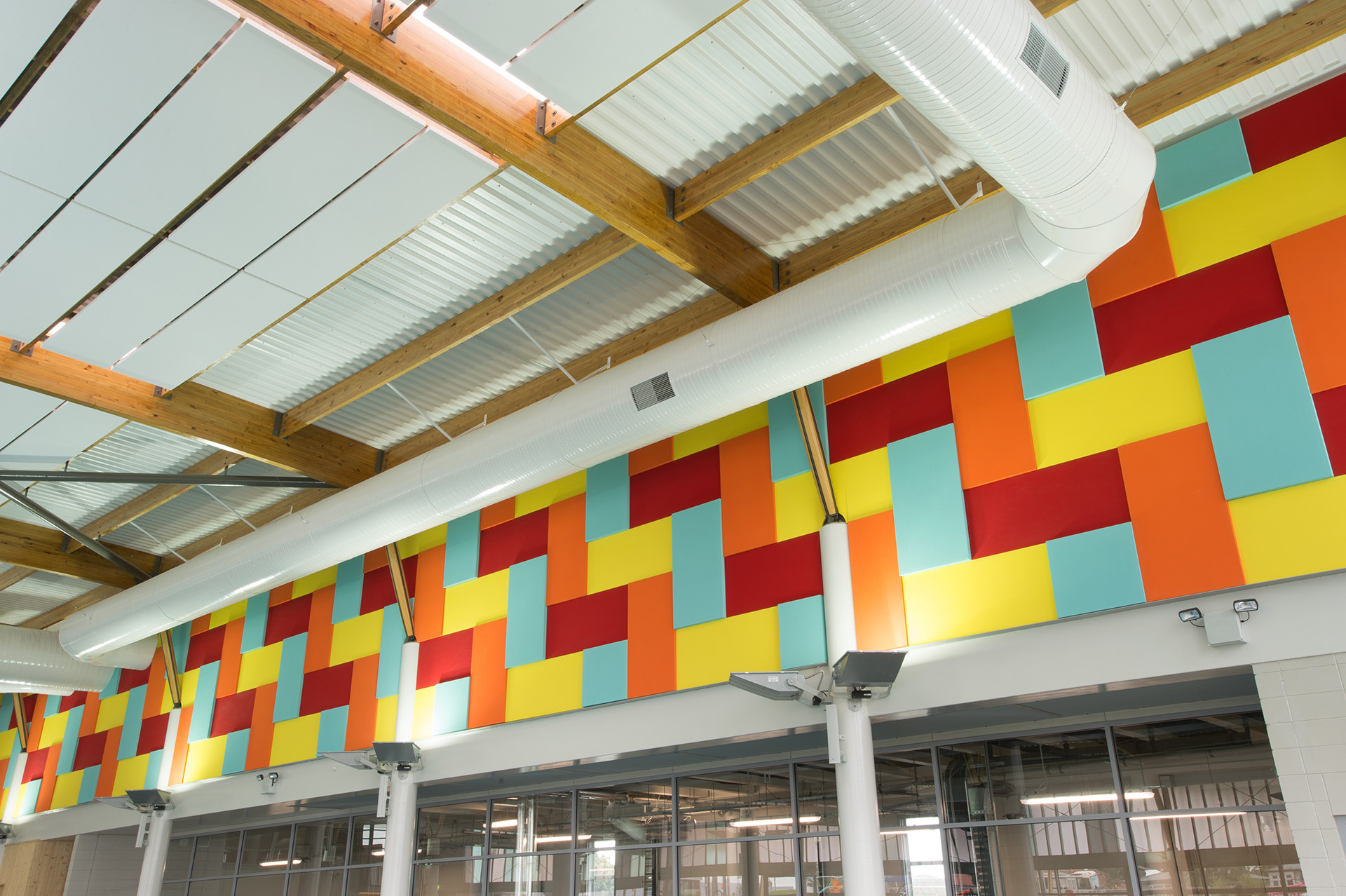

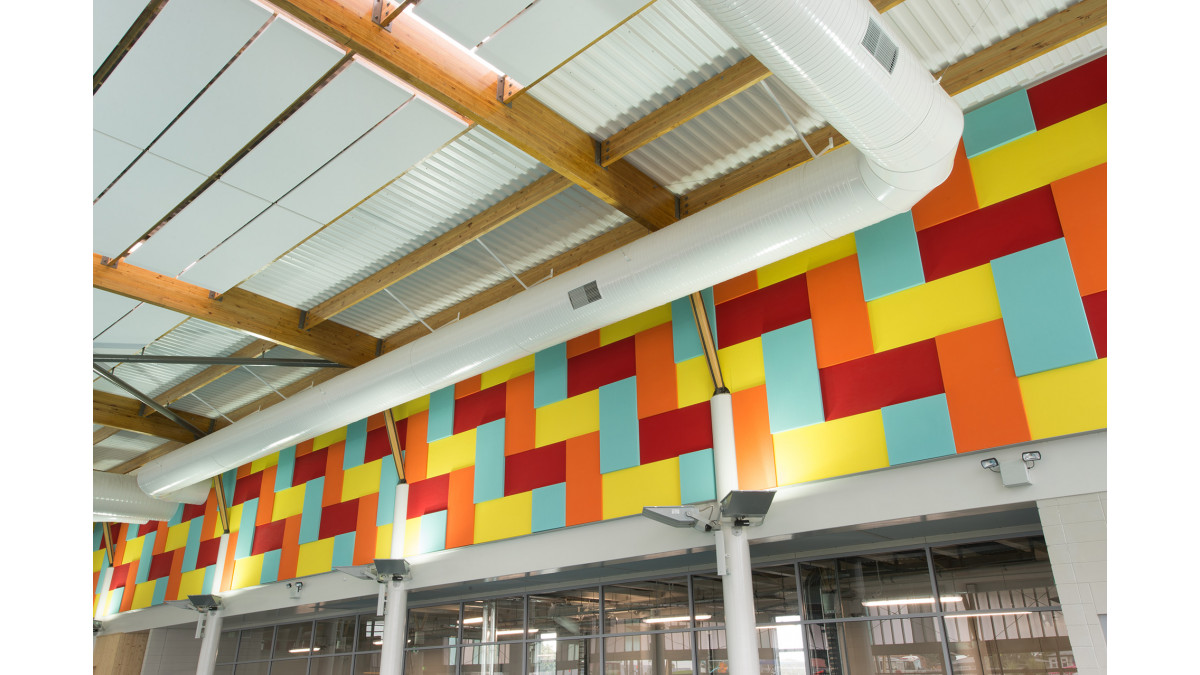

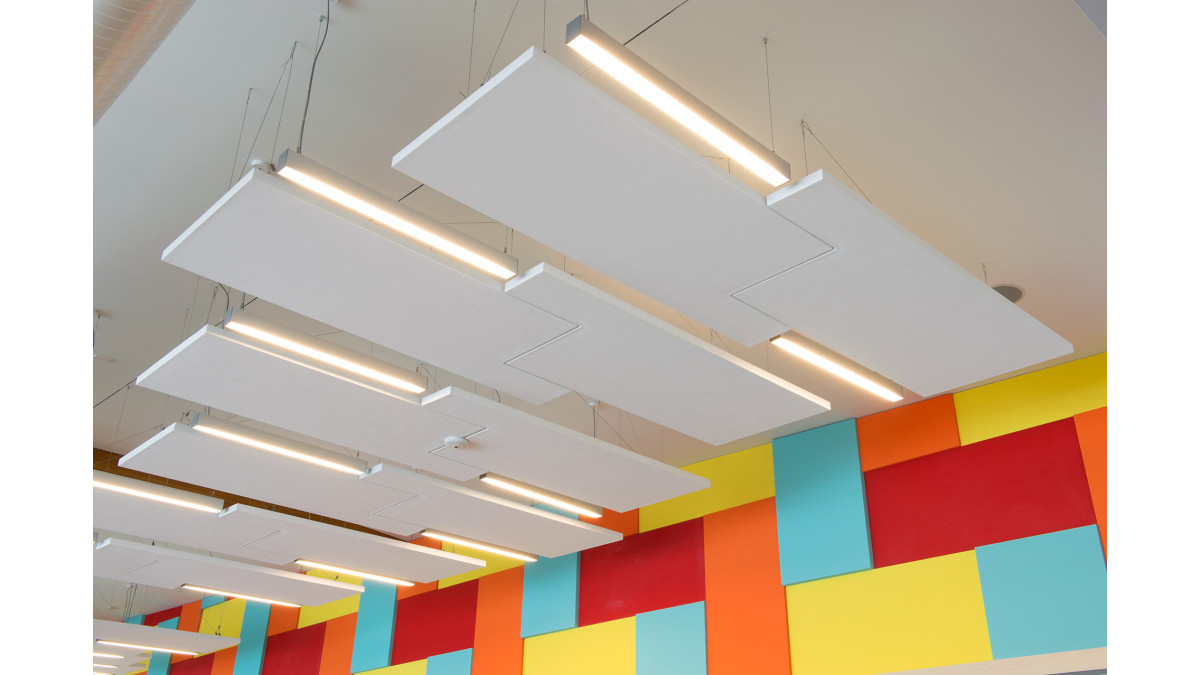

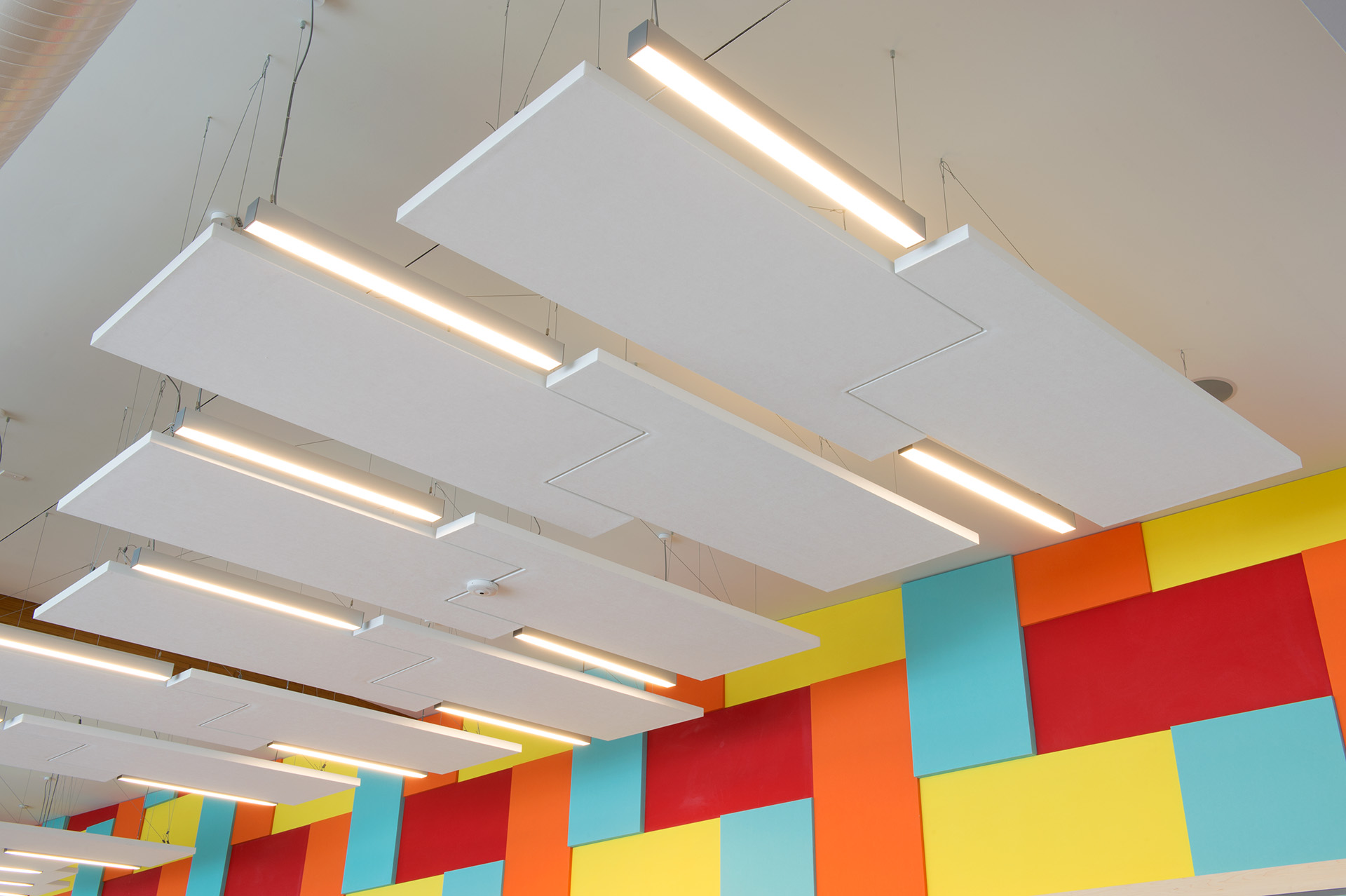

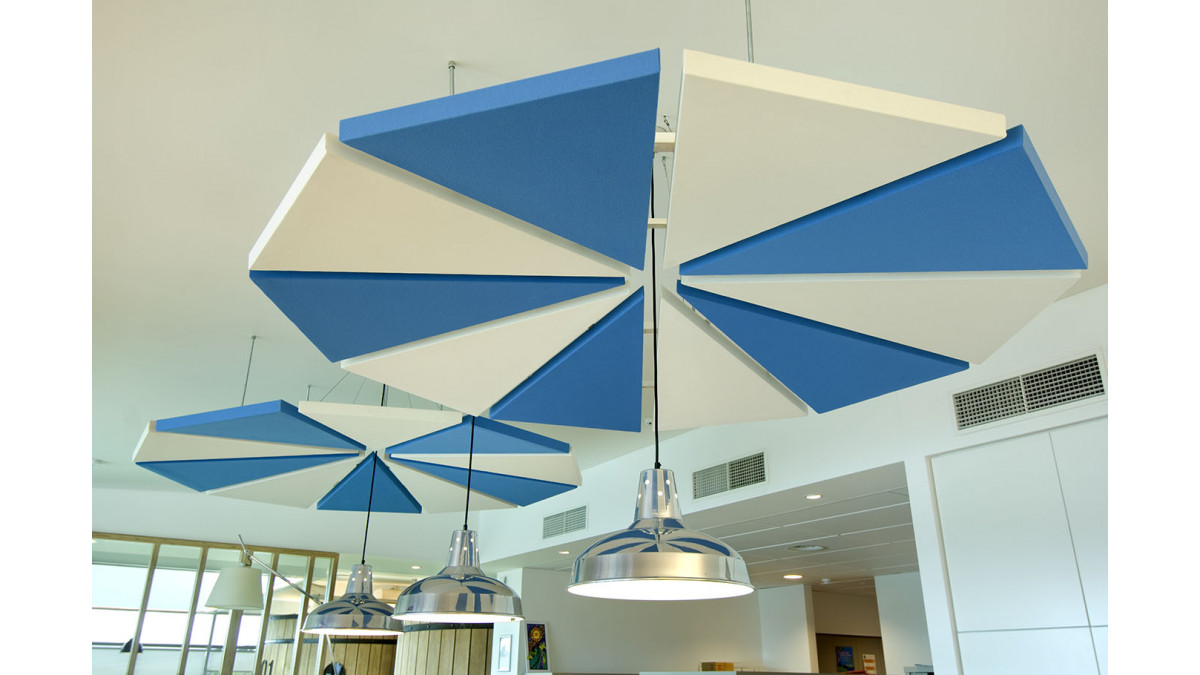

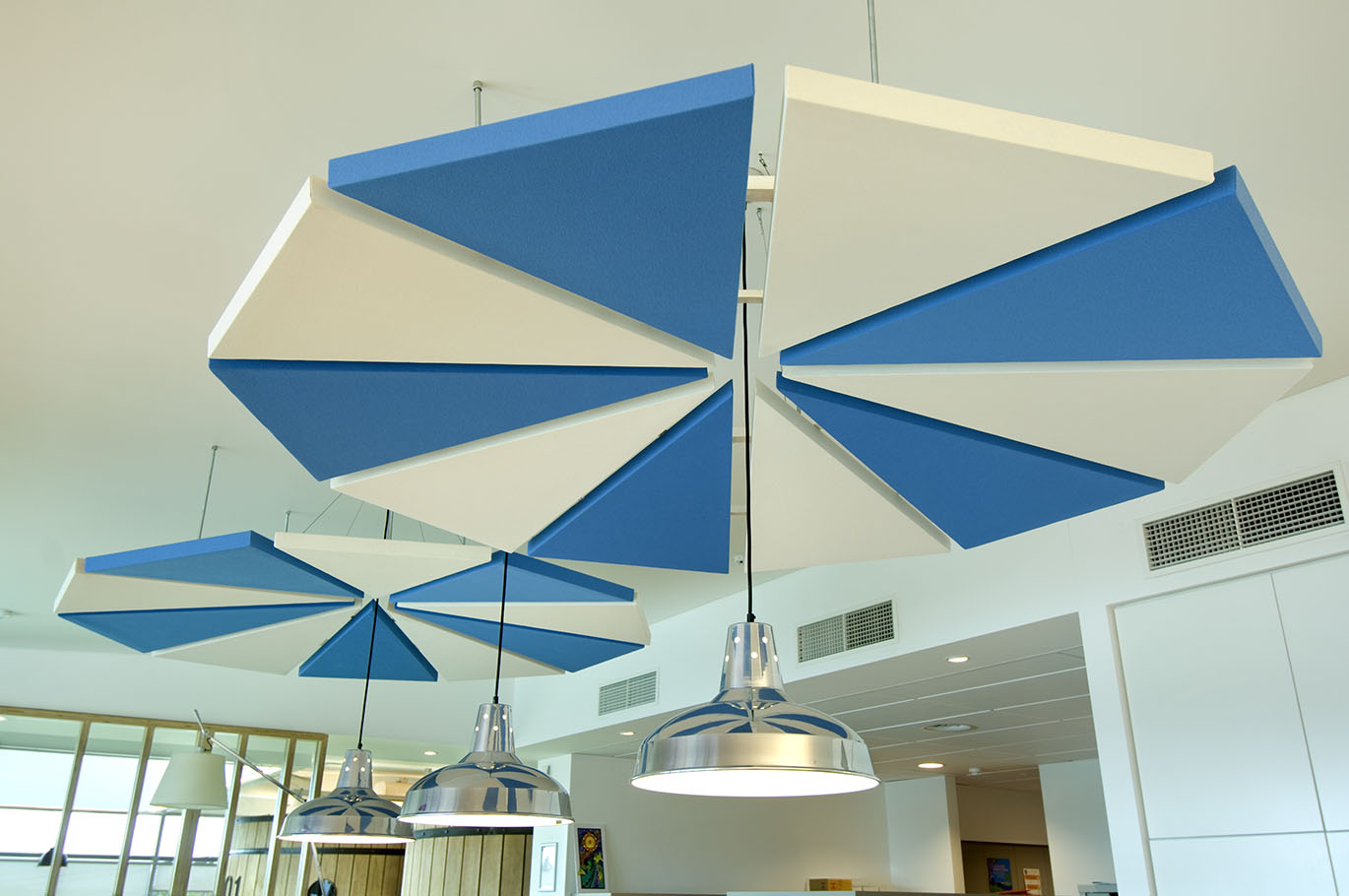

Triton Cloud™ panels are a New Zealand made high sound absorbing ceiling panel with wrapped edges for a crisp tailored finish.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Designed as a free-floating acoustic ceiling panel or direct fixed ceiling or wall panel
Triton Cloud panels are ideal for ceilings in open office, classrooms, meeting rooms, halls, cafes and bars where control of noise is required

Very High Earthquake Zone

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. (NB: Based on Sonatex laminates. Fabric finishes will result in fire group rating 2-S, 2 and 3. Please consult Asona)
Clause B2—durability, 5 years

Durability

Hazardous Building Materials

Independent Assessment

Test Results

Triton Duo 60

Asona

View Product

Triton Duo 60™ is a made in New Zealand mass loaded 60 mm thick composite ceiling panel designed to provided attenuation of flanking and transmitted sound as well as broad band sound absorption for reverberation control.

Green Tag Certified

NZ Made

NZ-Owned Business

Triton Duo 60 is ideal for ceilings under metal roofs to control rain noise, mechanical services, buildings near aircraft flight paths, train lines or for private meeting room ceilings.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
Clause B2 — durability, 5 years

Durability

Hazardous Building Materials

Independent Assessment

Test Results

Triton Pool Panel

Asona

View Product

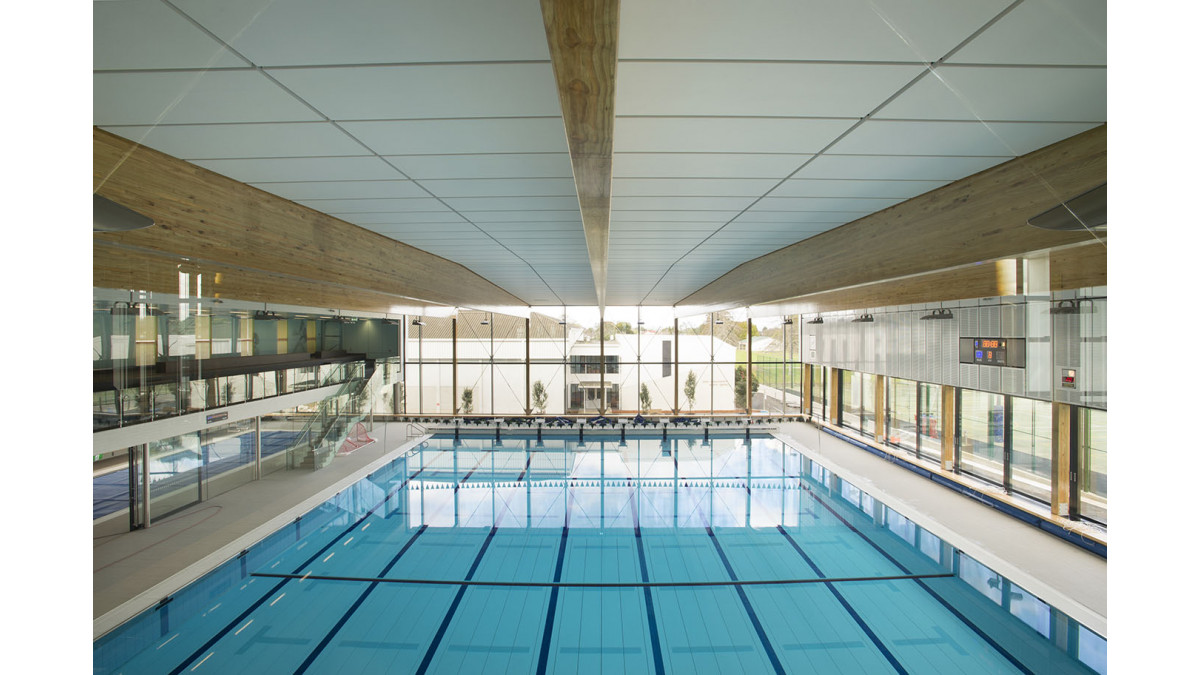

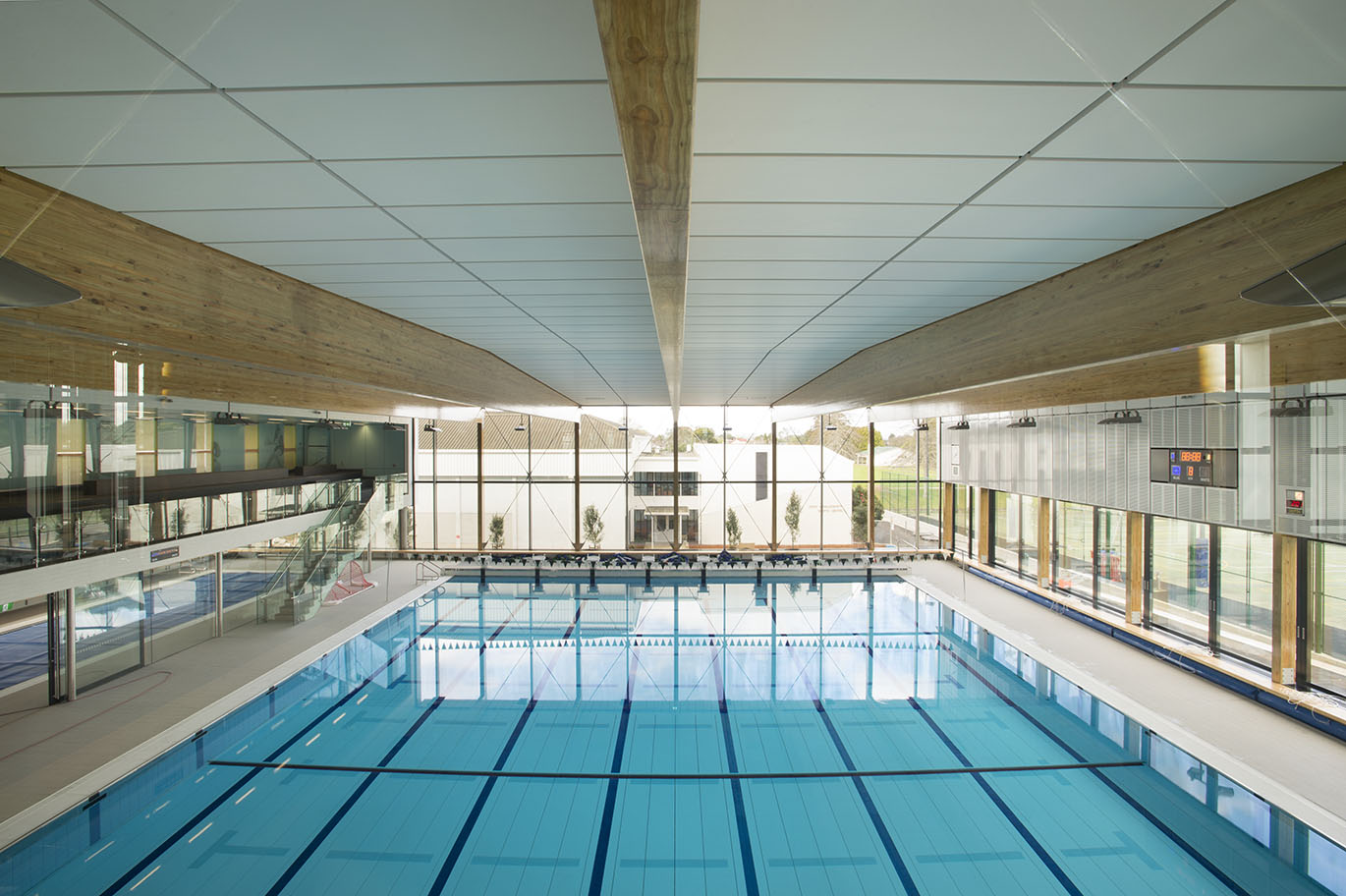

Triton Pool™ panels are a proprietary edge wrapped 50 mm thick, high sound absorbing, acoustical panel designed for high level swimming pool ceilings.

Green Tag Certified

Post-Consumer Recyclable Content

NZ Made

NZ-Owned Business

Triton Pool™ panels designed for pool environments and are to be mounted to allow free movement of conditioned air between and behind the panels to reduce the risk of interstitial condensation.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings.
Clause B2 — durability, 5 years

Durability

Hazardous Building Materials
