Triton Baffle Beam
Description

Triton Baffle Beam™ is a New Zealand made high sound absorbing ceiling system designed to provide an attractive linear aesthetic and to control unwanted noise. Triton Baffle Beams are available in a range of sizes, decorative finishes and three mounting systems for direct fix or suspended use.

Composition: Non combustible glass wool acoustic core with Sonatex™ laminate to 5 sides, fixing channel from galvanised steel.

Key Features

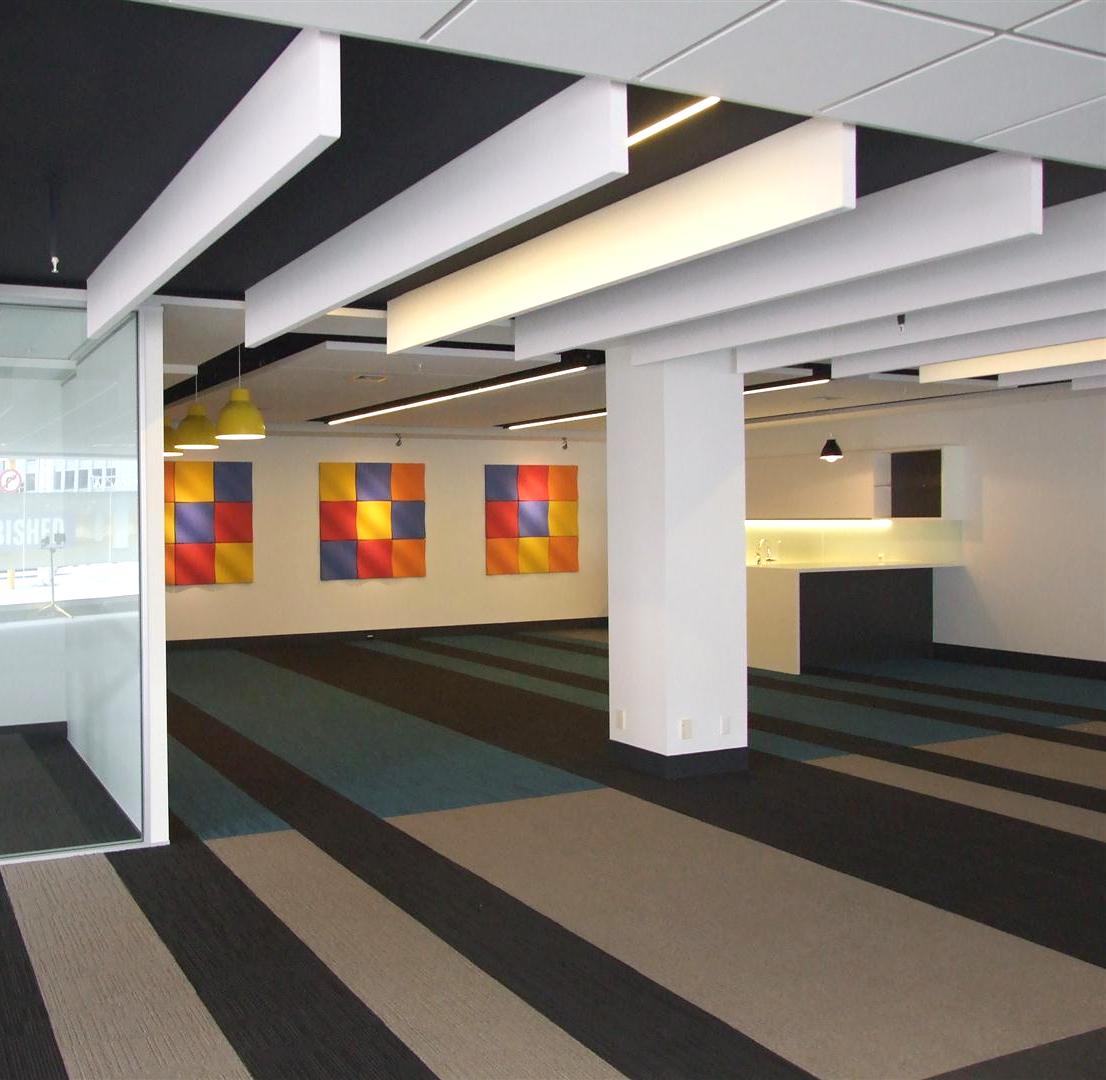

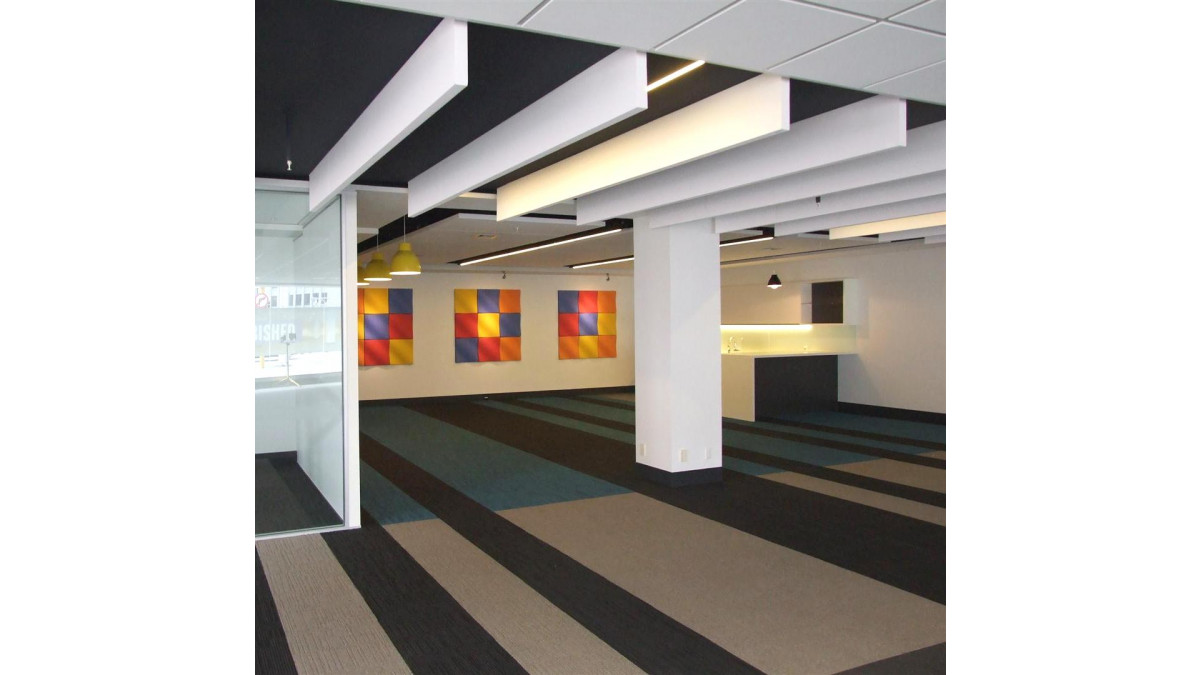

  • Long beam design provides a clean, linear look
  • High sound absorption rating for control of reverberation
  • Narrow or wide Beam options, 25, 40, 50, 75 & 100mm
  • Shallow or deep Beam options, 100, 200, 300, 400mm

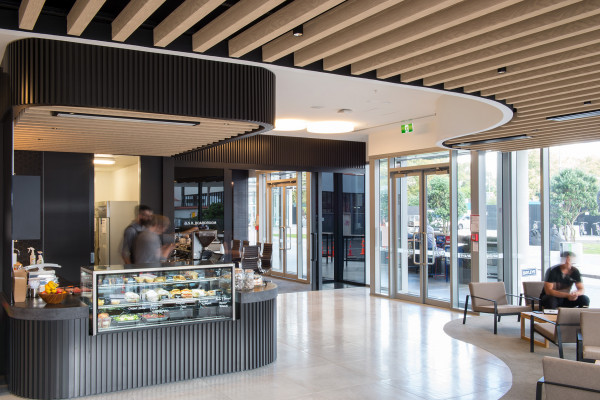

  • Range of Sonatex™ acoustic laminate finishes including four wood prints to add warmth to interiors
  • Three mounting systems allow for direct fix to a solid lining, fixed to a suspended sub-frame or free suspended
  • Group 1-S fire rating
  • Non-combustible, dimensionally stable, will not twist or warp like wood-based beams
  • Light weight for seismic design
  • GreenTag Certified / Level A
  • Packaging take back and reuse scheme
  • Made in NZ, short lead times including replacement parts
Green Tag Certified
Green Tag Certified
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Baffle Beams are ideal for reception areas, corporate offices, corridors, open-plan offices, showrooms, galleries, hospitality, retail and large public spaces.

Lightweight, acoustic alternative to solid wood slat systems suitable for seismic sensitive areas.

Limitations on Use
  • Not suitable for exterior use or in damp and moisture laden areas
  • Triton Baffle Beams are a finishing trade, installation shall not commence until the building is water tight, dry and free of dust and debris
  • Max 99% R/H at 45°C
Statement of Building Code Compliance
  • Asona Triton Baffle Beams complies to the following NZ Building Codes: B2.3.1 . C3.4, F2.3.1
  • Fire Reaction - NZBC verification method C/VM2 material group number: 1-S
  • Clause B2—durability, 5 years
In-Service History
  • Life Pharmacy, The Crossing Tauranga
  • Vodafone, Auckland
  • Commercial bay, Auckland
  • Lumino, Auckland
  • JWL, Tauranga
Other Performance Attributes
  • GreenTag certified level A, core contains 80% recycled waste glass, product and packaging can be reused/recycled in NZ. Low VOC <0.002 Mg/M²/hr per ASTM D5116.
  • Light Reflectance — ASTM C1477 LR-1, >75% White
  • Acoustic absorption — NRC 0.55 - 0.75
Independent Assessment
Independent Assessment
Test Results
Test Results
Documents
Asona Triton Baffle Beam

24.08

Environmental Information - GreenTag Level A

230413

Maintenance: Triton Range
Warranty

Asona Ltd are a manufacturer, distributor and installer of acoustic and decorative ceiling and wall panels.
