Description

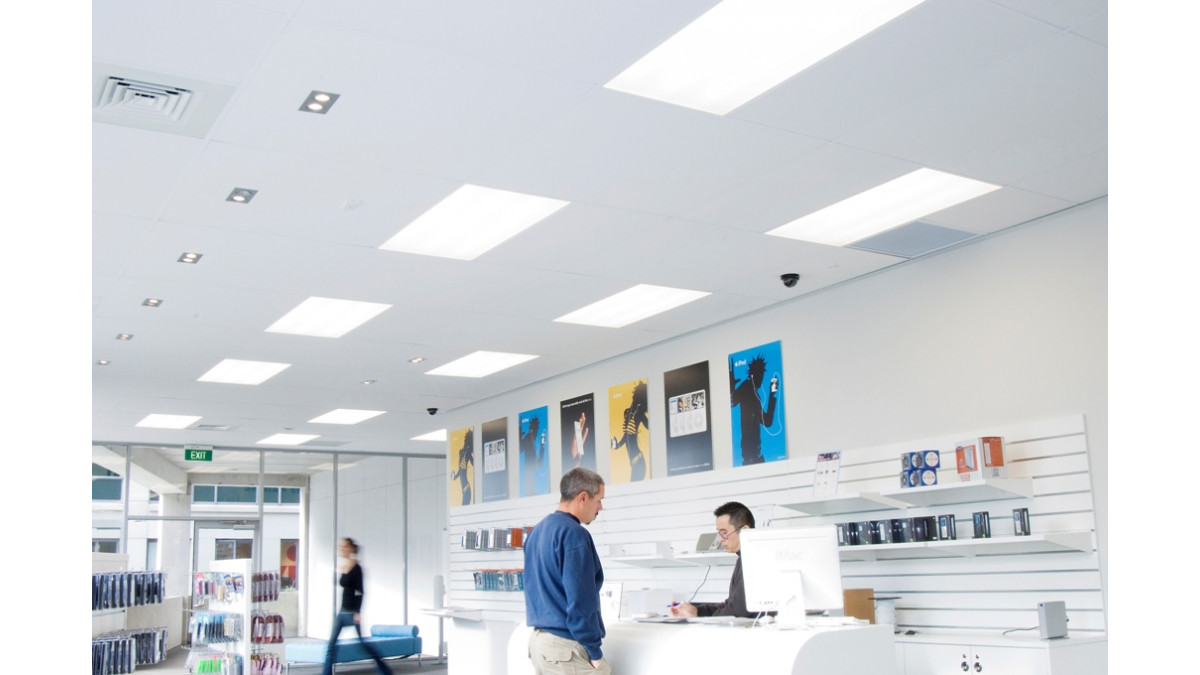

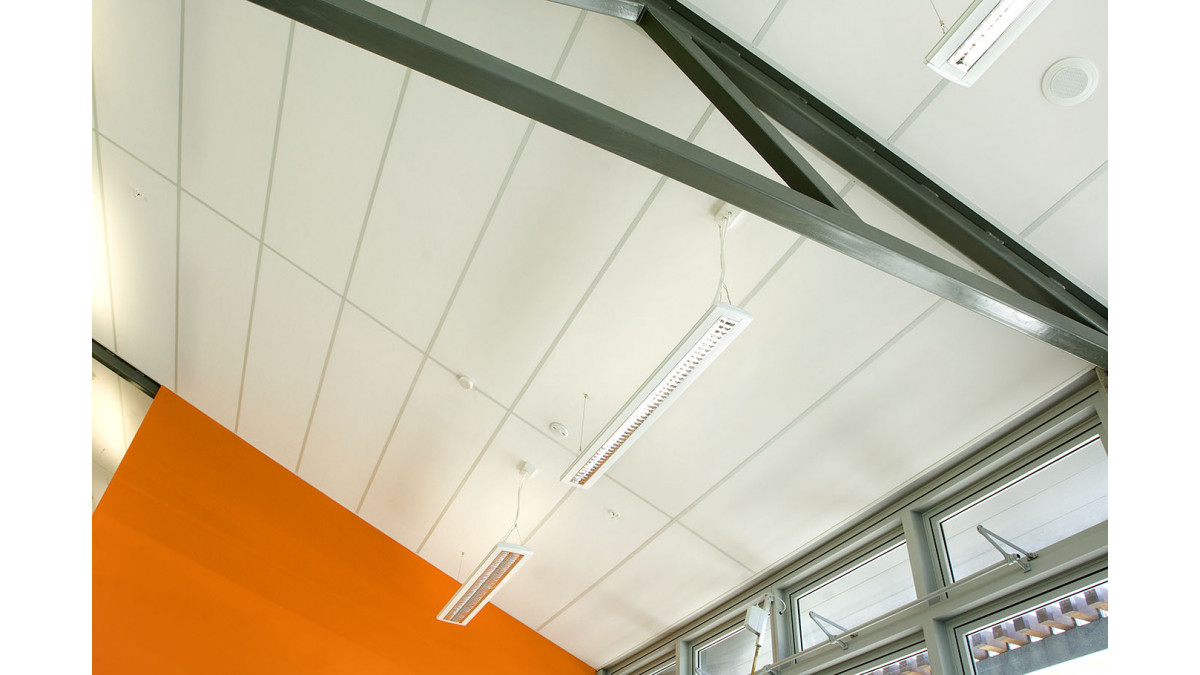

Triton 25 is an NZ-made, high sound absorbing ceiling panel designed to control unwanted noise reverberation. Triton panels are available in a wide range of sizes and decorative colours, wood prints and perforated acoustic laminate patterns.

Manufactured in New Zealand from 48 kg/m³ bio-soluble glass wool absorber, tissue backed, Sonatex™ / Sonaris™ acoustic laminate finish.

Key Features

Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0. Provides more absorption per m² than other acoustic materials
Fire Group 1-S
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Board formed from 80% recycled local glass
Low formaldehyde > 0.05 gm
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
Made locally in NZ, meaning short lead times, including replacement parts
Panels available with strippable foil option to better protect the decorative finish during the construction phase
Durable and dimensionally stable in high humidity
Light weight for seismic, easy to work and trim

Ranges

Triton Sonaris

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Scope of Use

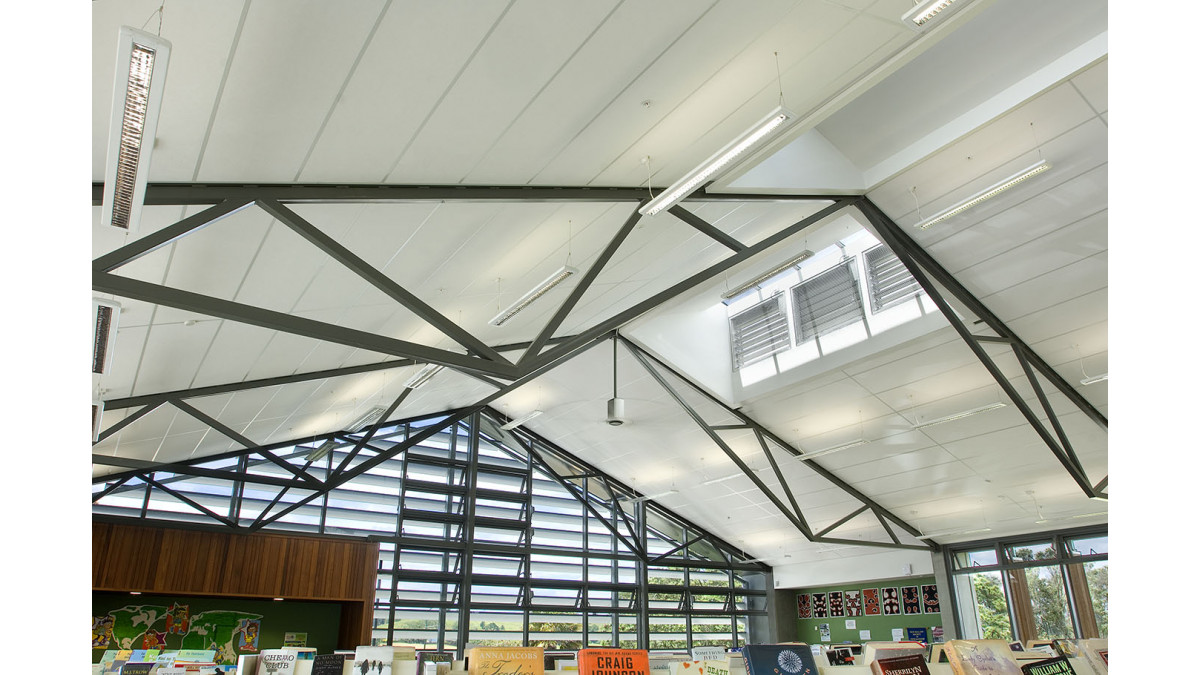

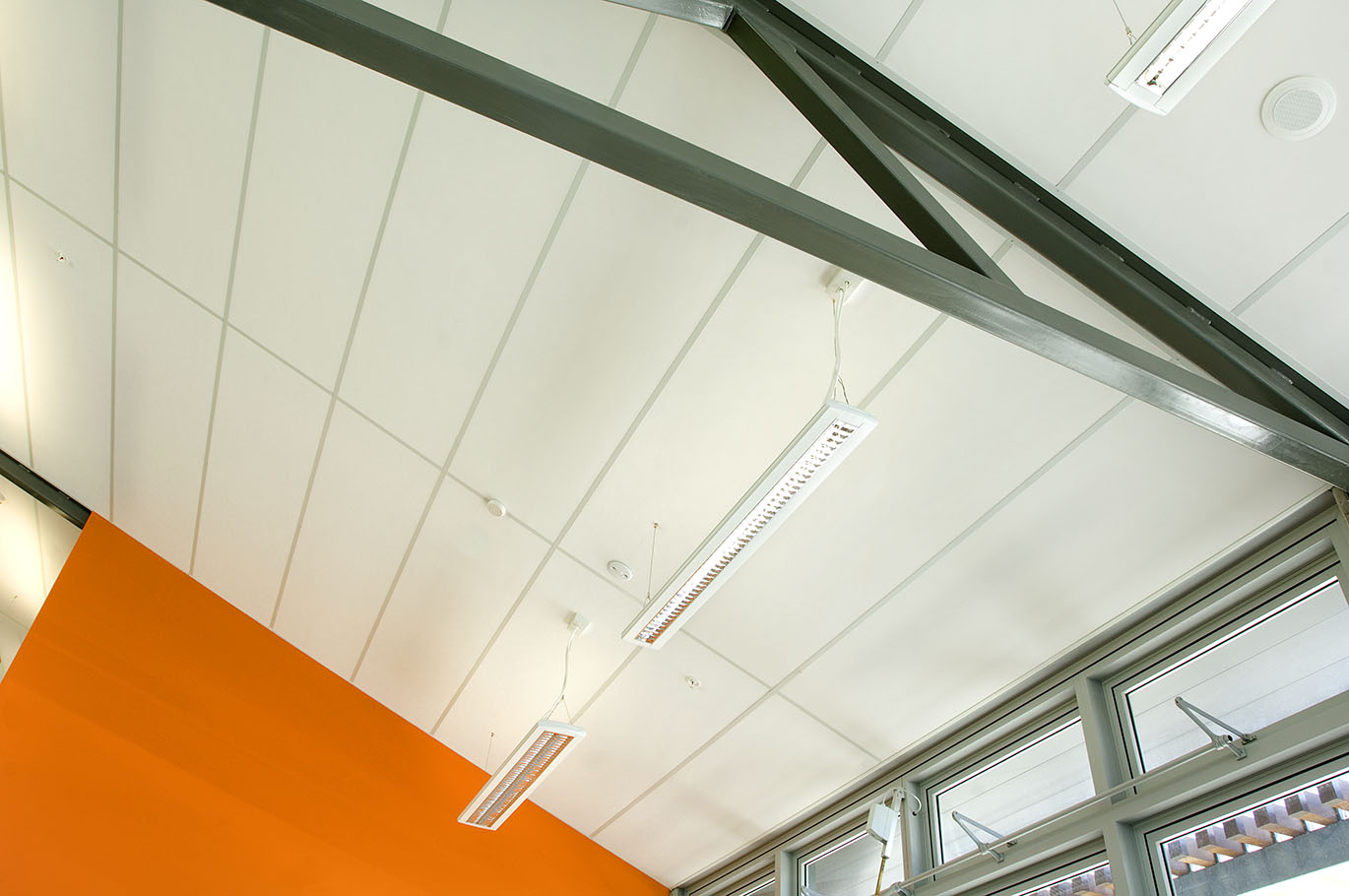

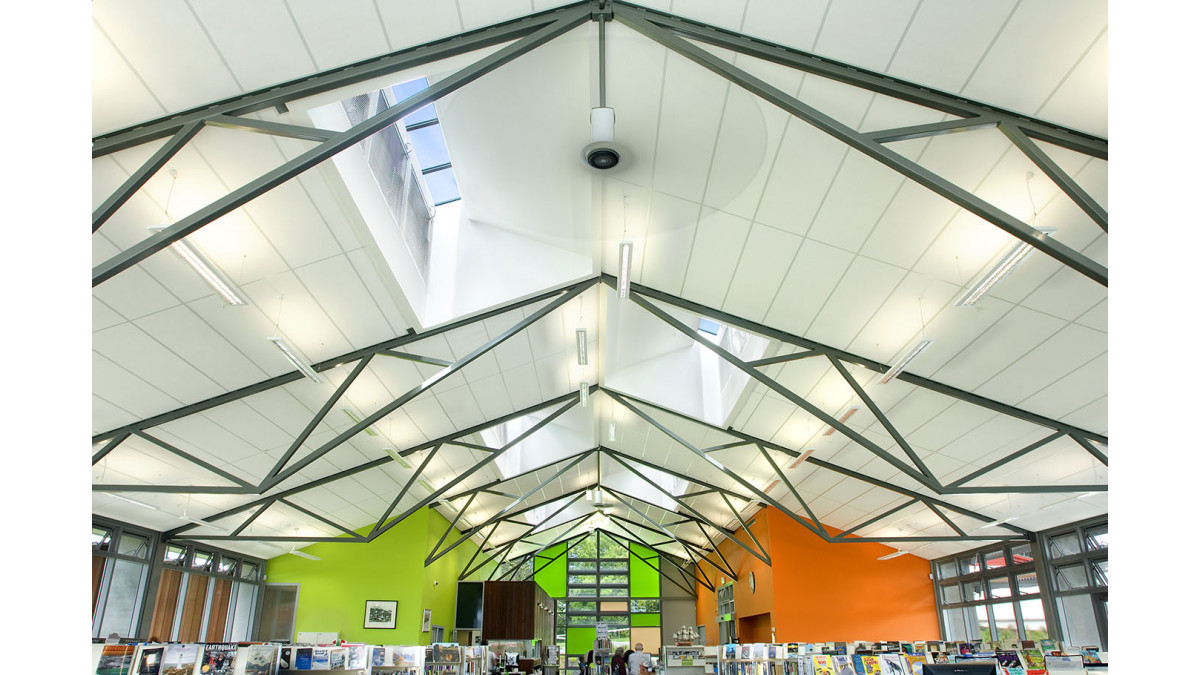

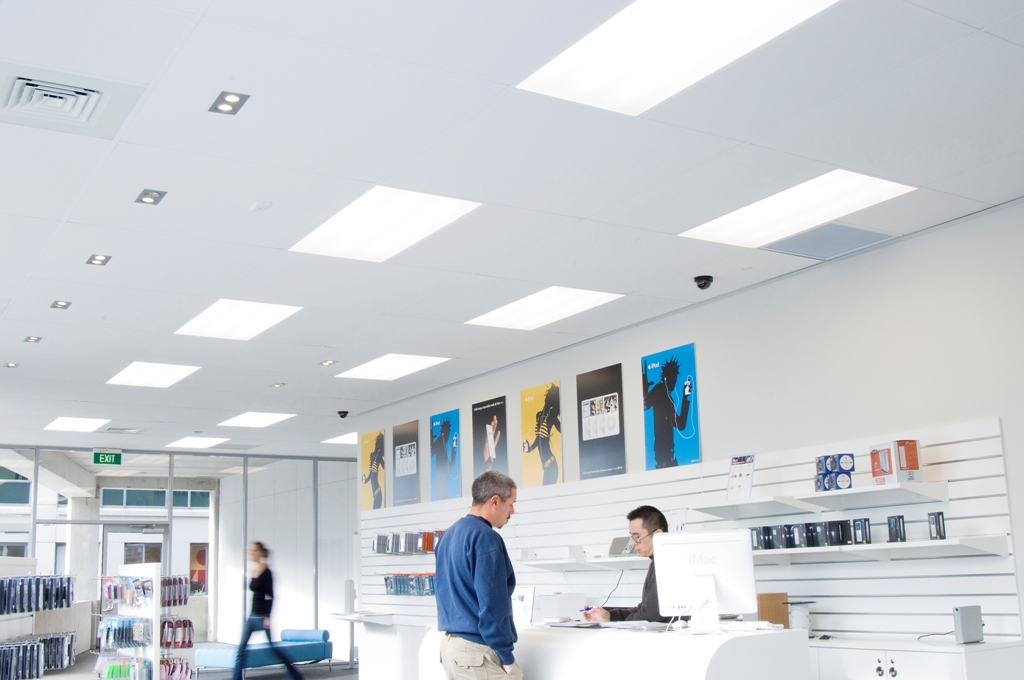

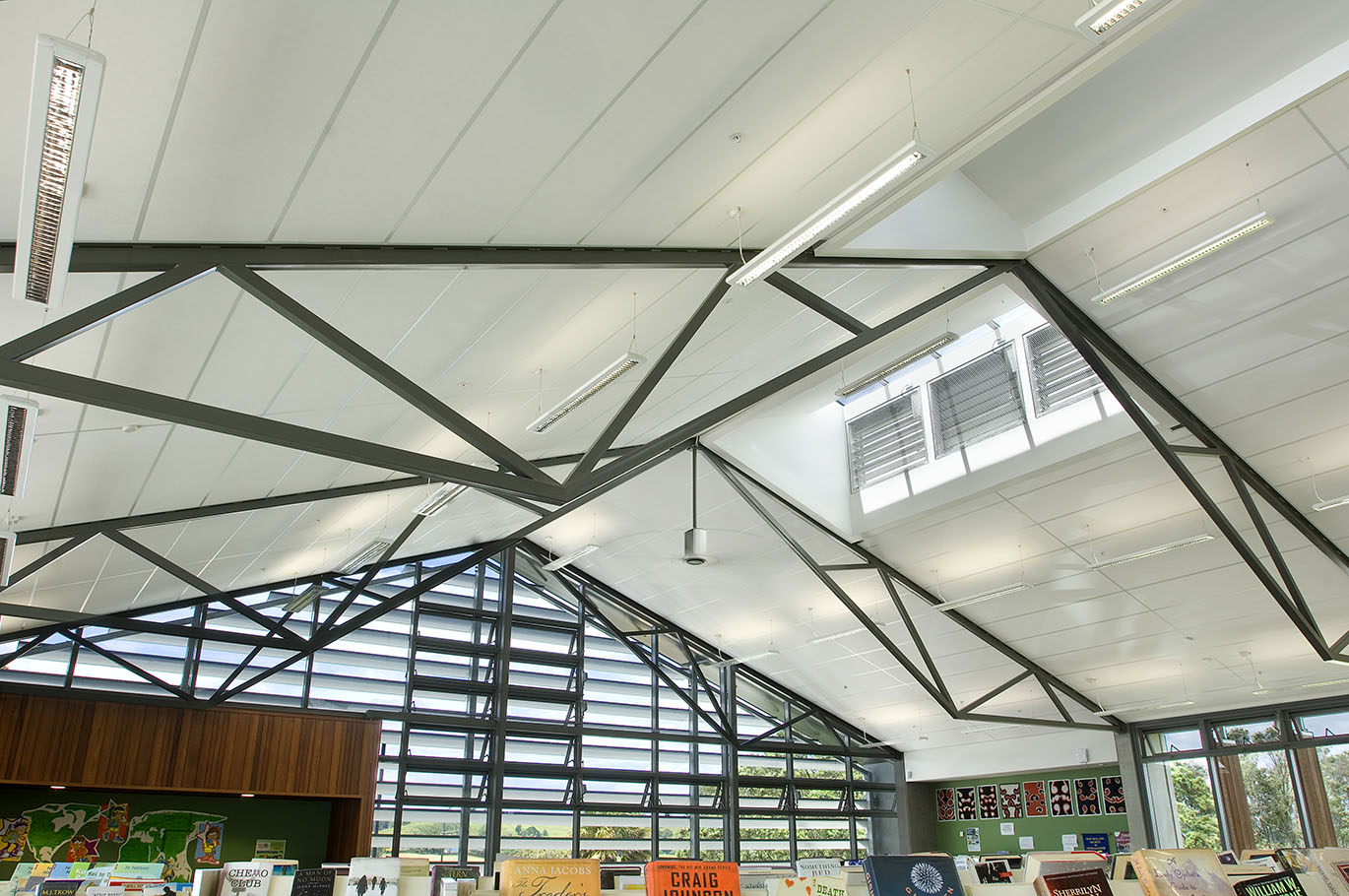

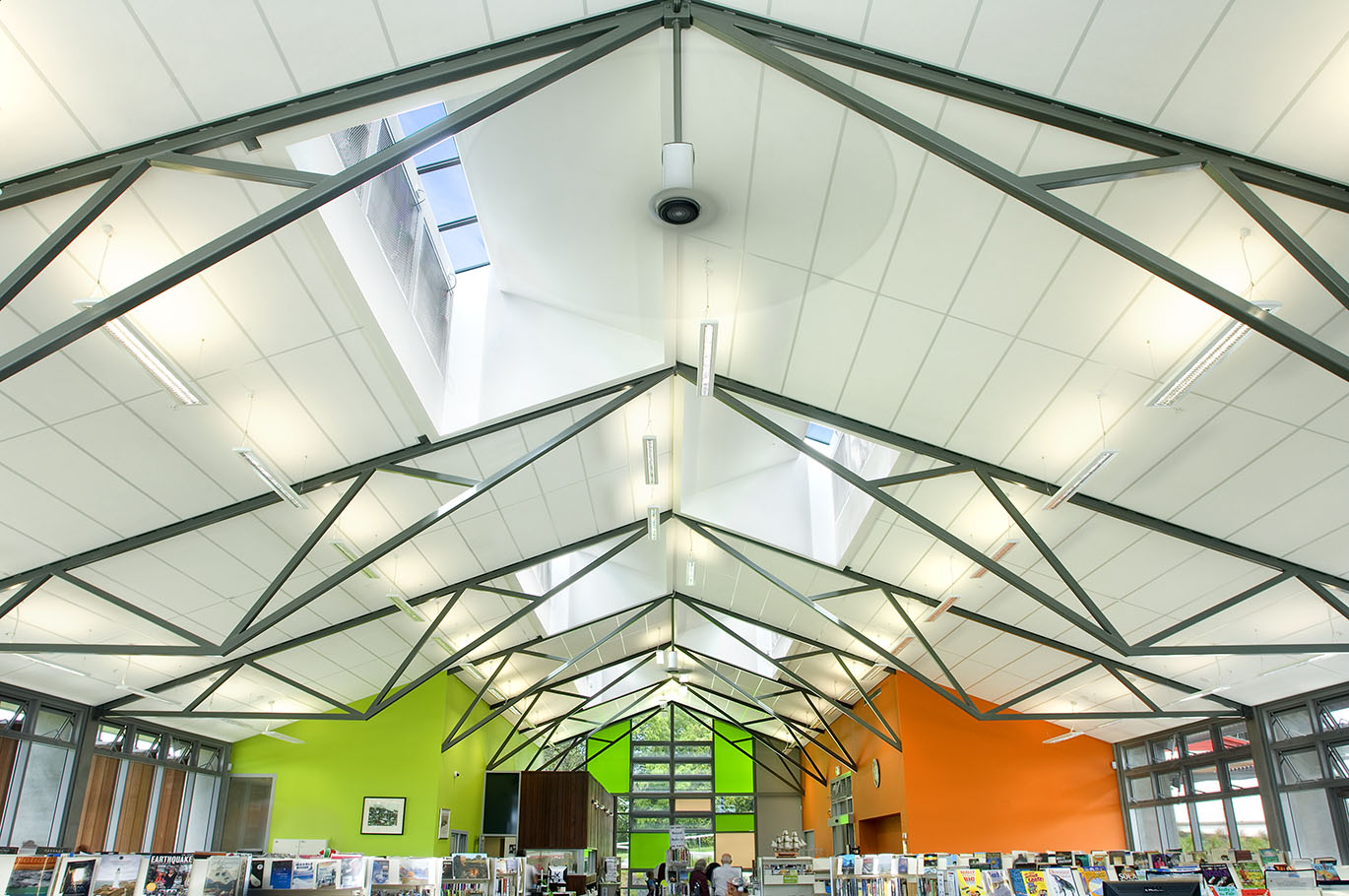

Ideal for use in open plan offices, schools, call centres, libraries and other applications that require control of background noise levels and reverberation times.
Light weight permits larger areas for high seismic prone areas

Limitations on Use

Shall not commence until the building is water tight and dry
Light fittings shall be independently supported
Backloading max. 1.5 kg/m², point loads shall be independently supported
Max 99% R/H at 45°C
Use hold down clips in areas of wind uplift
Not for air return plenums

Very High Earthquake Zone

Statement of Building Code Compliance

NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability, 5 years

In-Service History

Multi projects over many years.

Other Performance Attributes

Light Reflectance - 85% per BS8493:2008, White
Very high sound absorption rating to control reverberation, NRC 0.95, ISO 11654 class A, αW 1.0. Provides more absorption per
Fire Group 1-S
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Board formed from 80% recycled local glass
Low formaldehyde > 0.05 gm
