Thermo Acoustic Ceiling Panels Contribute to Net Zero

Asona specialises in local manufacturing of Triton thermo acoustic ceiling and wall panels and is recognised as an industry leader in environmental sustainability. These criteria were high on the list for the Ministry of Education and significantly contributed to Asona being awarded the All of Government tender via MBIE. The Triton range is the required thermo acoustic solution for the national Small and Remote School tender programme.

The Triton range of thermo-acoustic ceiling panels contributes to the construction of net zero carbon buildings as they are locally produced; made with locally sourced raw materials containing 80% recycled glass waste from New Zealand. Local manufacturing means very low embodied energy materials particularly around processing and transport of building materials while providing stable employment to the local community.

Triton panels are non-combustible, lightweight — reducing risk in seismic prone areas, low VOC, and easy to handle and install due to their unique composite construction. The tiles are designed to be easily disassembled, renewed and reused in buildings to extend product life. The Return, Renew and Reuse service helps reduce construction waste and can be applied to a wide range of ceiling tiles.

The Triton range of high-performance acoustic ceiling panels are Global GreenTag Cert Level A Certified. Panels are available in a wide range of standard and custom decorative finishes, shapes, sizes, colours and edge wrapped options that meet almost every application including suspended grid and panel ceilings, free hanging cloud and baffle panels, linear beam panels, direct fix ceiling and wall panels for general office, classrooms, gyms, swimming pools, auditoriums and studios.

Triton Duo and Trio mass loaded panels are designed to attenuate metal roofing rain noise, provide speech privacy between classrooms, meeting rooms and offices, and control room reverberation times, while also providing good thermal insulation ratings to help reduce heating and cooling energy costs over the life of the building.

Connect with Asona for technical expertise in preliminary design, seismic, acoustic and specification assistance. As a registered member of the CPD Provider Network via NZIA, they can provide support around version 3.0 of the updated Designing Quality Learning Spaces from Ministry of Education.

Triton 50

Asona

View Product

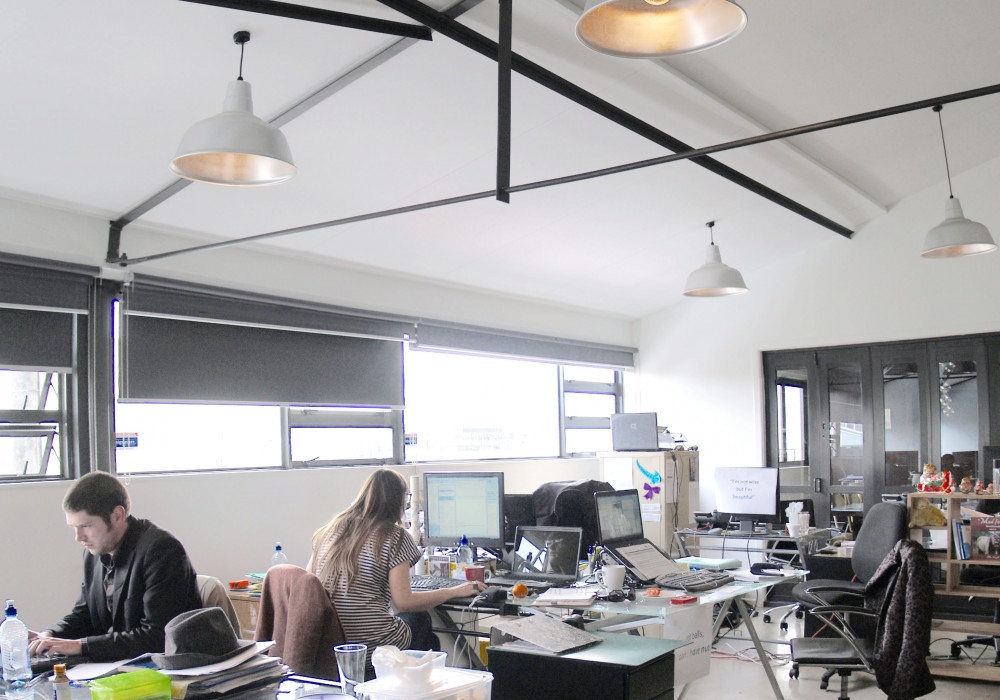

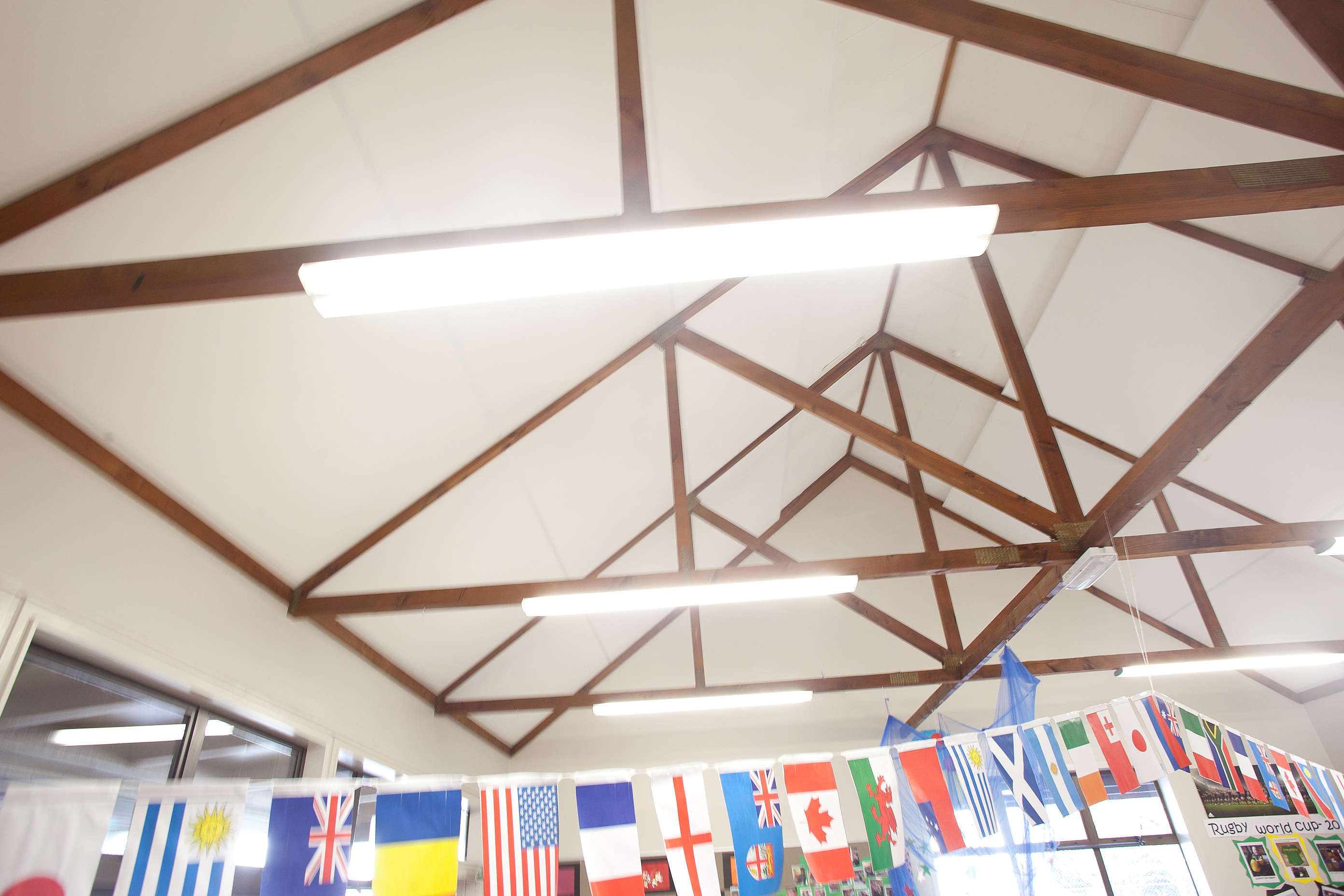

Triton 50™ is a made in NZ high sound absorbing ceiling panel that is designed to control unwanted noise reverberation.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

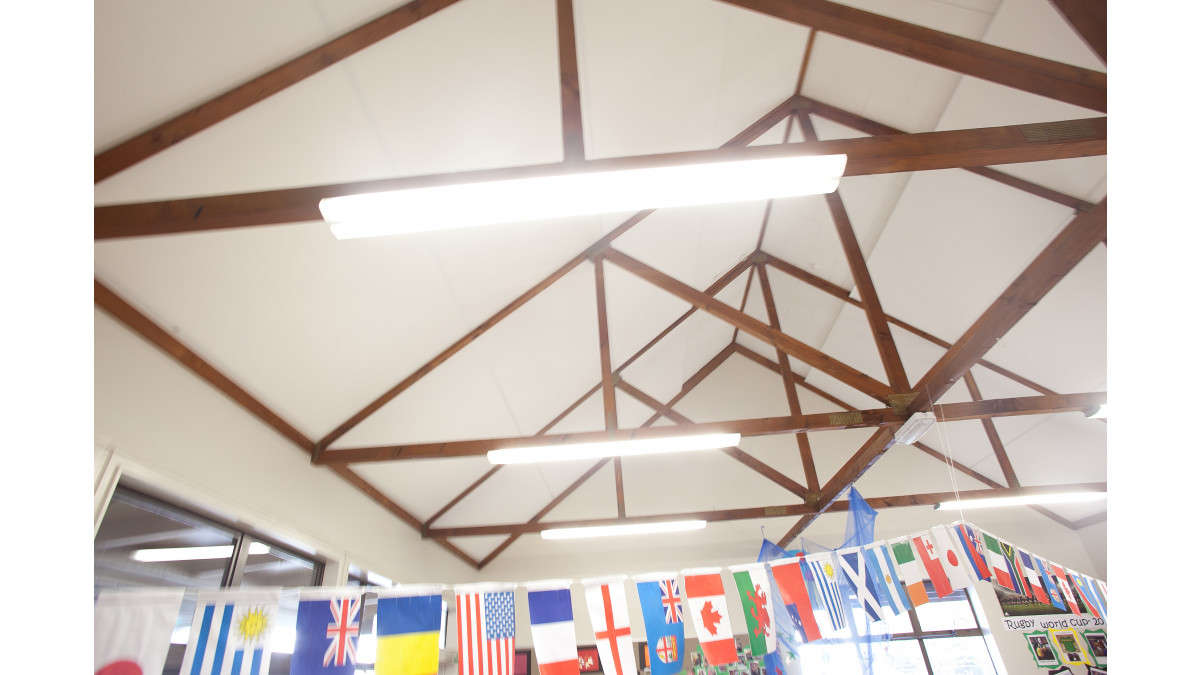

Triton 50/50HD™ is an ideal retrofit acoustic panel for classrooms, offices, community halls when applied directly over plasterboard in large sheets or as a suspended grid and panel ceiling.

Ideal for call centres, open plan offices, halls, classrooms, libraries, etc where a combination of high acoustic absorption is required combined with good attenuation to block noise.

NRC 1.00, 50mm thick panel provides superior sound ab-sorption at low to high frequencies in either direct fix over plasterboard or as a suspended ceiling
Large panels up to 1200 x 2400mm provide for a cleaner look with fewer panel joins compared to standard 600 x 1200mm size
Can be suspended or directly fixed over plasterboard linings to reduce reflections from hard surfaces
Ideal for service panels
Light weight for seismic areas

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability 5 years

Independent Assessment

Test Results

Triton 25

Asona

View Product

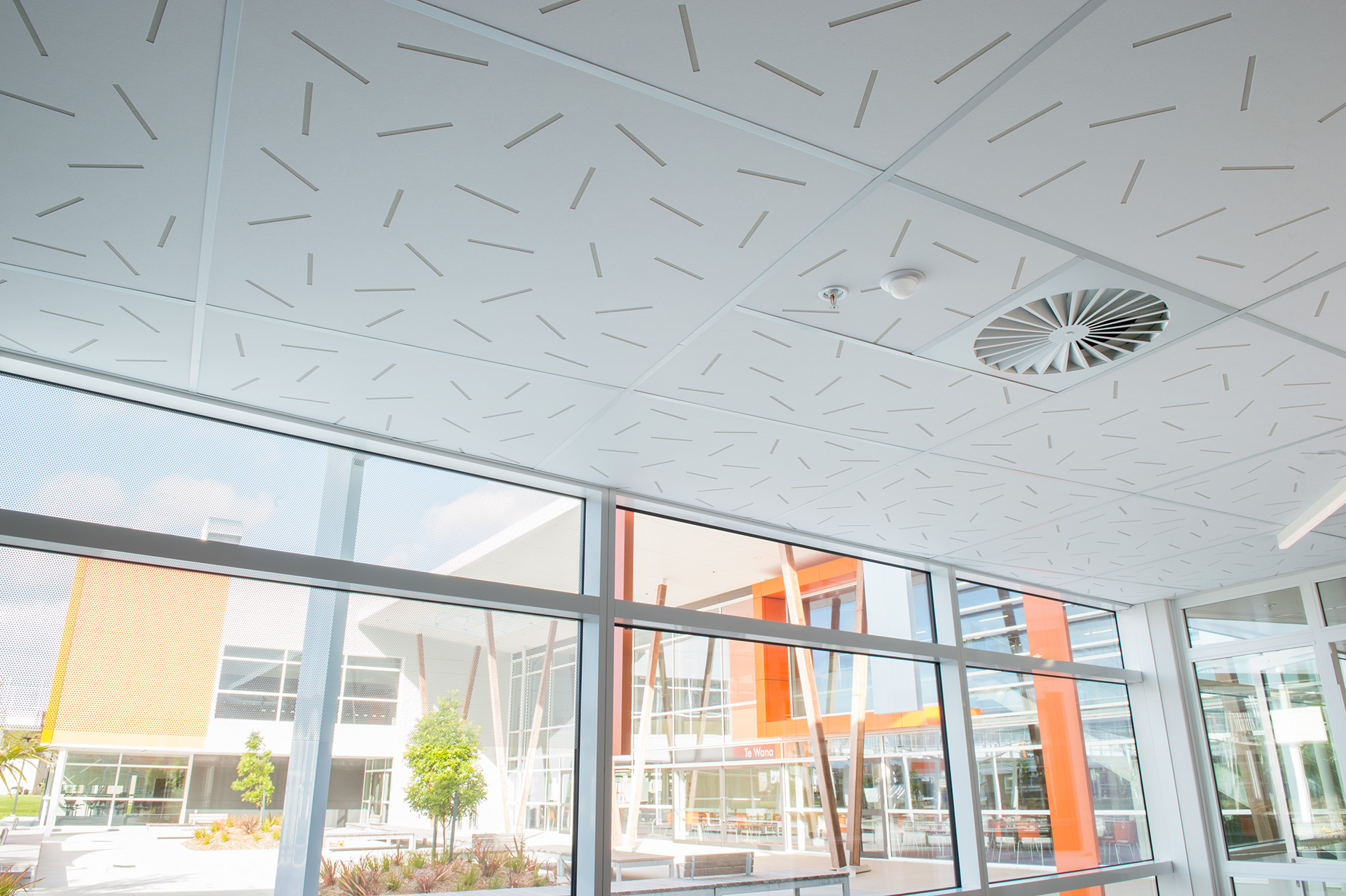

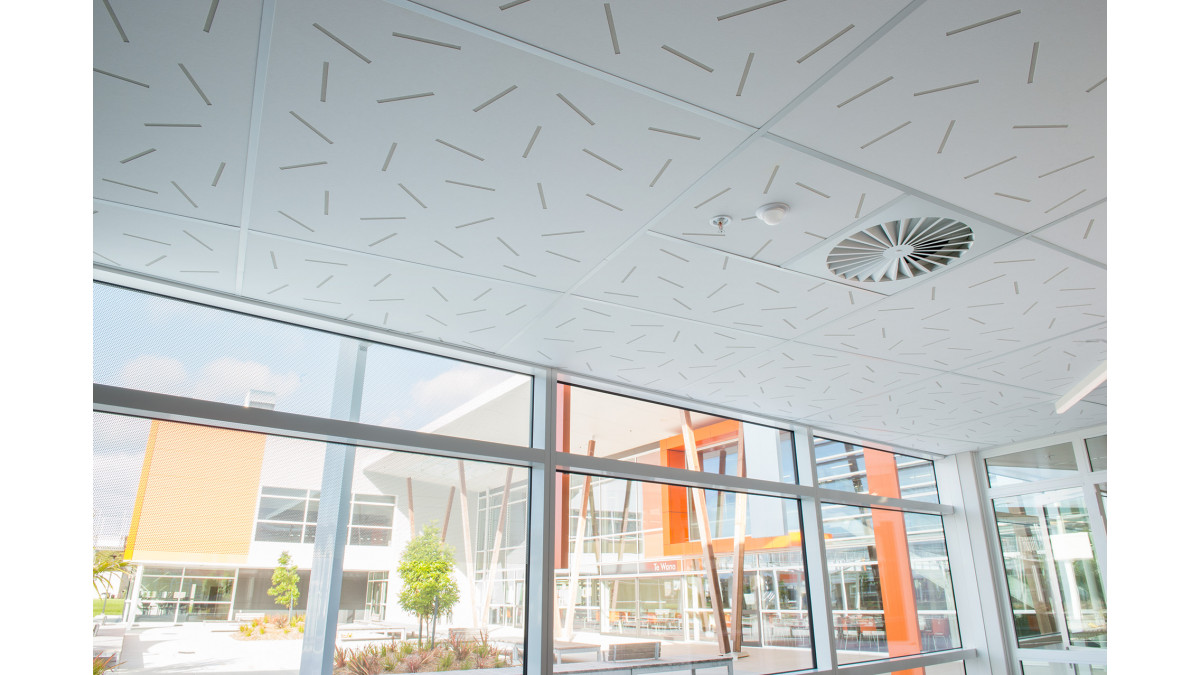

Triton 25 is an NZ-made, high sound absorbing ceiling panel designed to control unwanted noise reverberation.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Ideal for use in open plan offices, schools, call centres, libraries and other applications that require control of background noise levels and reverberation times.
Light weight permits larger areas for high seismic prone areas

NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability, 5 years

Independent Assessment

Test Results

Diffusion

Asona

View Product

Diffusion™ is a New Zealand made laminated plasterboard ceiling panel designed to reflect sound and to compliment Triton™ high sound absorbing ceiling panels.

NZ Made

NZ-Owned Business

Post-Consumer Recyclable Content

Diffusion™ is ideal for use in music rooms as well as traditional didactic style teaching spaces, lecture theatres where it is desired for the teachers voice to be projected to the back of the room.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
Clause B2 — durability, 5 years

Test Results

Triton Defender 50

Asona

View Product

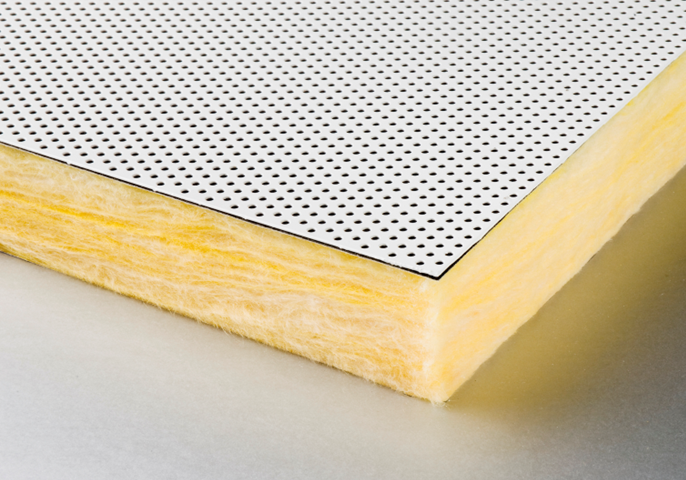

Defender 50™ is an New Zealand made, durable abuse-resistant high sound absorbing perforated steel faced composite ceiling and wall panel.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

Defender 50 is ideal for detention facilities, prisons, sport halls, school halls as a durable direct fix or suspended ceiling, bulk head or wall lining.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
Clause B2 — durability, 5 years

Test Results

Triton 75

Asona

View Product

Triton 75 is a made in NZ 75 mm thick high performance acoustic and R2.2 thermal insulating ceiling panel.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Triton 75™ is ideal for thermal and acoustic upgrade of class rooms, halls and applications that require control of low frequency reverberation such as music rooms, recording studios, audiology testing rooms.
Direct fix or suspended ceiling systems
R2.2 thermal insulation rating, ideal for retrofits

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S
Meets NZBC clause B2-durability 5 years

Independent Assessment

Test Results

Triton Fabwall

Asona

View Product

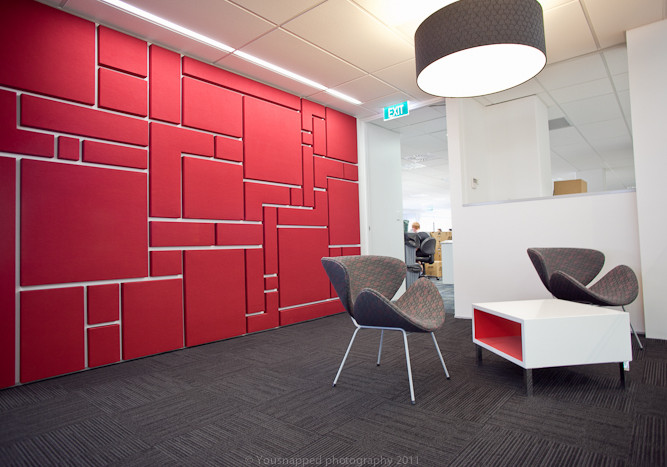

Triton Fabwall™ is a high sound absorbing fabric wrapped acoustic wall or ceiling panel designed to provide an attractive finish and control unwanted noise.

Green Tag Certified

NZ Made

NZ-Owned Business

Acoustic wall or ceiling panel

Triton Fabwall 25™ NRC 0.85, for small rooms.
Triton Fabwall 40™ NRC 0.95, best for medium sized rooms.
Triton Fabwall 50™ NRC 1.00, best for office, school, libraries.
Triton Fabwall 75™ 100, 150, 300 best for max sound absorption. from low to high frequency, large volume spaces.

NZ Building Act — This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (c) (i): Asona Triton Fabwall with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with manufacturer’s installation requirements.
C3 Fire – Clause C/AS2 3.4(a): Asona Triton Fabwall with polyester fabric has a Fire Material Group Number 1-S by NZBC verification method C/VM2 Appendix A, tested in accordance with ISO 5660 or ISO 9705. (NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 1). BRANZ test report FI-14081.
Other fabrics 2-S, 2 and 3. Please consult Asona
Durability, 5 years

Independent Assessment

Test Results

Triton Sports 40

Asona

View Product

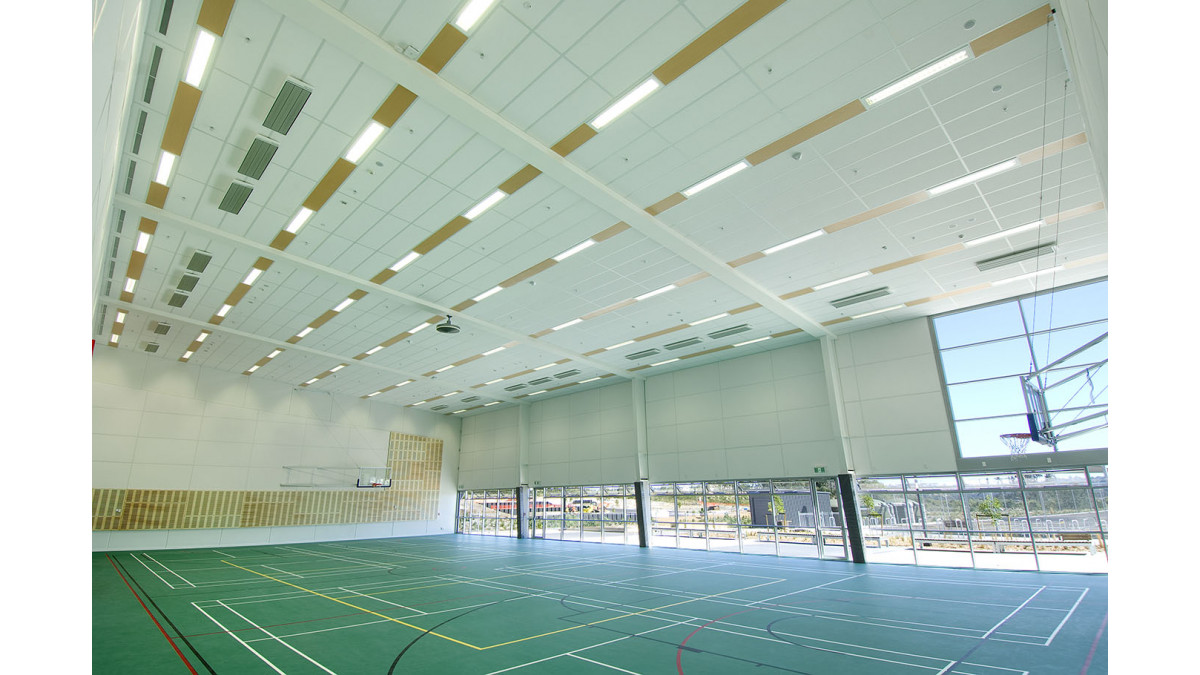

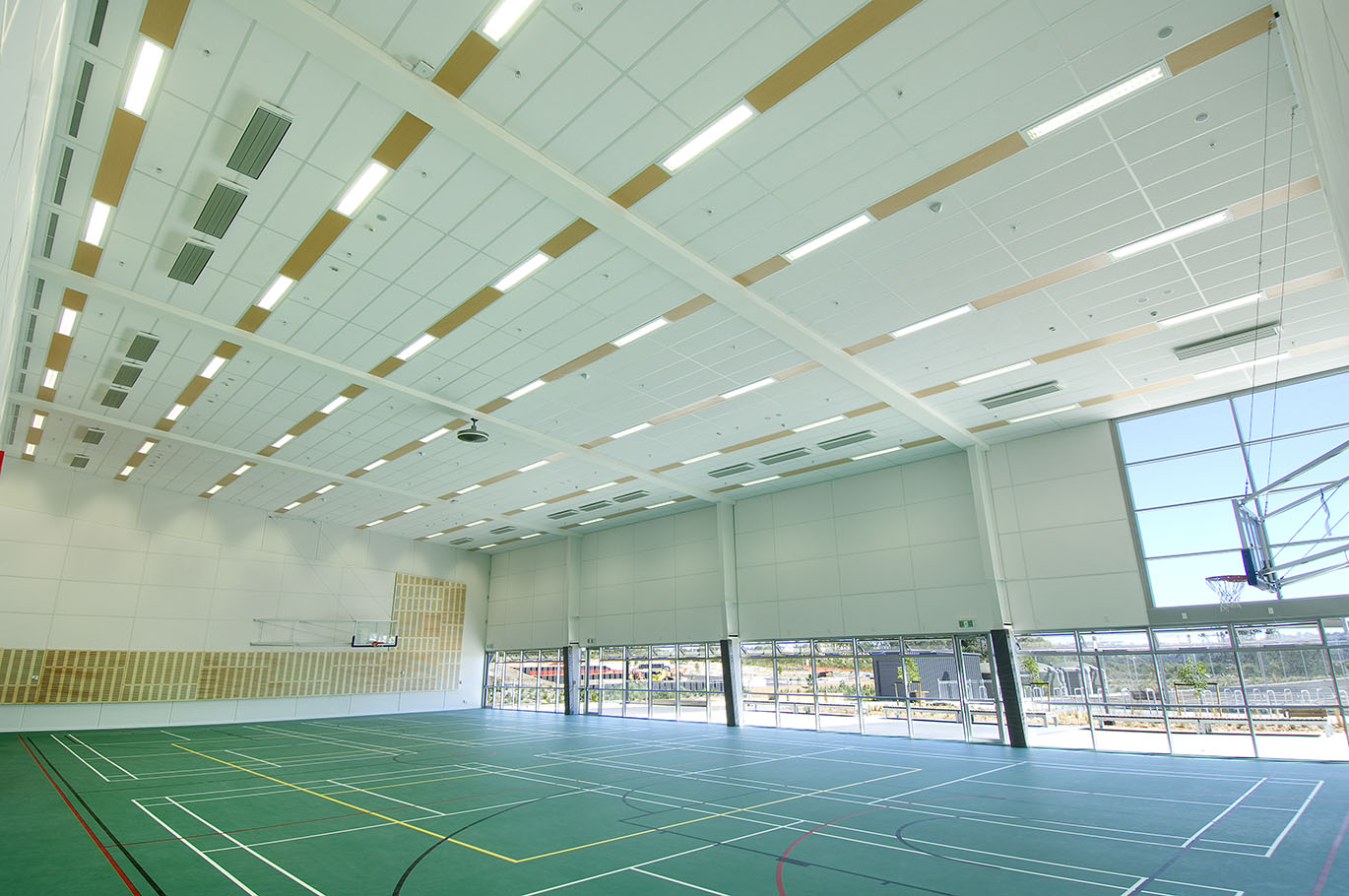

Triton Sports 40™ is a ball impact resistant high sound absorbing and thermal insulating acoustic ceiling system.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Ideal for use in classrooms, gymnasiums, halls, corridors, etc to control reverberation and background noise levels.
The system is designed to provide high sound absorption in areas subject to impact, knocks and bumps.
Wide faced heavy duty Rondo Donn® DXW suspension grid system with proprietary CLW95 hold down clips at 300mm centres to secure panels during impact.
High sound absorption, ideal for large volume spaces. NRC 0.95 for control of reverberation
R1.35 thermal insulation, foil back to reflect radiant energy
Light weight system at 4.3 kg/m² reduces load on the structure and is ideal for seismic prone areas

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S
Clause B2 — durability, 5 years

Independent Assessment

Test Results

Triton Pool Panel

Asona

View Product

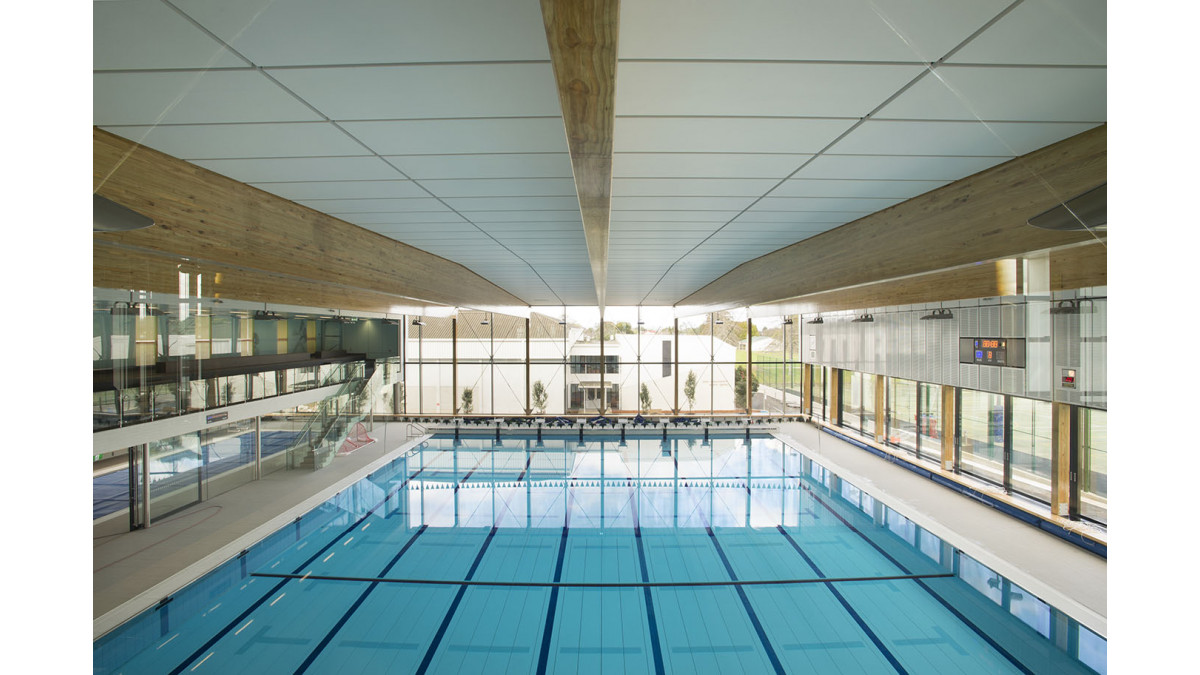

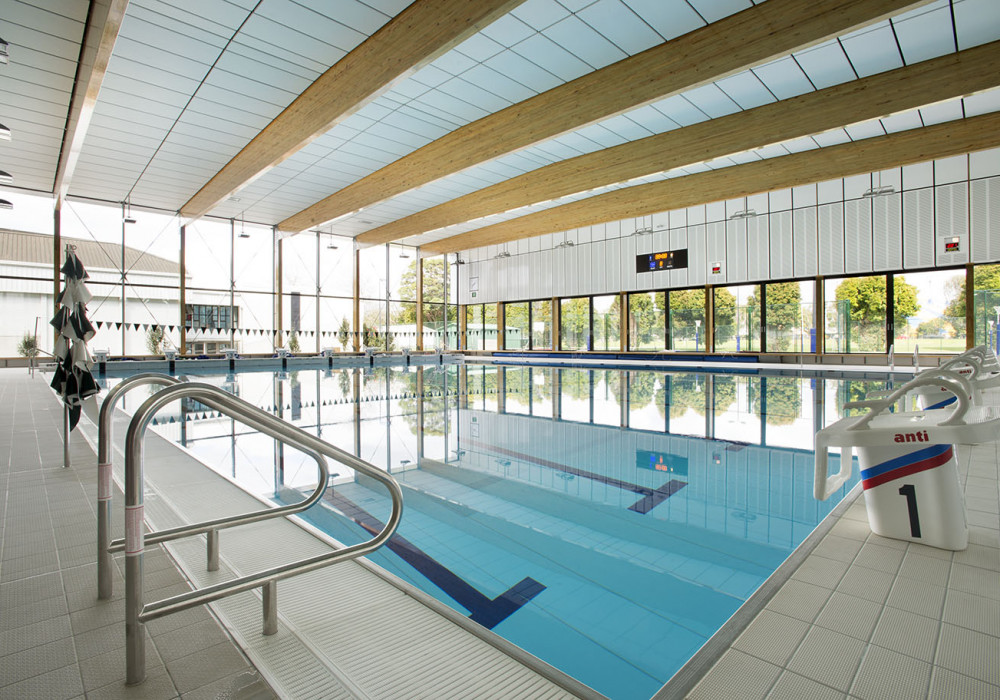

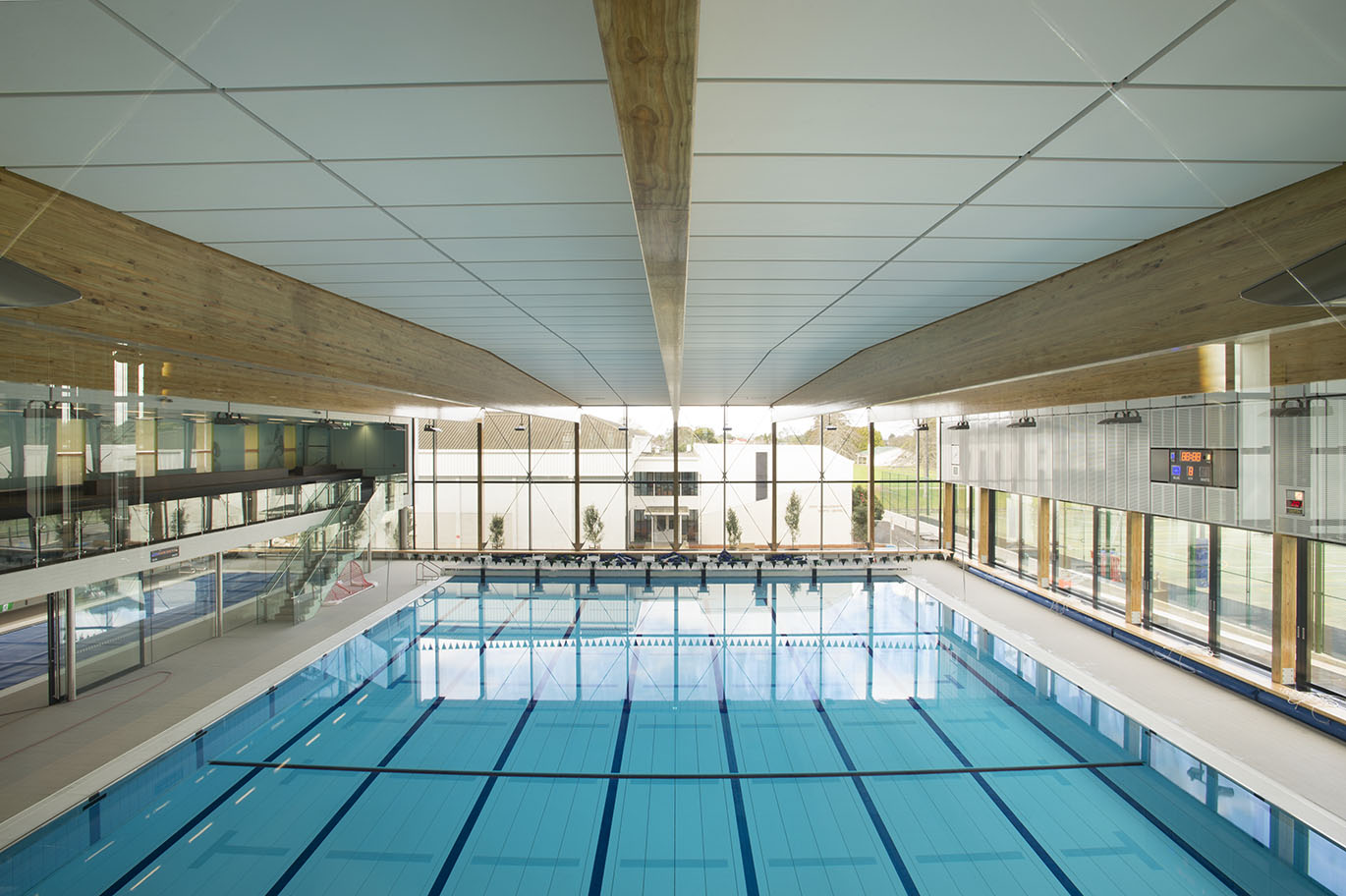

Triton Pool™ panels are a proprietary edge wrapped 50 mm thick, high sound absorbing, acoustical panel designed for high level swimming pool ceilings.

Green Tag Certified

Post-Consumer Recyclable Content

NZ Made

NZ-Owned Business

Triton Pool™ panels designed for pool environments and are to be mounted to allow free movement of conditioned air between and behind the panels to reduce the risk of interstitial condensation.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings.
Clause B2 — durability, 5 years

Triton Duo 60

Asona

View Product

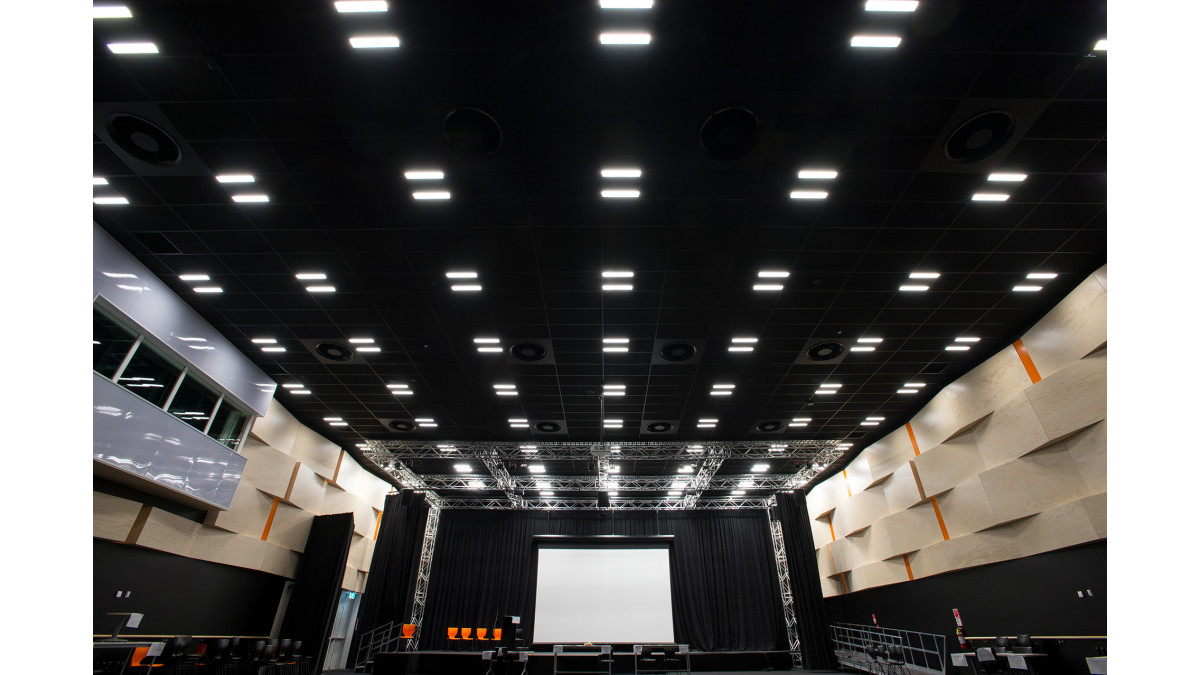

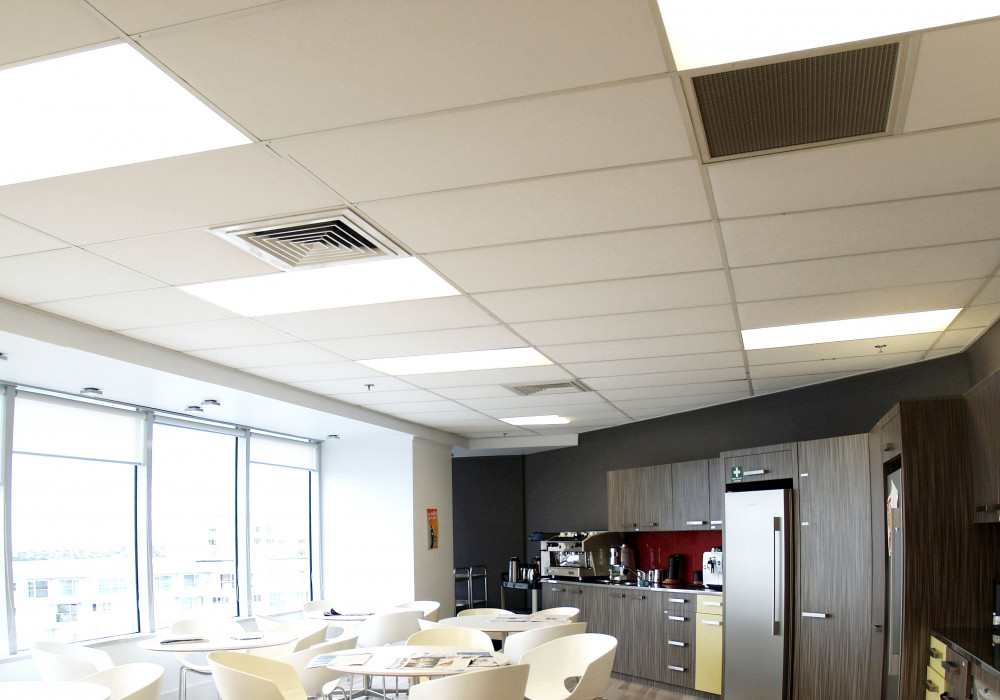

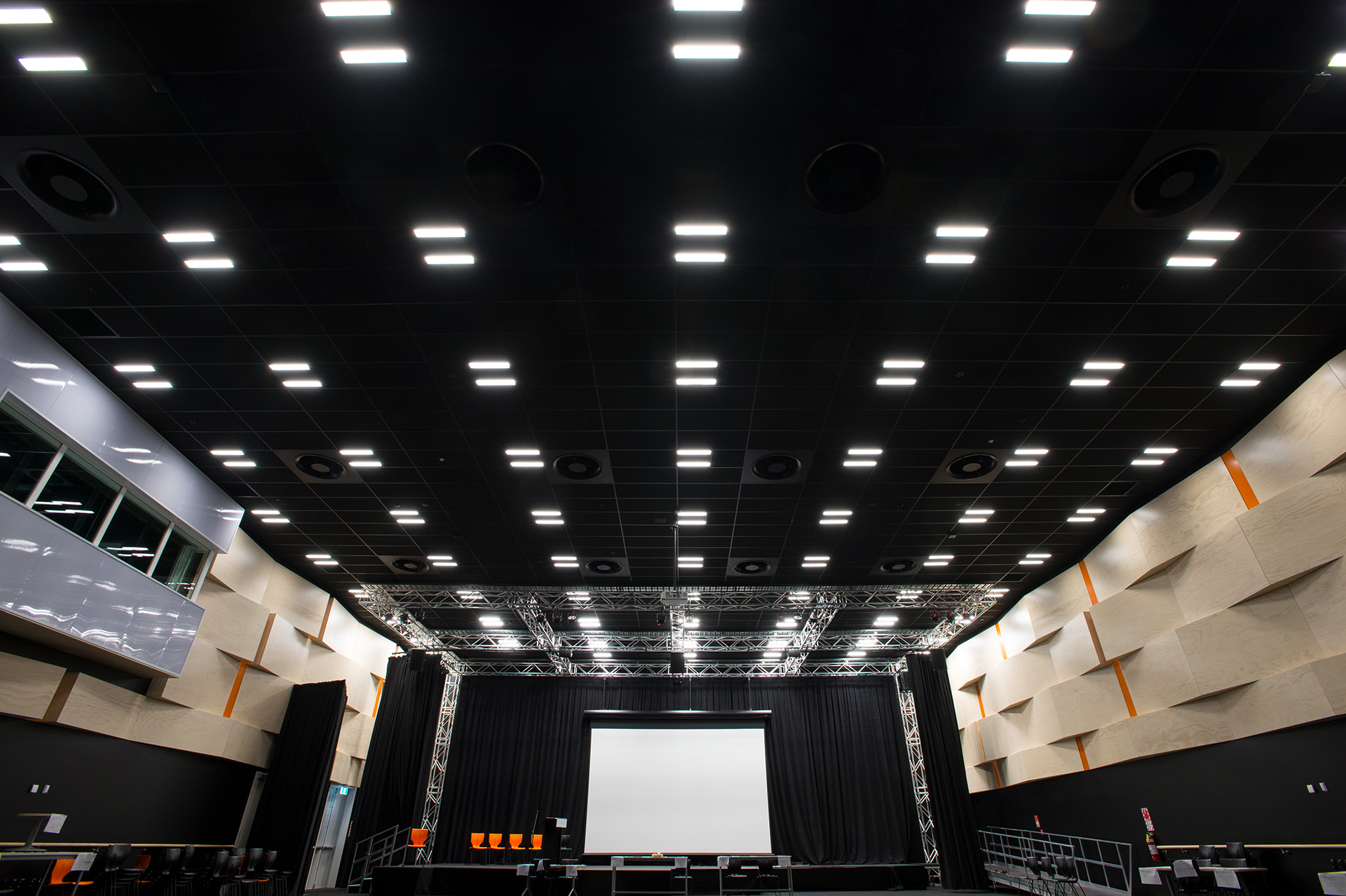

Triton Duo 60™ is a made in New Zealand mass loaded 60 mm thick composite ceiling panel designed to provided attenuation of flanking and transmitted sound as well as broad band sound absorption for reverberation control.

Green Tag Certified

NZ Made

NZ-Owned Business

Triton Duo 60 is ideal for ceilings under metal roofs to control rain noise, mechanical services, buildings near aircraft flight paths, train lines or for private meeting room ceilings.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction - NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
Clause B2 — durability, 5 years

Independent Assessment

Test Results

Triton Baffle Beam

Asona

View Product

Triton Baffle Beam™ is a New Zealand made high sound absorbing ceiling system designed to provide an attractive linear aesthetic and to control unwanted noise.

Green Tag Certified

NZ Made

NZ-Owned Business

Baffle Beams are ideal for reception areas, corporate offices, corridors, open-plan offices, showrooms, galleries, hospitality, retail and large public spaces.

Lightweight, acoustic alternative to solid wood slat systems suitable for seismic sensitive areas.

Asona Triton Baffle Beams complies to the following NZ Building Codes: B2.3.1 . C3.4, F2.3.1
Fire Reaction - NZBC verification method C/VM2 material group number: 1-S
Clause B2—durability, 5 years

Independent Assessment

Test Results

Triton Hygiene 25

Asona

View Product

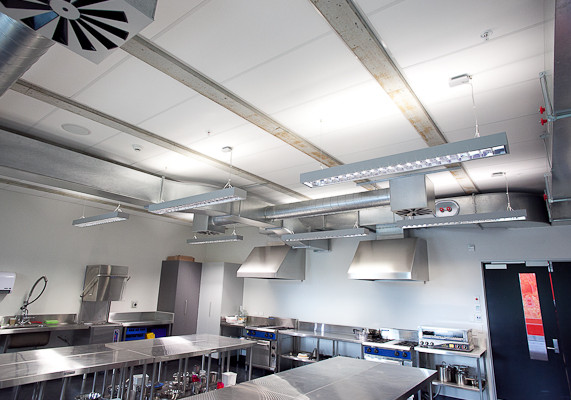

Triton Hygiene 25™ is a New Zealand made, 'soft' fibre ceiling panel with anti-microbial finish, designed to provide high sound absorption in hygiene sensitive areas.

Green Tag Certified

NZ Made

NZ-Owned Business

Triton Hygiene 25™ is ideal for cafes, restaurants, school food tech rooms, medical/dental centres and pharmaceutical areas for the control of background noise levels and reverberation times.

Fire Reaction - NZBC verification method C/VM2 material group number: 2-S
Clause B2 — durability, 5 years

Independent Assessment

Test Results

Triton Duo 35

Asona

View Product

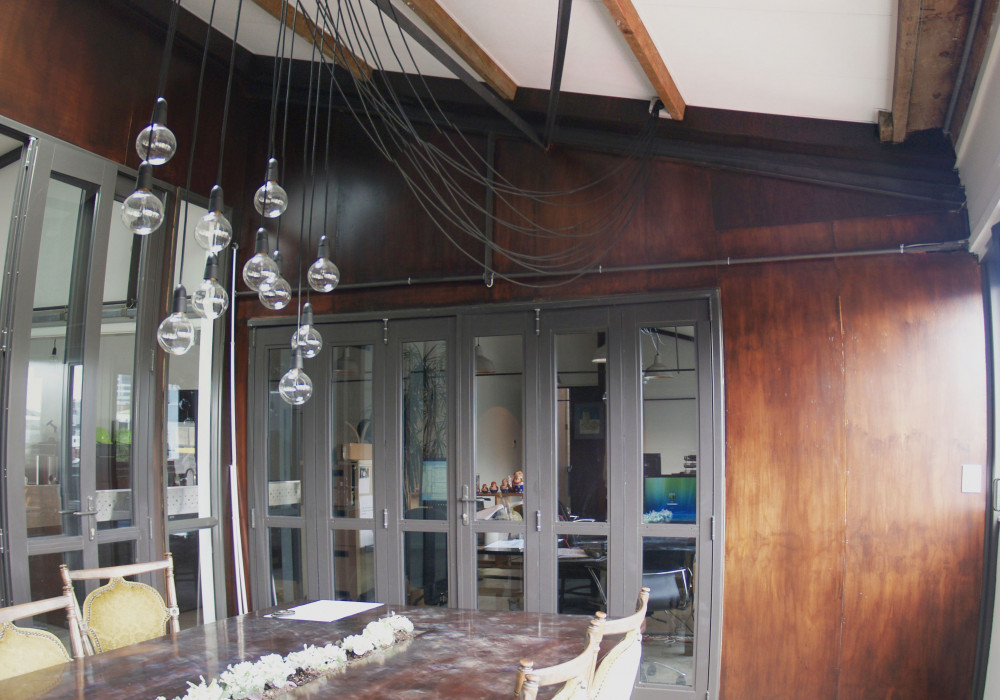

Triton Duo 35™ is a New Zealand made mass loaded 35mm thick composite ceiling panel designed to provide high attenuation of transmitted noise plus absorption to control reverberation times.

Green Tag Certified

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Triton Duo 35™ is ideal for ceilings under metal roofs to control rain noise, mechanical service noise, buildings near aircraft flight paths, train lines or for private meeting room ceilings.

Suitable for fire exit way and all other sprinklered & non sprinklered buildings.

Fire Reaction — NZBC verification method C/VM2 material group number: 1-S. Suitable for fire exit way and all other sprinklered & non sprinklered buildings
Clause B2 — durability, 5 years

Independent Assessment

Test Results
