Description

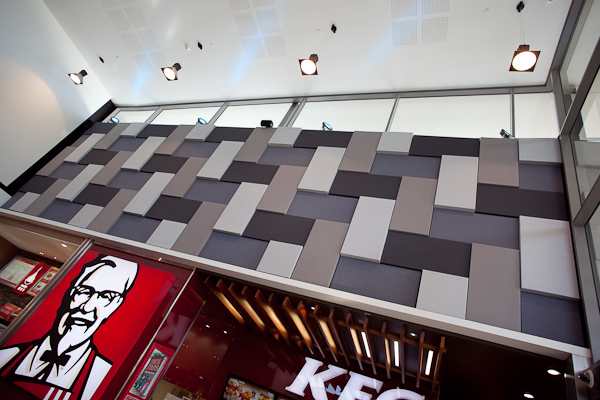

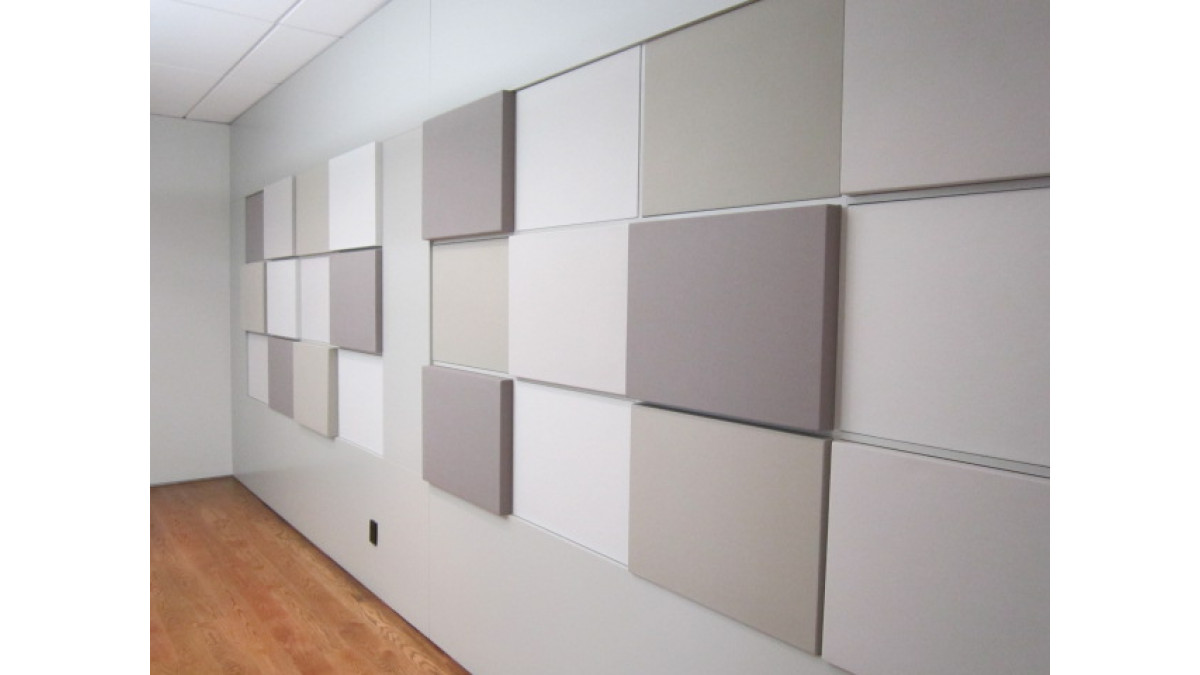

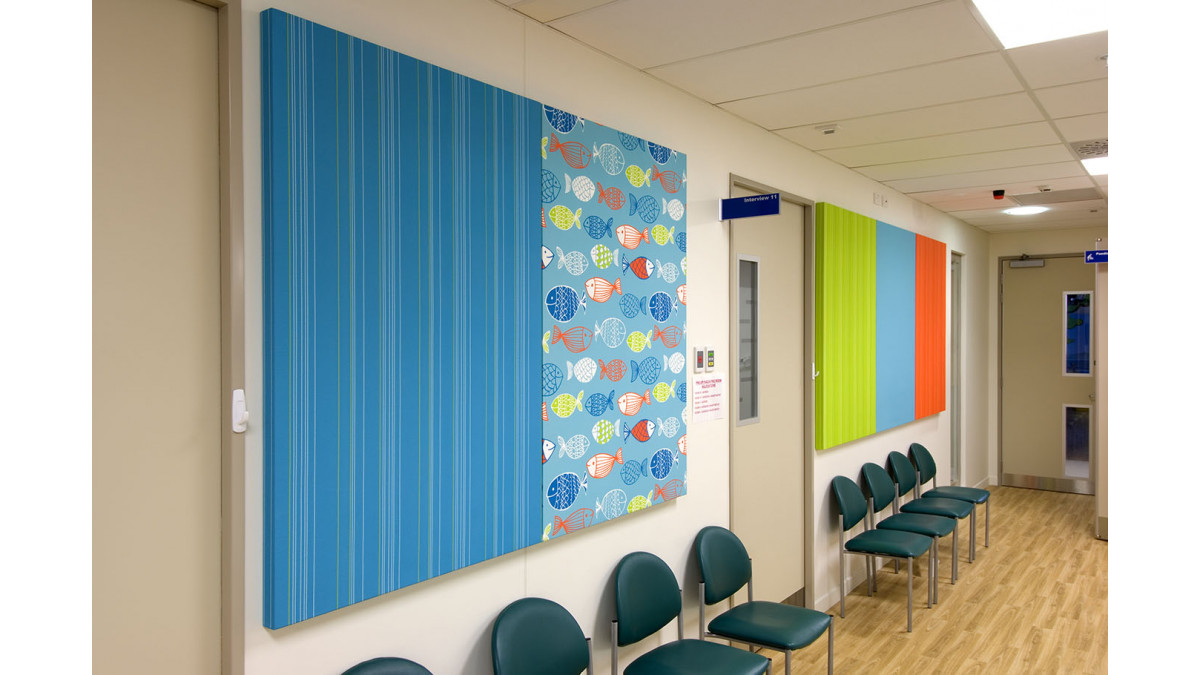

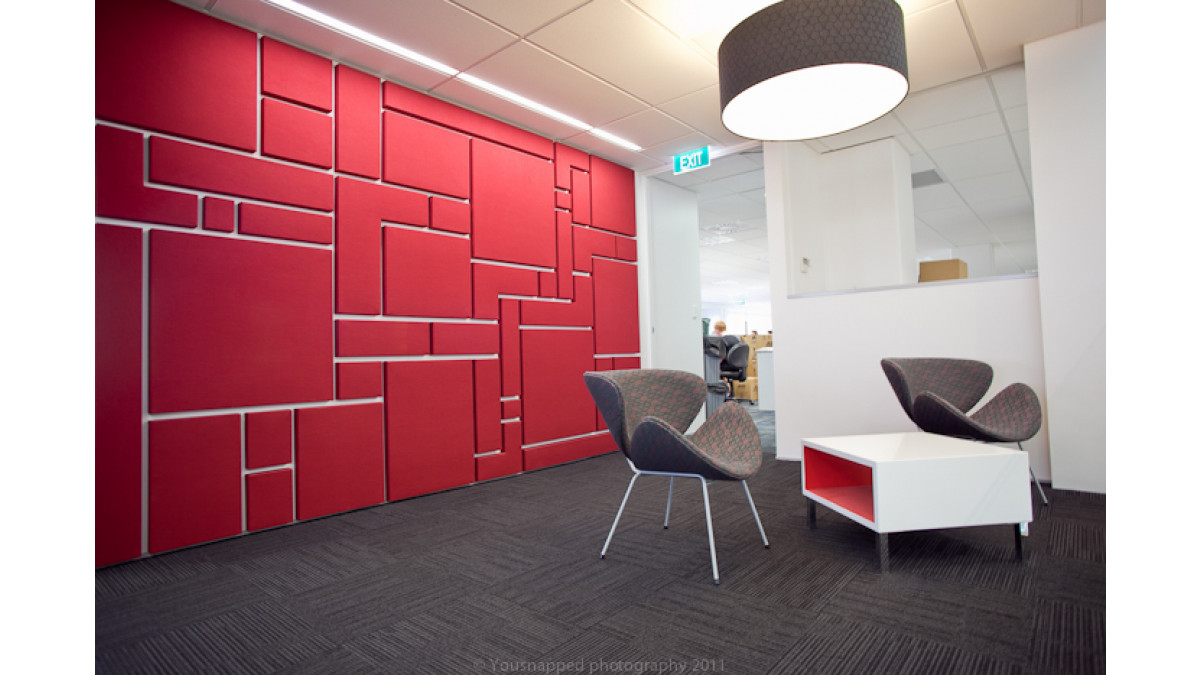

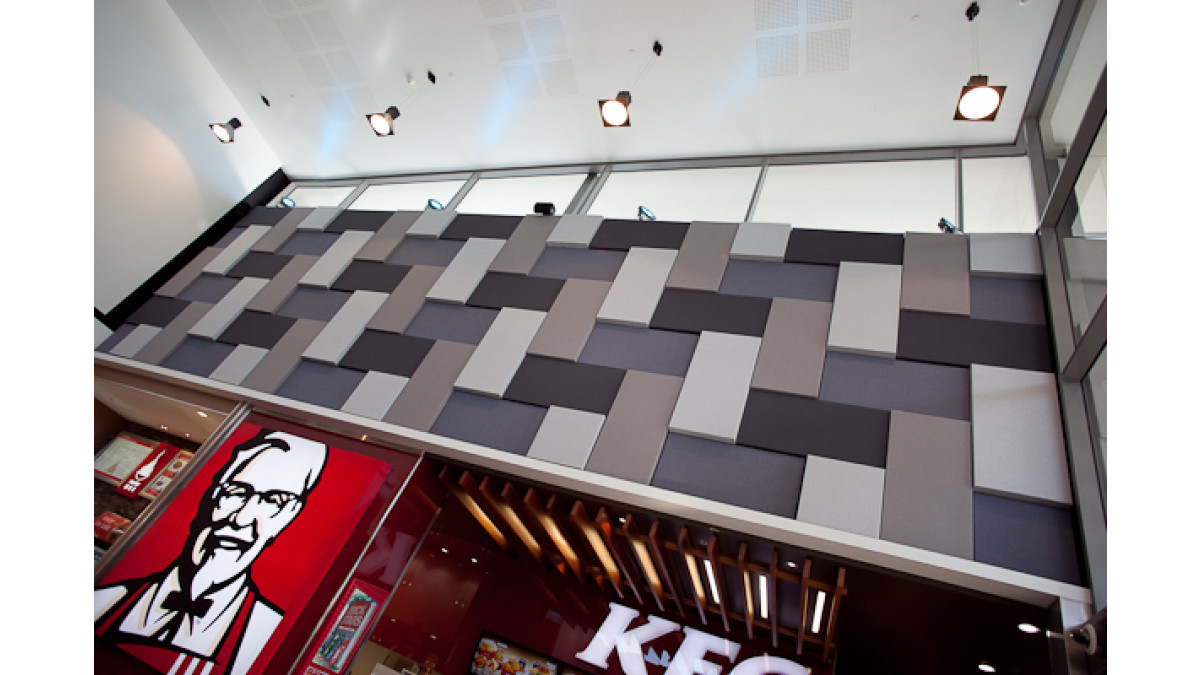

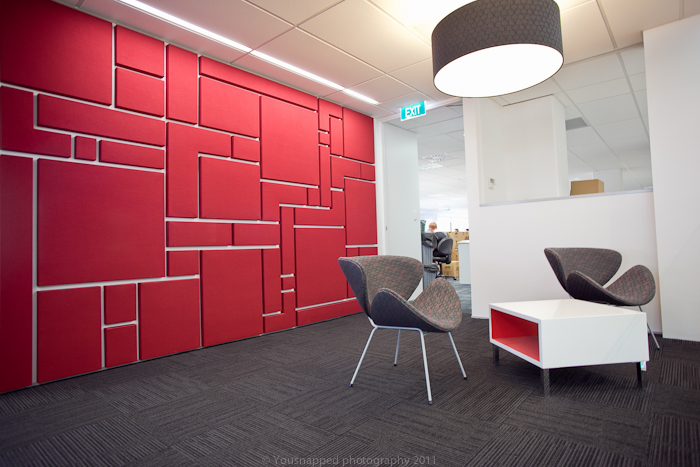

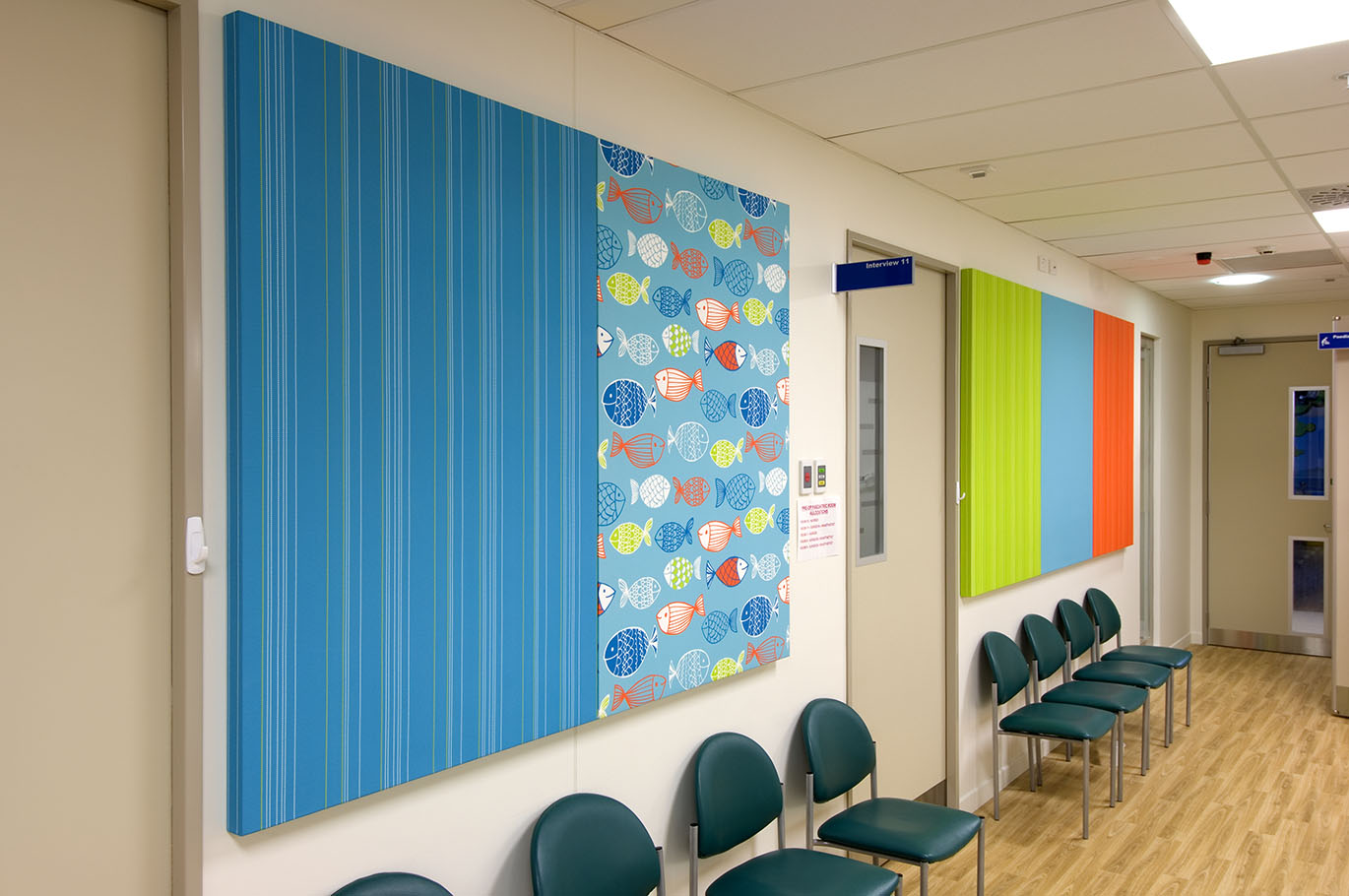

Triton Fabwall™ is a high sound absorbing fabric wrapped acoustic wall or ceiling panel designed to provide an attractive finish and control unwanted noise.

Manufactured in NZ from bio-soluble glass wool absorber with impact resistant Sonatex™ interlayer and wrapped in a range of decorative fabric finishes (polyester, wool, other).

Key Features

High sound absorption rating, NRC 0.85 to NRC 1.00
Provides a soft decorative finish to interiors
Rich pallet of fabric finishes, textures and colours
Durable resilient composite construction for long life
Pre-fabricated for fast installation on site
Standard and custom sizes
Fire safe glass fibre core, will not melt and fall off wall in the event of a fire
Fire group 1-S (subject to fabric selection)
Low VOC, GreenTag certified / Level A

Ranges

Triton

Green Tag Certified

NZ Made

NZ-Owned Business

Scope of Use

Acoustic wall or ceiling panel

Triton Fabwall 25™ NRC 0.85, for small rooms.
Triton Fabwall 40™ NRC 0.95, best for medium sized rooms.
Triton Fabwall 50™ NRC 1.00, best for office, school, libraries.
Triton Fabwall 75™ 100, 150, 300 best for max sound absorption. from low to high frequency, large volume spaces.

Limitations on Use

Triton Fabwall panels are a finishing trade. Installation shall not commence until the building is water tight and all work such as plastering, concrete, masonry, carpentry, painting is complete and site free of dust and debris
Not for high impact prone areas, consult Asona for impact resistant acoustic panels options
Max 90% R/H at 30°C
Refer specified fabric for limiting conditions. Fabric selection may affect fire and acoustic performance. Client supplied fabric subject to prior approval, contact Asona
Absorber Thickness: 25, 40, 50, 75, 100, 150, 300mm
Panel Width: 100 to 1200mm
Panel Length: 100 to 3000mm

Statement of Building Code Compliance

NZ Building Act — This product is not subject to a warning or ban under Section 26.

NZ Building Code Compliance:

B2 Durability – Clause B2.3.1 (c) (i): Asona Triton Fabwall with only normal maintenance will have a minimum durability of at least 5 years when installed in accordance with manufacturer’s installation requirements.
C3 Fire – Clause C/AS2 3.4(a): Asona Triton Fabwall with polyester fabric has a Fire Material Group Number 1-S by NZBC verification method C/VM2 Appendix A, tested in accordance with ISO 5660 or ISO 9705. (NCC BCA C1.10 clause 4, spec A2.4 clause 4. Group 1). BRANZ test report FI-14081.
Other fabrics 2-S, 2 and 3. Please consult Asona
Durability, 5 years

In-Service History

Many projects but including :

Fisher & Paykel, Auckland
ANZAC student accommodation, Auckland
Cordis Hotel, Auckland
Majestic Grow, Christchurch

Other Performance Attributes

Very high sound absorption rating to control reverberation, NRC 0.85 - 1.00, ISO 11654 class A
Green Tag Certified level A, low VOC, core contains 80% recycled post consumer waste glass
Board formed from 80% recycled local glass
Low VOC < 0.05
Product stewardship renew and reuse program available
Packaging take back and reuse scheme available
