Phonic Combo +
Description

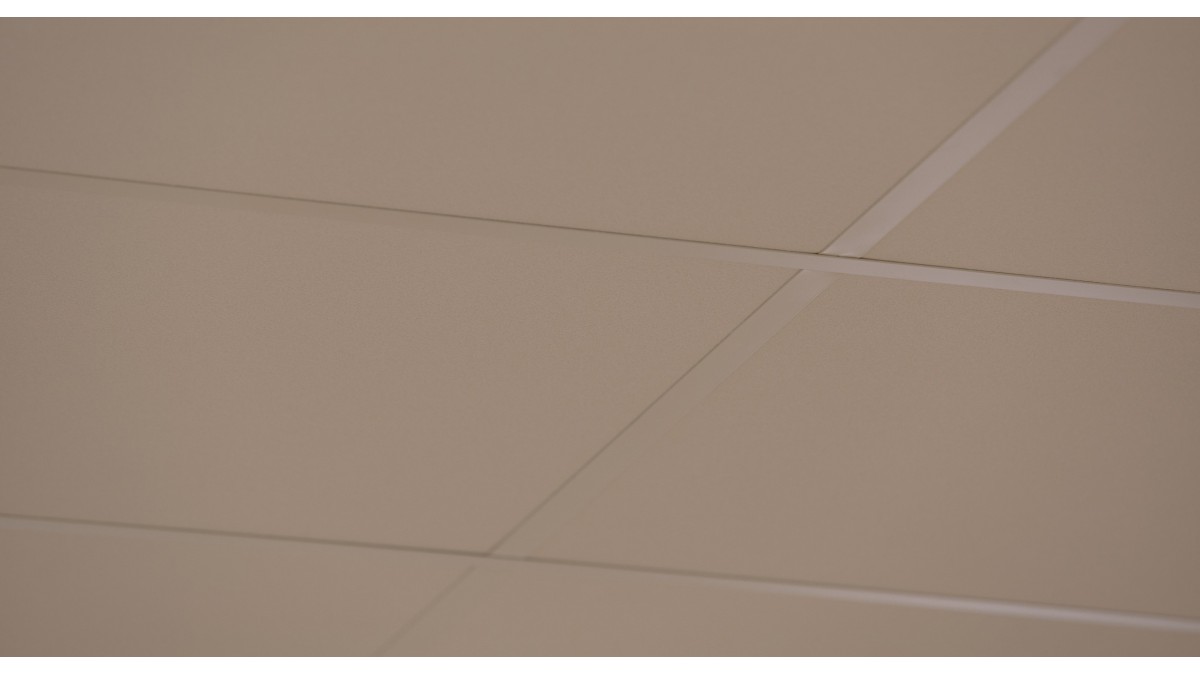

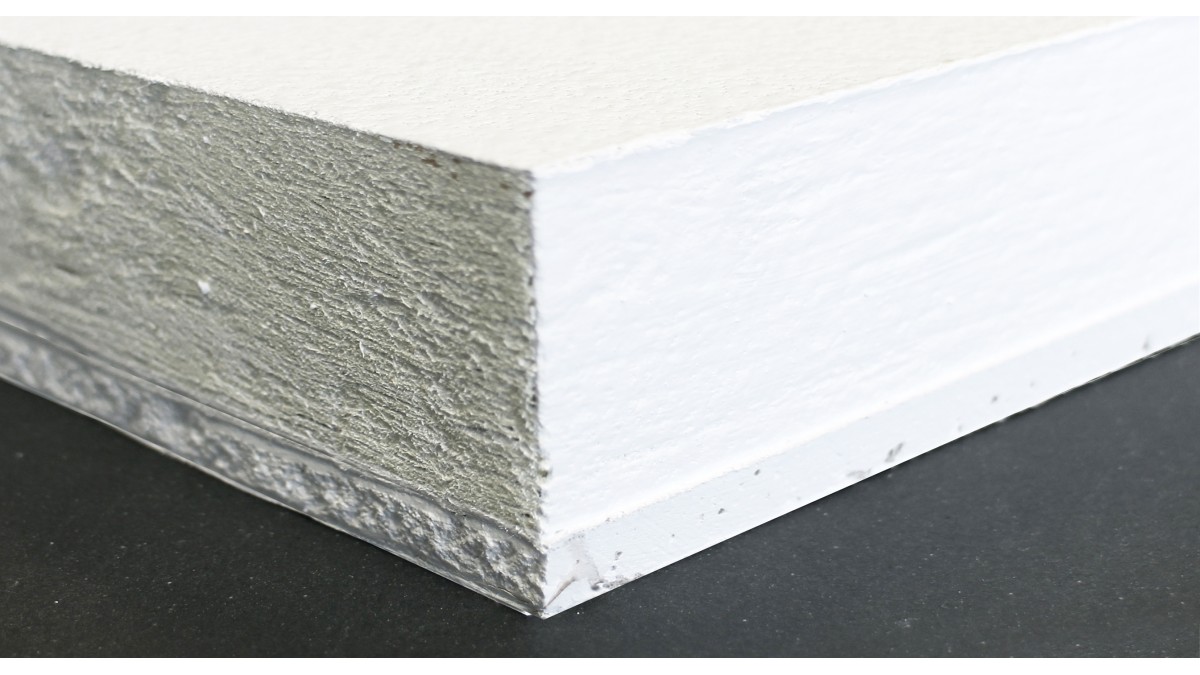

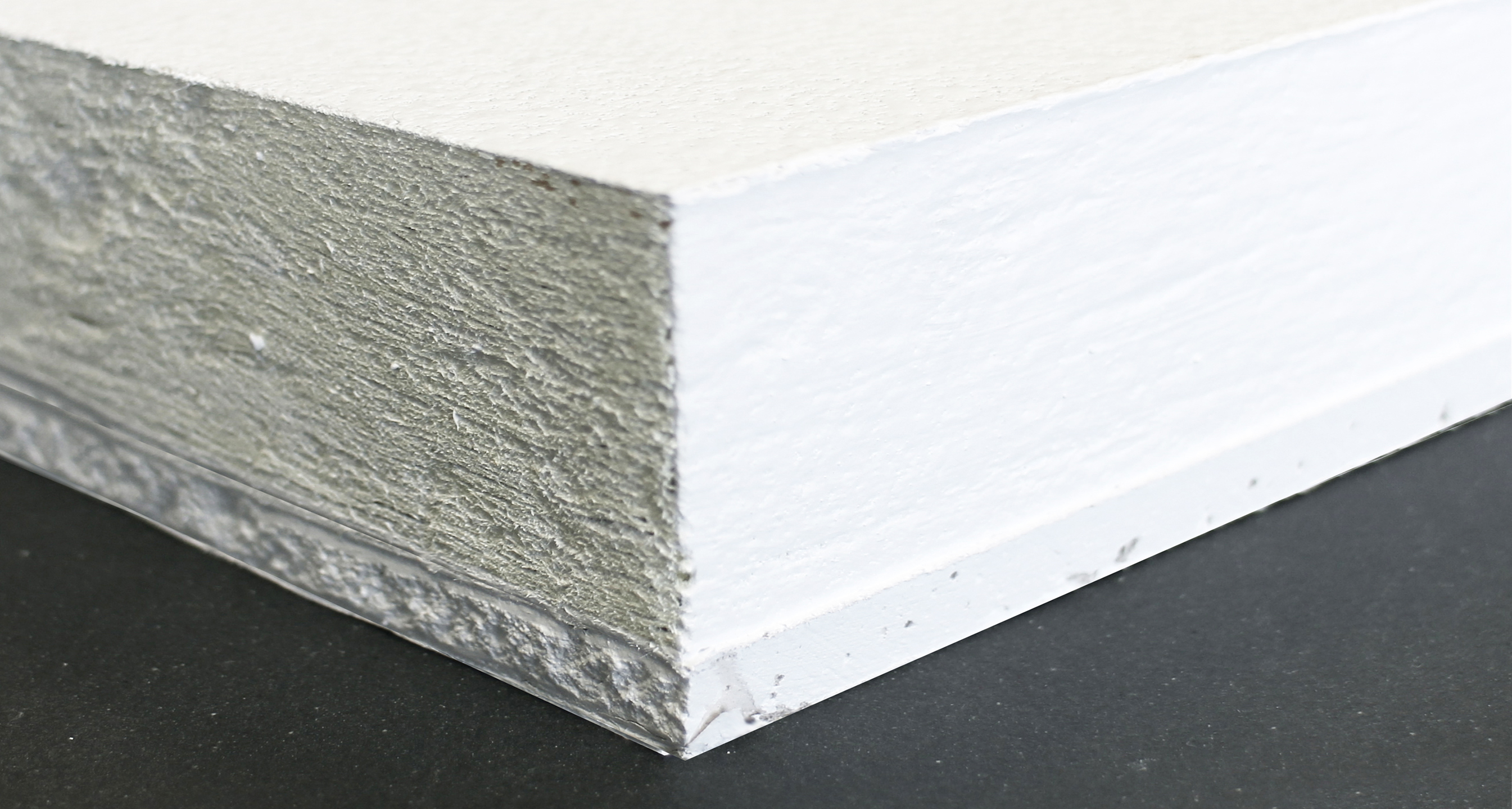

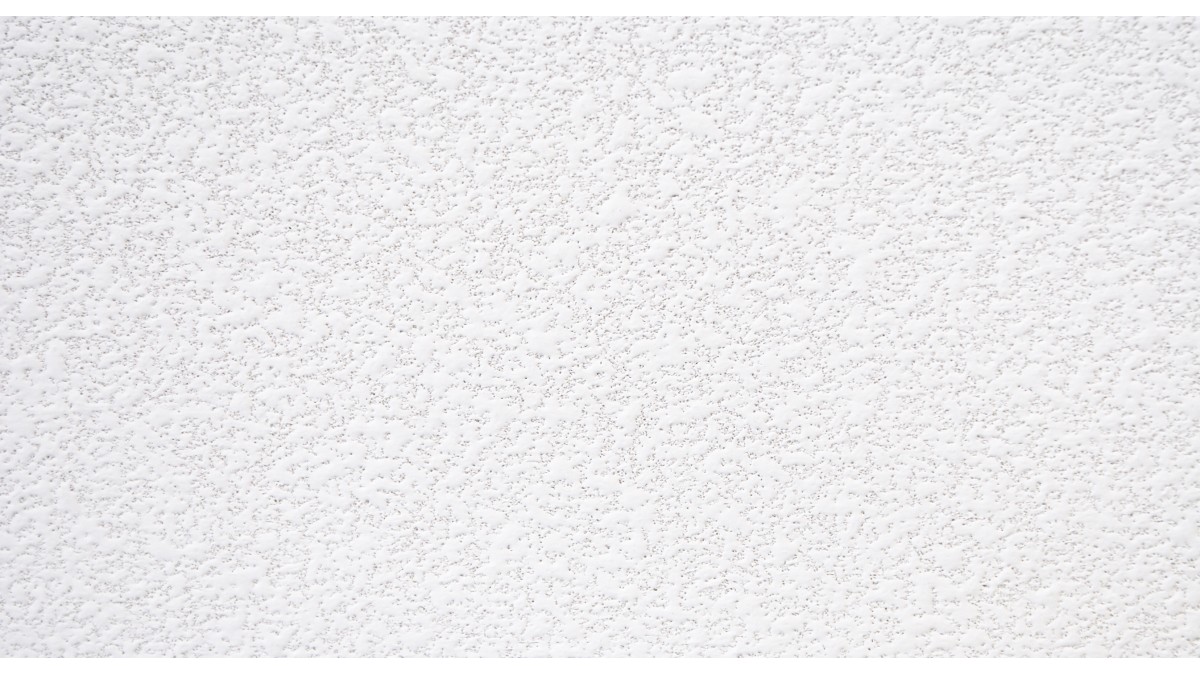

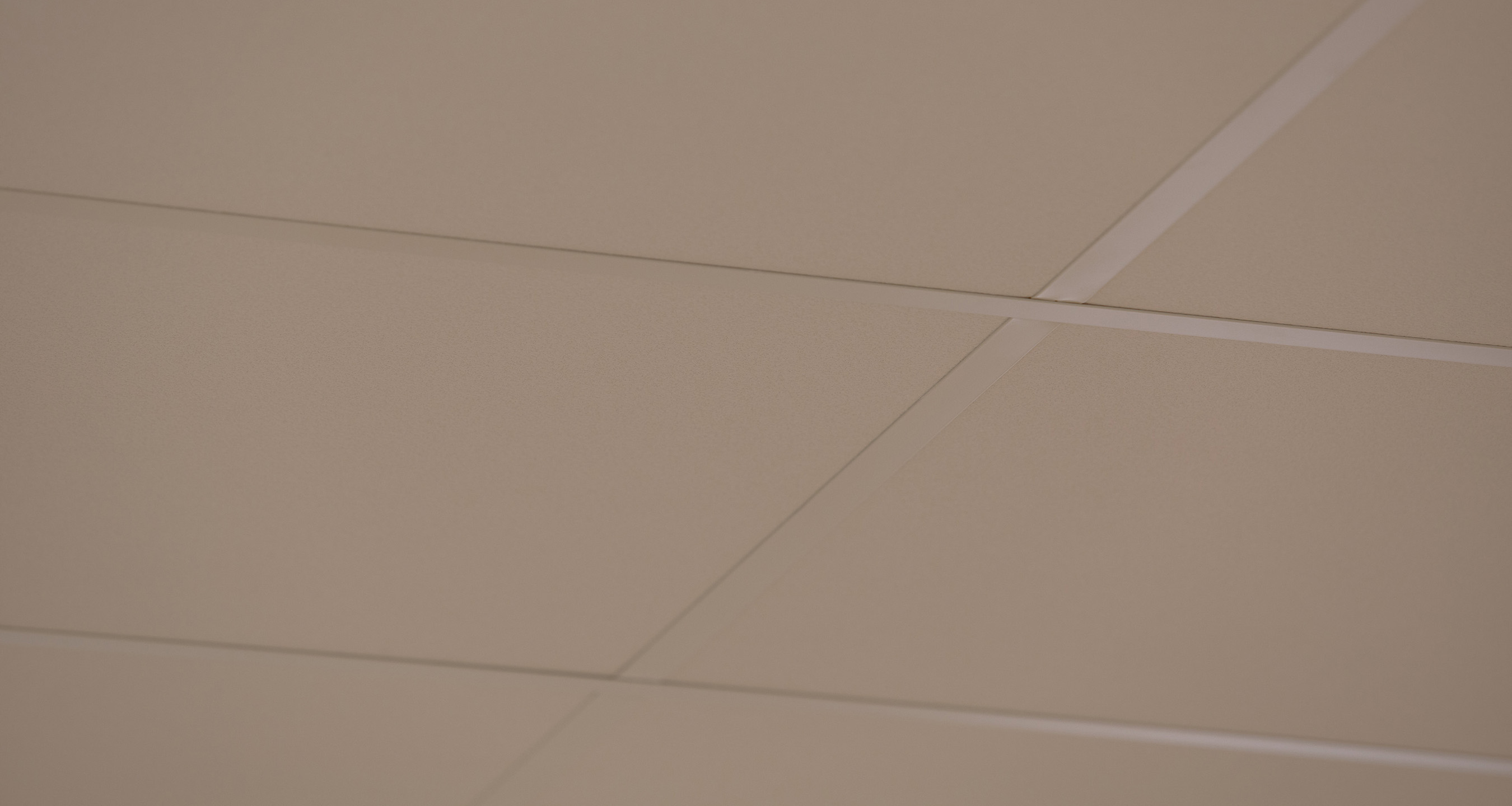

Phonic Combo + is a composite tile with a refined white painted, monolithic, pre-finished face. It has an absorptive layer with an attenuating backer behind. Combo + not only has amazing acoustic properties (and meets Ministry of Education requirements) but also is a much better solution for seismic requirements. Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52 quite easily.

The invention comprises two layers of material that are flexibly attached together with an air gap in between. This allows each of the layers to flex and vibrate and to define a cavity. The resulting tile weight is only 7.5kg/m².

Key Features
  • Patent is pending on this revolutionary design
  • The absorbent face is made from a compounded, high density glass-wool
  • The attenuating backer reduces sound transfer over office partitions and reduces rain noise from roofing. It is a high performance ceiling tile which is user friendly and ideal for use in airports, offices, classrooms, boardrooms, museums and other commercial interiors
  • Tested to the principal requirements in accordance 14644.1:2015 and ISO 14644.3:2015 and the tile meets Cleanroom ISO Class 3
  • This tile comes with a 30 year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag, when used with a T&R Interior Systems branded suspension system. Tiles should be installed in accordance with NZS1170.5, AS/NZS2785 and the grid manufacturer’s instructions
Scope of Use
  • High performance ceiling tile which is ideal for use in airports, offices, classrooms, boardrooms, museums and other commercial interiors
  • Seismic solution
  • Meets Ministry of Education requirements, and meets Cleanroom ISO Class 3
Limitations on Use
  • Withstands conditions up to 40° and 99% relative humidity without visible sag, when used with a T&R Interior Systems branded suspension system
  • Tiles should be installed in accordance with NZS1170.5, AS/NZS2785 and the grid manufacturer’s instructions
Statement of Building Code Compliance
  • Fire Performance: Group 1-S
  • Meets Ministry of Education requirements
In-Service History
  • Bayfield School, Auckland.
  • Rangi Ruru School, Christchurch.

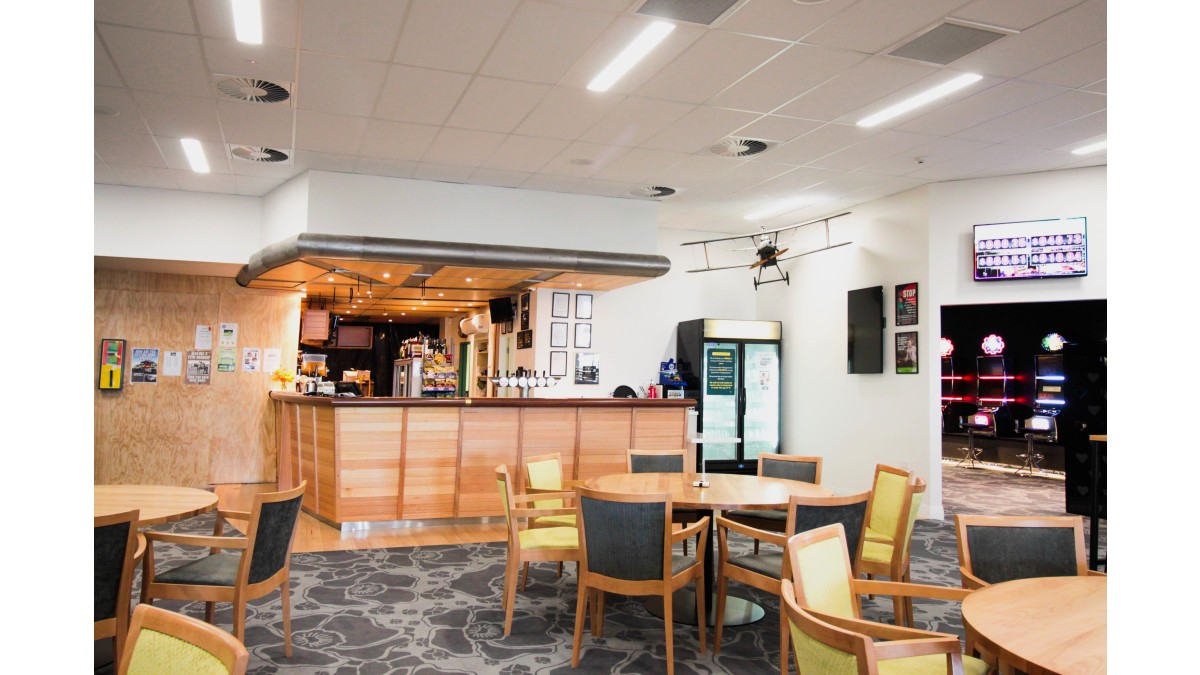

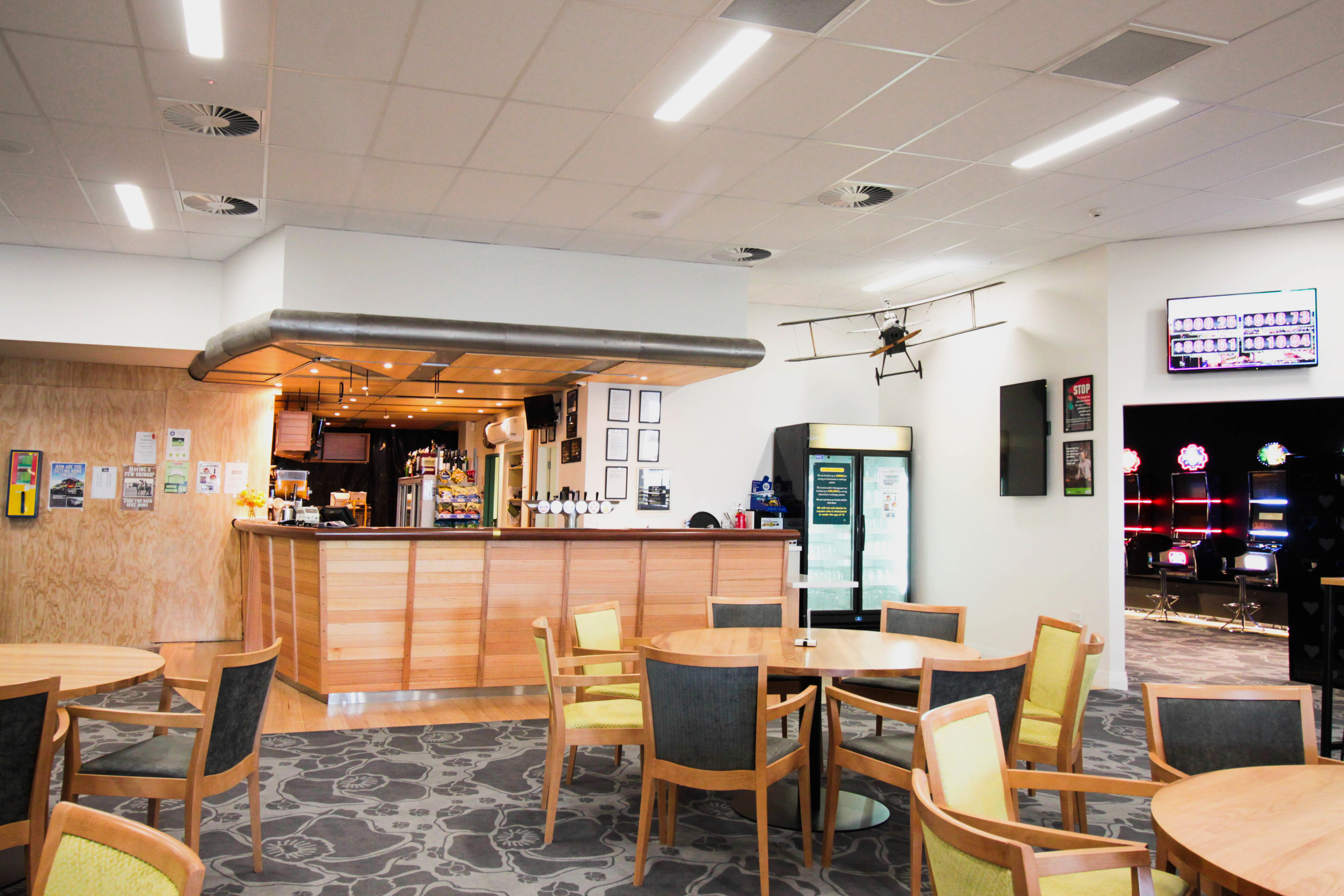

  • RSA Rangiora
  • Thornton School

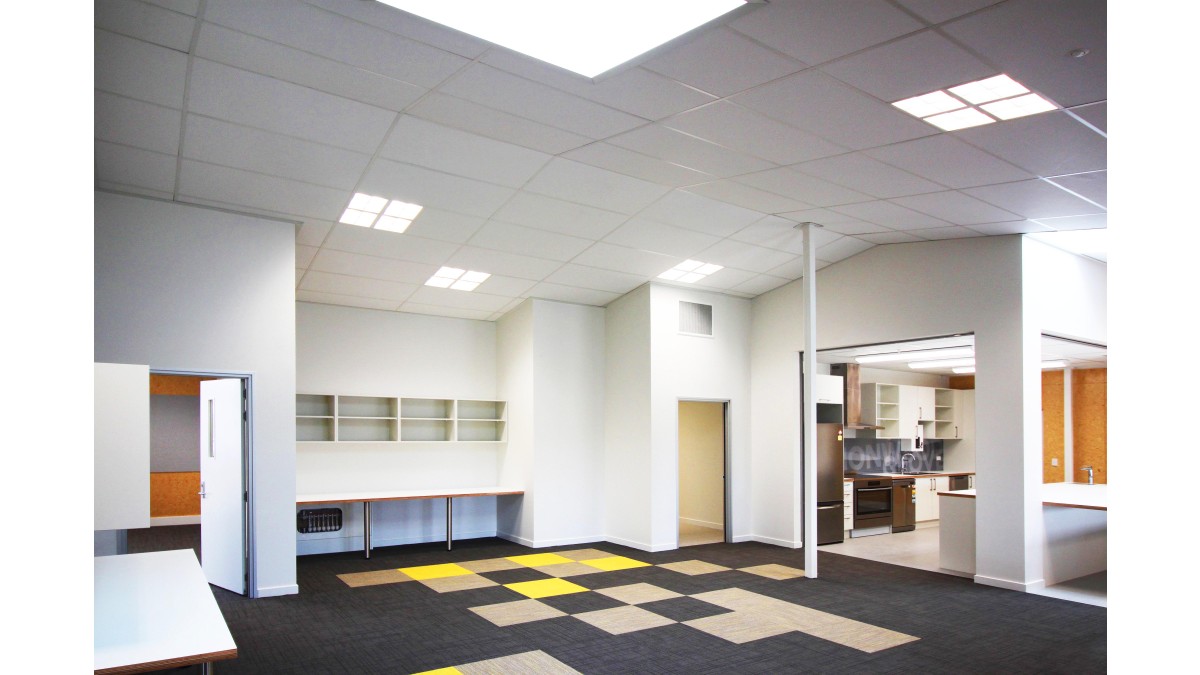

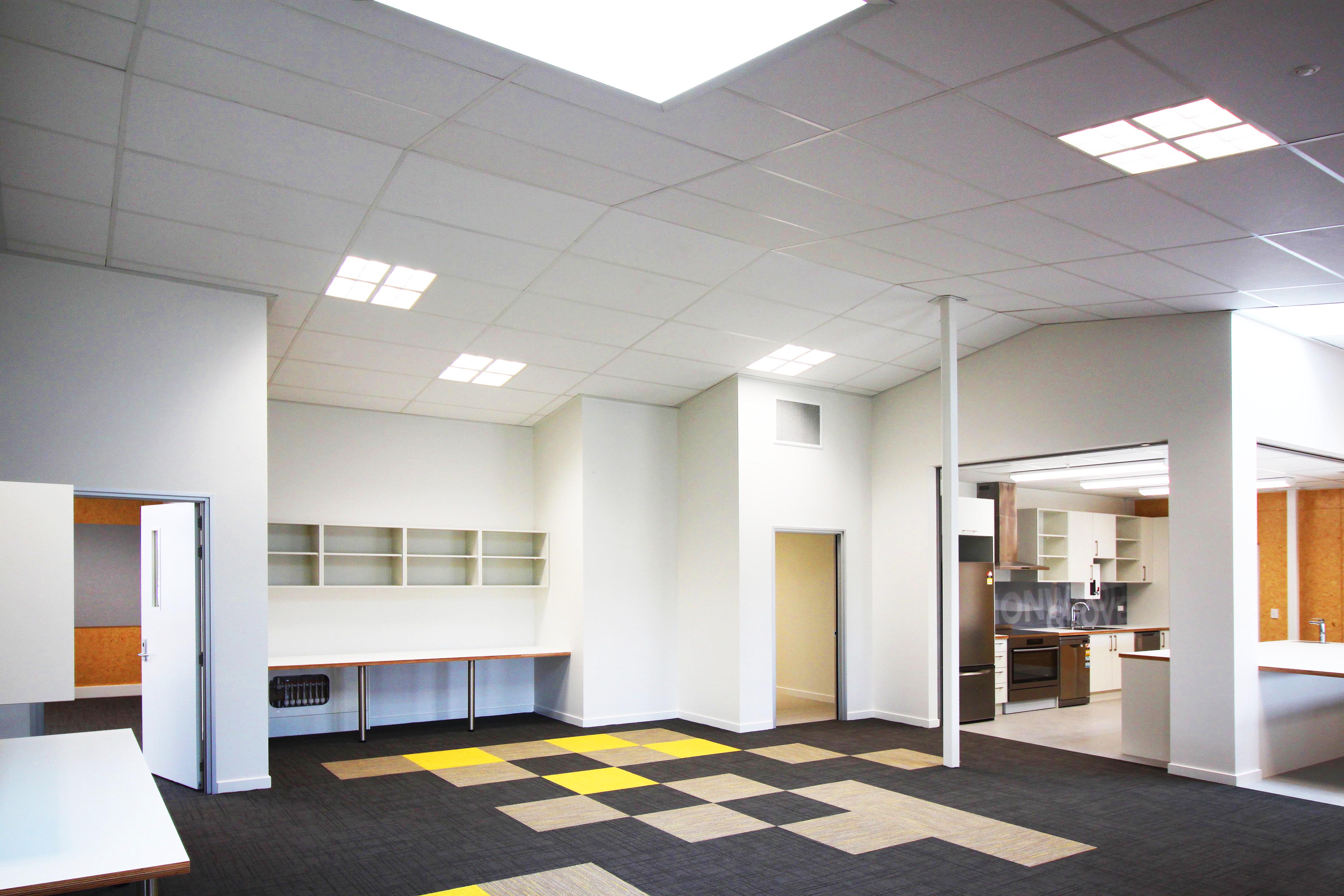

  • Lemonwood School
  • Hornby High School

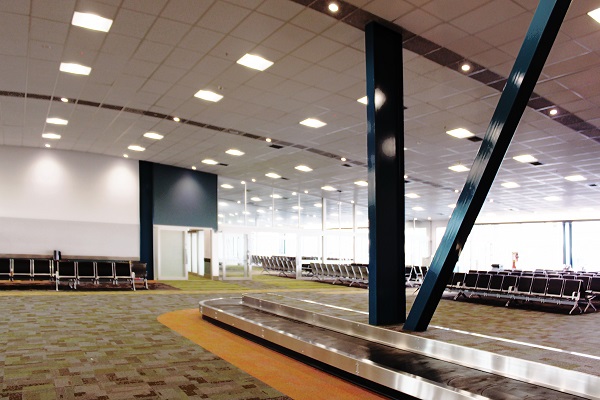

  • Tauranga Airport
  • Eastern Hutt School,
  • Sacred Heart Girls College, New Plymouth
  • Remarkables Primary School, Queenstown
  • Massey School of Aviation, Palmerston North
  • Taranaki Catherdral Music Room, New Plymouth
  • Kapiti Performing Arts' College
  • Te Pi Ipi Inga School, New Plymouth

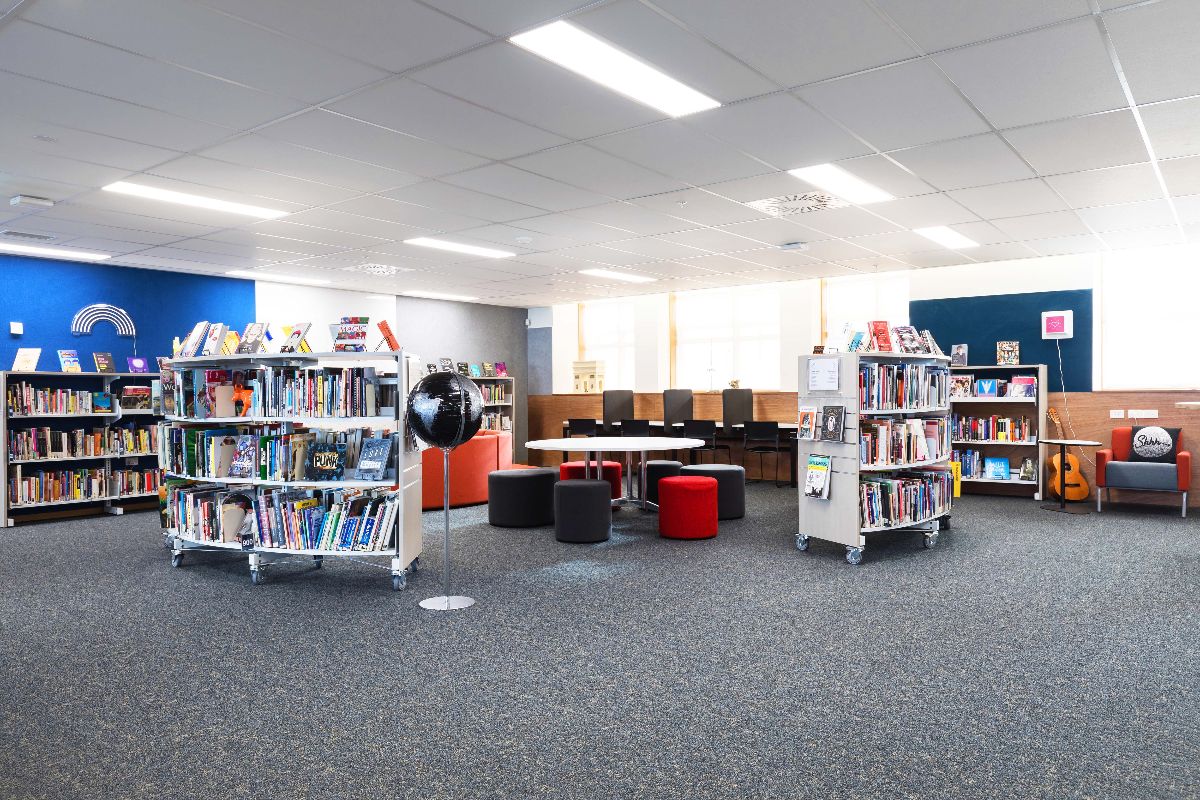

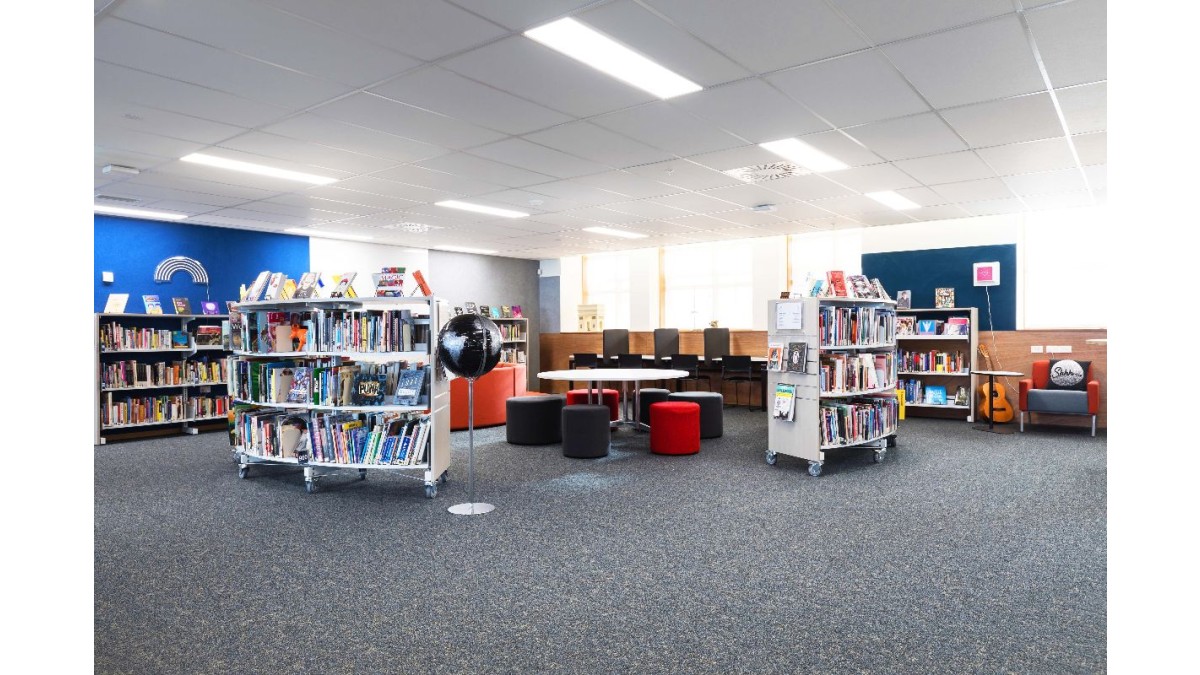

  • Wellington East Girl's School, Wellington
  • Wellington Regional Economic Development Agency, Wellington
Other Performance Attributes
  • Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52
  • Tested to the principal requirements in accordance 14644.1:2015 and ISO 14644.3:2015 and the tile meets Cleanroom ISO Class 3
Documents
Data Sheet
Additional Information
BIM
Phonic Combo
