Residential S-Series Elevator
Description

With class-leading speed, style, and safety, Powerglide's S-Series lifts have flexible sizing and car configurations, and decor options to suit any home. Powerglide's Design Team offer a hands-on approach as befits a slightly more involved specification process.

The S-Series Elevator delivers everything from Powerglide's A-Series Elevator, plus a raft of extra features. This includes a wider choice of car configurations for ease of integration into any design, as well as more flexibility in car shape and sizing. Lift speed jumps to an unmatched 9 seconds floor-to-floor*, load capacity increases to 350kg, and the increased available travel distance allows for up to 5 stops. The S-Series also features the reassurance of an electronic safety curtain or pressure-sensitive edge protection for the highest possible levels of safety.

The Designer Decors range of professionally coordinated wall colour, trims and handrails allow seamless integration with the interior style of the home, and avoid the elevator looking and feeling like an afterthought.

Configurations

  • The S-Series is available in five different car configurations allowing for entry/exit on different sides for each floor

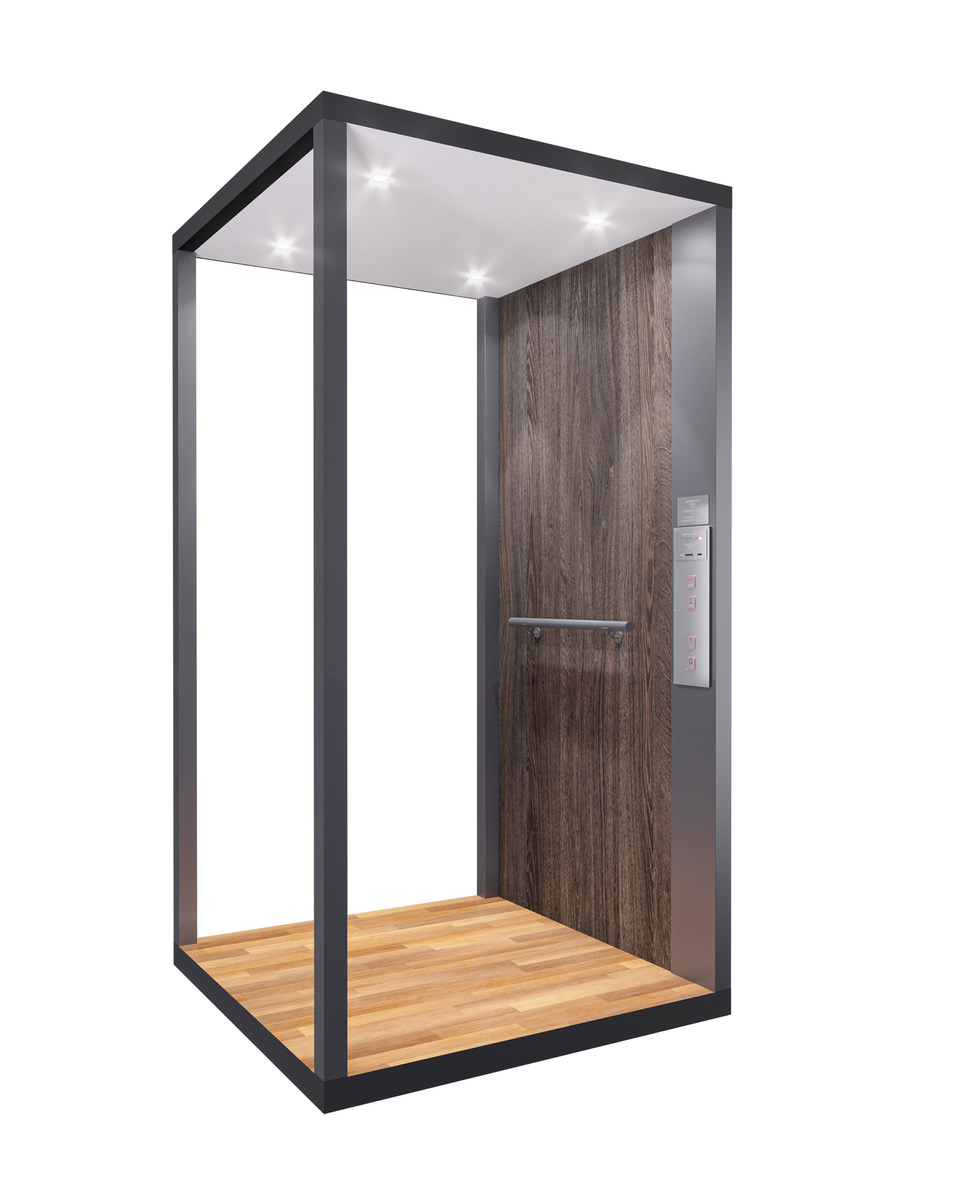

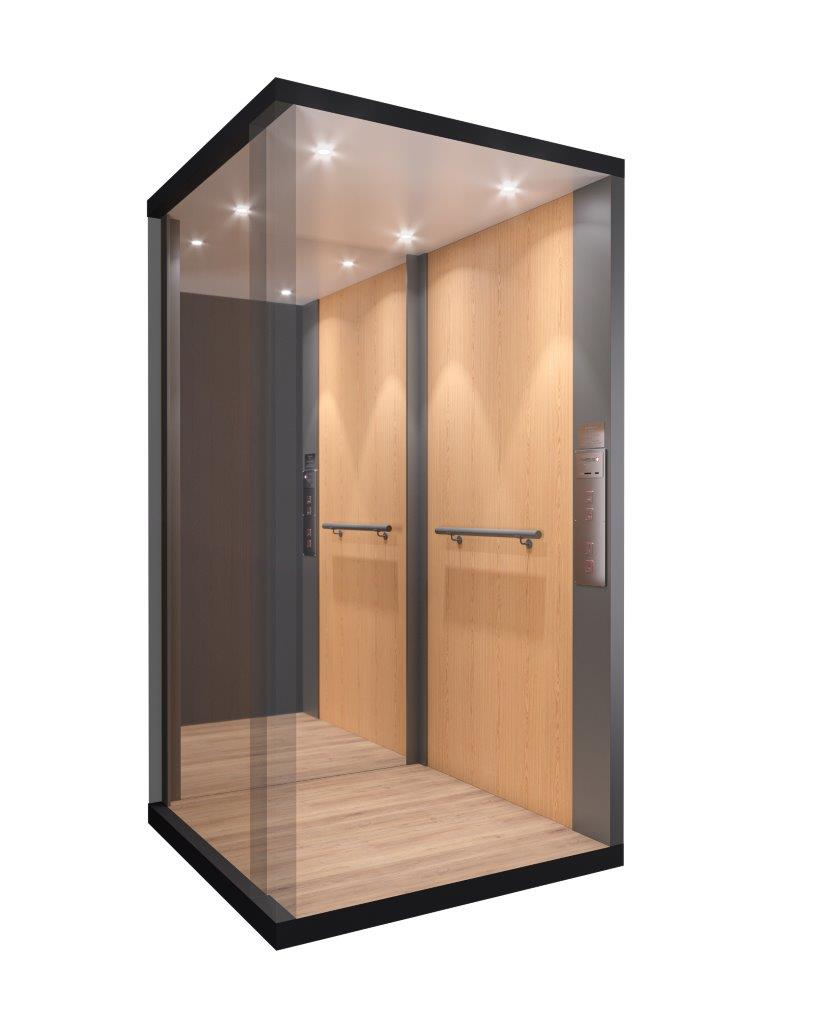

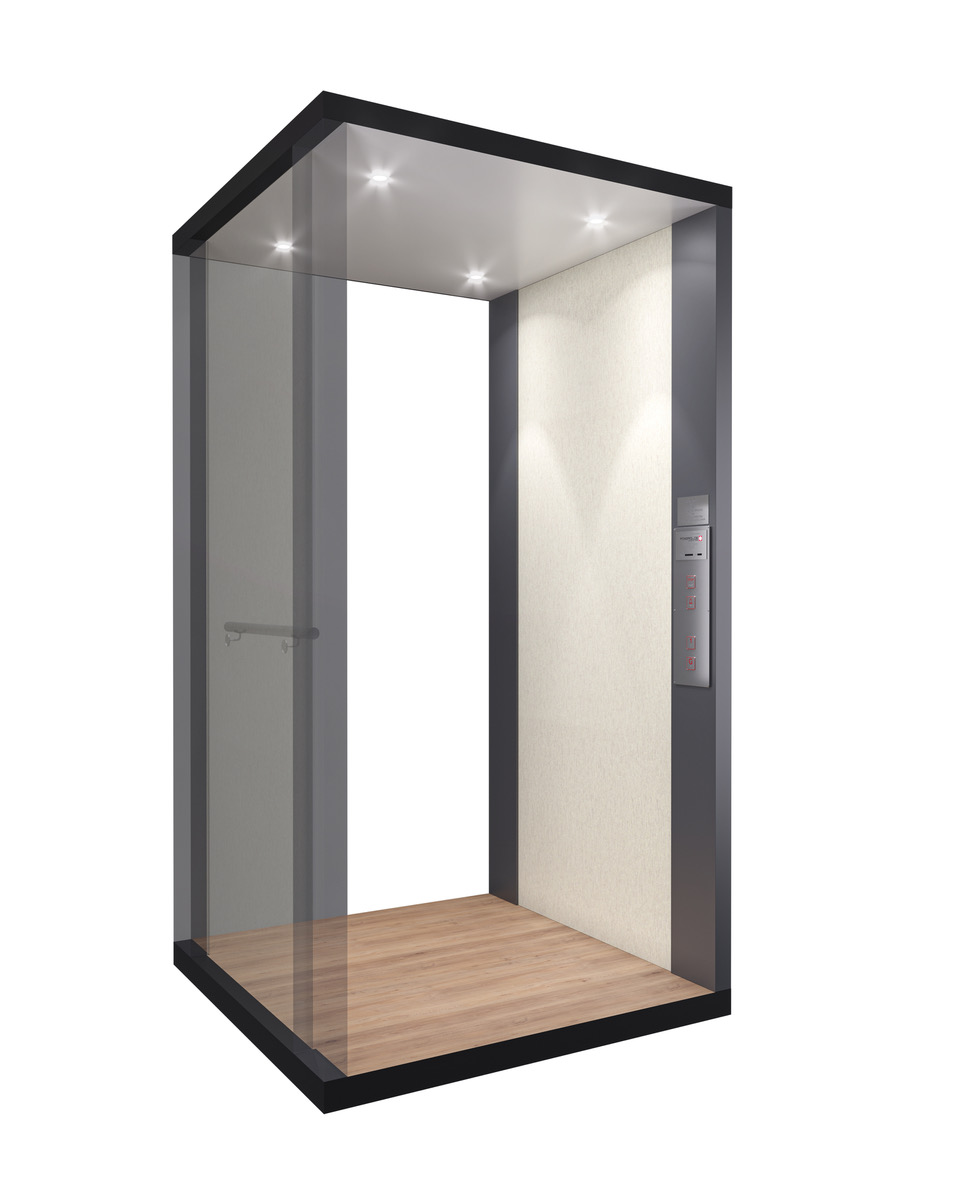

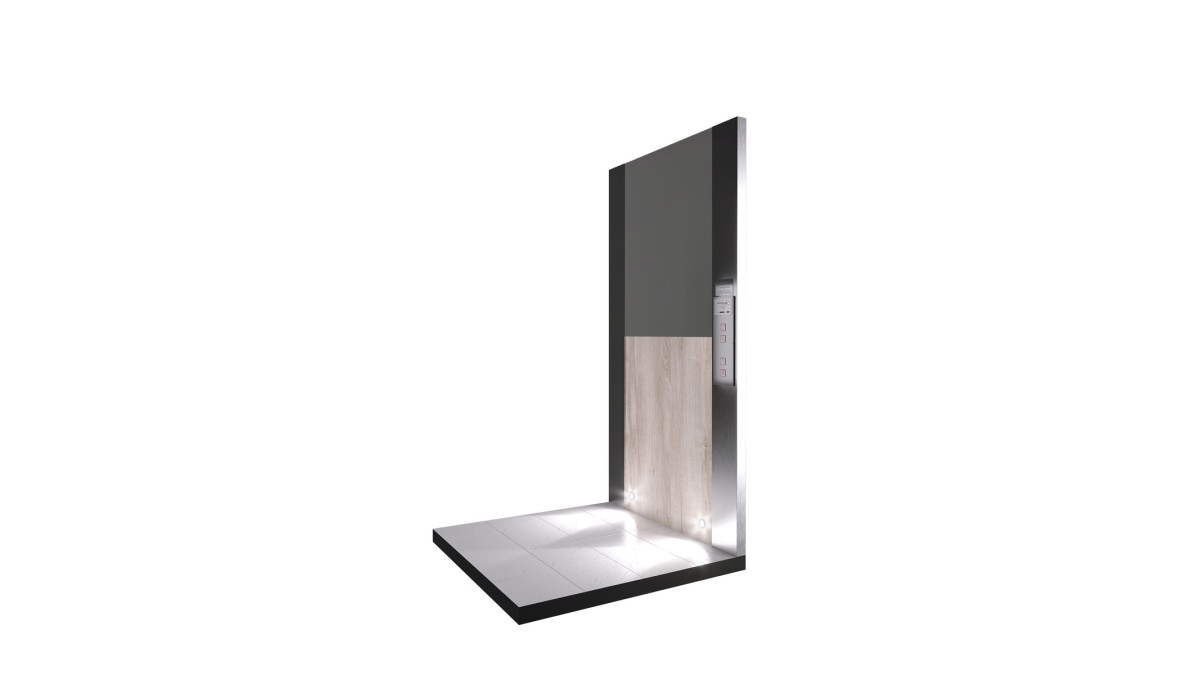

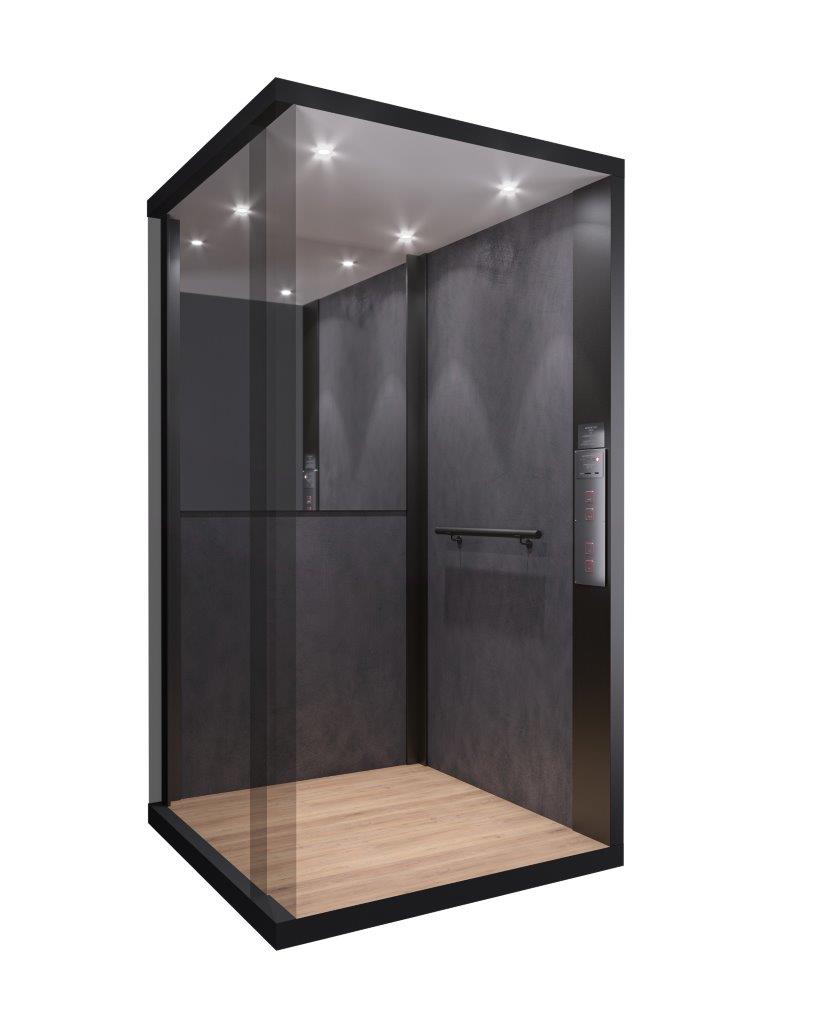

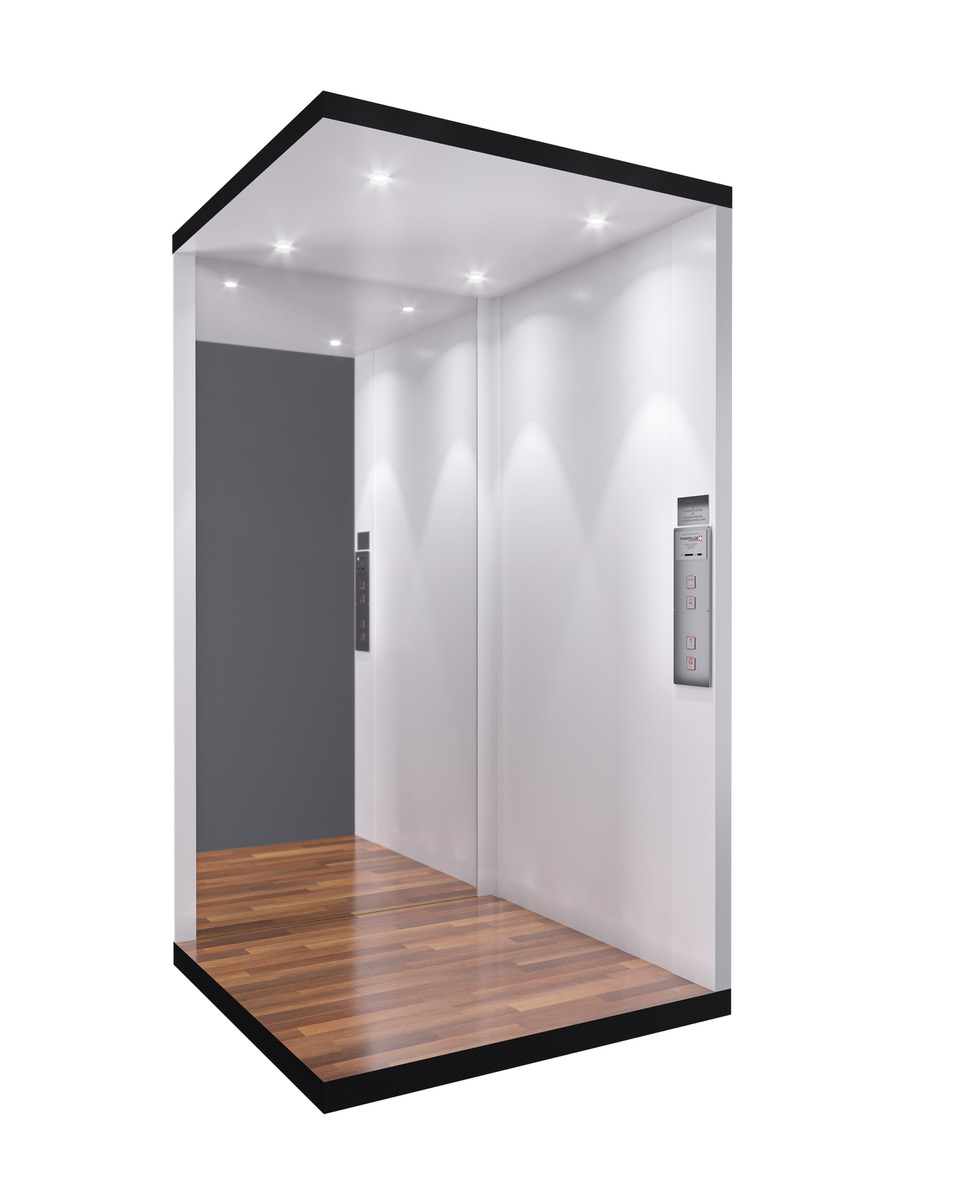

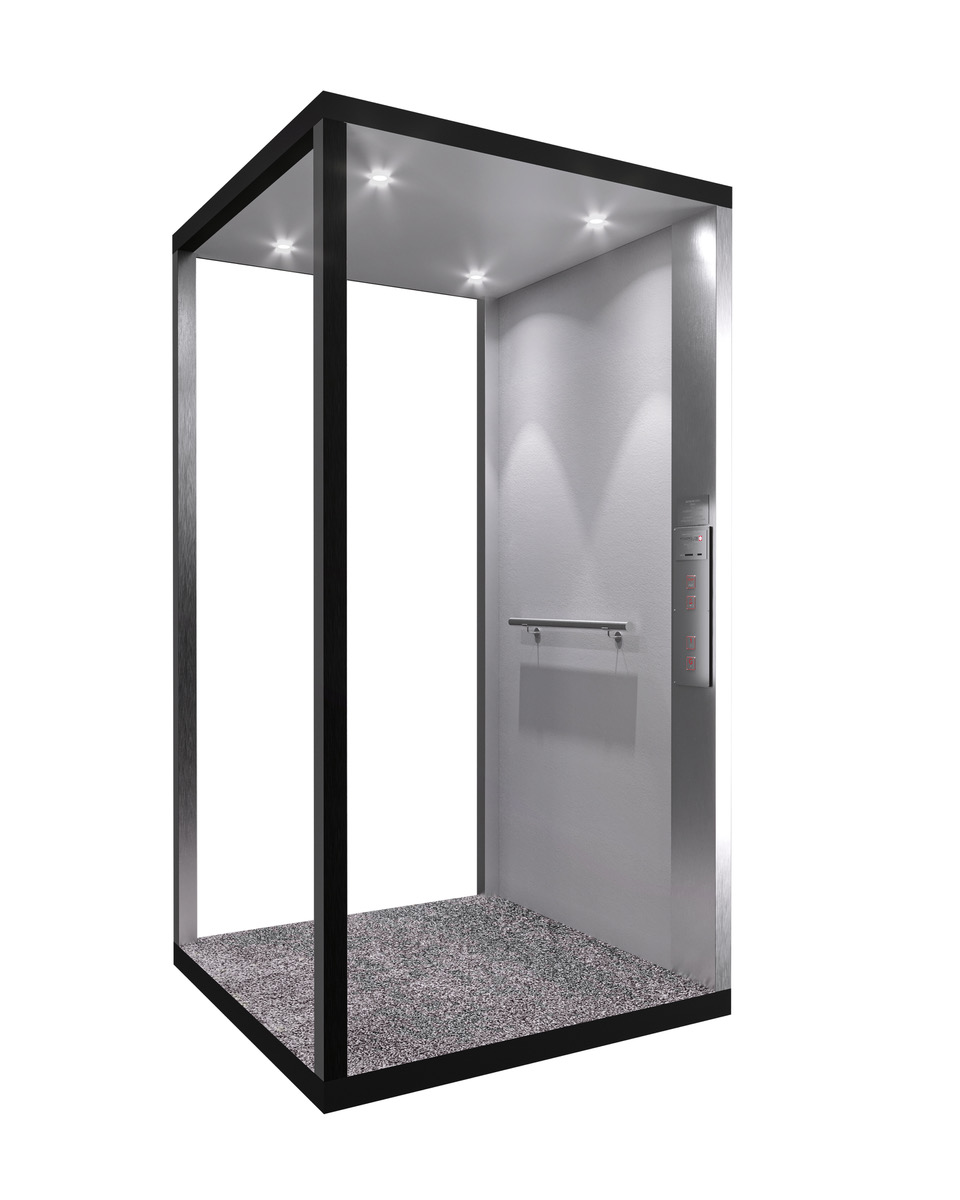

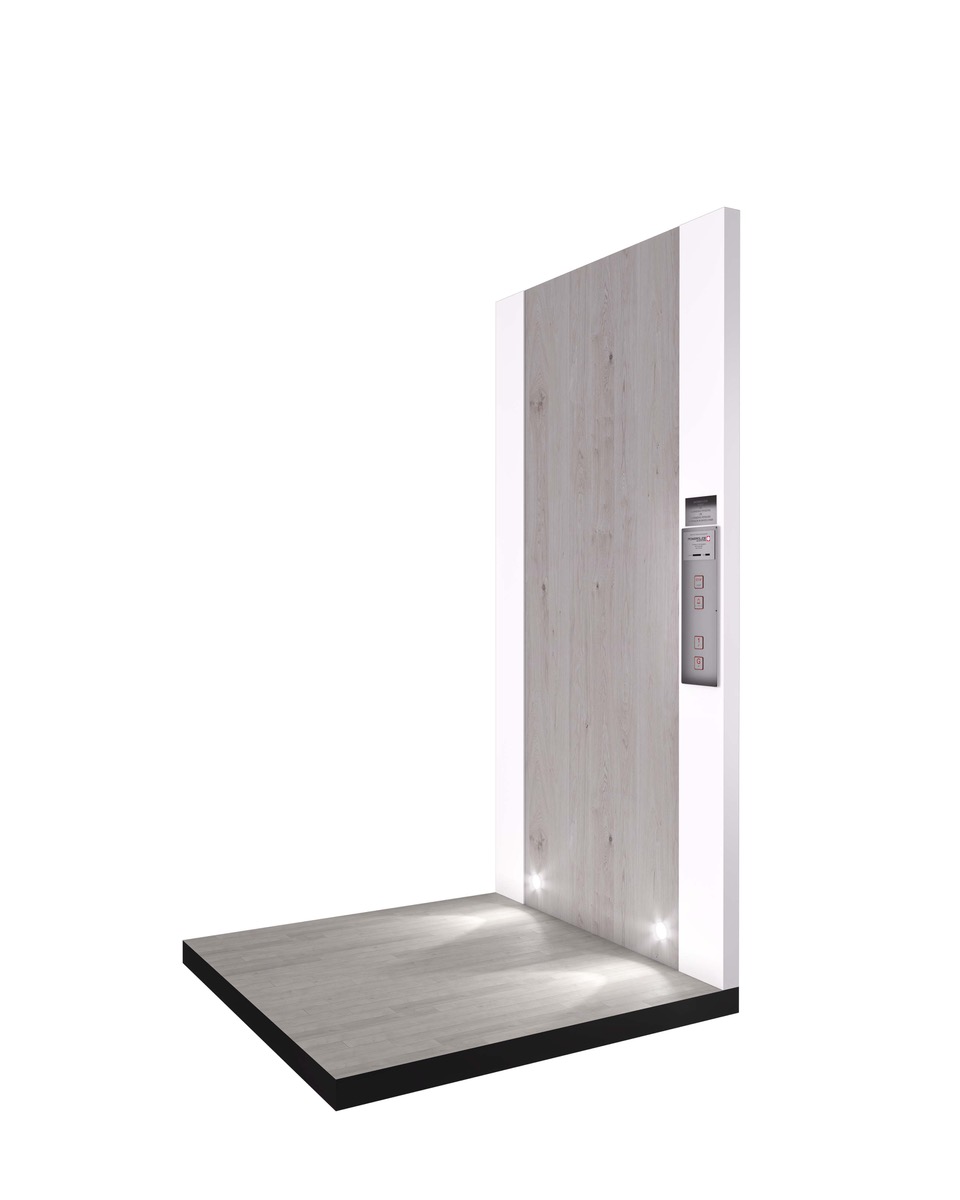

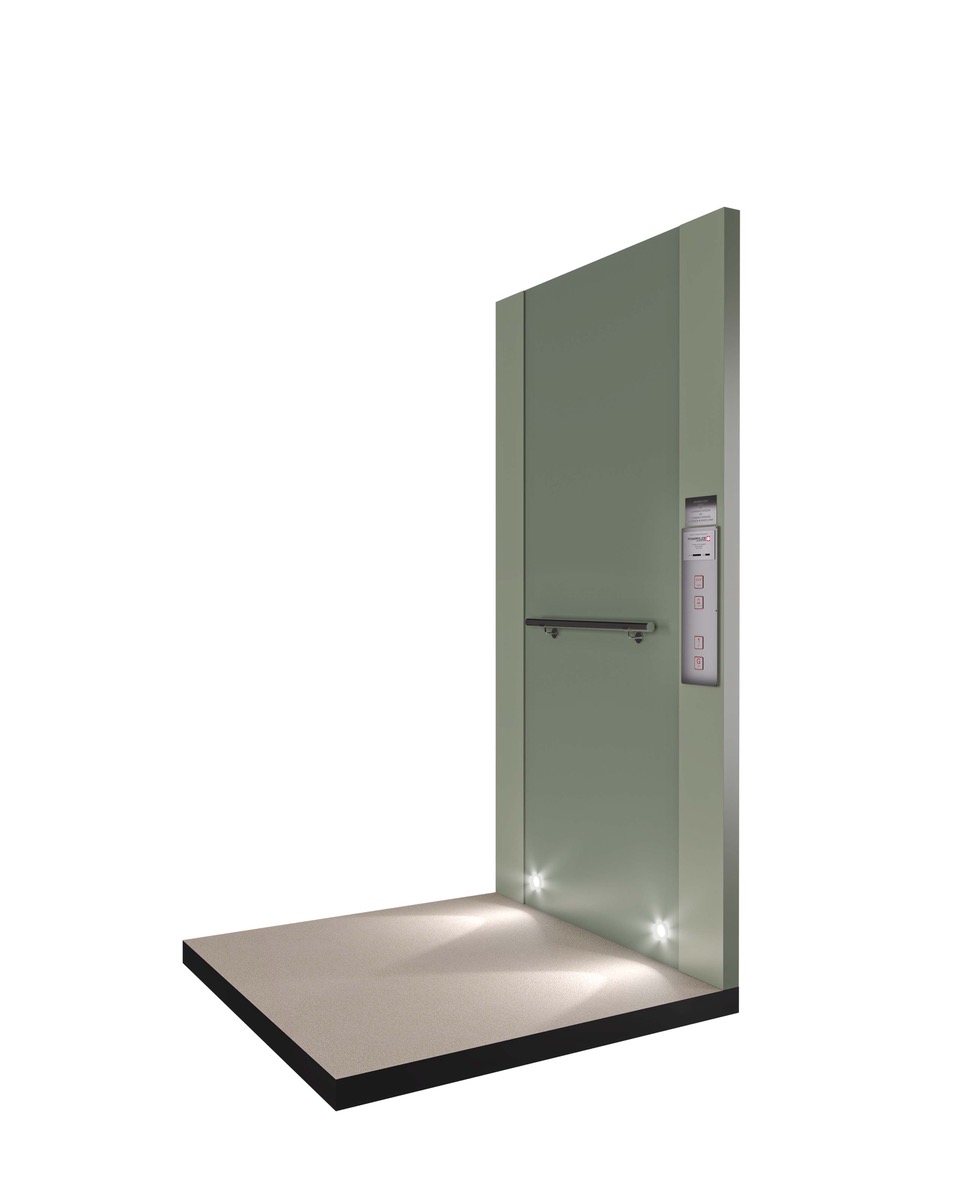

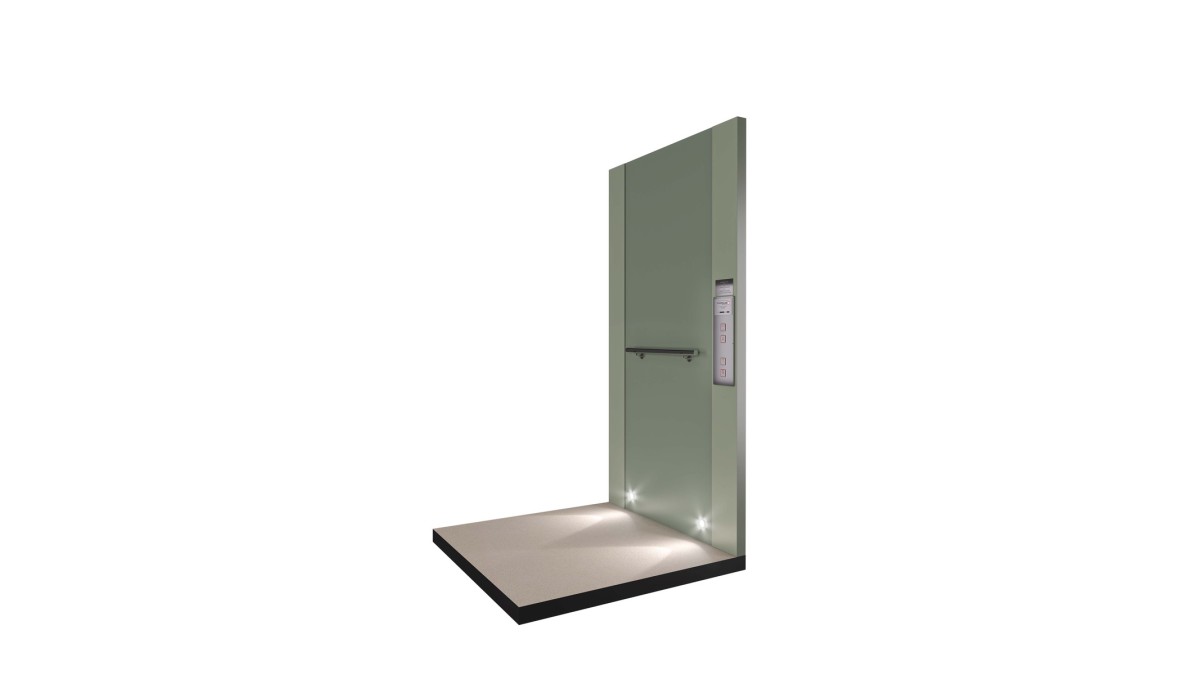

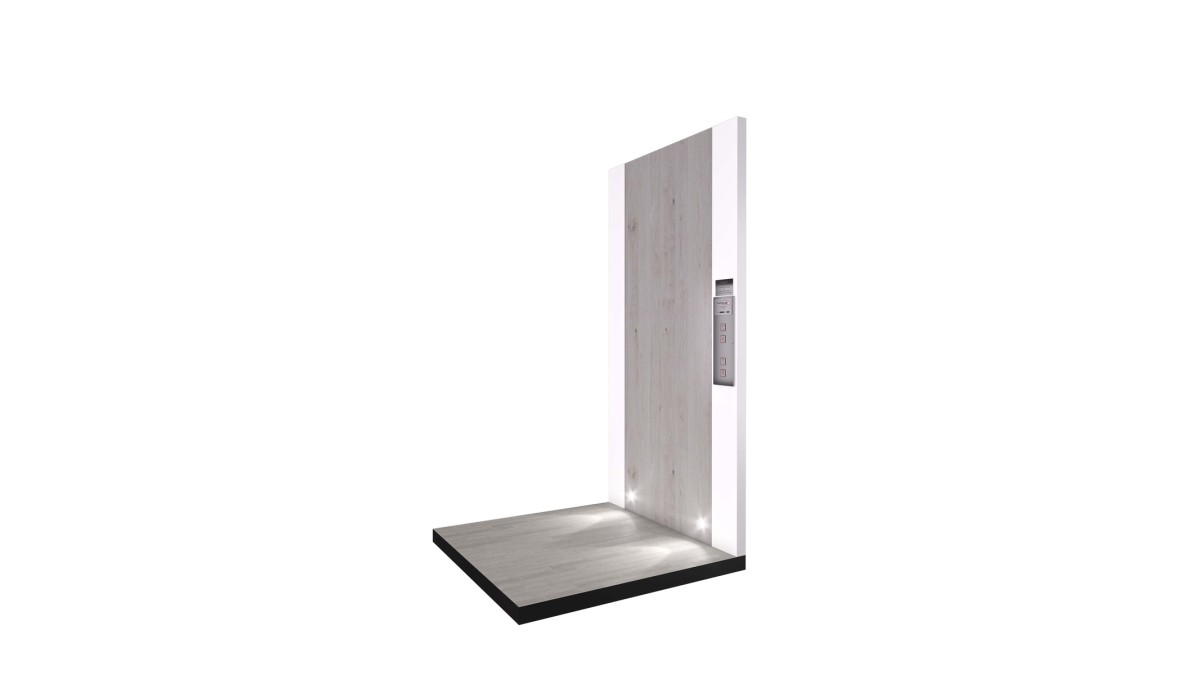

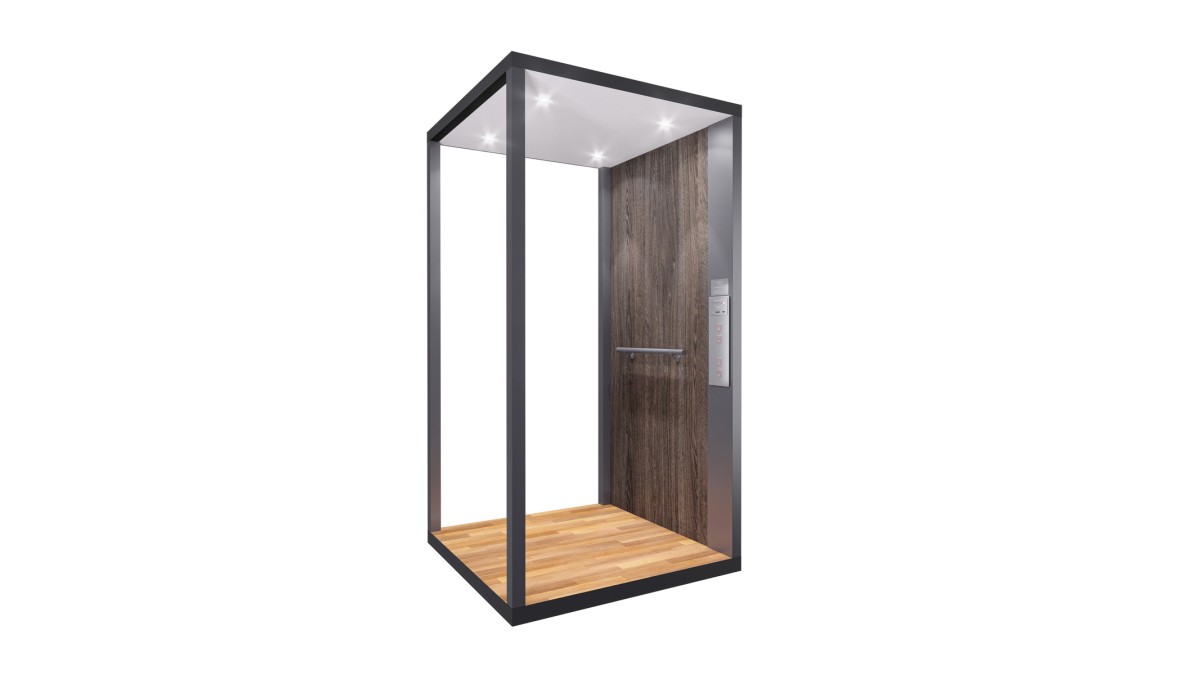

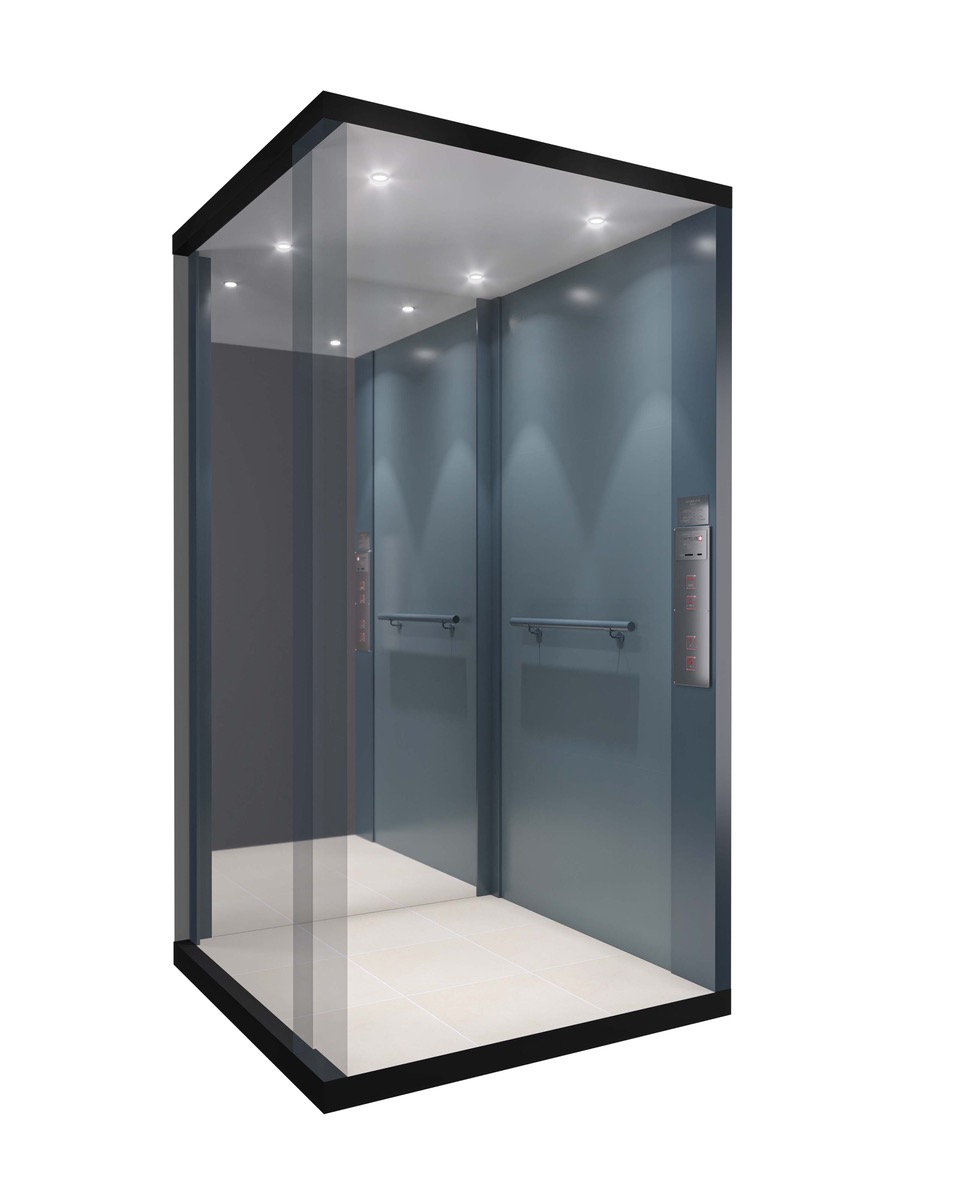

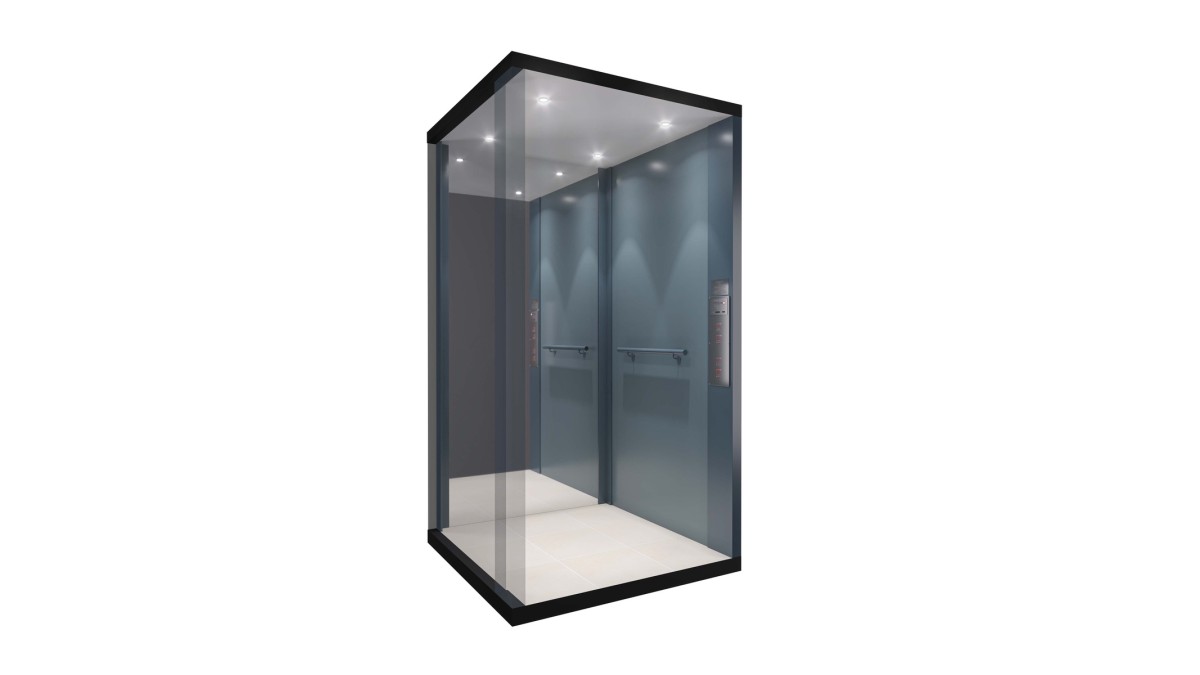

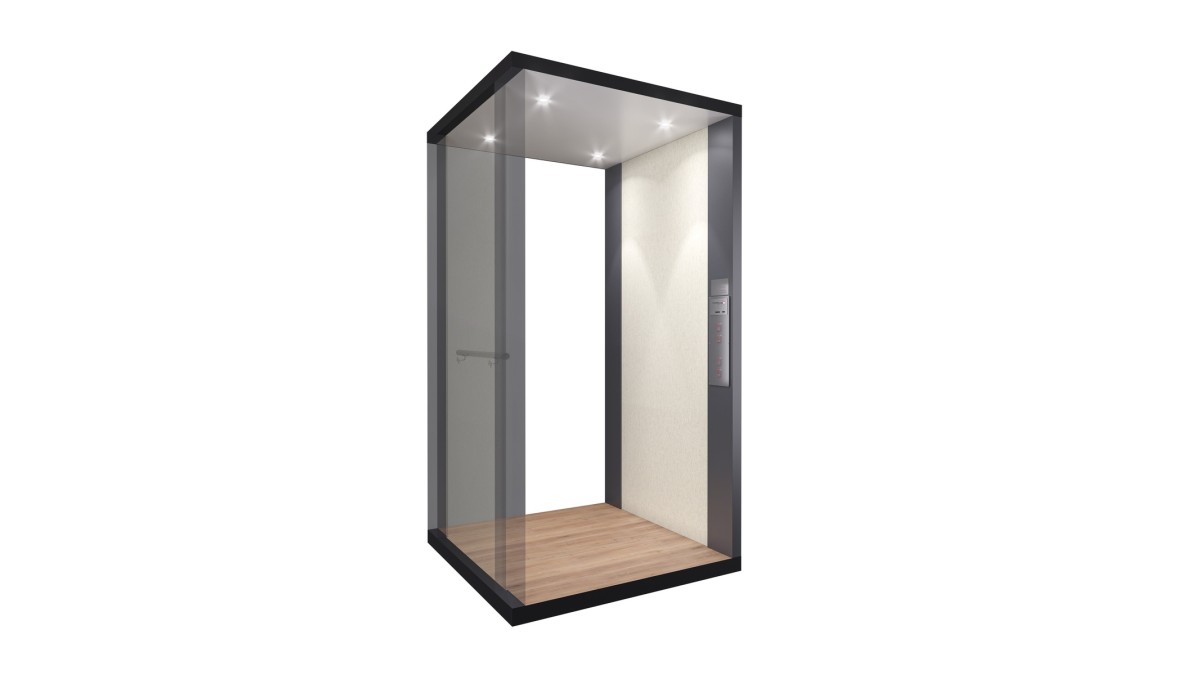

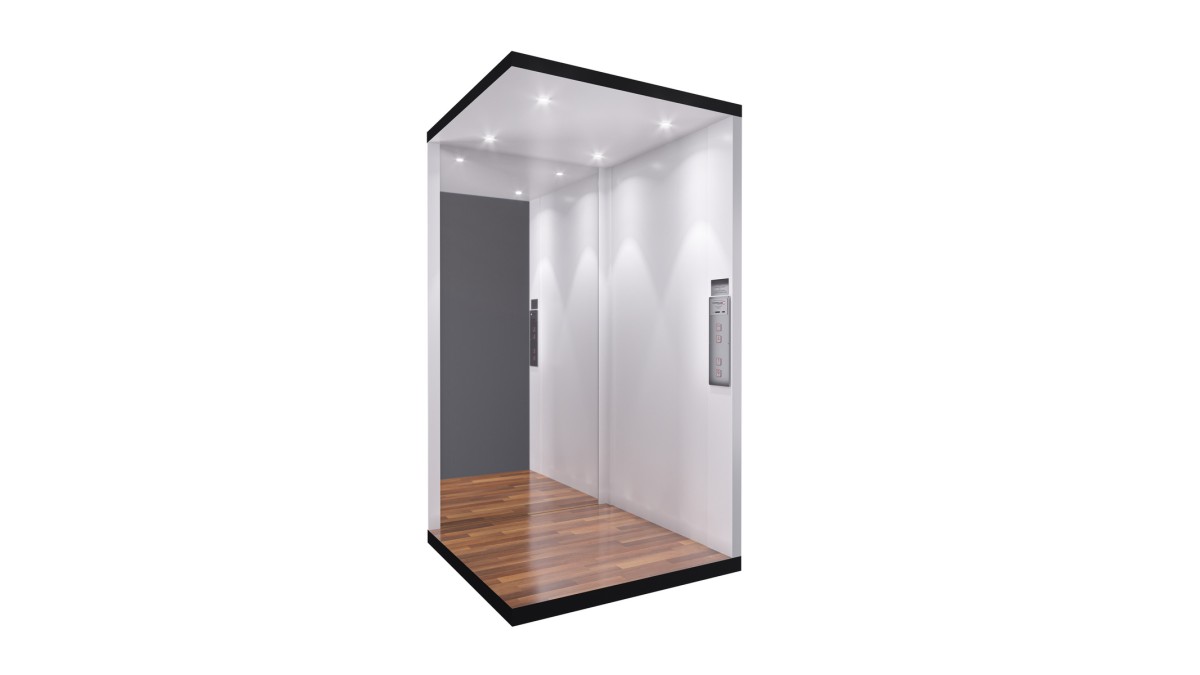

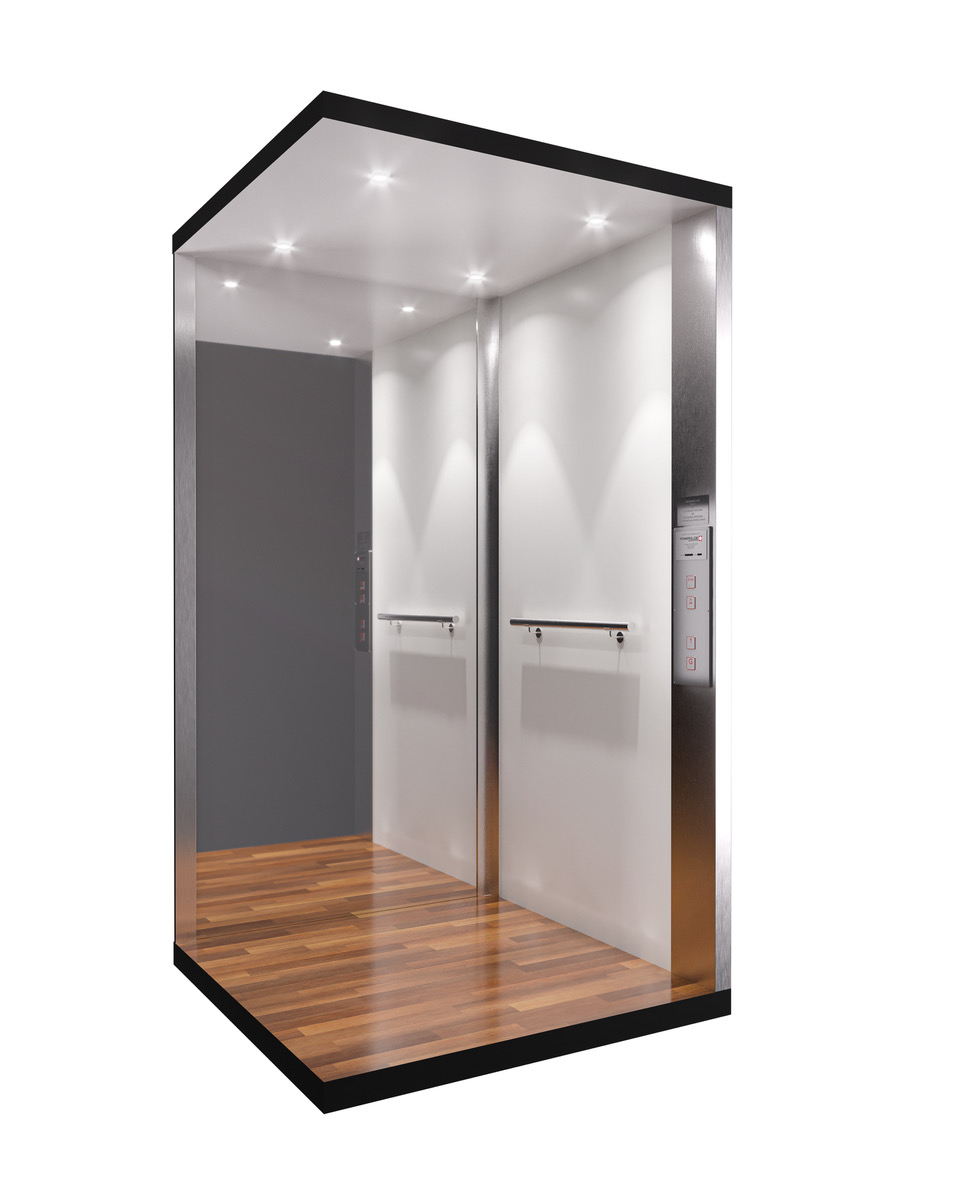

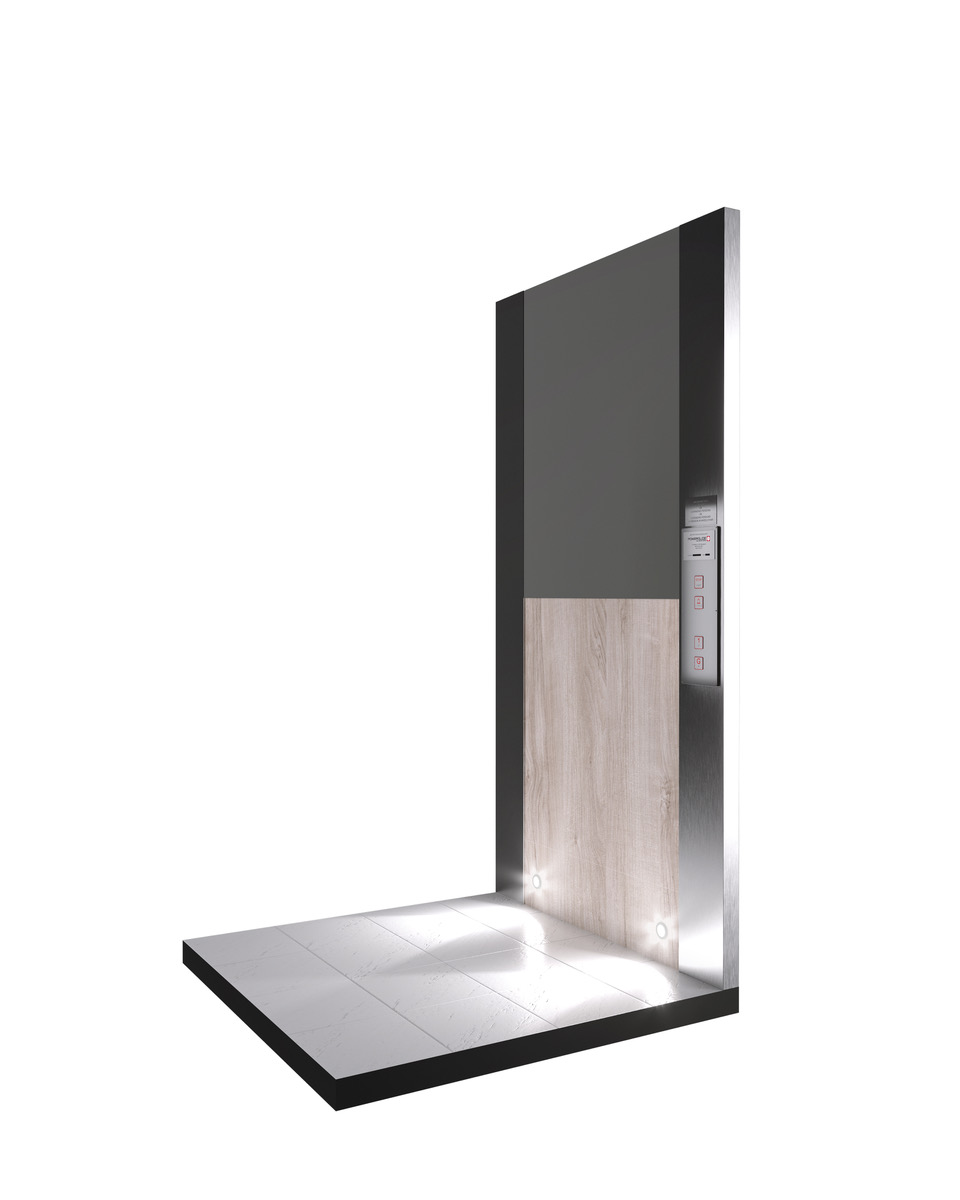

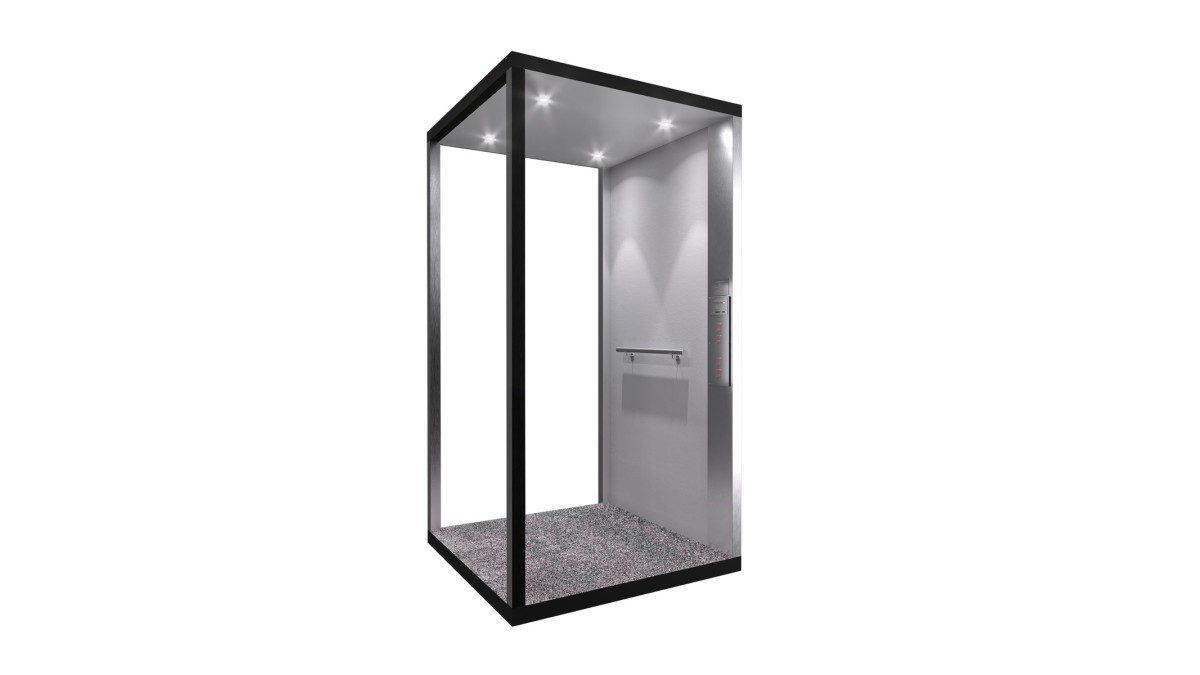

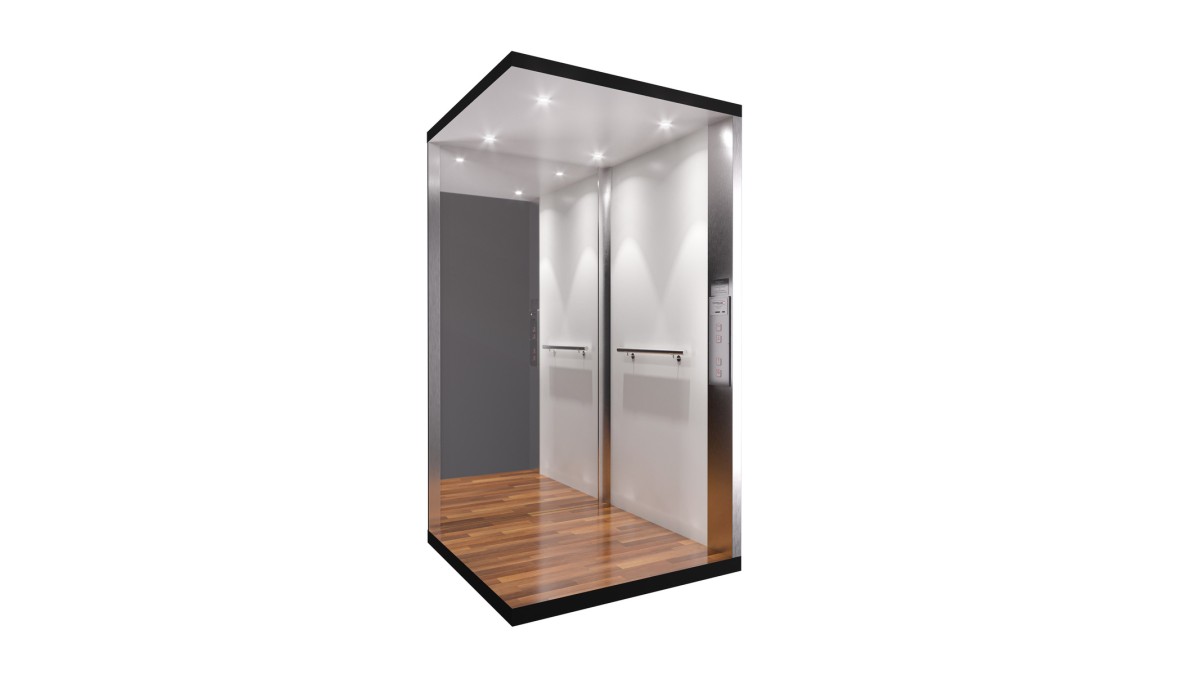

  • Configurations include: Full Car, Corner Car, Enclosed Platform, Through Car, and Open Car
  • Flexible sizing options; any size from 800mm up to 1400mm, square or rectangle

Designer Decors

  • Choice of decors to reflect home's palette and style — from warm wood tones to industrial titanium chic
  • Each decor combines cleverly matched wall panels, ceilings, trims, and handrails
  • Where projects warrant total customisation to really make a statement, check out the E-Series Elevator



Key Features

Recommended for:

  • Medium-density developments / building your long-term home / higher value builds

Configurations:

  • Full Car, Enclosed Platform, Corner Car, Through Car, Open Car.
  • Dual landings/exits per floor.
  • Multiple door configurations.

Size & Shape:

  • Any size from 800mm up to 1400mm, square or rectangle.

Styling

  • 11 designer decors with coordinated wall panels, ceilings, trims and handrails.

Proprietary Hydraulic Technology:

  • Lift runs on its own rails; does not require a specially engineered lift shaft
  • Guide rail system significantly reduces sideways movement for greater stability

Fast and Smooth:

  • High speed (300mm per second) — twice as fast as any platform lift
  • Soft start, smooth acceleration, and a gentle stop
  • Approximately 10 seconds to travel up or down 1 floor

Low Maintenance:

  • 5 year no maintenance guarantee
  • Optional remote monitoring (available from late 2023); allows the Powerglide team to monitor, repair and upgrade lift remotely

Safety:

  • Electronic safety curtain; scans open faces and stops the lift automatically if something breaks the beam
  • Safe exit during power failure; returns lift to lower level to allow safe exit
  • Optional remote monitoring (available late 2023); allows the Powerglide team to provide support in the case of emergency
  • Optional in-car telephone
  • Access control options available
  • Lifemark Accredited

NZ Design & Build

  • Minimal lead time; design & manufacture from 8 weeks, versus 30+ for imported lifts
  • Seamless in-house design-build-installation service.
  • 95% local componentry; easy access to parts
Scope of Use
  • Suitable as a service or passenger lift, can be combined with disabled access options
  • Suitable for new designs or retrofits
  • Up to 5 stops or 9.6m of travel (typical 4 stop travel distance)
  • Full car configuration; choice of 5 configurations, from full car to open platform
  • Flexible sizing options; any size from 800mm up to 1400mm, square or rectangle
  • Disabled access option floor size of 1400mm square
  • Car height up to 2400mm
  • Load capacity maximum: 340kg
Limitations on Use
  • Suitable as a service or passenger lift, can be combined with disabled access options
  • Suitable for new designs or retrofits
  • Up to 5 stops or 9.6m of travel (typical 4 stop travel distance)
  • Full car configuration; choice of 5 configurations, from full car to open platform
  • Flexible sizing options; any size from 800mm up to 1400mm, square or rectangle
  • Disabled access option floor size of 1400mm square
  • Car height up to 2400mm
  • Load capacity maximum: 340kg
  • Designer decors do not include flooring options — it is recommended to match the flooring to that of the home
Statement of Building Code Compliance

The Powerglide is manufactured and installed to comply with the requirements of NZBC D2/AS2 as an acceptable solution using NZS 4334:2012, and also as an alternative solution using the standards of AS 1735.18 2002 in conjunction with NZBC D2/AS2.

In-Service History
  • 5 year maintenance free guarantee
Documents
Powerglide's Design Support Programme

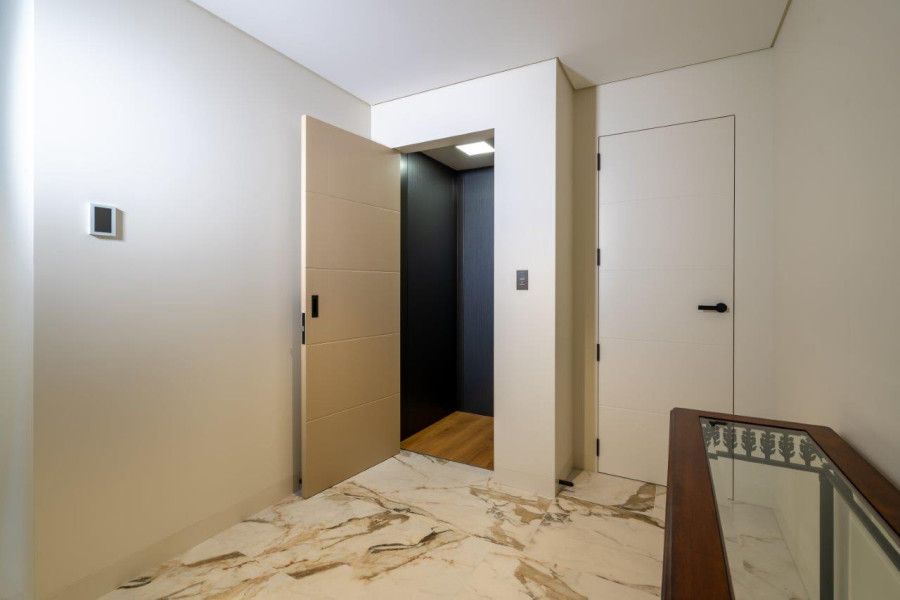

Commercial S Series Elevators

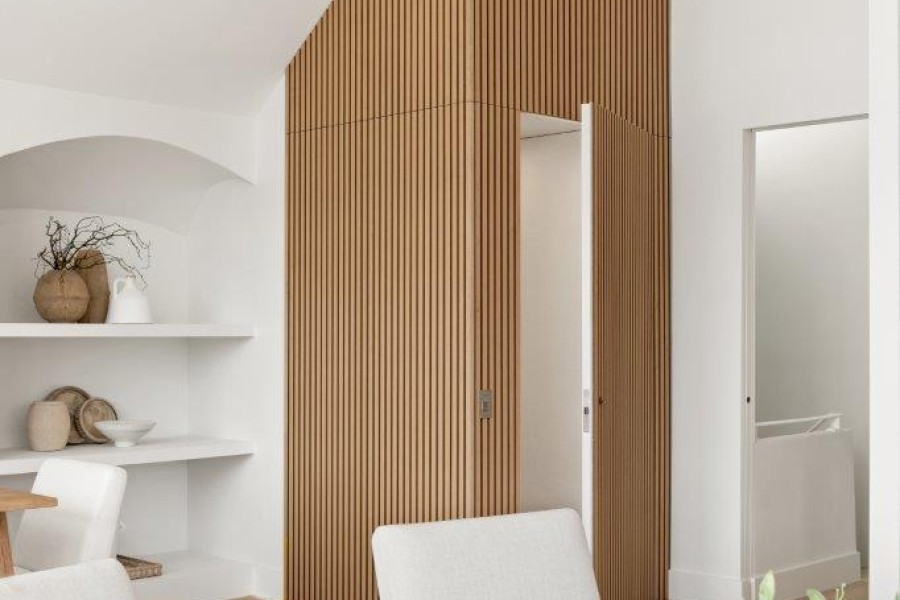

Residential A Series Elevators
Residential S Series Elevators

Powerglide Elevators manufacture and install high-quality elevators with a travel distance of 4 full floors. They are suitable for residential use, medium-density, and smaller commercial buildings.

Product Enquiries

News from Powerglide Elevators

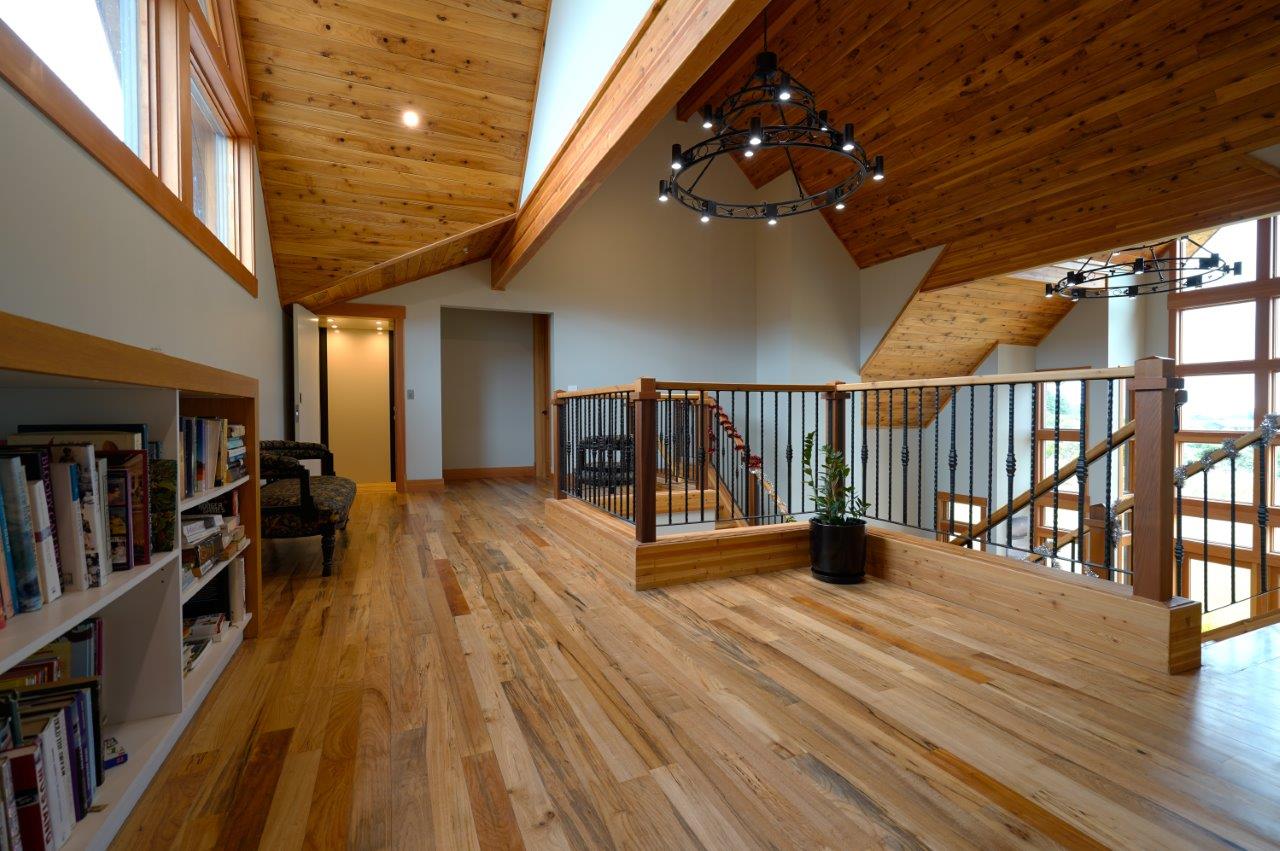

Smooth Enough for a Chandelier and Bud-Vase, Powerglide's Custom Lift Melds History with Modern Technology

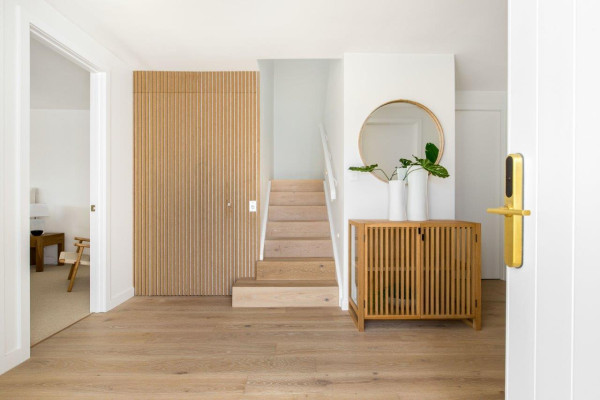

Clever Use of Vertical Wooden Slats Turns Affordable Powerglide Elevator into a Design Feature
