HERADESIGN Acoustic Panels
Description

HERADESIGN produces and develops high-class acoustic systems based on wood wool for ceiling and wall installations.

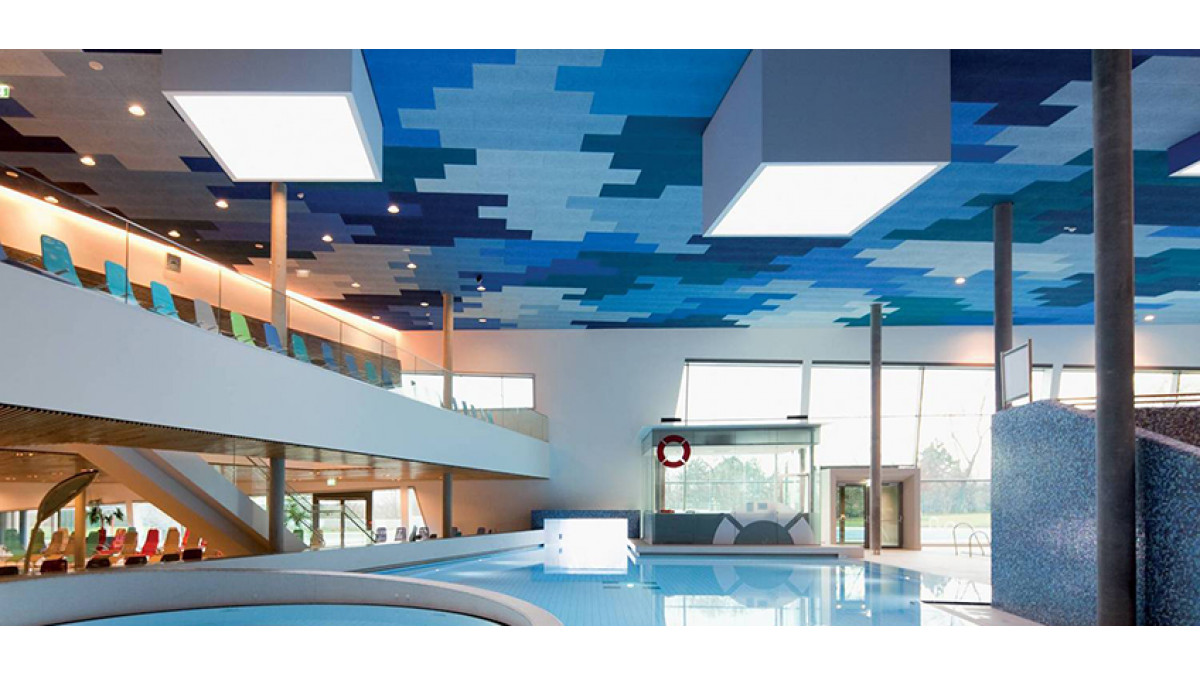

HERADESIGN is a high performance noise absorbing panel, ideal for tailoring the acoustic environment of spaces. Acoustic performance combined with the choice to paint in any colour make HERADESIGN the perfect choice for creative acoustic design of education, sports, office, infrastructure, entertainment, hospitality and recreational facilities.

Key Features
  • HERADESIGN acoustic solutions reduce nearly all disturbing background noise
  • In addition to decorative applications in wall and ceiling constructions, HERADESIGN acoustic panels can reach sound absorption values of up to αw = 1.0
  • The sheet forming technology exclusive to HERADESIGN means a standard thickness deviation of only +/- 1 mm
  • Open, smooth and lightweight textures with a low quantity of binding agents gives the panels an exquisite character easily used in high-quality interior applications
  • The production technology and binding agent make exact and high-quality edge designs compatible with almost all ceiling systems and profiles on the market
  • Choose almost any colour from popular colour systems such as RAL, NCS or StoColor
Scope of Use

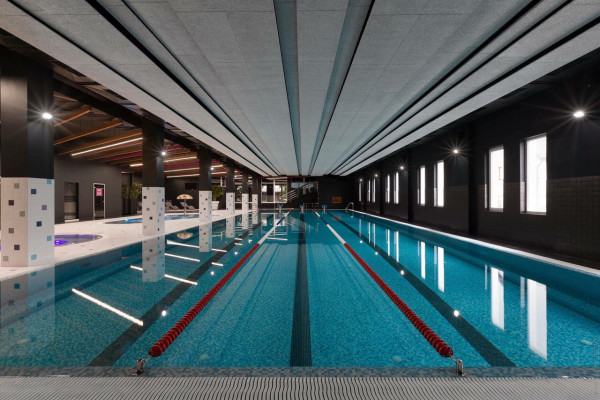

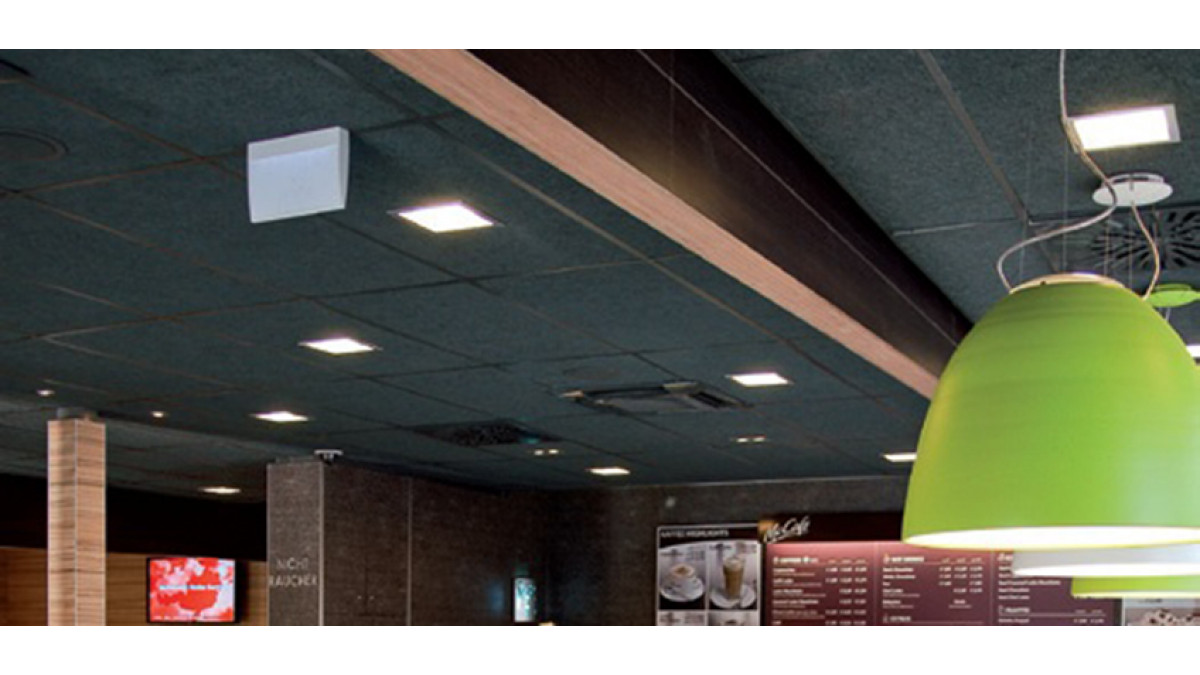

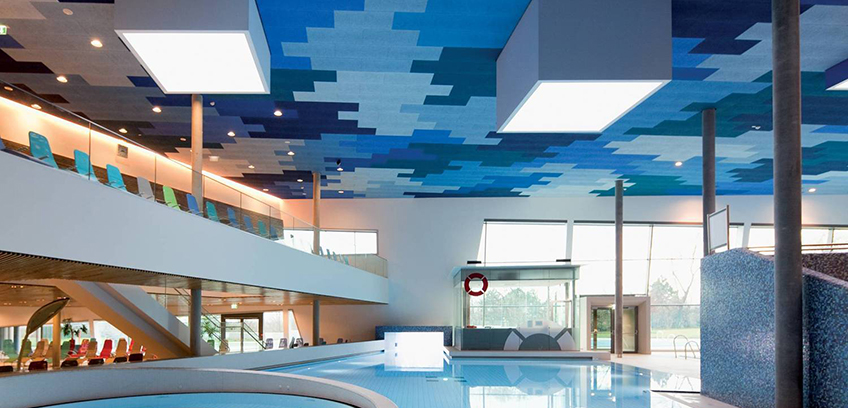

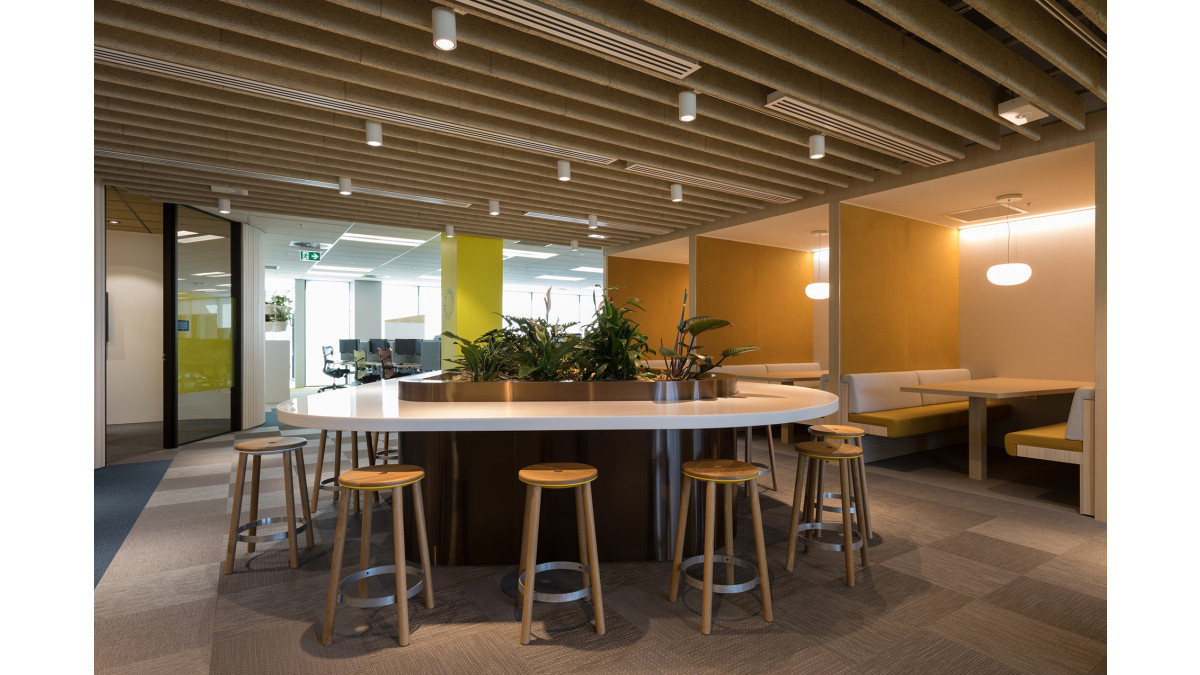

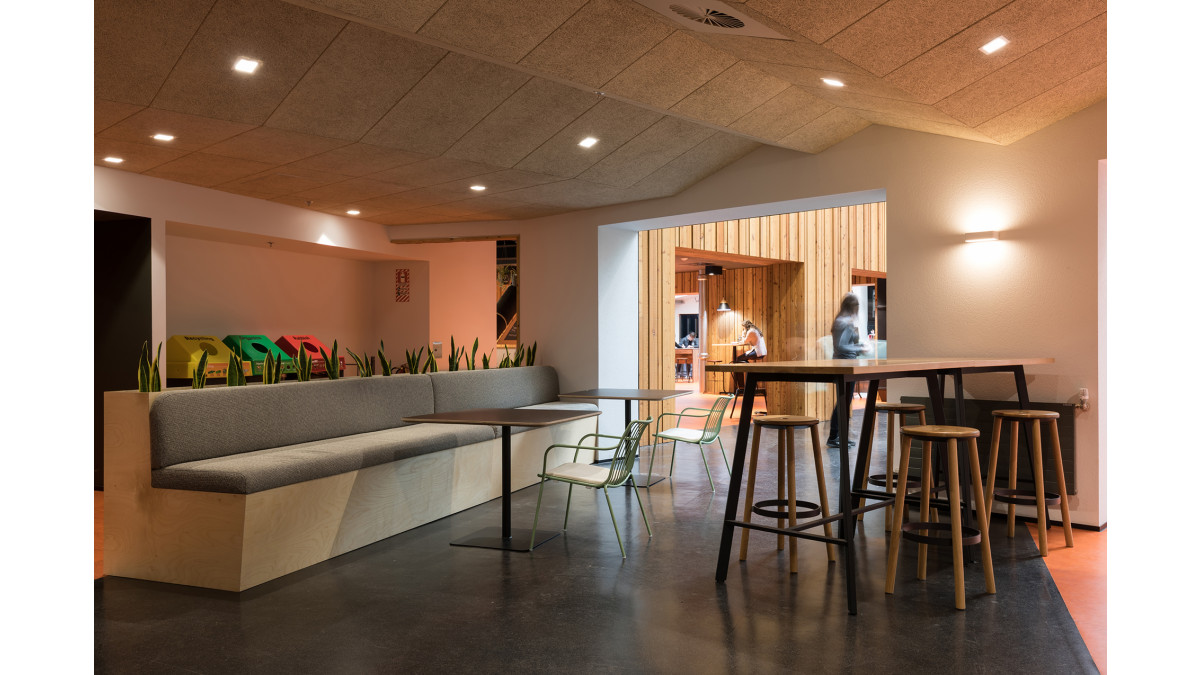

  • The perfect choice for creative acoustic design of education, sports, office, infrastructure, entertainment, hospitality and recreational facilities.
  • Suitable for indoor conditions with relative air humidity of up to 90%. Magnesite protects the wood cells against ageing and fungal attack.
  • The production technology and binding agent make exact and high-quality edge designs compatible with almost all ceiling systems and profiles on the market
Statement of Building Code Compliance
  • Fire resistance: non-combustibility (A2)
  • HERADESIGN acoustic panels have a standard B – s1, d0 fire resistance class
  • In addition, HERADESIGN superfine A2 and HERADESIGN fine A2 are available in fire resistance class A2 – s1, d0
In-Service History

Success stories like the story of the magnesite bonded wood wool panel are always a combination of a clear vision, innovation and consistency. Introduced as a revolutionary building product in 1908, the wood wool panel has undergone a dramatic development. With the first steps towards function and design, the path to becoming a cult object began in 1935. From Japan to America, from Finland to South Africa, it was and still is the eye-catcher in many well-known buildings, and not only on the ceiling. Highly functional and timelessly attractive, it has stood the tests of changing architectural styles and functional requirements.

Other Performance Attributes
  • Long lifespan

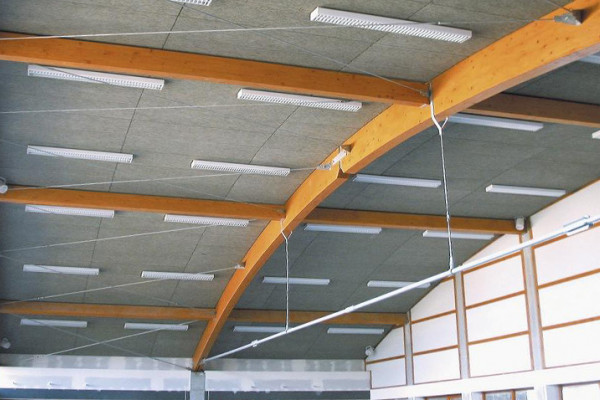

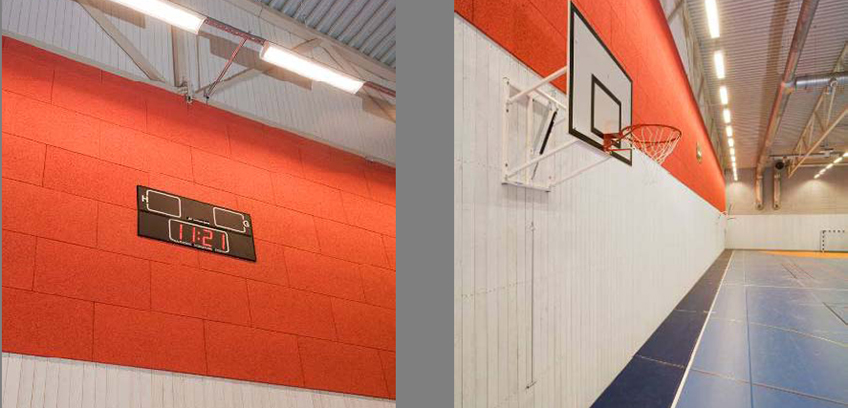

  • Crash test with 90 km/h – HERADESIGN acoustic panels pass the ball-impact test to DIN 18032 and EN 13964. This is also a result of using magnesite as a binding agent, which guarantees both durable fibre elasticity and solidity.
  • HERADESIGN has a sustainability and  conservation policy regarding product technology and raw material use (EPD – AUB Environmental Product Declaration acc. to EN ISO 14025)
Documents
Acoustic Performance
Fire Testing
CAD/PDF Details

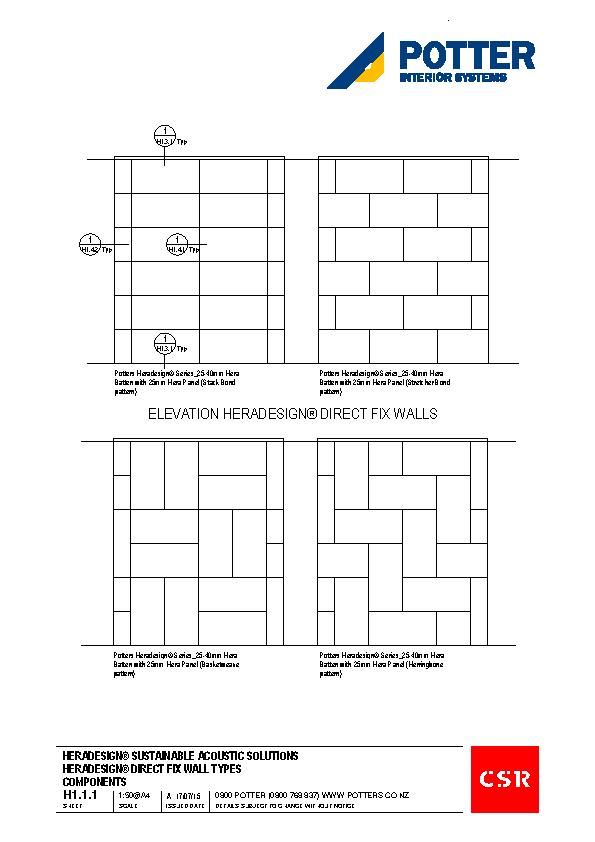

H1.1.1 HERADESIGN® DIRECT FIX WALL TYPES

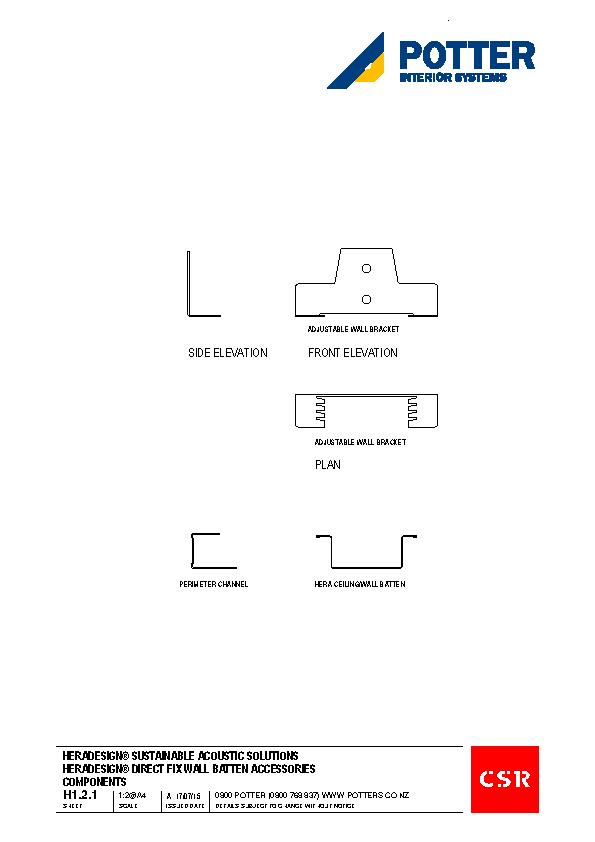

H1.2.1 HERADESIGN® DIRECT FIX WALL BATTEN ACCESSORIES

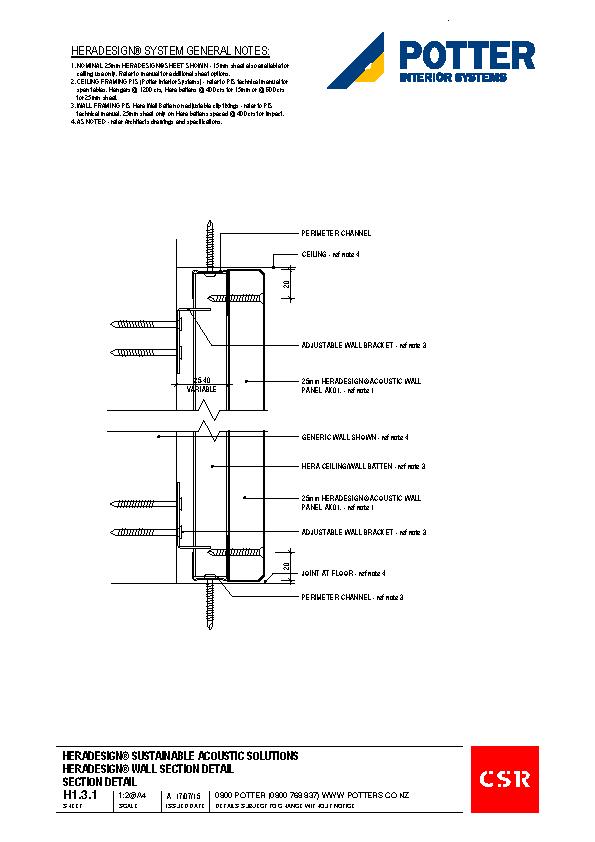

H1.3.1 HERADESIGN® WALL SECTION DETAIL
H1.4.1 HERADESIGN® WALL JOINT PLAN DETAIL

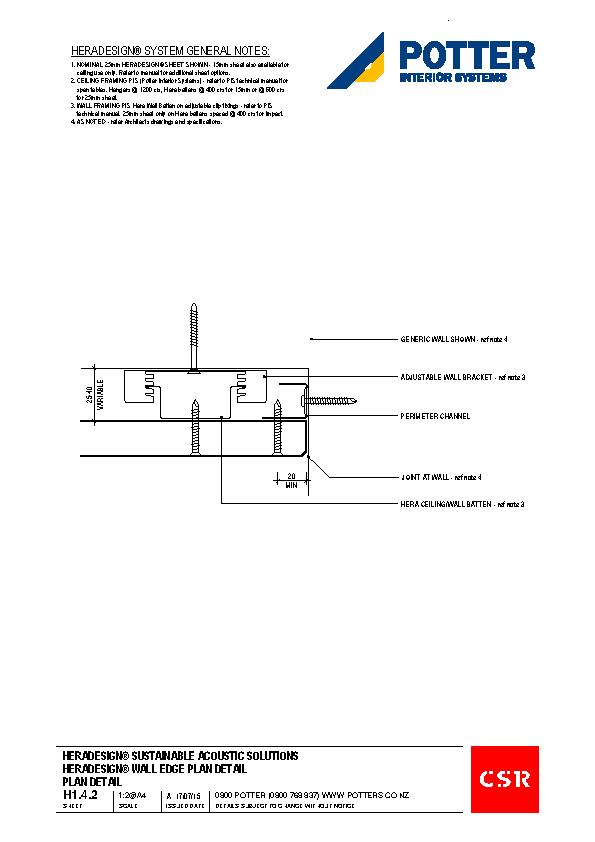

H1.4.2 HERADESIGN® WALL EDGE PLAN DETAIL

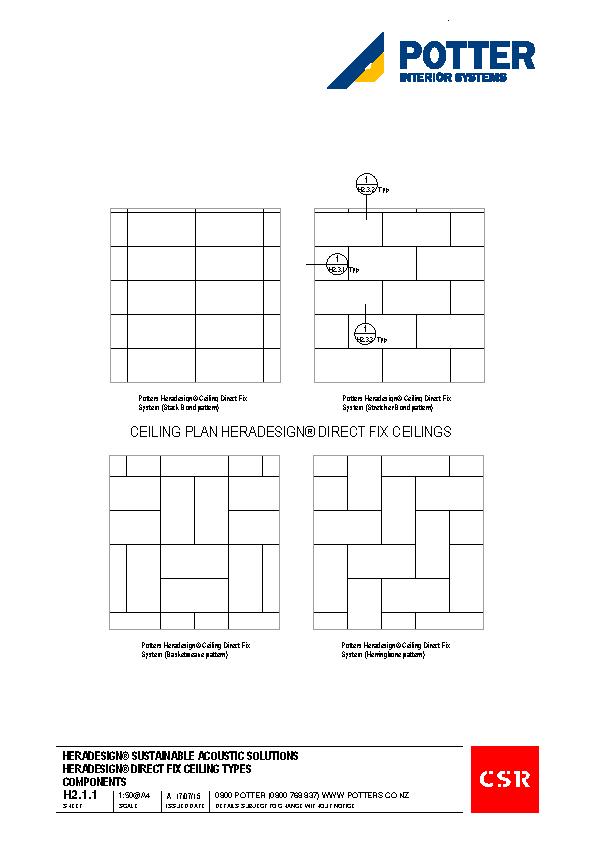

H2.1.1 HERADESIGN® DIRECT FIX CEILING TYPES
H2.1.2 HERADESIGN® SCREWFIX SUSPENSION CEILING TYPES

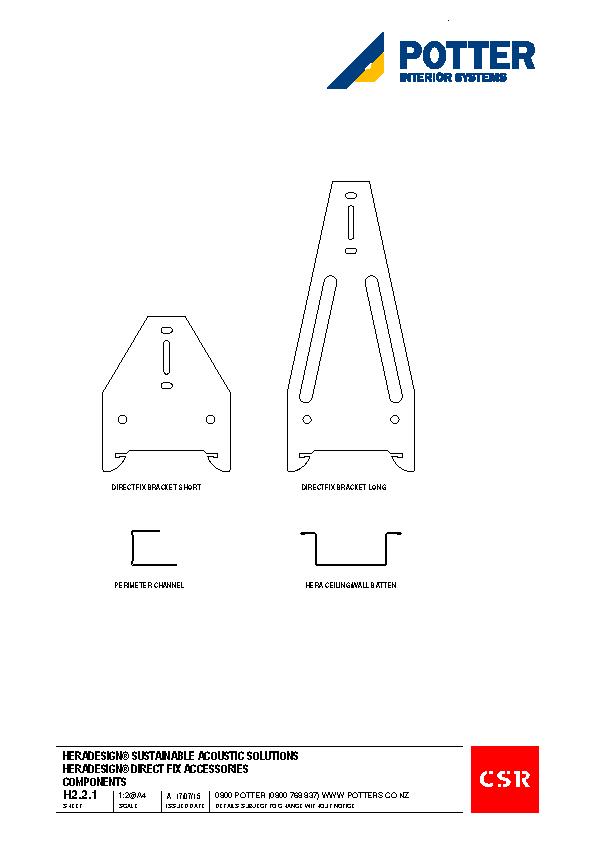

H2.2.1 HERADESIGN® DIRECT FIX ACCESSORIES

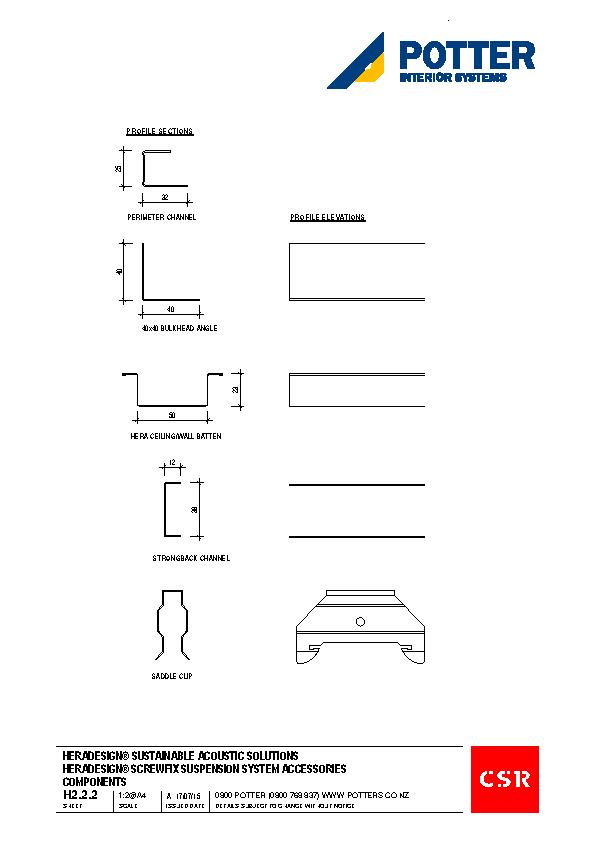

H2.2.2 HERADESIGN® SCREWFIX SUSPENSION SYSTEM ACCESSORIES

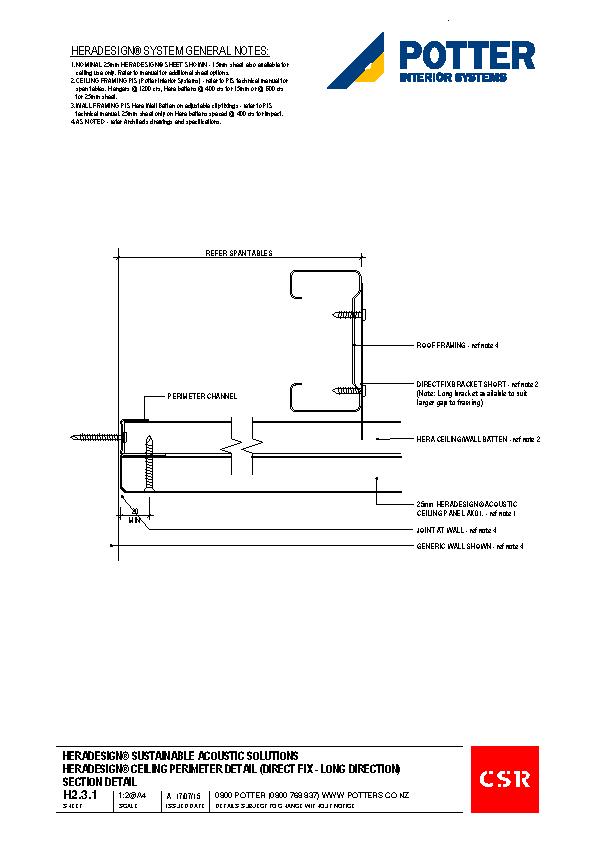

H2.3.1 HERADESIGN® CEILING PERIMETER DETAIL (DIRECT FIX - LONG DIRECTION)

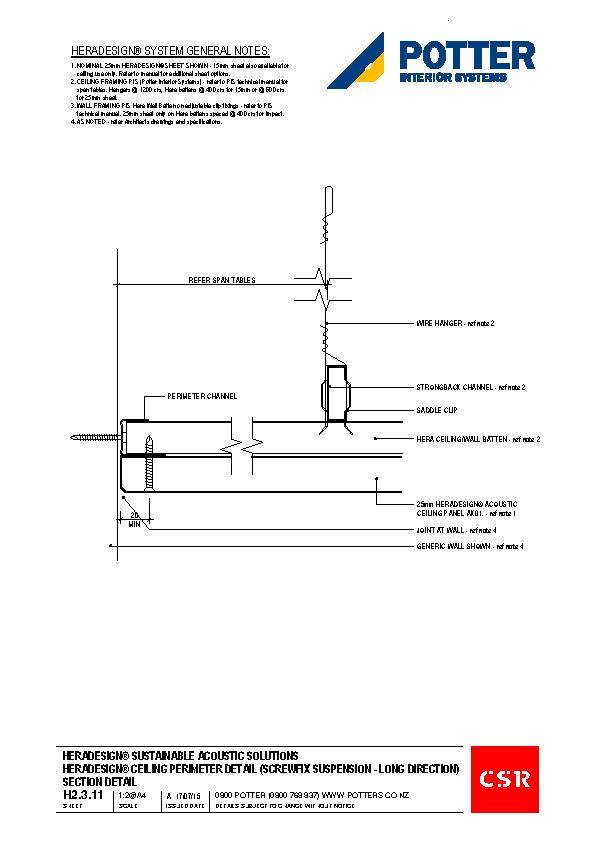

H2.3.11 HERADESIGN® CEILING PERIMETER DETAIL (SCREWFIX SUSPENSION - LONG DIRECTION)

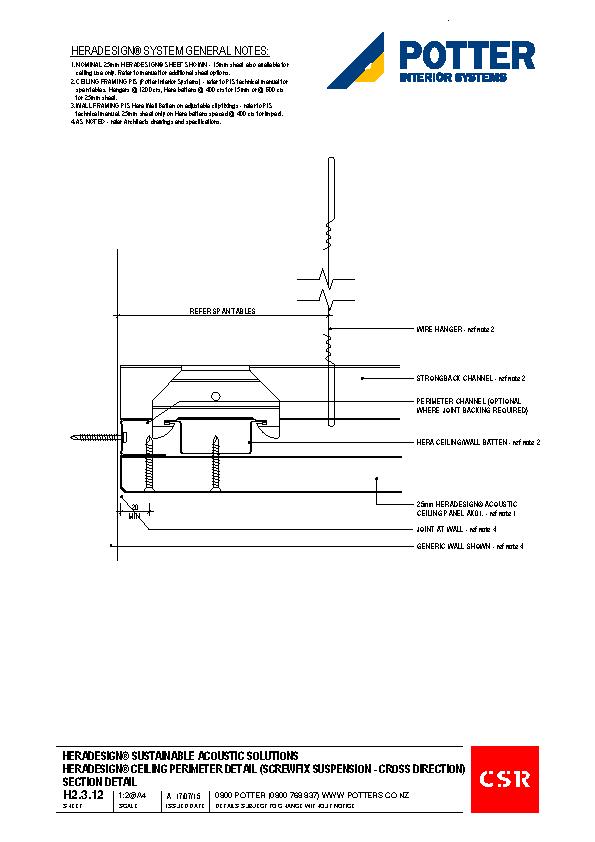

H2.3.12 HERADESIGN® CEILING PERIMETER DETAIL (SCREWFIX SUSPENSION - CROSS DIRECTION)

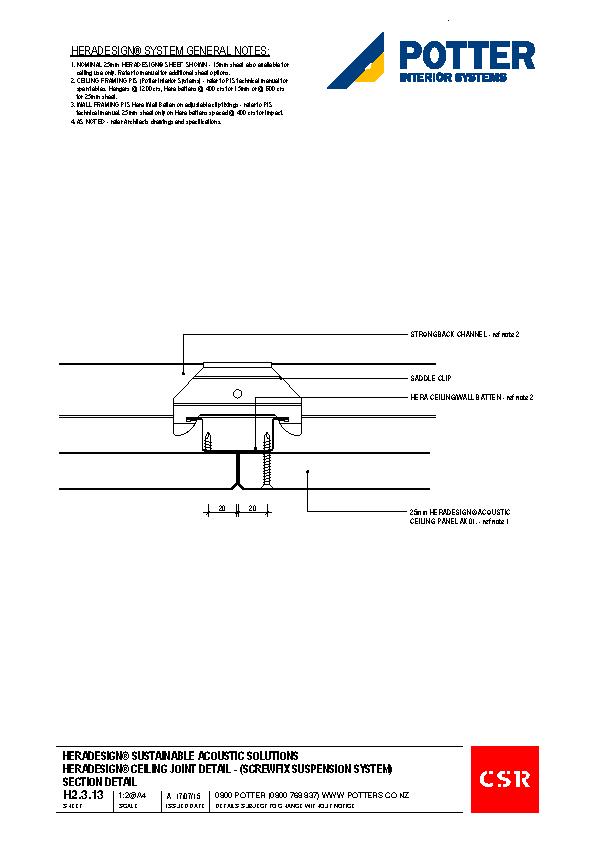

H2.3.13 HERADESIGN® CEILING JOINT DETAIL - (SCREWFIX SUSPENSION SYSTEM)

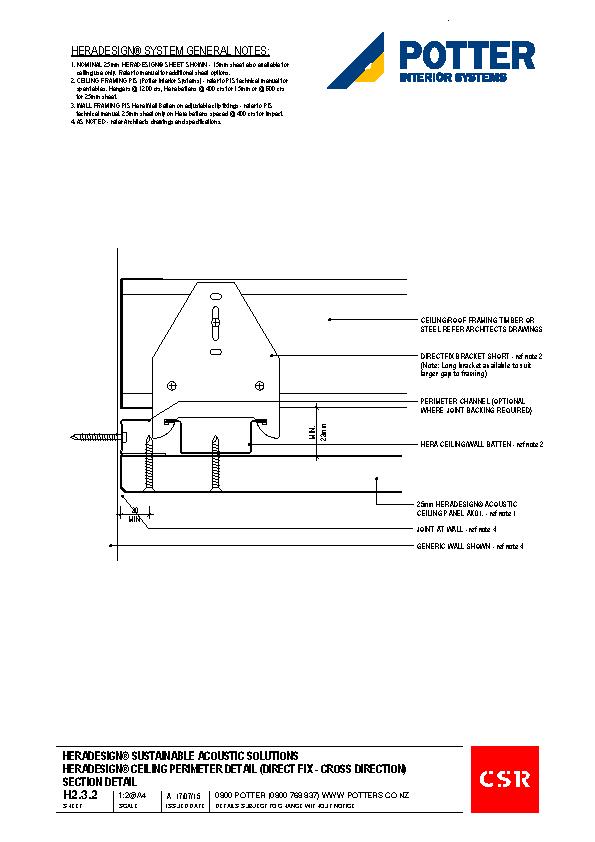

H2.3.2 HERADESIGN® CEILING PERIMETER DETAIL (DIRECT FIX - CROSS DIRECTION)

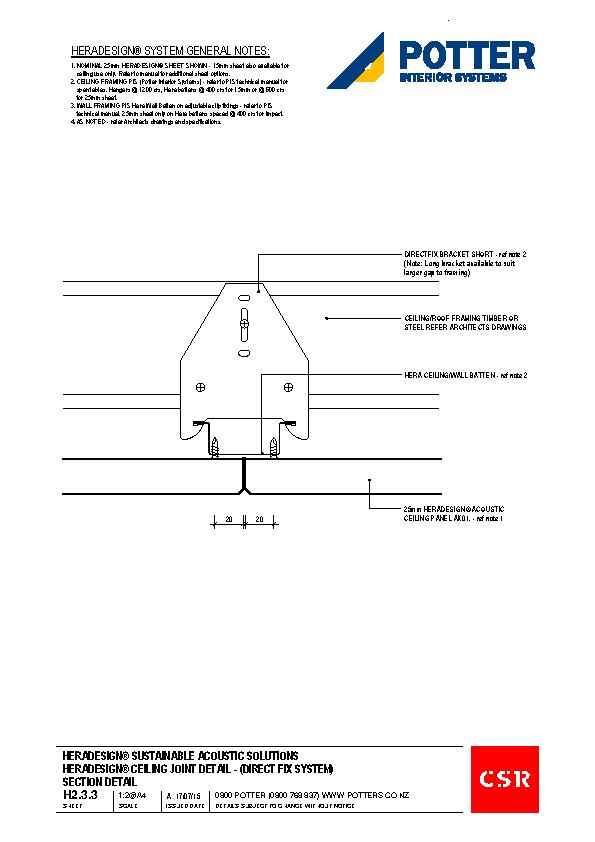

H2.3.3 HERADESIGN® CEILING JOINT DETAIL - (DIRECT FIX SYSTEM)
