Spouting Snow Strap by Continuous Group

Spouting Snow Strap

Description

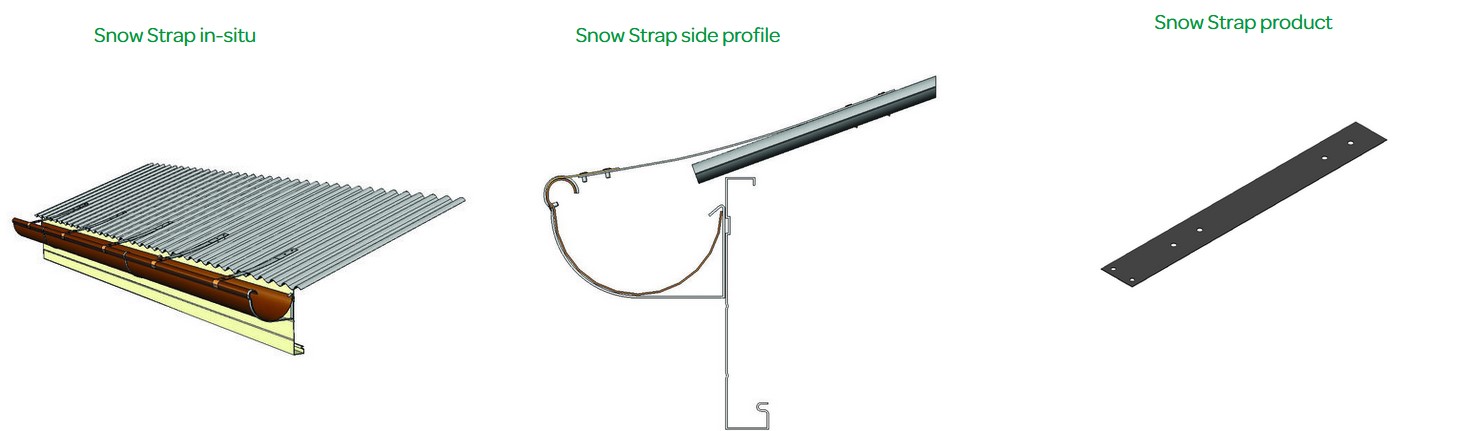

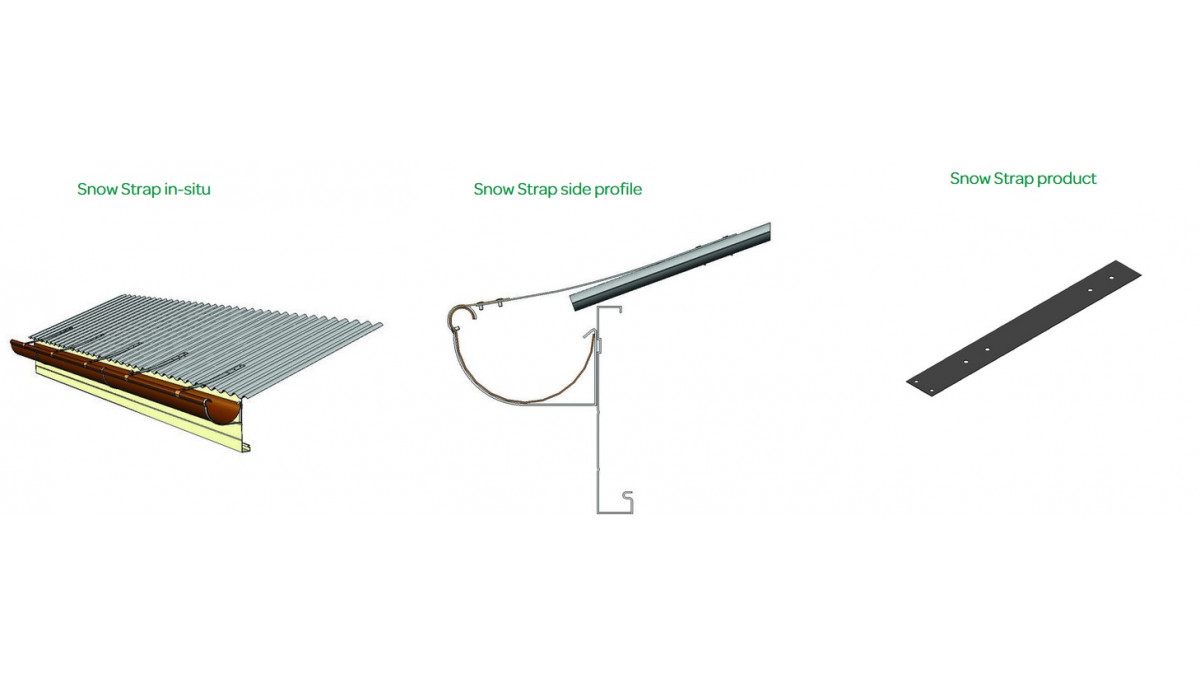

Continuous Group Snow Straps are designed to provide additional strength to rainwater systems by attaching in-between the spouting brackets and fixing to the roof. With a large colour choice available, Snow Straps will blend nicely with most roof colours.

Check the altitude and the snow loading zone to ensure the correct snow protection system will be installed with the Continuous Group Rain water system.

Key Features

Range of colours
Provides additional support in areas of snow or high wind

Ranges

Spouting Snow Protection

NZ Made

NZ-Owned Business

Scope of Use

Used to provide additional protection in areas of snow and high wind
Use Snow Straps with spouting profiles that do not fit Continuous Spouting's Snow Hook

Limitations on Use

Check the altitude and the snow loading zone to ensure the correct snow protection system will be installed with the Continuous Group Rain water system
Not all roof colours can be matched. For textured metal roof tiles, Snow Straps come in a flat finish only

Statement of Building Code Compliance

Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
Pre-painted steel products are fit for purpose in environment Zone B and C*. They may be used in environment Zone D subject top pre-approval warranty application based on site address*.
*In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.) Reference: Section D, Durability from NZS3604:2011.

Documents

Compatibility of Materials in Contact

pdf
