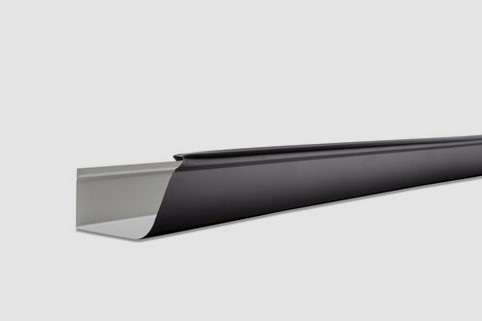

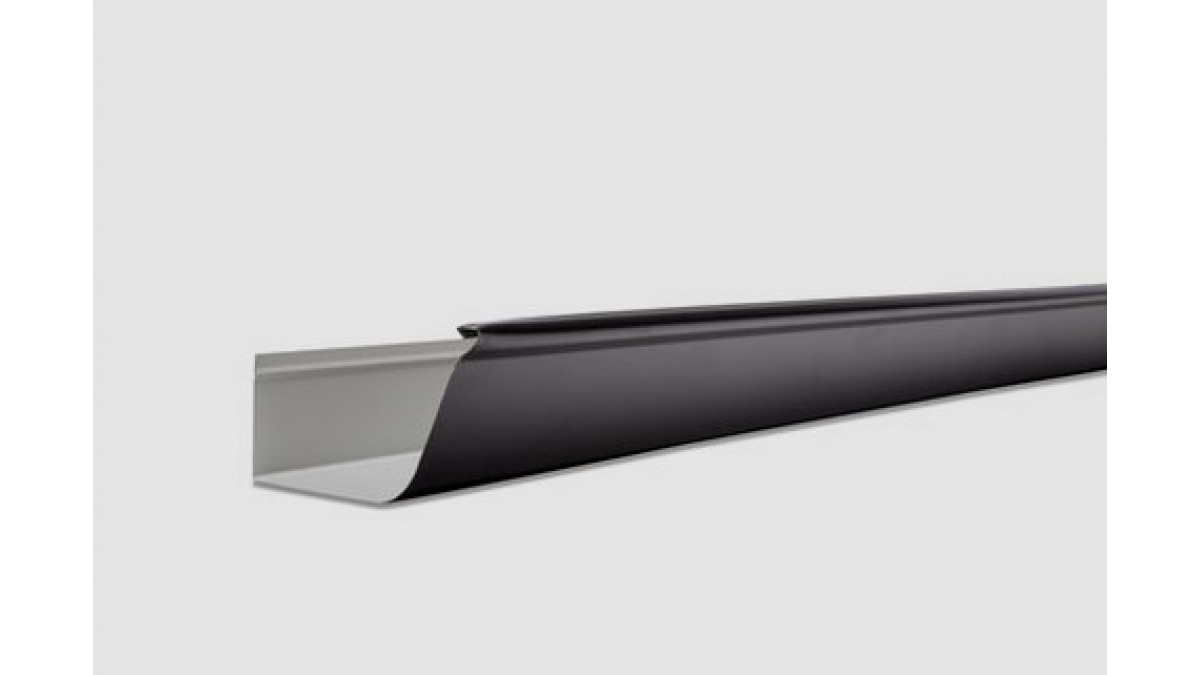

Spouting Quartz 135mm Quarter Round
Description

Continuous Group's Quartz profile provides a contemporary design that is very popular on both new builds and when replacing residential spouting. Quartz provides great roof edge coverage and, at 135mm wide, also offers good access for cleaning with a standard roof overhang.

Key Features

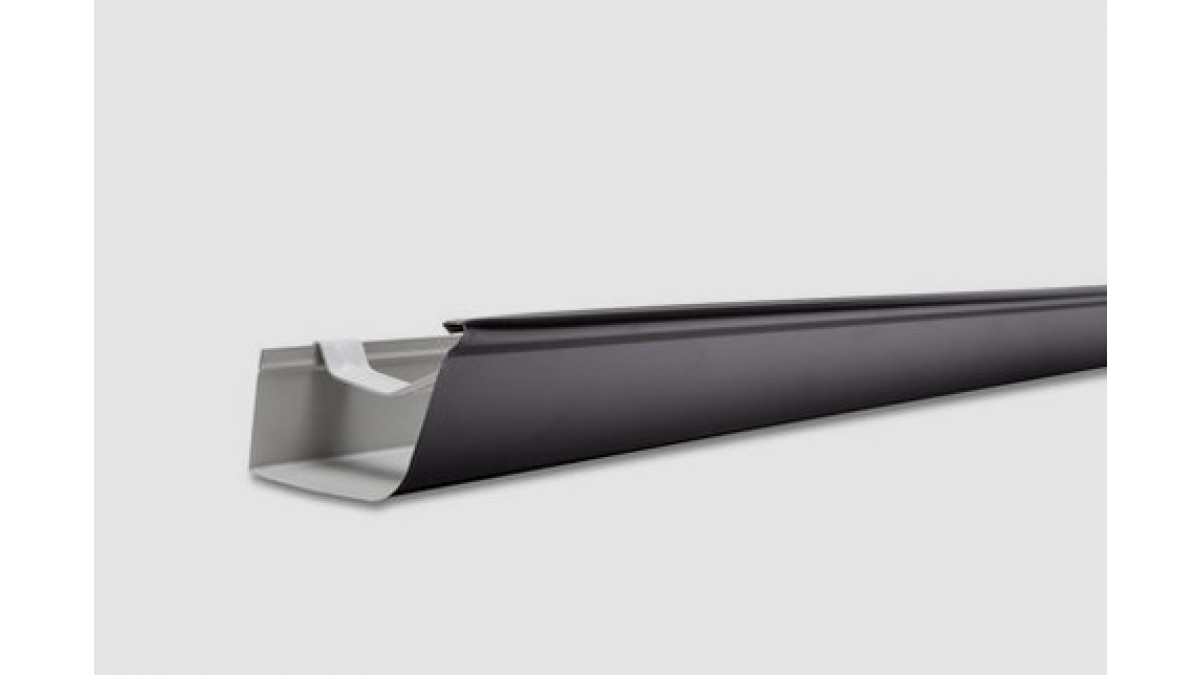

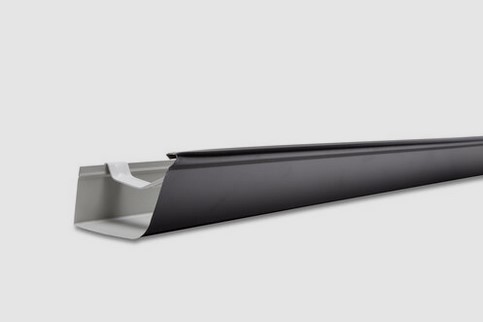

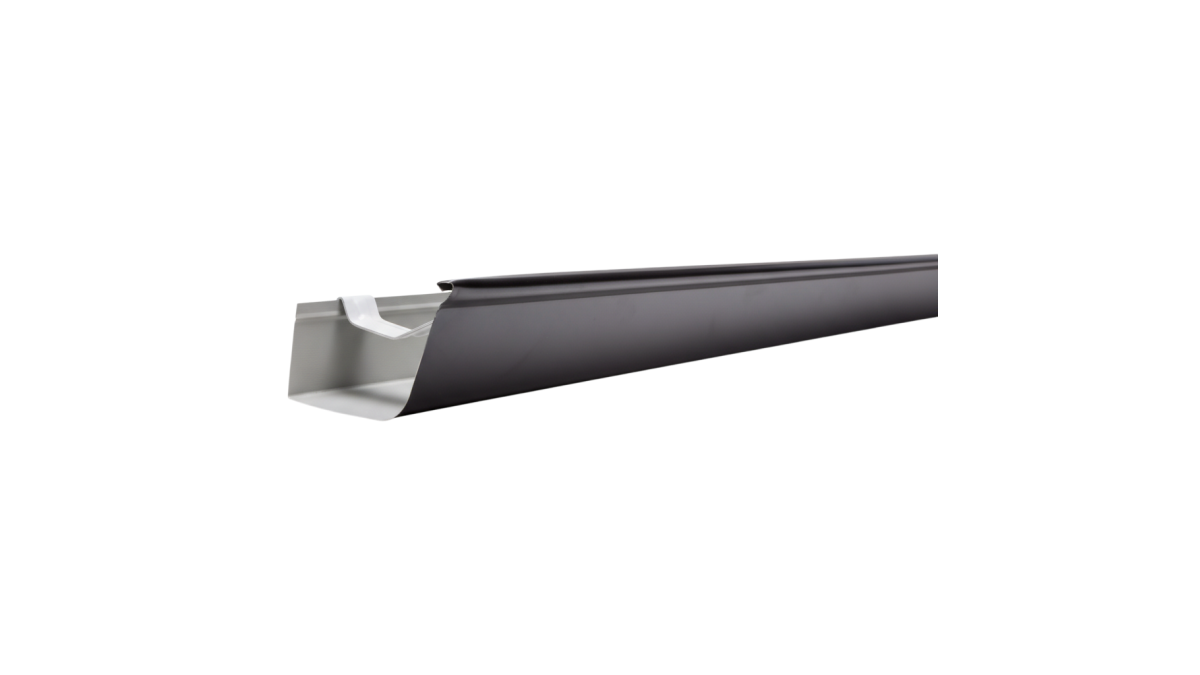

  • Quartz delivers clean lines, particularly when combined with internal brackets.

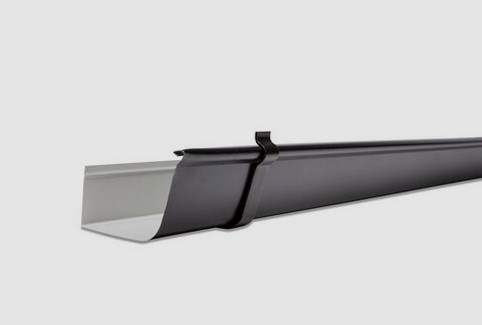

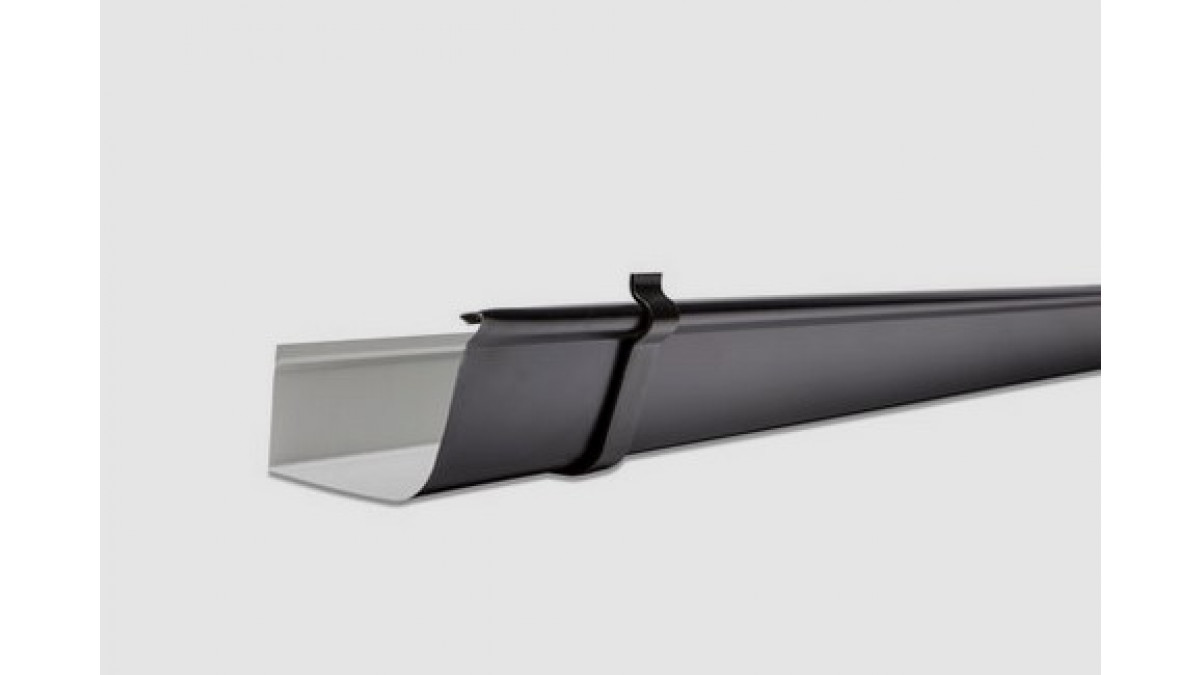

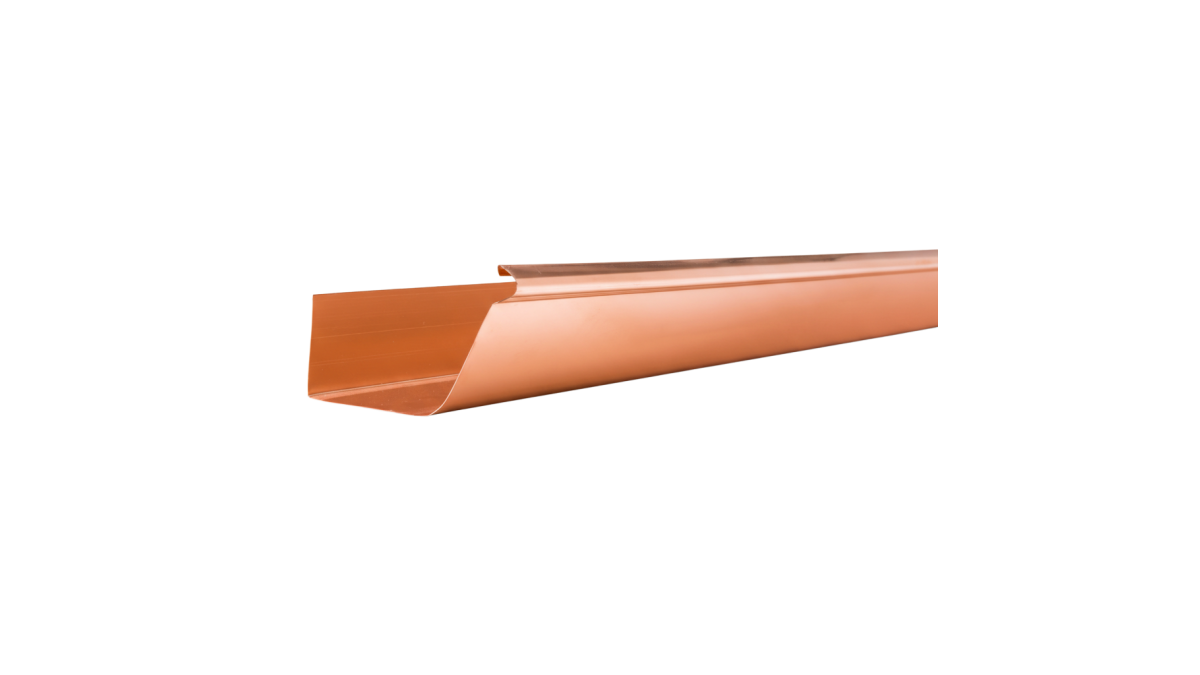

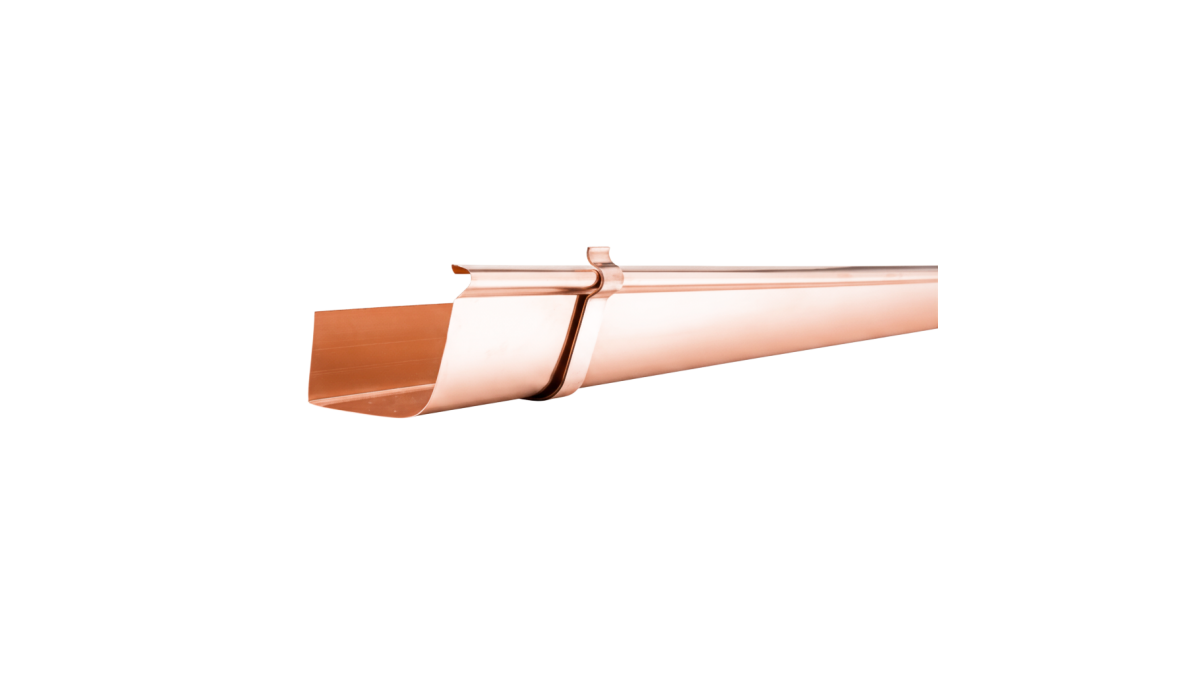

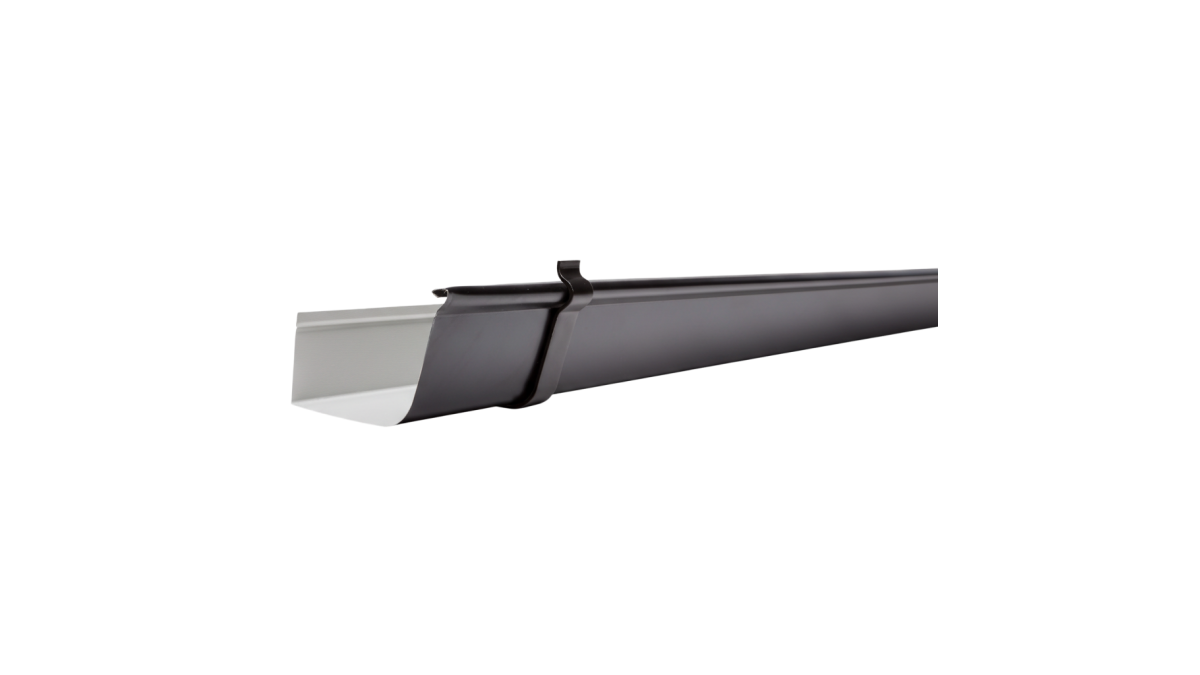

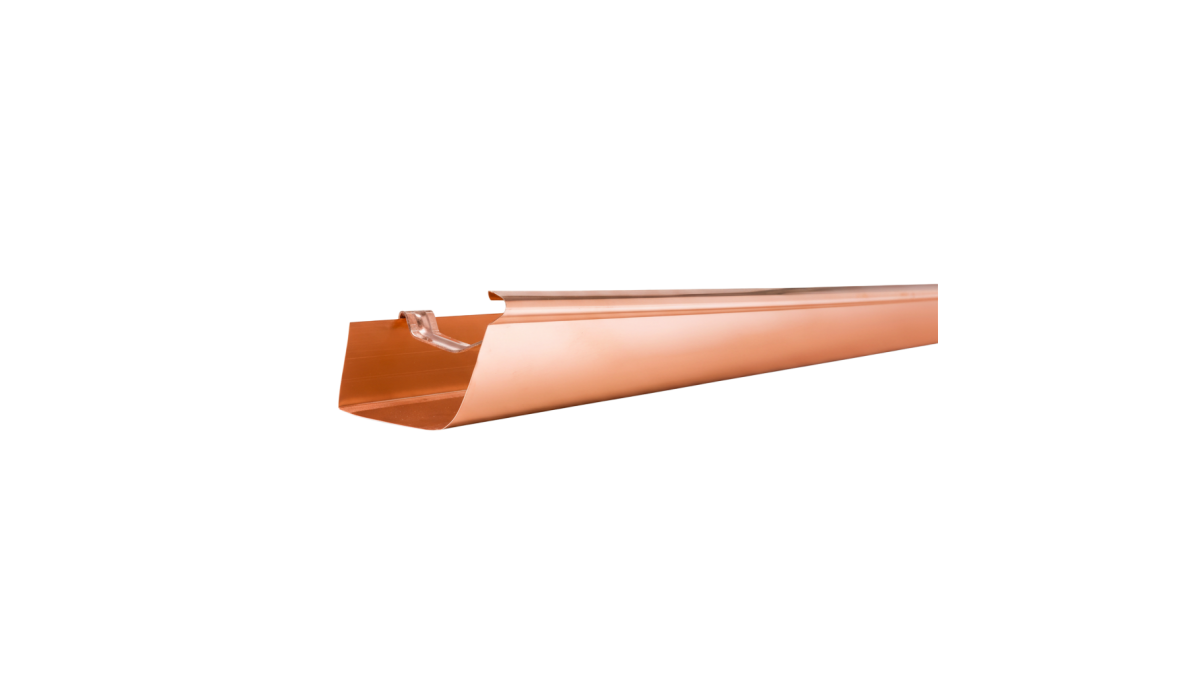

  • The customer has the option of either internal and external brackets for both colorcote or copper spouting.
  • When installing internal or external brackets on Magnaflow, Alumigard or Euramax spouting, all brackets are manufactured in aluminium and powdercoated
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Continuous Group rainwater systems are entended to collect and channel water that runs off a roof. It is entended that the metal spouting be placed at the perimeter of the building (positioned outside the building envelope)

  • Available throughout New Zealand.
  • Maximum cross sectional area 7378mm2
  • Effective cross section with 10mm freeboard 6232mm2
  • Flow capacity 88.5 Litres/minute
  • Minimum downpipe cross section 3215mm2
Statement of Building Code Compliance
  • Test information available from Pacific Coilcoaters, New Zealand Steel and Ambro Metals, combined with past history of rainwater products indicate, that provide the product use and maintenance is in line with the guidelines contained in the current literature, Continuous Group rainwater systems can be expected to meet the performance criteria in clause E2 of the New Zealand Building Code.
  • All copper, brass and aluminium products listed above are fit for purpose in environment Zone B, C, D and E*.
  • Pre-painted steel products are fit for purpose in environment Zone B and C*.  They may be used in environment Zone D subject top pre-approval warranty application based on site address*
  • *In all cases, areas with high wind and/or salt and/or thermal/industrial atmospheric conditions may require specific engineering design (S.E.D.)  Reference: Section D, Durability from NZS3604:2011.
Documents
BPIS - Quartz 135mm copper spouting system

BPIR:QUACU-SYS:2023.v1

BPIS - Quartz 135mm pre-painted metal fascia system

BPIR:QUAPM-SYS:2023.v1

Compatibility of Materials in Contact
Compatibility of Materials Subject to Run-off
Environmental Information
Material Compatibility — Material Selection
Quartz Specification
Environmental Information
Installation and Operation
Care and Maintenance
Warranty
Quartz Brochure
Alumigard
CG Colour Finishes
CG Designer Colour Range
Copper
Magnaflow
CAD/PDF Details

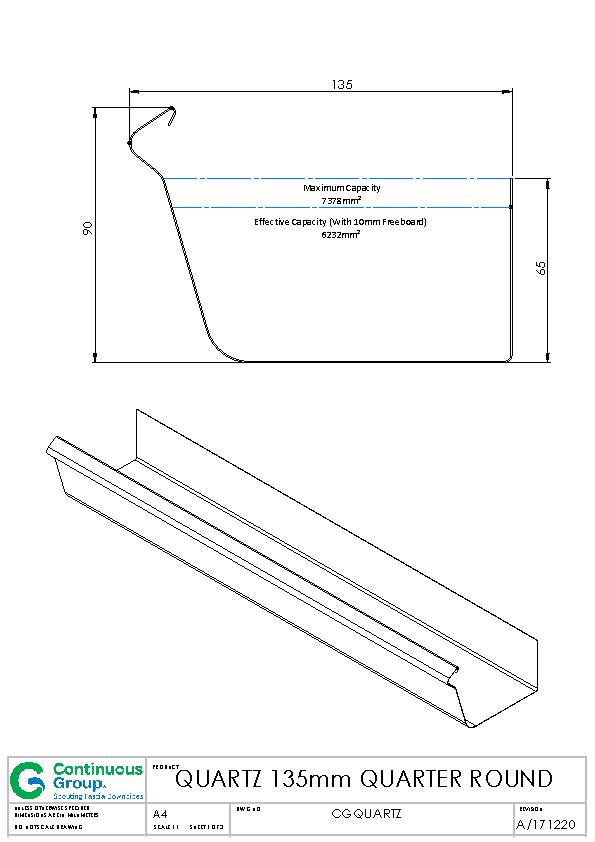

Spouting 135 Quarter Round Detail
