• Membrane roofs, decks, balconies
• Compatible with all hot-mix, torch-on, single layer sheet and liquid membrane waterproofing systems
• Bottom exit
• Engineered clamping range 0-10mm membrane thickness for multi-layer and torch-on
• Declare Red List Free, ideal for Living Building Challenge projects

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

• B1 Structure B1.3.1, B1.3.2, B1.3.3 (a, b, c, j)
• B2 Durability B2.3.1 (b)
• E1 Surface Water E1.3.3 (a, b, c, d, e, f)
• F2 Hazardous Materials F2.3.1

• Flow rates vary between product models, consult individual FlowLab reports to establish exact flow rates

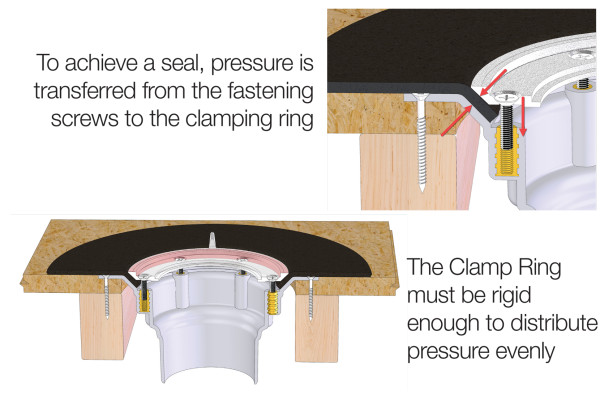

• Stainless steel interlocking clamp ring — tested as fit for purpose and endorsed by Waterproofing Membrane Association Inc.
• M6 machine screws for positive clamping torque
• Clamping force over 7 tons — delivering peace of mind

Warranty and Maintenance

Warranty for exterior membrane drainage outlets:

Free from defects of material and workmanship for 15 years. Tea staining may occur over time. This is not considered a material defect and is not covered under warranty terms.

Maintenance for exterior membrane drainage outlets:

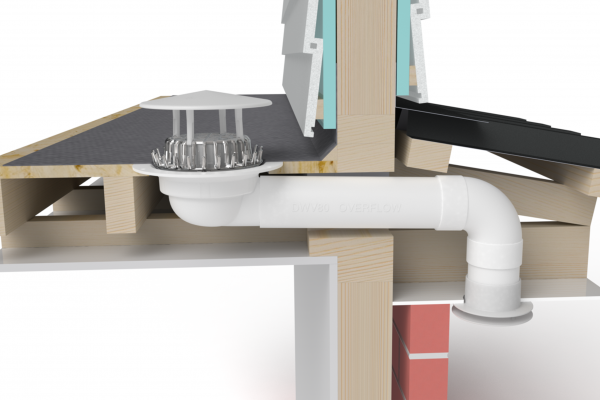

Regular inspections (at least monthly, and after every significant storm) should be conducted to remove any accumulation of debris from box-gutters, sumps and around the drain areas. Accumulation of such material can lead to blocked drains and overflow events. The overflow outlet discharge pipes should be monitored during rain events. Any water discharge is an early warning that may indicate a partially blocked drain.
