Scuppers — Membrane Roof Drain Accessories

All products

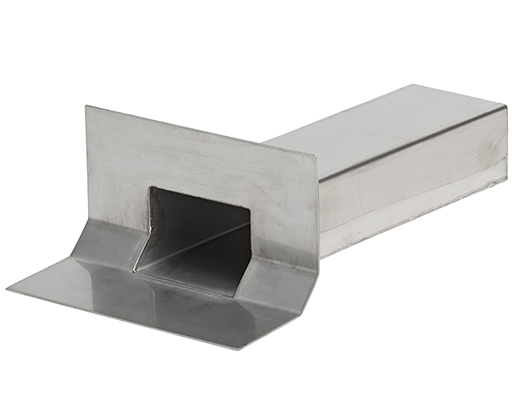

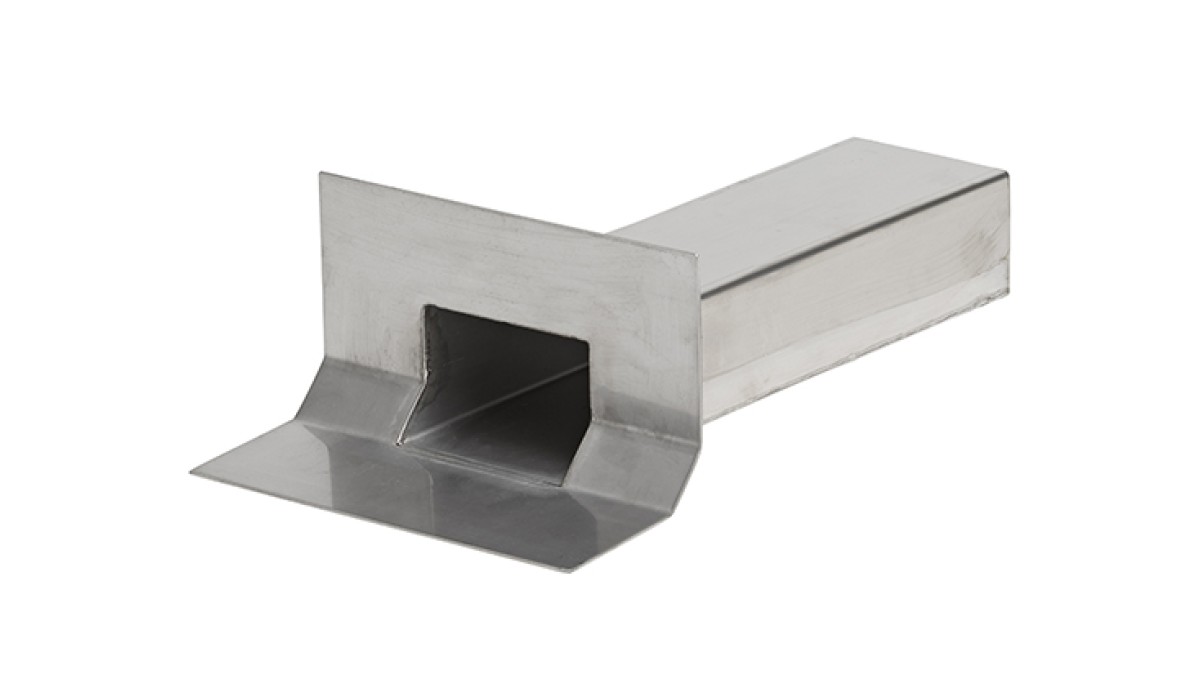

Scupper 2300.113

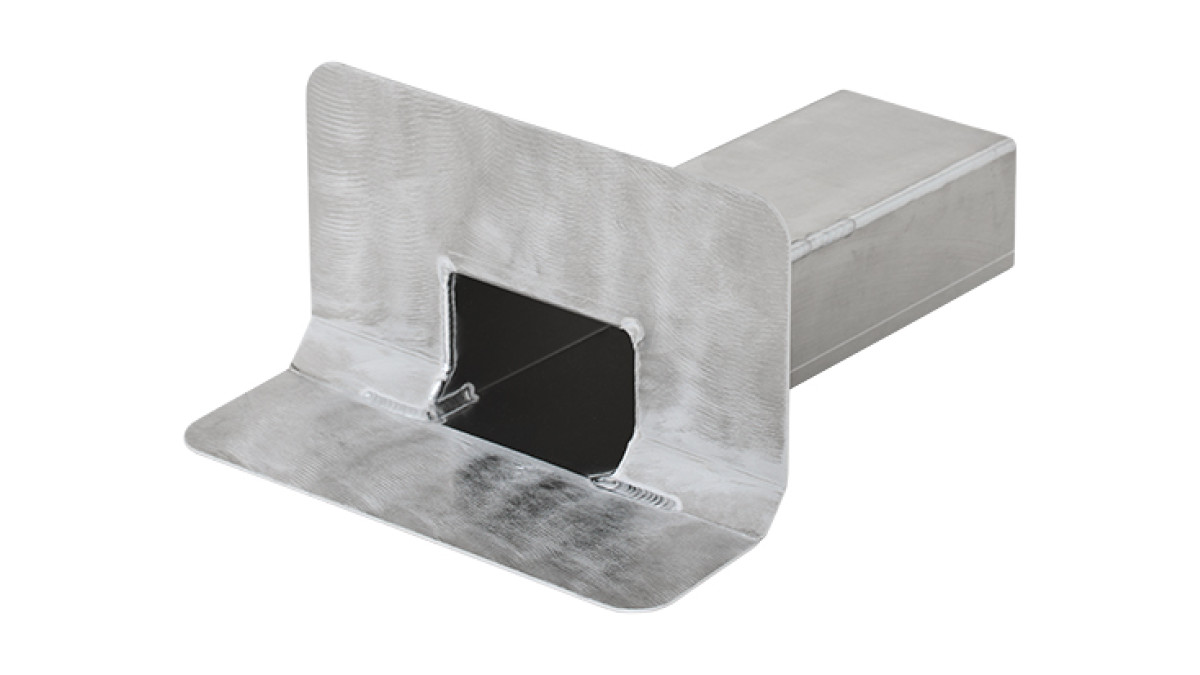

Scupper Chamfer 100x65x300mm @5°

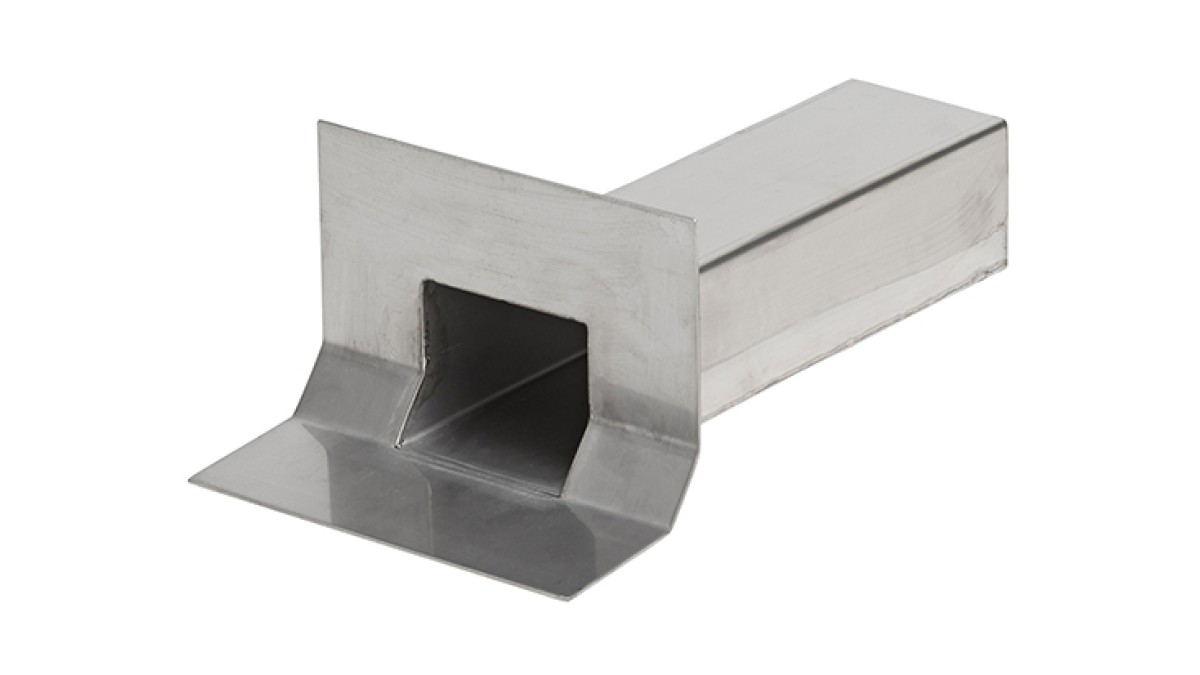

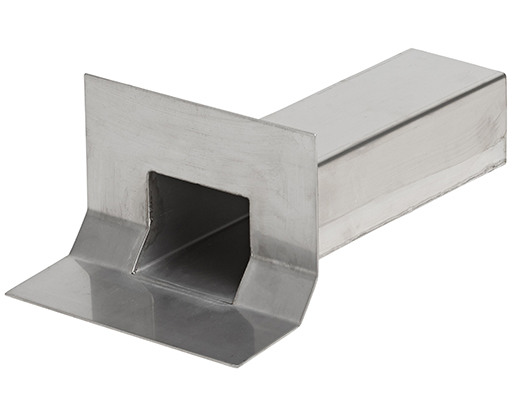

Scupper 2300.213

Scupper Chamfer 100x100x300mm @5°

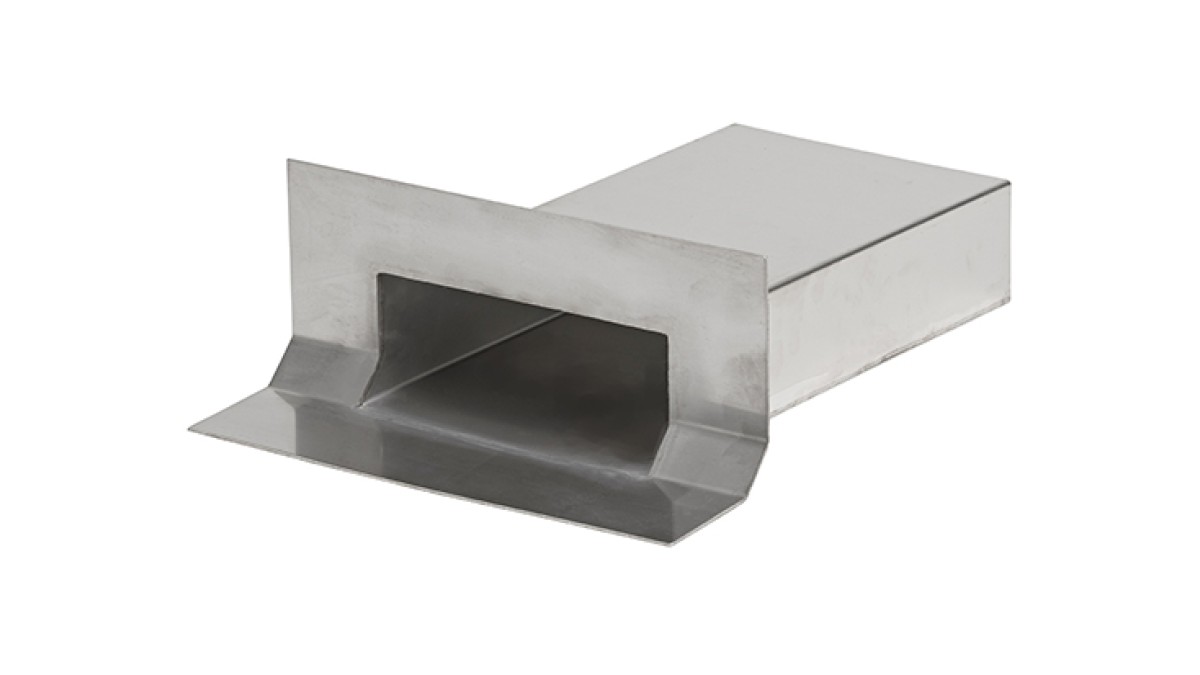

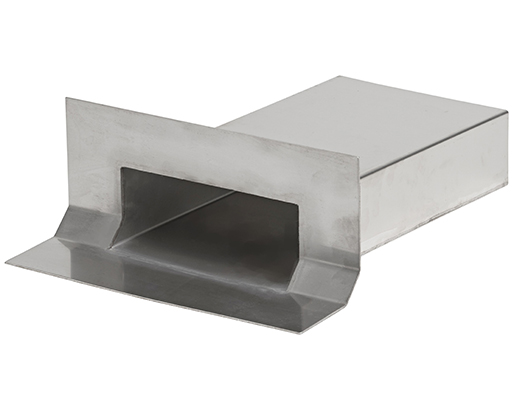

Scupper 2300.313

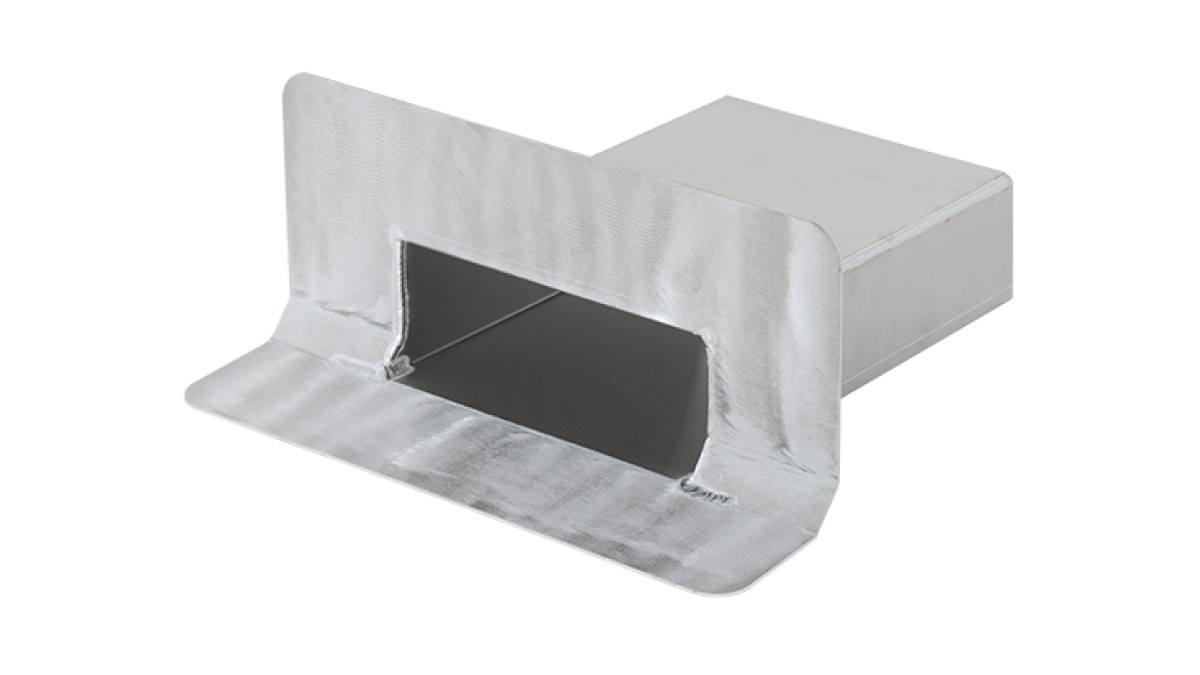

Scupper Chamfer 200x75x300mm @5°

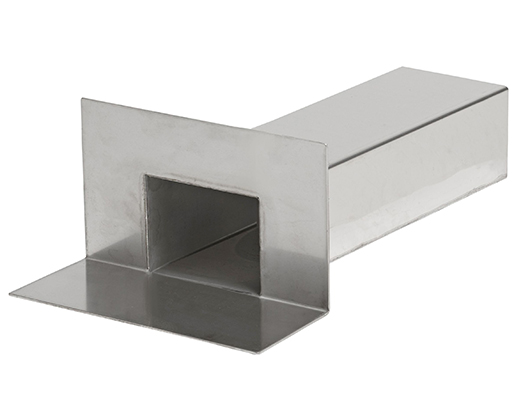

Scupper 2200.113

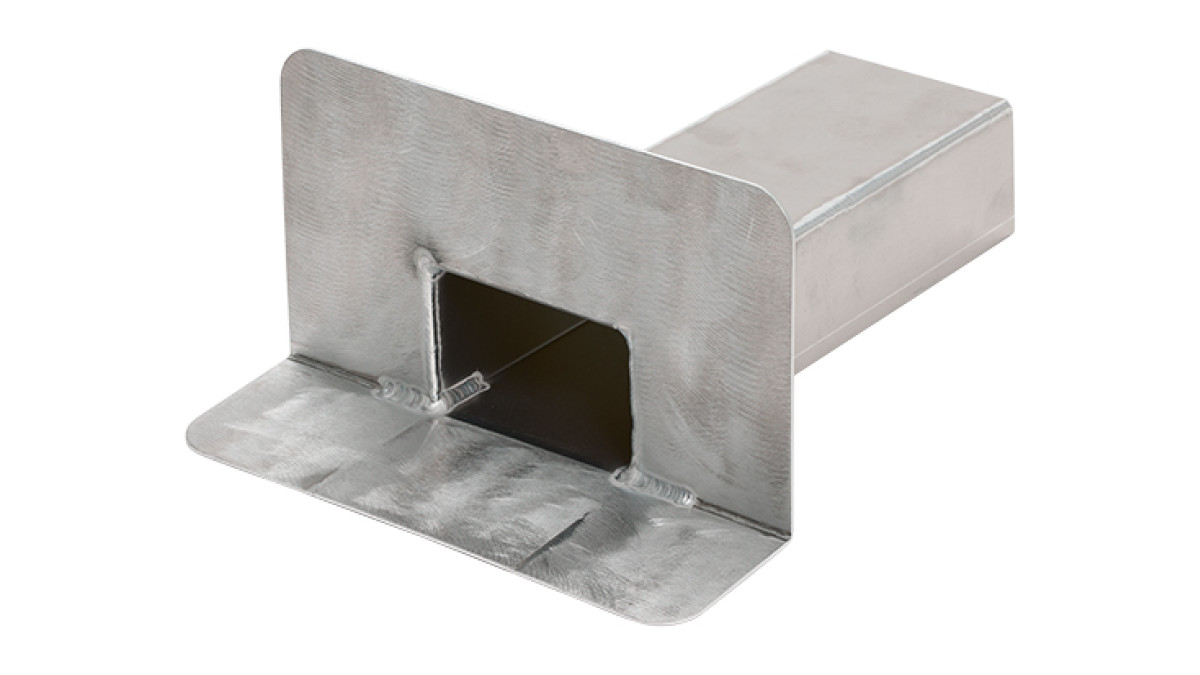

Scupper Radius 100x65x300mm @5°

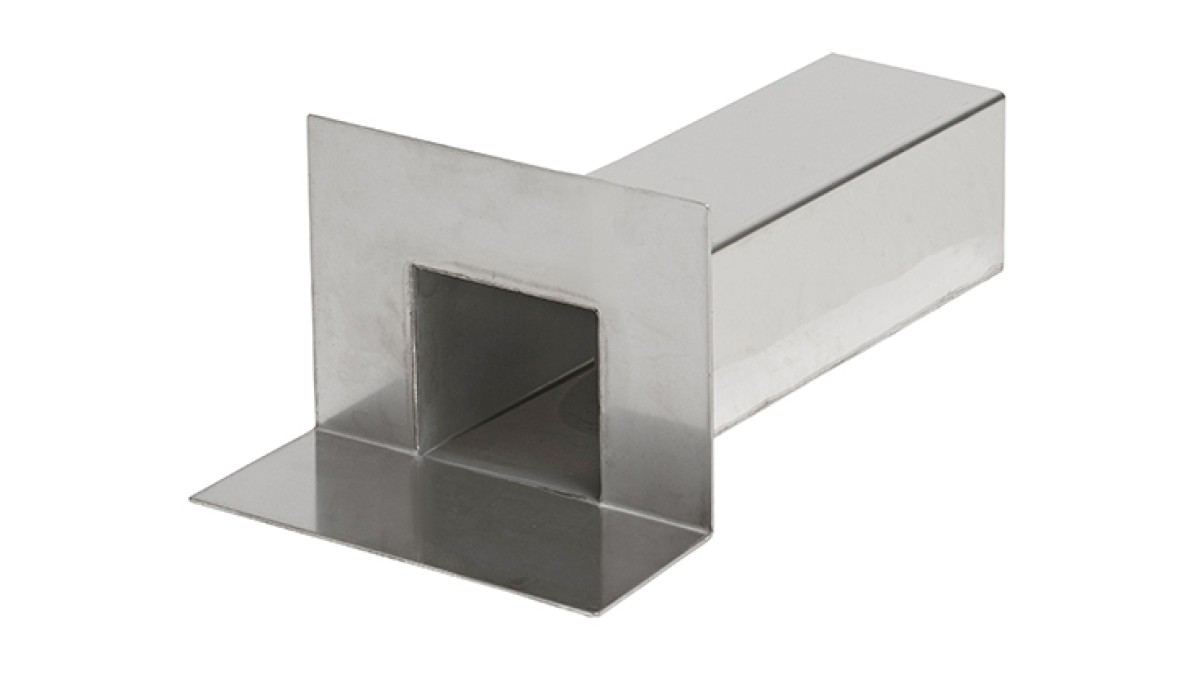

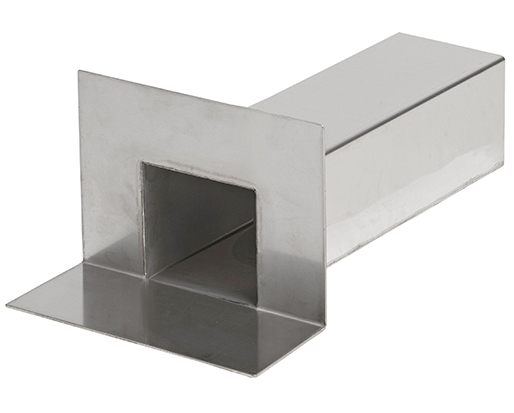

Scupper 2200.213

Scupper Radius 100x100x300mm @5°

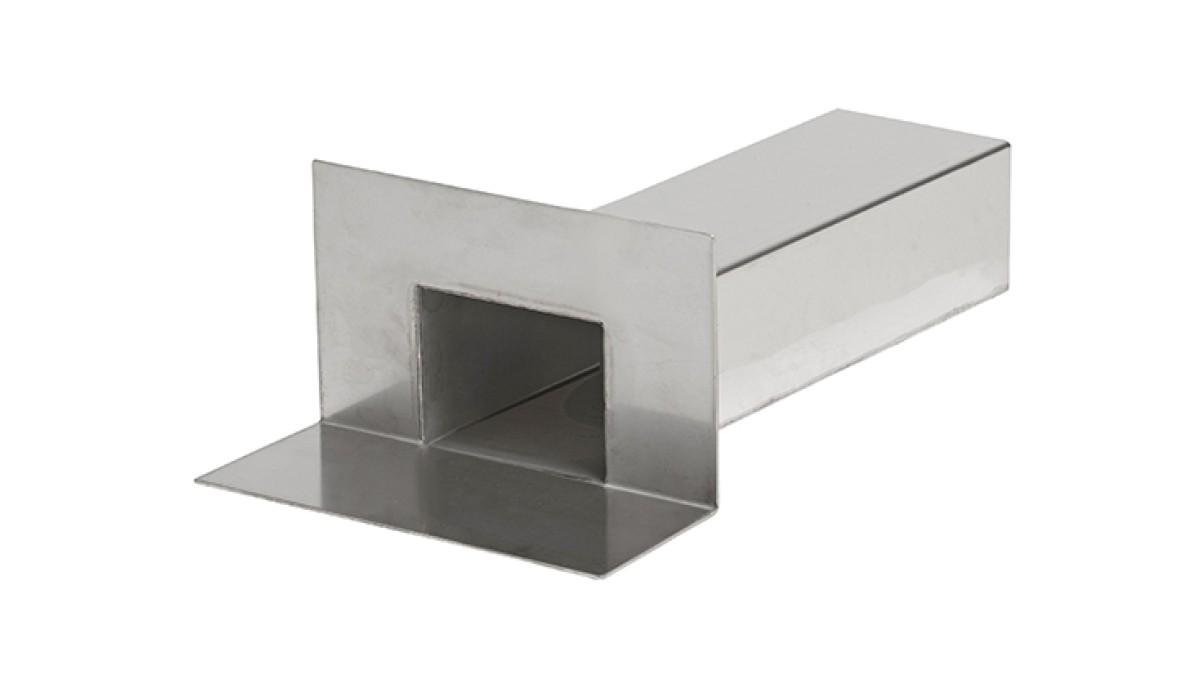

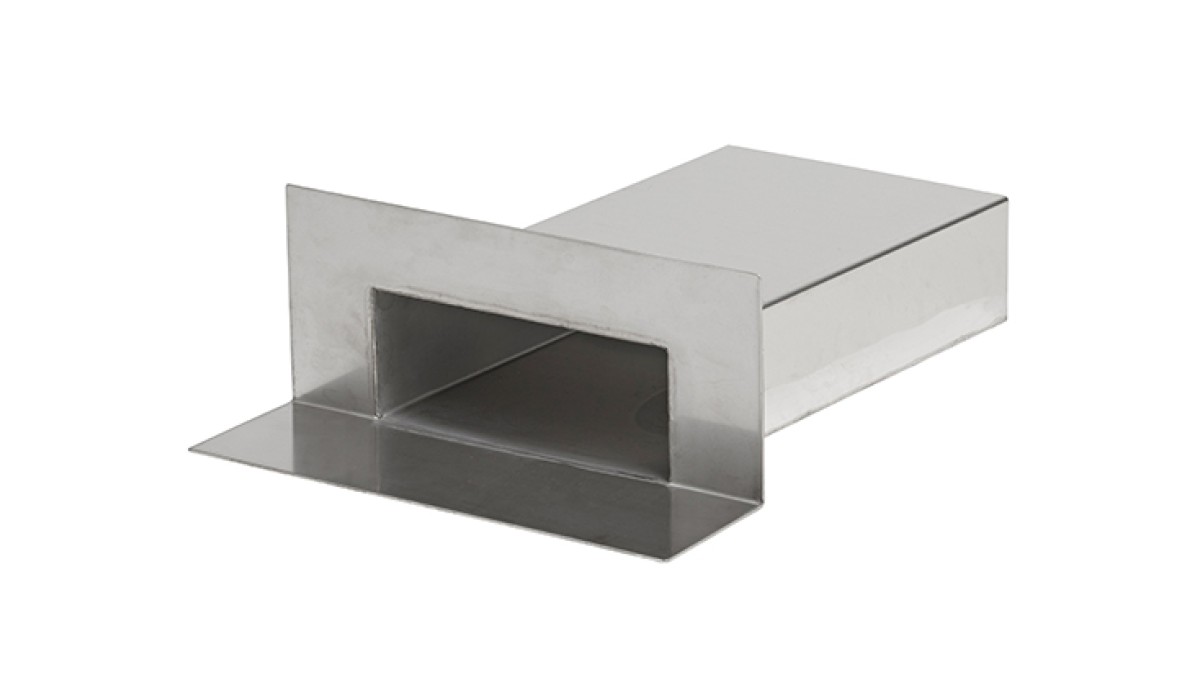

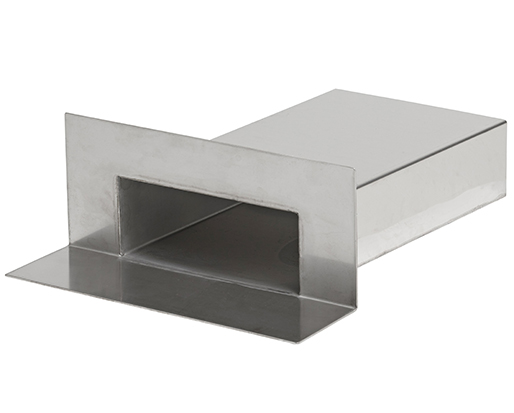

Scupper 2200.313

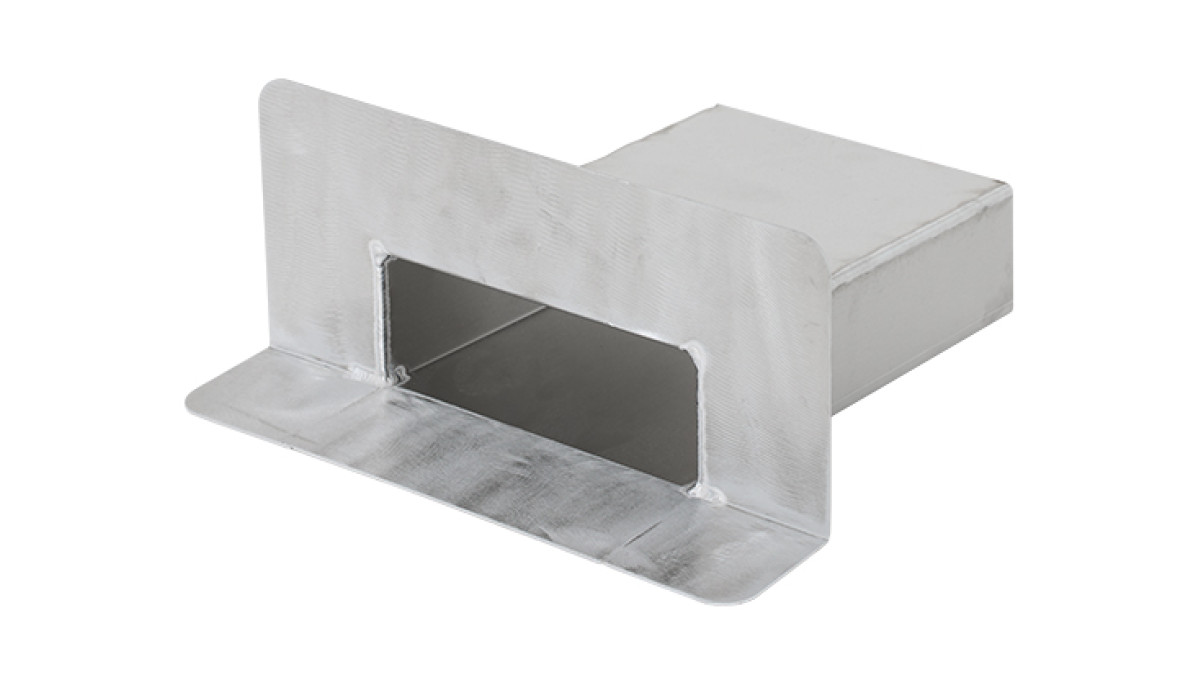

Scupper Radius 200x75x300mm @5°

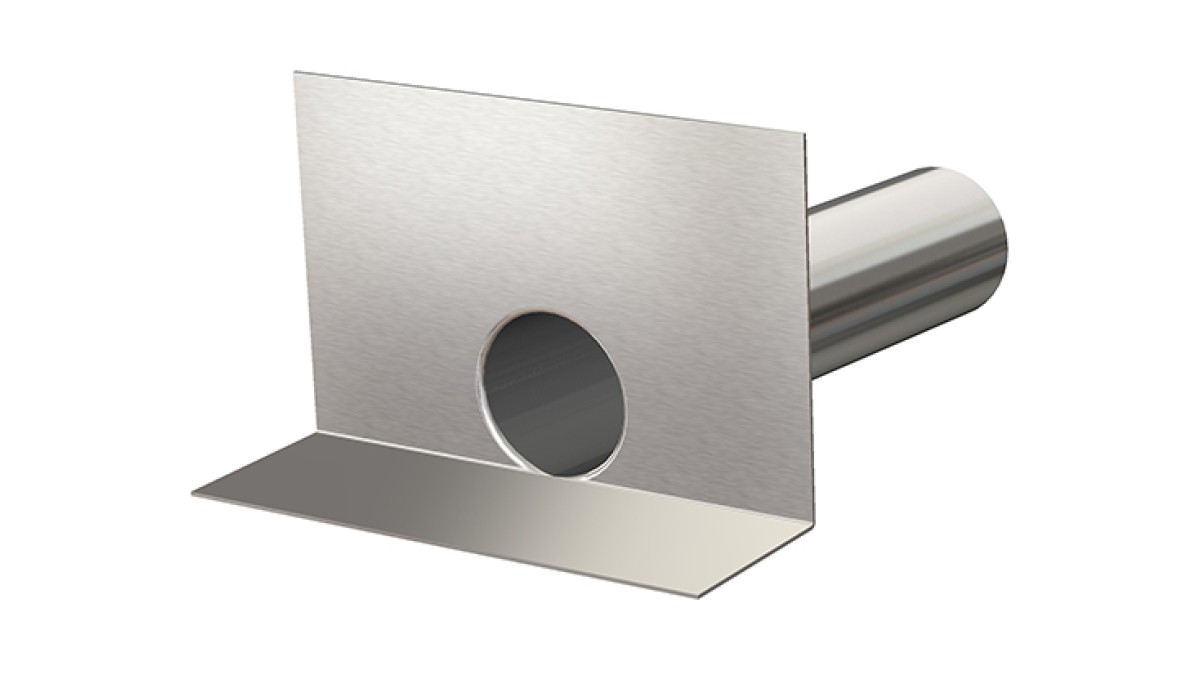

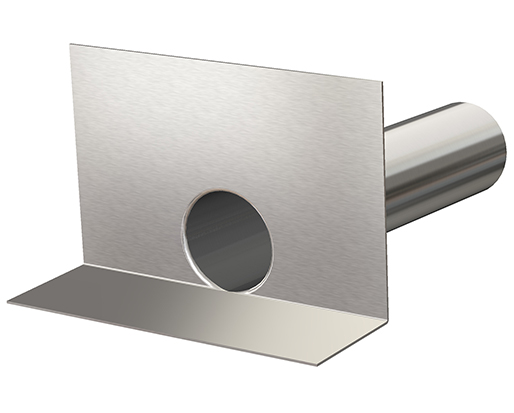

Scupper 2200.413

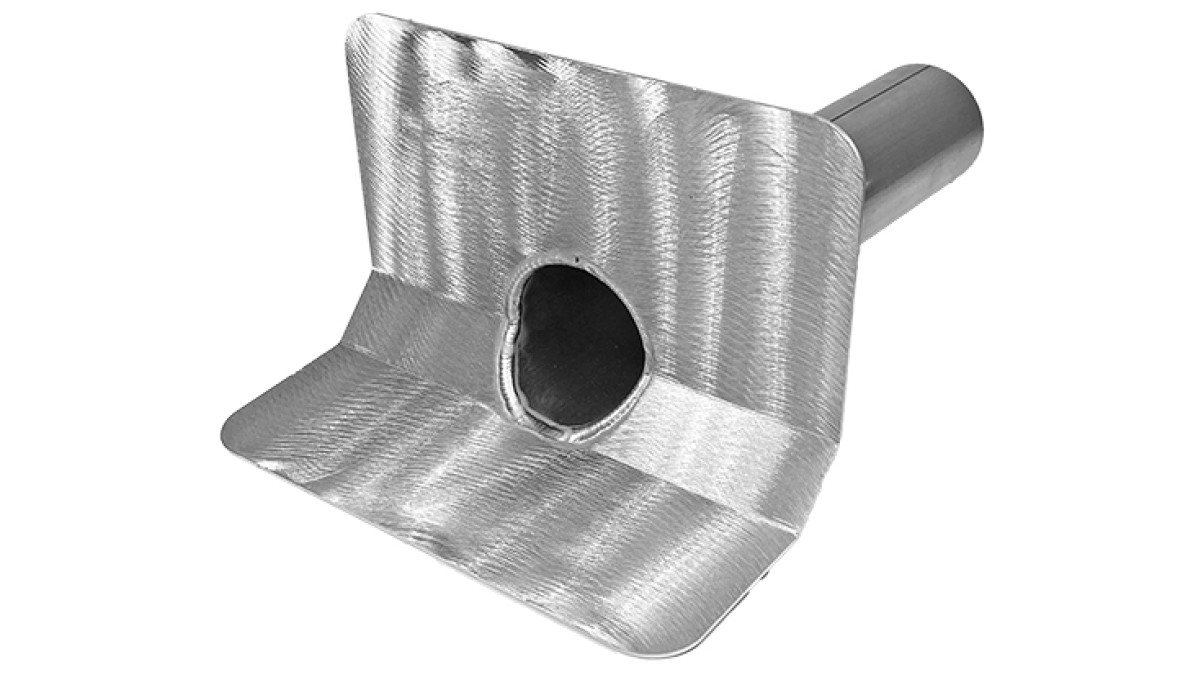

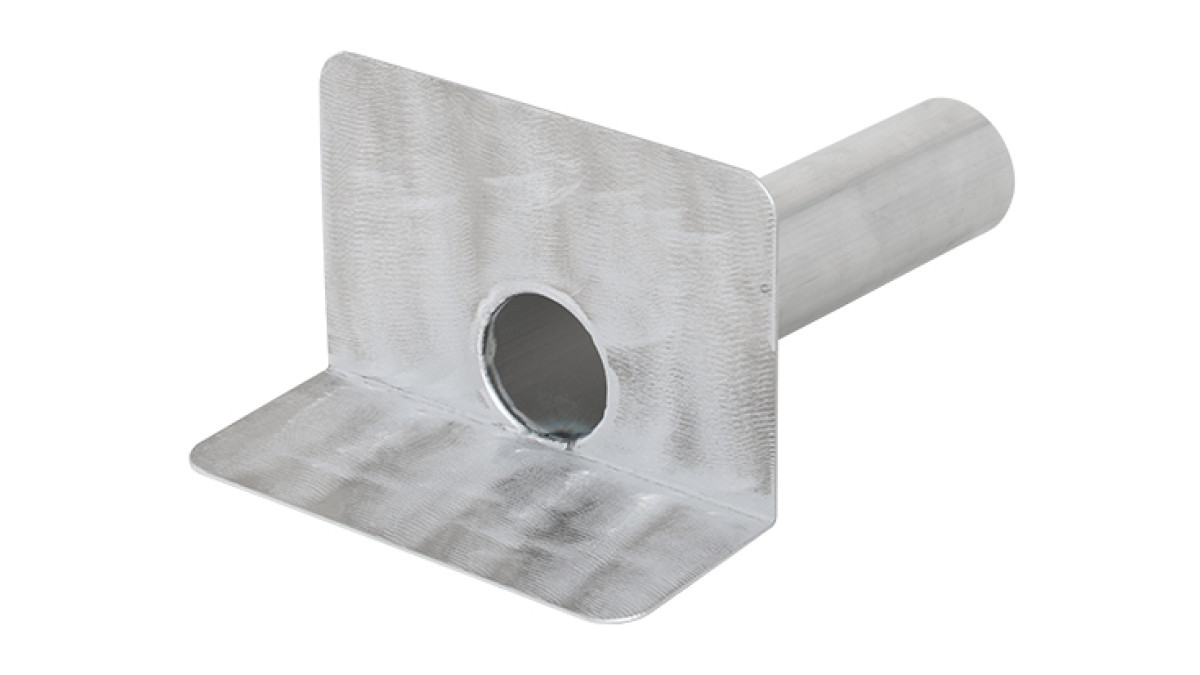

Scupper Round 65x300mm @5°

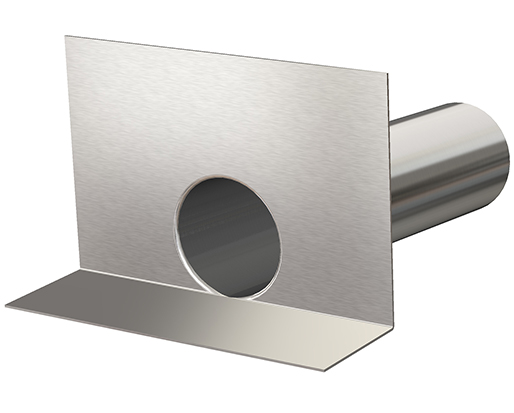

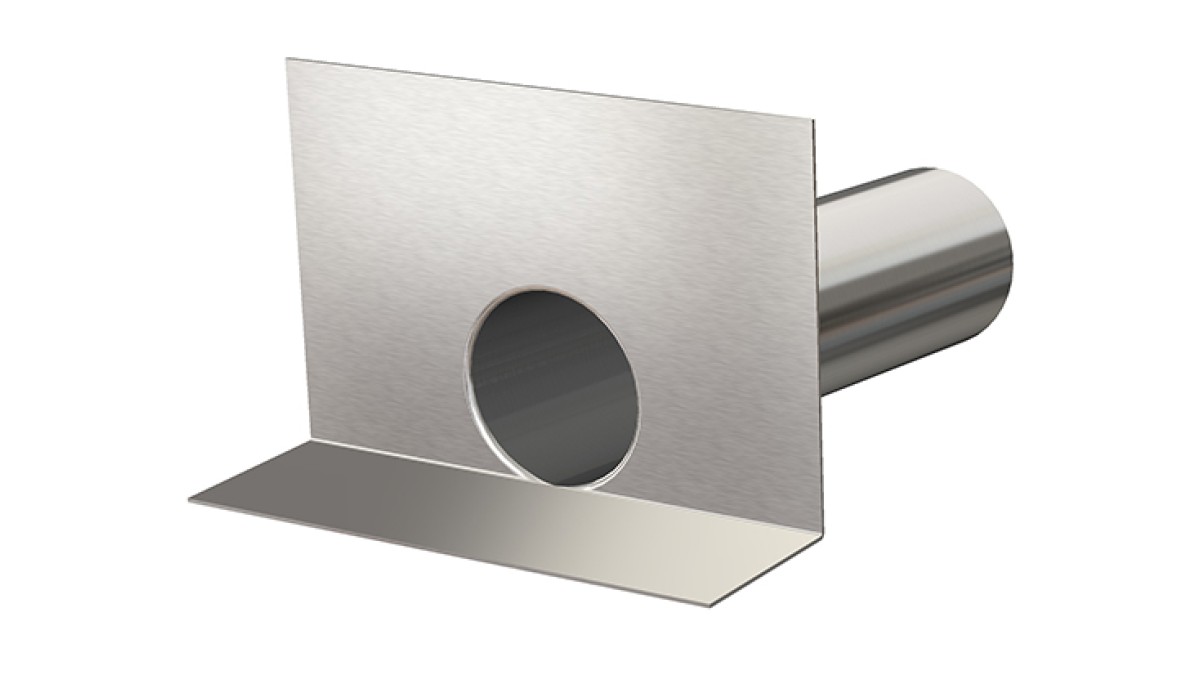

Scupper 2200.513

Scupper Round 80x300mm @5°

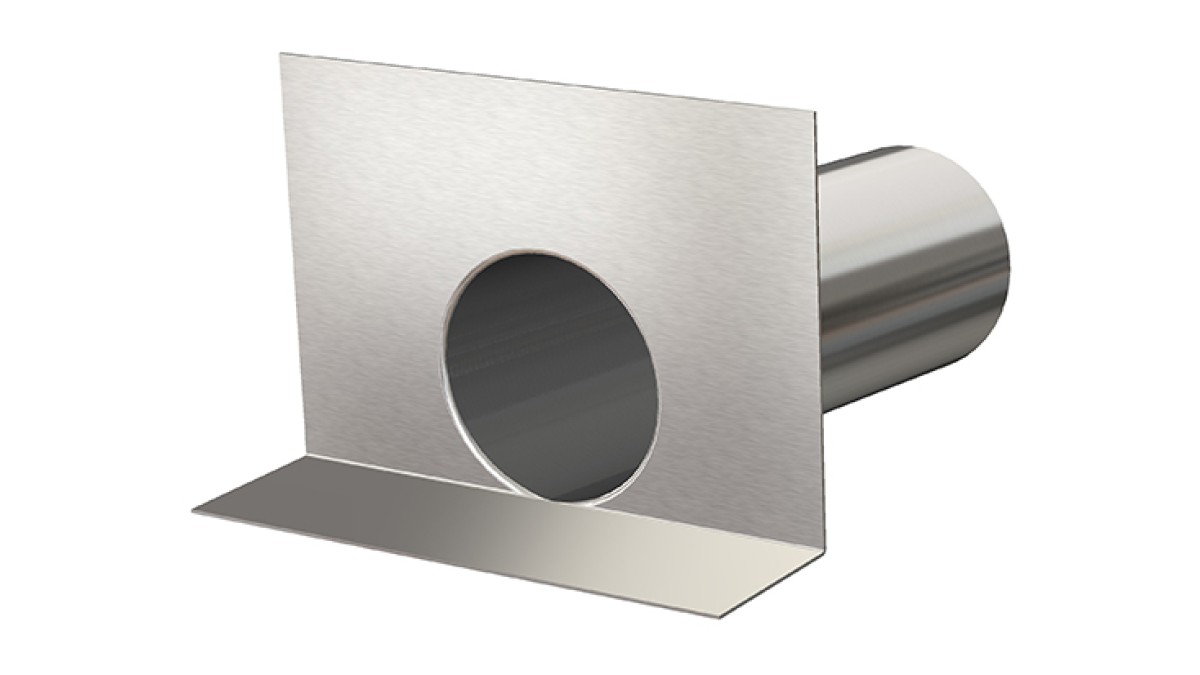

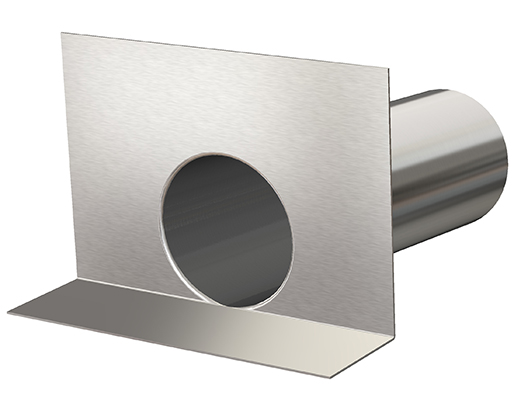

Scupper 2200.613

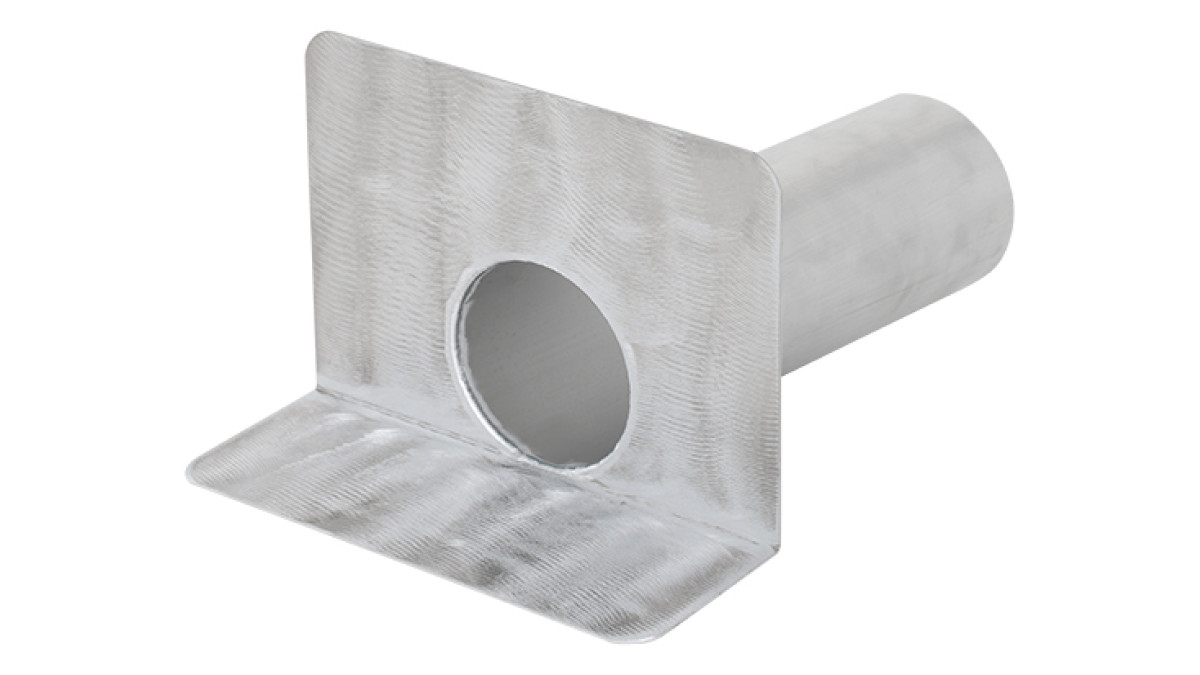

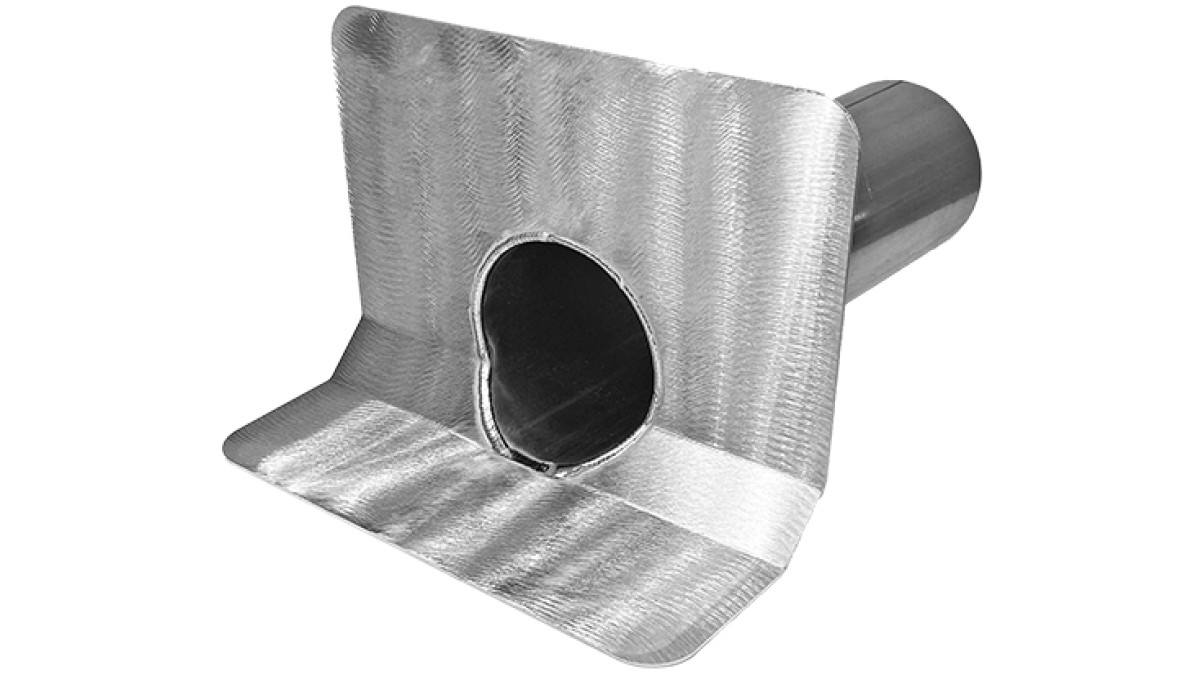

Scupper Round 100x300mm @5°

Product Enquiries

Description

Pre-fabricated accessories reduce the join-count and remove difficulty and risk from a membrane installation. Scuppers are made from 5052 aluminium or 316 stainless steel.

Scuppers:		Order Code:
Type:	Size:	Aluminium:	SS316:
Chamfer:	100x65x300mm @5°	2300.112	2300.113

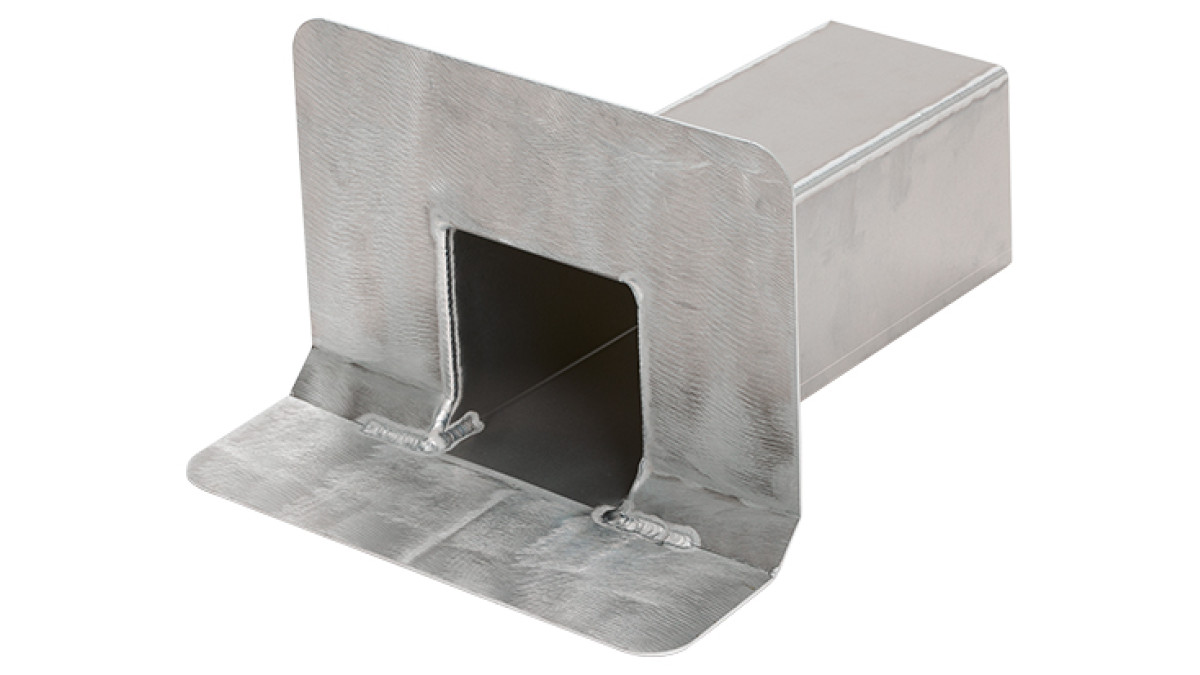

	100x100x300mm @5°	2300.212	2300.213
	200x75x300mm @5°	2300.312	2300.313
Radius:	100x65x300mm @5°	2200.112	2200.113

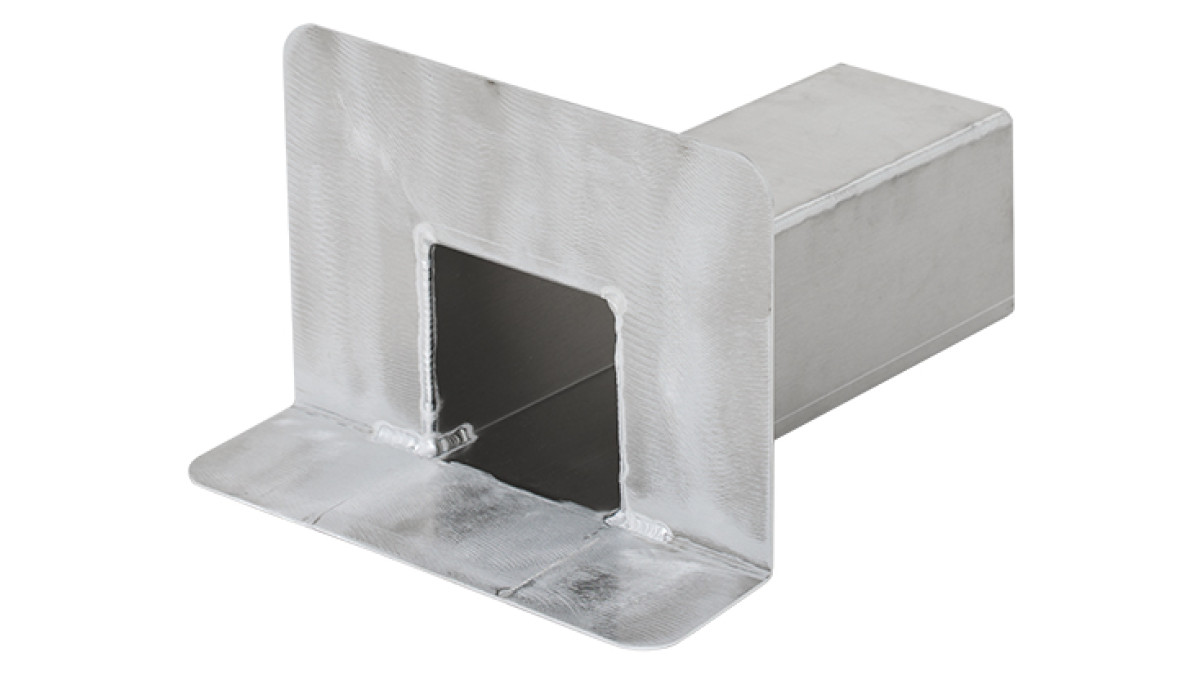

	100x100x300mm @5°	2200.212	2200.213
	200x75x300mm @5°	2200.312	2200.313
Round:	65x300 @5°	2200.412	2200.413

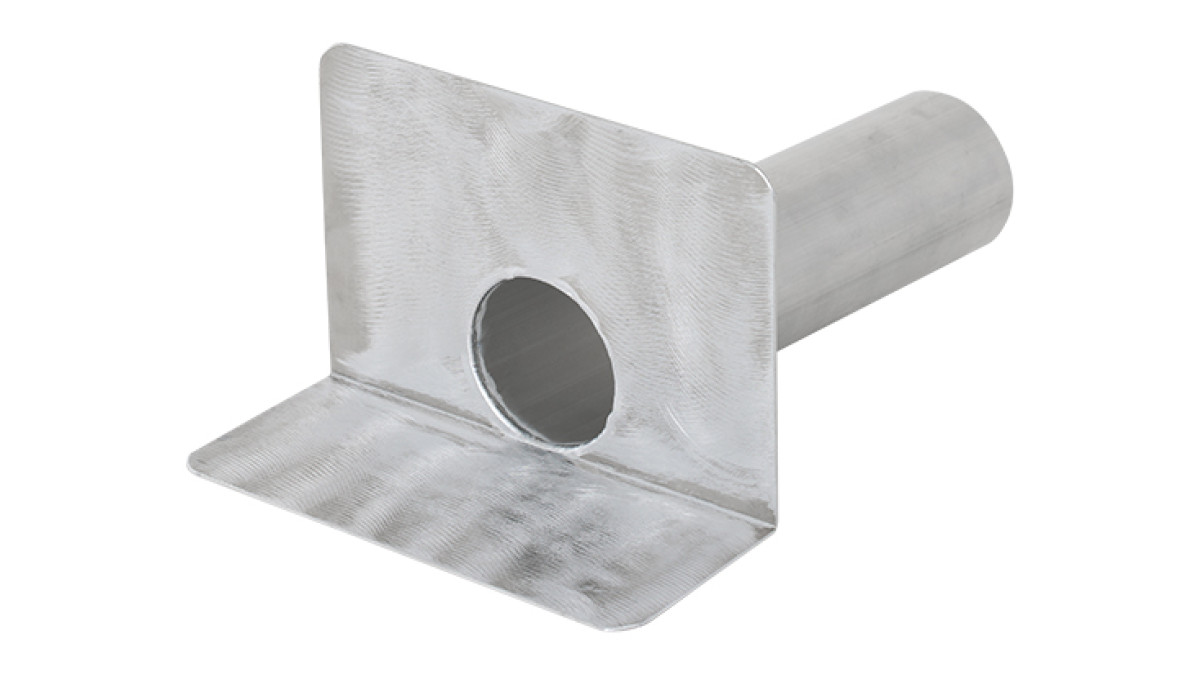

	80x300 @5°	2200.512	2200.513
	100x300 @5°	2200.612	2200.613

Key Features

5052 aluminium or 316 stainless steel
Pre-fabricated accessories
Reduced join-count
Removes difficulty and risk from a membrane installation

Categories

Roofing and Decking Ancillaries Pipes and Drainage Fittings Rainwater Spouting Systems

Ranges

Membrane Roof Drain Accessories

NZ Made

NZ-Owned Business

Scope of Use

Suitable for use with:

liquid membrane
single layer membrane
multi-layer membrane
torch-on membrane
monolithic membrane*

Limitations on Use

For high corrosion zones such as coastal areas SS316 is recommended
*For use with monolithic membrane consult membrane supplier

Statement of Building Code Compliance

All product is designed to, and complies with AS/NZ3500

In-Service History

Used with sheet membrane waterproofing systems extensively throughout New Zealand systems for over 10 years.

Documents

Membrane Drain Downloads

Warranty: Membrane Drainage Fittings

2023

Roof Drain Accessories: Scuppers

CAD/PDF Details

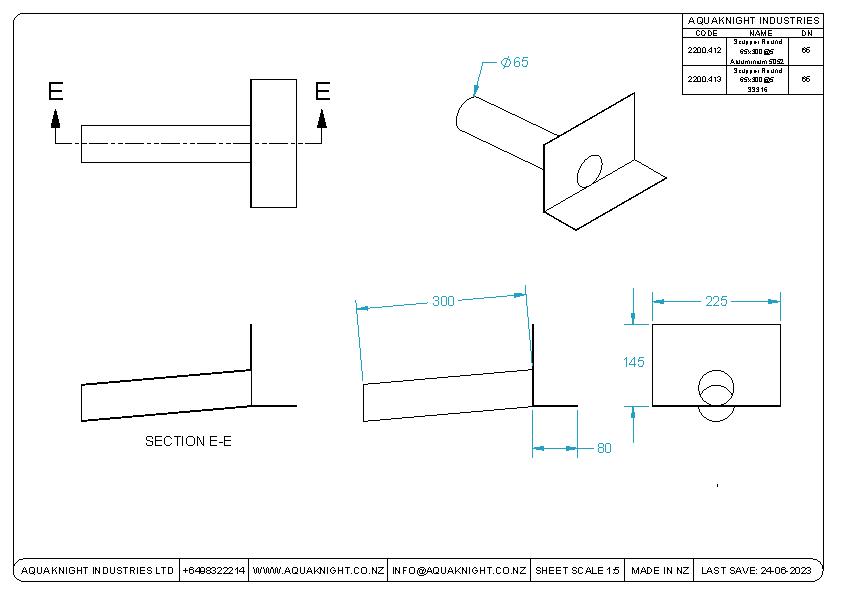

2200 412 413 Scupper Round 65 pdf

Scupper Round 65x300mm @5°

200.412/413

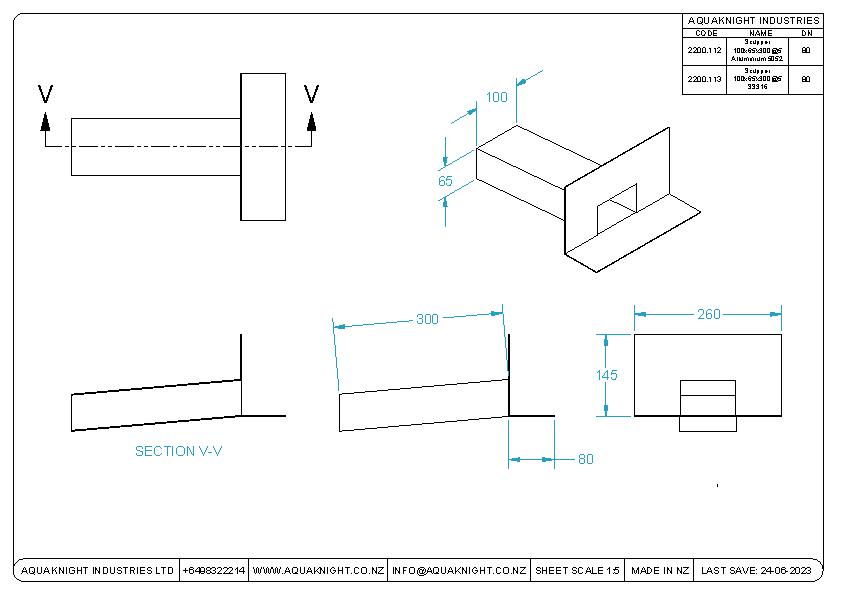

2200 112 113 Scupper 100x65 1 pdf

Scupper Radius 100x65x300mm @5°

2200.112/113

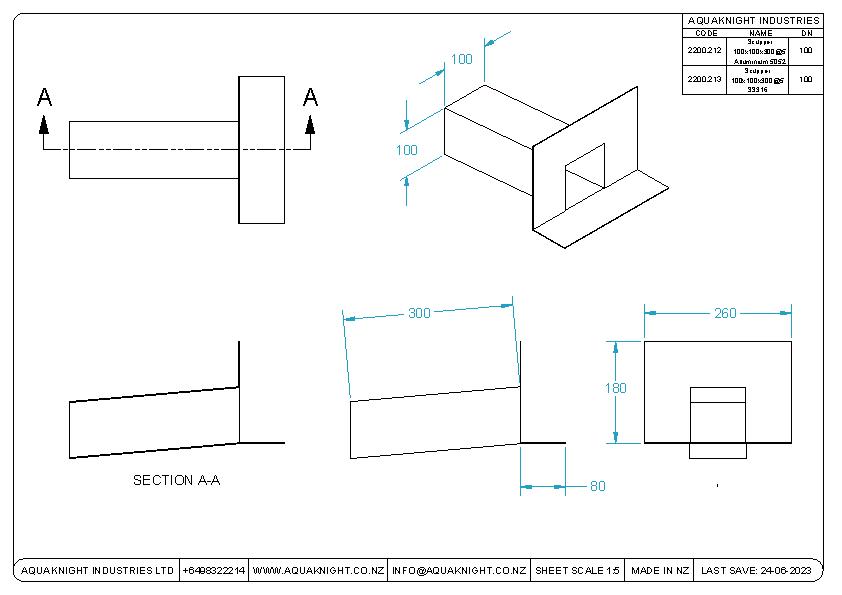

2200 212 213 Scupper 100x100 1 pdf

Scupper Radius 100x100x300mm @5°

2200.212/213

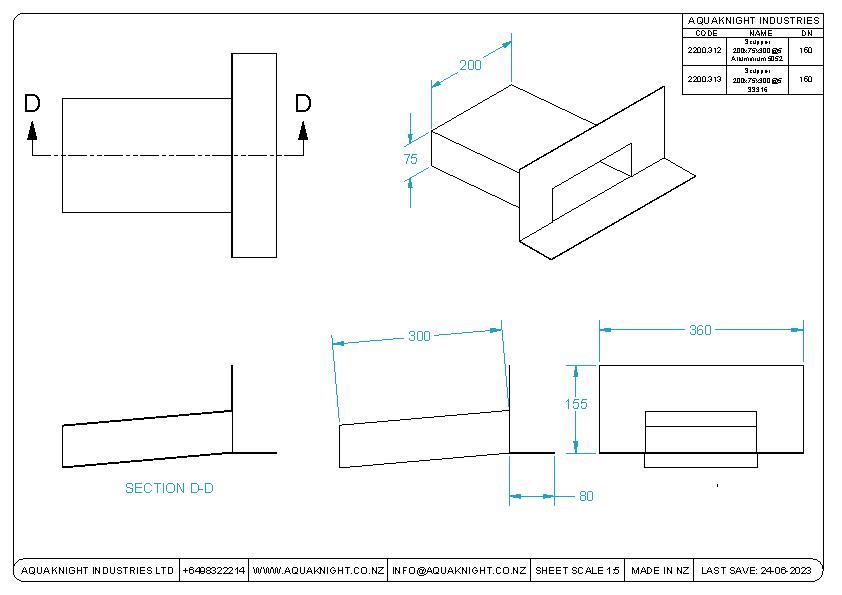

2200 312 313 Scupper 200x75 1 pdf

Scupper Radius 200x75x300mm @5°

2200.312/313

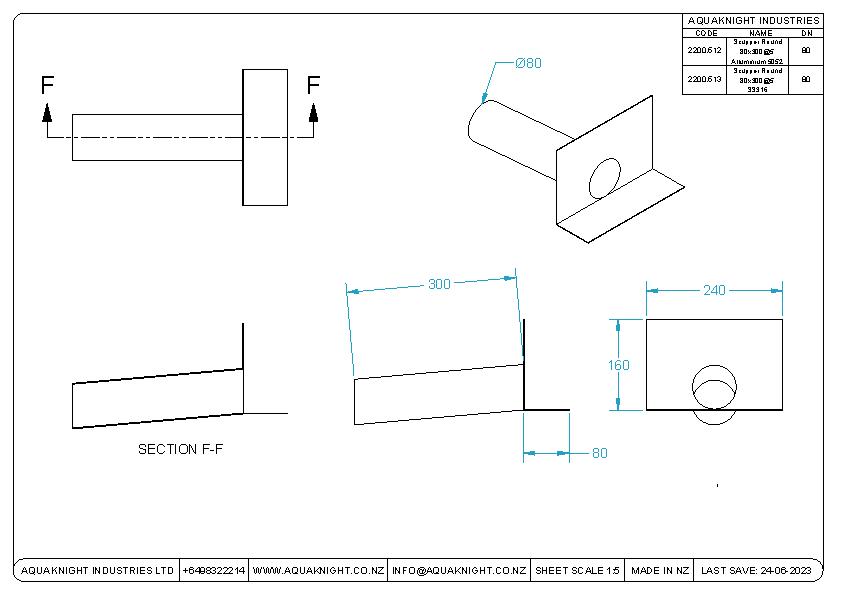

2200 512 513 Scupper Rond 80 pdf

Scupper Round 80x300mm @5°

2200.512/513

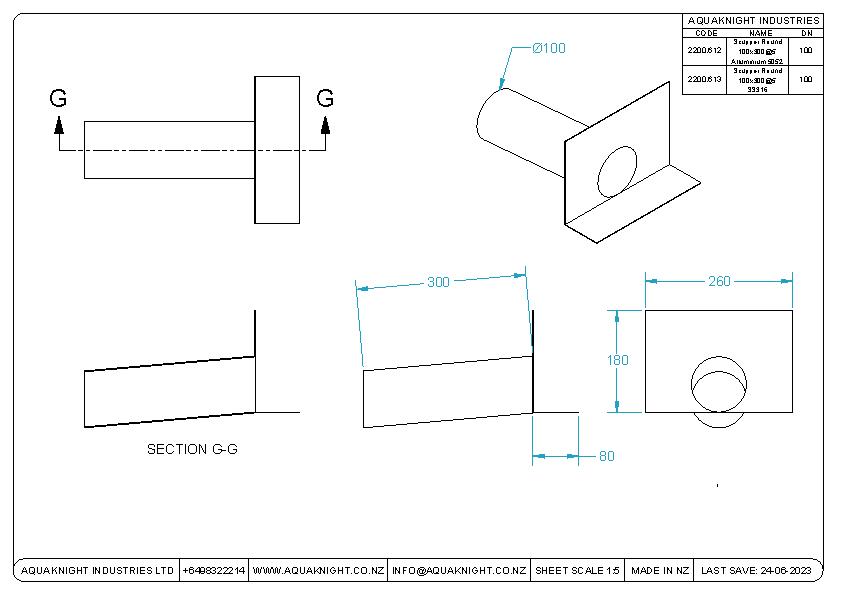

2200 612 613 Scupper Round 100 pdf

Scupper Round 100x300mm @5°

2200.612/613

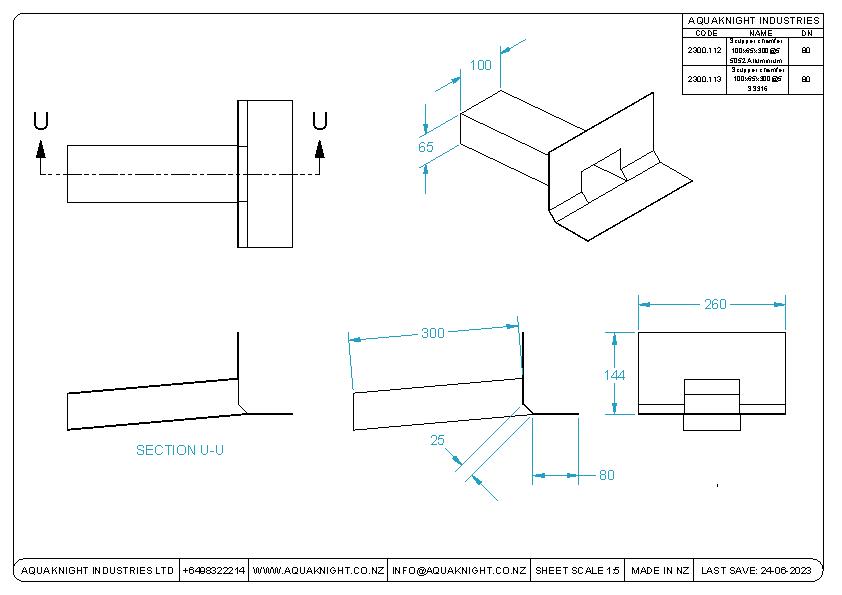

2300 112 113 Scupper Chamfer 100x65 1 pdf

Scupper Chamfer 100x65x300mm @5°

2300.112/113

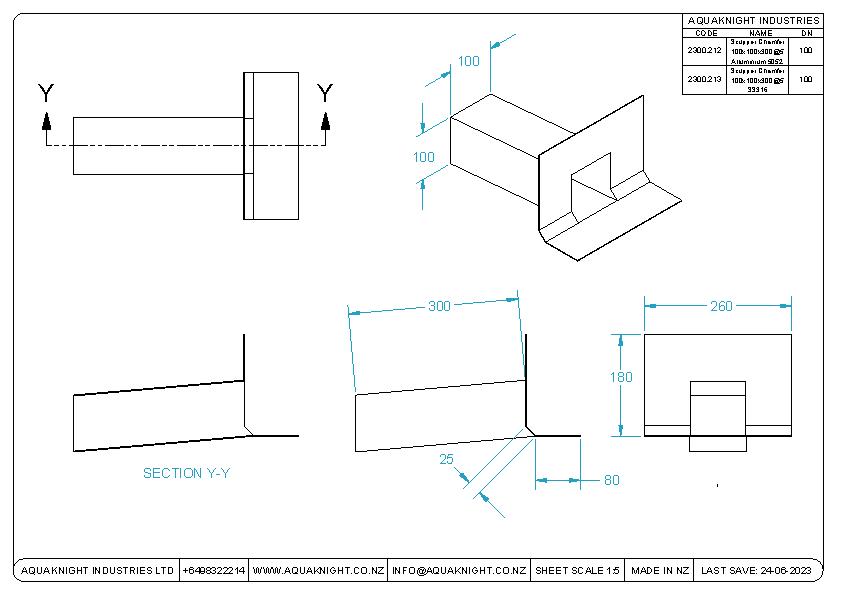

2300 212 213 Scupper Chamfer 100x100 1 pdf

Scupper Chamfer 100x100x300mm @5

2300.212/213

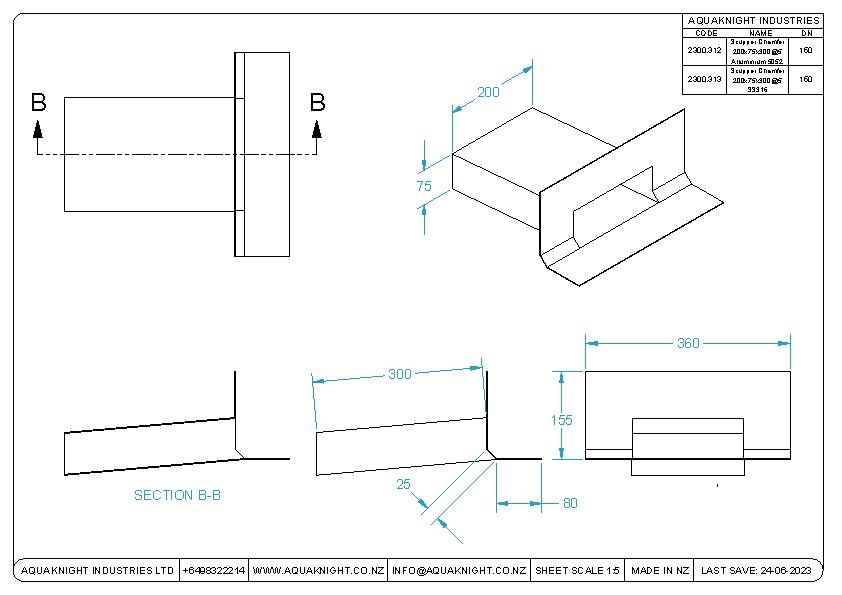

2300 312 313 Scupper Chamfer 200x75 1 pdf

Scupper Chamfer 200x75x300mm @5

2300.312/313

Aquaknight offers premium drainage solutions for all modern membrane types: liquid, single ply, multi-layer, torch-on and monolithic.
