Sealing Modern Waterproofing Membrane Drainage Systems

The situation

Waterproofing membranes continue to evolve into high-performance roofing systems. Regardless of the membrane system chosen, all rainwater is directed to an outlet, making this area the wettest zone of the entire roof.

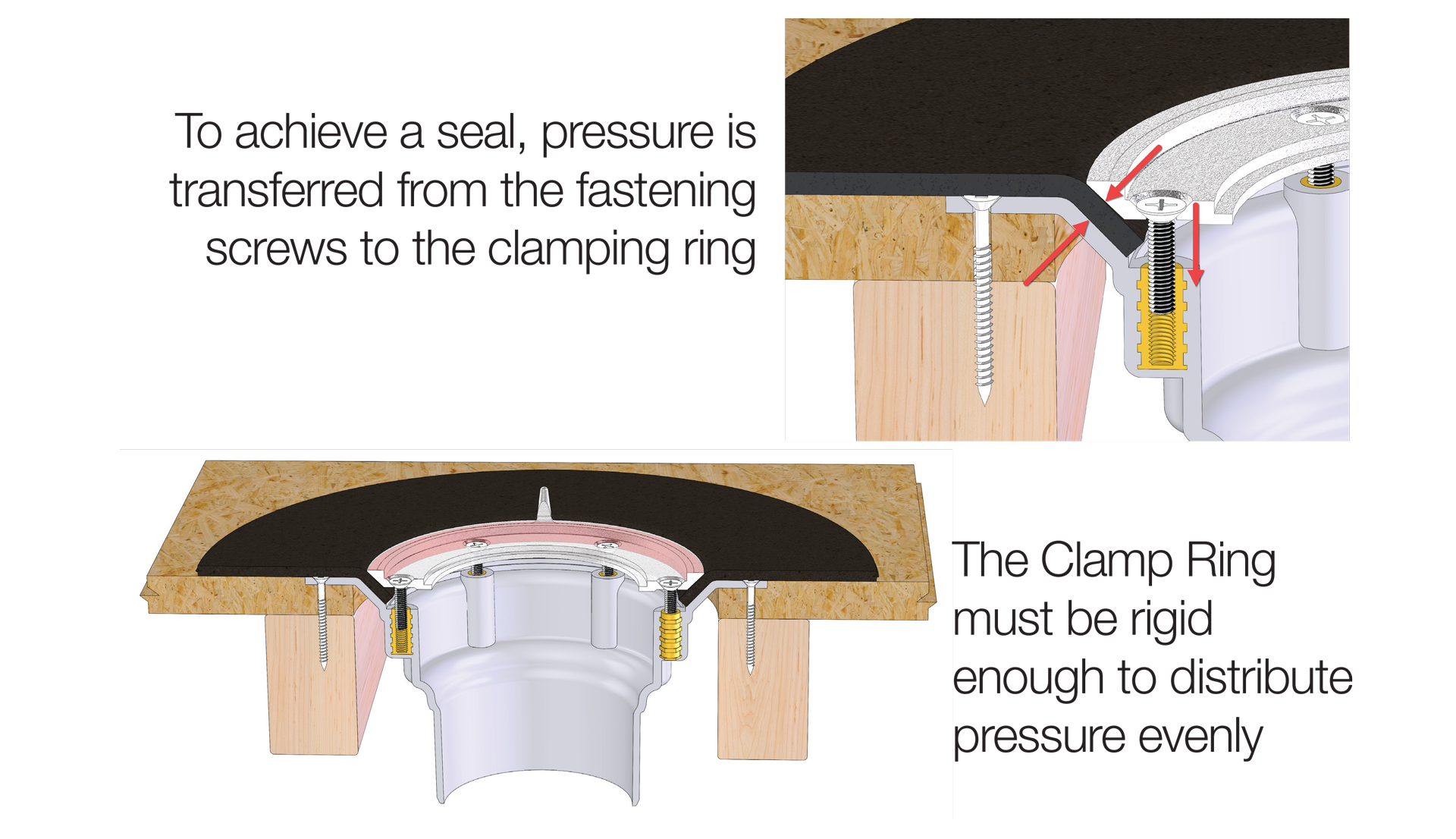

To seal a membrane to the outlet, pressure is transferred from fastening screws — through a clamp ring — onto the membrane.

Two factors will influence this critical seal’s ability to withstand failure over time:

  1. Clamping pressure (torque) generated by the clamp ring screws, and
  2. Rigidity of the Clamp Ring

The existing solutions

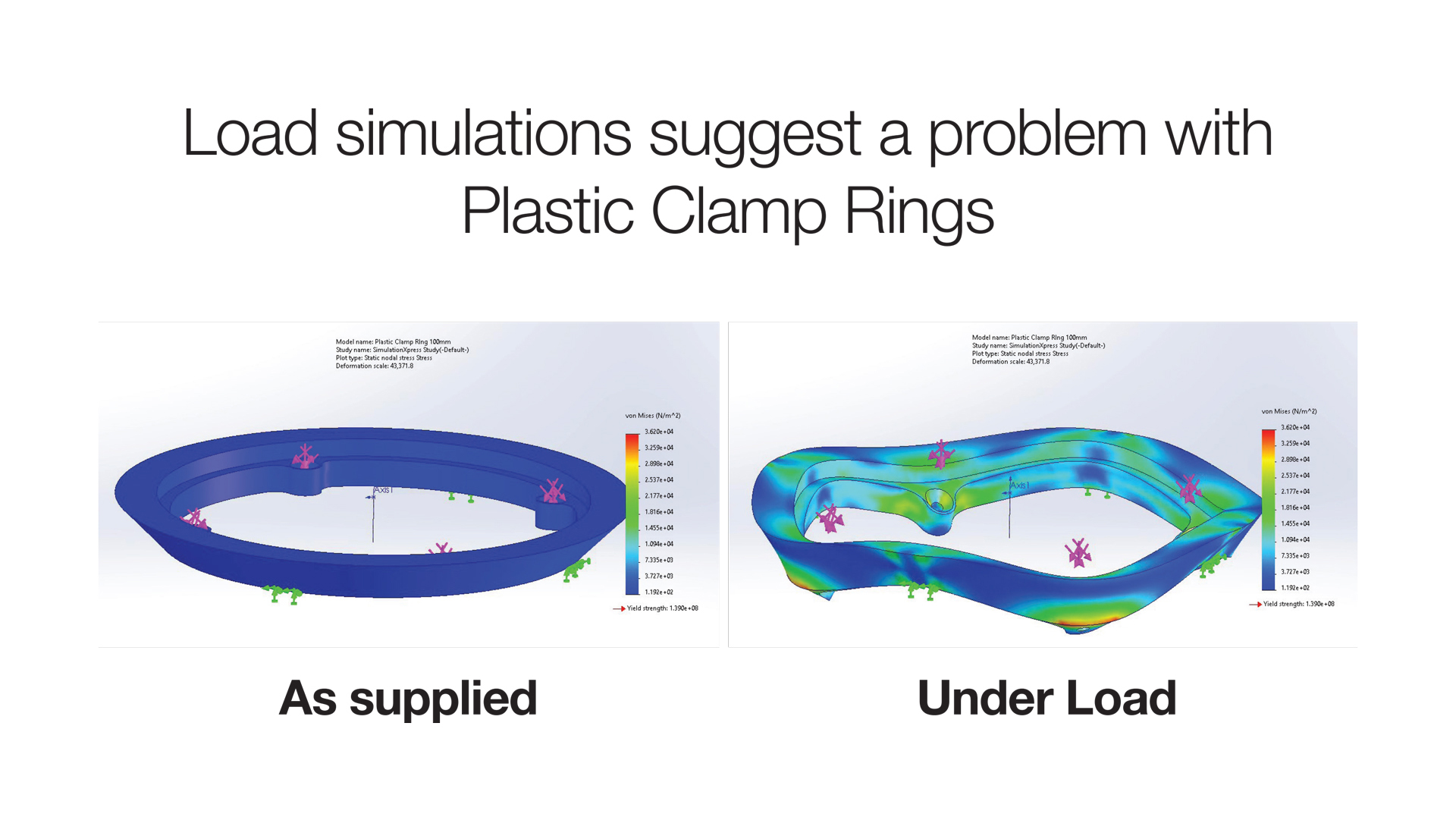

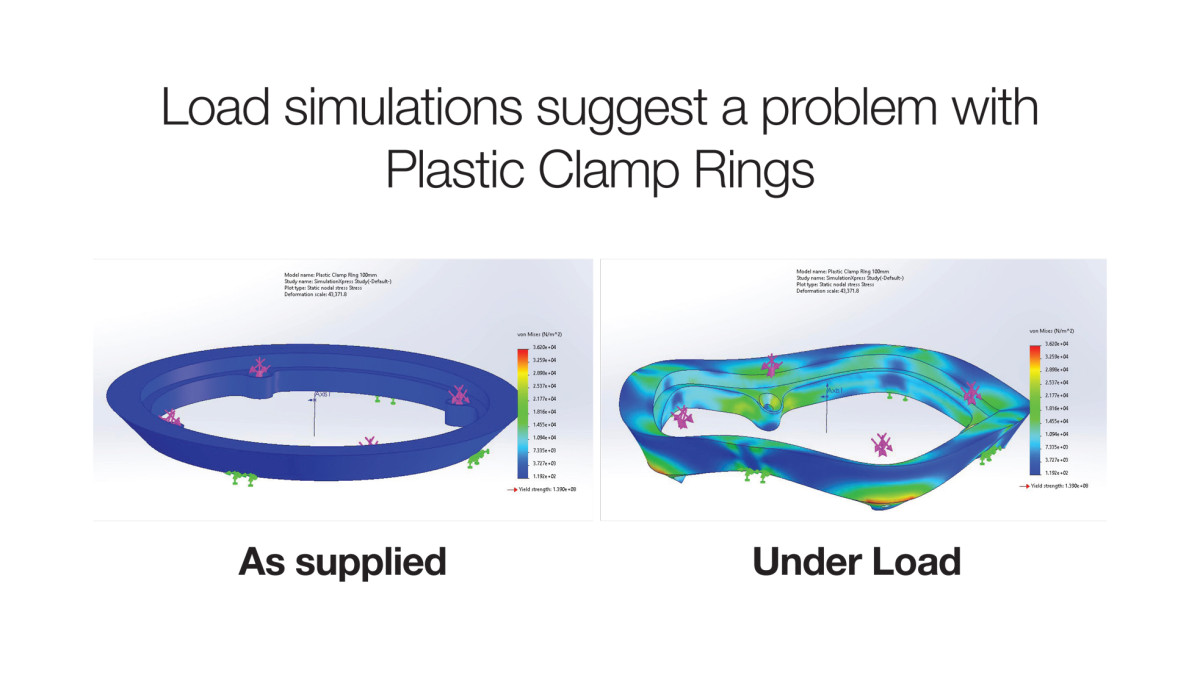

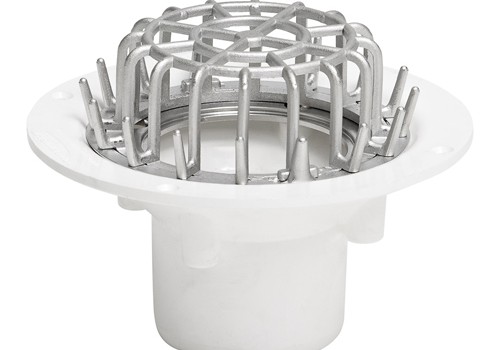

Some commonly available outlets utilise plastic clamp rings. Testing of these parts has shown that due to the lack of material rigidity, sealing pressure can only be transferred at points adjacent to the screws. The perimeter of the clamp ring is therefore at risk of leaking.

Aquaknight's design-led solution

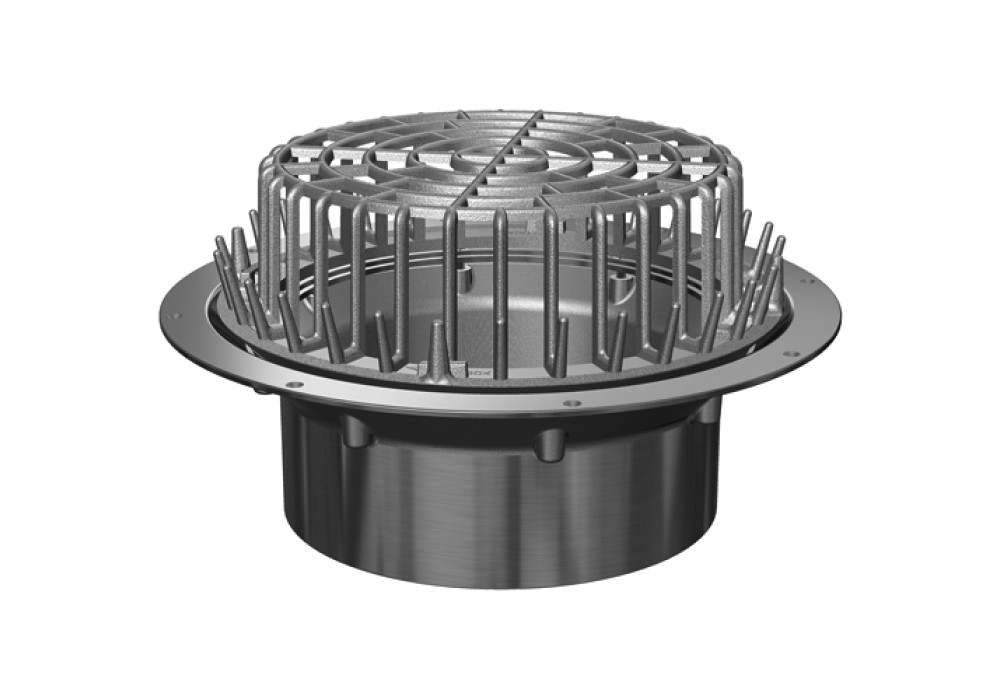

All Aquaknight Industries Roof Drain outlets feature stainless steel clamp rings and machine screws. This solution generates the required pressure to permanently seal a modern waterproofing membrane drainage system.

The validation

Tests results

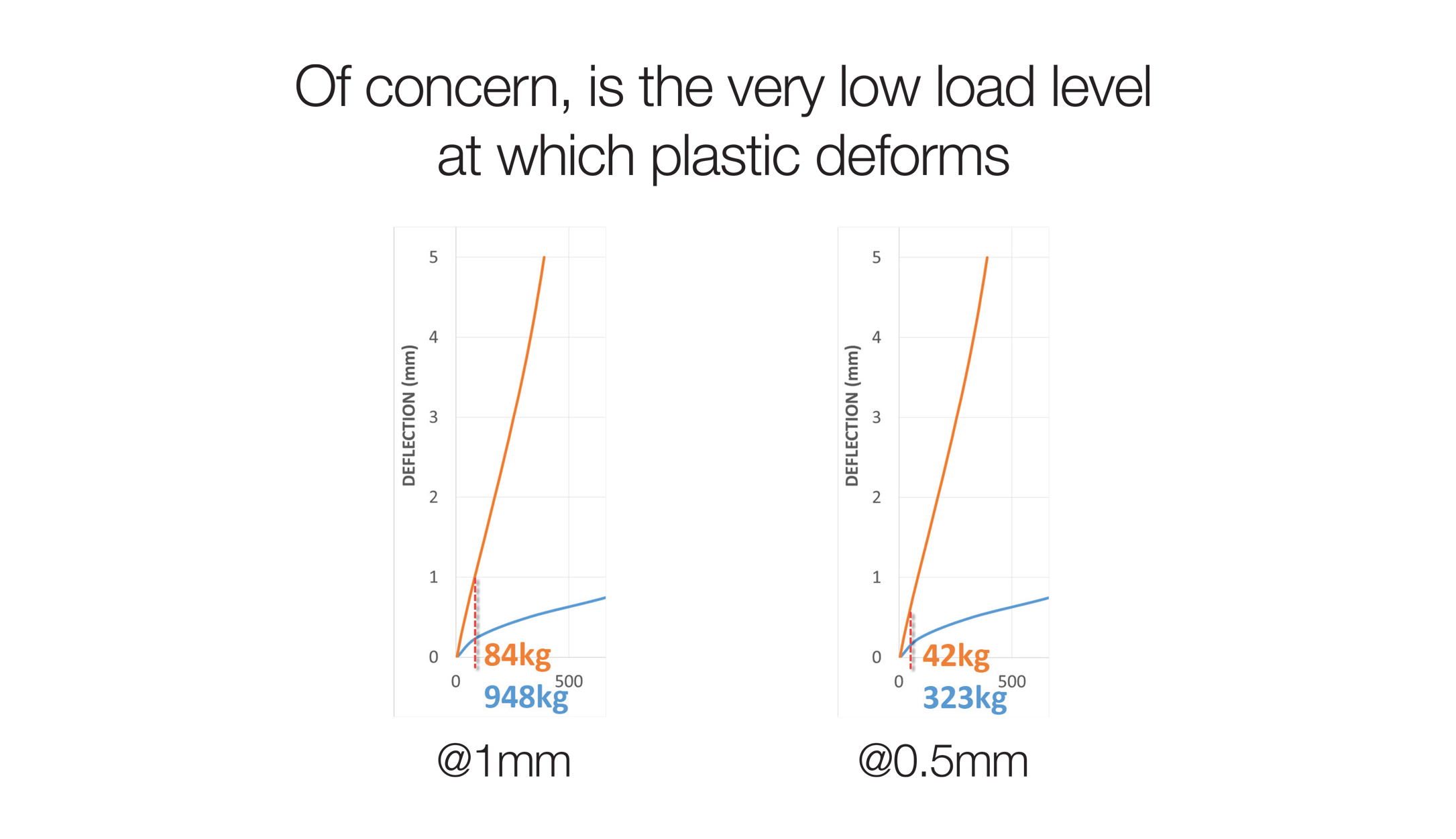

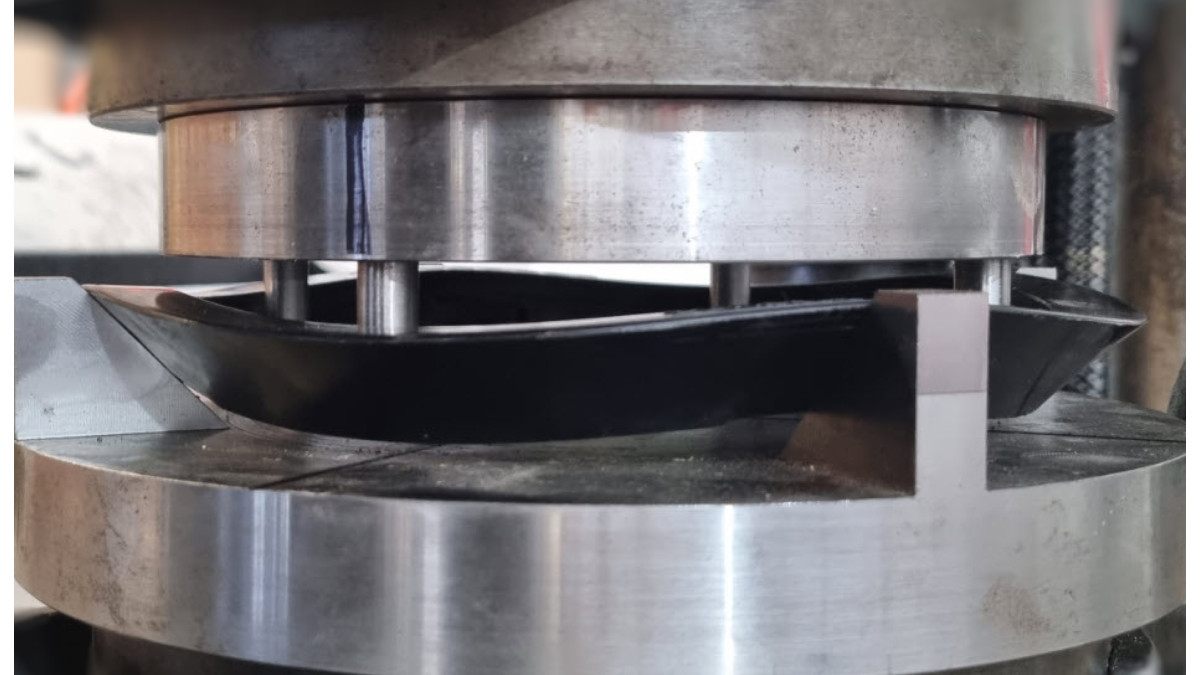

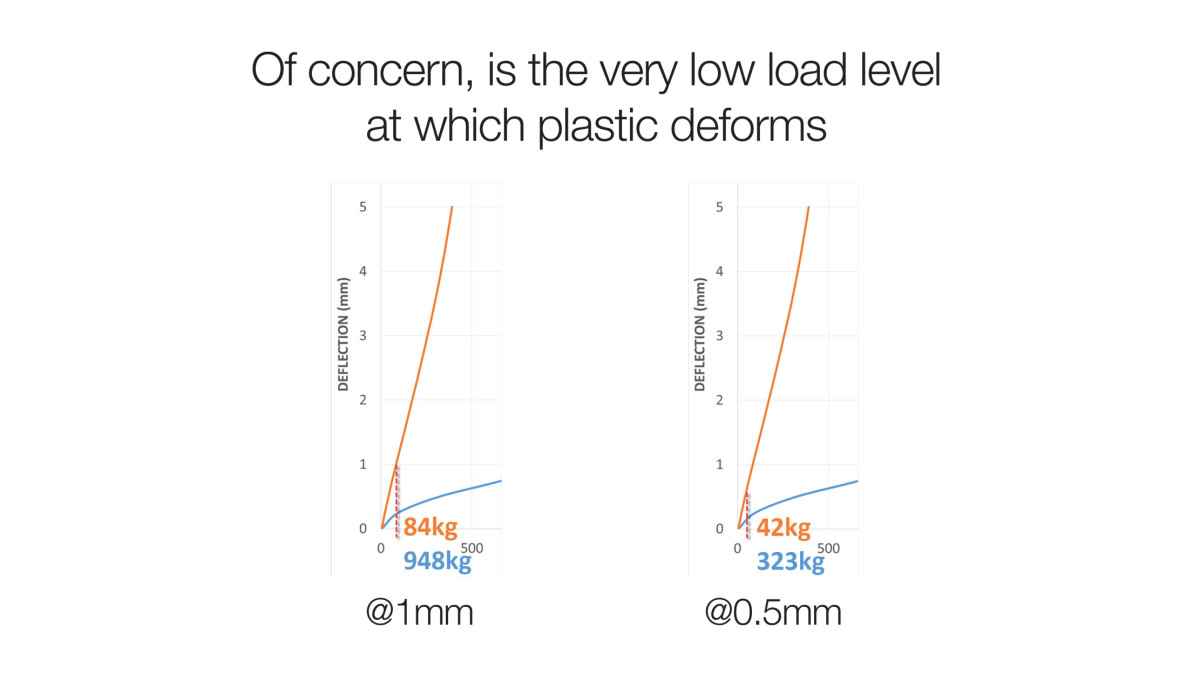

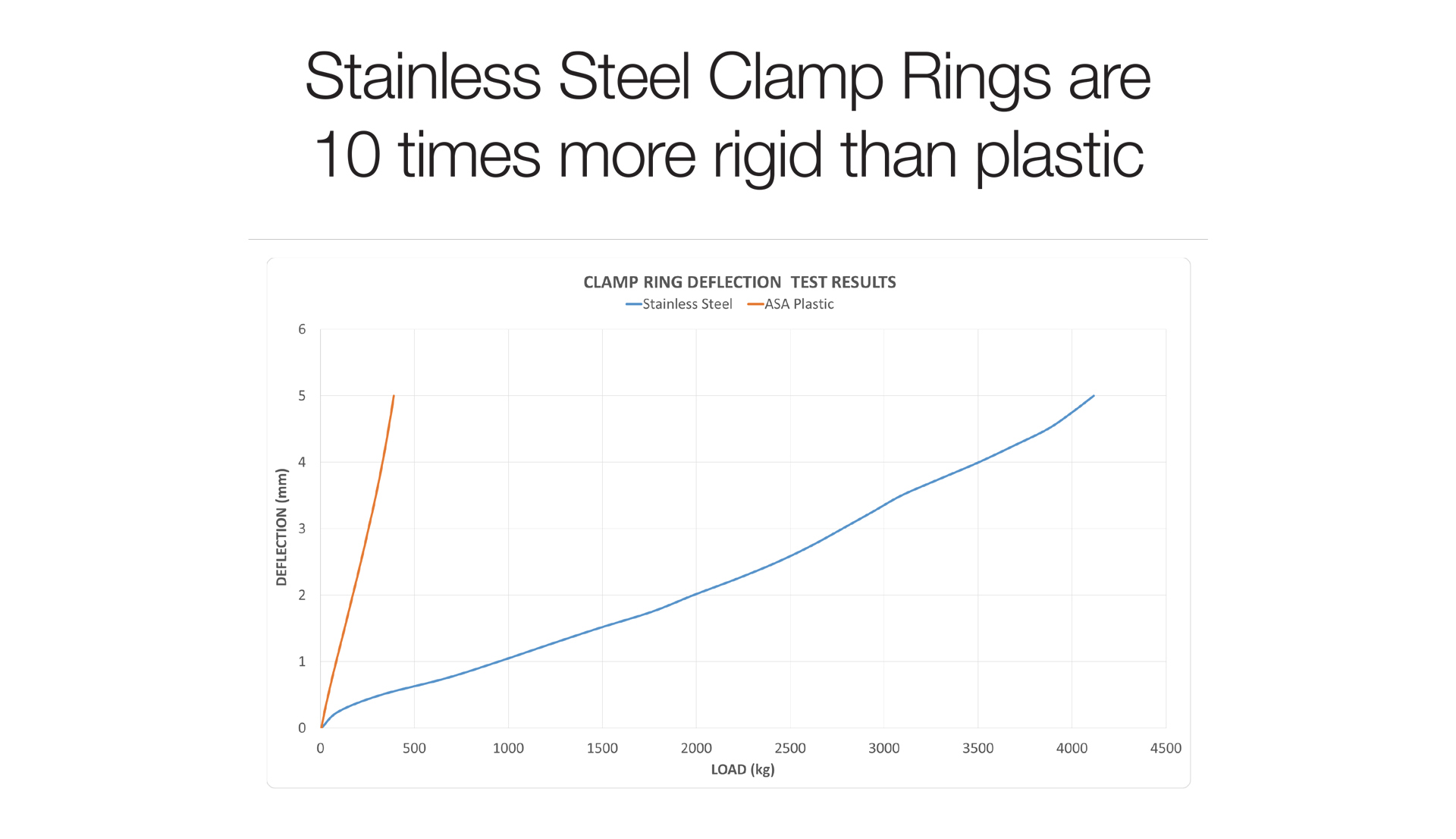

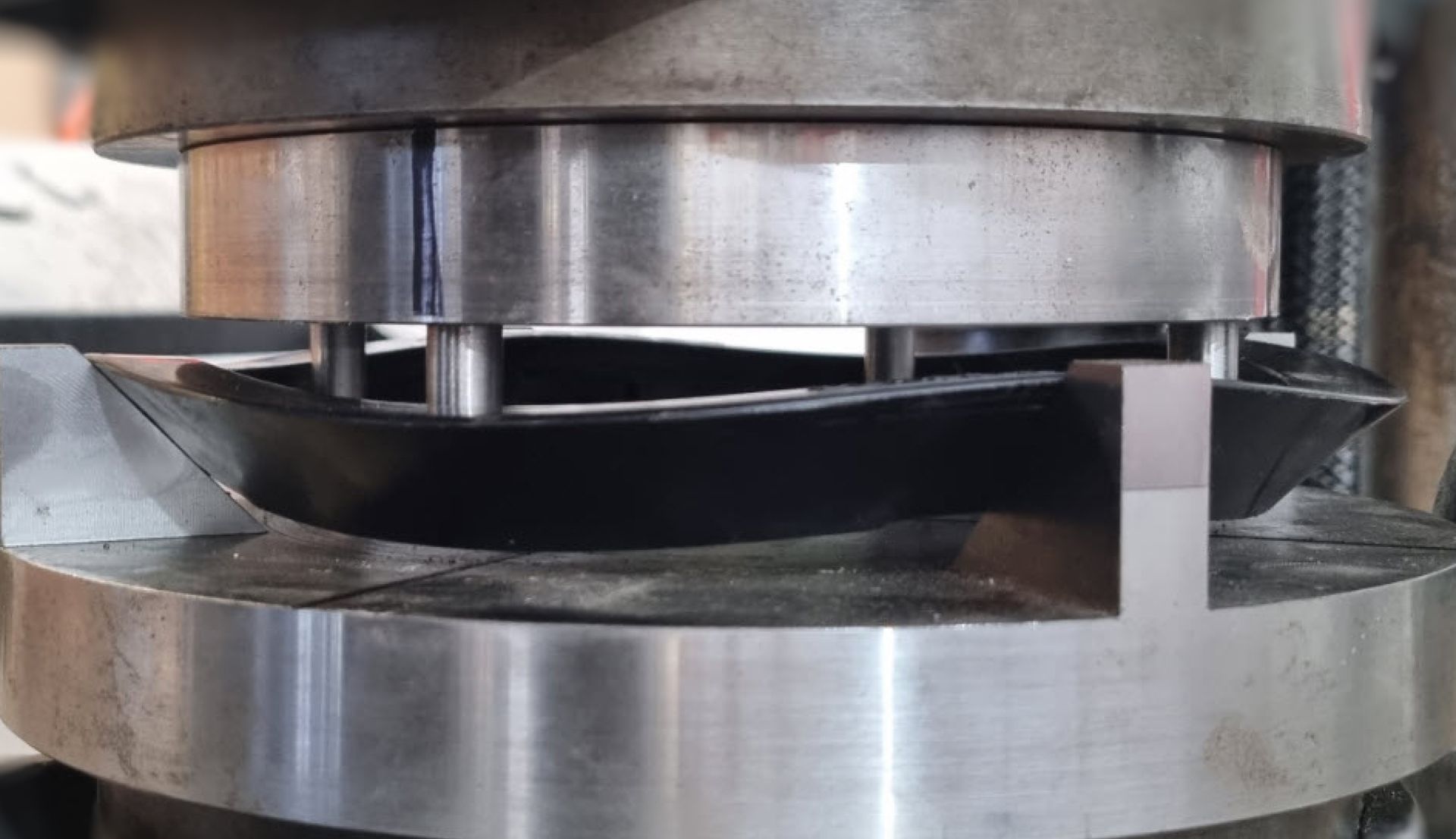

WSP Laboratories conducted standardised deflection tests on both products. Testing has shown that plastic clamp rings deflect at low installation pressure. Aquaknight Industries stainless steel clamp rings are ten times more rigid as the plastic alternatives.*

Peer endorsement

At the June 2022 meeting of the Waterproofing Membrane Association Inc, Aquaknight Industries presented these findings. Concerns of plastic clamp rings' performance and long-term durability were discussed at length. The association resolved to only endorse the use of metal clamping rings in their Codes of Practice.**

Aquaknight Industries only supply stainless steel clamp rings with their entire range of Stormwater products. Aquaknight are New Zealand’s leading supplier of roof, deck, balcony and podium drains to the construction sector.

*WSP Laboratories test report #1-LA639.00
** WMAI newsletter, August 2022 Pg5 (link to WMAI August Newsletter PDF)
