Diverters (Flashings) — Membrane Roof Drain Accessories
Aquaknight
All products

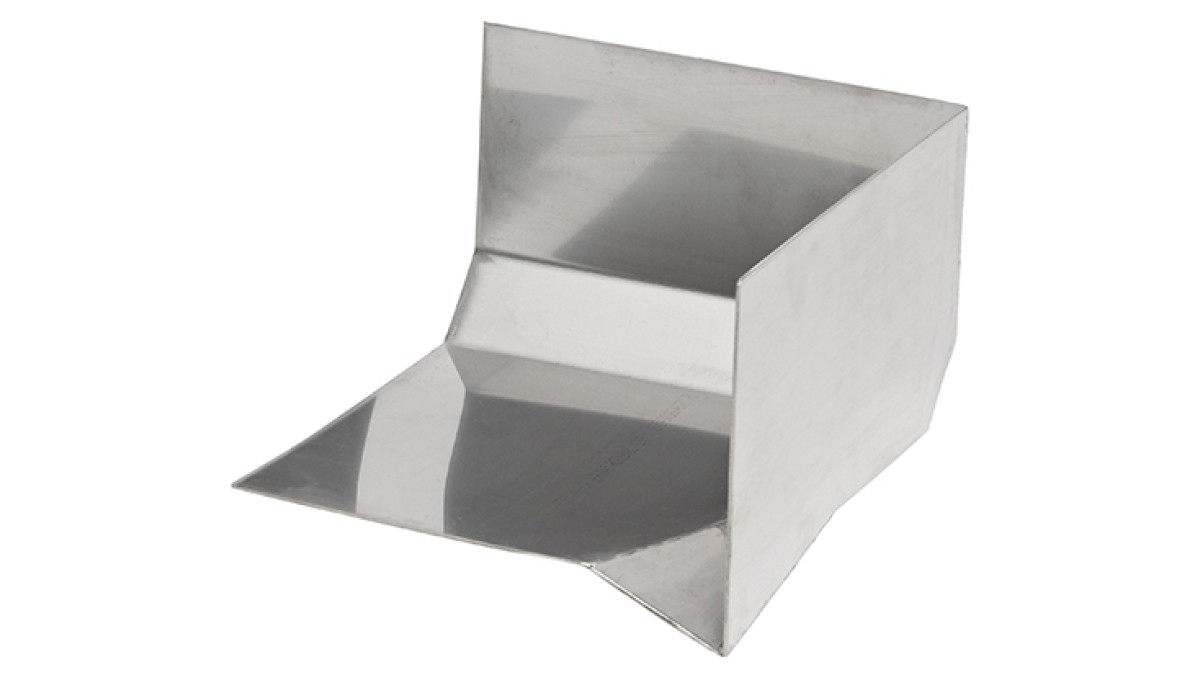

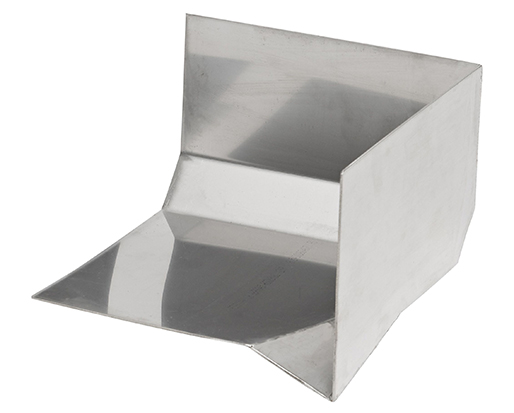

Diverter 2100.113

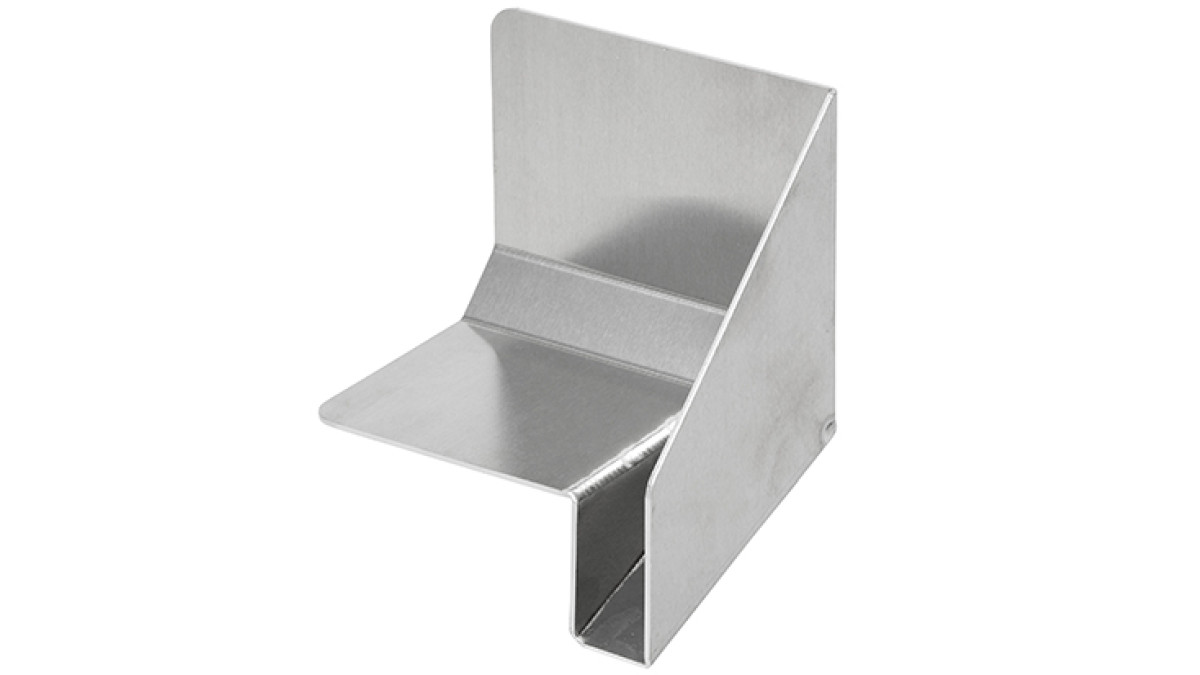

Diverter Chamfer Right Hand

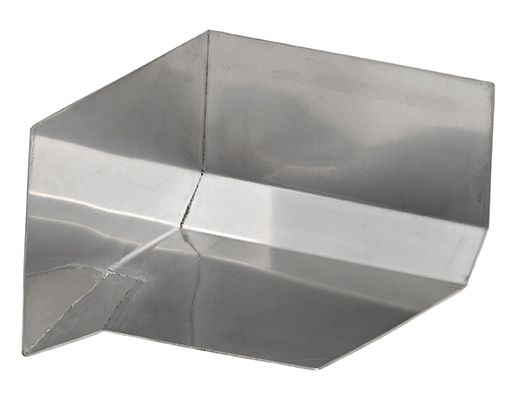

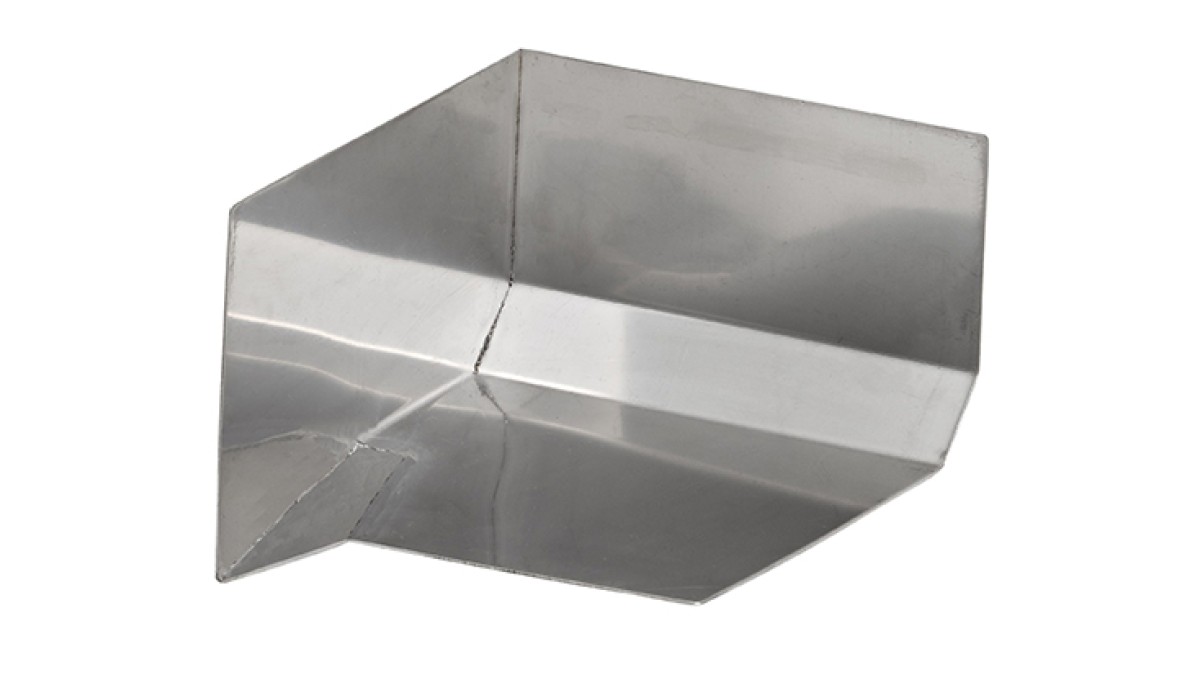

Diverter 2100.213

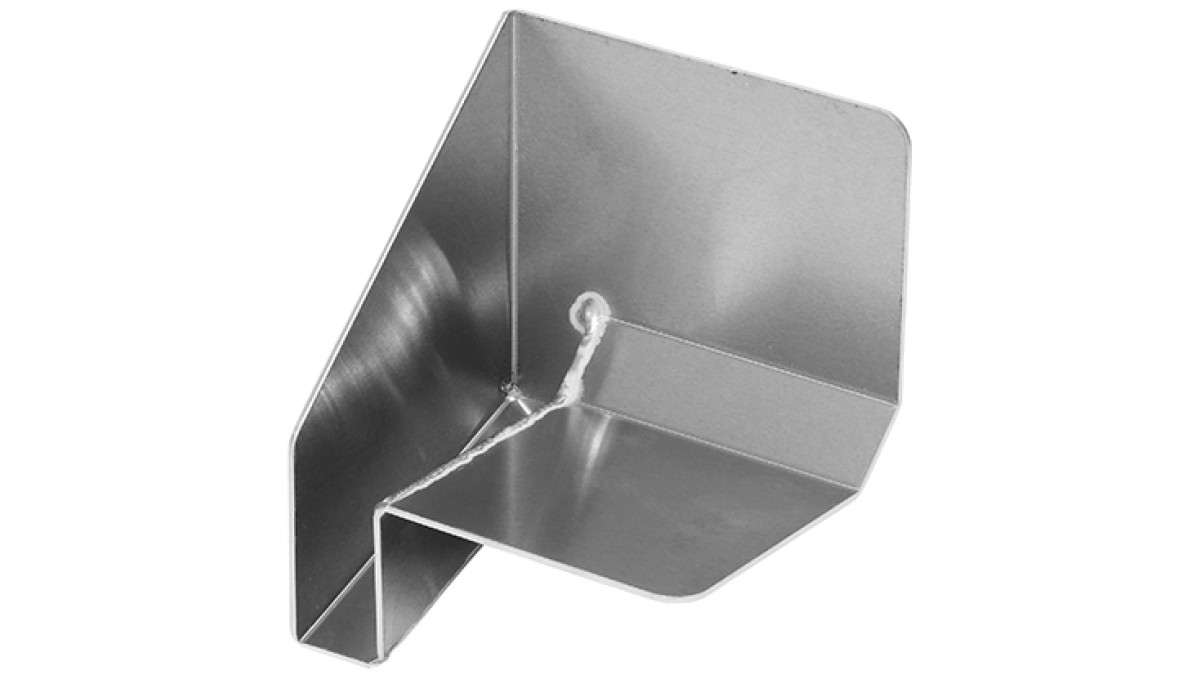

Diverter Chamfer Left Hand

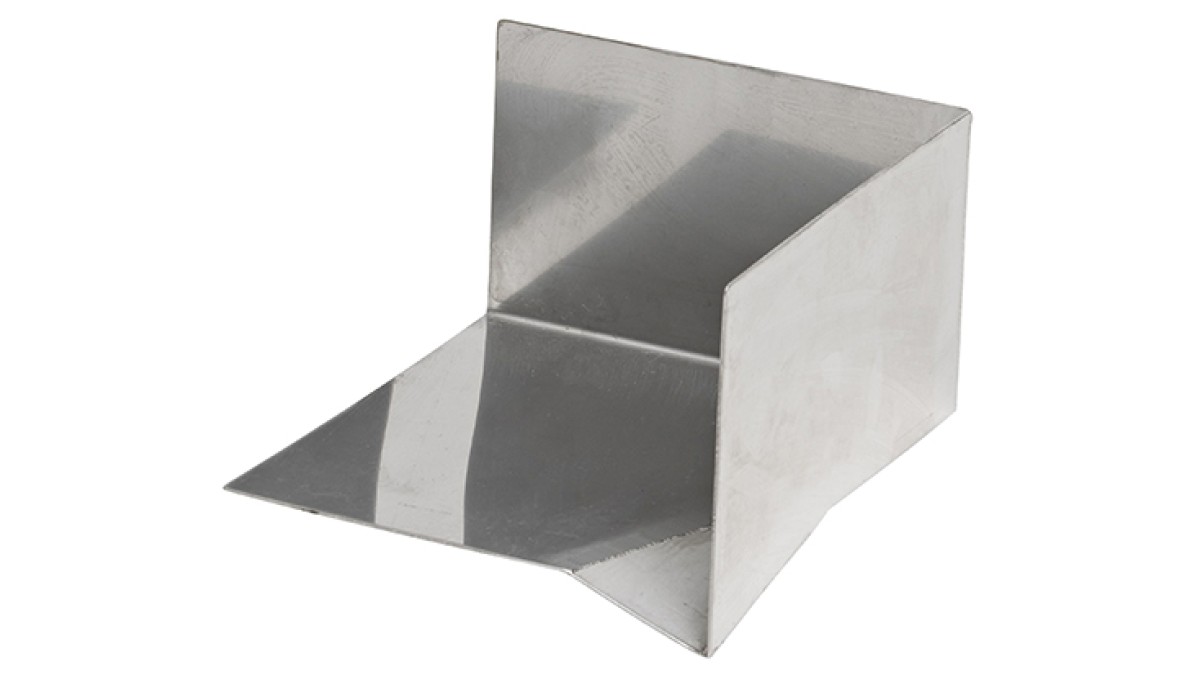

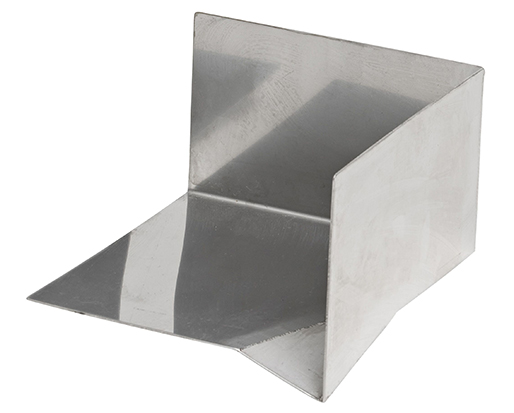

Diverter 2100.313
Diverter Radius Right Hand

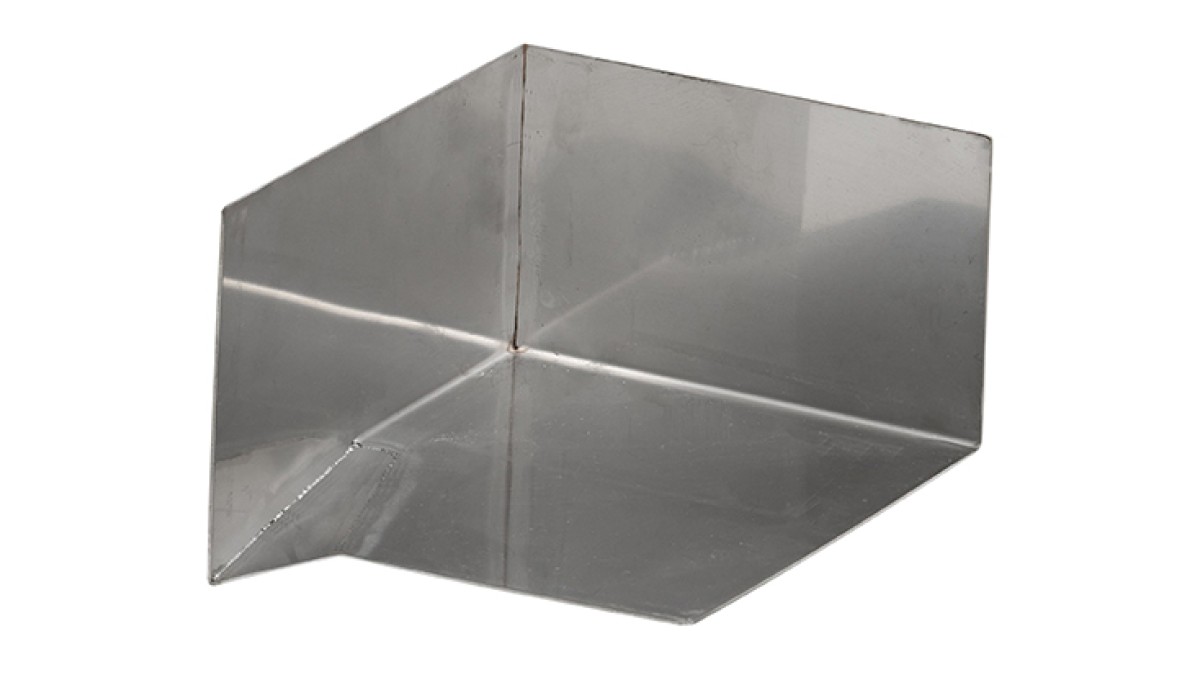

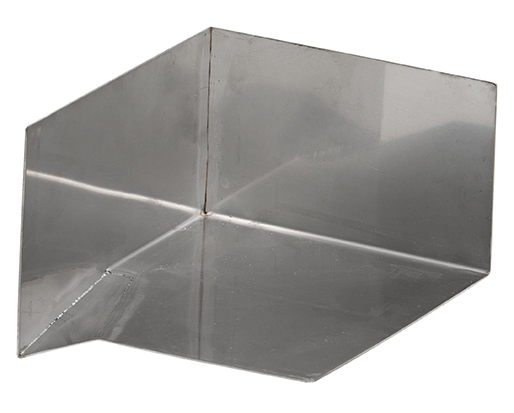

Diverter 2100.413
Diverter Radius Left Hand
Description

Pre-Fabricated accessories for membrane roofs reduce the join-count and remove difficulty and risk from a membrane installation. Diverters are made from 5052 aluminium or 316 stainless steel.

Diverters: Order Code:
Type:  Side: Aluminium: SS316:
Chamfer:  Right hand 2150.112 2150.113
  Left hand 2150.212 2150.213
Radius: Right hand 2150.312 2150.313
  Left hand 2150.412 2150.413
Key Features
  • 5052 aluminium or 316 stainless steel
  • Diverts rainfall from cladding to gutters & reinforces corners
  • Pre-fabricated accessories
  • Reduced join-count
  • Removes difficulty and risk from a membrane installation
Categories
Roofing and Decking Ancillaries Pipes and Drainage Fittings
Ranges
Membrane Roof Drain Accessories
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use

Suitable for use with:

  • liquid membrane
  • single layer membrane
  • multi-layer membrane
  • torch-on membrane
  • monolithic membrane*
Limitations on Use
  • For high corrosion zones such as coastal areas SS316 is recommended
  • *For use with monolithic membrane consult membrane supplier
Statement of Building Code Compliance
  • All product is designed to, and complies with AS/NZ3500
In-Service History

Used with sheet membrane waterproofing systems extensively throughout New Zealand systems for over 10 years.

Documents
Membrane Drain Downloads
URL
Warranty: Membrane Drainage Fittings

2023

pdf
Roof Drain Accessories: Diverters
URL
CAD/PDF Details
View full

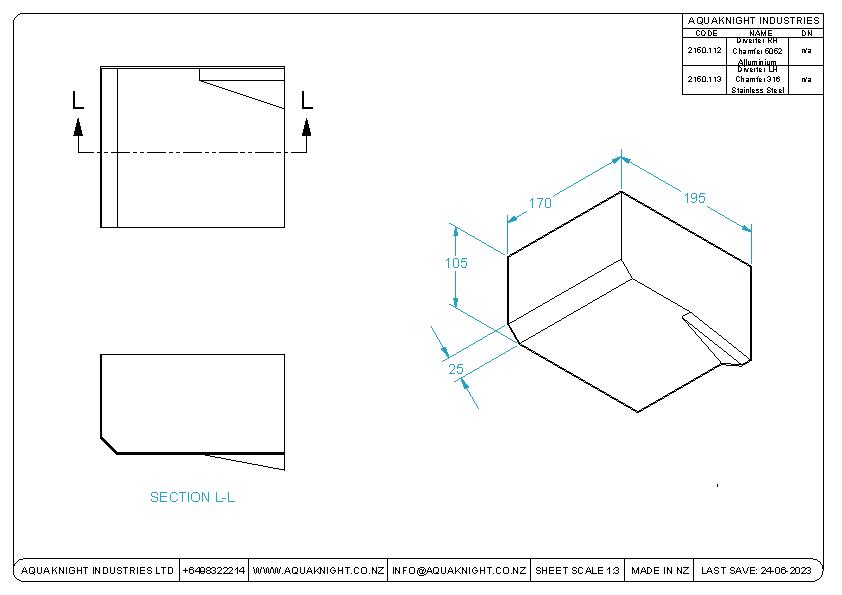

2150 112 113 Diverter RH Chamfer pdf
Diverter Chamfer Right Hand

2150.112/113

dwg
pdf

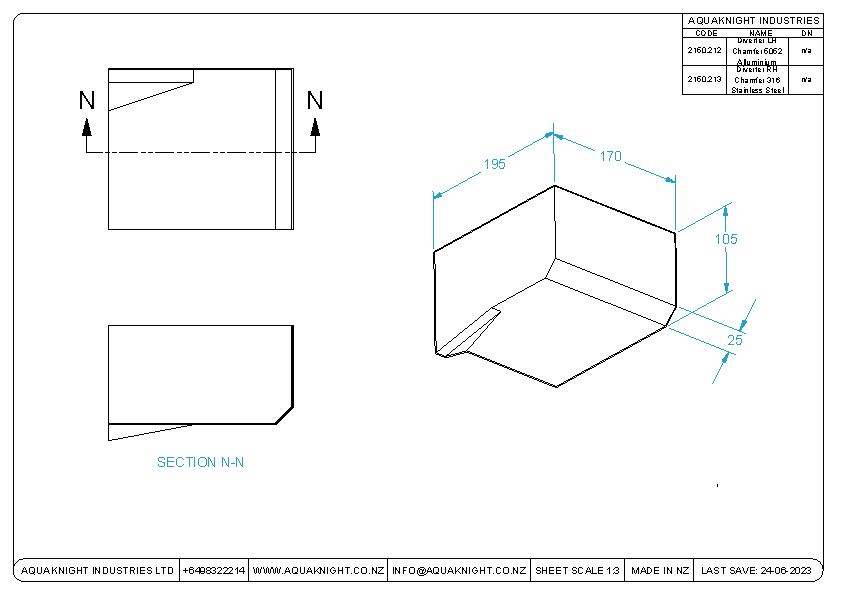

2150 212 213 Diverter LH Chamfer pdf
Diverter Chamfer Left Hand

2150.212/213

dwg
pdf

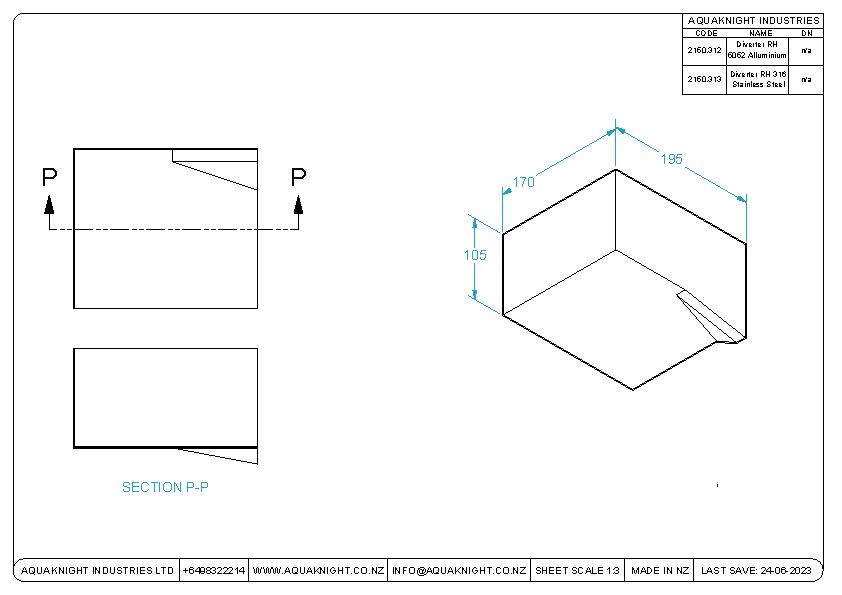

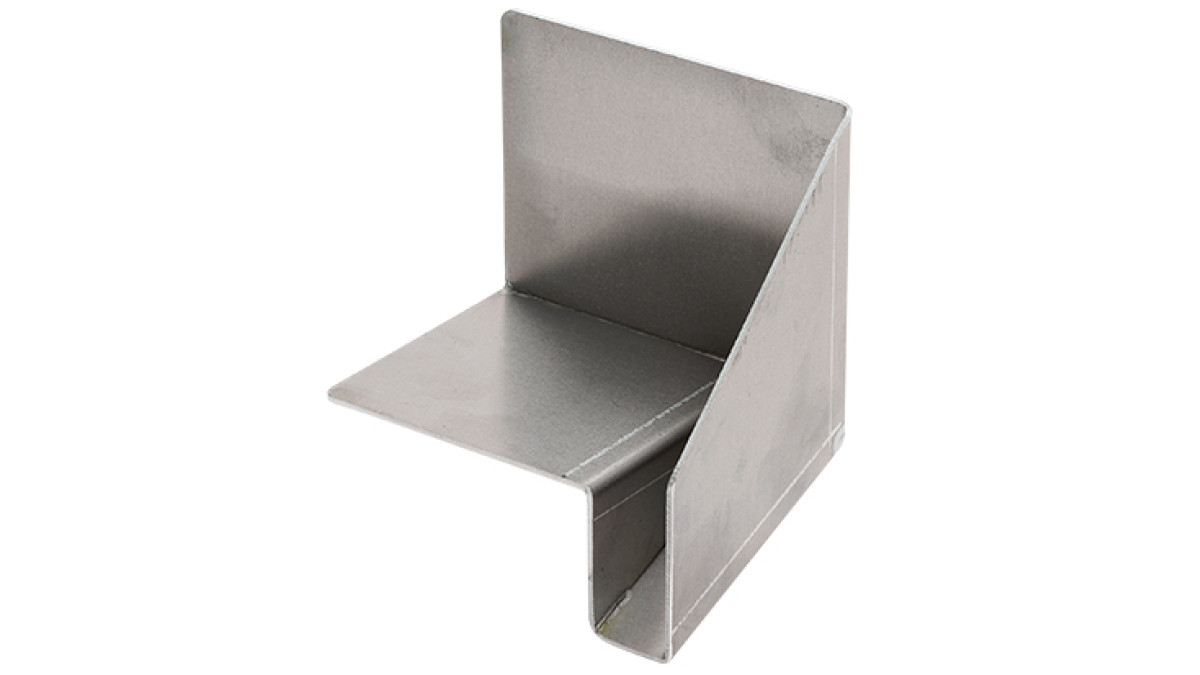

2150 312 313 Diverter RH pdf
Diverter Radius Right Hand

2150.312/313

dwg
pdf

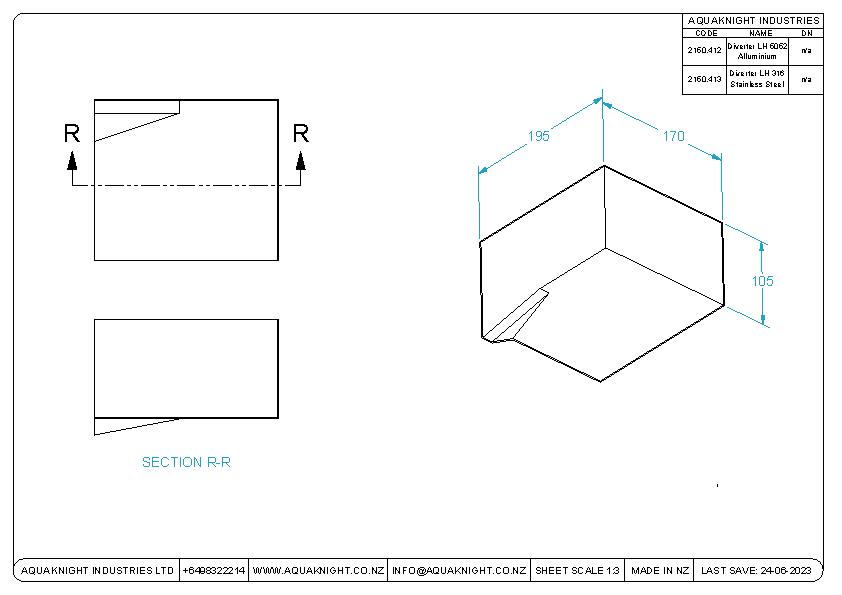

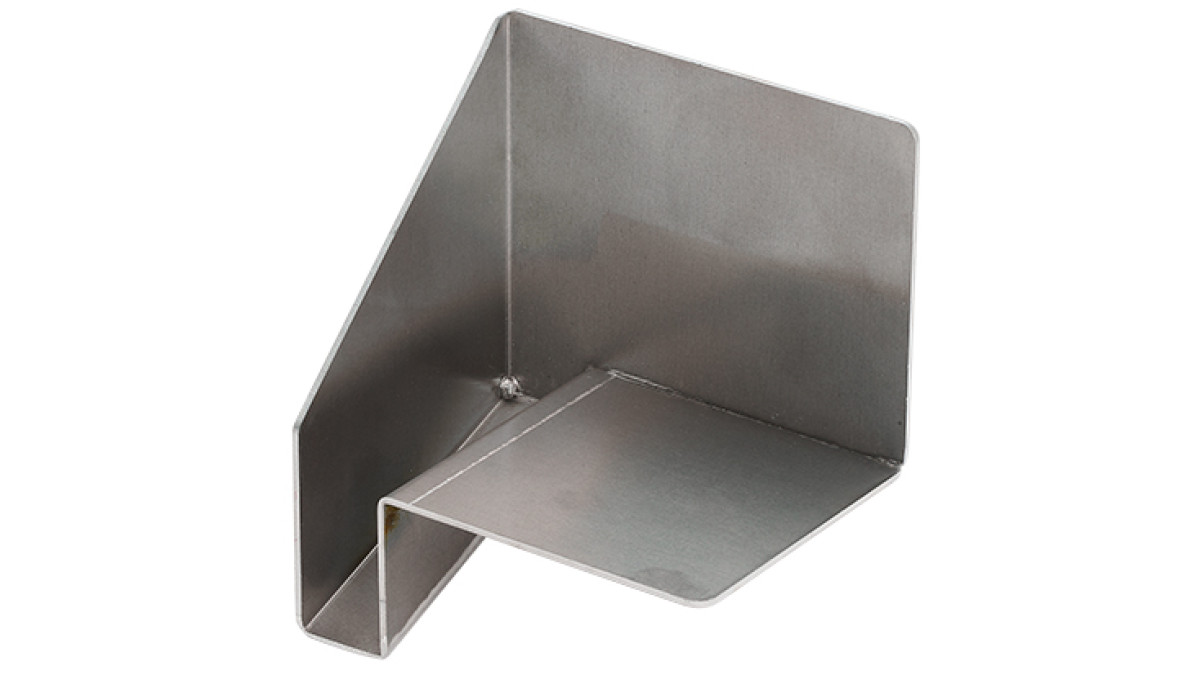

2150 412 413 Diverter LH pdf
Diverter Radius Left Hand

2150.412/413

pdf

Aquaknight offers premium drainage solutions for all modern membrane types: liquid, single ply, multi-layer, torch-on and monolithic.

Product Enquiries

News from Aquaknight

Sealing Modern Waterproofing Membrane Drainage Systems
Sealing Modern Waterproofing Membrane Drainage Systems
Aquaknight
November 2022 Product News
New Solution for Drainage on Skillion Membrane Roofs
New Solution for Drainage on Skillion Membrane Roofs
Aquaknight
September 2021 Product News

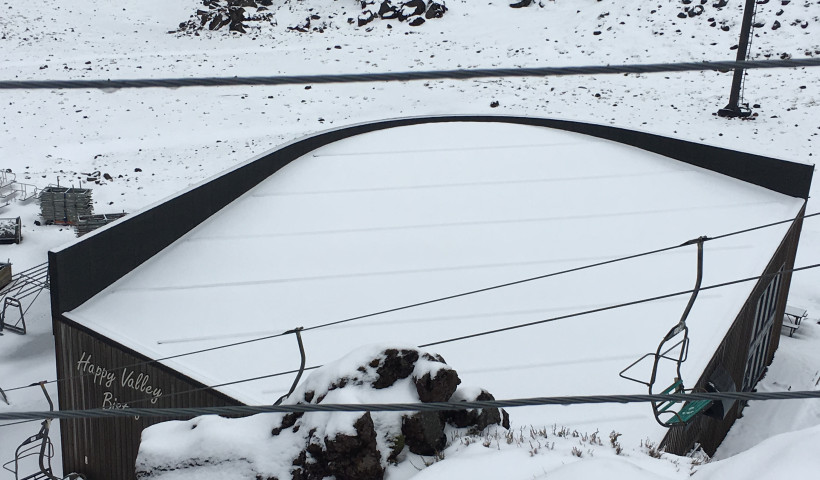

Aquaknight Drains Complete Warm Roof System at Whakapapa
