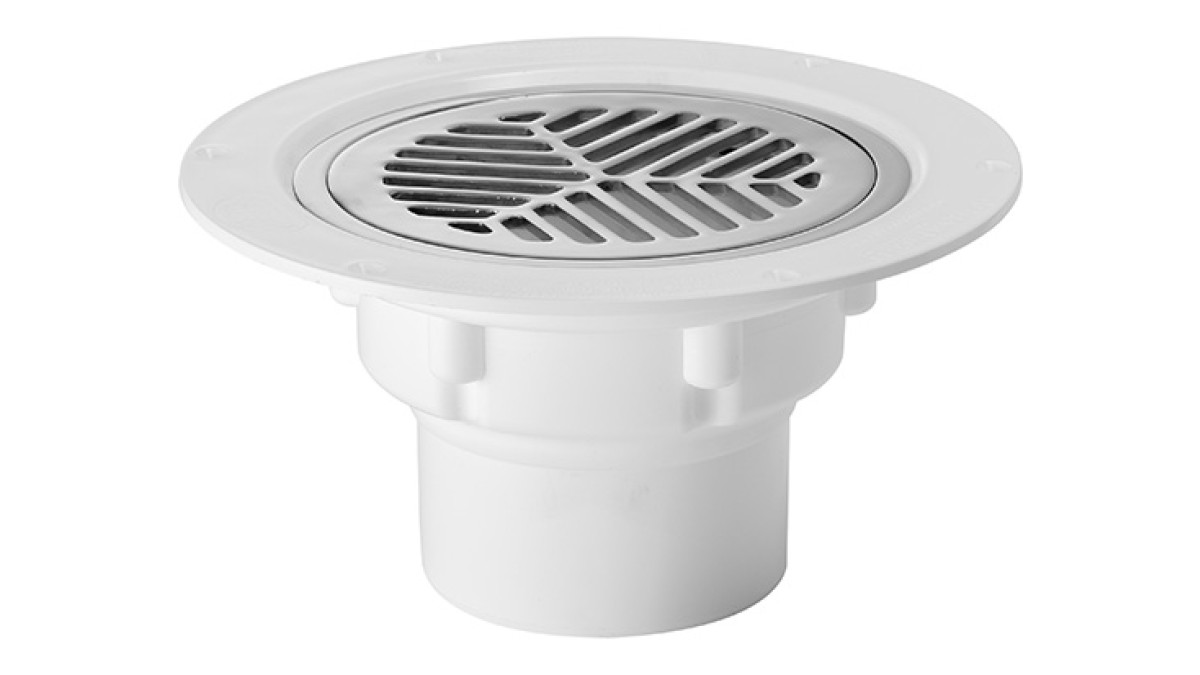

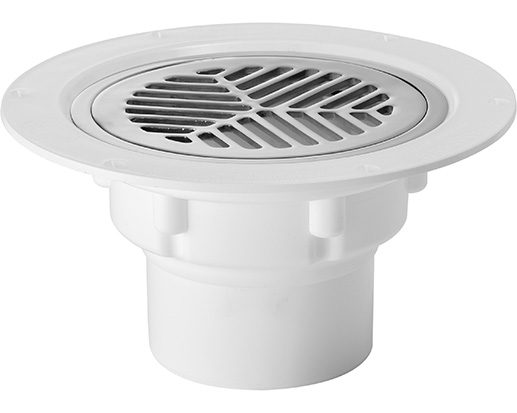

HiFlow Deck Drain — 100mm
Description

Aquaknight Deck Drain is hi-flow, uPVC outlet with a stainless steel flat lid and a stainless steel interlocking clamp ring. The fittings have a clamping force of more than 7 tons.

Available as bottom exit with a big flange.

  • FLowLab test report available
  • Inlet sizes: 100mm
  • Outlet size: 100mm
Key Features
  • FlowLab tested
  • Engineered clamping range 0-10mm membrane thickness for multi-layer and torch-on
  • Bottom exit with big flange
  • Stainless Steel flat lid
  • M6x25 machine screws for sound installations
  • Stainless Steel interlocking clamp ring — engineered for life
  • Over-moulded custom machine nuts — cannot be 'cranked out' and will not yield over time
  • Clamping force over 7 tons — delivering peace of mind
  • Disposable optional 100/80mm reducer bush
NZ Made
NZ Made
Scope of Use
  • Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
    • single-ply sheet membranes
    • torch-on membranes
  • Bottom exit
  • Big flange for general application
  • Engineered clamping range 0-10mm membrane thickness for multi-layer and torch-on
  • Residential and commercial applications
  • All corrosion zones as defined in NZS 3604:2011
Limitations on Use
  • Not to be used where membrane build-up exceeds 10mm in clamping area
  • For micro-climates as defined in NZS 3604: 2011, contact Aquaknight for material selection information
  • For use with monolithic hot-melt membranes, consult membrane supplier
Statement of Building Code Compliance

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Deck Drain will meet or contribute to meeting the following provisions of the NZBC:

  • B1 Structure B1.3.1, B1.3.2, B1.3.3 (a, b, c, j)
  • B2 Durability B2.3.1 (b)
  • E1 Surface Water E1.3.3 (a, b, c, d, e, f)
  • F2 Hazardous Materials F2.3.1
In-Service History

Used with most membrane waterproofing systems extensively throughout New Zealand for over ten years.

Other Performance Attributes
  • Flow rates vary between product models, consult individual FlowLab reports to establish exact flow rates
  • Stainless steel interlocking clamp ring — tested as fit for purpose and endorsed by Waterproofing Membrane Association Inc.
  • Over-moulded custom machine nuts — cannot be 'cranked out' and will not yield over time
  • M6 machine screws for positive clamping torque

Warranty and Maintenance

Warranty for exterior membrane drainage outlets:

Free from defects of material and workmanship for 15 years. Tea staining may occur over time. This is not considered a material defect and is not covered under warranty terms.

Maintenance for exterior membrane drainage outlets:

Regular inspections (at least monthly, and after every significant storm) should be conducted to remove any accumulation of debris from box-gutters, sumps and around the drain areas. Accumulation of such material can lead to blocked drains and overflow events. The overflow outlet discharge pipes should be monitored during rain events. Any water discharge is an early warning that may indicate a partially blocked drain.
