Metro Series ThermalHEART® with Centrafix™ Sliding Windows

ALTHERM Window Systems

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

Product Enquiries

Description

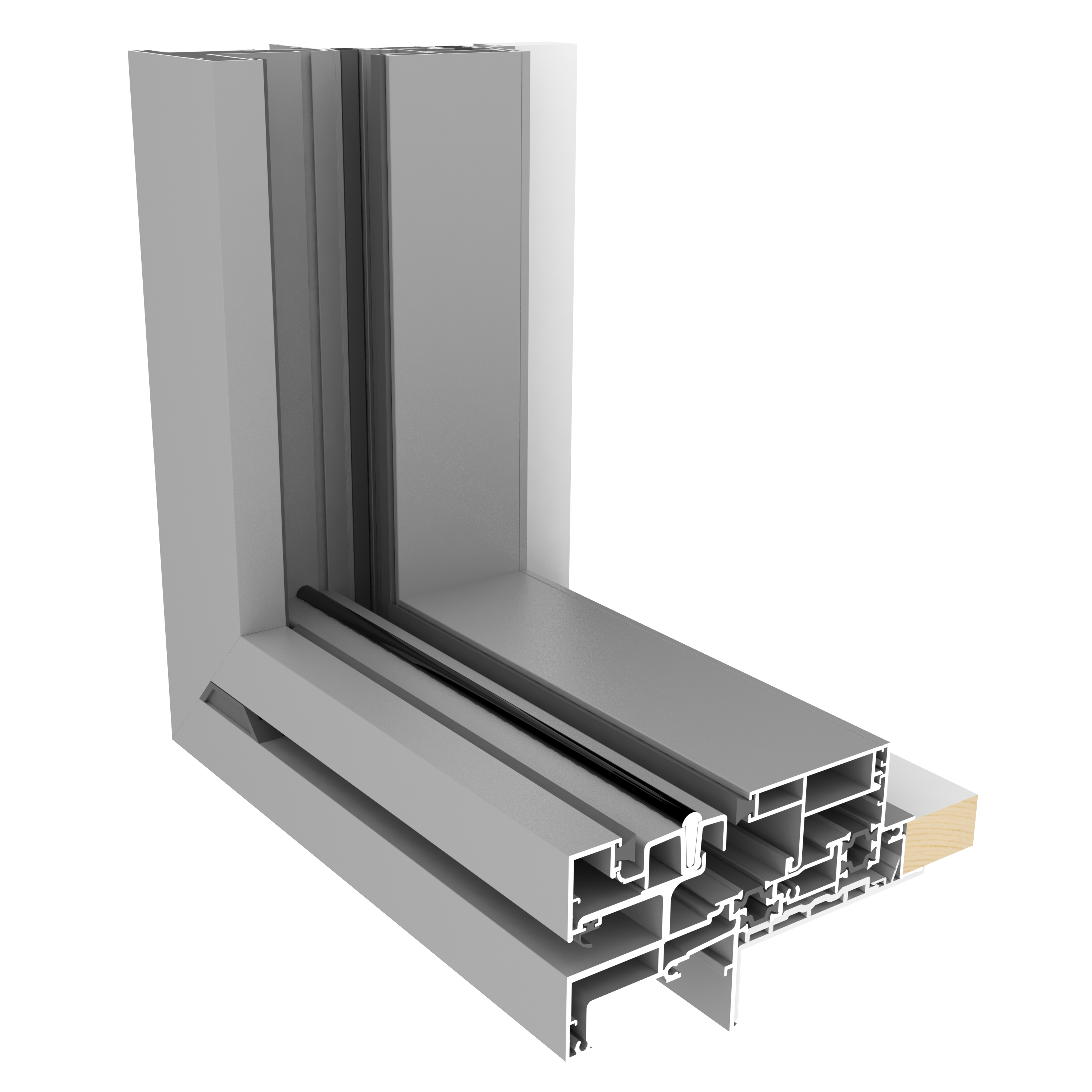

Sliding windows use the sliding door system, which has slender sightlines. The sill frame has a flush track. Interlocker stiles and mullions are flush in the closed position.

Key Features

An exterior sliding track as standard
Glazing is deeply set within the building wall, delivering a strong appearance
Ideal for non-projecting or servery windows
Smooth sliding action
Wide opening is possible in bi-parting or stacking configurations.
Stiles and rails feature slender sightlines
Maximum glass thickness of 44mm IGU — compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Ranges

Metro Series ThermalHEART® with Centrafix™

Scope of Use

Suitable for broad residential use, including in apartments and buildings over 10m in height
Available in defined maximum sizes

Limitations on Use

Recommended in maximum sizes
Compliance with NZBC clause H1 Energy Efficiency requires high performing Low-E double glazing

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Specification for Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Conforms to all relevant NZ Building Code clauses

In-Service History

Metro Series ThermalHEART® with Centrafix™ is a new system introduced in 2023

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected. Metro Series ThermalHEART® with Centrafix™ products can have a different colour on the interior and exterior faces as an optional choice
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Documents

Specifier Guide

pdf

Centrafix™ System Guide

2023

URL

Data Sheet: Metro Series ThermalHEART® with Centrafix™ Windows

2023

pdf

Span Tables: Metro Series ThermalHEART® with Centrafix™ Sliding Windows

2023

pdf

Declare Label

2023

pdf

Altherm on Masterspec

URL

Full Specification Guide: Metro Series ThermalHEART® with Centrafix™

2023

docx

Specification Guide: Metro Series ThermalHEART® with Centrafix™ Sliding Windows

2023

docx

Manufacturer Contact List

URL

AGP Cleaning & Maintenance

2021

pdf

Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

Altherm Design Brochure

2020

URL

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

URL

CAD/PDF Details

View full

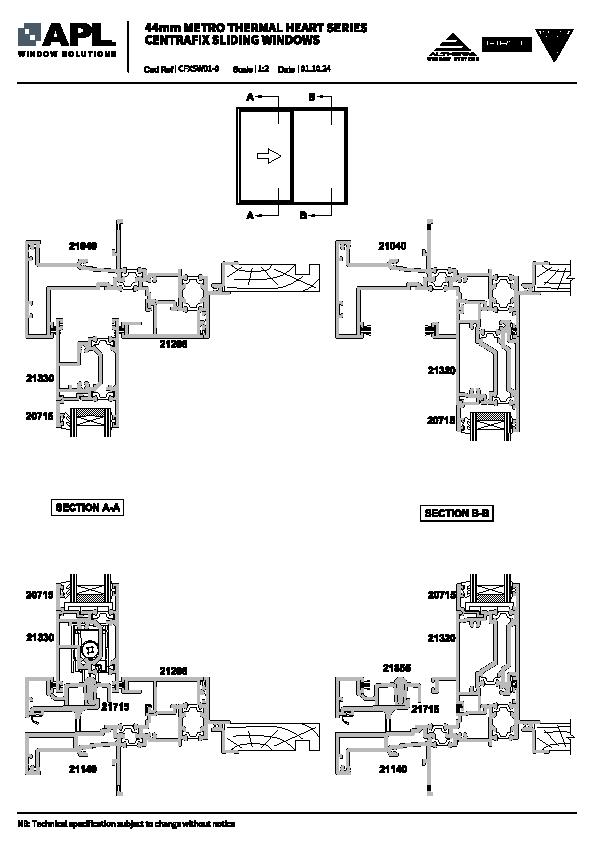

APL Metro Thermal Heart Sliding Window Cfx Drawings pdf

Metro Series ThermalHEART® with Centrafix™ Sliding Windows

FULL SET

PDF and ZIP (contains all DWGs)

pdf

zip

Metro Series ThermalHEART® with Centrafix™ Sliding Windows (44mm)

CFXSW01

dwg

dxf

pdf

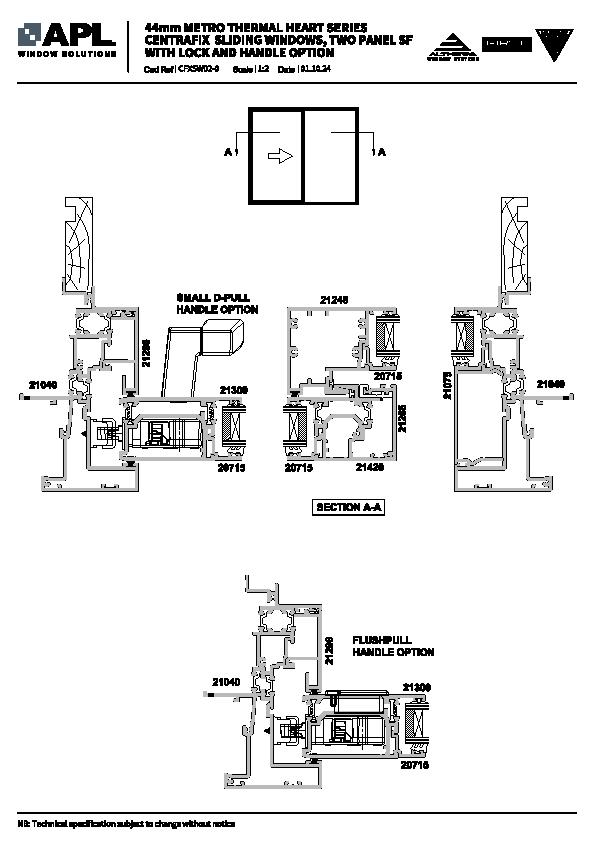

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Two Panel SF (44mm)

CFXSW02

dwg

dxf

pdf

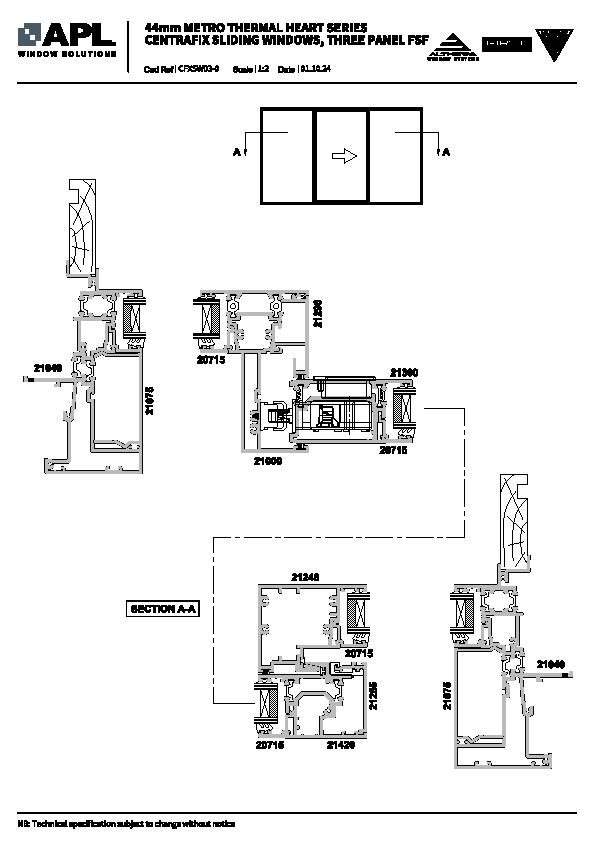

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Three Panel FSF (44mm)

CFXSW03

dwg

dxf

pdf

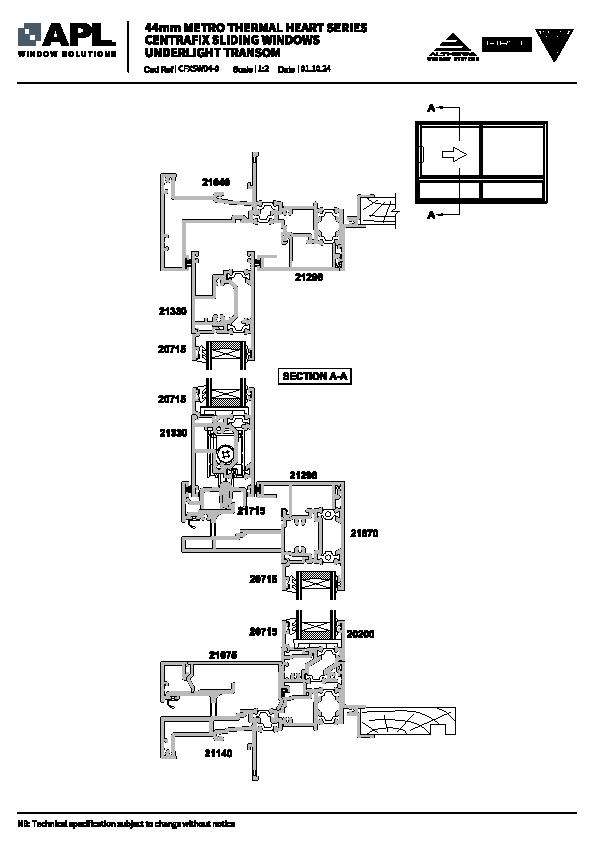

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Underlight Transom (44mm)

CFXSW04

dwg

dxf

pdf

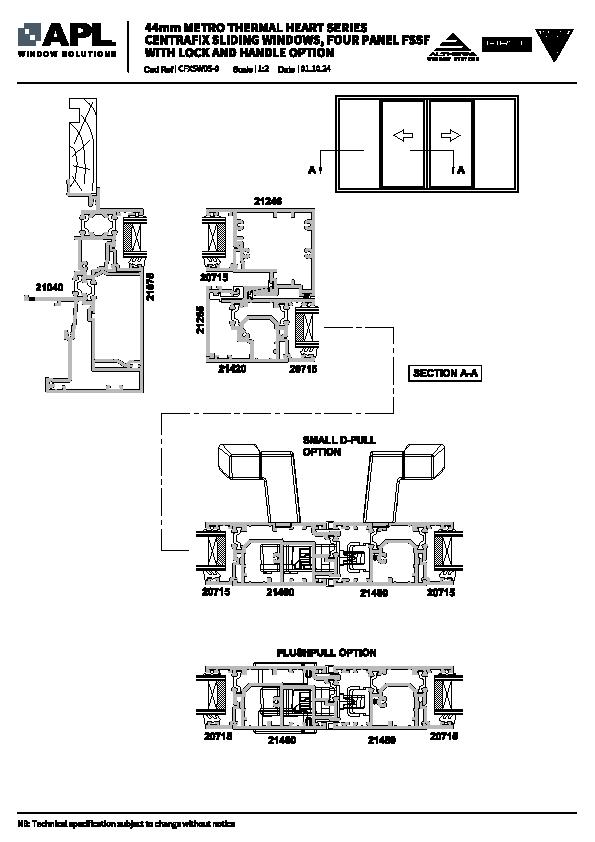

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Four Panel FSSF (44mm)

CFXSW05

dwg

dxf

pdf

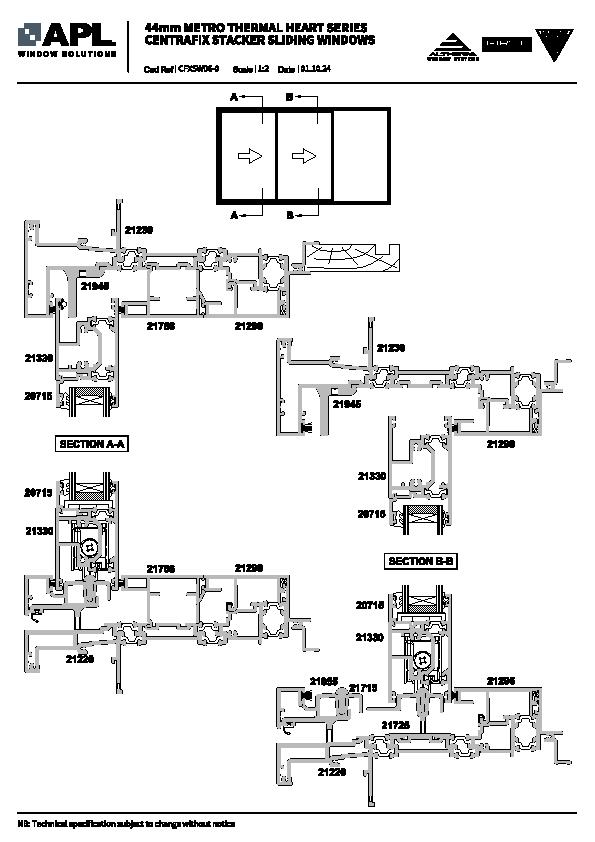

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows (44mm)

CFXSW06

dwg

dxf

pdf

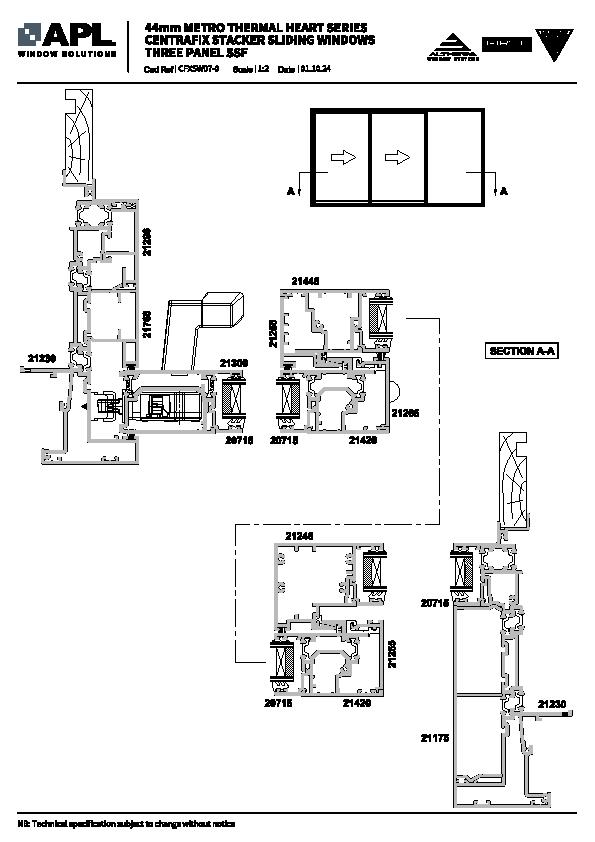

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Three Panel SSF (44mm)

CFXSW07

dwg

dxf

pdf

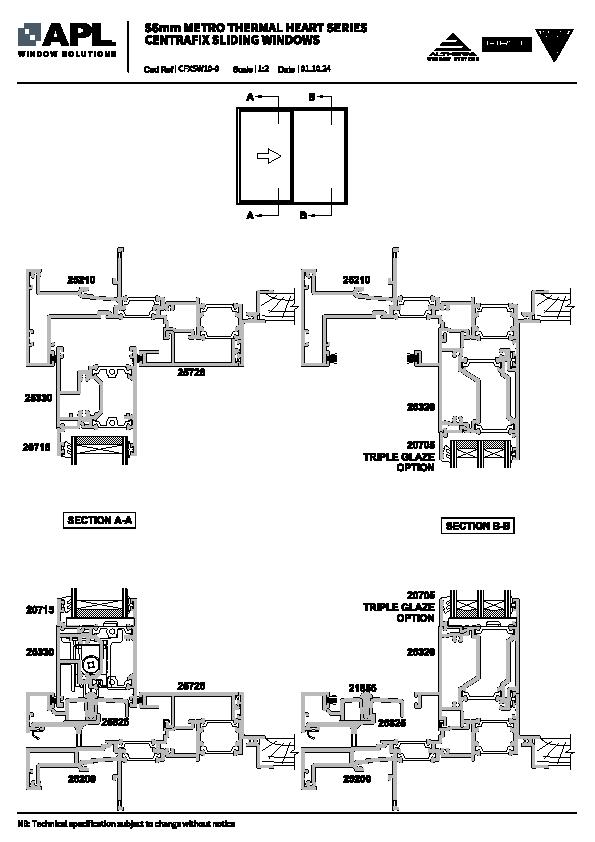

Metro Series ThermalHEART® with Centrafix™ Sliding Windows Frame (56mm)

CFXSW10

dwg

dxf

pdf

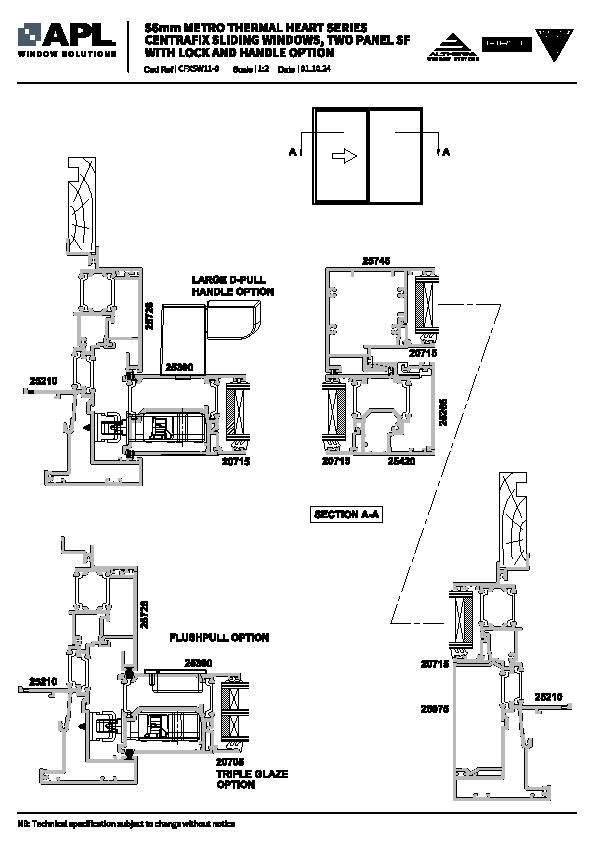

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Two Panel SF (56mm)

CFXSW11

dwg

dxf

pdf

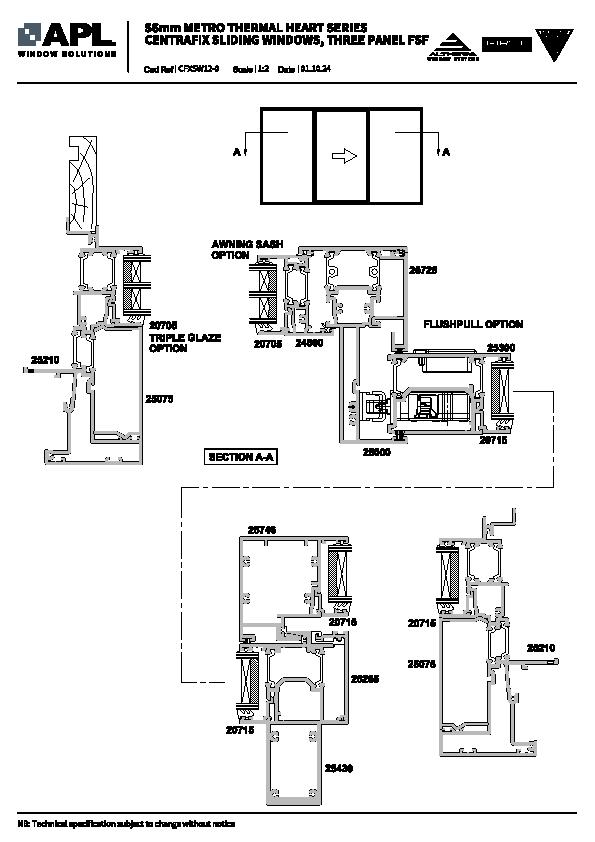

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Three Panel FSF (56mm)

CFXSW12

dwg

dxf

pdf

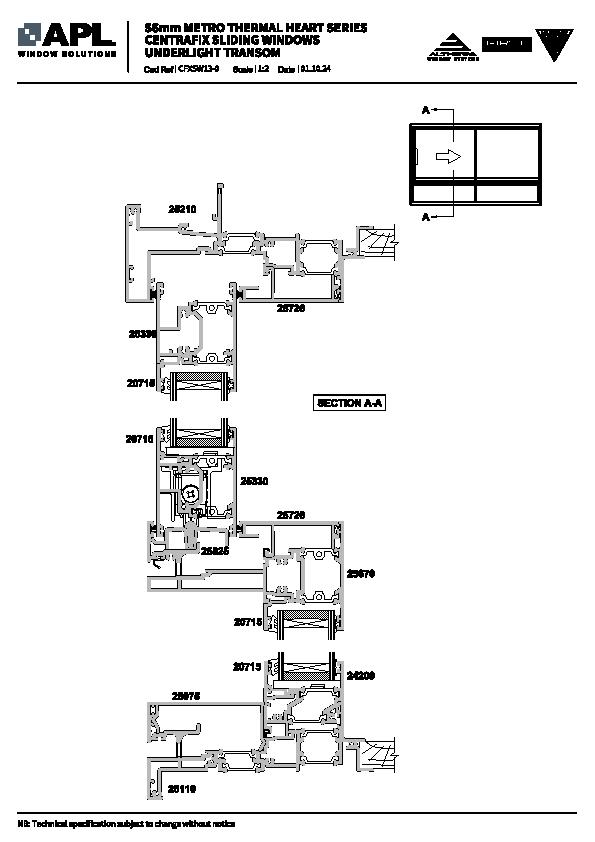

Metro Series ThermalHEART® with Centrafix™ Sliding Windows — Underlight Transom (56mm)

CFXSW13

dwg

dxf

pdf

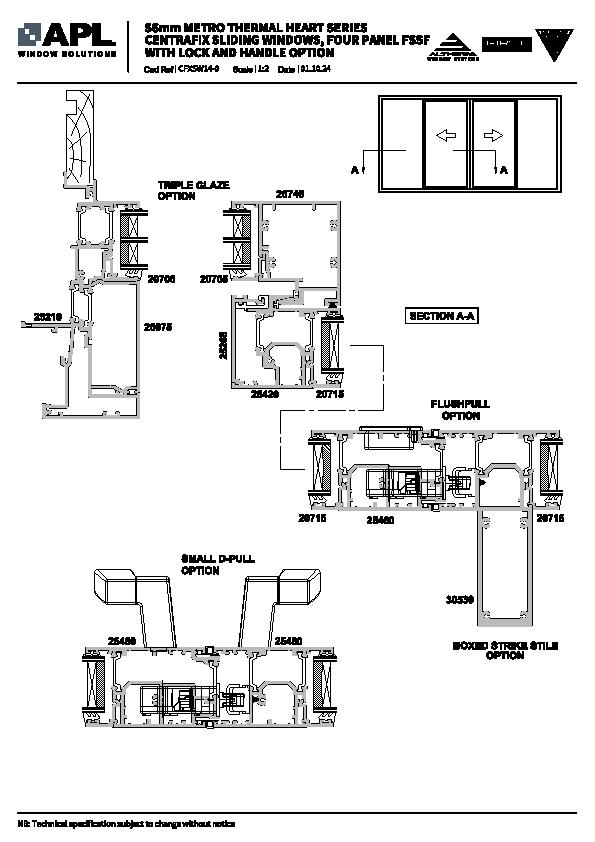

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Four Panel FSSF, Centrafix™ Frame (56mm)

CFXSW14

dwg

dxf

pdf

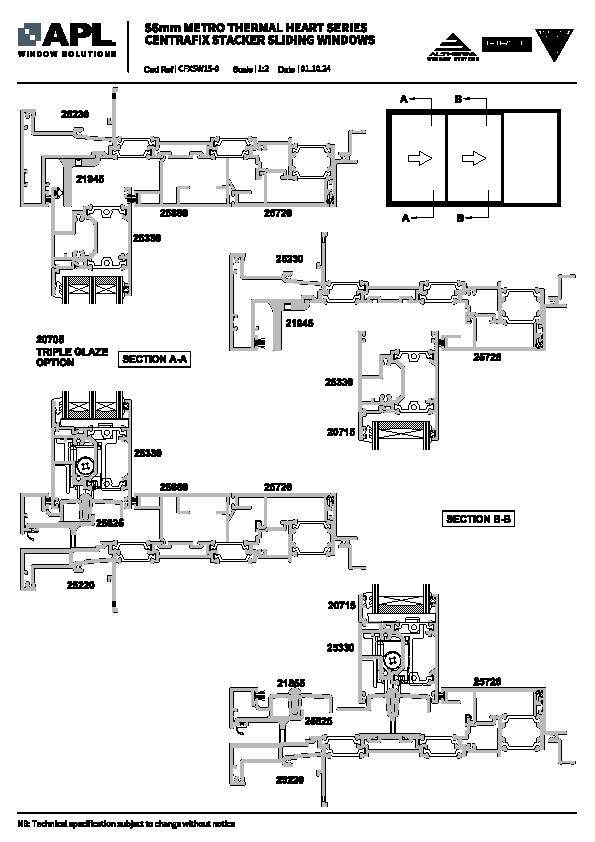

Metro Series ThermalHEART® Stacker Sliding Windows Frame (56mm)

CFXSW15

dwg

dxf

pdf

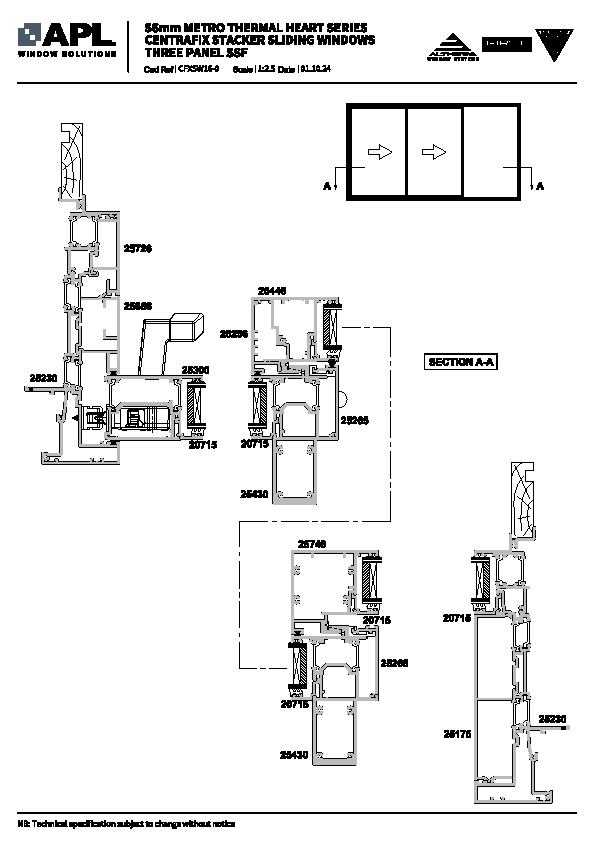

Metro Series ThermalHEART® with Centrafix™ Stacker Sliding Windows — Three Panel SSF (56mm)

CFXSW16

dwg

dxf

pdf

Installation Details

View full

The Installation Details must be used in conjunction with this Metro Series ThermalHEART® Centrafix™ SYSTEM GUIDE

pdf
