Klima Series Sliding Windows and Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

Klima is an innovative range of uPVC windows and doors optimised for New Zealand conditions. Based on the German Kommerling 76mm Series, Klima features thick profiles for thermal insulation and hidden steel reinforcing to ensure shape stability and structural excellence. Klima windows and doors are made from a highly durable, 'hot country' uPVC — an environmentally-friendly, lead-free formulation.

Klima's product range comprises sliding, hinged and French doors and awning, casement and sliding windows. A tilt-n-turn window with inward opening casement/hopper sash is also offered.

Klima is rated to the maximum 6 energy stars under WEERS when used with Low-E double glazing.

Key Features
  • The Klima uPVC sliding window system uses the sliding door extrusions
  • Maximum 2100mm high doors in very high wind zones
  • Klima uPVC sliders have been designed for New Zealand conditions
  • Hidden steel reinforcing is included in all uPVC profiles to ensure shape stability and structural excellence

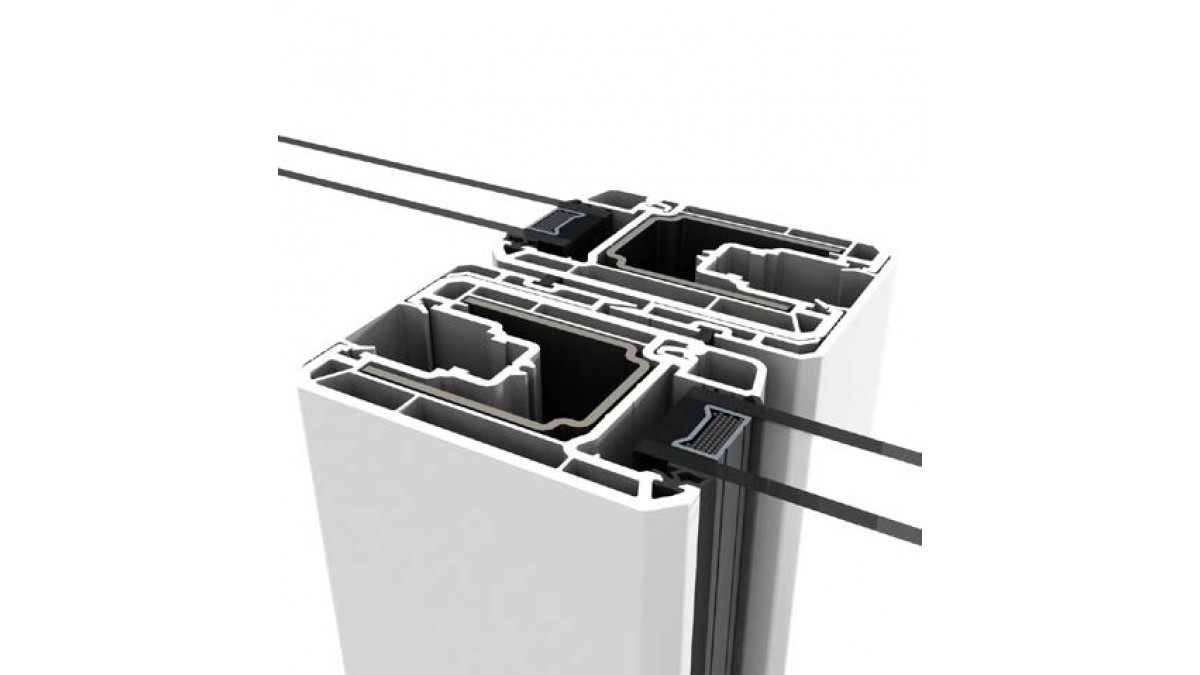

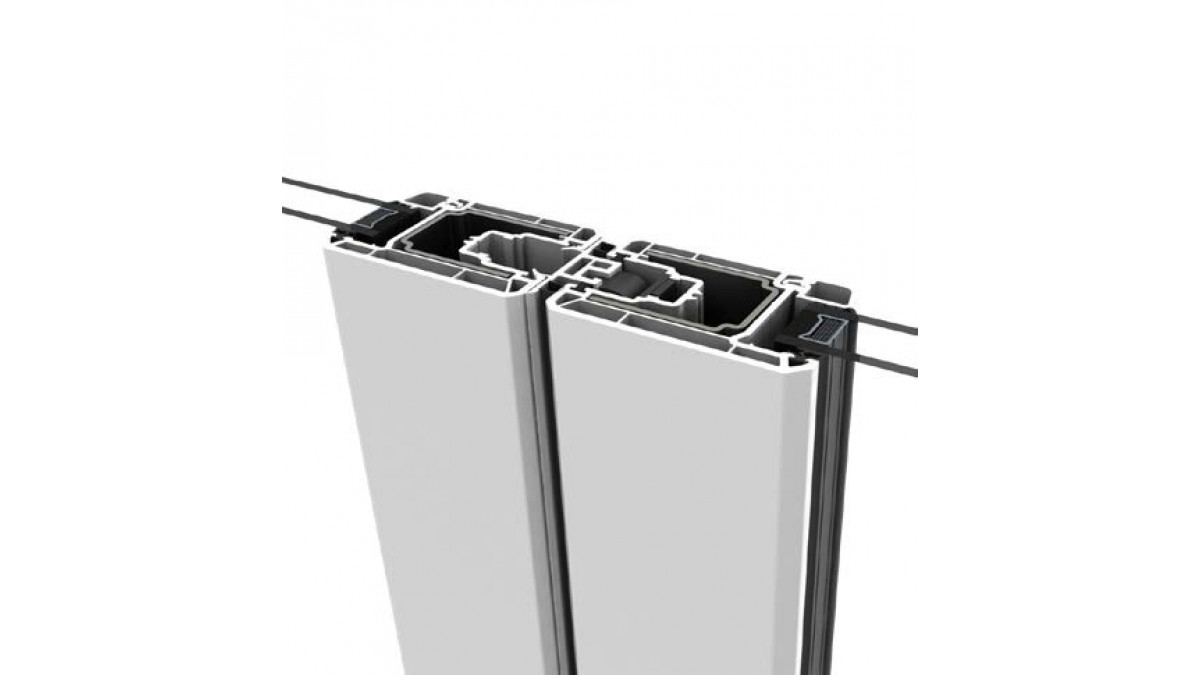

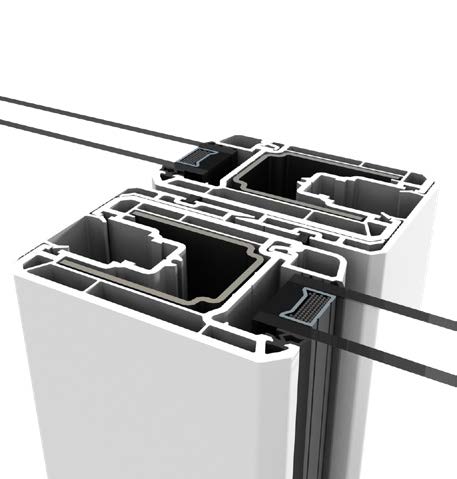

  • Interlocker stiles and mullions are flush in the closed position
  • Opening sidelight windows are not available
  • Glazing beads are applied from the inside
  • Available as standard in white but can also be supplied with other exterior colours using the ‘AluClip’ system where an exterior aluminium facing is used
  • Opening sidelight sashes are not available beside sliding doors.
Categories
Sliding Doors
Ranges
Klima Series
Energy Star
Energy Star
Scope of Use
  • Suitable for most residential environments

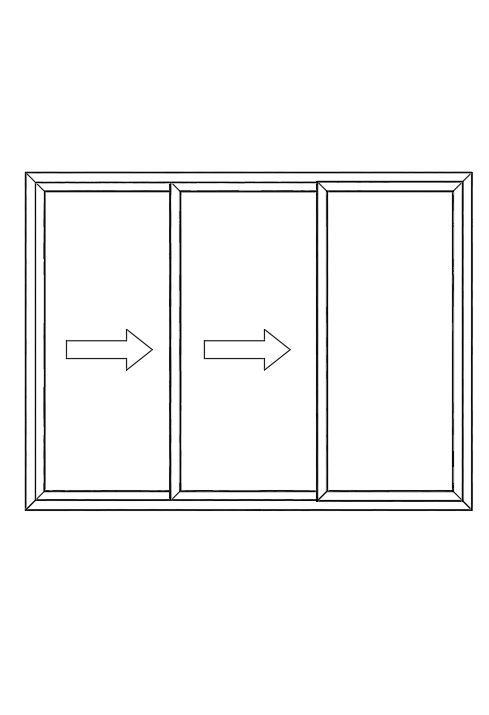

  • Multi Sliders allow approximately two-thirds opening
  • Narrow stiles and large glass expanses maximise views in the closed position
  • Need to be used in defined maximum sizes according to the wind exposure
Limitations on Use
  • Opening sidelight windows not available for sliding doors
  • Klima sliding windows are a good option for servery windows
  • Flush sills not offered.
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2.
In-Service History
  • Launched in 2017
  • Widely used by homeowners, builders and specifiers.
  • Statement of Building Code Compliance
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed.
B2 Durability compliant
Durability
E2 External Moisture compliant
External Moisture
Documents
Data Sheet
Data Sheet
Span Tables
Altherm on Masterspec
Specifier Guide
WGANZ Guide to E2/AS1
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

Klima Series Brochure

2019

Hardware
AGP Cleaning & Maintenance
AGP Condensation Guide
AGP Visual Quality of Glass
APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

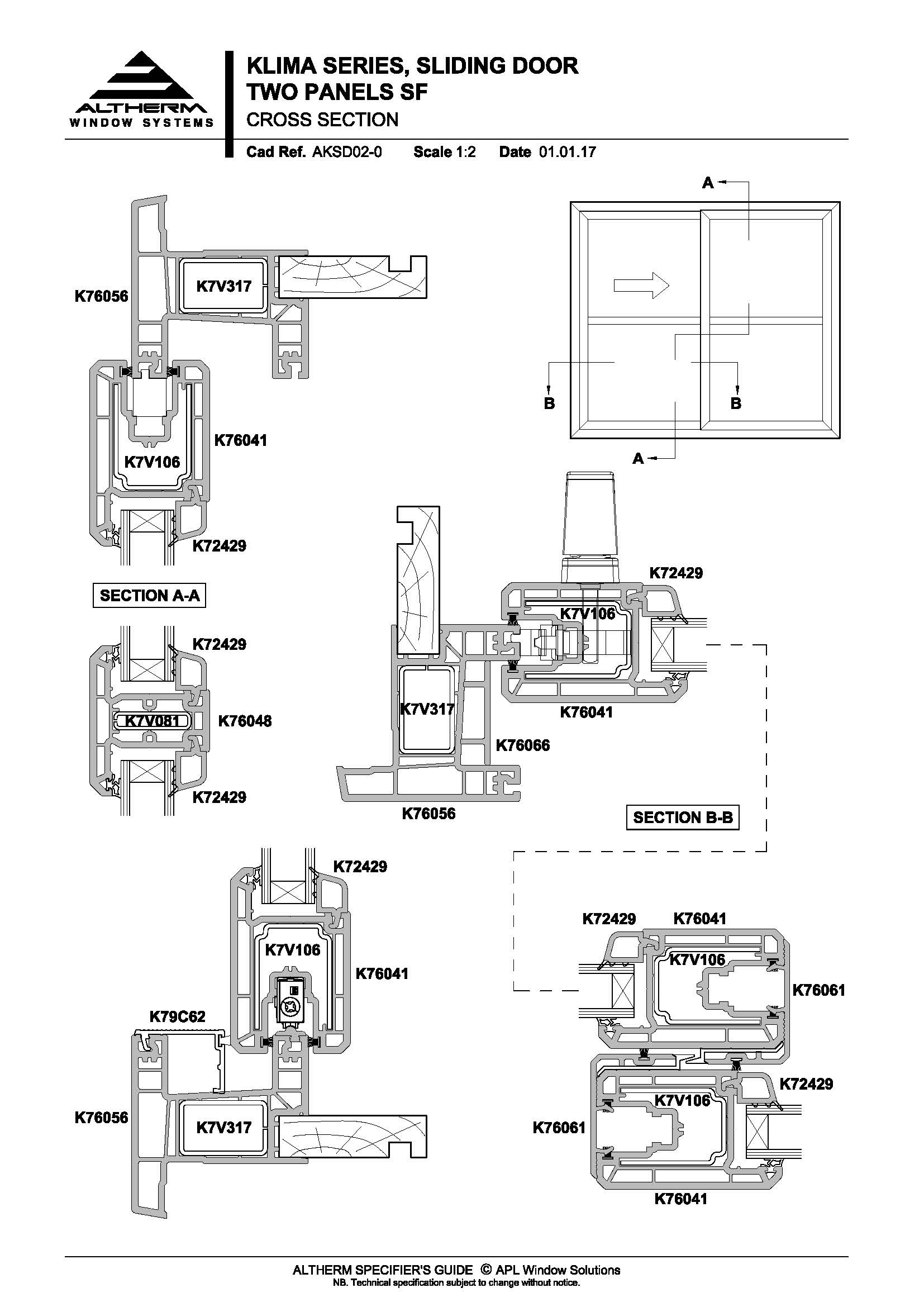

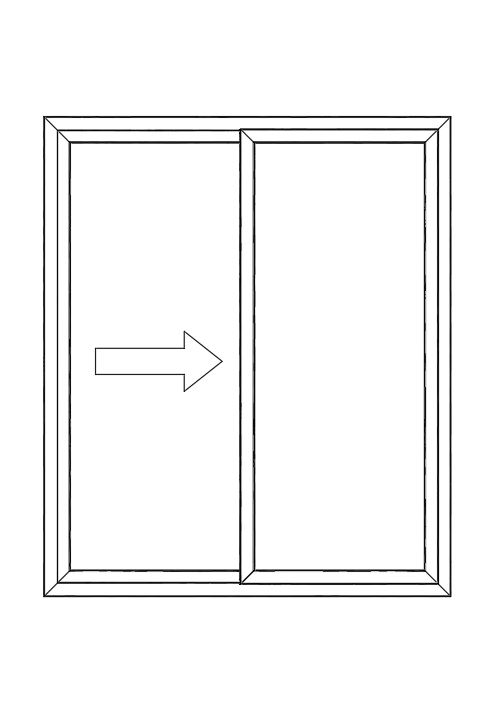

Altherm Klima Series Sliding Door, Two Panels SF

AKSD02-0

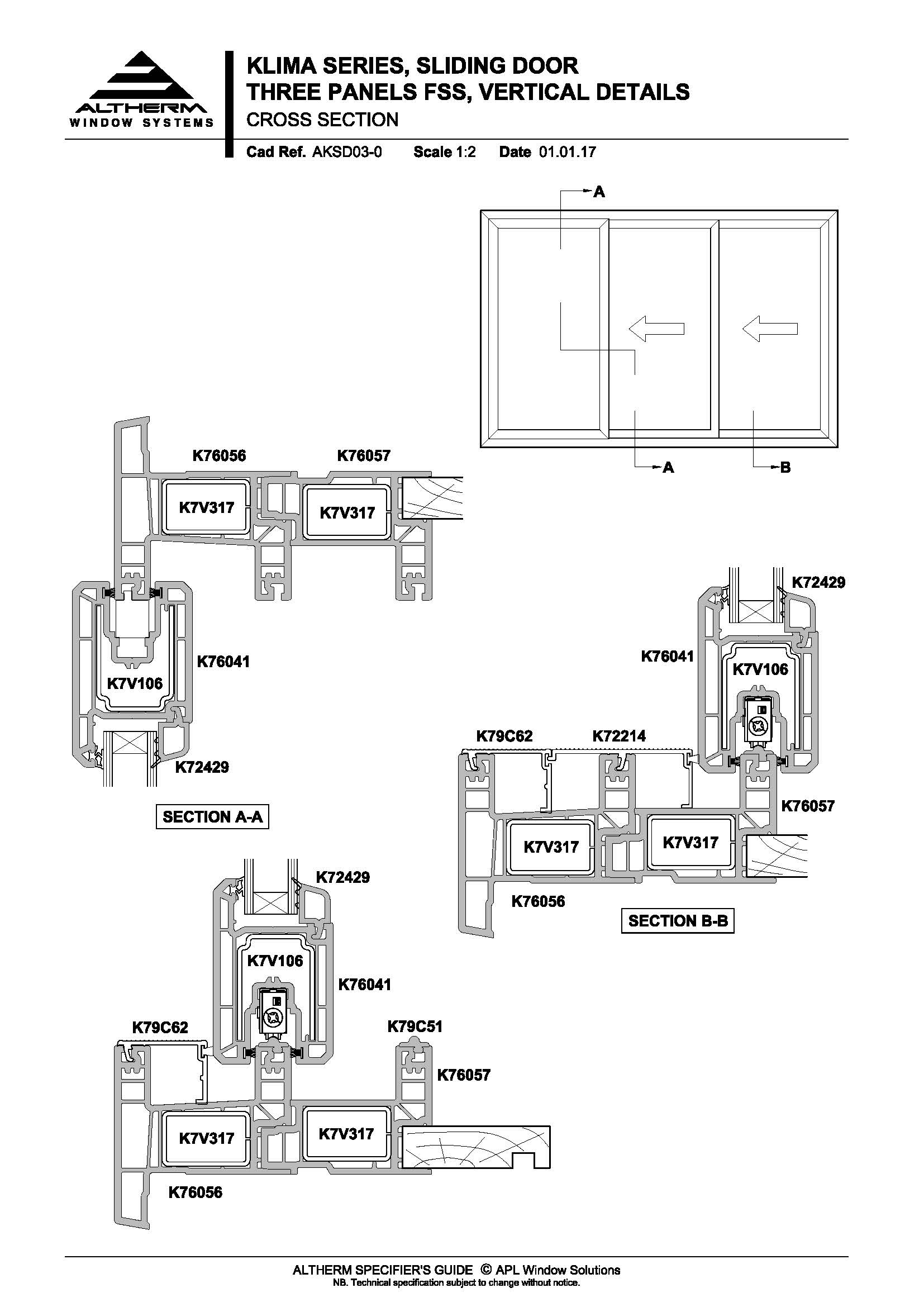

Altherm Klima Series Sliding Door, Three Panels FSS

AKSD03-0

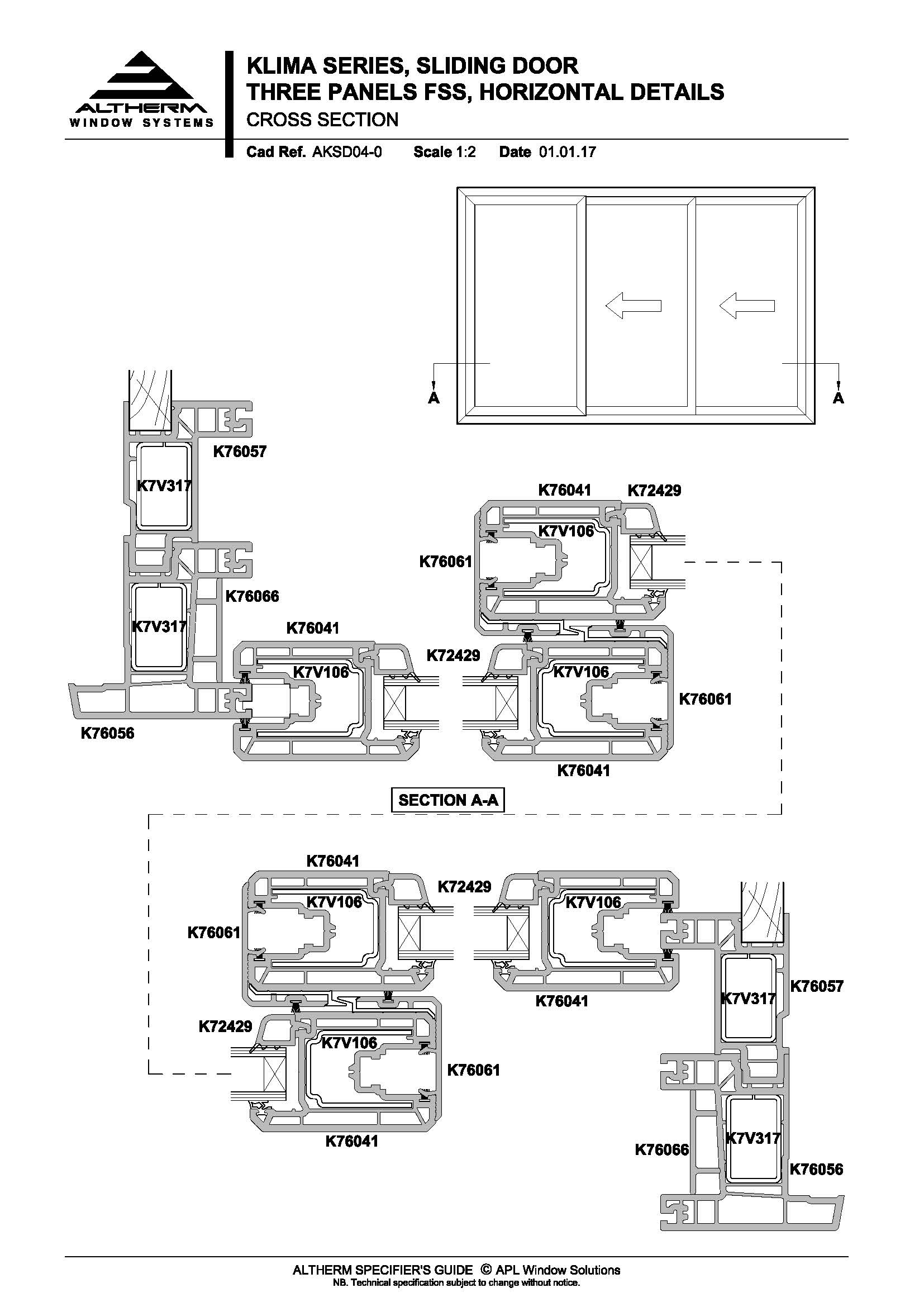

Altherm Klima Series Sliding Door, Three Panels FSS

AKSD04-0

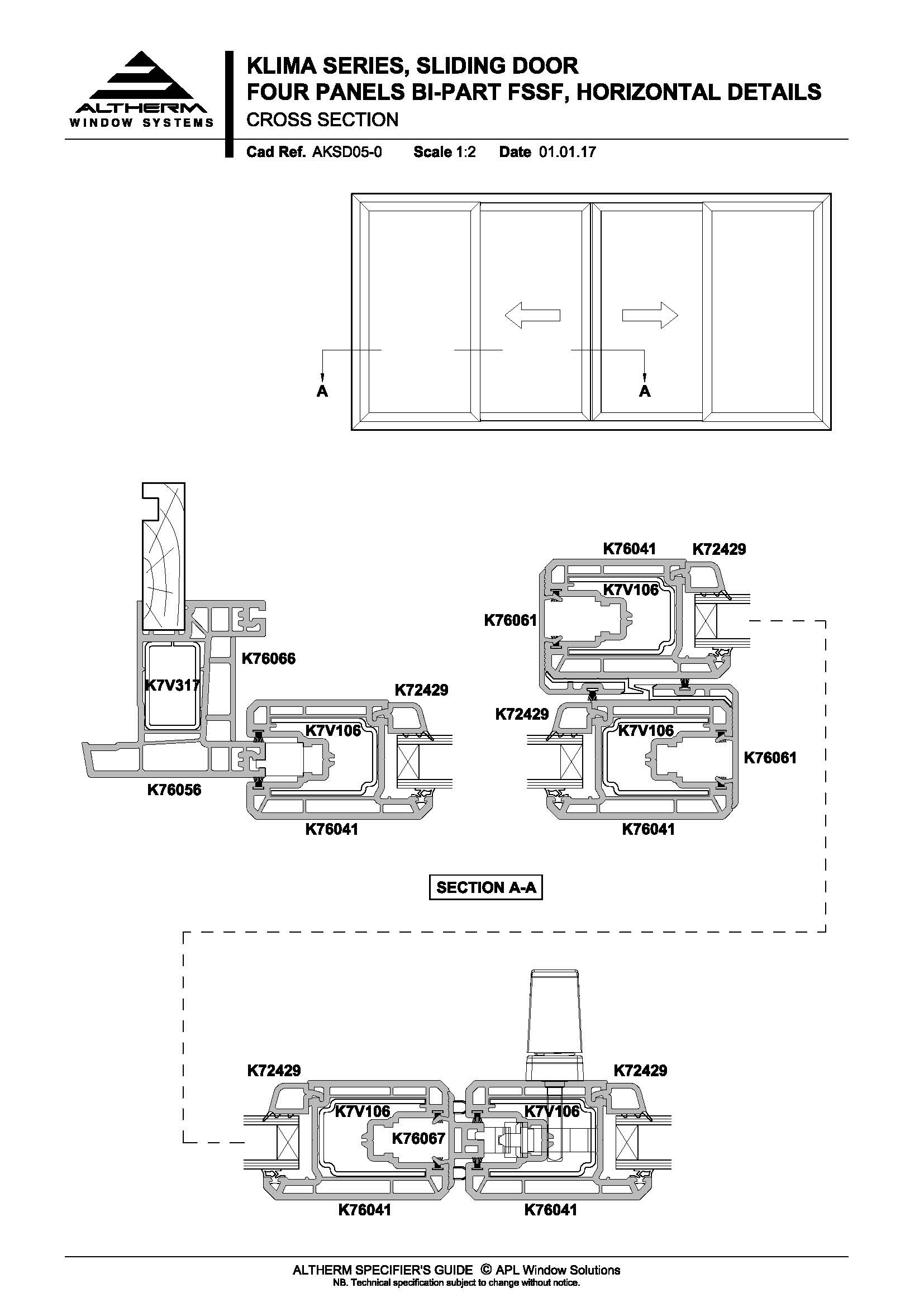

Altherm Klima Series Sliding Door, Four Panels Bi-Part FSSF

AKSD05-0

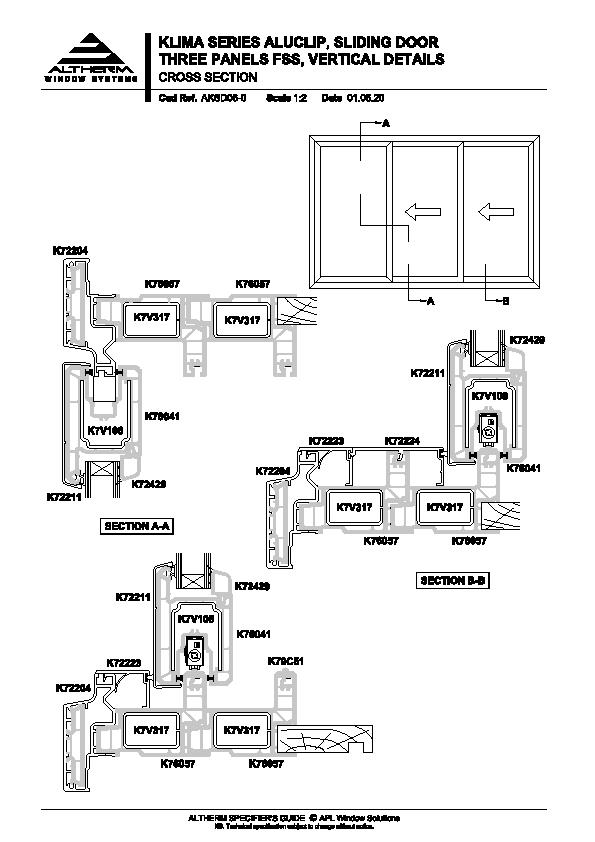

Altherm Klima Series, Aluclip - Sliding Door Three Panels FSS

AKSD06-0

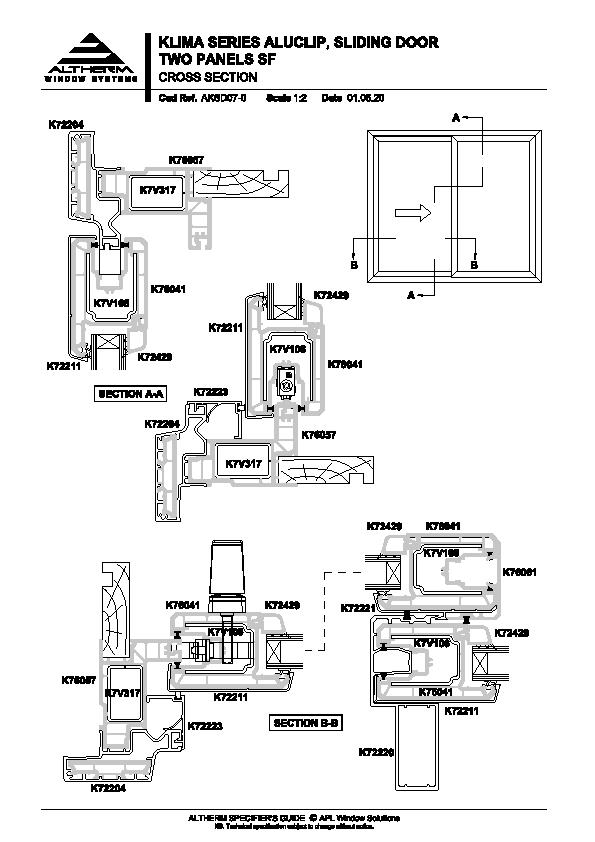

Altherm Klima Series, Aluclip - Sliding Door Two Panels SF

AKSD07-0

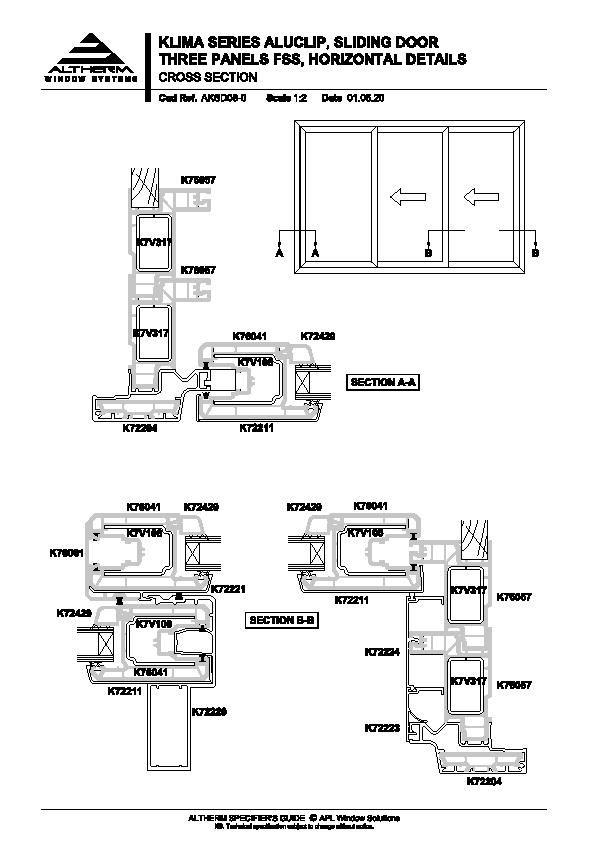

Altherm Klima Series, Aluclip - Sliding Door Three Panels FSS Horizontal

AKSD08-0

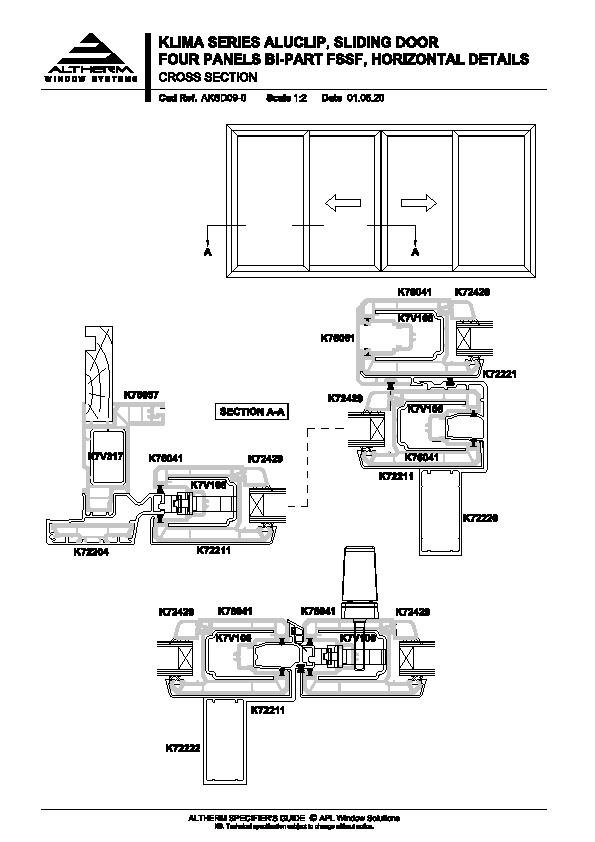

Altherm Klima Series, Aluclip - Sliding Door Four Panels Bi-Part FSSF Horizontal

AKSD09-0

Installation Details

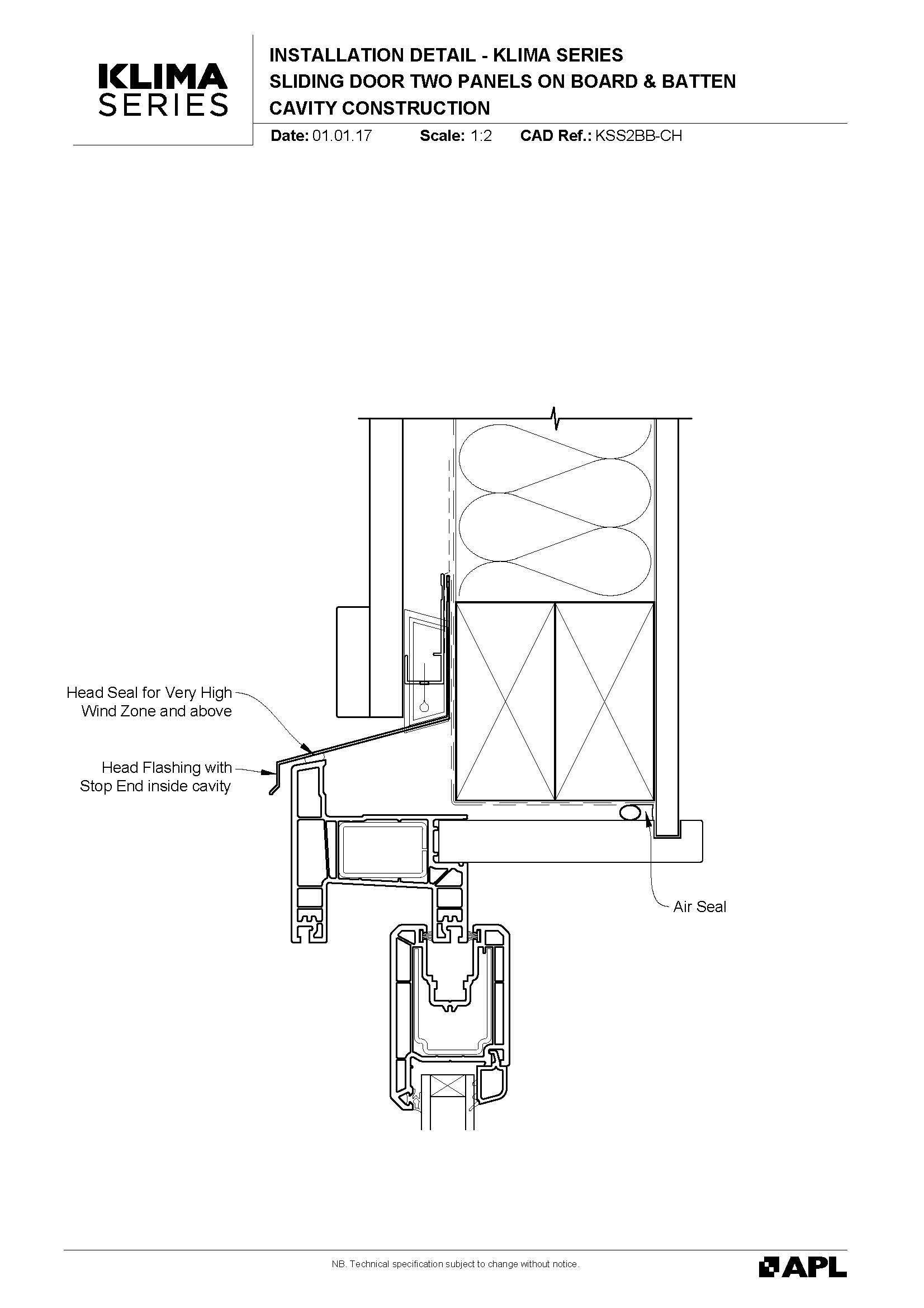

Altherm Klima Series Sliding Door Two Panels on Board & Batten

KSS2BB

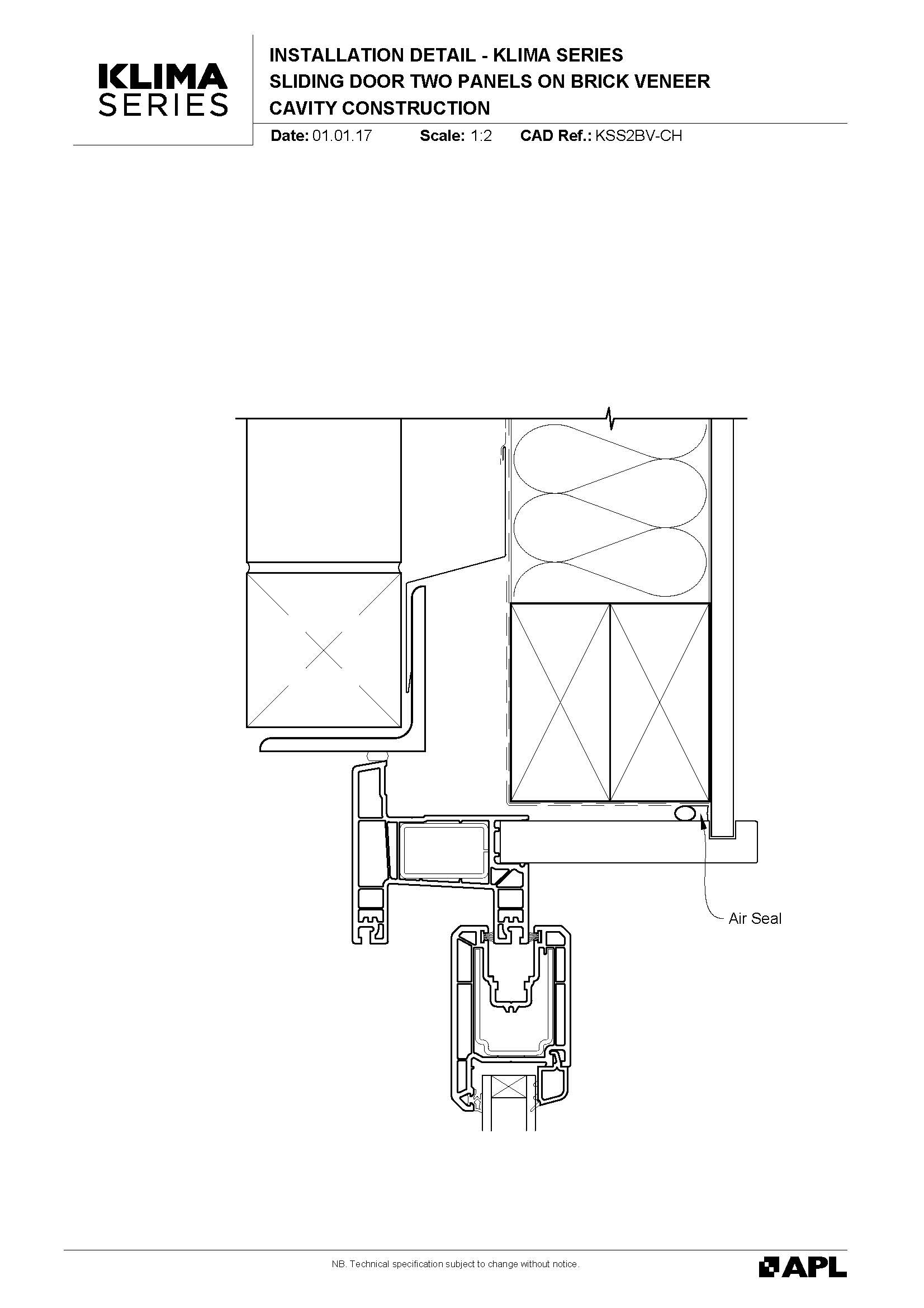

Altherm Klima Series Sliding Door Two Panels on Brick Veneer

KSS2BV

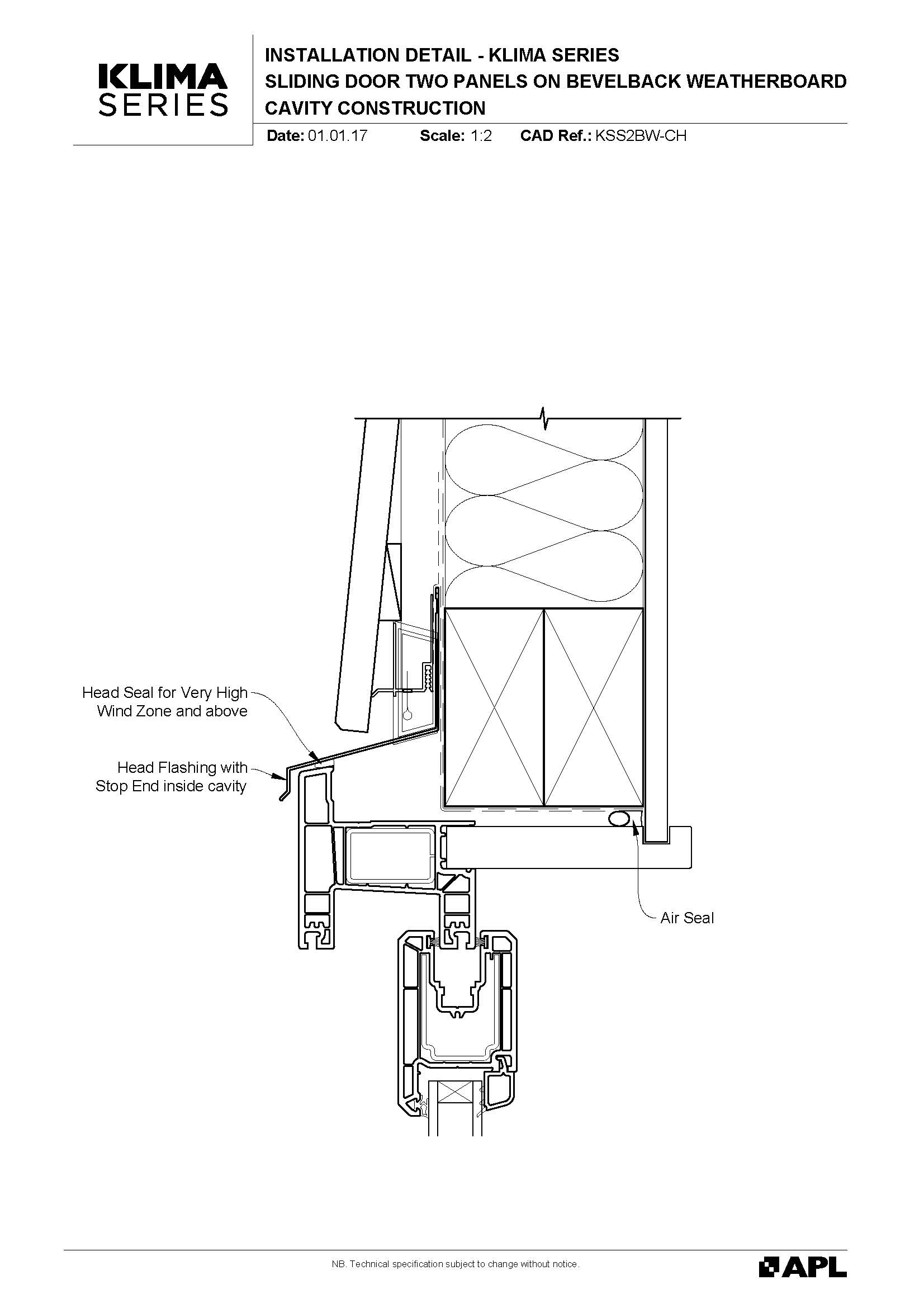

Altherm Klima Series Sliding Door Two Panels on Bevelback Weatherboard

KSS2BW

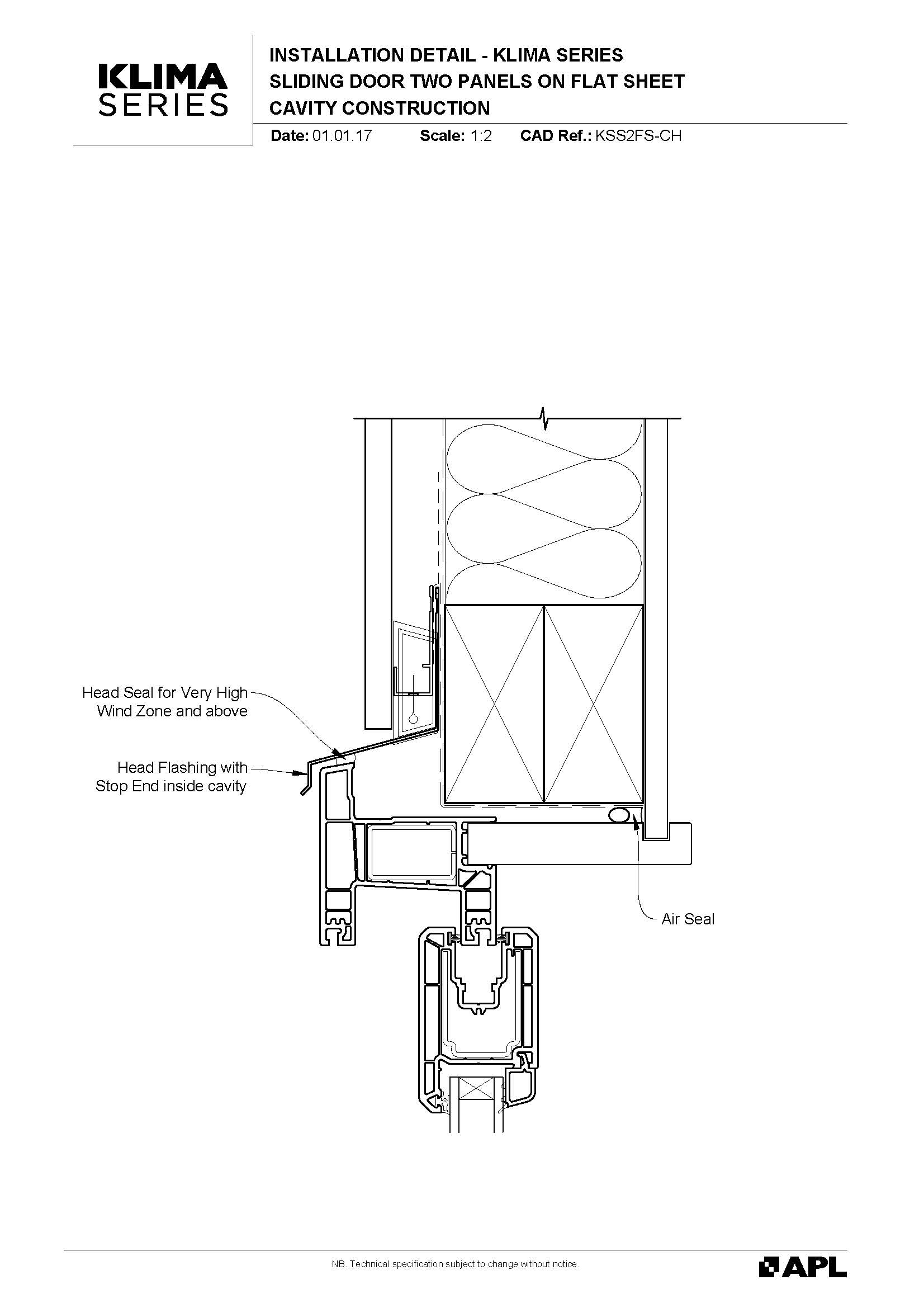

Altherm Klima Series Sliding Door Two Panels on Flat Sheet

KSS2FS

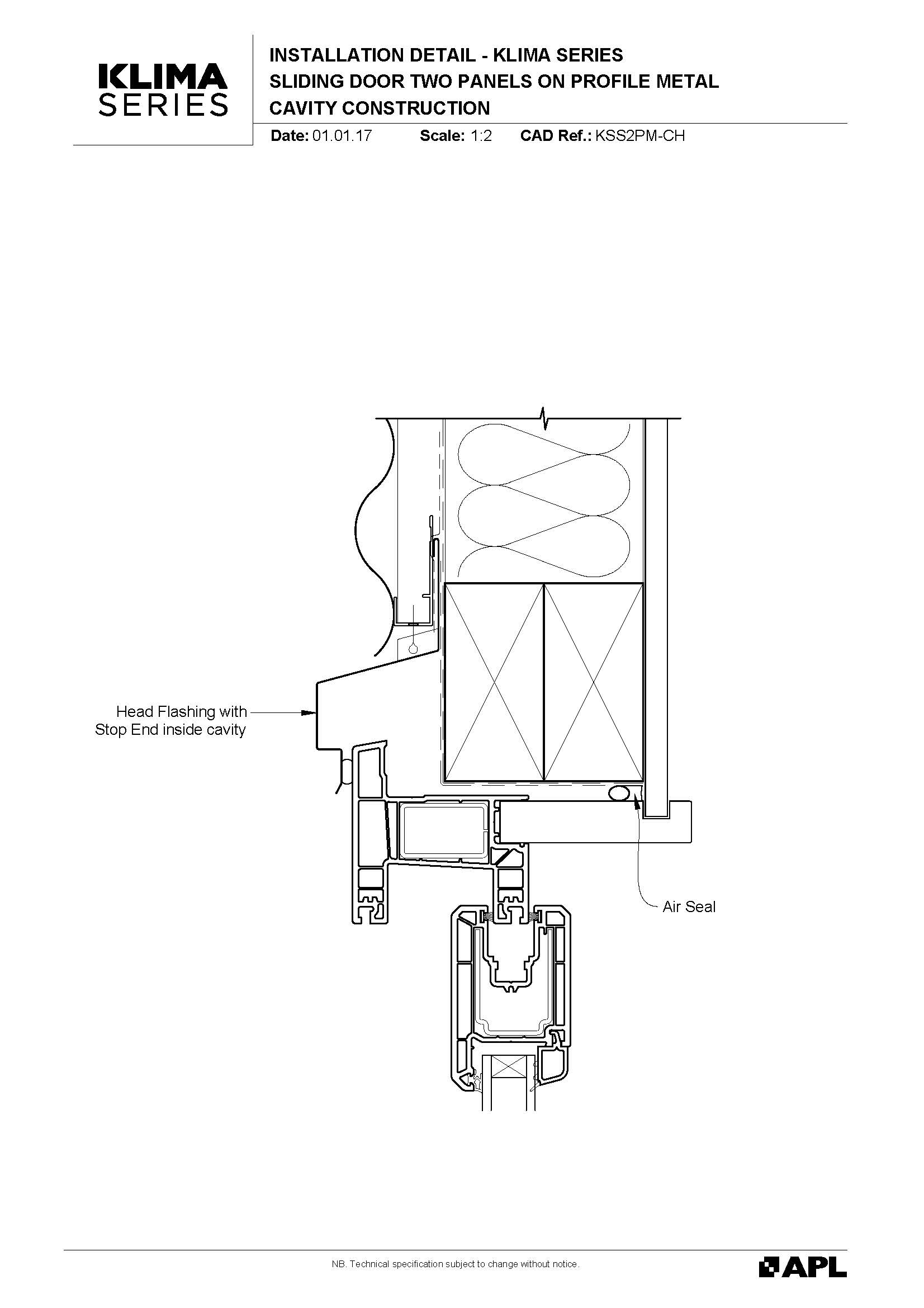

Altherm Klima Series Sliding Door Two Panels on Profile Metal

KSS2PM

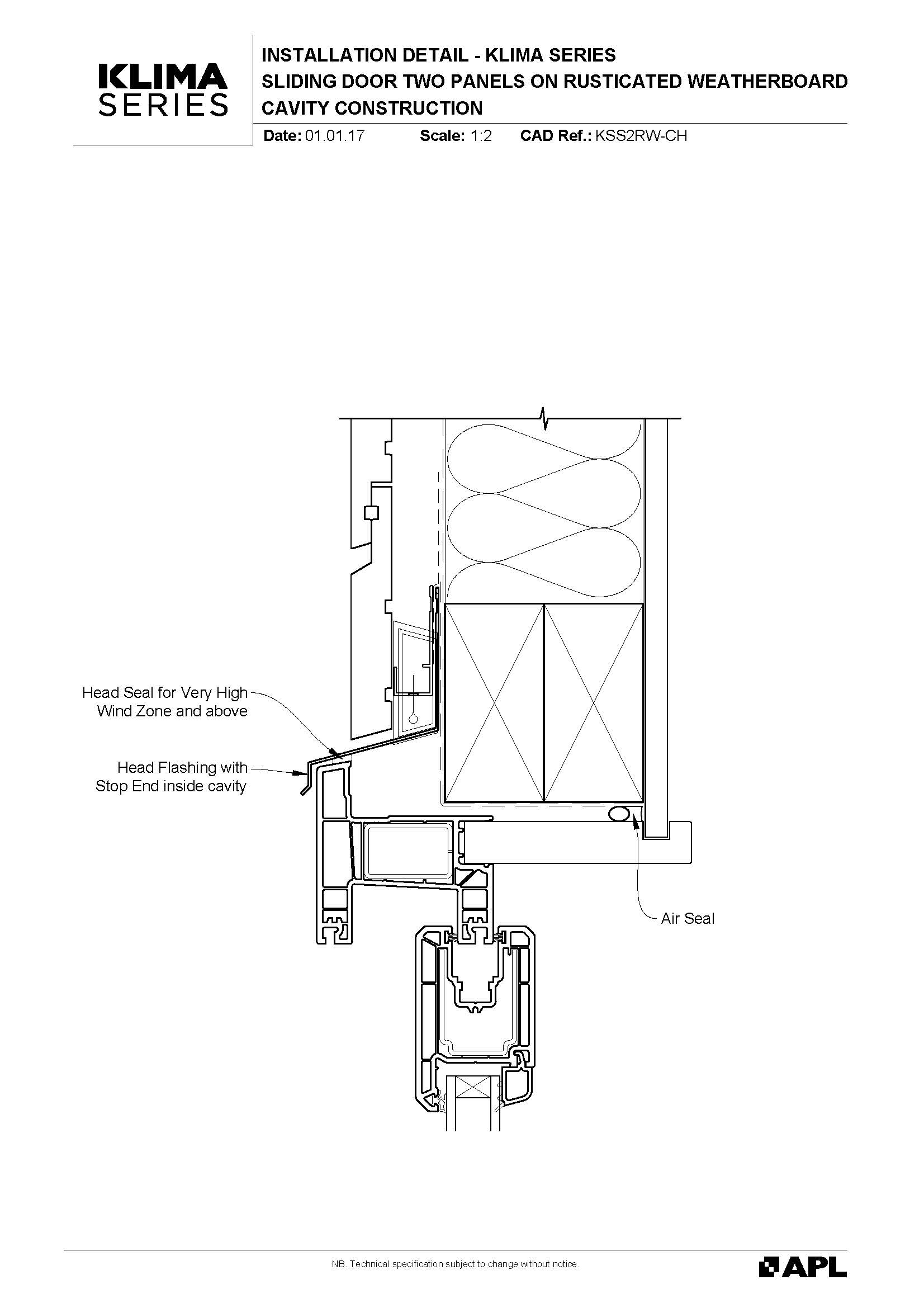

Altherm Klima Series Sliding Door Two Panels on Rusticated Weatherboard

KSS2RW

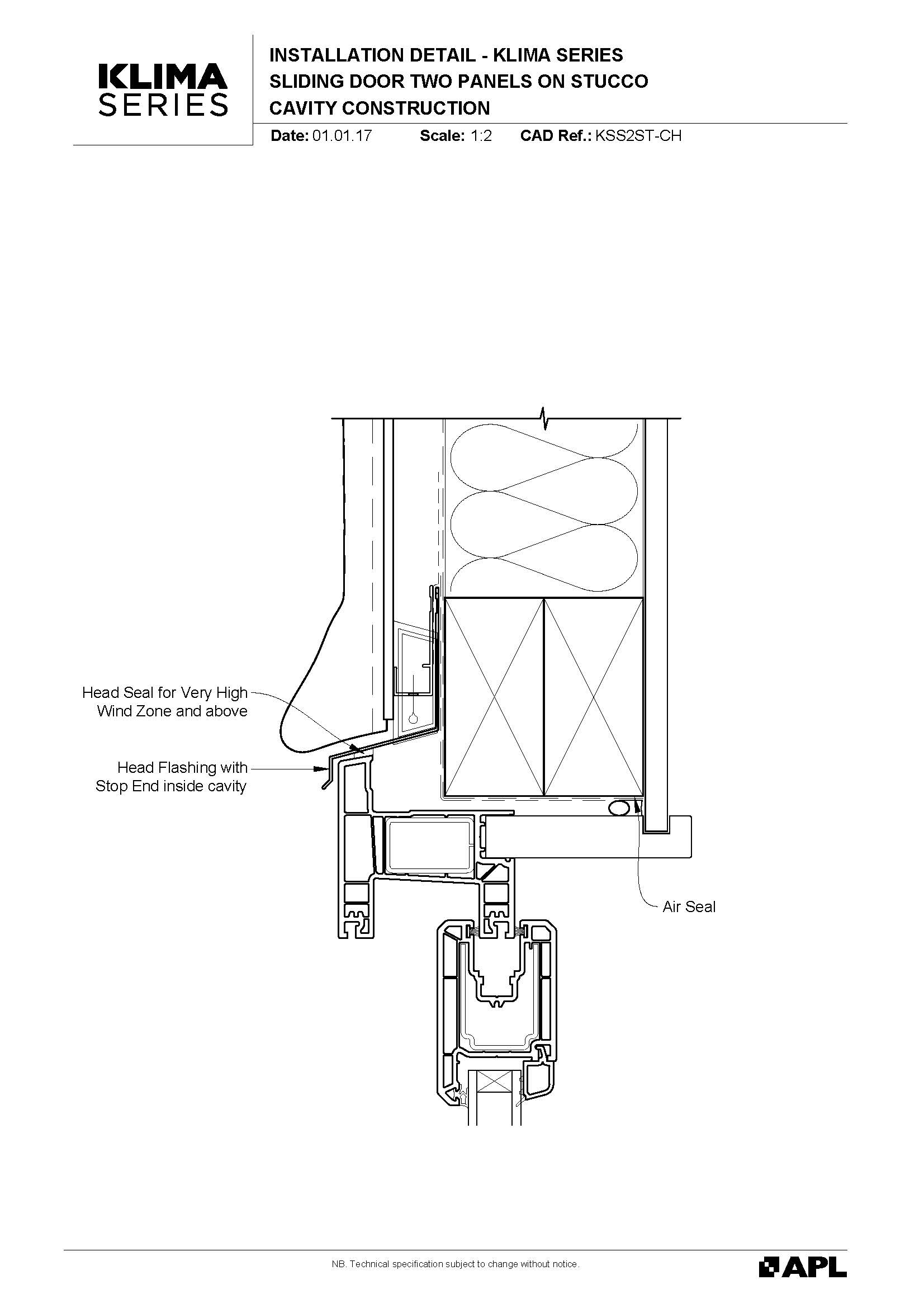

Altherm Klima Series Sliding Door Two Panels on Stucco

KSS2ST

Altherm Klima Series Sliding Door Three Panels on Board & Batten

KSS3BB

Altherm Klima Series Sliding Door Three Panels on Brick Veneer

KSS3BV

Altherm Klima Series Sliding Door Three Panels on Bevelback Weatherboard

KSS3BW

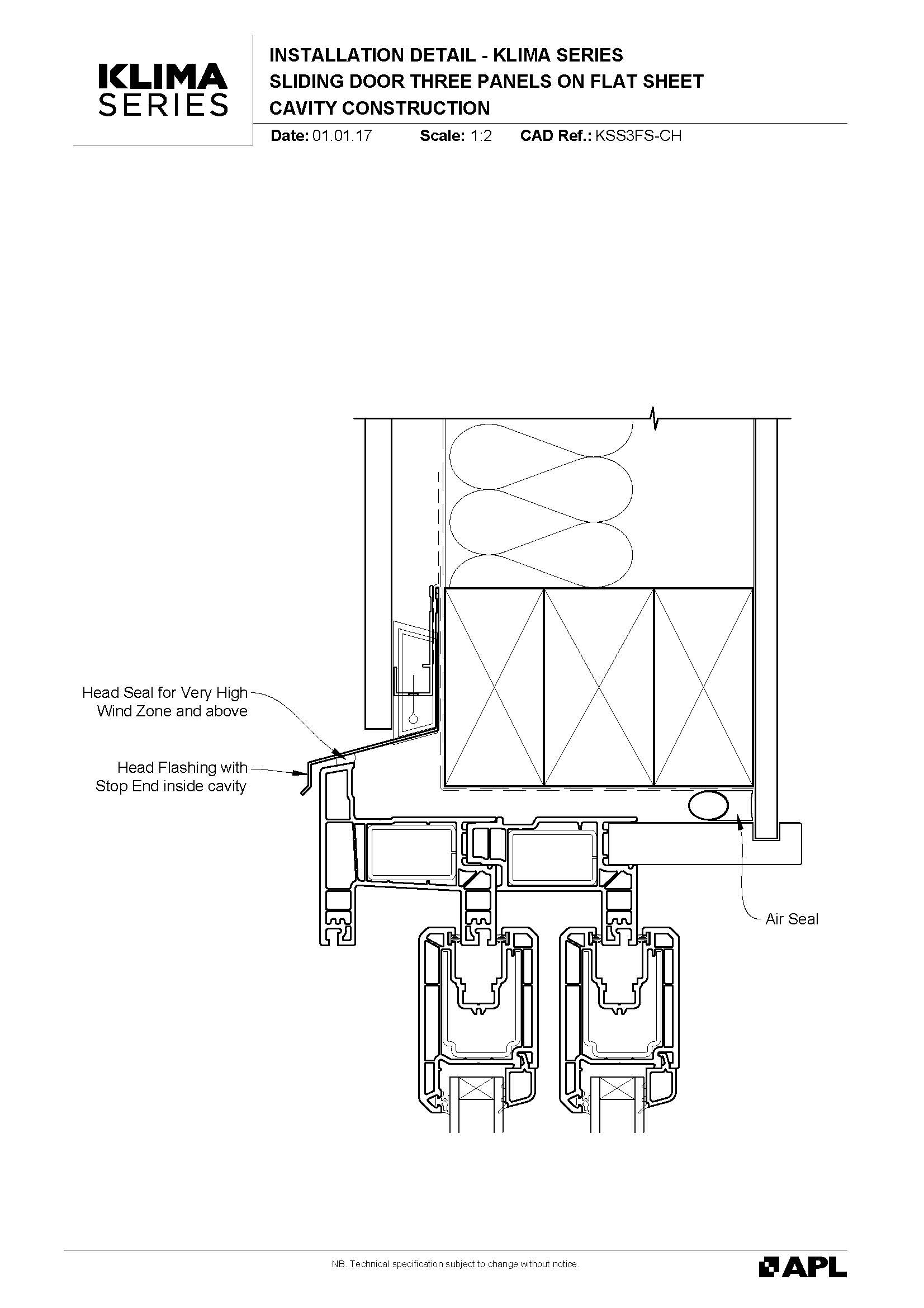

Altherm Klima Series Sliding Door Three Panels on Flat Sheet

KSS3FS

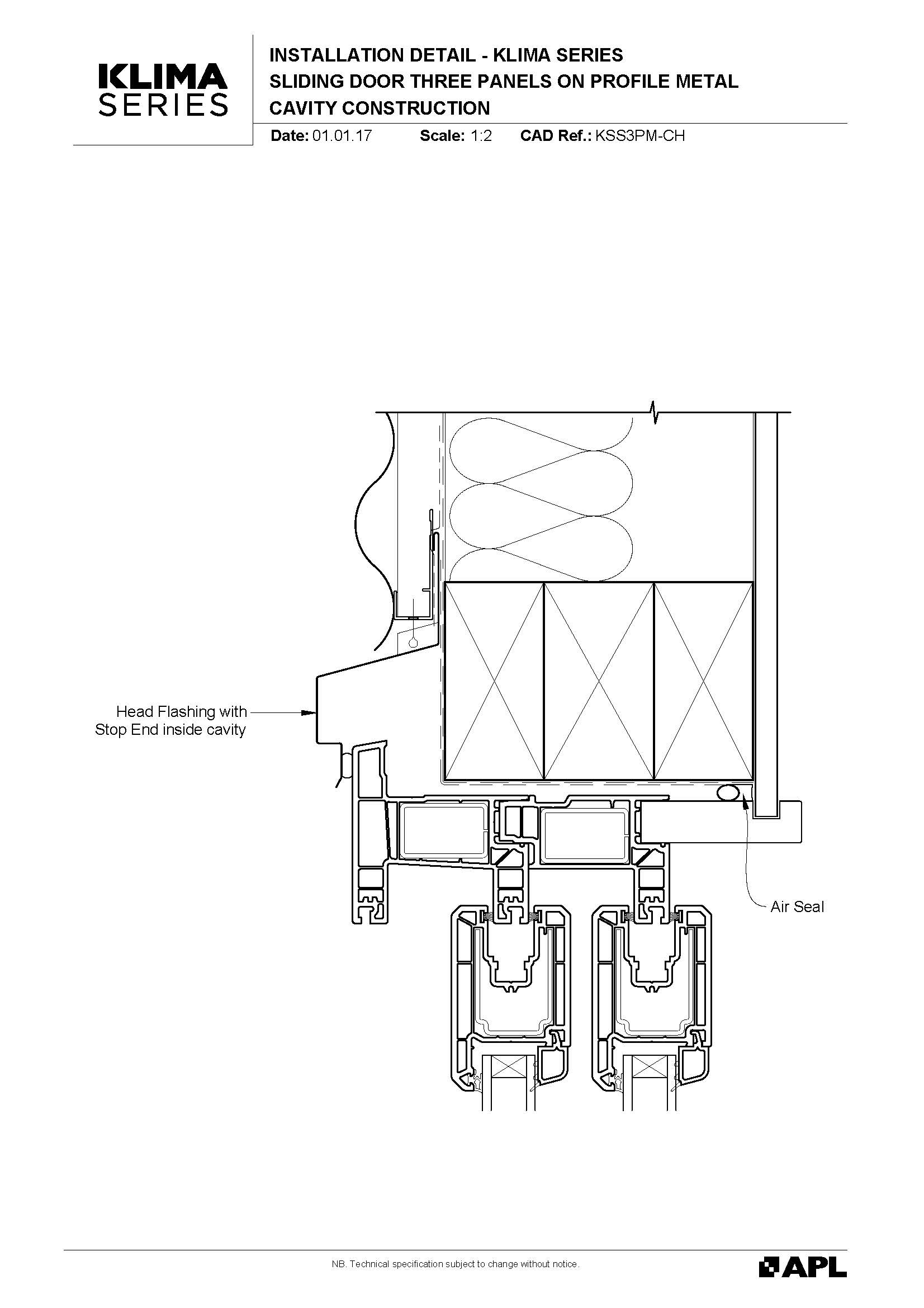

Altherm Klima Series Sliding Door Three Panels on Profile Metal

KSS3PM

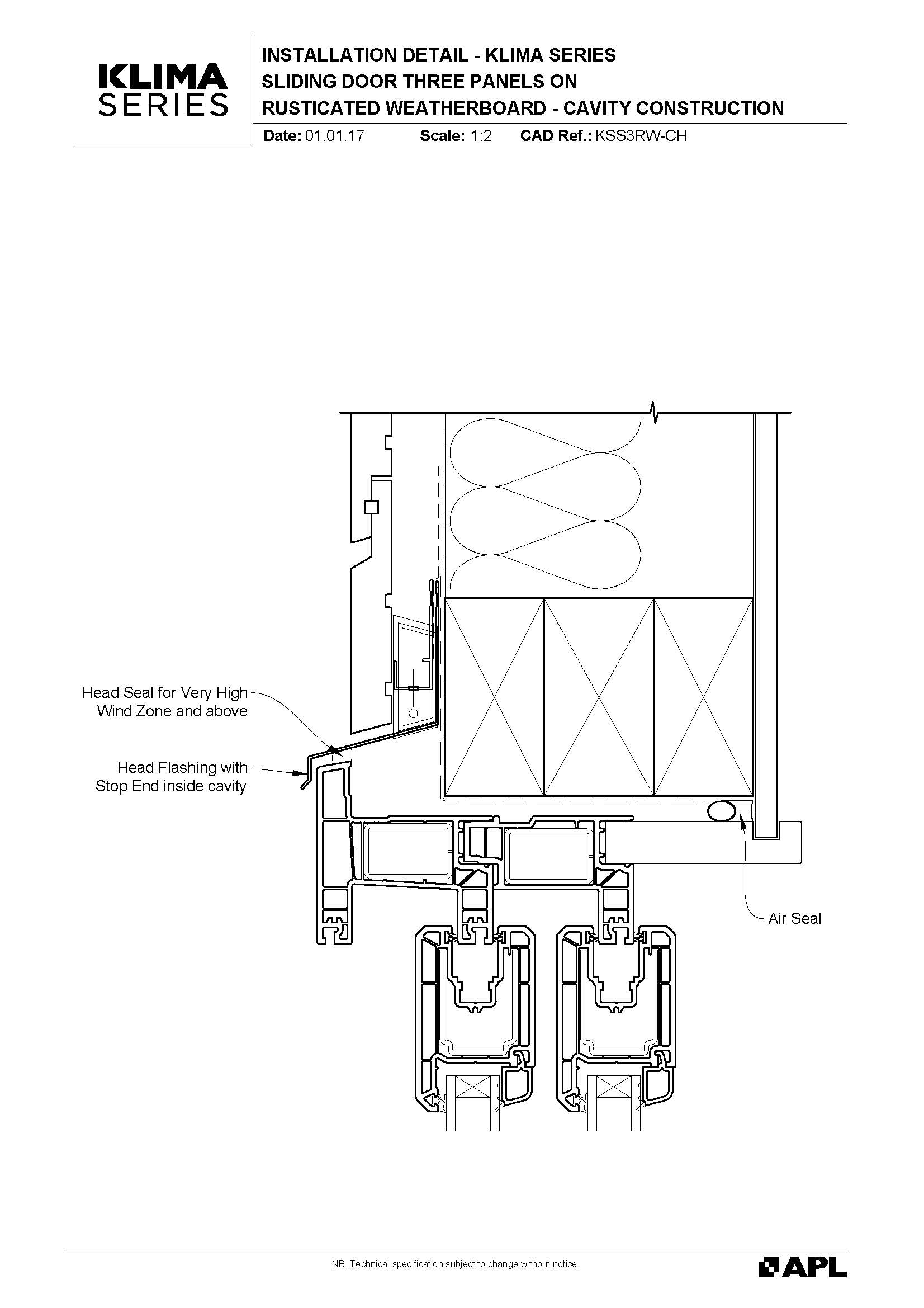

Altherm Klima Series Sliding Door Three Panels on Rusticated Weatherboard

KSS3RW

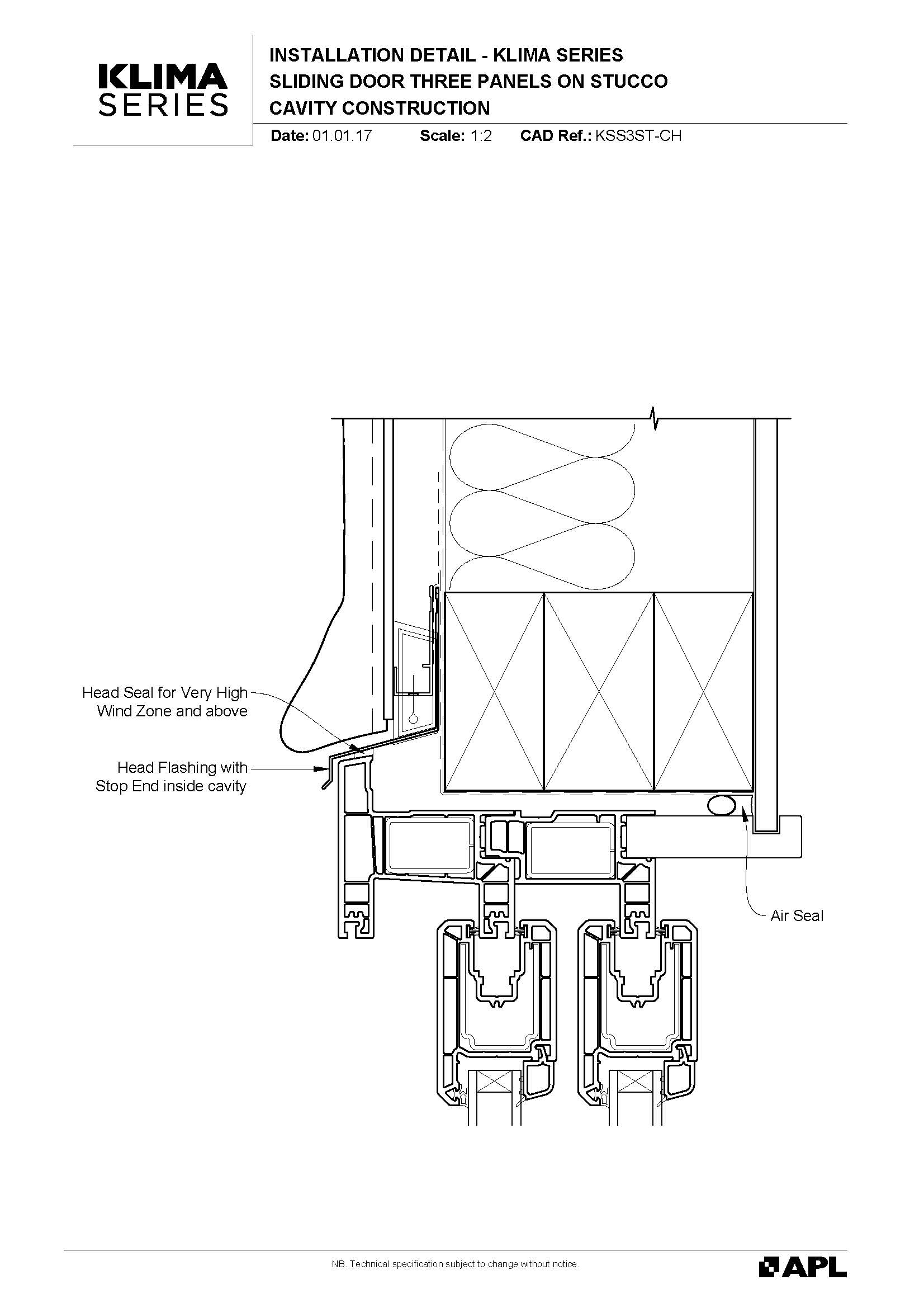

Altherm Klima Series Sliding Door Three Panels on Stucco

KSS3ST

BIM

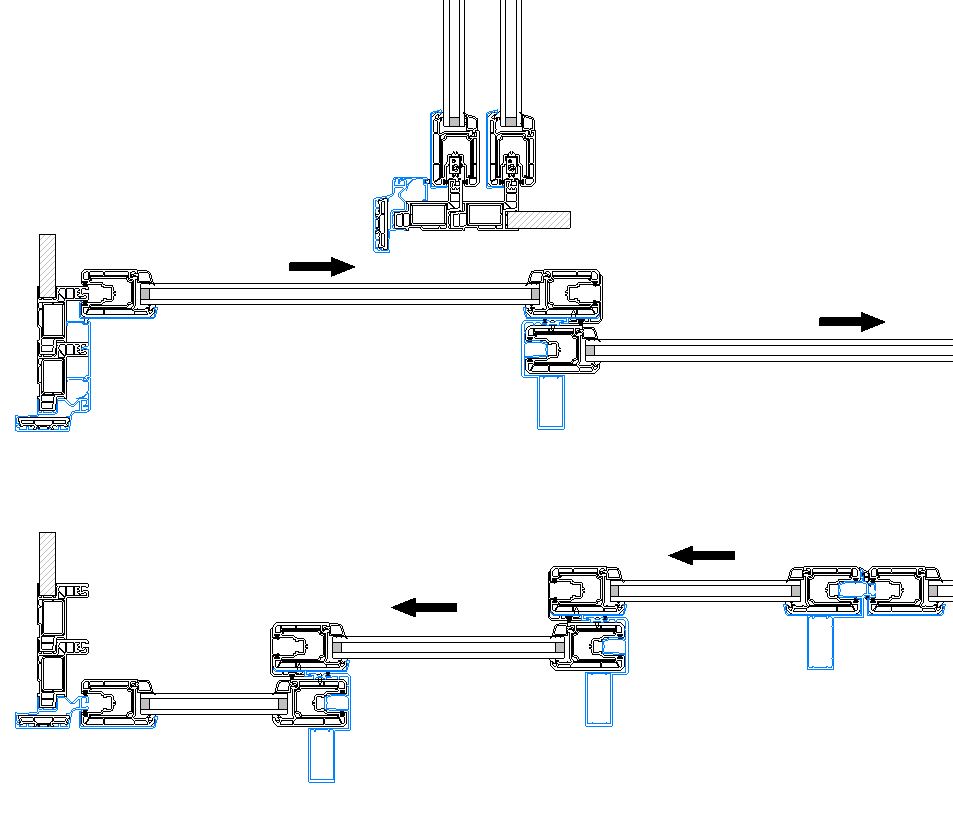

Klima Series ALUCLIP Sliding Door Multislider

Revit LT 2020

Klima Series ALUCLIP Sliding Door Single Slider

Revit LT 2020

Klima Series Sliding Door Multislider

Revit LT 2020

Klima Series Sliding Door Single Slider

Revit LT 2020
