Curved Walls Add to Building Elegance at Sonata Apartments

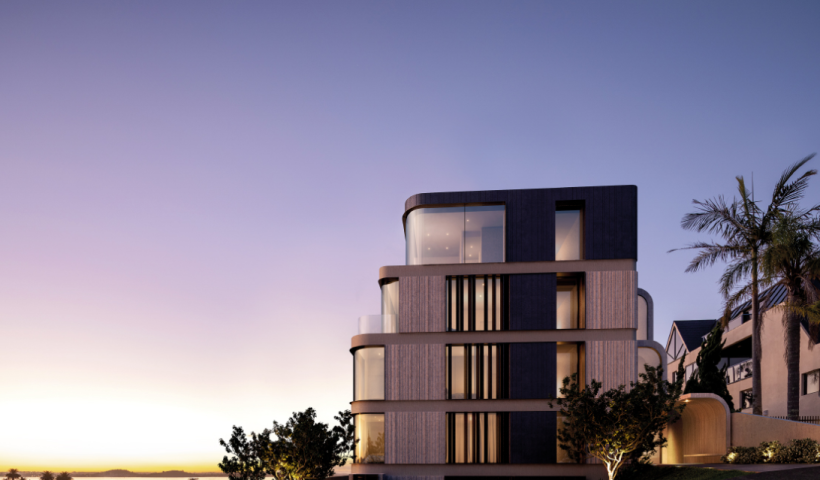

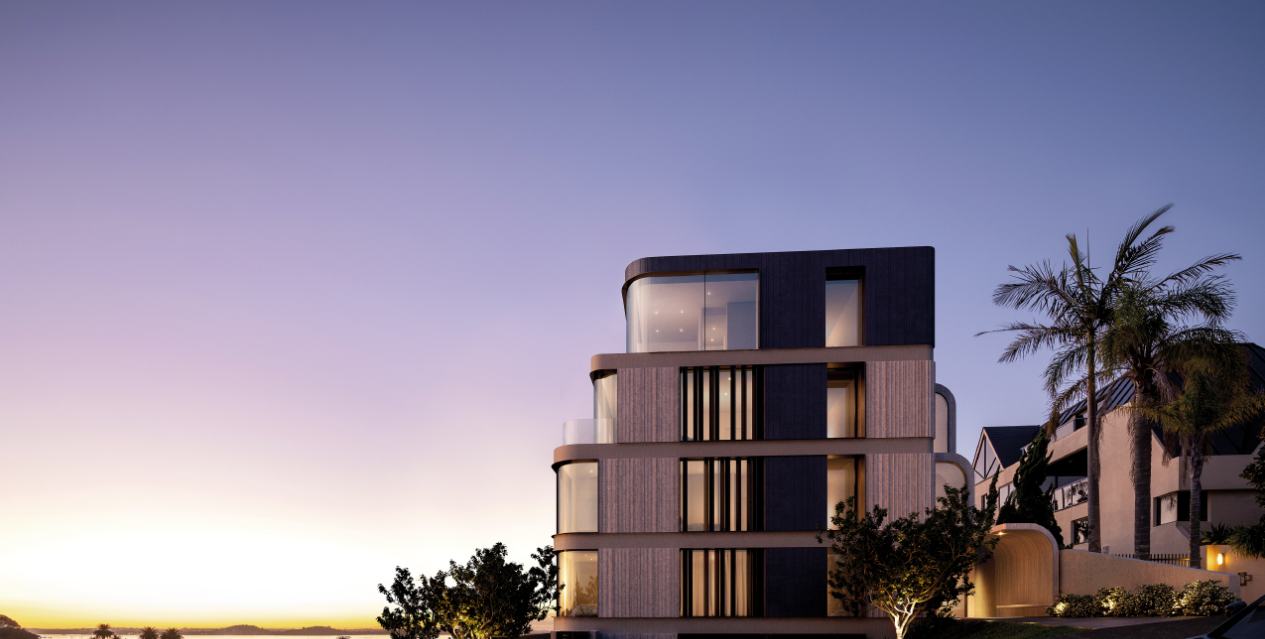

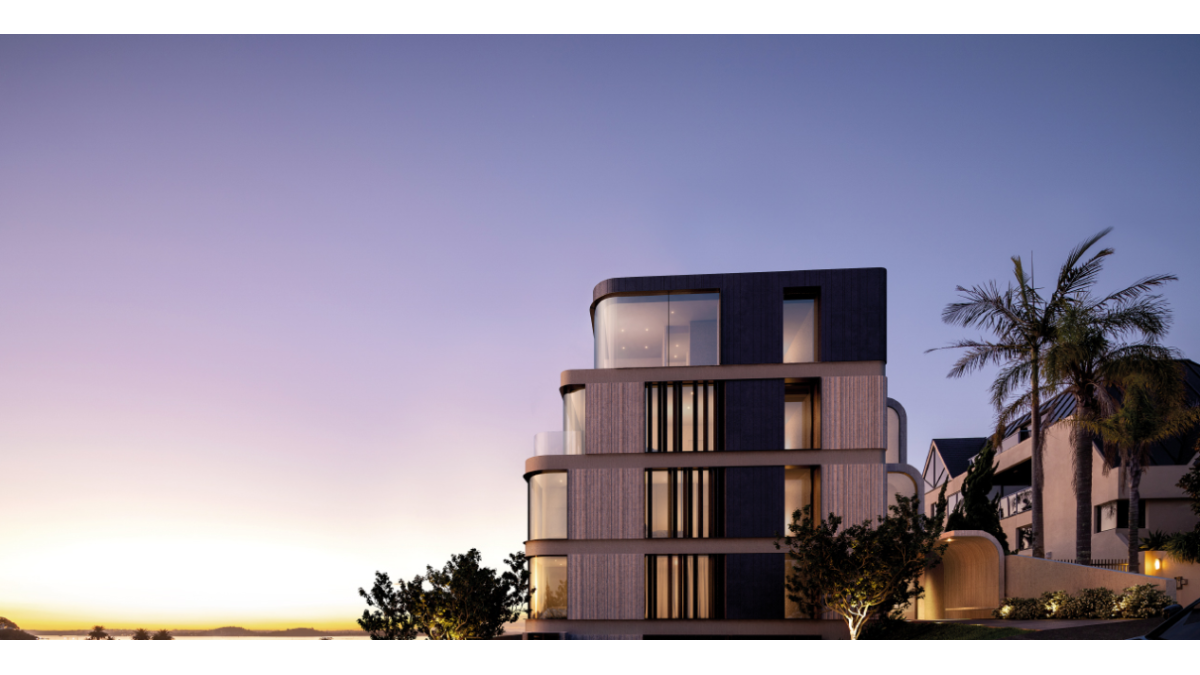

Sonata Apartments, Auckland is a stunningly outstanding, ultra high-end, five-level apartment building located in St. Heliers — recently completed in December 2022 by CMP Construction.

One of the stand-out features of this building are the large curved solid and glass walls, which provide smooth finishing lines around the building edges, whilst allowing for panoramic views across the Hauraki Gulf, including Rangitoto Island.

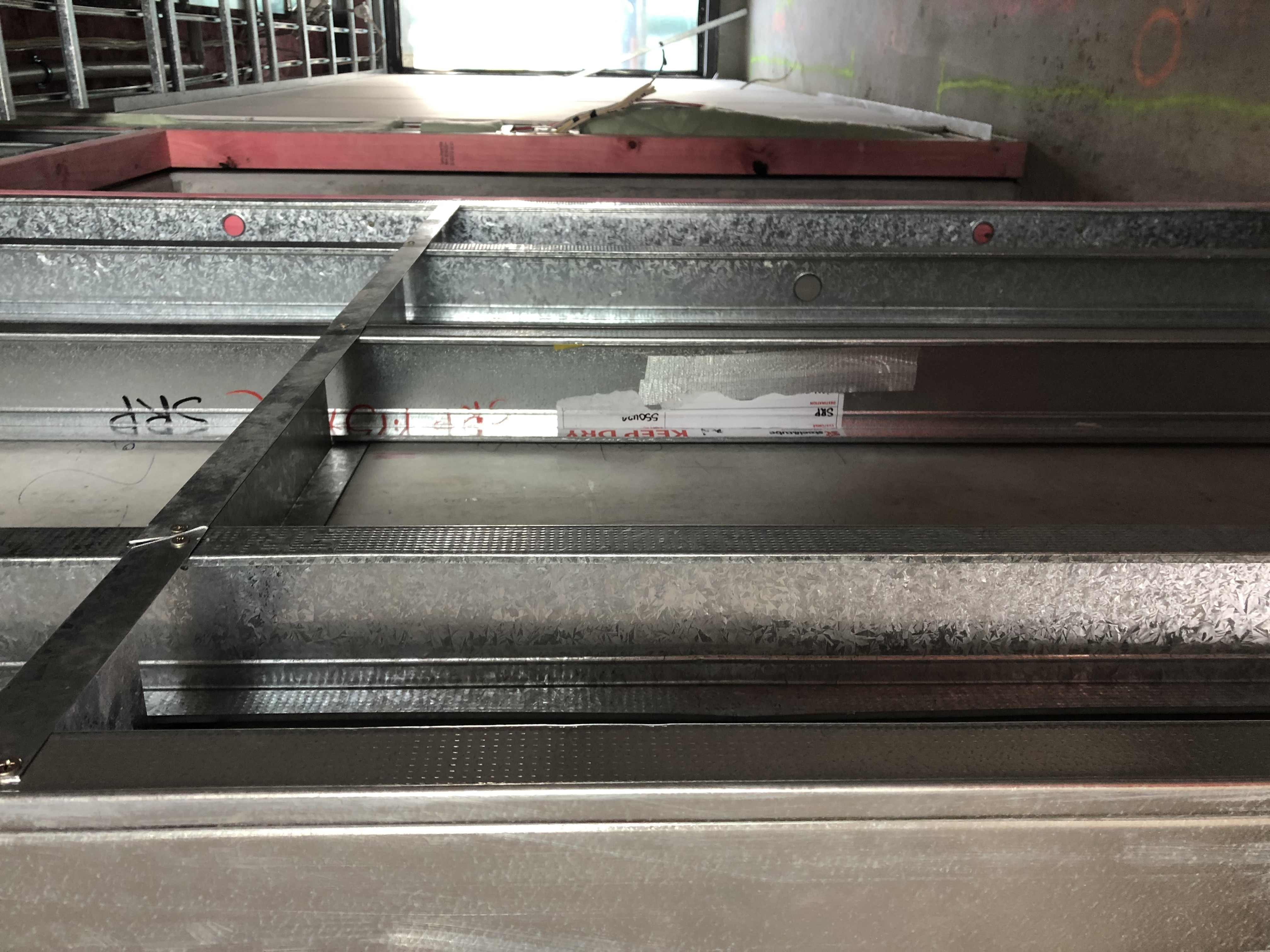

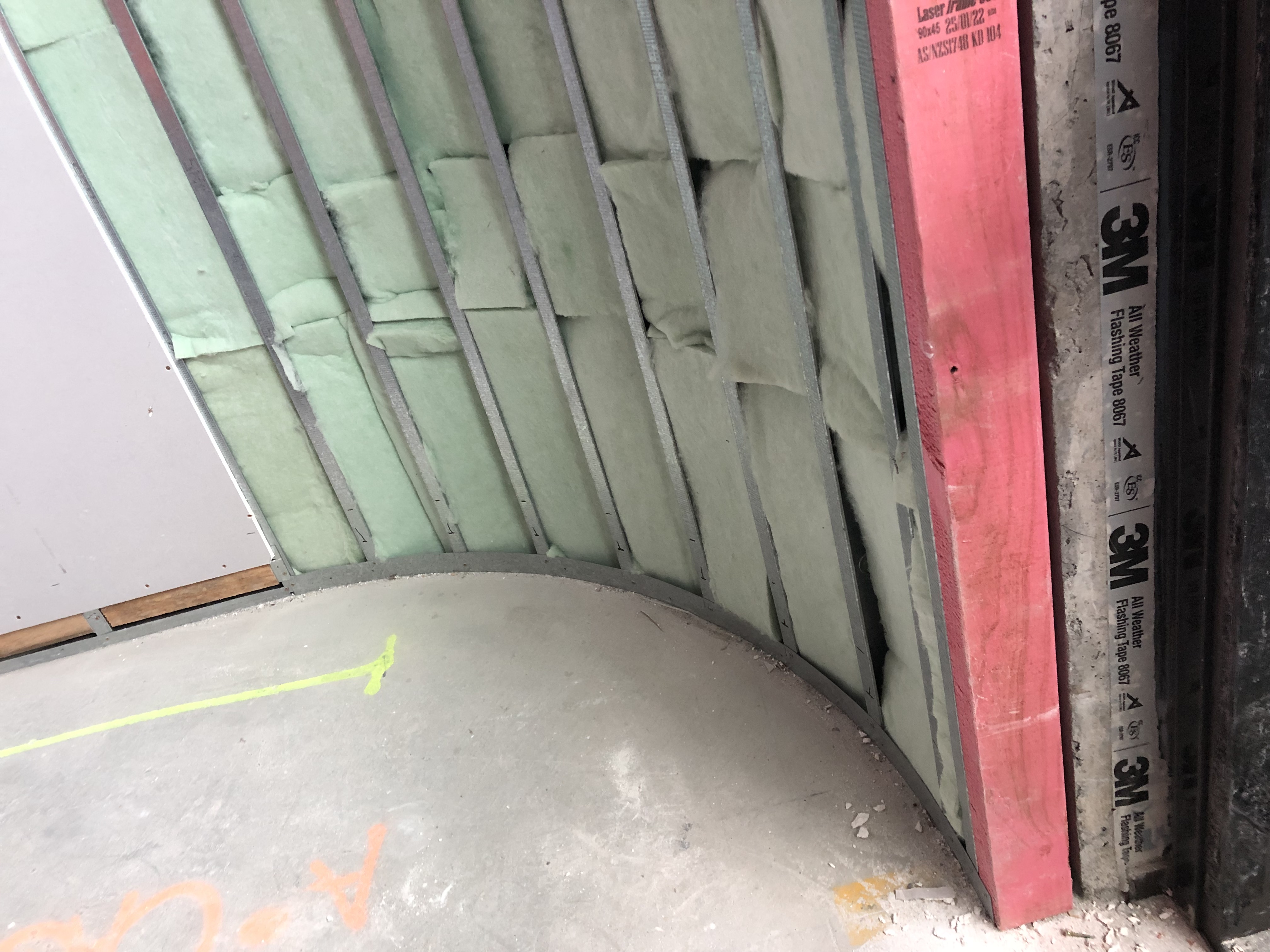

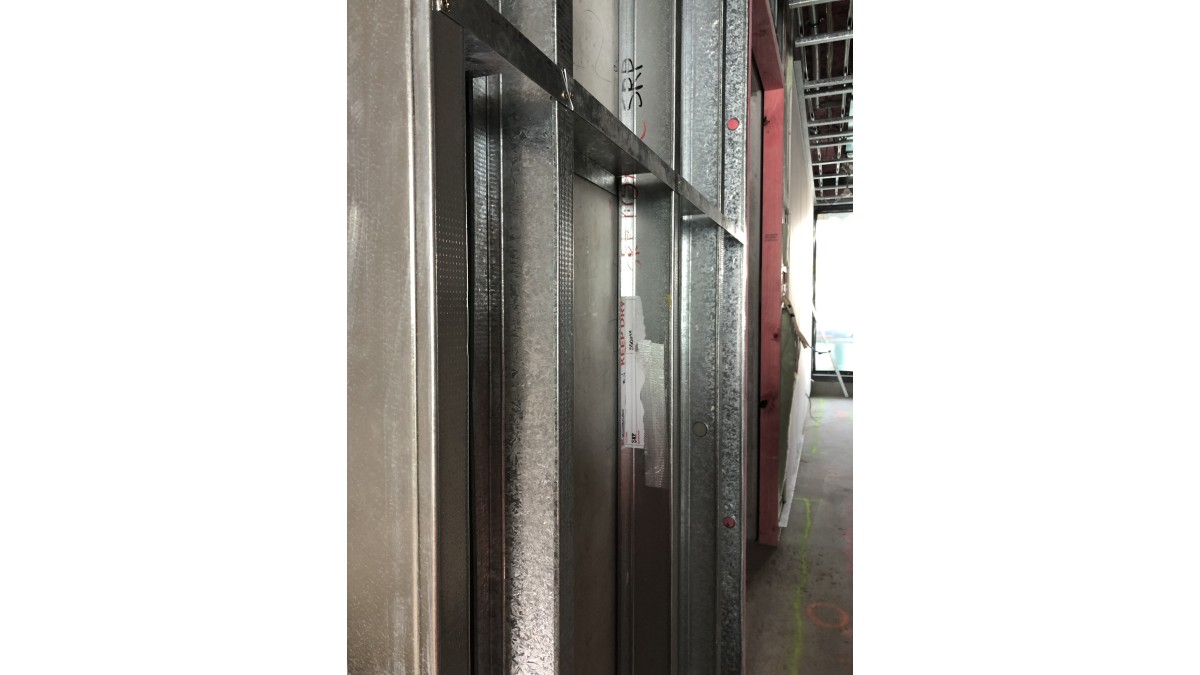

While the luxury curved glass was imported from overseas, the internal solid walls were built-up on-site by interiors contractors, EI Build. The walls are neatly encapsulated, with installation of 92mm SRP steel studs at narrow 150-200mm fixing centres, into the (1.15BMT Galv. Steel) SRP Curv-E Track (all manufactured and supplied locally in Auckland).

SRP Curv-E Track is a two-piece track system which is suitable for use with any stud size. It has a longer (50mm) leg than standard bottom/floor track (which is 30mm); this provides extra rigidity, and more allowance for fixing of skirting and trims than standard floor track.

The Curv-E Track is designed to provide more flexibility in the design of internal steel stud walls/ partitions. The installation is typically carried out by an interior or fit-out contractor who can bend this Curv-E Track (on-site) to the required ‘Curve radius’ or ‘S-bend’ and fix in-place accordingly.

If you are willing to put aside that old straight-edge ruler, and replace it with a compass for some curved wall design in your next project — please get in contact with Glenn from Steel Rollformed Products on [email protected] or call 09 579 0175.

SRP Curv-E Track System

Steel Rollformed Products

View Product

SRP Curv-E Track is a 2-piece split track designed for use in curved internal walls.

The SRP Curv-E track system is designed for use internally, in buildings where curved walls are designed/required — as opposed to straight walls. The Curv-E Track can be integrated to allow smooth transition from curved to straight-run walls.

Please refer to SRP Specific Engineered Design details for installation instructions/details.

SRP Curv-E Track has been manufactured/ supplied in to many construction projects throughout New Zealand, since it became available. Please contact SRP for Project examples and images.

SRP Steel Stud Wall Systems

Steel Rollformed Products

View Product

Steel Rollformed Products offer a wide range of easy to install steel wall system components.

Suitable for non-loadbearing internal plasterboard partitioning

Used in, but not limited to:

Office partitioning
Apartments
Housing complexes

This is to certify that SRP Wall Products and associated componentry supplied by Steel Rollformed Products Ltd are designed to, and manufactured from, a compliant base material, to the relevant New Zealand / International Standards and to the relevant parts of the New Zealand Building Code.

In addition, all wall profiles manufactured by SRP meet the required BMT [Base Metal Thickness], strength and durability requirements. All wall component sizes and gauges manufactured by SRP are to precise specified requirements as established by design, and will not compromise structural integrity and/or fire/acoustic ratings of a relevant non-load bearing partition.

In particular SRP products are compliant as a minimum, with the following Codes, Standards and any referenced third party materials noted in this SRP Product Catalogue is current at the time of publication:

AS/NZS 4600 Cold-formed steel structures
Galvanised coating Z275 to AS/NZS 1397
NZS 3404 Steel structures standard
NZS 3404.1 Steel structures standard — materials, fabrication, and construction
AS/NZS 1397 Steel sheet and strip
AS/NZS 1170 Structural design actions
NZBC — B1/VM1 and B2
