Kingspan KS1100CS Coldstore Panel
Description

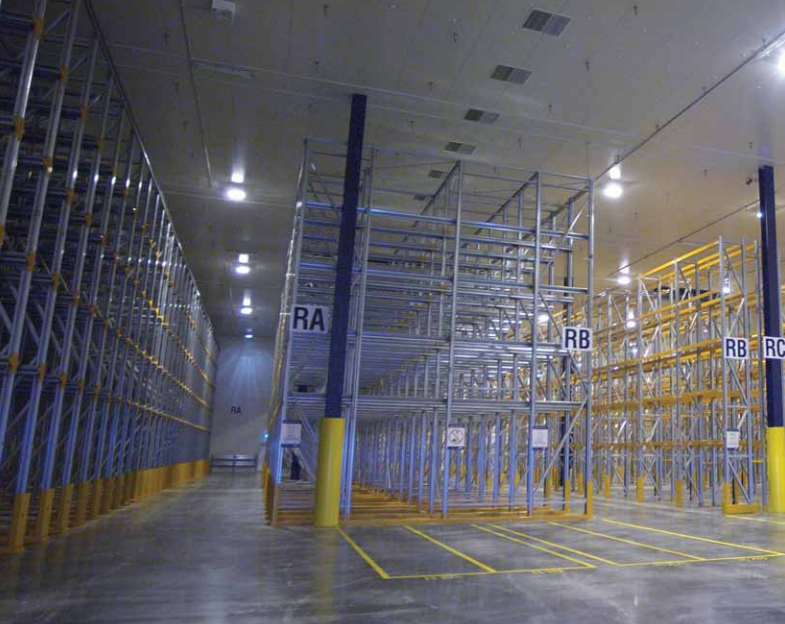

The KS1100CS Coldstore Panel has been designed specifically for use for use within temperature controlled and hygiene safe environments where performance is critical, such as food processing, freezers, cold/chill store and clean rooms for the bio-technology and pharmaceutical industries.

Suitable for walls and ceilings, the panels can be laid vertically or horizontally and these panel systems are suitable for external wall and internal wall and ceilings.

Key Features
  • Insurer-approved Kingspan PIR insulated panel system
  • Ideal for temperature ranges between -40°C to + 80°C
  • ecospecifier global green tag certified to GreenRate Level A
  • Environmental Product Declaration (EPD) available
  • Superior Hygiene and High Performance Coatings and Liners

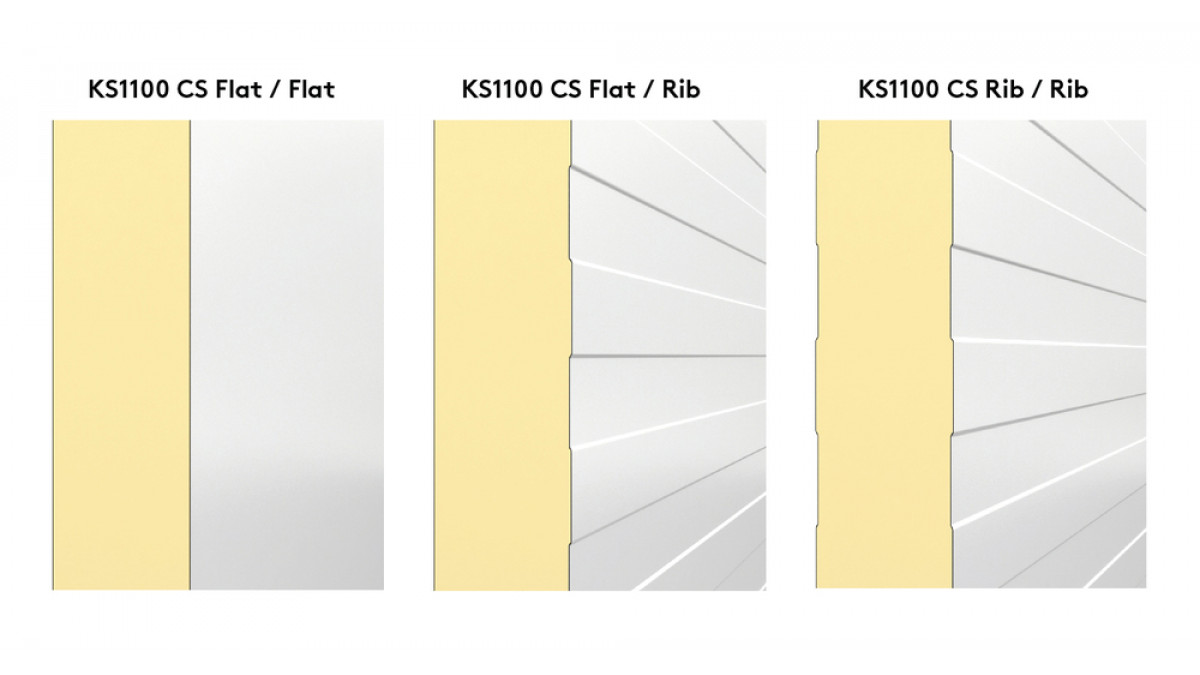

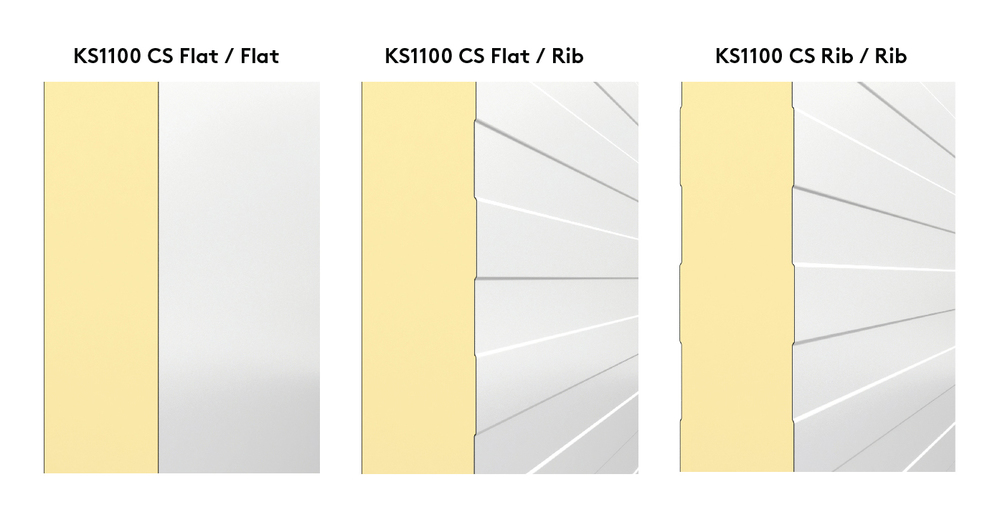

  • Available in two profiles: rib or flat
  • Cover width of 1100mm
  • Suitable for internal and external application
Scope of Use

These high-performance, hygienic and fibre-free insulated panel systems are suitable for internal and external walls and ceilings, including internal 'box within a box' applications.

  • Panels can be laid vertically or horizontally
  • Ideal for temperature ranges between -40°C to + 80°C
  • Cover width of 1100mm
Statement of Building Code Compliance

The KS110CS Coldstore Panel has been used around New Zealand, on many building types for in excess of 15 years.

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1100CS Coldstore Panel is compliant with the applicable sections of the NZBC:

  • B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, c, f, g, h, j); B1.3.4
  • B2 Durability — B2.3.1(b)
  • C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
  • E2 External Moisture —  E2.3.2; E2.3.7
  • E3 Internal Moisture — E3.3.5
  • F2 Hazardous Building Materials — F2.3.1
  • H1 Energy Efficiency — H1.3.1
In-Service History

Insulated panels have been used in New Zealand for over 40 years.

Kingspan’s insulated panels have been in use globally for over 50 years and Kingspan has supplied panels for use in NZ for over 15 years.

All Kingspan products and systems are backed by extensive testing and guarantees and supported by five decades of experience.

Other Performance Attributes
  • Kingspan KS1100CS Coldstore Panels are approved by FM Global to the following Approval Standards:
    • FM4880 — Class 1 Internal wall and ceiling panels without height restriction (All thicknesses: 50, 75, 100, 125, 150 and 200 mm)
    • FM4881 — Class 1 External Wall Panel System without height restriction  (All thicknesses: 50, 75, 100, 125, 150 and 200 mm)
  • ecospecifier global green tag certified to GreenRate Level A
  • Environmental Product Declaration (EPD) available
Documents
KS1100CS Coldstore Panel Data Sheet
Appraisal, Accreditation, Certification and Testing
GreenTag Accreditation
GreenTag Accreditation Scope
KS1100CS Coldstore Panel Environmental Product Declaration
Additional Information
Real Fire Case Studies
Request Sample

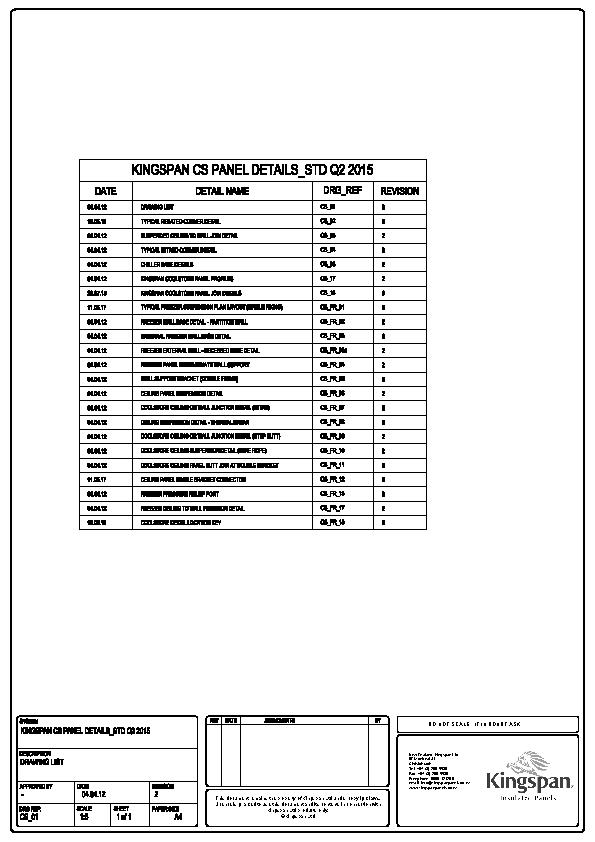

CAD/PDF Details
KS1100CS CAD Std
