Kingspan Insulated Panels Create an Eye-Catching High Performance Building Envelope

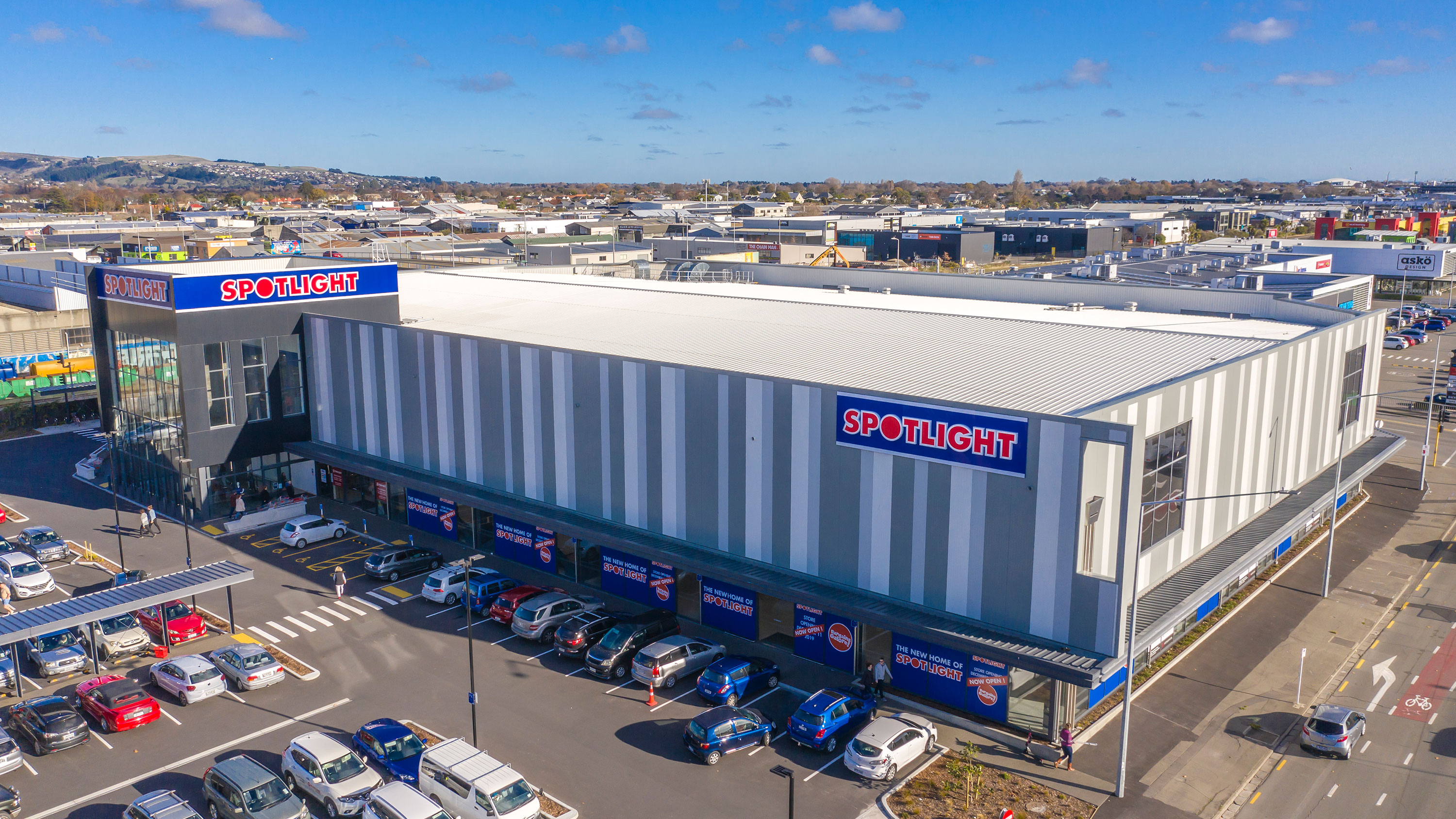

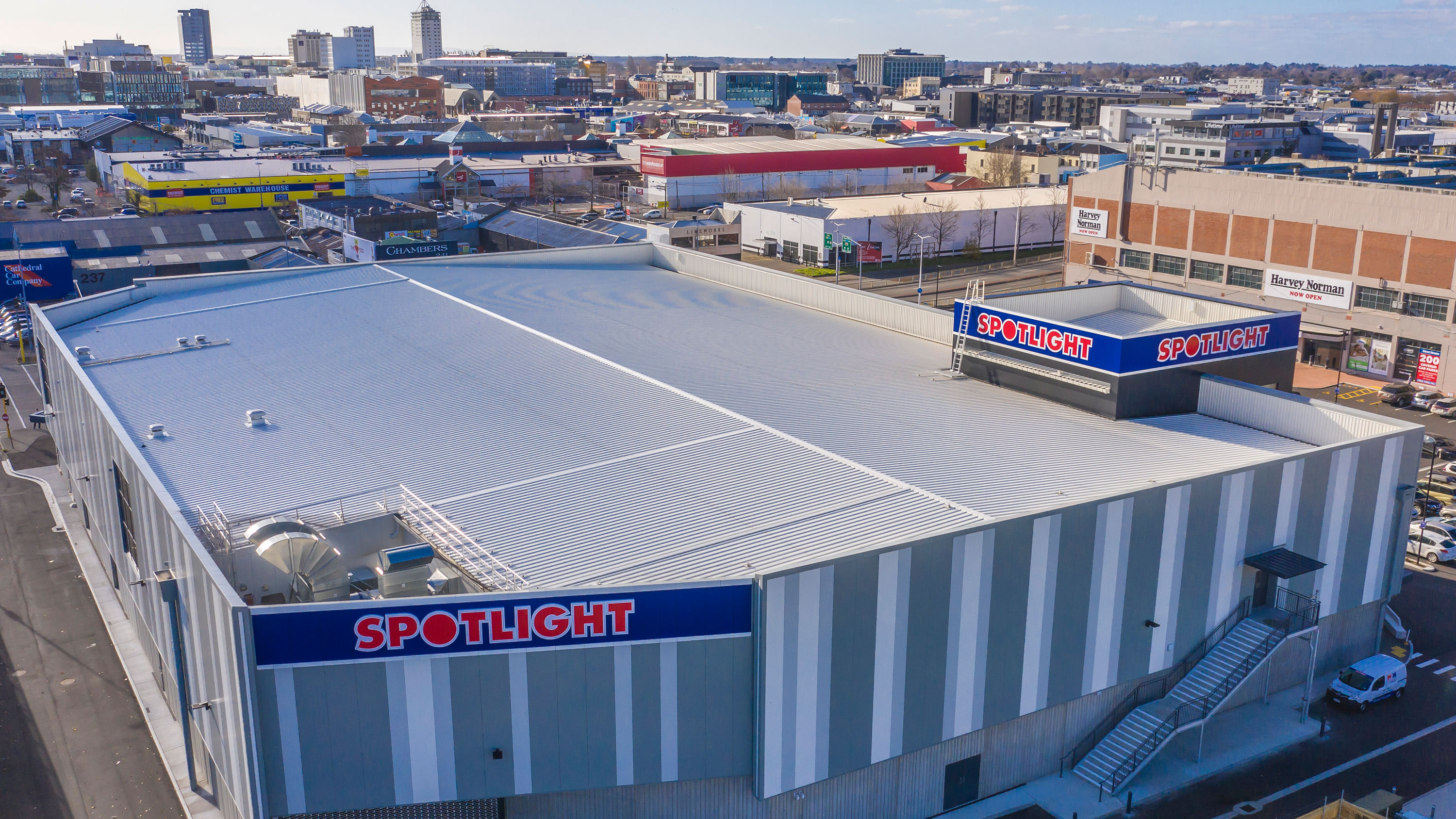

The fabric, craft and homewares retailer’s eye-catching stripes have been created with a randomised three-colour pattern realised with Kingspan’s vertically-mounted insulated Architectural Wall Panels.

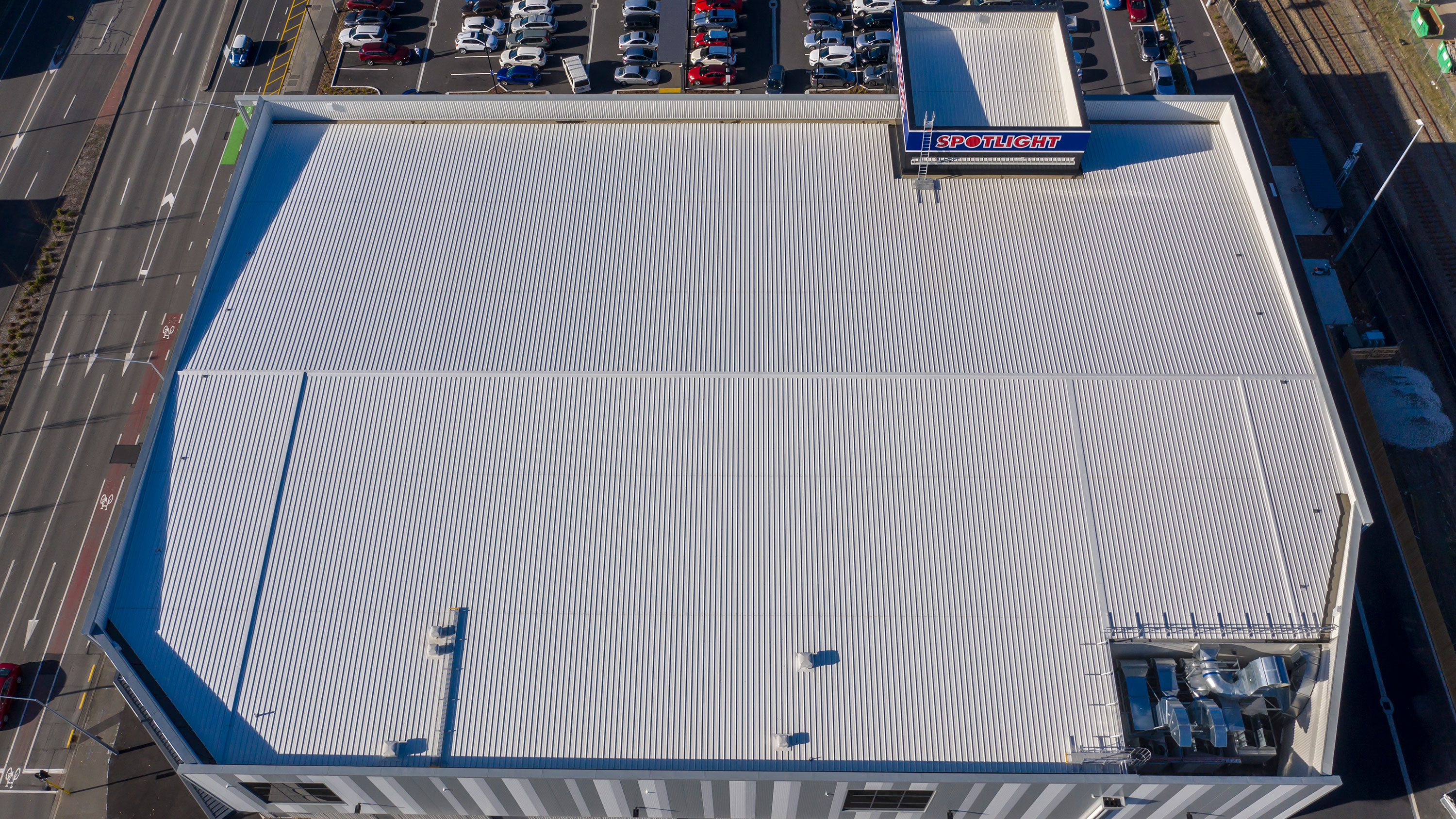

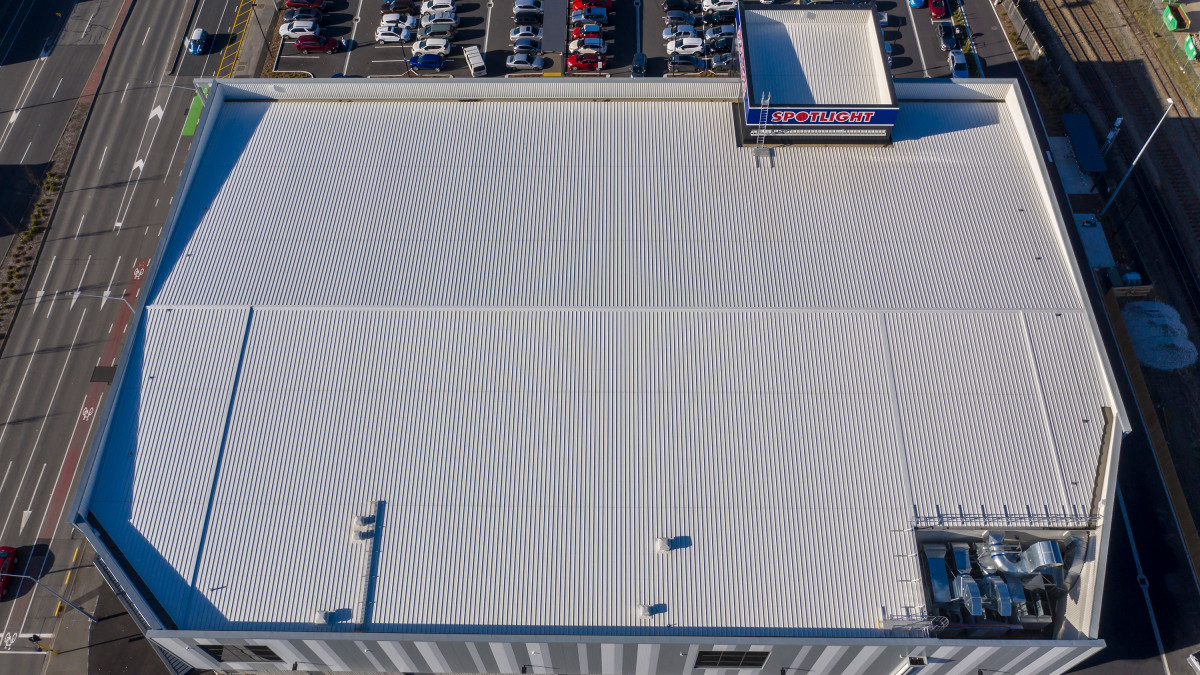

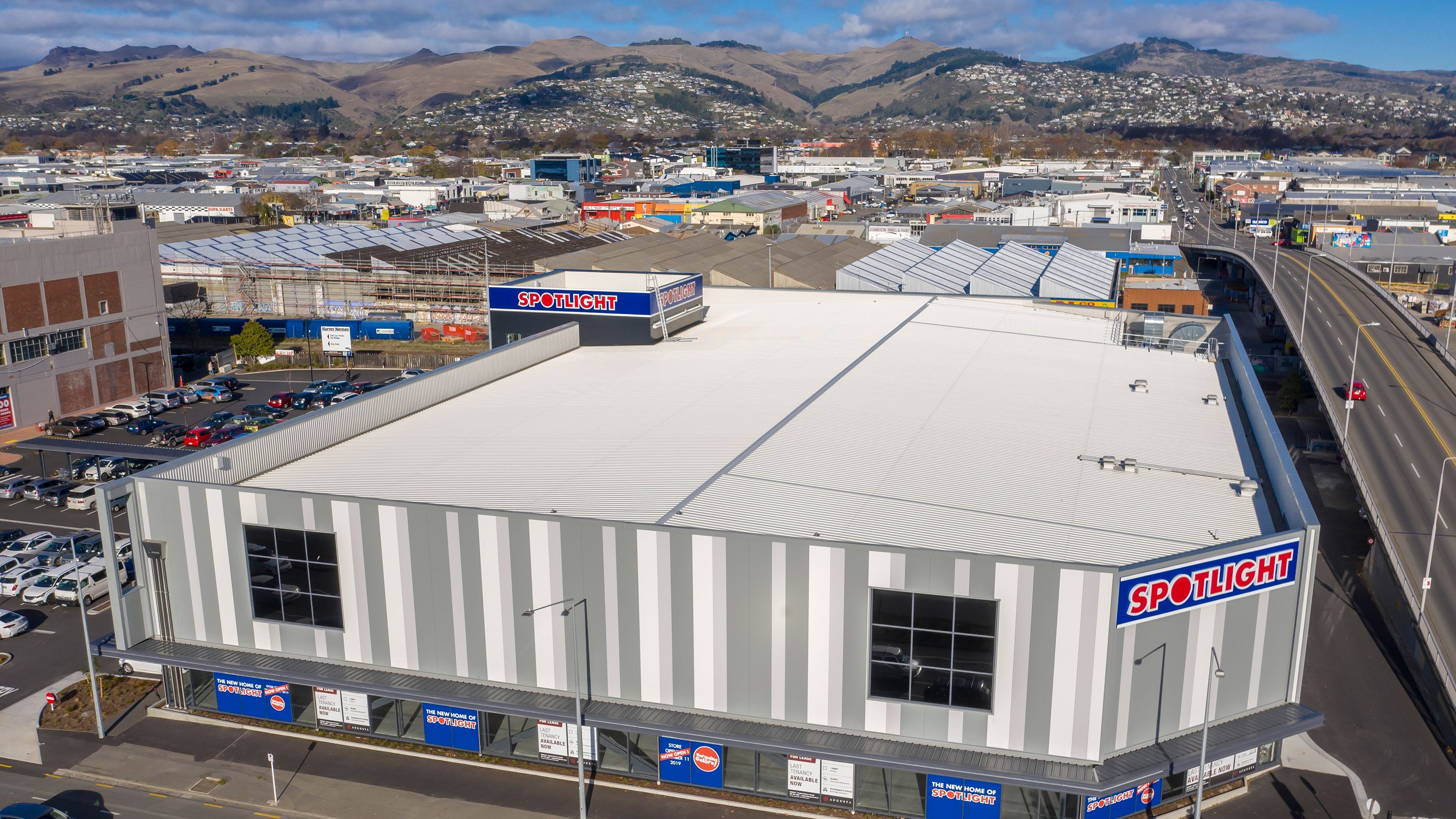

The KS1000RW Trapezoidal Roof Panel was preferred over a traditional built-up roof for its fast installation and, along with specially-fabricated insulated gutters, completed a fully weathertight and airtight building envelope, delivering optimal insulation performance: more energy efficient, cheaper to run and producing less carbon dioxide.

Kingspan Insulated Panels are a one stop solution for meeting building thermal regulations and come in a range of sizes, finishes, colours and core thicknesses to meet most design and performance requirements. The 80mm (core thickness) Architectural Wall Panels used on the Spotlight Store deliver an R-value of R4.15 and, along with the 40mm Trapezoidal RW roof panels (R2.39) provide an optimised level of thermal and structural performance and enabled programme efficiencies that helped ensure the success of the build.

With a single element process for installation, Kingspan’s insulated panel systems are designed to work together — rather than built-up roofing systems where a number of components are sourced from multiple suppliers and manufacturers. Kingspan panels are quick to install, which is important for working around changeable weather where there might be only a short window for installation and also for health and safety concerns.

With new energy efficiency requirements coming into permanent effect in November 2022, Kingspan Insulated panels offer a simple warm roofing solution for meeting the increased thermal requirements. Being a single-piece solution, they are easy to specify and detail and provide a significantly faster installed solution than multi-layer solutions that may involve multiple suppliers' products. Panels are available in a wide range of core depths/R values, to provide suitable options for all climate zones.

KS1000RW Trapezoidal Roof and Wall Panel

Kingspan Insulated Panels

View Product

The Kingspan KS1000RW Trapezoidal Roof and Wall Panel system products consist of Zincalume sheets that contain a PIR core.

The KS1000RW Trapezoidal Roof Panel is a through-fixed, trapezoidal profiled roof system which can be used for building applications with roof pitches of 4° or more after deflection. For lower pitches, please contact Kingspan.

The standard specification for KS1000RW Trapezoidal Wall Panels is suitable for both vertical or horizontal walls — alternative specification available including high humidity and low temp.

All Kingspan panels, including the KS1000RW Trapezoidal Roof and Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, up to and beyond the Extra High wind zones.

When designed, used, installed and maintained in accordance with Kingspan standard details, the KS1000RW Trapezoidal Roof & Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4

B2 Durability — B2.3.1(b)

C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7

E2 External Moisture — E2.3.1 (roof only); E2.3.2; E2.3.7

E3 Internal Moisture — E3.3.5

F2 Hazardous Building Materials — F2.3.1

H1 Energy Efficiency — H1.3.1

Codemark Certification demonstrates compliance to the NZBC equivalent of an Acceptable Solution. Some specialist buildings may fall partially or wholly outside of the scope of the Codemark Certificate, should this occur then please contact Kingspan Technical for assistance in demonstrating NZBC compliance via an Alternative Solution.

CodeMark

Independent Assessment

Test Results

Kingspan Architectural Wall Panel System

Kingspan Insulated Panels

View Product

This secret-fix wall panel system offers unprecedented freedom of design and performance.

An insulated wall panel system for use on residential, communal residential, communal non-residential, commercial, industrial buildings and outbuildings

All Kingspan panels, including Architectural Wall Panels, are typically tested up to 3.6kPa for normal conditions (ULS) and up to 15kPa for cyclonic conditions (ULS). These limits easily exceed the requirements of NZS3604, including Extra High wind zones.

Architectural Wall Panels hold a CodeMark Certificate of Conformity stating the provisions of the Building Regulations 2008 (New Zealand) the product conforms to.

CodeMark Certificate of Conformity is certified under the name Kingspan Insulated Panels Architectural Wall Panels (AWP) and Evolution (EVO). Certificate number: CM20114 Rev V2.

For further details please contact the Kingspan Technical Service Department or alternatively refer to the MBiE — Product Certificate Register and search for 'Kingspan KS1000AWP'.

When designed, used, installed and maintained in accordance with Kingspan standard details, the Architectural Wall Panel is compliant with the following clauses on the NZBC:

B1 Structure — B1.3.1; B1.3.2; B1.3.3(a, f, g, h, j); B1.3.4
B2 Durability — B2.3.1(b)
C3 Fire Affecting Areas Beyond the Fire Source — C3.4(a); C3.5; C3.7
E2 External Moisture — (contributes to) E2.3.2; E2.3.7
E3 Internal Moisture — E3.3.5
F2 Hazardous Building Materials — F2.3.1
H1 Energy Efficiency — (contributes to) H1.3.1

CodeMark

Independent Assessment

Test Results
