Integra Lightweight Concrete Systems Designed for Life

The selections available for external facade systems are many and varied. Most are simply products that are supplied only. Resene Constructions Systems' external facade systems are complete systems in that all componentry, detailing, and LBP contractor network for installation is provided to ensure accuracy and durability of the finished facade.

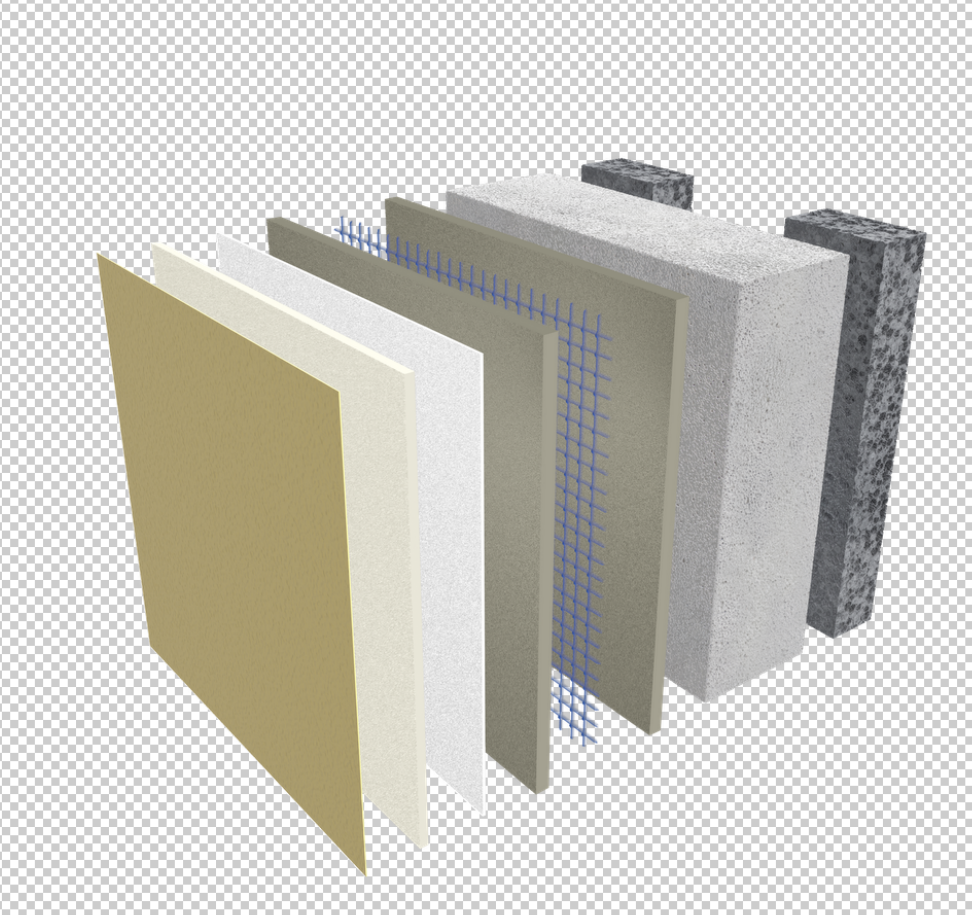

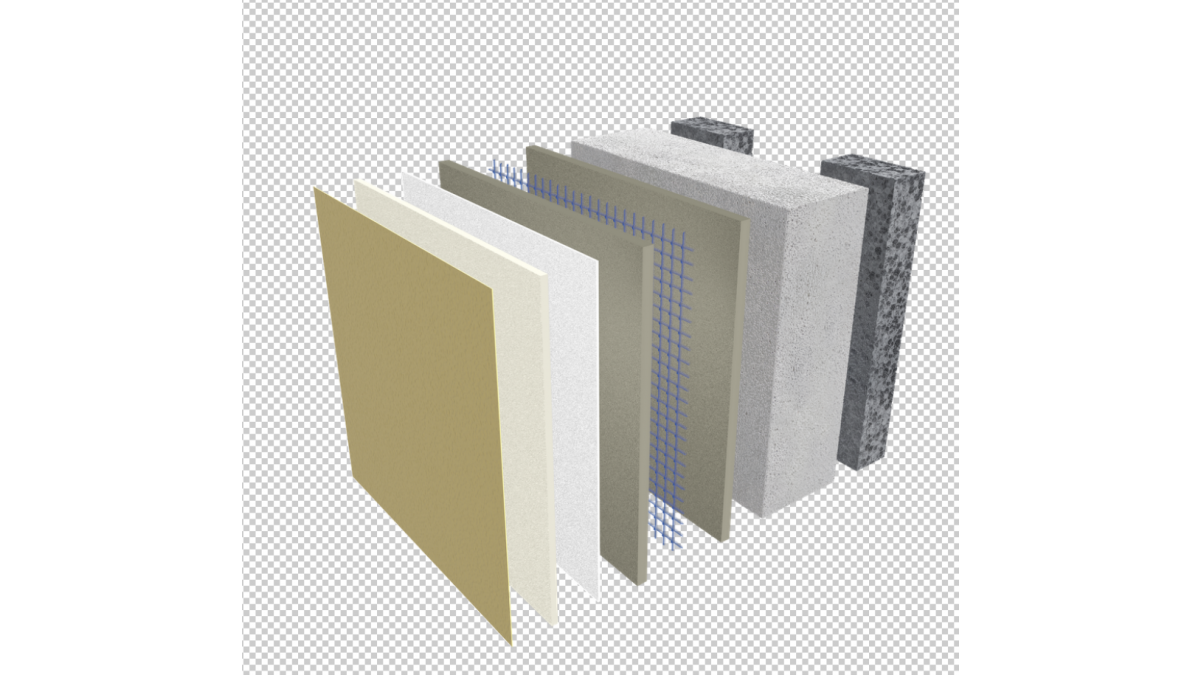

The BRANZ appraised Integra system features the mechanically fixed Integra LWC Lightweight Concrete Panel, modified flexible acrylic renders, a weather-protected base and a low maintenance, versatile finish to ensure the integrity and durability of the entire system.

Resene Construction Systems' Integra lightweight concrete system also provides additional features over many other facade materials such as acoustic and fire rating benefits, all the way through to incorporating genuine Resene coloured finishes which come as standard options.

Consider Resene Construction Systems' range of high-performance facade systems for a complete external facade solution.

INTEGRA Lightweight Concrete Facade System

Resene Construction Systems

View Product

INTEGRA from Resene Construction Systems is a high performance, lightweight AAC concrete panel and external façade system.

NZ Made

NZ-Owned Business

Pre-Consumer Recycled Content

The Integra Lightweight Concrete Façade System is a pressure moderated, cavity-based external wall cladding system for residential and light commercial type buildings where domestic construction techniques are used.

See BRANZ Appraisal No 681 [2018]

The Integra Lightweight Concrete Façade System has been appraised by BRANZ (Appraisal no. 681 [2018]) as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including Extra High

The Integra Lightweight Concrete Façade System has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber or steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa

In the opinion of BRANZ (Appraisal no. 681 [2018]), the Integra Lightweight Concrete Façade System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The Integra Light Weight Concrete Façade System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)]. See Paragraphs 10.1 - 10.4
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years, B2.3.1 (c), 5 years, and B2.3.2. The Integra Light Weight Concrete Façade System meets these requirements. See Paragraphs 11.1 and 11.3
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The Integra Light Weight Concrete Façade System meets this requirement. See Paragraphs 15.1 - 15.5
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Integra Light Weight Concrete Façade System meets this requirement and will not present a health hazard to people
