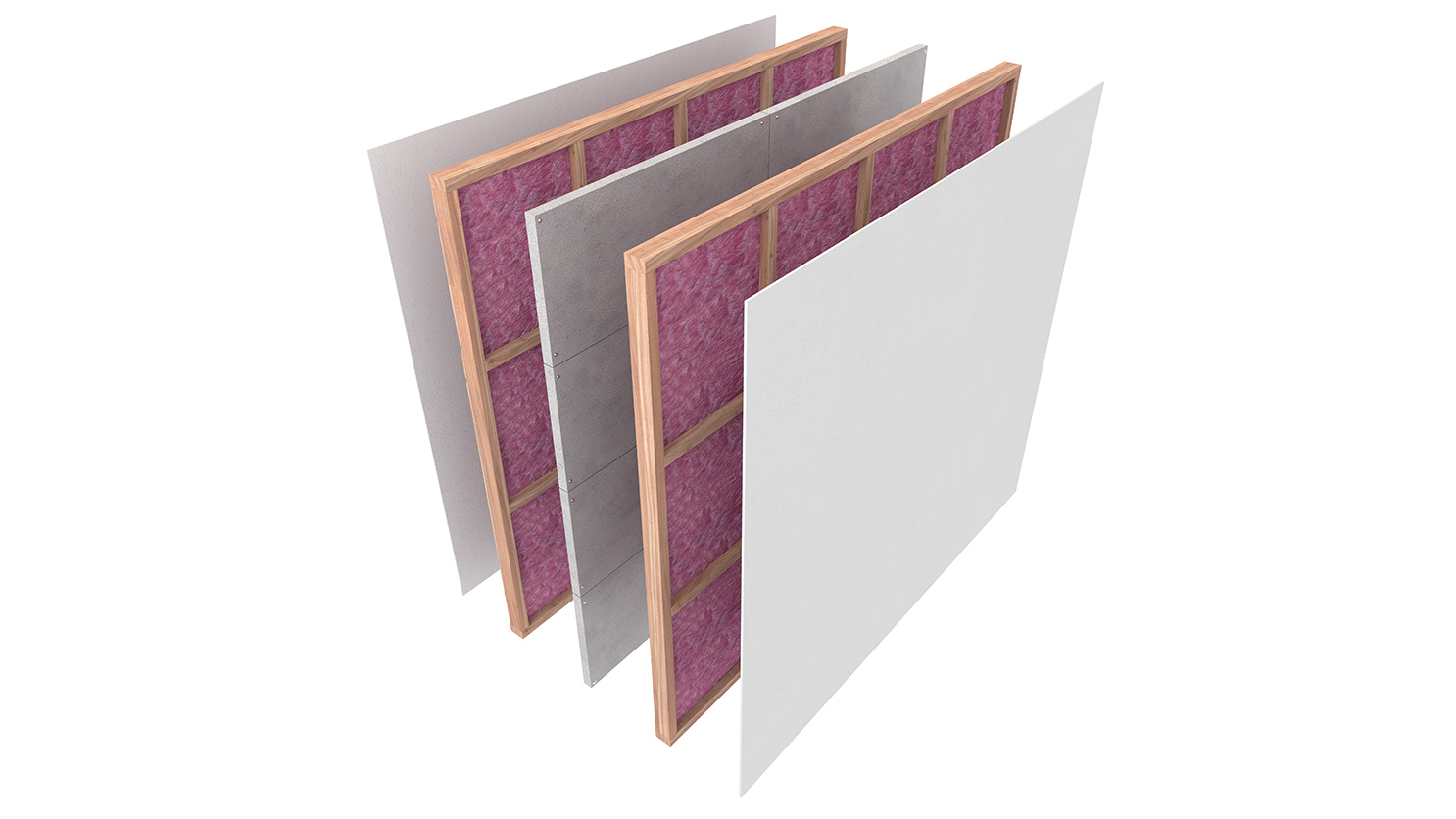

Resene Construction Systems INTEGRA Intertenancy Systems is for load bearing walls where a FRR is required on a wall.

Suitable for:

• Intertenancy walls up to 12m in height
• Maximum individual floor/ceiling height meets NZS 3604
• For residential construction
• Where a Fire Resistance Rating up to 120/120/120 is required
• Where a minimum STC of at least 55 is required
• Maximum loading of 4.5kN/Stud is required
• As a solution to meet AS1530.4-2005

Show more

Resene Construction Systems INTEGRA Intertenancy Systems has been carefully designed to New Zealand conditions and independently tested and assessed to ensure it meets the performance criteria as outlined in NZBC:

• B1 — Structure: The design and specification for timber framing must be in accordance with the performance requirements of NZBC B1. Framing used in accordance with NZS3604:2011 is compliant in accordance with NZBC B1 and is the best choice to use when using a Resene Construction Systems Intertenancy System. Where the framing falls outside the requirements of NZS3604:2011 it is recommend that an engineer is engaged to ensure that structural compliance is met.
• B2 — Durability: Under normal conditions of internal use, the Resene Construction Systems Intertenancy System will achieve a service life in excess of 50 years and satisfy the requirements of NZBC B2.
• C1-C6 — Protection from Fire: The Resene Construction Systems Intertenancy System can be used to provide passive fire protection in accordance with the requirement of NZBC C1-C6 – Protection from Fire. The Resene Construction Systems Intertenancy System has been peer reviewed and meets the provisions of NZBC C1-C6 when kept within the scope as outlined in Section 5 Scope of use for the Resene Construction Systems Intertenancy System.
• F2 — Hazardous Building Materials: Under normal conditions of internal use, the Resene Construction Systems Intertenancy System does not constitute a health hazard and meets the provisions of the NZBC Clause F2.
• G6 — Airborne and Impact Sound: The Resene Construction Systems Intertenancy System provides airborne noise control ratings that exceed the minimum requirements of NZBC Clause G6 — Airborne and Impact Sound. The Resene Construction Systems Intertenancy System has been peer reviewed and meets the provisions of NZBC G6 when kept within the scope 5 Scope of use for the Resene Construction Systems Intertenancy System.
