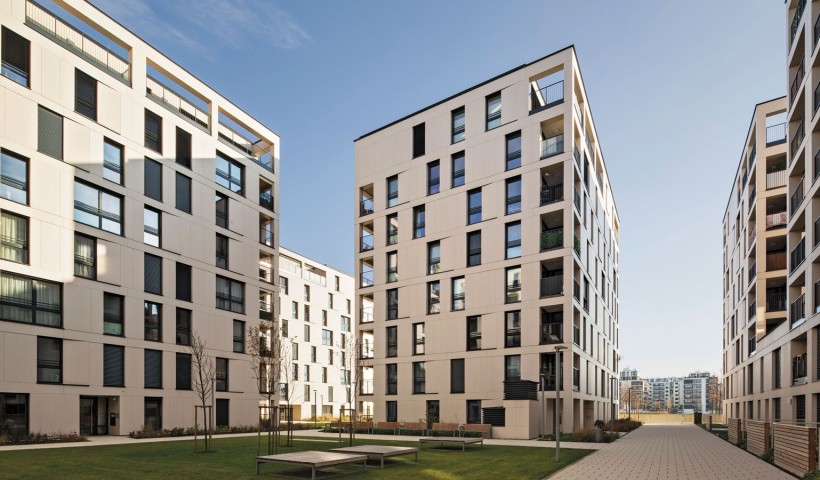

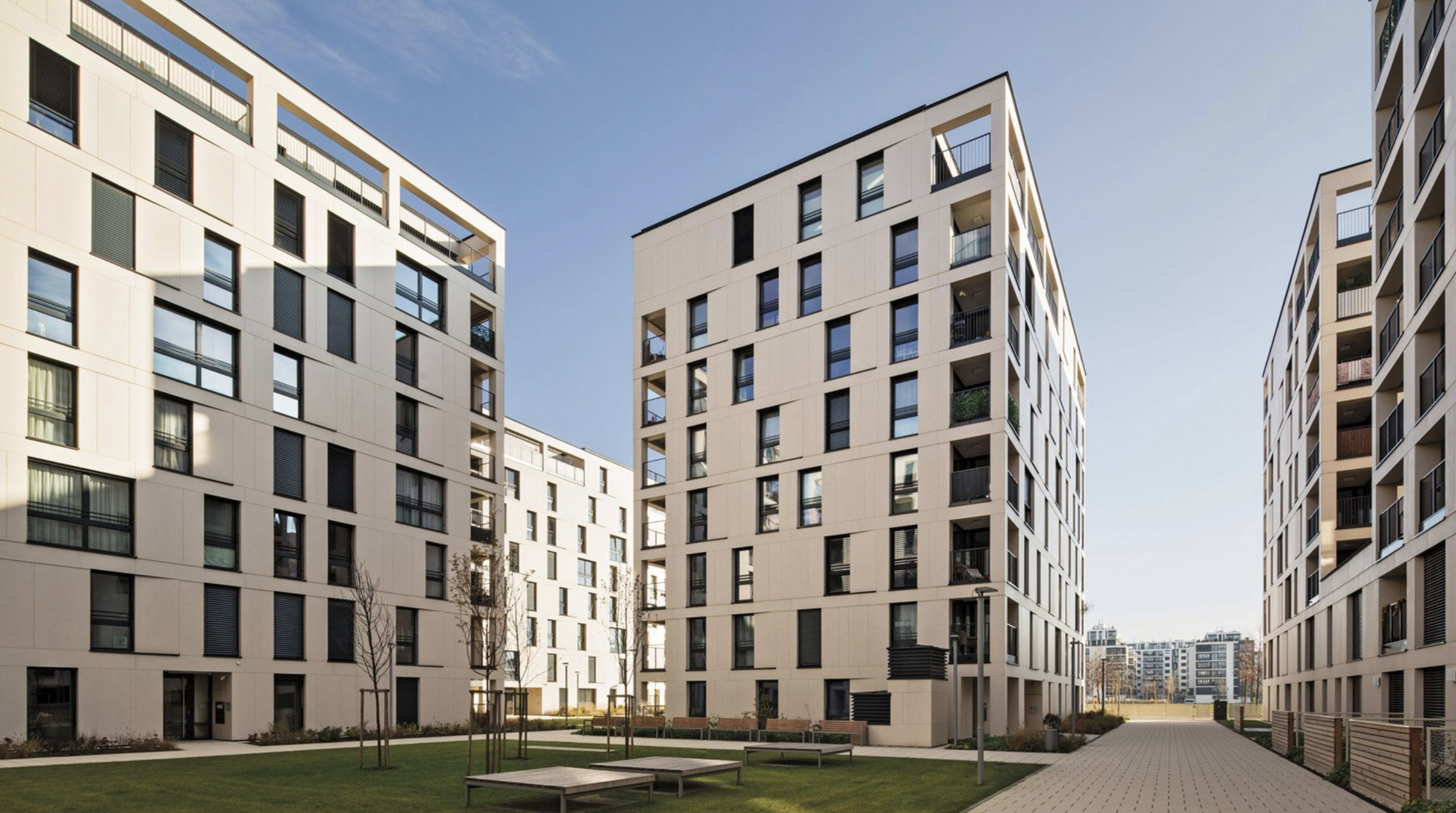

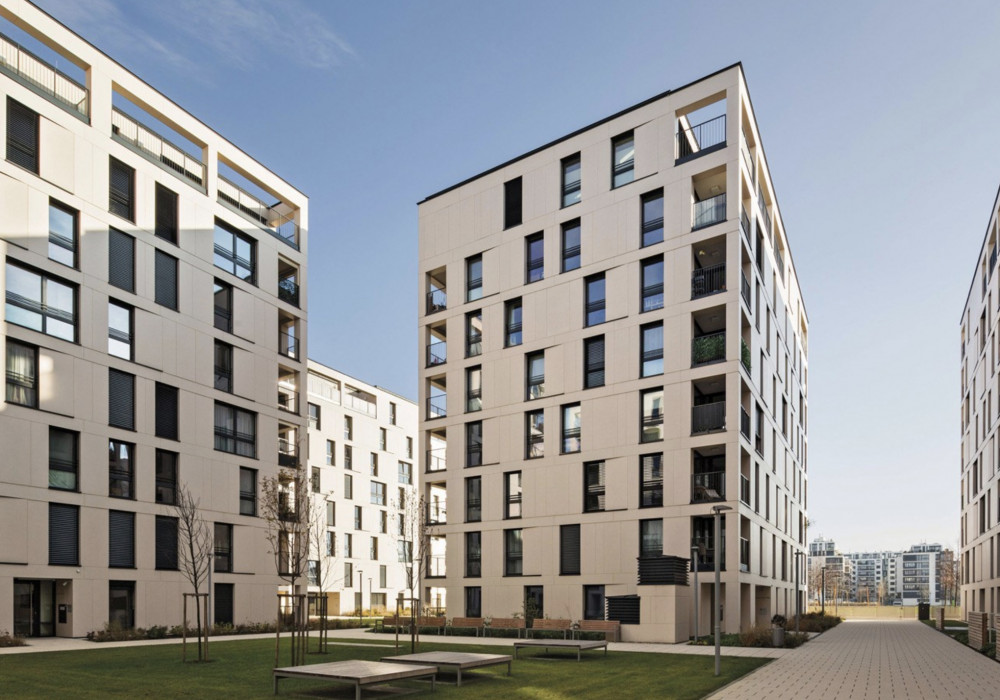

Cemintel Rigid Air Barrier is suitable for use in a pressure equalised façade system such as cladding or rainscreen installed with a ventilated cavity as described in E2/AS1.

Cemintel Rigid Air Barrier is suitable for applications subject to relatively higher wind loads and for projects that are left unclad for extended periods that may require resistance to prevent degradation/damage during construction.

Cemintel Rigid Air Barrier is designed for use on timber or steel framed buildings with the following scope:

- Within the scope of NZS3604:2011 Timber framed buildings or NASH Standard Part 2 Light steel framed buildings and within the limitations of Acceptable Solution E2/AS1 External Moisture, Paragraph 1.1 with respect to building size and height.

- Be located 1m or greater from a relevant boundary.

- In any exposure zone (except adverse microclimatic conditions) as defined in NZS3604:2011 (para 4.2.4).

- Wind zones up to and including Extra High.

- Buildings specifically engineered up to and including ULS design wind pressure of 2.5kPa.

Cemintel Rigid Air Barrier and fixings may be exposed to the weather for up to six months before being enclosed with the façade system. Tape used to seal joints or corners of openings should not be exposed to UV for more than 2 months.

Cemintel Rigid Air Barrier may also be incorporated into external wall constructions where the building is located within 1m of the relevant boundary.

Air barriers must be effectively sealed at all perimeters, openings and joints.

Conditions: Cemintel Rigid Air Barrier must be installed in accordance with the Cemintel Rigid Air Barrier Design and Installation Guide.

Show more

Clause B1 Structure: Performance Clauses B1.3.1, B1.3.2, B1.3.3 (a, h), B1.3.4

Basis of Compliance: Cemintel Rigid Air Barrier complies with the requirements of AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets. The mechanical properties

required for compliance with AS/NZS2908.2 are sufficient to meet the mechanical strength properties for rigid air barriers specified in Acceptable Solution E2/AS1 External Moisture Table 23.

Related Documents:

• SIRIM QAS International Test Report 2019CB1449 October 2019 Tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets.
• Acceptable Solution E2/AS1 External Moisture

Clause B2 Durability: Performance Clauses B2.3.1(a), B2.3.1(b), B2.3.2(a)

Basis of Compliance: Cemintel Rigid Air Barrier complies with the requirements of AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets. The durability tests required for compliance with AS/NZS2908.2 (frost resistance, warm water, heat rain, soak dry) provide evidence of the durability of the product in service. The product also has significant in-service history of use.

Related Documents:

• SIRIM QAS International Test Report 2019CB1449 October 2019 Tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets

Clause E2 External Moisture: Performance Clauses E2.3.2, E2.3.5, E2.3.7 (contributes to)

Basis of Compliance: The properties of Cemintel Rigid Air Barrier meets the requirements of Acceptable Solution E2/AS1 External Moisture Table 23 for rigid air barriers and is suitable for use with absorbent and non-absorbent claddings fixed directly or over a cavity.

Related Documents:

• CSIRO Test Report No 8188A ASTM E96 Test for water vapour transmission of materials (February 2019)

Clause F2 Hazardous Building Materials: Performance Clauses F2.3.1

Basis of Compliance: Cemintel Rigid Air Barrier does not contain any substance that will give rise to harmful concentrations at the surface of the material where the material is exposed or in the atmosphere of any space.

Related Documents:

• CETEC Emission Test Certificate (August 2012)
• Cemintel Fibre Cement Safety Data Sheet

Clause H1 Energy Efficiency: Performance Clauses H1.3.1 (b)

Basis of Compliance: Cemintel Rigid Air Barrier contributes to limiting uncontrollable airflow to spaces where temperature or humidity is controlled.

Technical and Installation Literature:

Cemintel Rigid Air Barrier Design and Installation Guide.

Show more

BRANZ Appraised

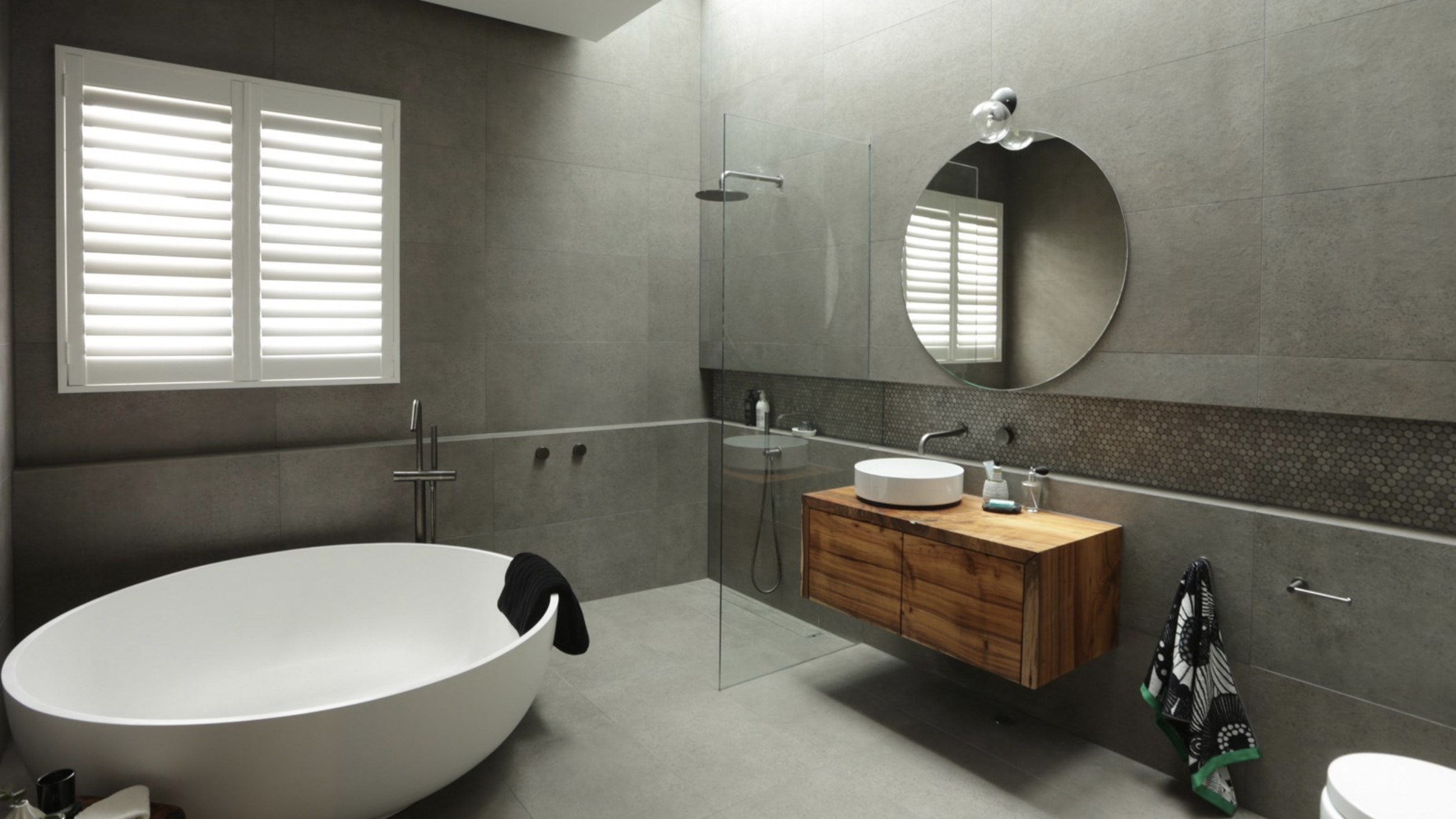

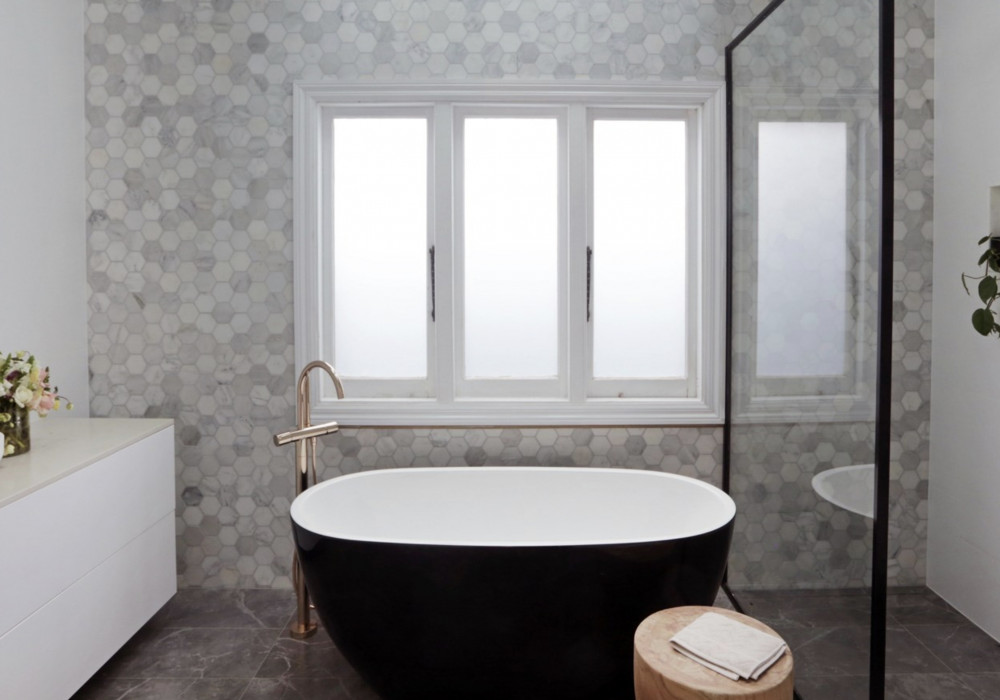

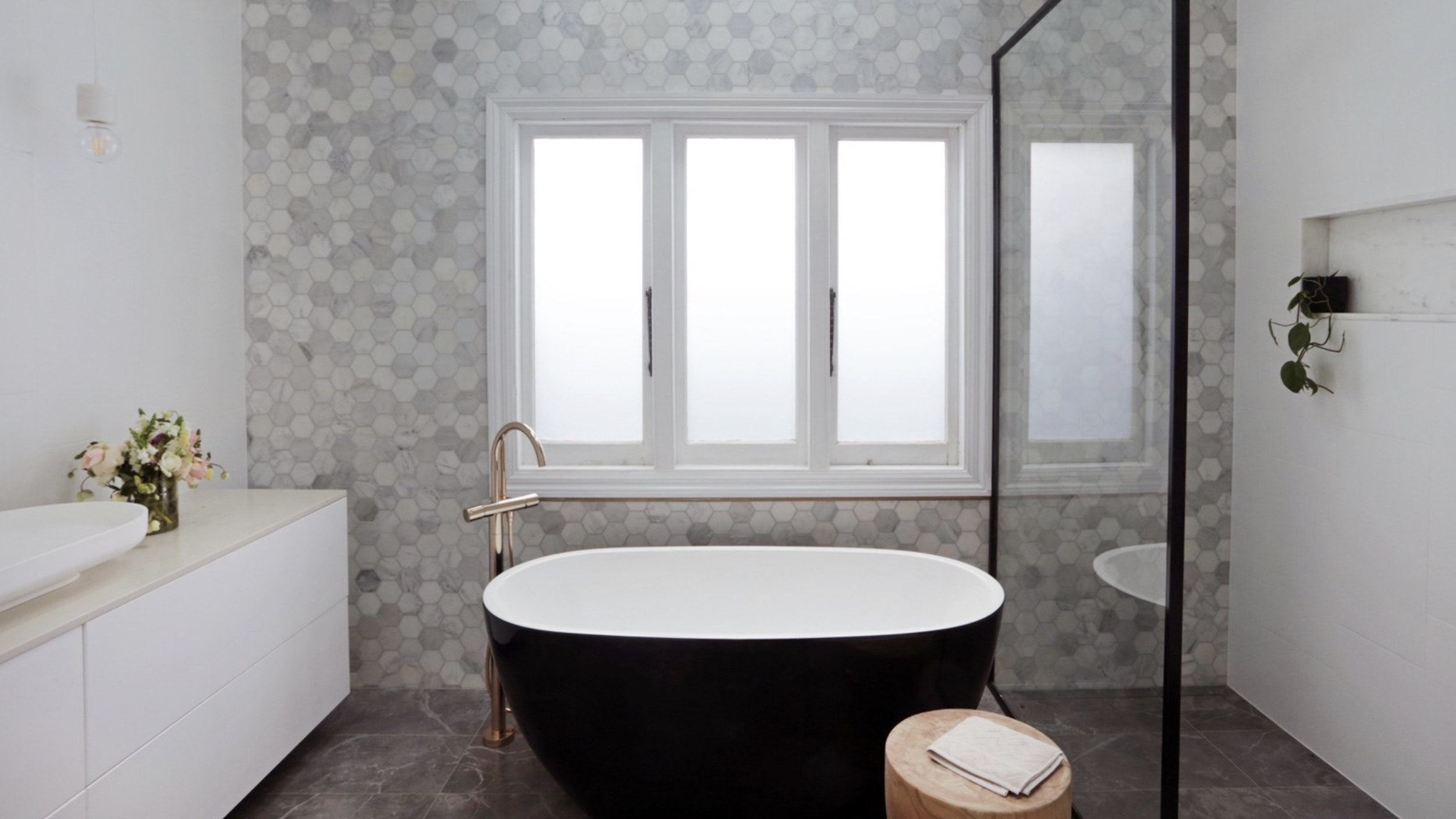

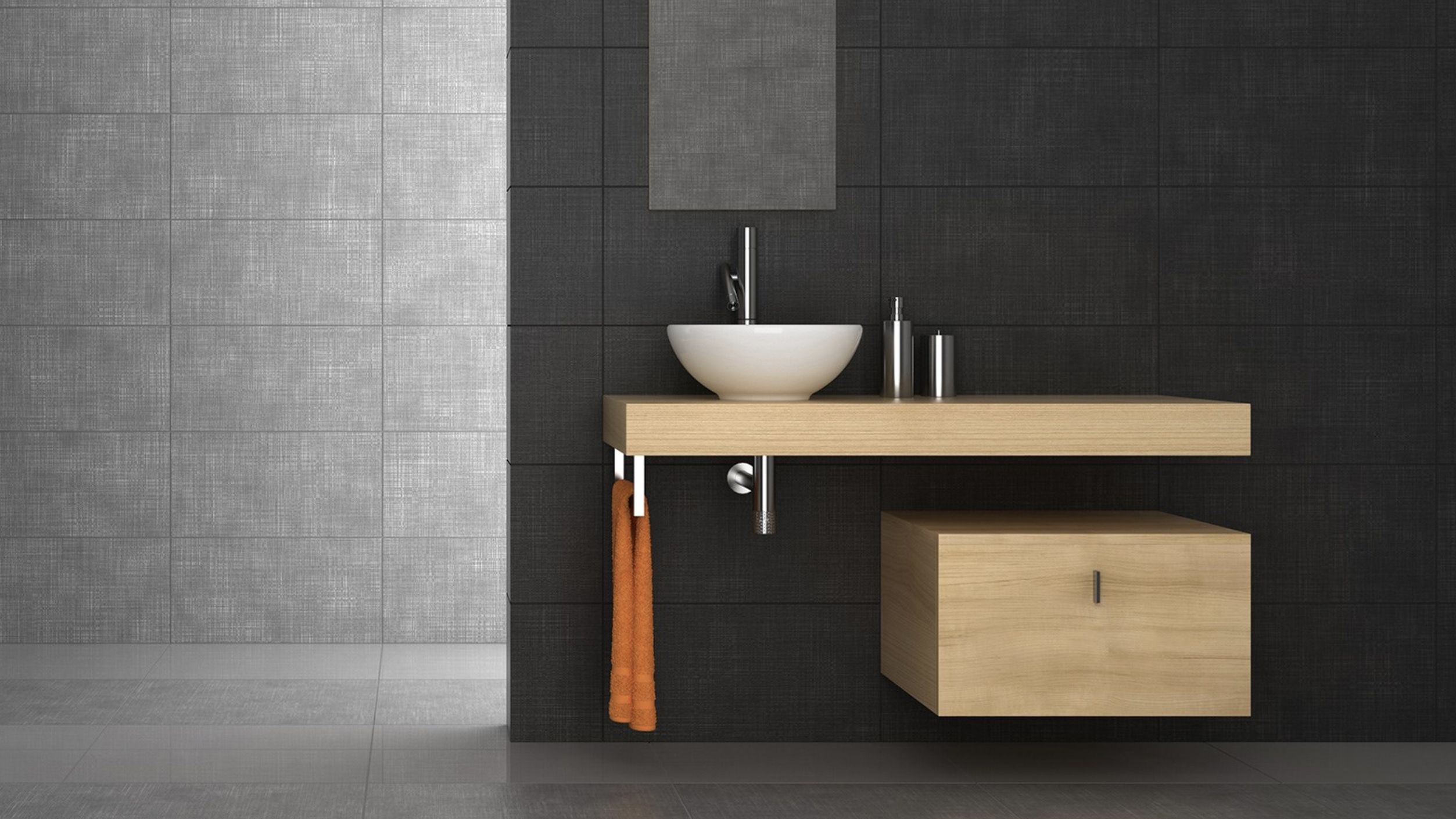

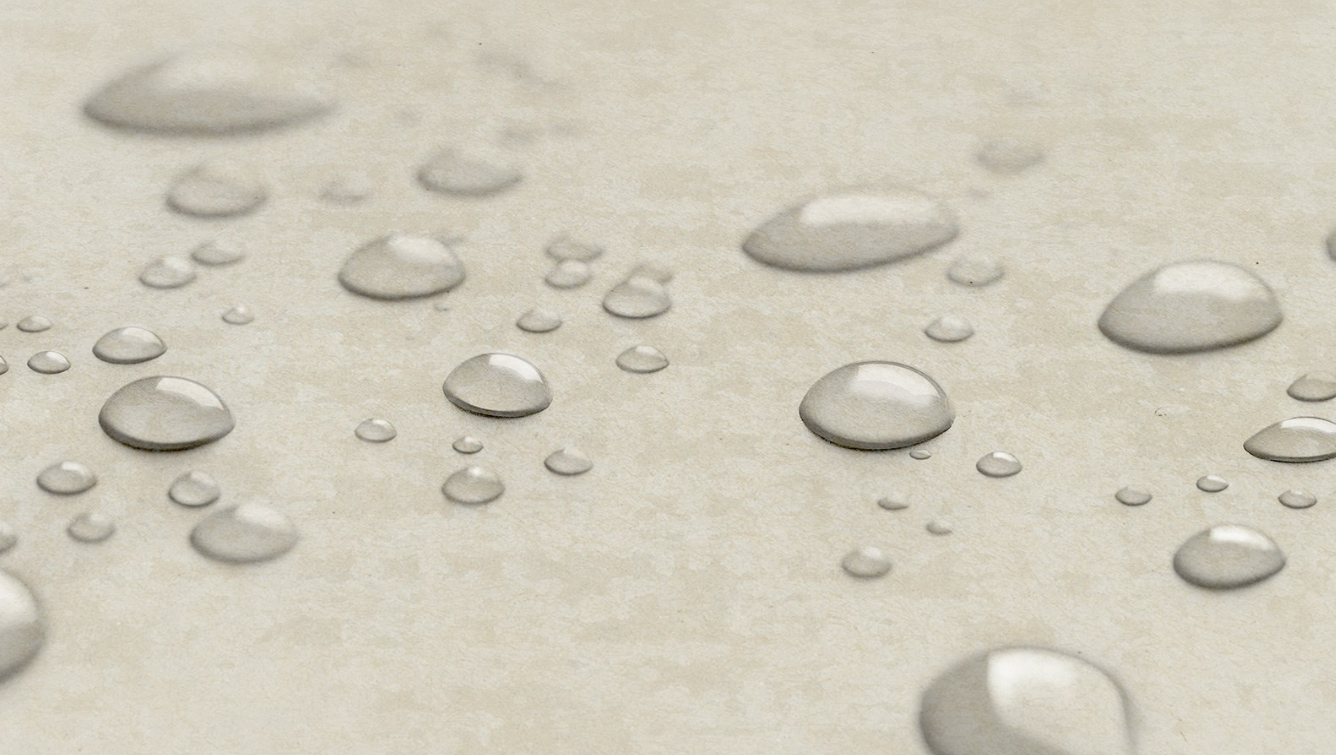

Suitable as a wet area internal lining and tile substrate product in kitchens, bathrooms and laundries.

Show more

Clause B1 Structure: Performance Clauses B1.3.1, B1.3.2, B1.3.3 (a, j), B1.3.4

Basis of Compliance: CeminSeal Wallboard complies with the requirements of AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets. The mechanical properties required for compliance with AS/NZS2908.2 are sufficient to meet the applied loads by inference from E2/AS1 para 9.6.3 (a) that specifies compliance with this standard for external cladding.

Related Documents:

• SIRIM QAS International Test Report 2019CB1447 October 2019 Tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets.
• Acceptable Solution E2/AS1 External Moisture.

Clause B2 Durability: Performance Clauses B2.3.1 (b) when used as a tile substrate, B2.3.1 (c), B2.3.2 (a)

Basis of Compliance: CeminSeal Wallboard complies with the requirements of AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets. The durability tests required for compliance with AS/NZS2908.2 (frost resistance, warm water, heat rain, soak dry) provide evidence of the durability of the product in service. The product also has a significant in-service history of use.

Related Documents:

• SIRIM QAS International Test Report 2019CB1447 October 2019 Tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets.

Clause C3 Fire affecting areas beyond the fire source: Performance Clauses C3.4 (a)

Basis of Compliance: CeminSeal Wallboard has a Material Group number of 1-S and is suitable for use in any location, regardless of building importance level or area of use.

Related Documents:

• Warrington Fire Test Report 45759 Issue 10.1 15 November 2019.
• Verification Method C/CV2 Protection from fire.

Clause E3 Internal Moisture: Performance Clauses E3.3.4, E3.3.5, E3.3.6

Basis of Compliance: Internal moisture by comparison with the requirements of E3/AS1 and tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets. Material specifications and construction details satisfy the requirements of Acceptable Solution E3/AS1 (Amendment 6) paras 3.1.2, 3.2.1, 3.3.1.

Related Documents:

• SIRIM QAS International Test Report 2019CB1447 October 2019 Tests to AS/NZS2908.2:2002 Cellulose cement products Part 2: Flat sheets.
•  Acceptable Solution E3/AS1.

Clause F2 Hazardous Building Materials: Performance Clauses F2.3.1

Basis of Compliance: CeminSeal Wallboard does not contain any substance that will give rise to harmful concentrations at the surface of the material where the material is exposed or in the atmosphere of any space.

Related Documents:

• CETEC Emission Test Certificate (August 2012)
• Cemintel Fibre Cement Safety Data Sheet

Clause G3 Food preparation and prevention of contamination: Performance Clauses G3.3.2 (a) (Contributes to)

Basis of Compliance: Acceptable Solution E3/AS1 para 3.1.2 allows (i) timber or timber-based products such as particleboard sealed with waterproof applied coatings. CeminSeal Wallboard, being a fibre cement based product sealed with a waterproof coating is at least equivalent to timber-based products with an applied waterproof coating in this environment.

Related Documents:

• SIRIM QAS International Test Report 2019CB1447 October 2019 Tests to AS/NZS2908.2:2002
• Cellulose cement products Part 2: Flat sheets.
• Acceptable Solution E3/AS1 Internal Moisture.

Technical and Installation Literature:

• Cemintel Wet Area Systems Design and Installation Guide.
