Cemintel Territory Cladding | Quarry

Description

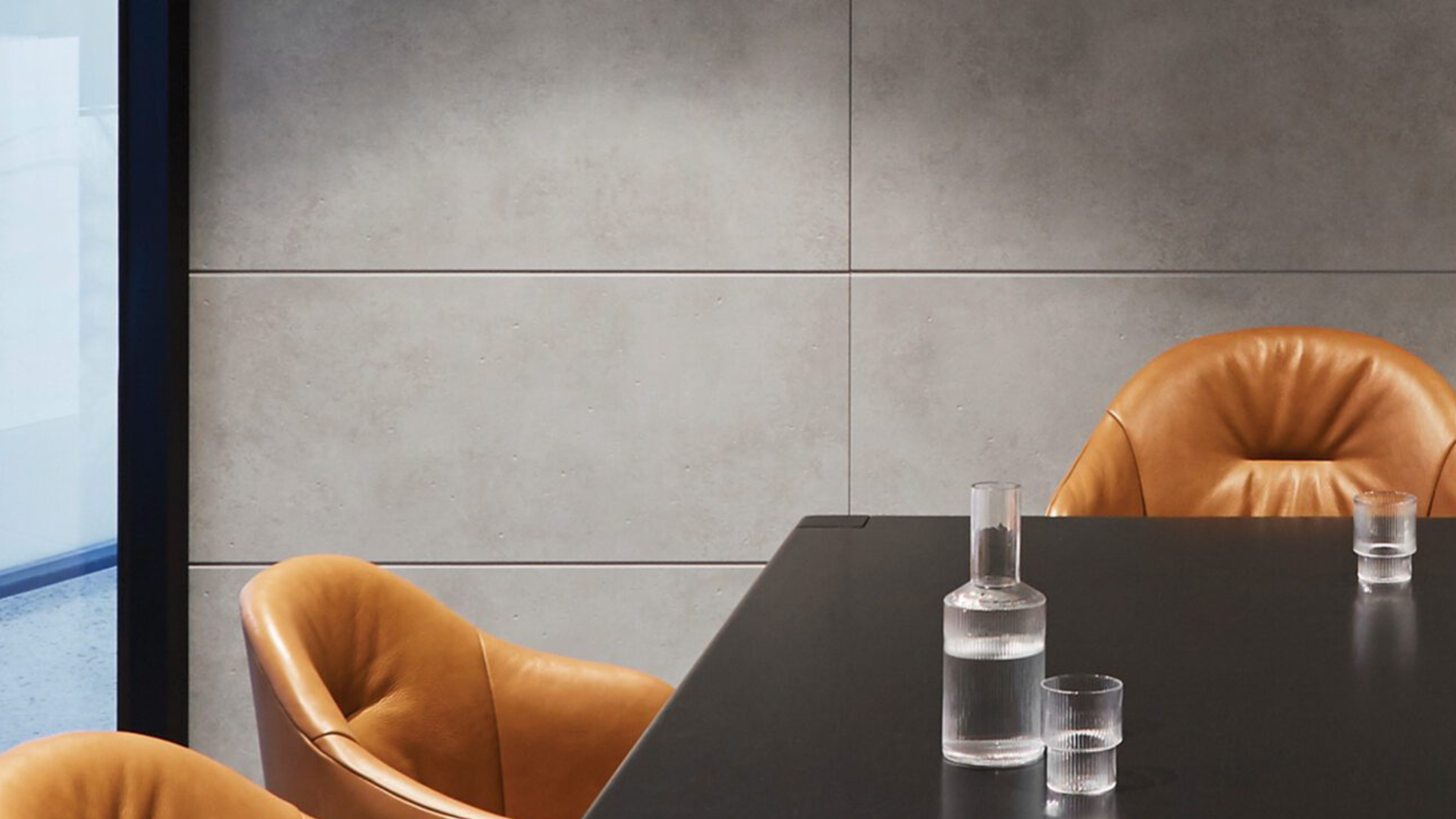

Cemintel Territory Quarry cladding offers a minimalist or industrial finish, exemplified by the understated look of concrete which suggests strength and solidity. Neutral hues blend seamlessly with stained timber and black metal, offering versatility in design. The surface of this profile has deliberate imperfections to add a touch of rugged elegance.

Choose Territory Quarry cladding for both exterior walls and internal linings for a chic, desired aesthetic. Available in 9 finishes:

Urban Grey
Concrete
Mottled Rustic Brick
Black Modern Brick
Grey Rustic Brick
White Rustic Brick
Mosaic White
Mosaic Ivory
Mosaic Brown

Territory System

Territory panelsare tongue and groove profiled along longest edges, and fit together to form a waterproof joint. The panels are secured with the panel clip, which is installed over a wall underlay or rigid air barrier. The system is installed over either timber frames, steel frames or masonry structure.

Panel:
- 3,030 x 455mm, nominal thickness 16mm
- Cement-bonded, fibrous wood particle panels
- Pre-finished using a durable multi-layer paint process and a Nichiguard stain resistant coating
Proprietary installation componentry:
- Back flashings, finished with a continuous sealant
- Panel clips
- Pre-formed external corners
- Ventilated vermin proof starter strip
- Corner trim and eave trim
- Backing strips and spacers

Key Features

Lightweight, pre-finished
Low maintenance
Meets fire requirements as a Type A cladding
Can be installed to timber, steel and masonry frames
Japanese designed and manufactured
Allows cladding to be installed horizontally or vertically
Territory cladding is compatible with Barestone and Surround cladding
CodeMark certified

Scope of Use

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
- Timber frame in accordance with NZS 3604:2011; or
- Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
- Masonry structures in accordance with NZS4229:2013; or,
In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)

Limitations on Use

The use of the Cemintel Territory wall cladding system with panel installation other than vertical or horizontal, on non-vertical surfaces (e.g. parapet capping) is outside the scope of the CodeMark certificate
The Cemintel Territory wall cladding system is not designed to have tiles or other materials applied to the face of panels
The Cemintel Territory wall cladding system must be installed and maintained in accordance with Cemintel New Zealand Design & Installation Guide — Territory Series

See CodeMark Certificate for full information.

Not suitable for use in wet areas such as bathrooms, or water features

Statement of Building Code Compliance

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

In-Service History

The manufacturer, Nichiha Corporation, has been producing the Territory Cladding (previously known as Designer Series, and also known as EX Series in some countries) since 1990.

The product is used significantly in Japan, as well as being exported to USA, Canada, China, Korea, Russia, parts of Europe and Australasia.

The product has been supplied in Australia since 2012 by CSR Cemintel. Cemintel is a business unit of CSR Building products and is distributed in New Zealand by CSR Building Products (NZ) LTD, a subsidary of CSR in Australia.

Other Performance Attributes

Warranty and Maintenance

The Cemintel Territory panels have a product warranty of 15 years. The full Cemintel Territory product warranty is available for download at cemintel.co.nz.

The durability of the Cemintel Territory range can be enhance by periodic inspection and maintenance. Inspections should include examination of the coatings, flashings and seals. See Inspection, Repair and Maintenance document for full information.
