Cemintel Pre-finished Ranges Now Available from CSR NZ

Cemintel Territory Cladding | Ridge

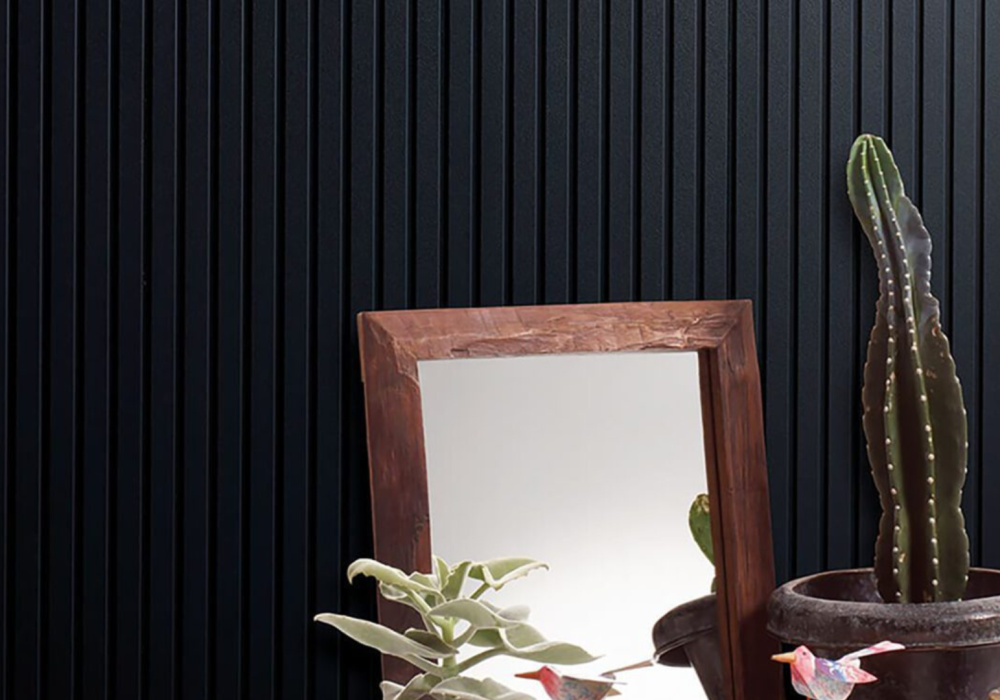

Cemintel Territory Ridge presents a modern solution for architectural cladding, boasting a corrugated design for contemporary aesthetics.

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
- Timber frame in accordance with NZS 3604:2011; or
- Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
- Masonry structures in accordance with NZS4229:2013; or,
In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
Masonry structures in accordance with NZS4229:2013; or,

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Cemintel Territory Cladding | Canyon

Cemintel

View Product

Imagine the charm of finger tiles, now in cladding panels.

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
- Timber frame in accordance with NZS 3604:2011; or
- Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
- Masonry structures in accordance with NZS4229:2013; or,
In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
Masonry structures in accordance with NZS4229:2013; or,

Extra High Wind Zone

Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

CodeMark

1S

Cemintel Territory Cladding | Woodlands

Cemintel

View Product

Cemintel® Territory™ Woodlands offers 10 stained timber-style wall cladding products that add warmth and character to building designs.

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
- Timber frame in accordance with NZS 3604:2011; or
- Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
- Masonry structures in accordance with NZS4229:2013; or,
In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
Masonry structures in accordance with NZS4229:2013; or,

Extra High Wind Zone

Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

CodeMark

1S

Cemintel Territory Cladding | Quarry

Cemintel

View Product

Cemintel Territory Quarry cladding offers a minimalist or industrial finish, exemplified by the understated look of concrete which suggests strength and solidity.

Cemintel panels are designed for use externally or internally for residential and commercial buildings.

The Cemintel Territory wall cladding system has been assessed by CodeMark for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:
- Timber frame in accordance with NZS 3604:2011; or
- Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
- Masonry structures in accordance with NZS4229:2013; or,
In any Timber, Steel framed or masonry building that has been subject to Specific Engineering Design by a qualified engineer up to a ULS Design Wind Pressure of +6.0 / -6.0 kPa for horizontal installation and +2.6 / -3.3 kPa for vertical installation; and,
With Aluminium window and door joinery that meets the requirements of NZS 4211:2008 and is installed with vertical jambs and horizontal heads and sills; and,
In exposure Zones B, C and D as defined in NZS3604:2011. Microclimatic Conditions (refer NZS3604:2011 paragraph 4.2.4) are outside the scope of this certificate; and,
Within 1 metre of the relevant boundary (subject to other fire related code compliance requirements)

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
Masonry structures in accordance with NZS4229:2013; or,

Extra High Wind Zone

Specific Design Wind Zone

The Cemintel Territory wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and either the Cemintel New Zealand Design & Installation Guide — Territory Series External Horizontal Installation (FCNZ503 March 2019) or Cemintel New Zealand Design & Installation Guide — Territory Series External Vertical Installation (FCNZ523 March 2019) as applicable for the direction of installation (collectively referenced as 'Cemintel New Zealand Design & Installation Guide – Territory Series') will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Territory wall cladding system meets these requirements
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Territory wall cladding system meets this requirement
Clause C2- C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Territory wall cladding system meets this requirement
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Territory wall cladding system meets this requirement
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Territory wall cladding system meets this requirement

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

CodeMark

1S

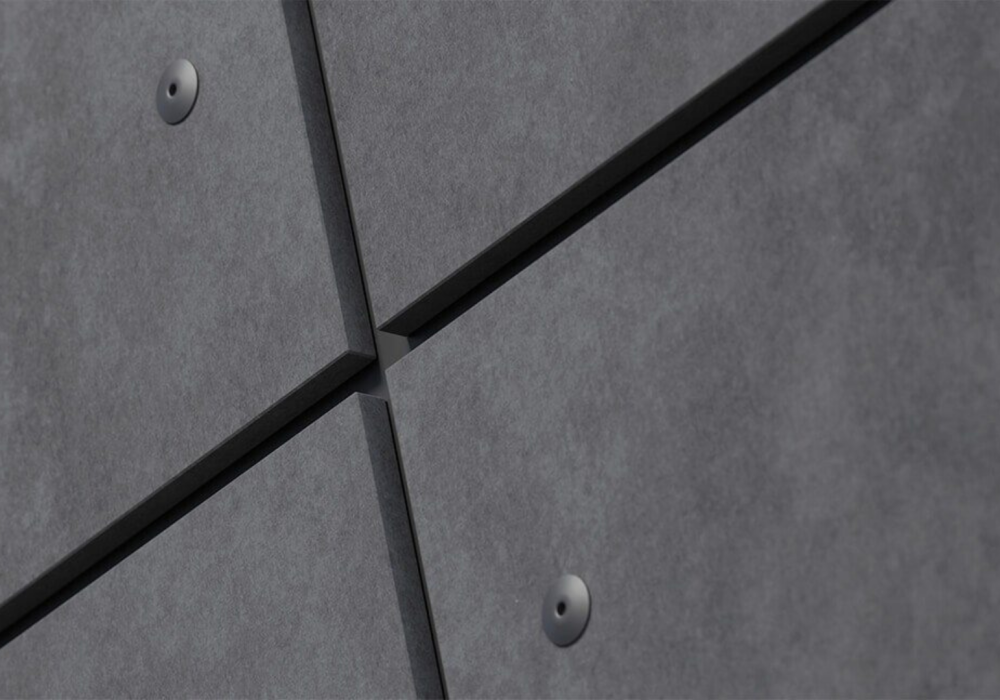

Cemintel Barestone Cladding

Cemintel

View Product

Barestone cladding panels are 9mm thick and square edged creating a geometric panelized aesthetic.

The Cemintel Barestone wall cladding system has been assessed for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria: 2005; or
Masonry structures in accordance with NZS4229:2013;

Specifically engineering design in accordance with B1/VM1 and referenced loading standards AS/NZS 1170 and materials standards for:

Ultimate Limit State (ULS) wind pressure up to 6kpa
Serviceability Limit State (SLS) wind pressure up to 2.5kpa when installed as a pressure equalised system provided the stiffness of the structural frame limits deflections to span/250 for the serviceability wind loads.

In exposure Zones B, C and D (except microclimates) as defined in NZS3604:2011. except for fixing to Masonry which is limited to zones B & C.

Corrosion Exposure Zone D

Extra High Wind Zone

Specific Design Wind Zone

The Cemintel Barestone wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and the Cemintel New Zealand Design & Installation Guide — Barestone External Installation Cemintel Barestone FCNZ604 July 2023, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Barestone wall cladding system meets these requirements.
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Barestone wall cladding system meets these requirements.
Clause C2-C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Barestone wall cladding system meets these requirements.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Barestone wall cladding system meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Barestone wall cladding system meets these requirements.

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

CodeMark

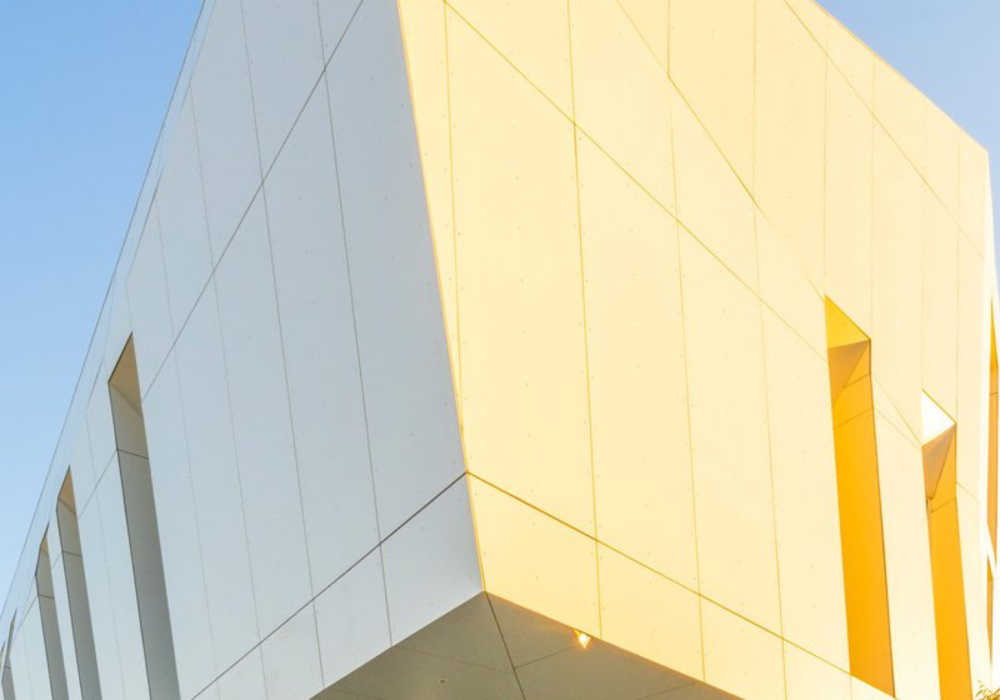

Cemintel Surround Cladding

Cemintel

View Product

Cemintel® Surround™ Whiteish is a white cladding with a hint of warm pigments reminiscent of alabaster.

The Cemintel Surround wall cladding system has been assessed for use as an external wall cladding system on buildings:

Within the scope limitations of the New Zealand Building Code (NZBC) Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area, for buildings situated in Wind Zones up to and including Extra High, as defined in NZS3604:2011, constructed with:

Timber frame in accordance with NZS 3604:2011; or
Steel frame in accordance with NZS3404:2009 Part 1 and NASH Standard — Residential and Low-Rise Steel Framing Part 1: Design Criteria:2005; or
Masonry structures in accordance with NZS4229:2013;

Specifically engineering design in accordance with B1/VM1 and referenced loading standards AS/NZS 1170 and materials standards for:

Ultimate Limit State (ULS) wind pressure up to 6kpa
Serviceability Limit State (SLS) wind pressure up to 2.5kpa when installed as a pressure equalised system provided the stiffness of the structural frame limits deflections to span/250 for the serviceability wind loads.

In exposure Zones B, C and D (except microclimates) as defined in NZS3604:2011. except for fixing to Masonry which is limited to zones B & C.

Corrosion Exposure Zone D

Extra High Wind Zone

Specific Design Wind Zone

The Cemintel Surround wall cladding system if designed, used, installed and maintained in accordance with the scope of the CodeMark Certificate and the Cemintel New Zealand Design & Installation Guide — Barestone External Installation Cemintel Barestone FCNZ604 April 2024, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2, and B1.3.4 (b), (c), (d) and (e) for the relevant physical conditions of B1.3.3 (a), (f), (h), (j) and (q). The Cemintel Surround wall cladding system meets these requirements.
Clause B2 DURABILITY: Performance B2.3.1 (b) no less than 15 years. The Cemintel Surround wall cladding system meets these requirements.
Clause C2-C6 PROTECTION FROM FIRE: C3.5 and C3.7 (b) and (c). The Cemintel Surround wall cladding system meets these requirements.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2 and E2.3.7. The Cemintel Surround wall cladding system meets these requirements.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Cemintel Surround wall cladding system meets these requirements.

Structure

Durability

Protection from Fire

External Moisture

Hazardous Building Materials

CodeMark
