Residential Sliding Windows
VANTAGE Windows & Doors
All products
For high-performance double-glazing, explore AGP’s product range available now Explore

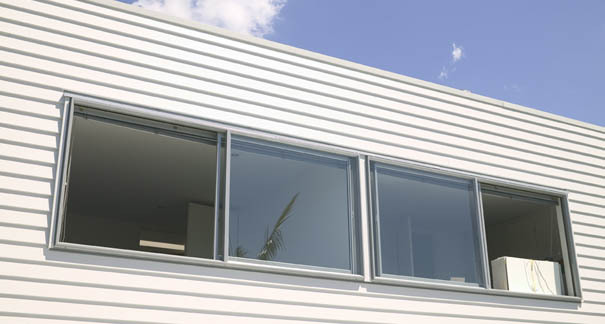

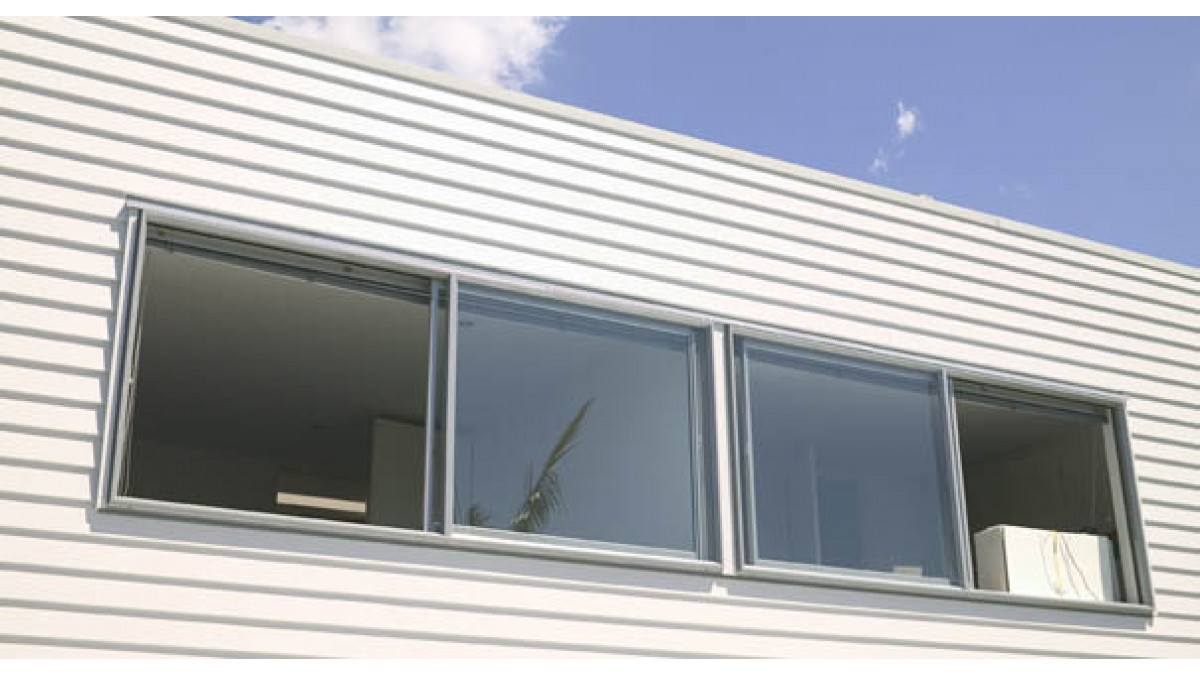

Shanahan SlidemasterC26V5946
Sliding windows allowing fresh air into the living space

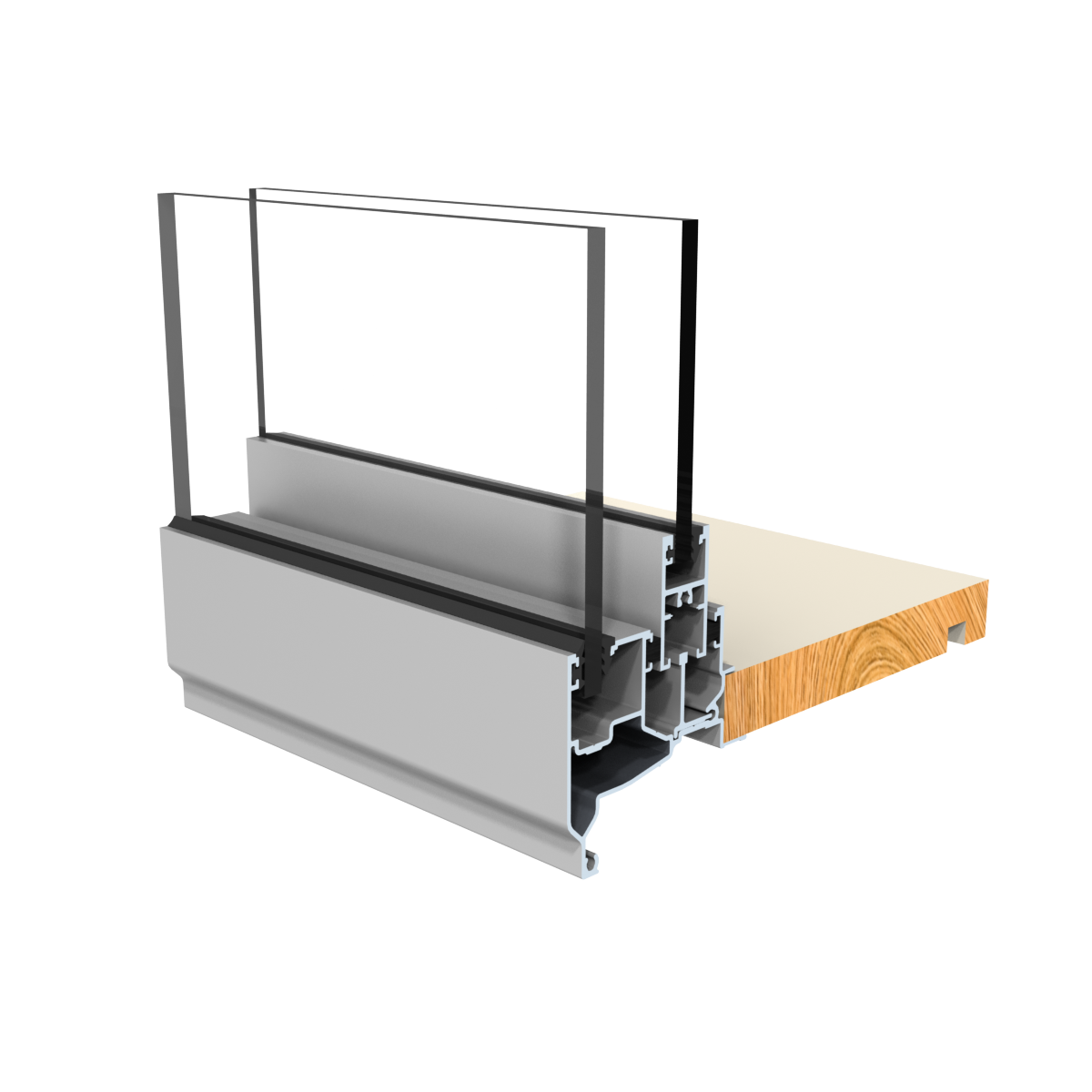

7 Slimline Cross Section First
The Slimline sliding window, as with the Slidemaster, slides on the inside

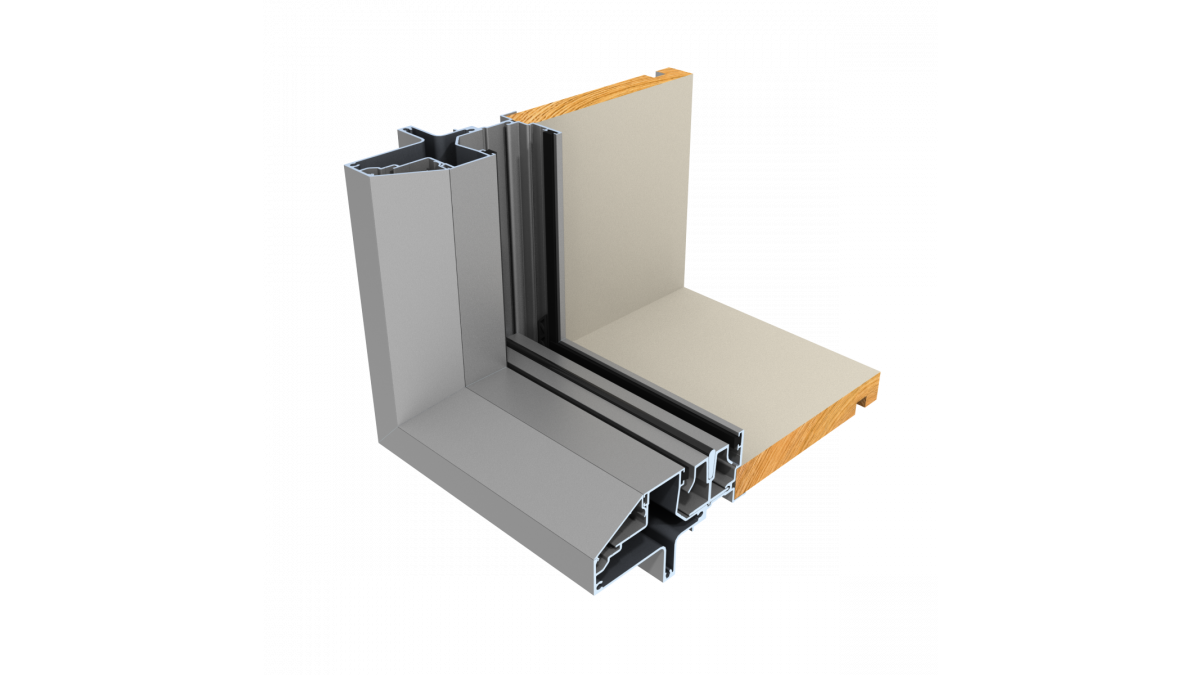

8 Slidemaster Corner New Frame
The Slidemaster track has a flush sill (single slider shown)

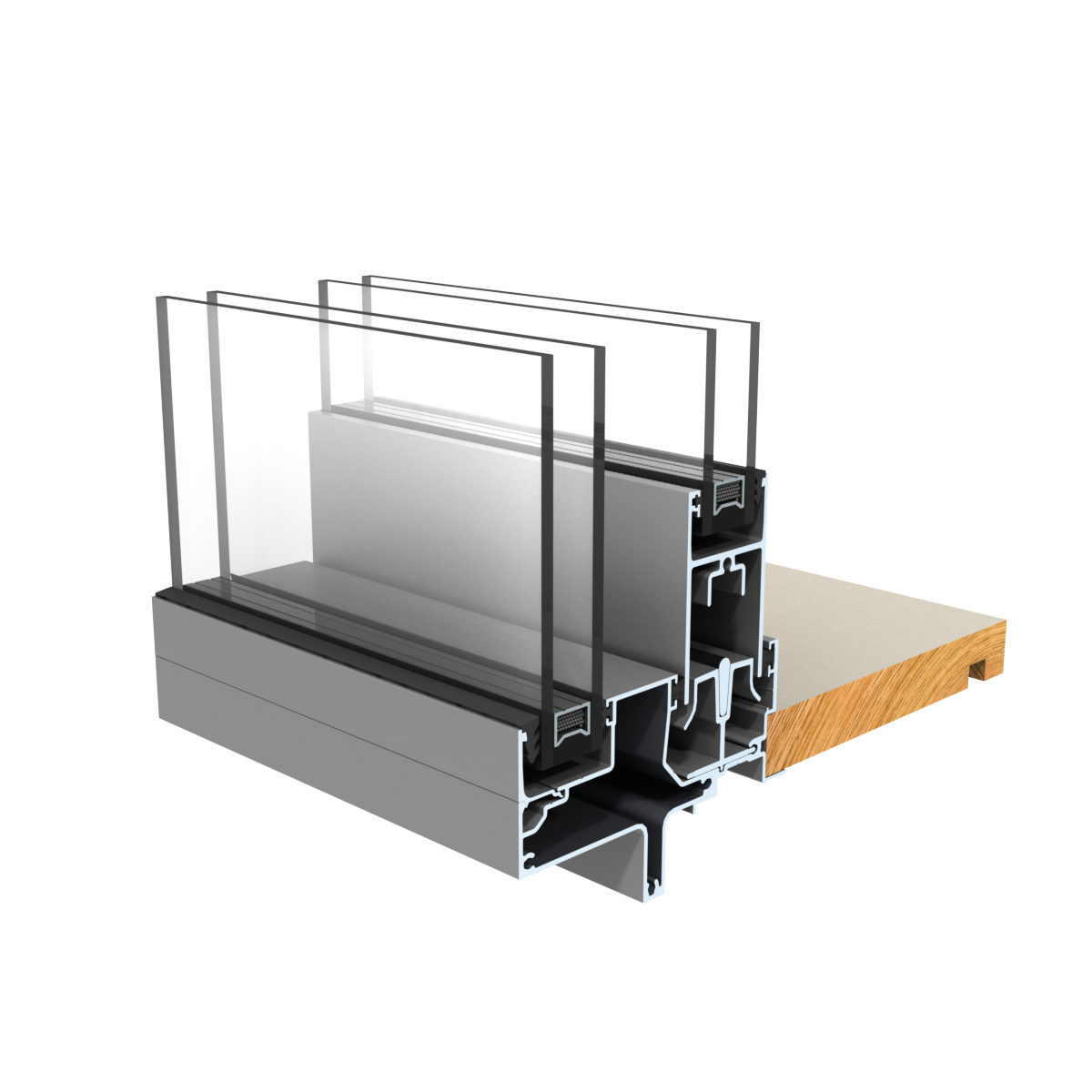

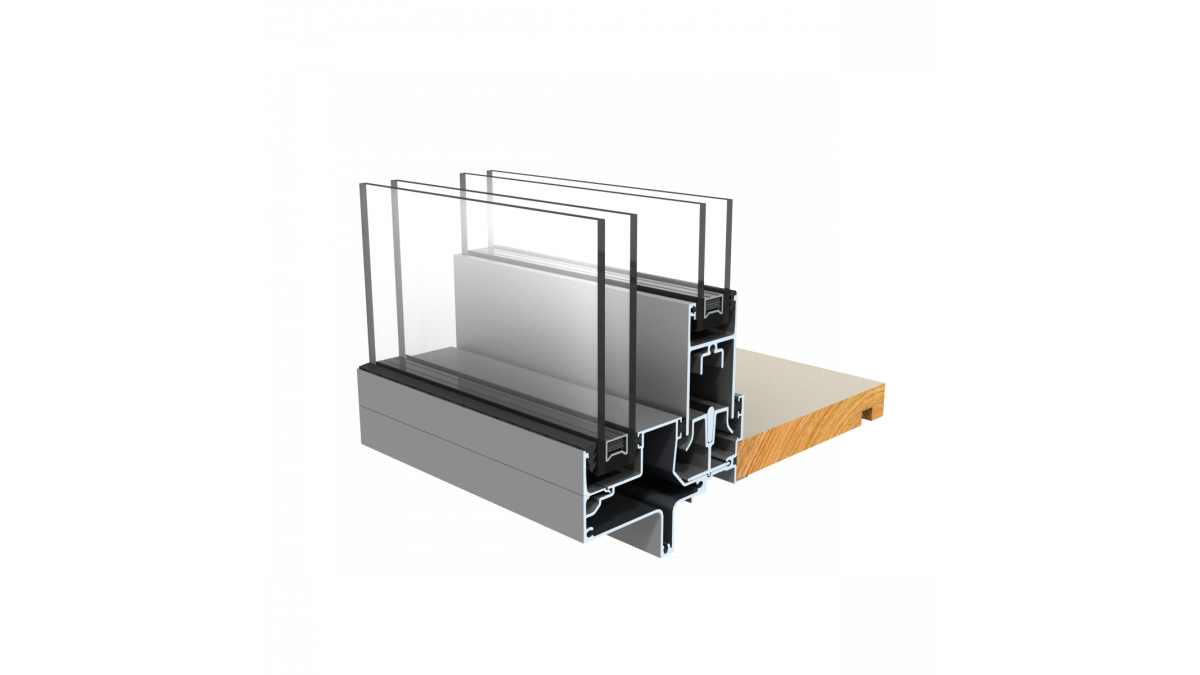

6 Slidemaster Cross Section New Frame
Slidemaster sliding window

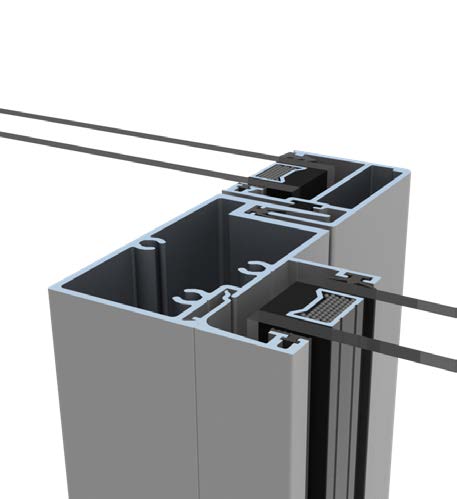

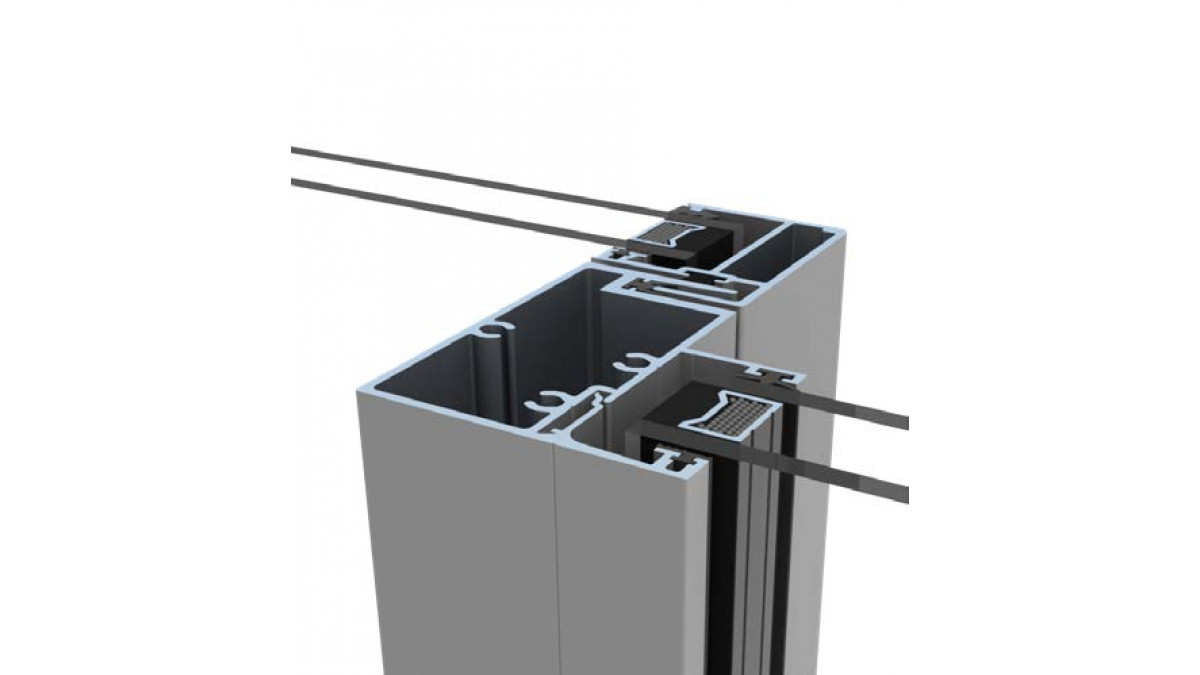

Slidemaster interlocker stiles are flush in the closed position.
Slidemaster interlocker stiles are flush in the closed position
Description

This is a high specification horizontal sliding window with strong profiles suitable for double glazing and significant spans.

Double sliding panels are possible where the choice of opening format exists. Windows incorporating a timber shutter for privacy and sun screening are also available. Overlights can be included.

Key Features
  • For mainstream residential use
  • Two ranges available — Slimline (single glaze only) and a heavier duty Slidemaster range
  • Wide opening is possible in bi-parting or stacking configurations
  • Double sliding panels are available where two panels slide past each other
  • Overlights are possible
  • Corner sliders without a corner post are possible with the Slidemaster range
Categories
Sliding Windows
Ranges
Residential Series
Scope of Use
  • Suitable for most applications where non-projecting windows are desired
  • Need to be used in defined maximum sizes according to the wind exposure
  • A good option for servery windows
  • Work well with insect screens
Limitations on Use
  • Slimline option only available with single glazing
  • Consider the ease of reaching to the window catch if the sliding panel is placed beyond a bench
  • Some weather protection above e.g. wide eaves recommended to protect open windows
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Extensively used in residential projects throughout New Zealand for more than 40 years with continuous design upgrades
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Span Tables
pdf
Declare Label

2025

pdf
Specifier Guide
pdf
Vantage on Masterspec
URL
Manufacturer Contact List
URL
WGANZ Guide to E2/AS1

1 August 2019

pdf
Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Vantage Brochure
URL
AGP Cleaning & Maintenance
pdf
AGP Condensation Guide
pdf
AGP Visual Quality of Glass
pdf
APL and Sustainability

2019

URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

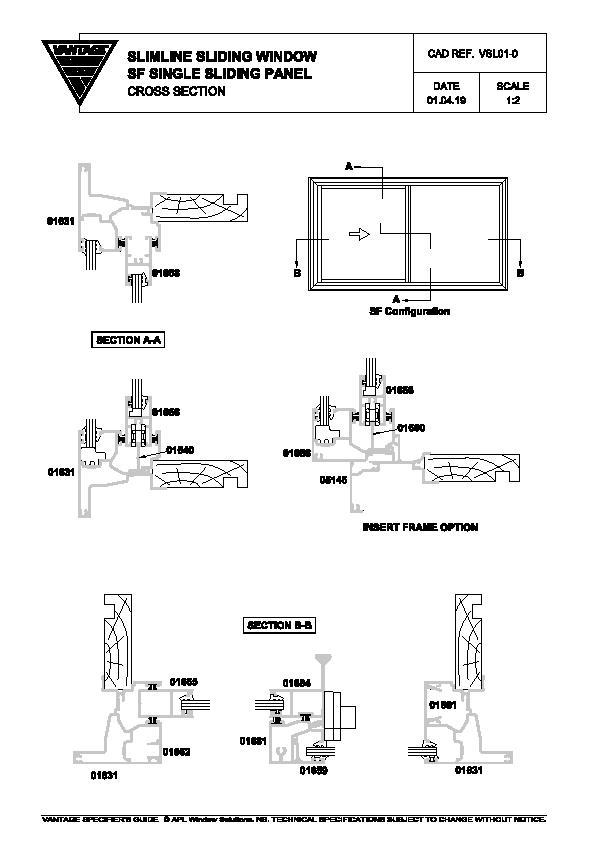

Vantage Residential Slimline Sliding Window SF Single Sliding Panel

VSL01-0

dwf
dwg
dxf
pdf

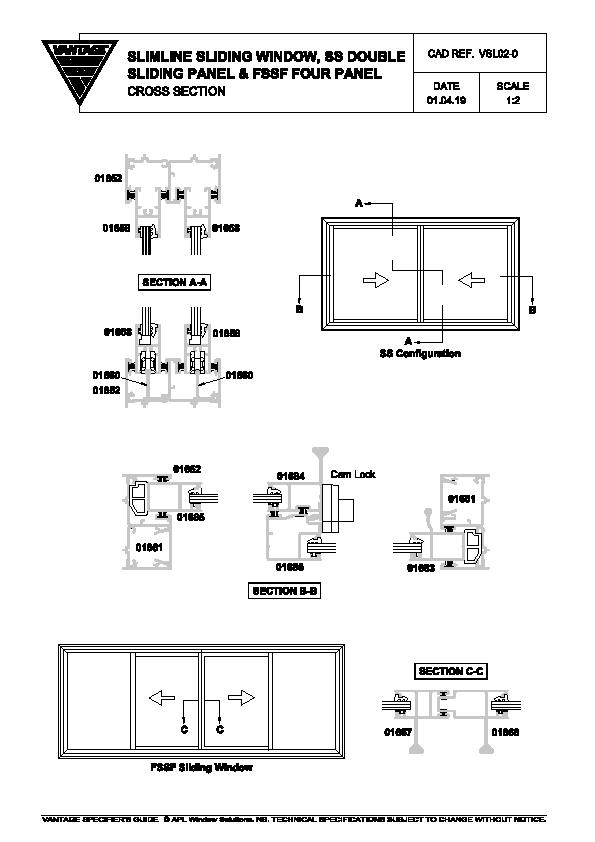

Vantage Residential Slimline Sliding Window SS Double Sliding Panel

VSL02-0

dwf
dwg
dxf
pdf

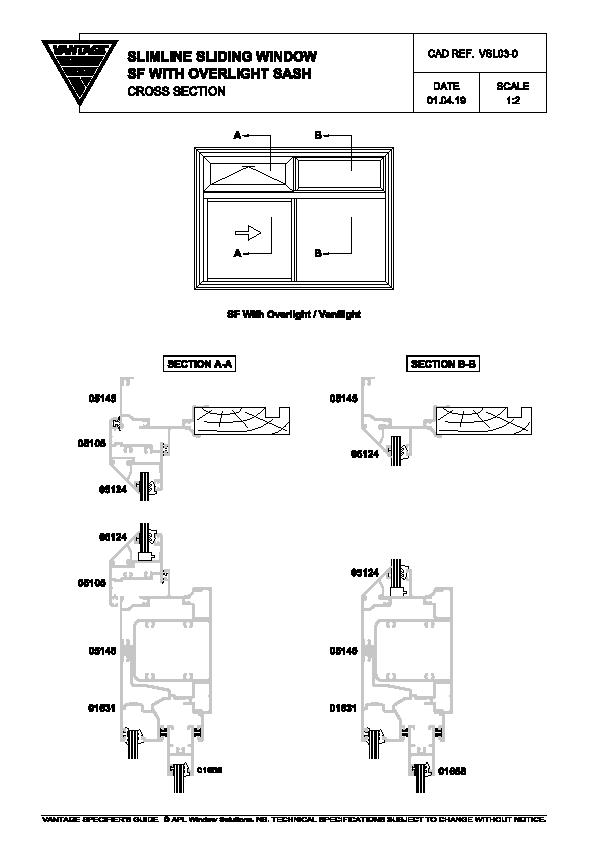

Vantage Residential Slimline Sliding Window SF with Overlight / Ventlight

VSL03-0

dwf
dwg
dxf
pdf

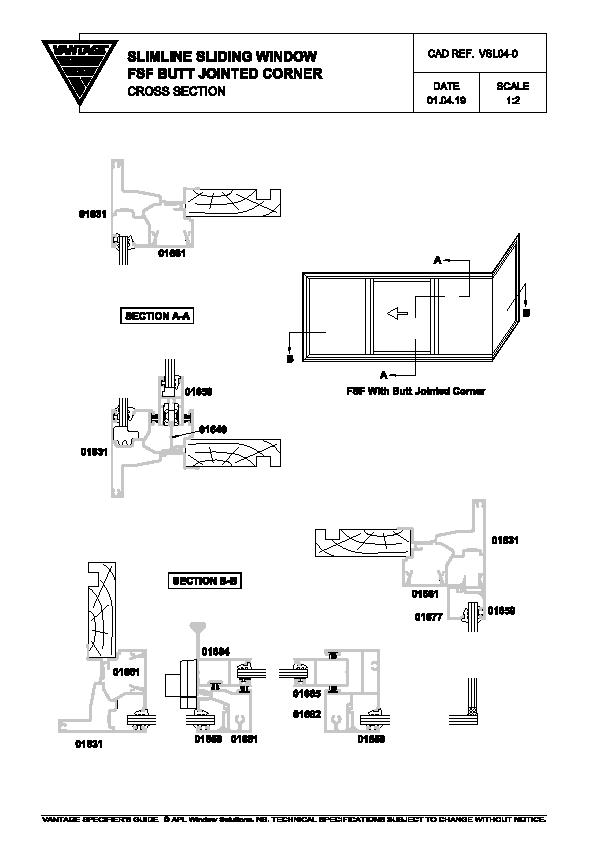

Vantage Residential Slimline Sliding Window FSF Butt Corner

VSL04-0

dwf
dwg
dxf
pdf

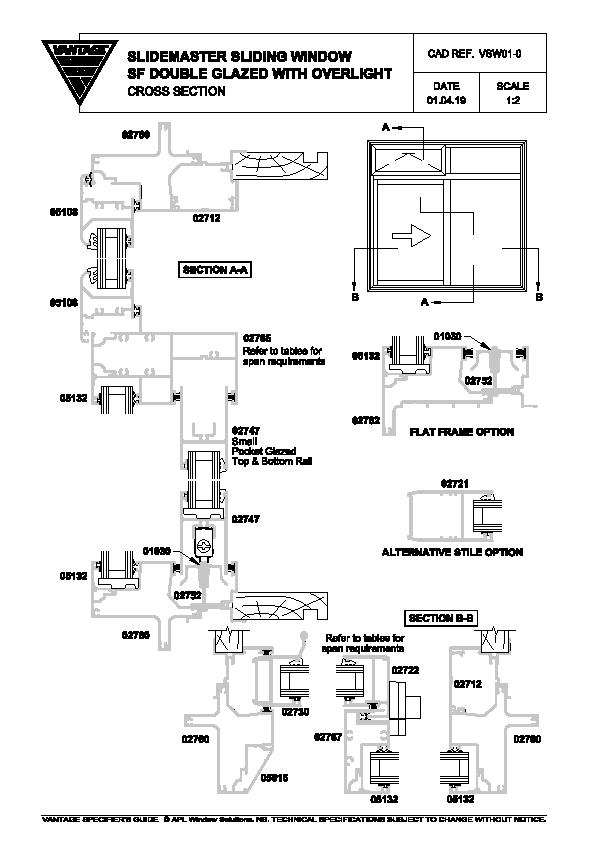

Vantage Residential Slidemaster Sliding Window SF Double Glazed with Overlight

VSW01-0

dwf
dwg
dxf
pdf

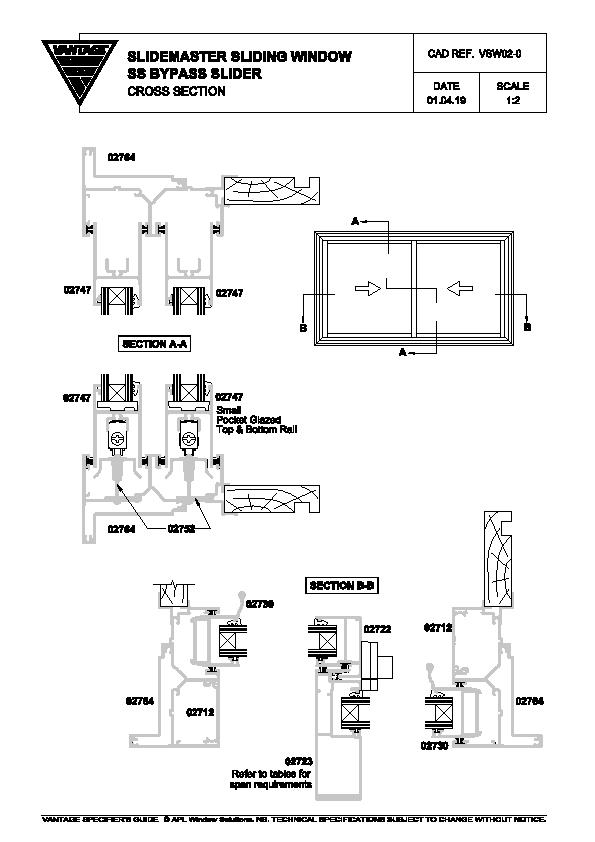

Vantage Residential Slidemaster Sliding Window SS Bypass Slider

VSW02-0

dwf
dwg
dxf
pdf

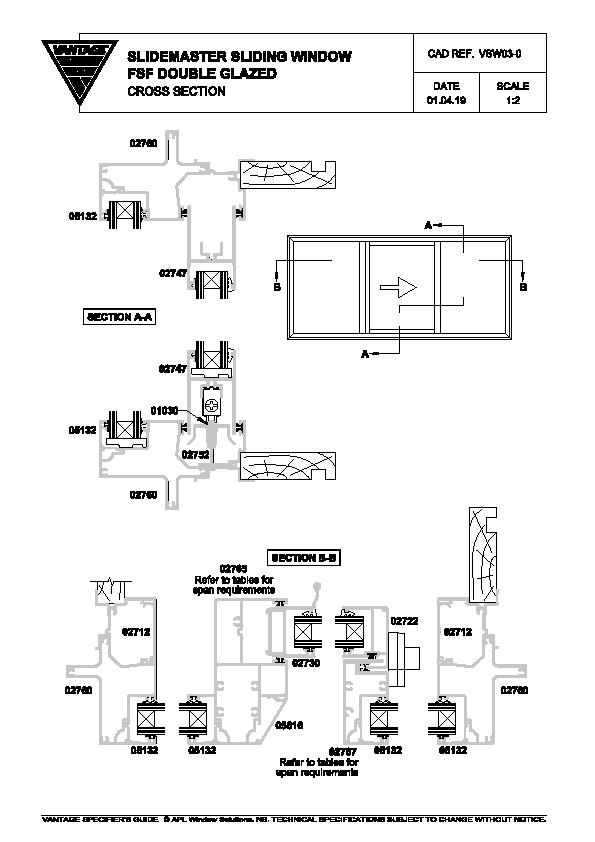

Vantage Residential Slidemaster Sliding Window FSF Double Glazed

VSW03-0

dwf
dwg
dxf
pdf

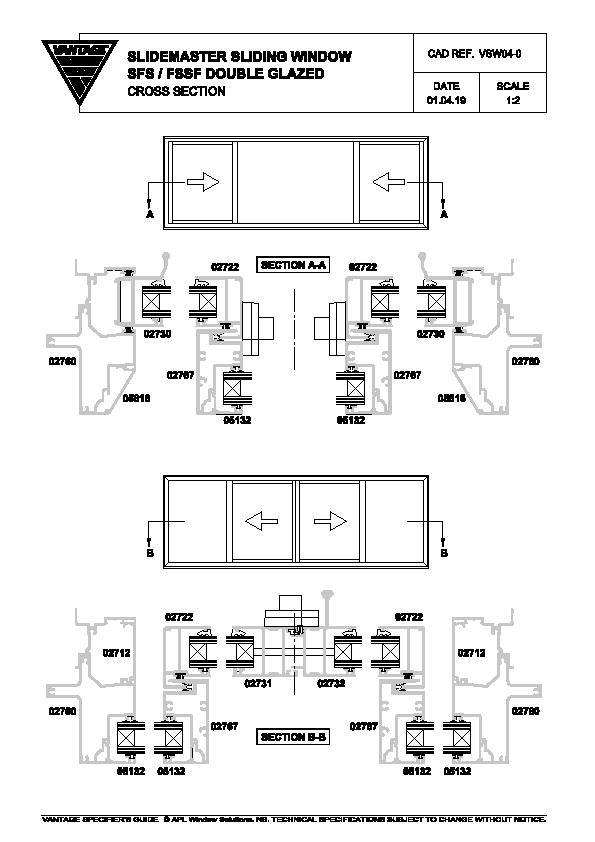

Vantage Residential Slidemaster Sliding Window SFS / FSSF Double Glazed

VSW04-0

dwf
dwg
dxf
pdf

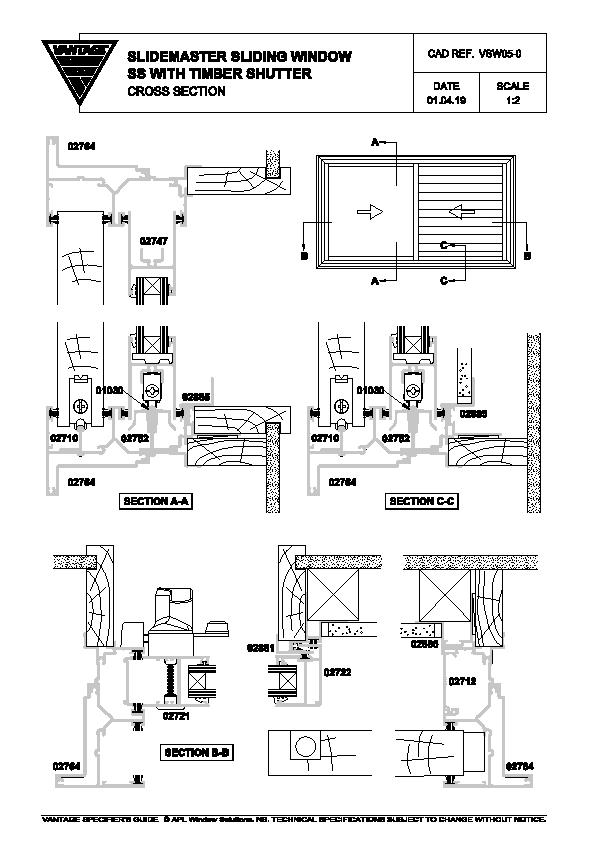

Vantage Residential Sliding Window SS with Timber Shutter

VSW05-0

dwf
dwg
dxf
pdf
Installation Details
View full

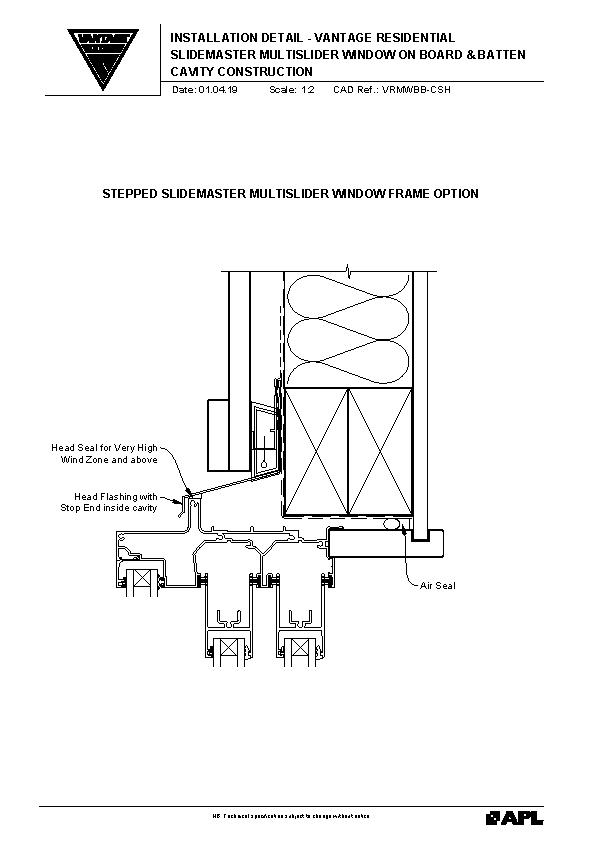

Vantage Residential Slidemaster Multislider on Board & Batten

VRMWBB

dwg
pdf

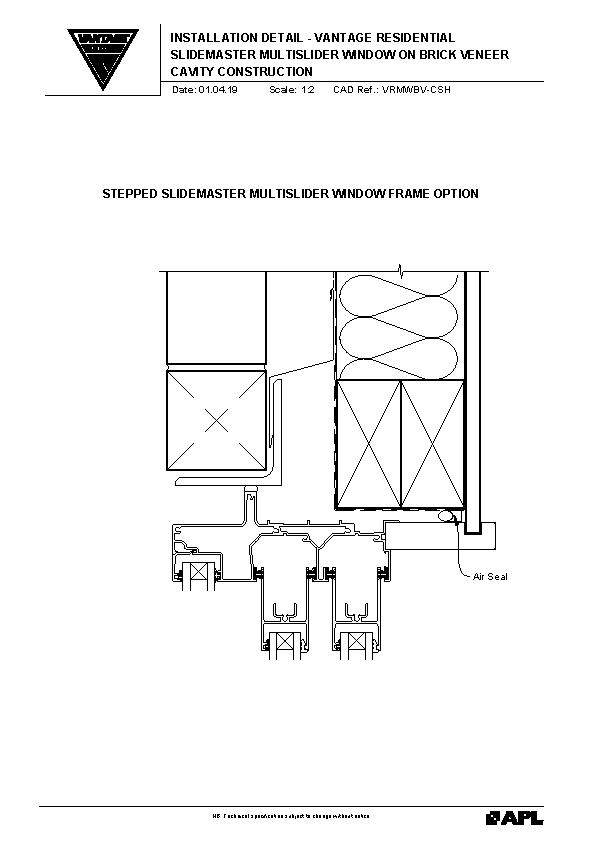

Vantage Residential Slidemaster Multislider on Brick Veneer

VRMWBV

dwg
pdf

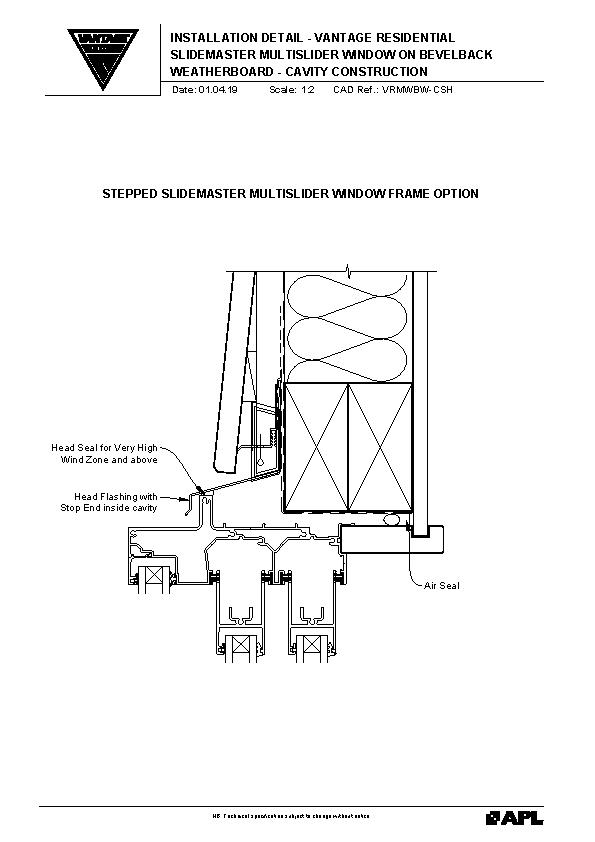

Vantage Residential Slidemaster Multislider on Bevelback Weatherboard

VRMWBW

dwg
pdf

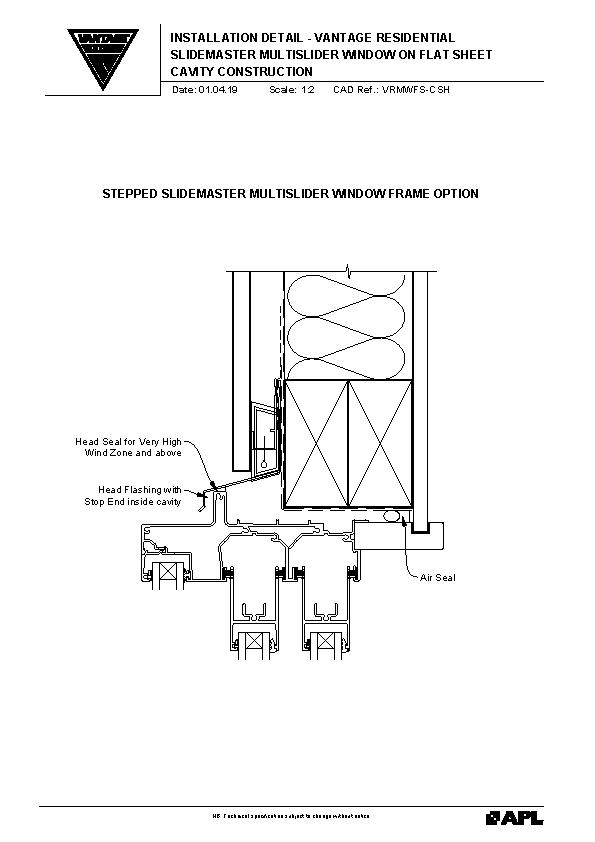

Vantage Residential Slidemaster Multislider Window on Flat Sheet

VRMWFS

dwg
pdf

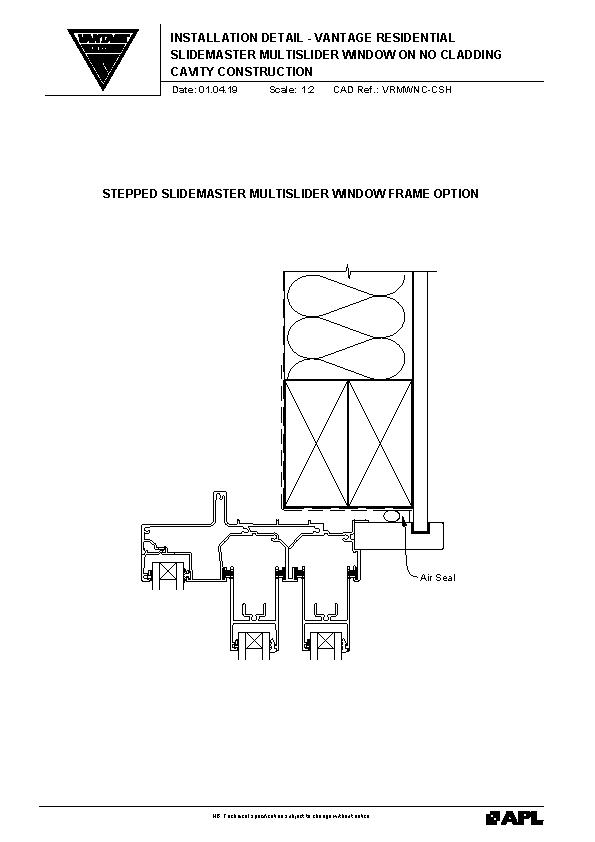

Vantage Residential Slidemaster Multislider Window on No Cladding

VRMWNC

dwg
pdf

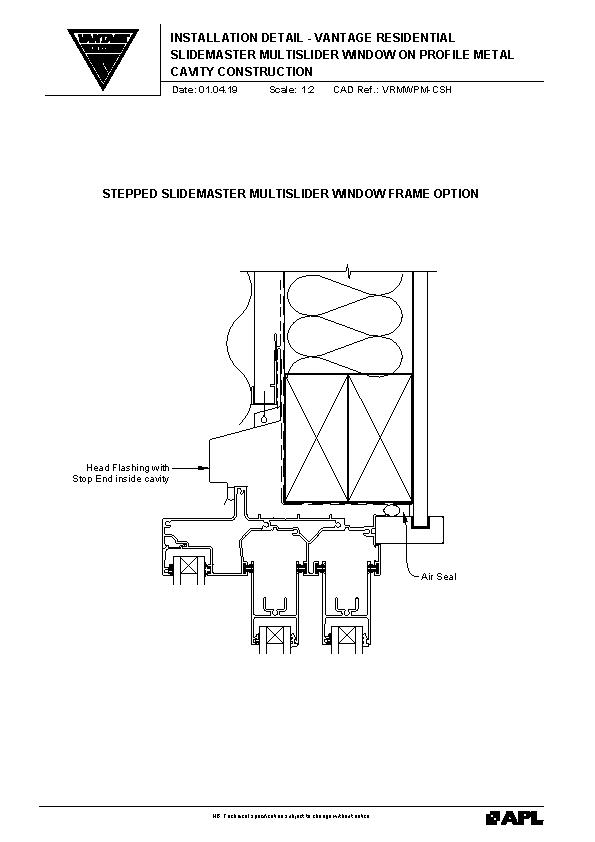

Vantage Residential Slidemaster Multislider on Profile Metal

VRMWPM

dwg
pdf

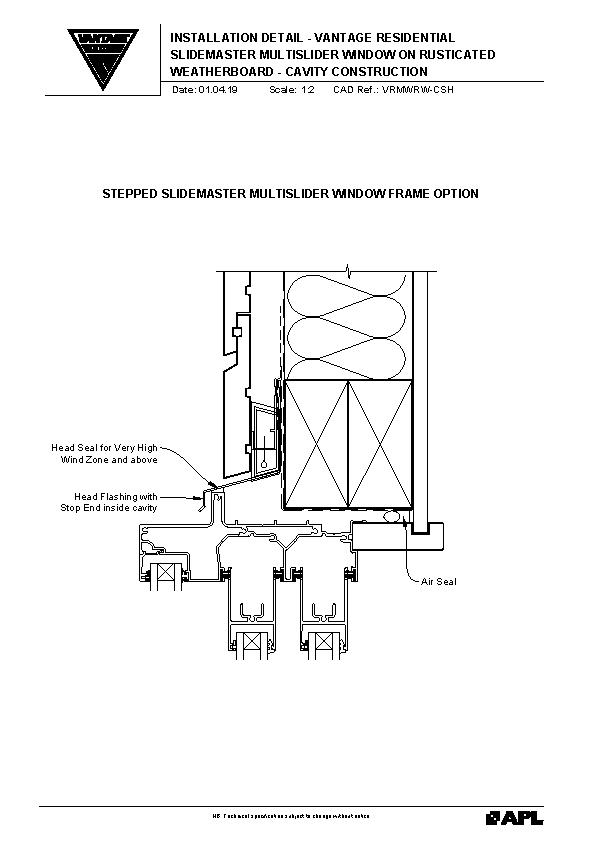

Vantage Residential Slidemaster Mulitslider on Rusticated Weatherboard

VRMWRW

dwg
pdf
Vantage Residential Slidemaster Multislider on Stucco

VRMWST

dwg
pdf

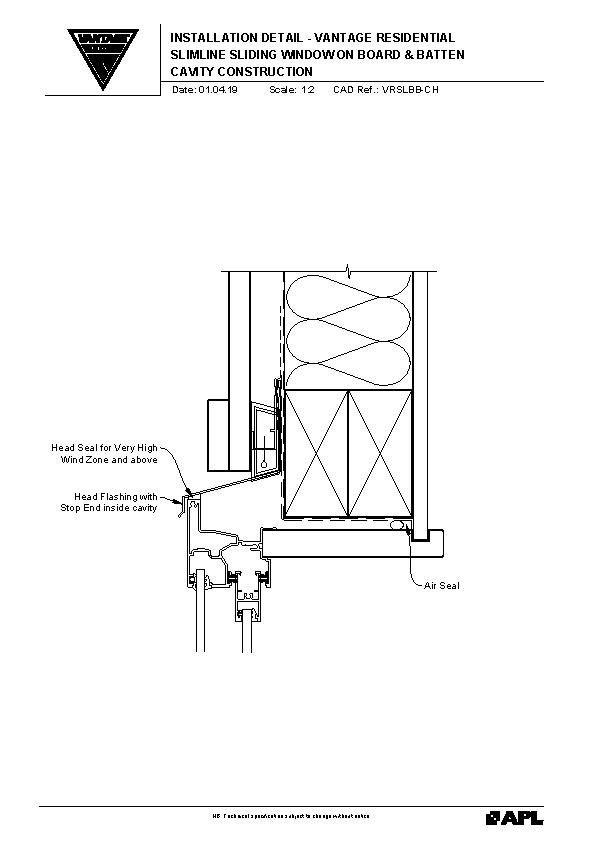

Vantage Residential Slimline Sliding Window on Board and Batten

VRSLBB

dwg
pdf

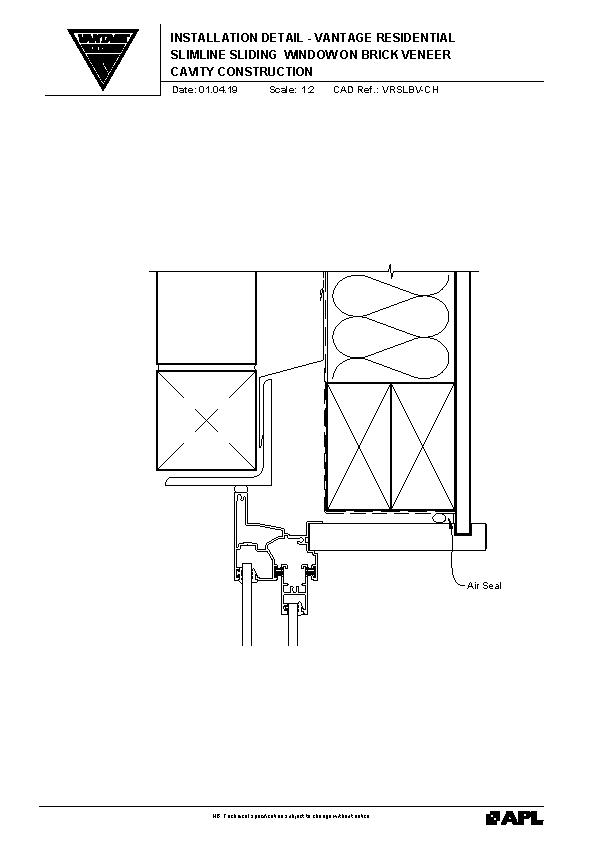

Vantage Residential Slimline Sliding Window on Brick Veneer

VRSLBV

dwg
pdf

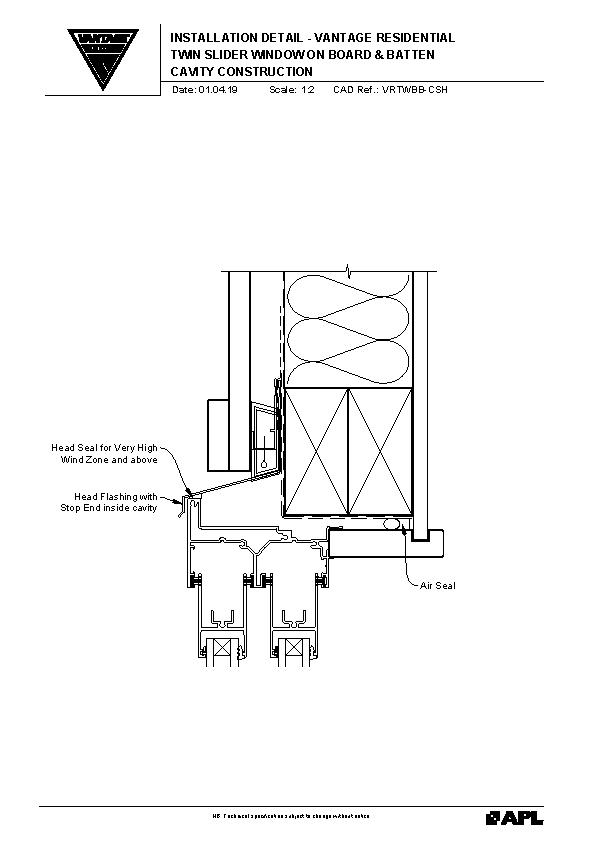

Vantage Residential Twin Slider Window on Board and Batten

VRTWBB

dwg
pdf

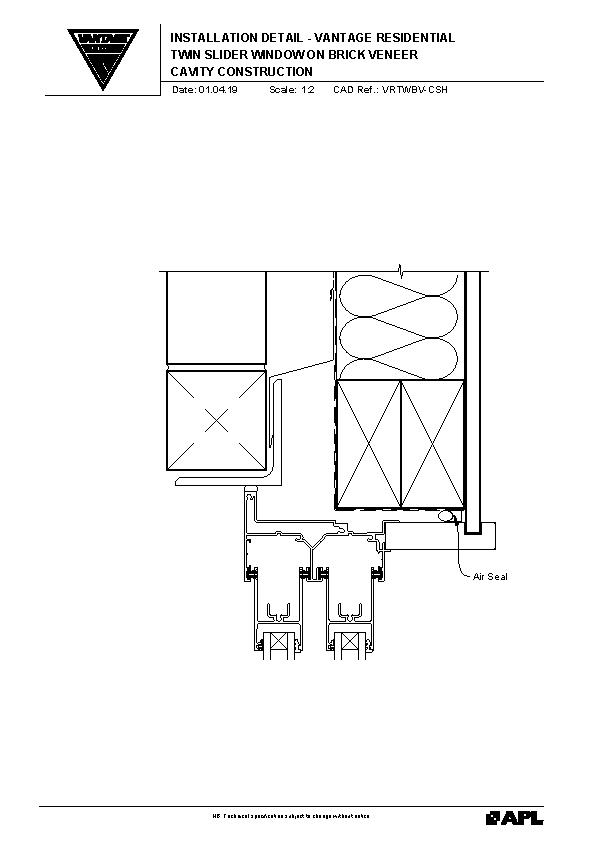

Vantage Residential Twin Slider Window on Brick Veneer

VRTWBV

dwg
pdf

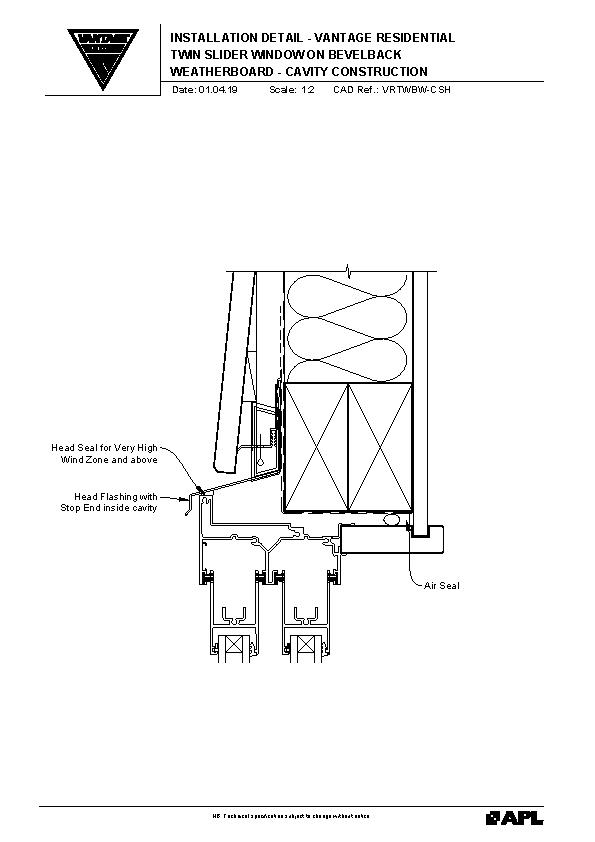

Vantage Residential Twin Slider Window on Bevelback Weatherboard

VRTWBW

dwg
pdf

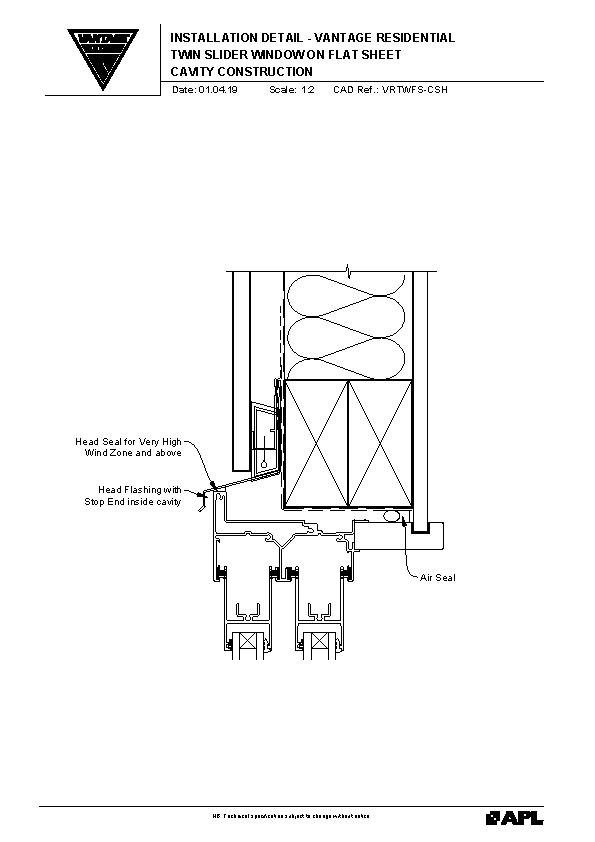

Vantage Residential Twin Slider Window on Flat Sheet

VRTWFS

dwg
pdf

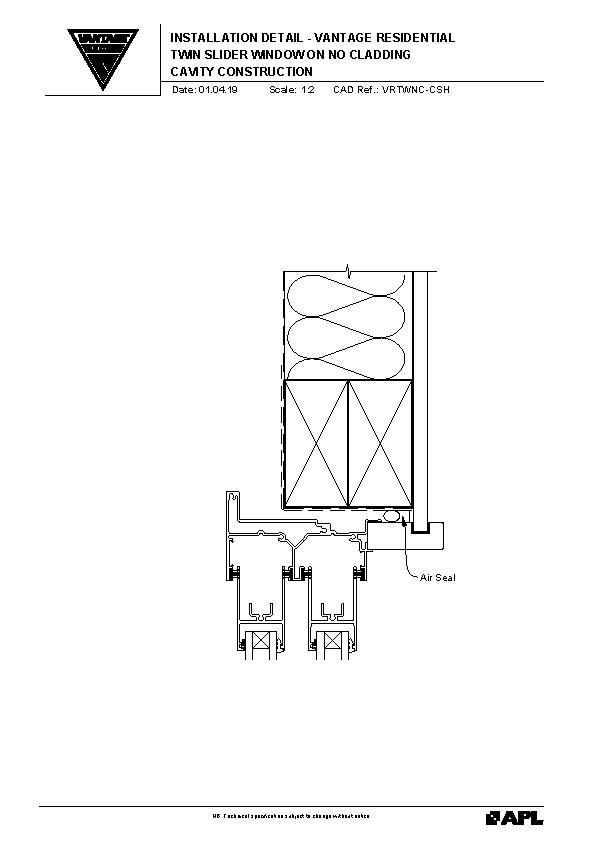

Vantage Residential Twin Slider Window on No Cladding

VRTWNC

dwg
pdf

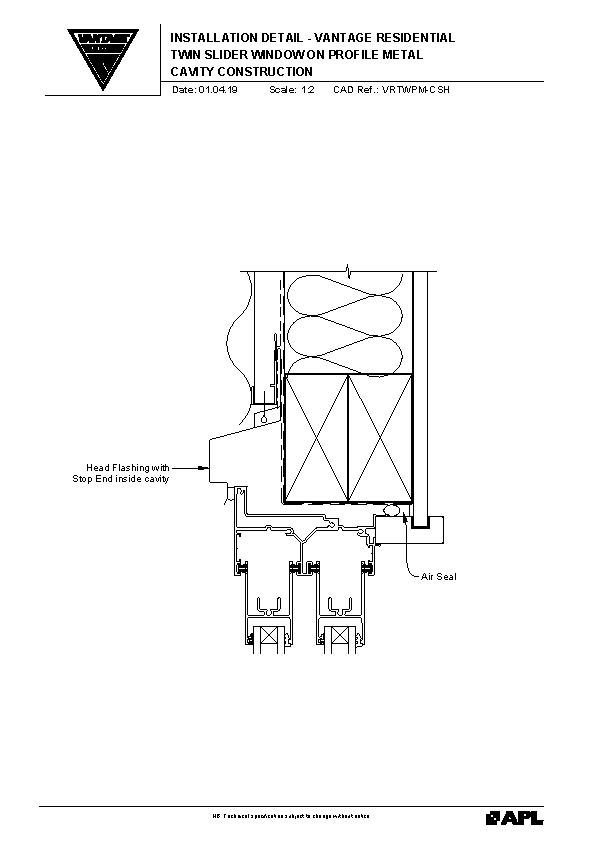

Vantage Residential Twin Slider Window on Profile Metal

VRTWPM

dwg
pdf

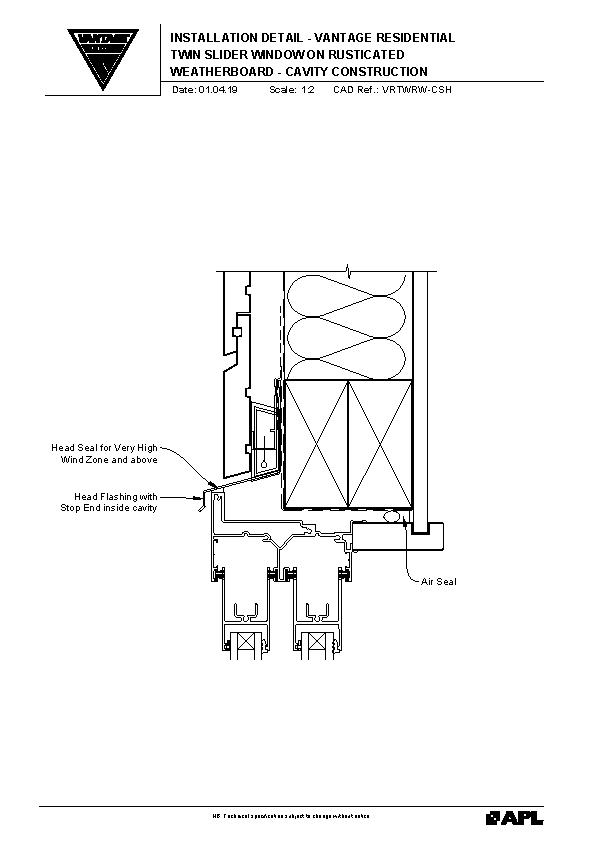

Vantage Residential Twin Slider Window on Rusticated Weatherboard

VRTWRW

dwg
pdf
Vantage Residential Twin Slider Window on Stucco

VRTWST

dwg
pdf
BIM
View full

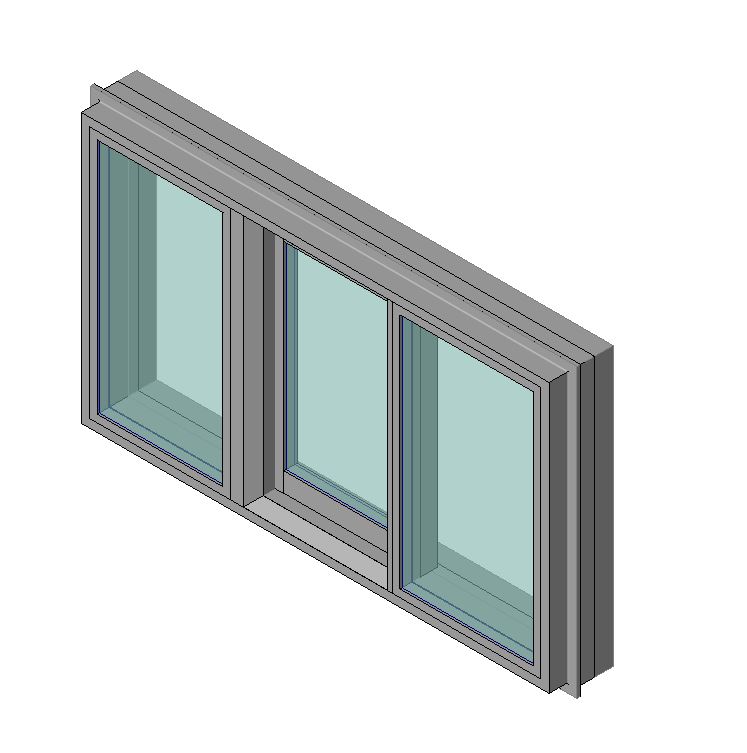

FSF
APL Residential Sliding Window FSF
zip

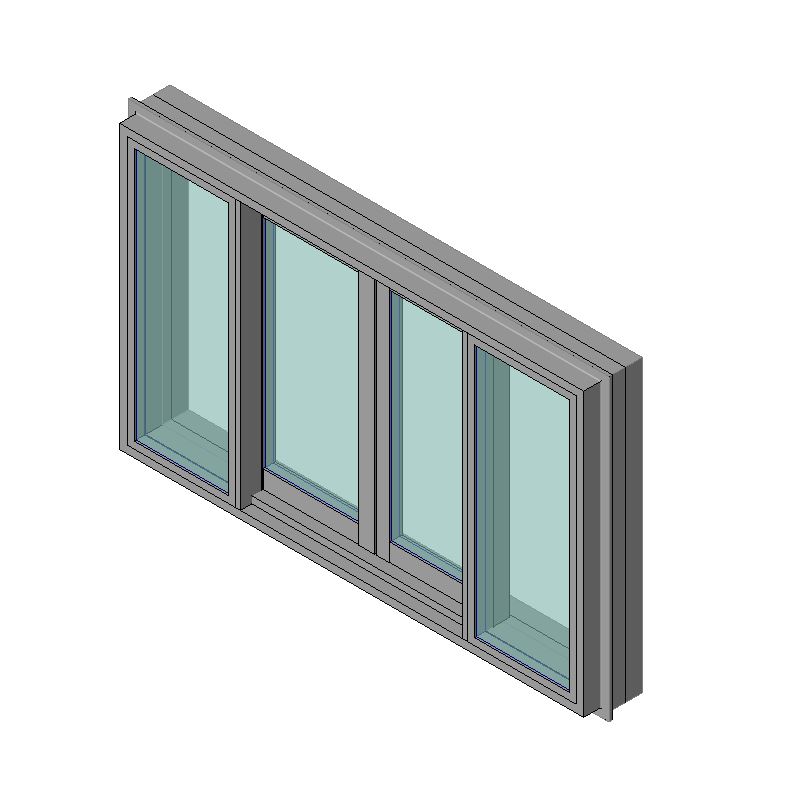

FSSF
APL Residential Sliding Window FSSF
zip

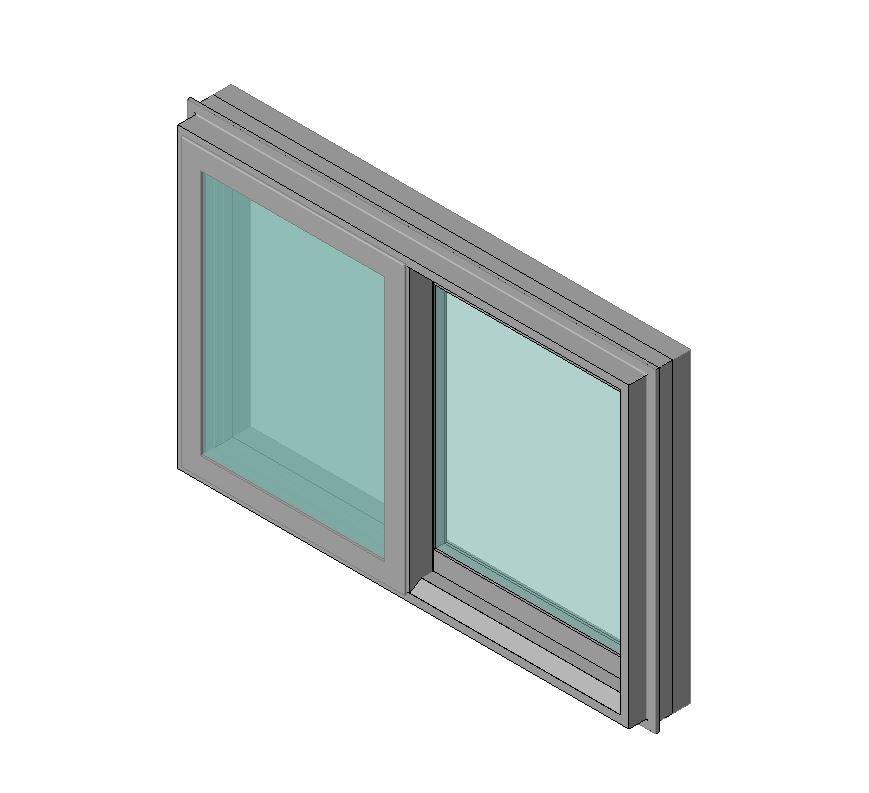

SF
APL Residential Sliding Window SF
zip

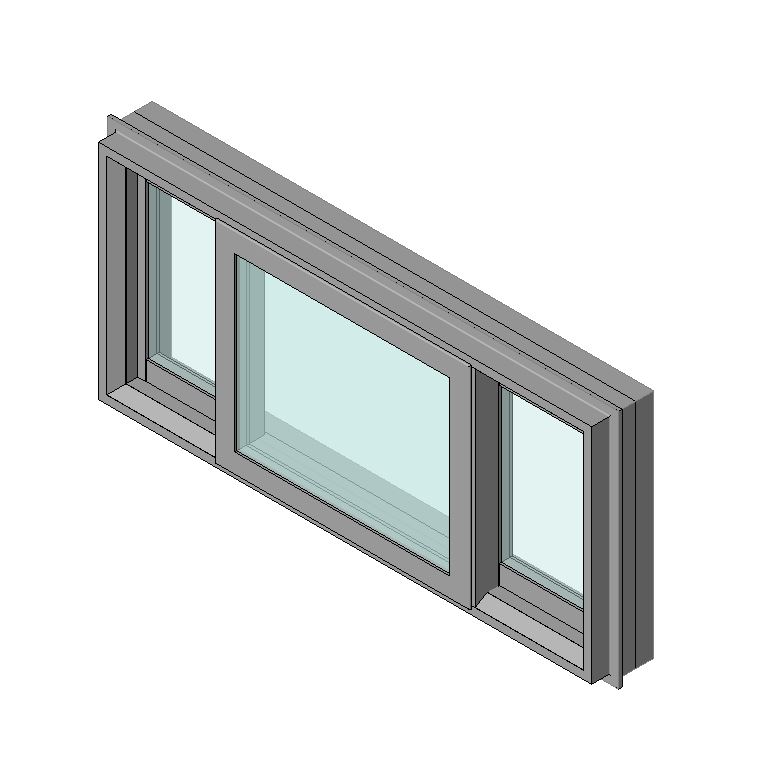

SFS
APL Residential Sliding Window SFS
zip

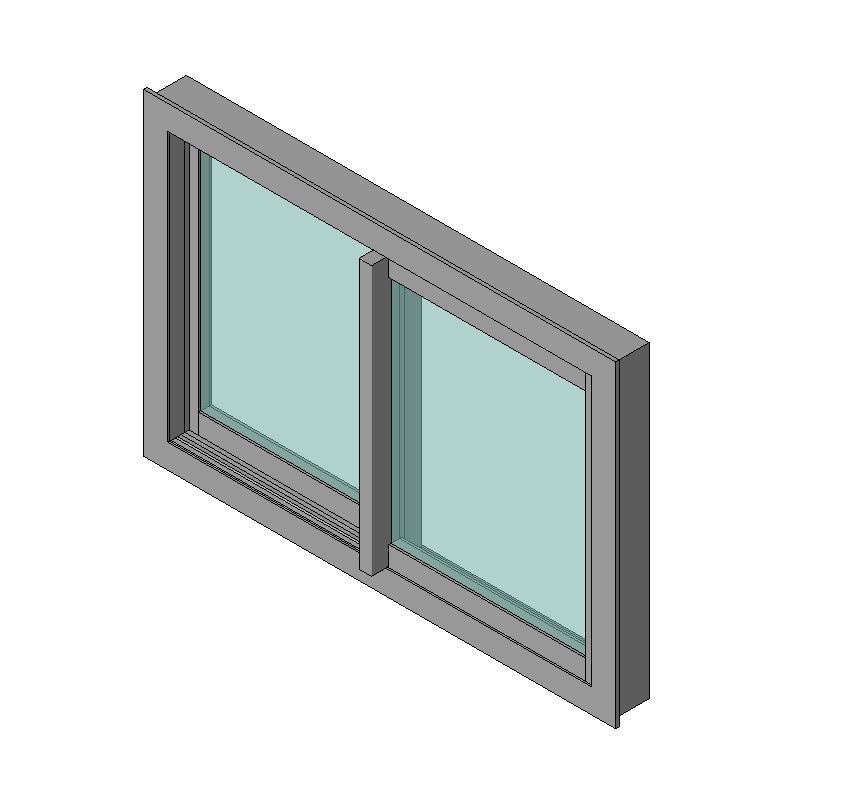

SS
APL Residential Sliding Window SS
zip
